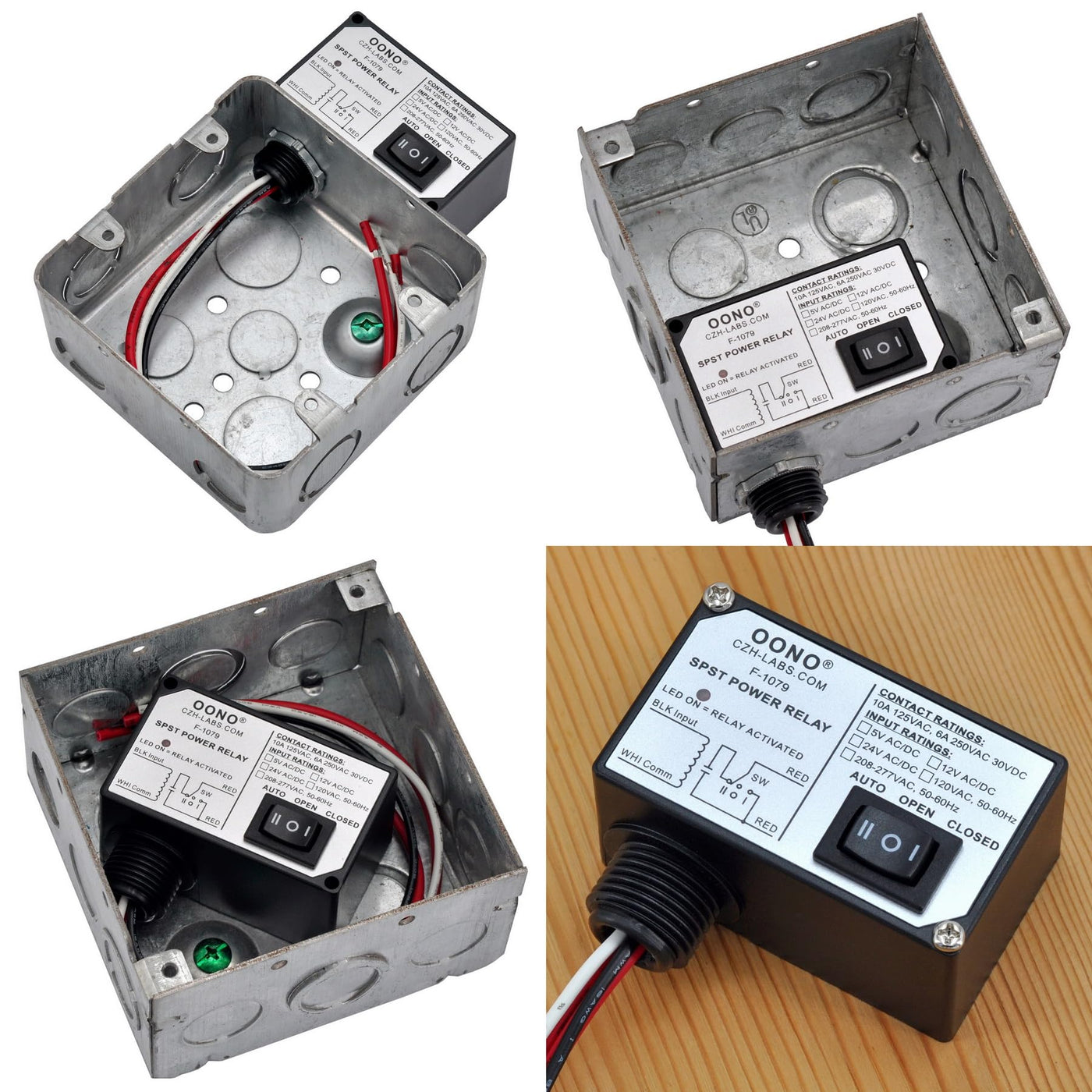

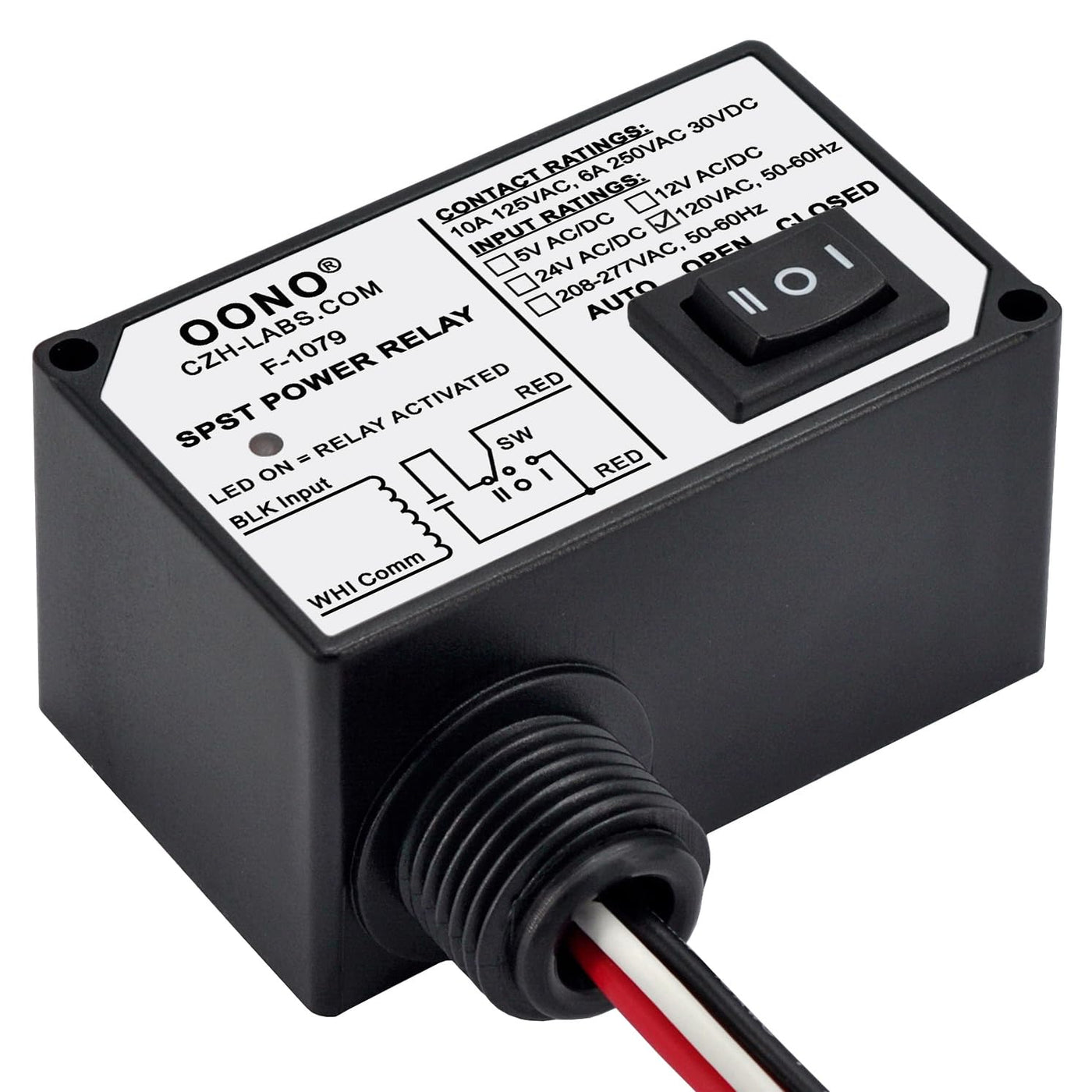

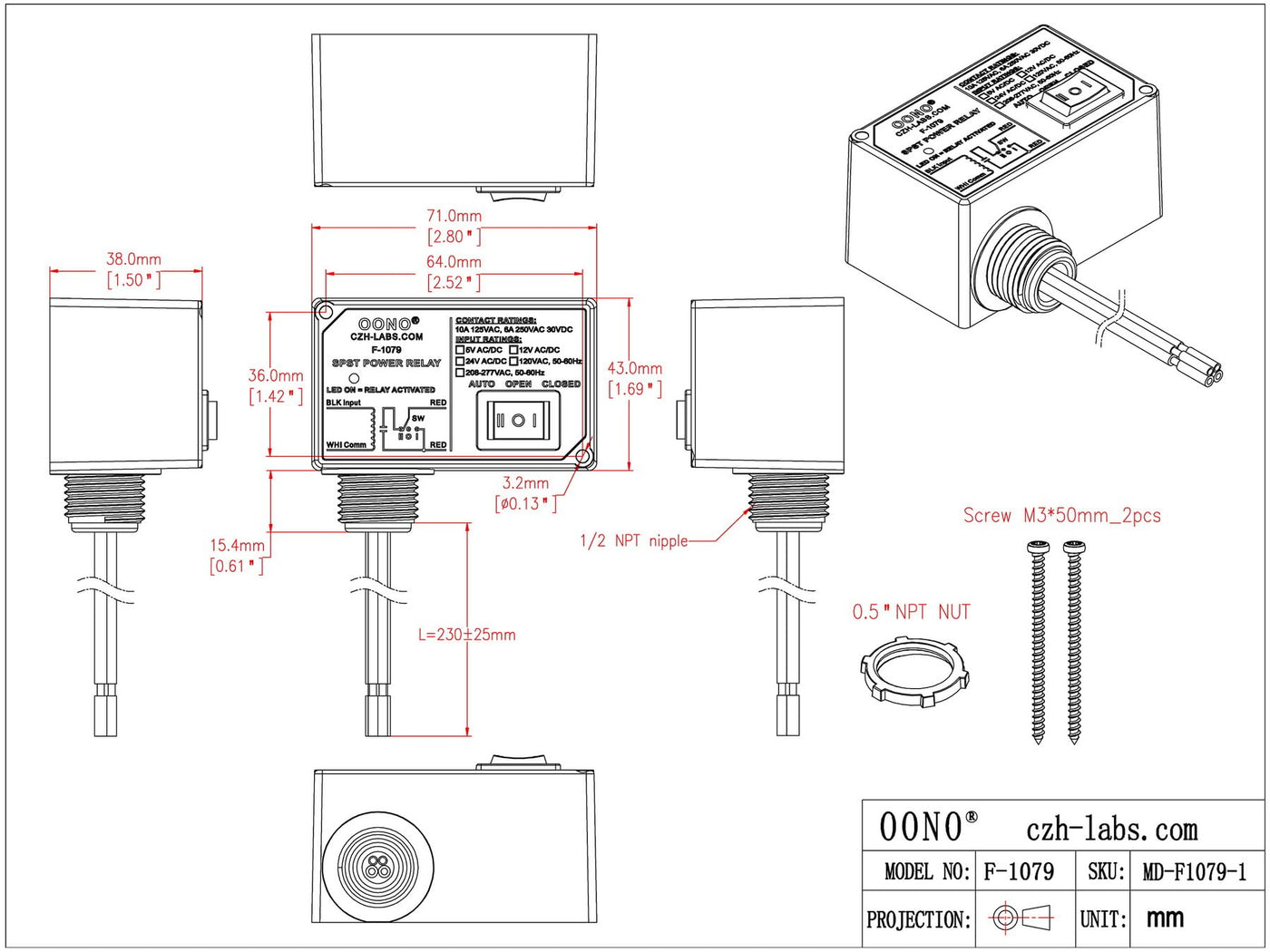

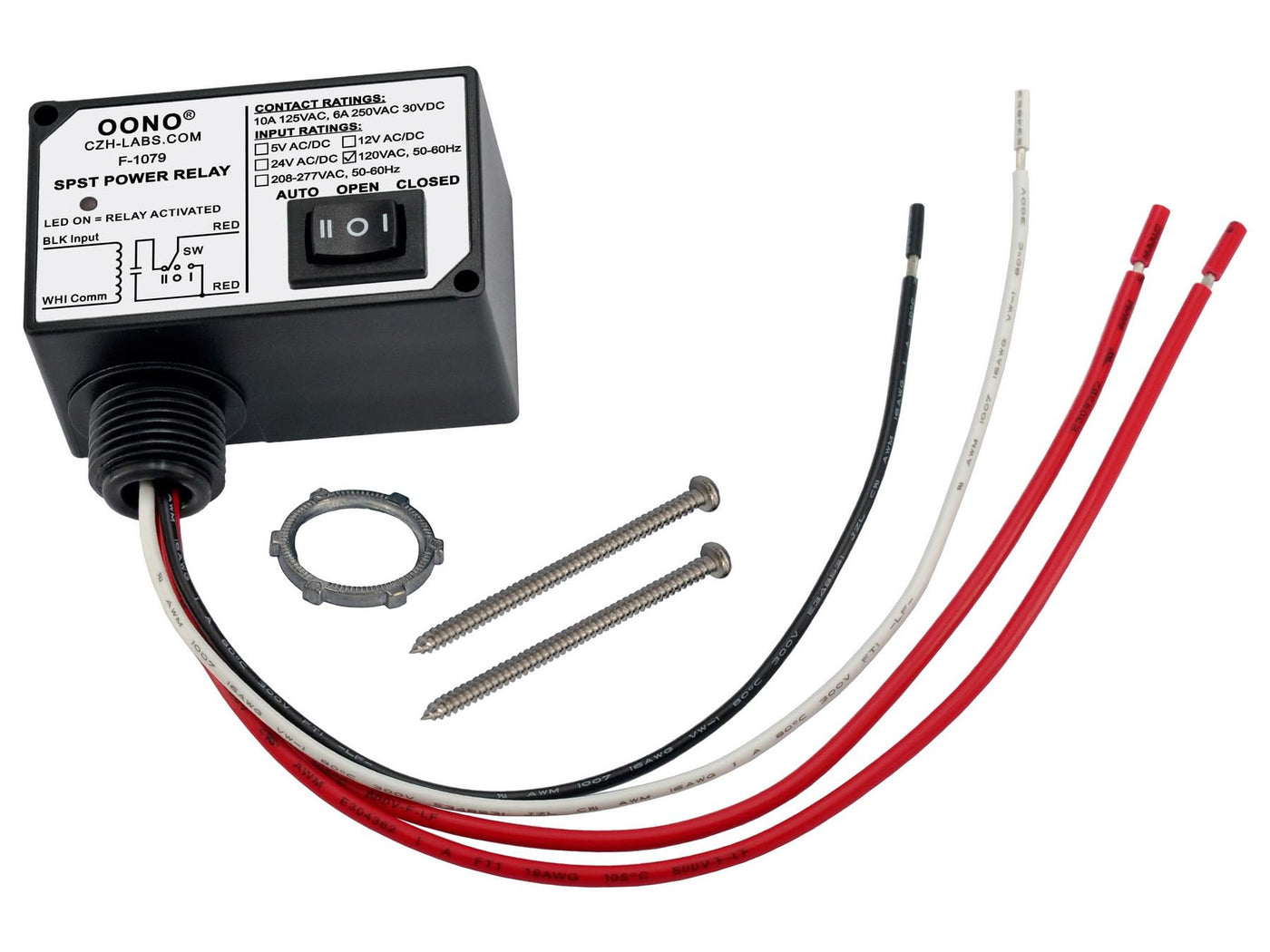

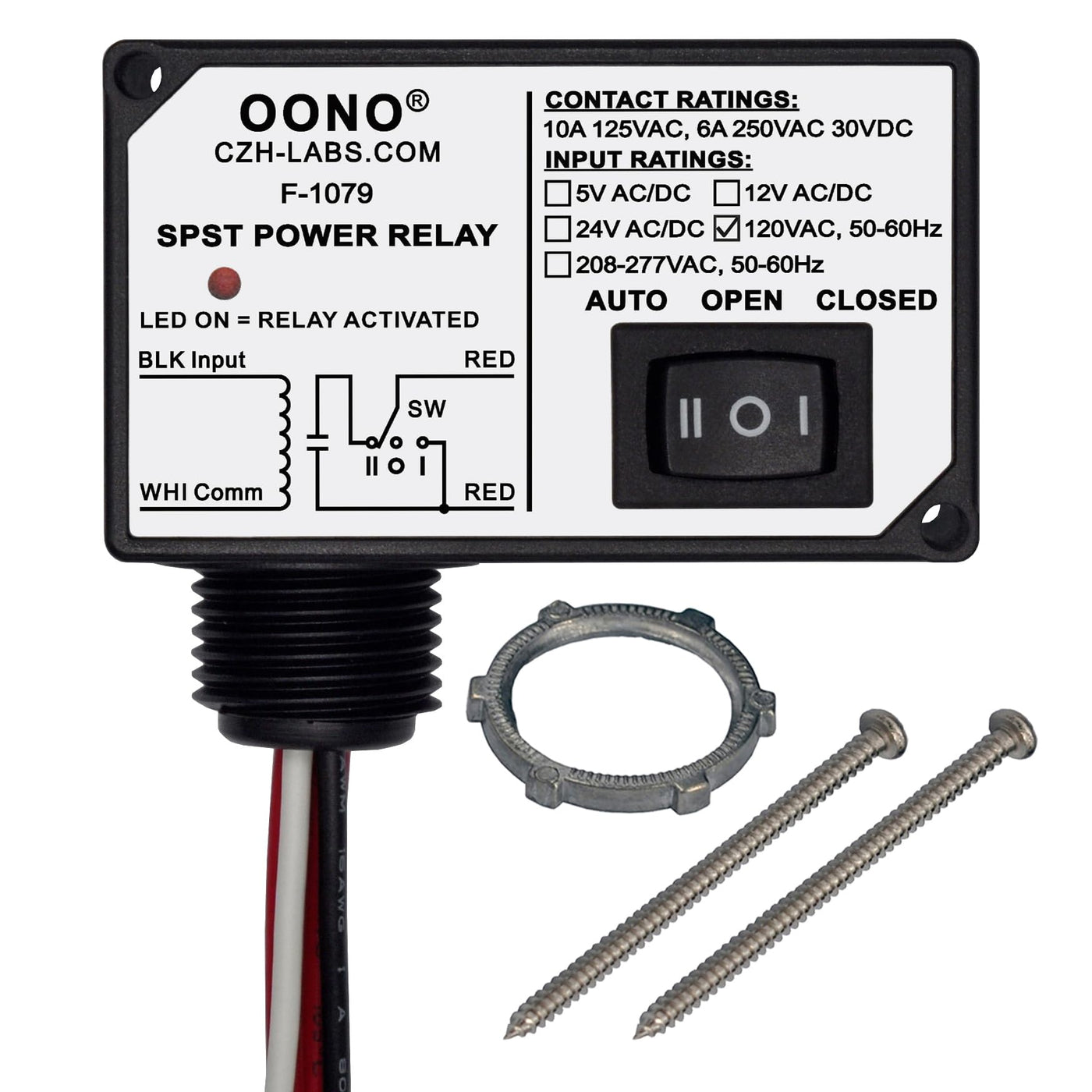

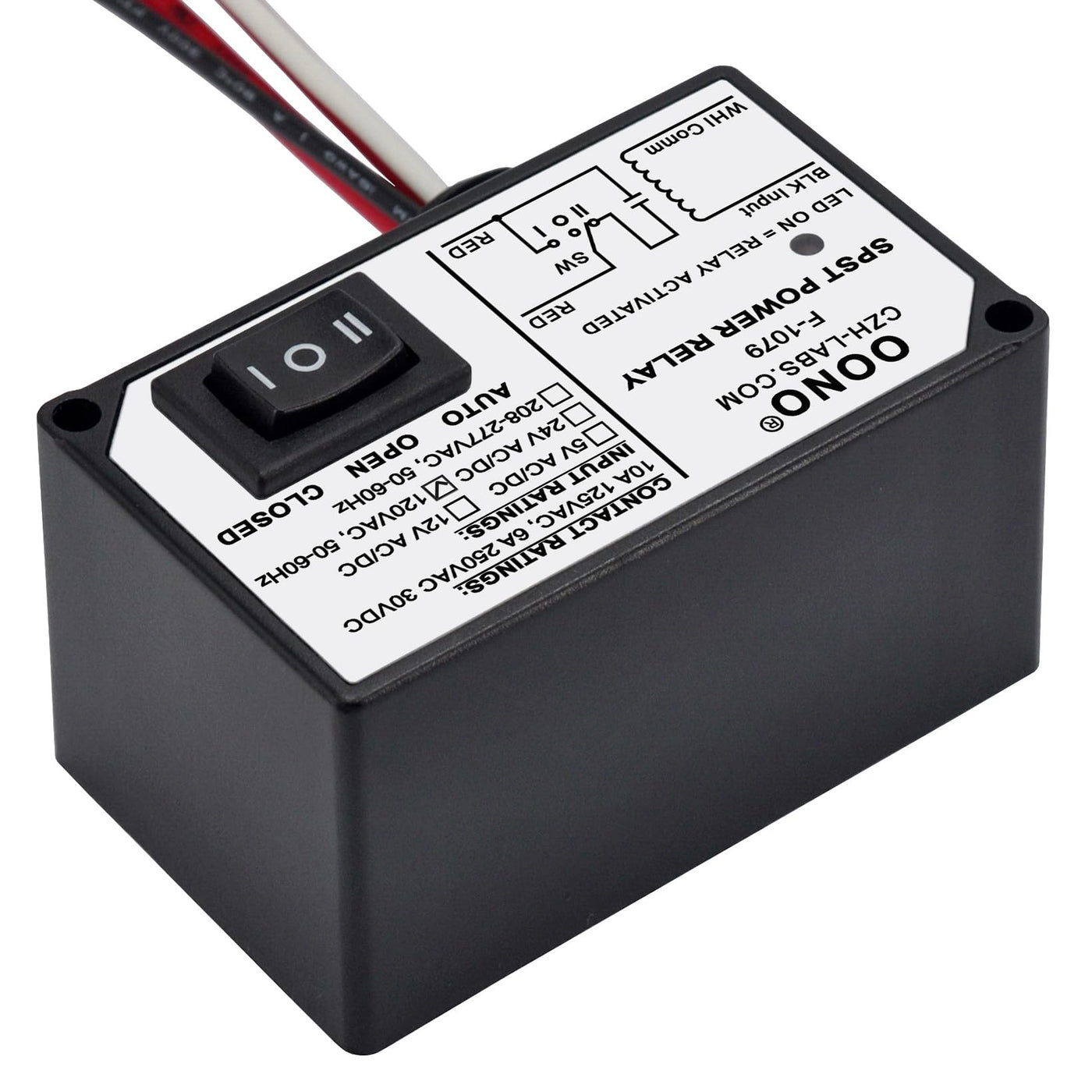

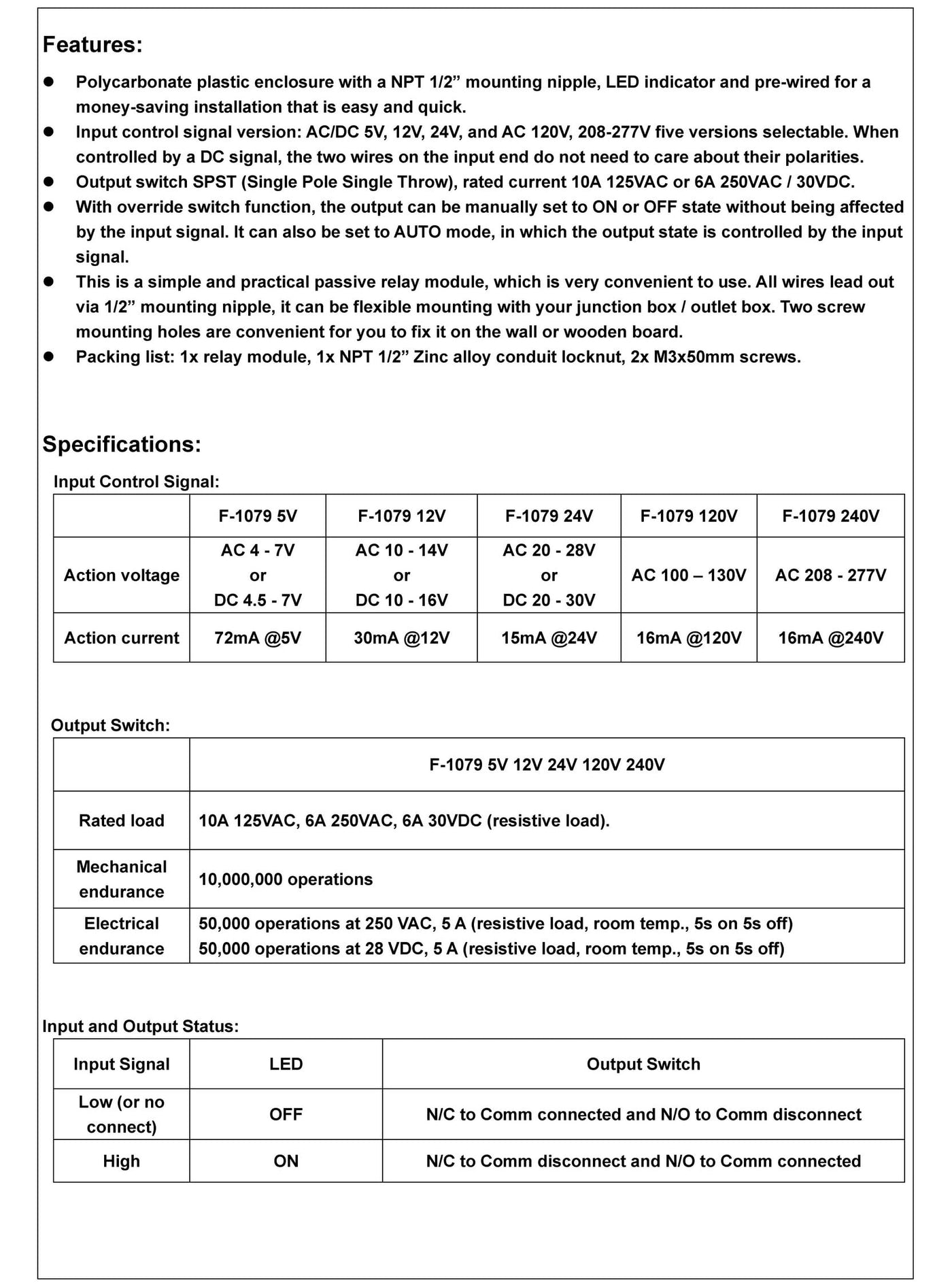

{"id":8050844991668,"title":"AC120V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC\/30Vdc, Plastic Enclosure and Pre-Wired AC 120V","handle":"ac120v-power-relay-module-spsp-no-override-switch-10amp-125vac-6a-250vac-30vdc-plastic-enclosure-and-pre-wired-ac-120v","description":"\u003ch3\u003eAC120V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC\/30Vdc, Plastic Enclosure and Pre-Wired\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1, Polycarbonate plastic enclosure with a NPT 1\/2” mounting nipple, LED\r\nindicator and pre-wired for a money-saving installation that is easy and\r\nquick. 2, Input control signal version: AC\/DC 5V, 12V, 24V, and AC 120V,\r\n208-277V five versions selectable. When controlled by a DC signal, the two\r\nwires on the input end do not need to care about their polarities. 3, Output\r\nswitch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC\r\n\/ 30VDC. 4, With override switch function, the output can be manually set to\r\nON or OFF state without being affected by the input signal. It can also be set\r\nto AUTO mode, in which the output state is controlled by the input signal. 5,\r\nThis is a simple and practical passive relay module, which is very convenient\r\nto use. All wires lead out via 1\/2” mounting nipple, it can be flexible\r\nmounting with your junction box \/ outlet box. Two screw mounting holes are\r\nconvenient for you to fix it on the wall or wooden board. 6, Packing list: 1x\r\nrelay module, 1x NPT 1\/2” Zinc alloy conduit locknut, 2x M3x50mm screws.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePolycarbonate plastic enclosure with a NPT 1\/2 mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.\u003c\/li\u003e\r\n \u003cli\u003eInput control signal voltage AC 120V, current 16mA.\u003c\/li\u003e\r\n \u003cli\u003eOutput switch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC \/ 30VDC.\u003c\/li\u003e\r\n \u003cli\u003eWith override switch function, the output can be manually set to ON or OFF state without being affected by the input signal. It can also be set to AUTO mode, in which the output state is controlled by the input signal.\u003c\/li\u003e\r\n \u003cli\u003eThis is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1\/2 mounting nipple, it can be flexible mounting with your junction box \/ outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.\u003c\/li\u003e\r\n \u003cli\u003ePacking list: 1x relay module, 1x NPT 1\/2 Zinc alloy conduit locknut, 2x M3x50mm screws.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-04T18:13:43+10:00","created_at":"2026-05-04T18:13:39+10:00","vendor":"OONO","type":"Relays","tags":["industrial_April2026"],"price":14000,"price_min":14000,"price_max":14000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44214968680628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DRTGB7K9","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AC120V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC\/30Vdc, Plastic Enclosure and Pre-Wired AC 120V","public_title":null,"options":["Default Title"],"price":14000,"weight":127,"compare_at_price":null,"inventory_management":"shopify","barcode":"F-1079 Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DRTGB7K9.jpg?v=1777993861","\/\/auspowers.com\/cdn\/shop\/files\/71gR0e5V_cL.jpg?v=1777882422","\/\/auspowers.com\/cdn\/shop\/files\/717MHlbYdSL.jpg?v=1777882422","\/\/auspowers.com\/cdn\/shop\/files\/81bQcjn3BVL.jpg?v=1777882422","\/\/auspowers.com\/cdn\/shop\/files\/716vYOIrq3L.jpg?v=1777882422","\/\/auspowers.com\/cdn\/shop\/files\/819YdmHXE0L.jpg?v=1777882422","\/\/auspowers.com\/cdn\/shop\/files\/71r-x0mzUhL.jpg?v=1777882422"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DRTGB7K9.jpg?v=1777993861","options":["Title"],"media":[{"alt":null,"id":32911641411764,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1749,"width":1749,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DRTGB7K9.jpg?v=1777993861"},"aspect_ratio":1.0,"height":1749,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DRTGB7K9.jpg?v=1777993861","width":1749},{"alt":null,"id":32911641444532,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71gR0e5V_cL.jpg?v=1777882422"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71gR0e5V_cL.jpg?v=1777882422","width":1800},{"alt":null,"id":32911641477300,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1494,"width":1494,"src":"\/\/auspowers.com\/cdn\/shop\/files\/717MHlbYdSL.jpg?v=1777882422"},"aspect_ratio":1.0,"height":1494,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/717MHlbYdSL.jpg?v=1777882422","width":1494},{"alt":null,"id":32911641510068,"position":4,"preview_image":{"aspect_ratio":0.74,"height":2250,"width":1665,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81bQcjn3BVL.jpg?v=1777882422"},"aspect_ratio":0.74,"height":2250,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81bQcjn3BVL.jpg?v=1777882422","width":1665},{"alt":null,"id":32911641542836,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/716vYOIrq3L.jpg?v=1777882422"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/716vYOIrq3L.jpg?v=1777882422","width":1800},{"alt":null,"id":32911641575604,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/819YdmHXE0L.jpg?v=1777882422"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/819YdmHXE0L.jpg?v=1777882422","width":1800},{"alt":null,"id":32911641608372,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1640,"width":1640,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71r-x0mzUhL.jpg?v=1777882422"},"aspect_ratio":1.0,"height":1640,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71r-x0mzUhL.jpg?v=1777882422","width":1640}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAC120V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC\/30Vdc, Plastic Enclosure and Pre-Wired\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1, Polycarbonate plastic enclosure with a NPT 1\/2” mounting nipple, LED\r\nindicator and pre-wired for a money-saving installation that is easy and\r\nquick. 2, Input control signal version: AC\/DC 5V, 12V, 24V, and AC 120V,\r\n208-277V five versions selectable. When controlled by a DC signal, the two\r\nwires on the input end do not need to care about their polarities. 3, Output\r\nswitch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC\r\n\/ 30VDC. 4, With override switch function, the output can be manually set to\r\nON or OFF state without being affected by the input signal. It can also be set\r\nto AUTO mode, in which the output state is controlled by the input signal. 5,\r\nThis is a simple and practical passive relay module, which is very convenient\r\nto use. All wires lead out via 1\/2” mounting nipple, it can be flexible\r\nmounting with your junction box \/ outlet box. Two screw mounting holes are\r\nconvenient for you to fix it on the wall or wooden board. 6, Packing list: 1x\r\nrelay module, 1x NPT 1\/2” Zinc alloy conduit locknut, 2x M3x50mm screws.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePolycarbonate plastic enclosure with a NPT 1\/2 mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.\u003c\/li\u003e\r\n \u003cli\u003eInput control signal voltage AC 120V, current 16mA.\u003c\/li\u003e\r\n \u003cli\u003eOutput switch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC \/ 30VDC.\u003c\/li\u003e\r\n \u003cli\u003eWith override switch function, the output can be manually set to ON or OFF state without being affected by the input signal. It can also be set to AUTO mode, in which the output state is controlled by the input signal.\u003c\/li\u003e\r\n \u003cli\u003eThis is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1\/2 mounting nipple, it can be flexible mounting with your junction box \/ outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.\u003c\/li\u003e\r\n \u003cli\u003ePacking list: 1x relay module, 1x NPT 1\/2 Zinc alloy conduit locknut, 2x M3x50mm screws.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
