AC Voltmeter Ammeter Digital Multimeter Voltage Ampere Meter Panel AC 80-260V 110v 220v 20A Electrical Volt Current Power Energy Monitor Tester Gauge with LCD Display & Built-in Shunt
AC Voltmeter Ammeter Digital Multimeter Voltage Ampere Meter Panel AC 80-260V 110v 220v 20A Electrical Volt Current Power Energy Monitor Tester Gauge with LCD Display & Built-in Shunt
AC 80-260V 20A Blue Backlit Digital Current Voltage Power Energy Meter Multimeter Ammeter Voltmeter with Built-in Current Shunt Specification: Voltage Test Range: AC 80-260V Voltage Display: 80-260V Current Test Range: 0-20A Current Display: 0.00-20.00A Power Test Range: 0-4.5kW Power Display: 0.0-999.9W(<1kW), 1000~4500W(1-4.5KW) Energy Test Range: 0-9999kWh Energy Display: 0-9999Wh(<10kWh), 10-9999kWh(10-9999kWh) Working Frequency: 45-65Hz Measuring Accuracy: 1.0 grade Dimension: 90 x 50 x 24 mm Screen Size: 51 x 30 mm Package Included: 1x AC 80-260V 20A Power Multimeter 1x User Manual
Product Features

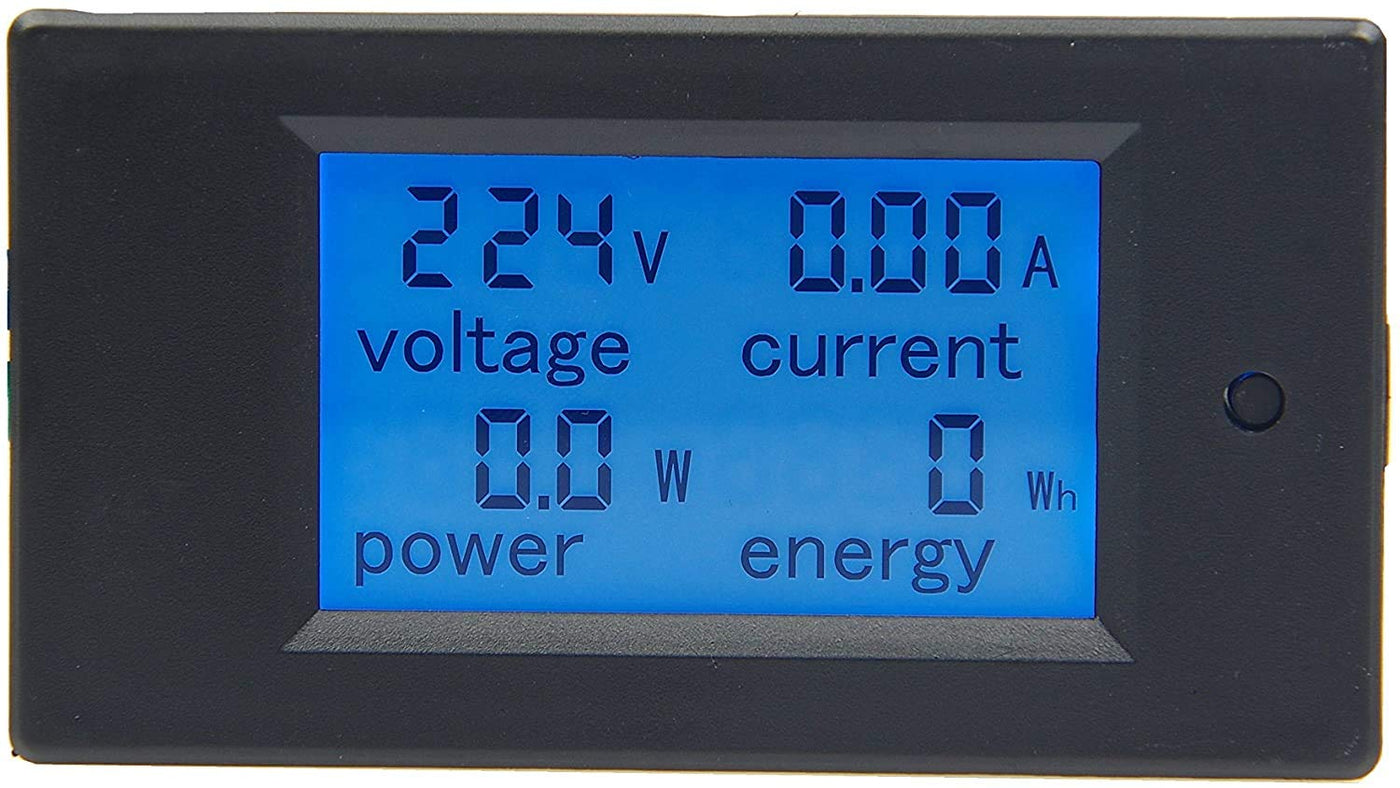

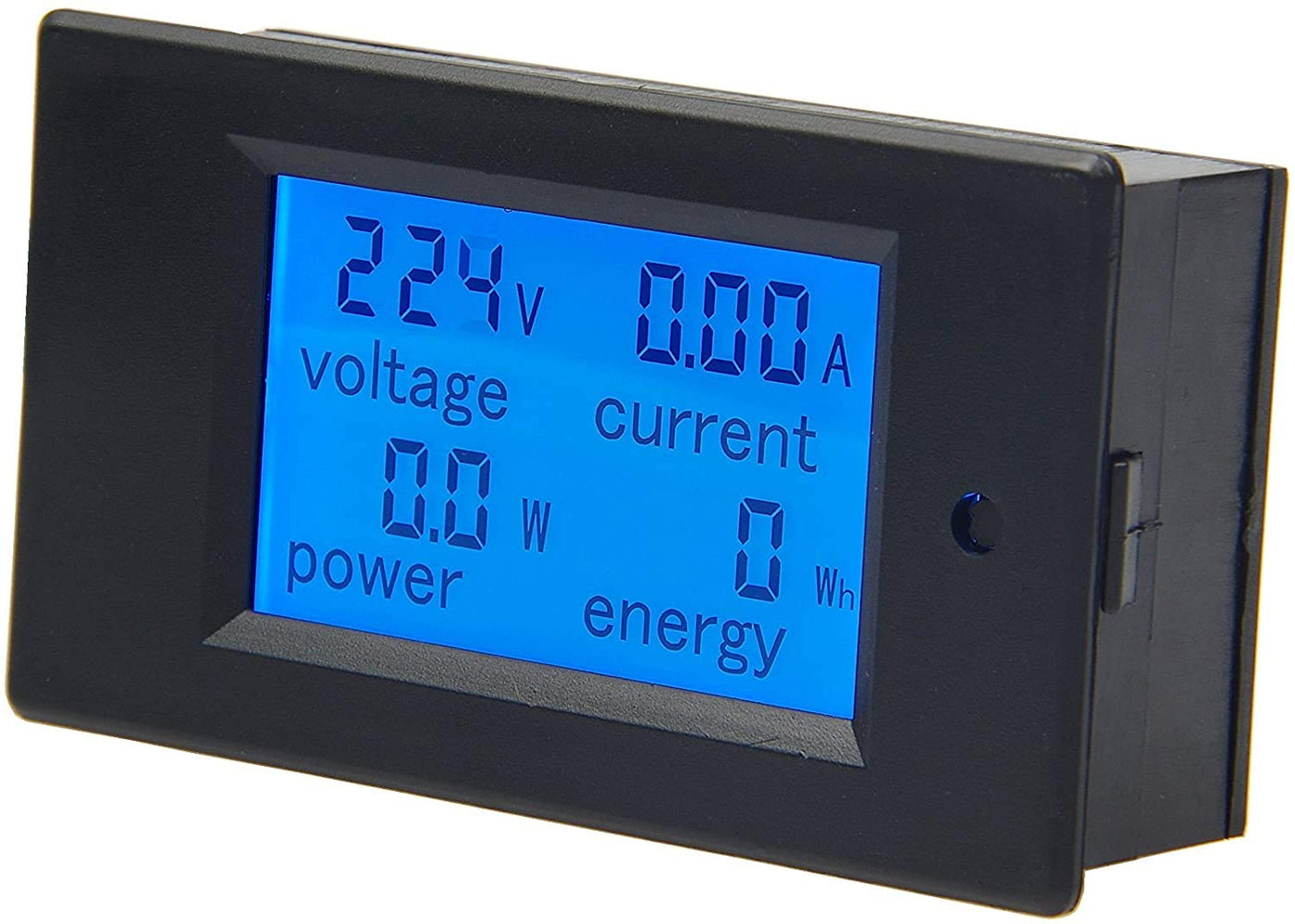

- It is a compact, lightweight and functional multi-meter, with large-screen LCD display, can display Voltage, current, active power and energy at the same time it does NOT control or effect the load in any way
- Voltage test range: AC 80~260v; current test range: 0~100a; power test range: 0~22kw; energy test range: 0~9999kwh
- Display has great visibility, very bright and Clear; the Blue backlight can be turned on/off by the front accessible recessed switch located on the Right side bezel
- Multifunctional: the accumulated energy can be reset by button; store data when power off; power alarm threshold preset function; overload alarm function (over power alarm threshold, backlight and power will Flash to alarm)
- Perfect to work with a generator or solar panel setup, also great to monitor accumulated energy usage on devices that cycle on and refrigerator, dehumidifier, washing machine, wall a/C unit) and the phantom load(cable Modem, router, dvr)
