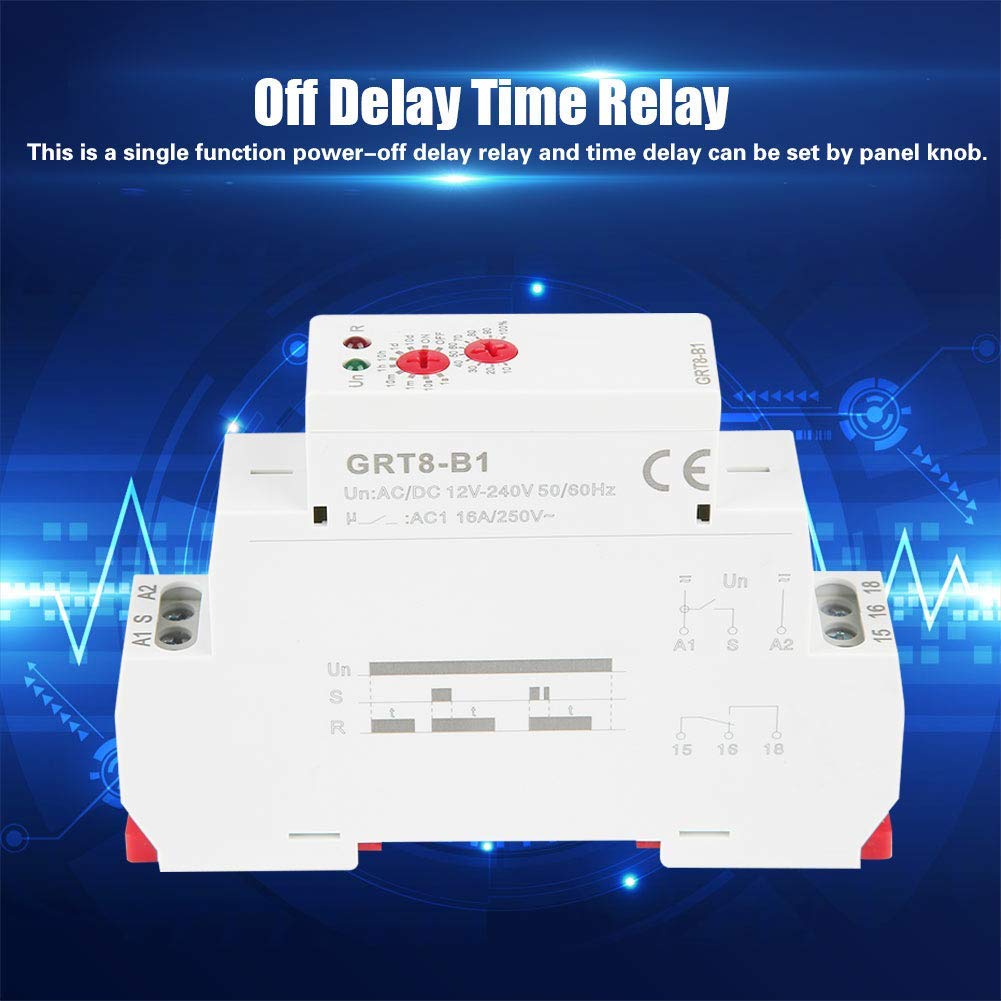

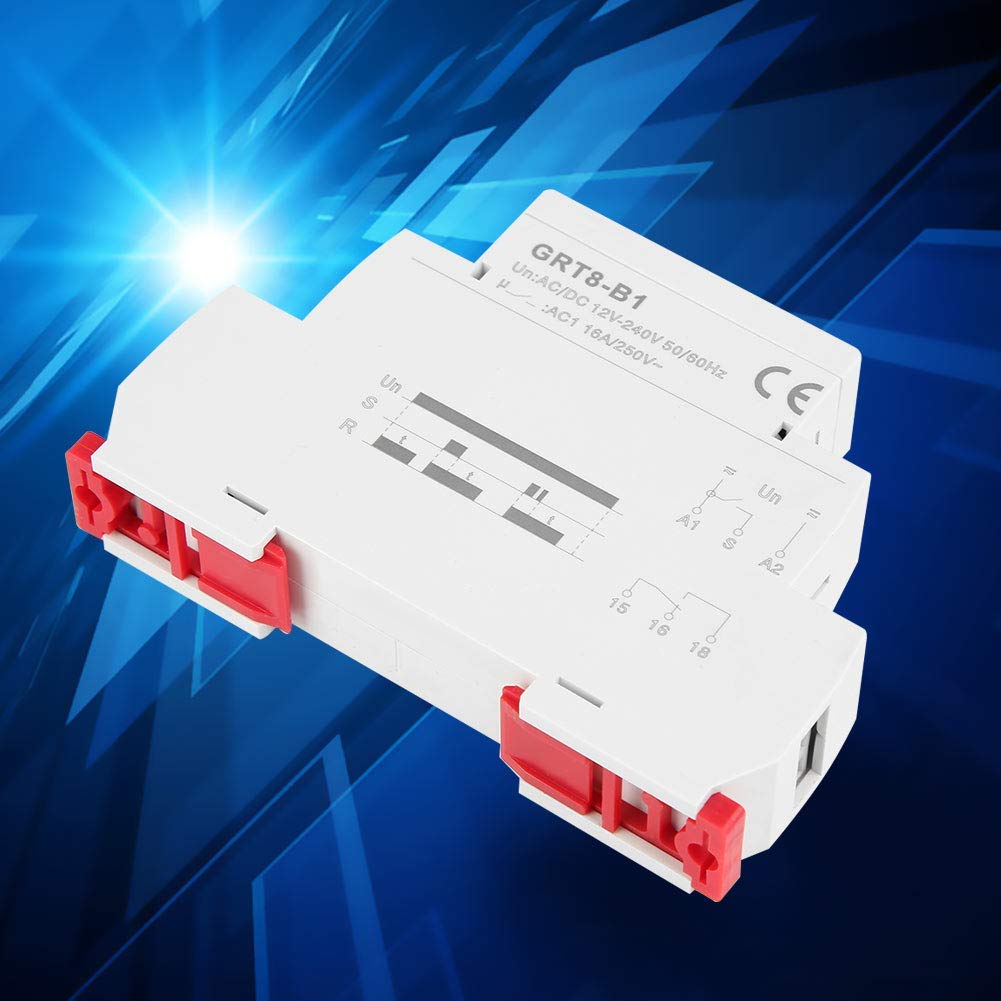

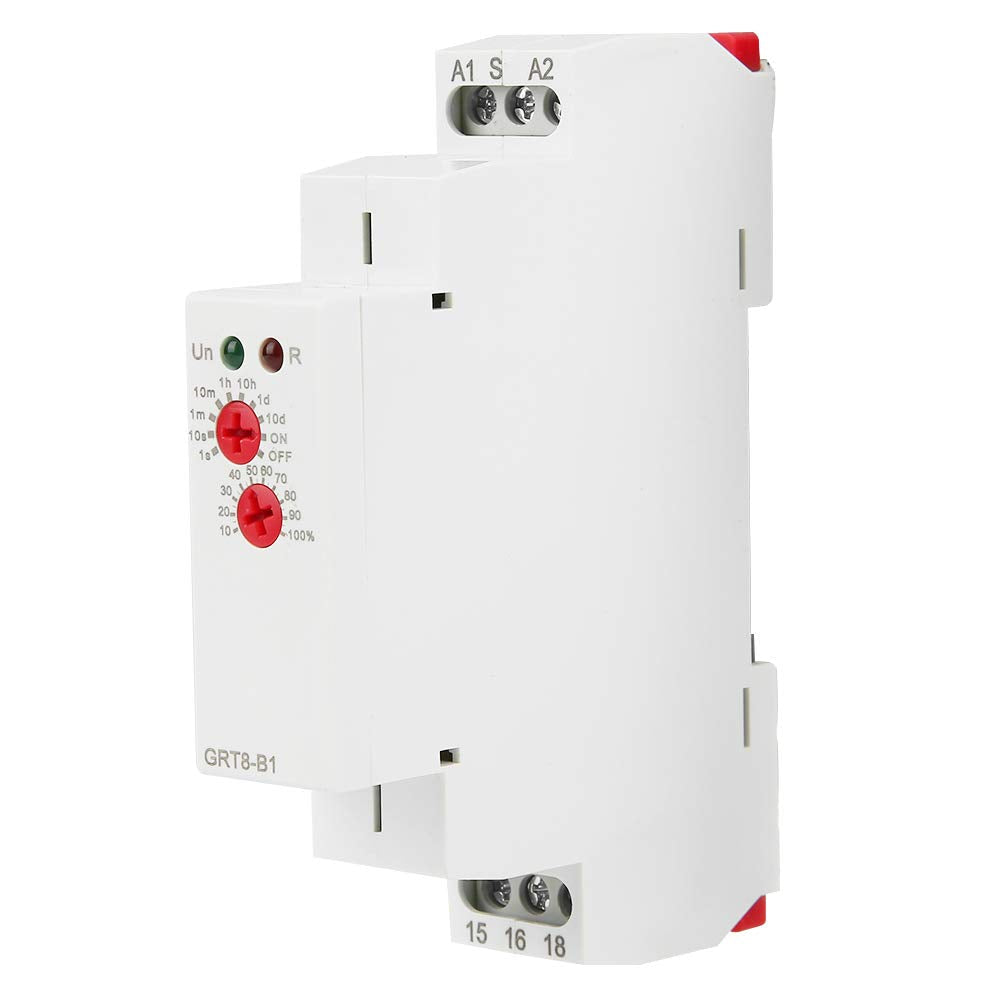

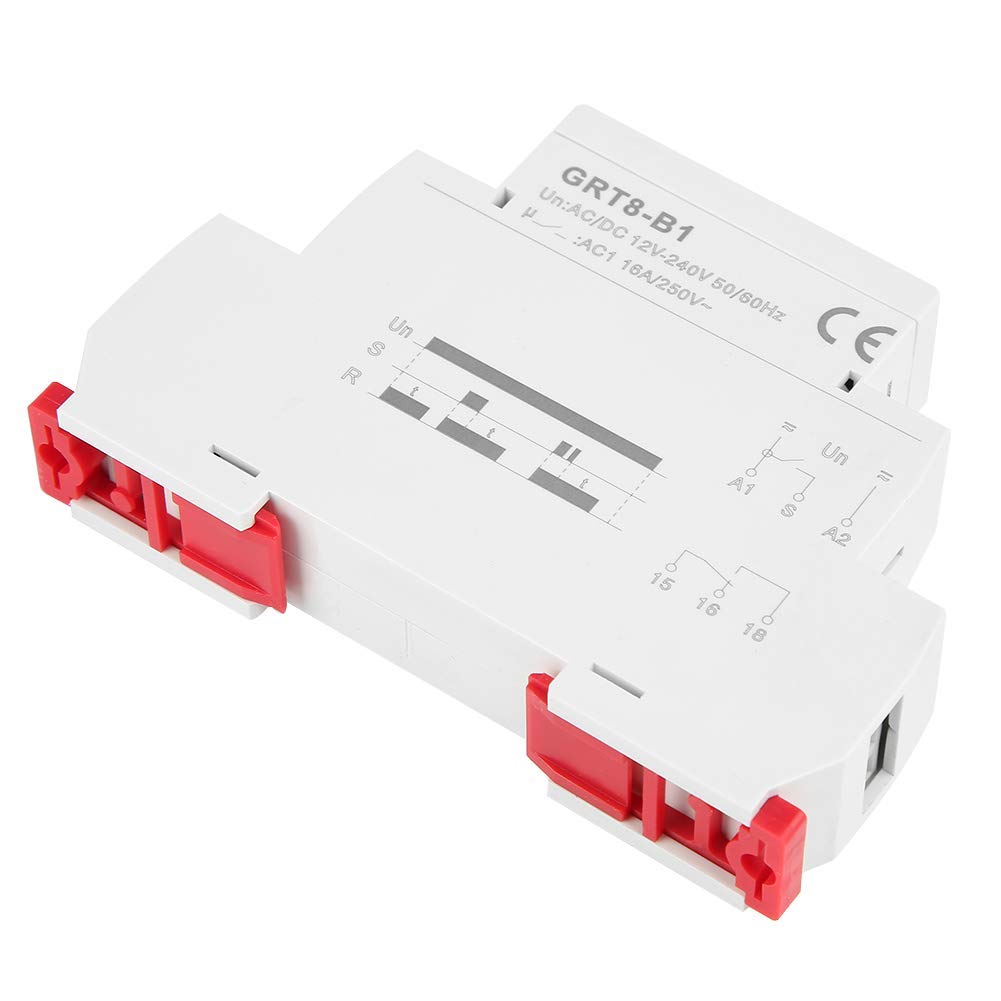

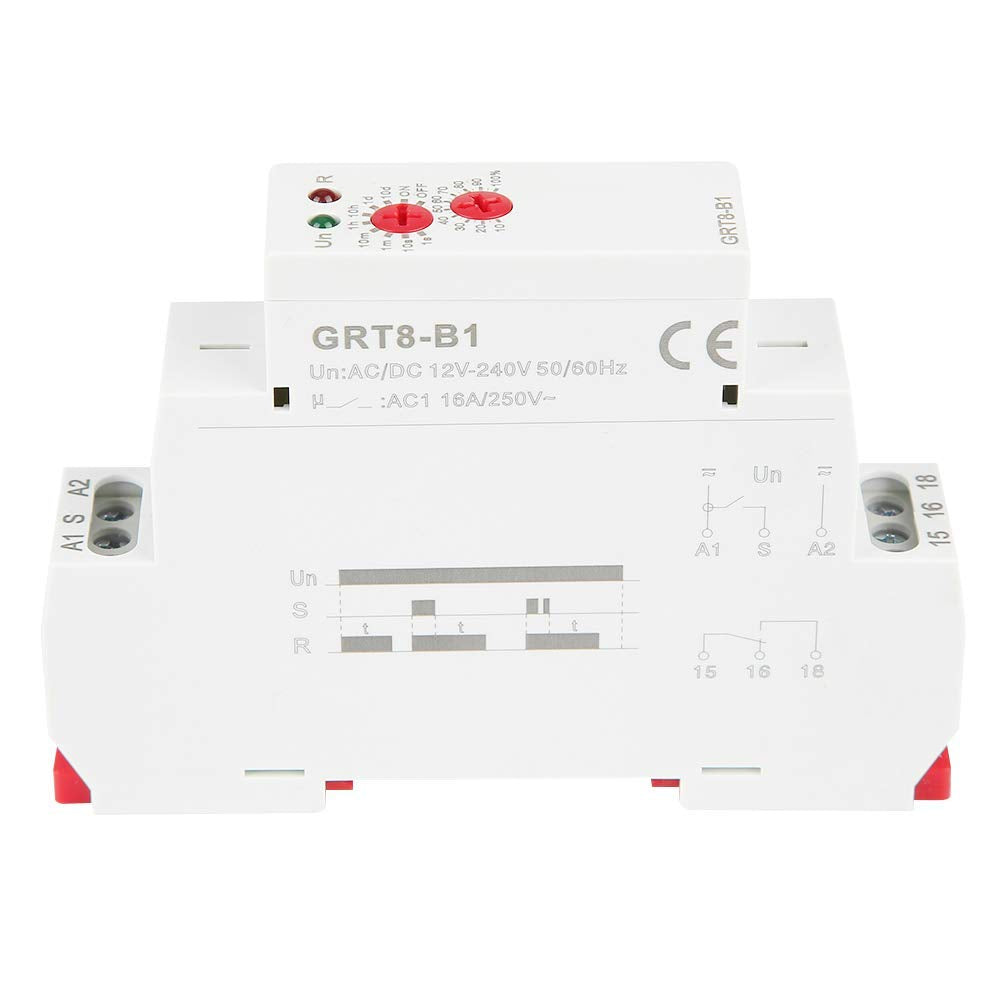

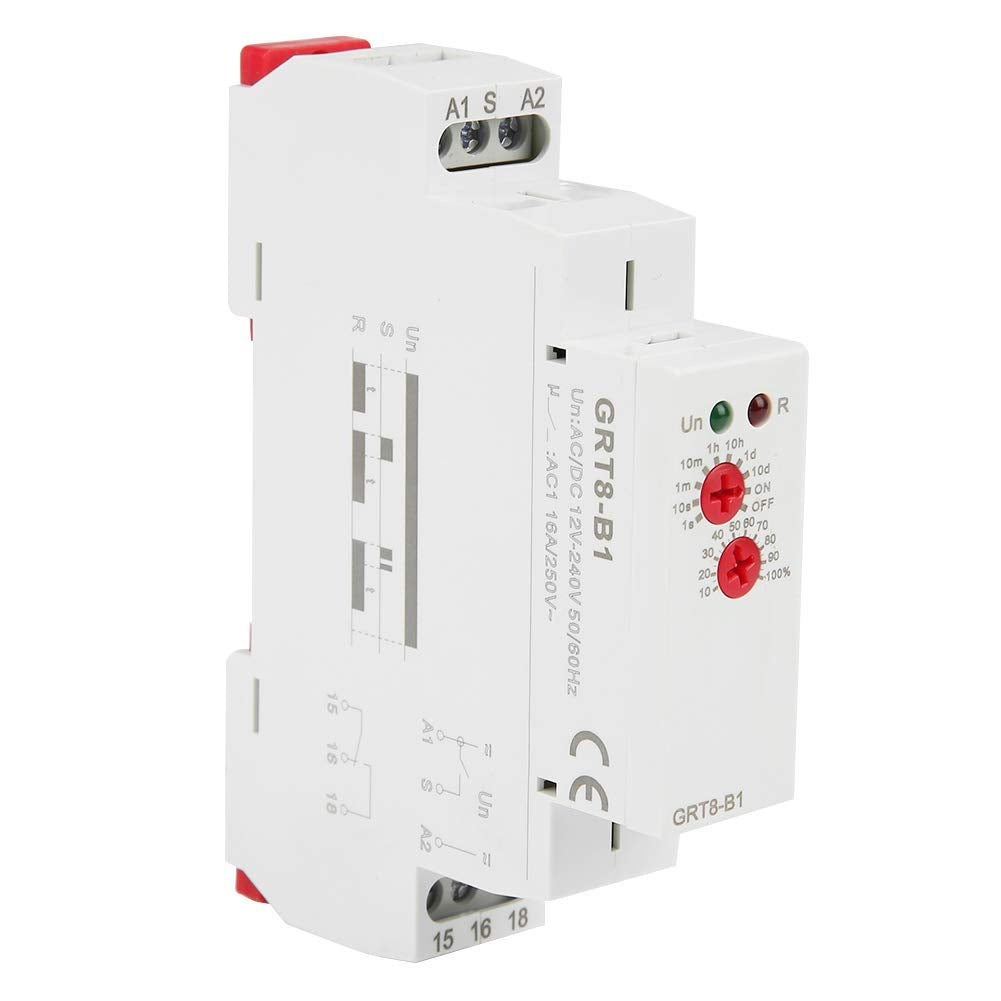

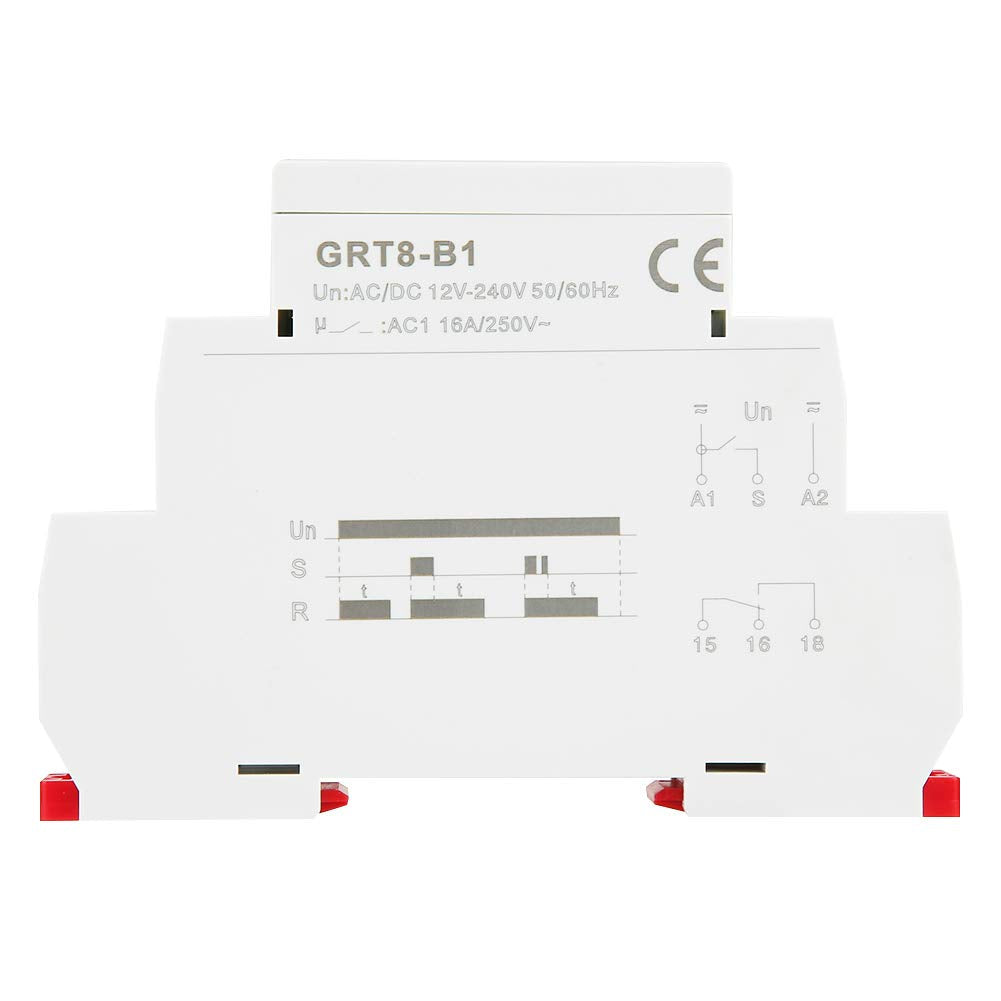

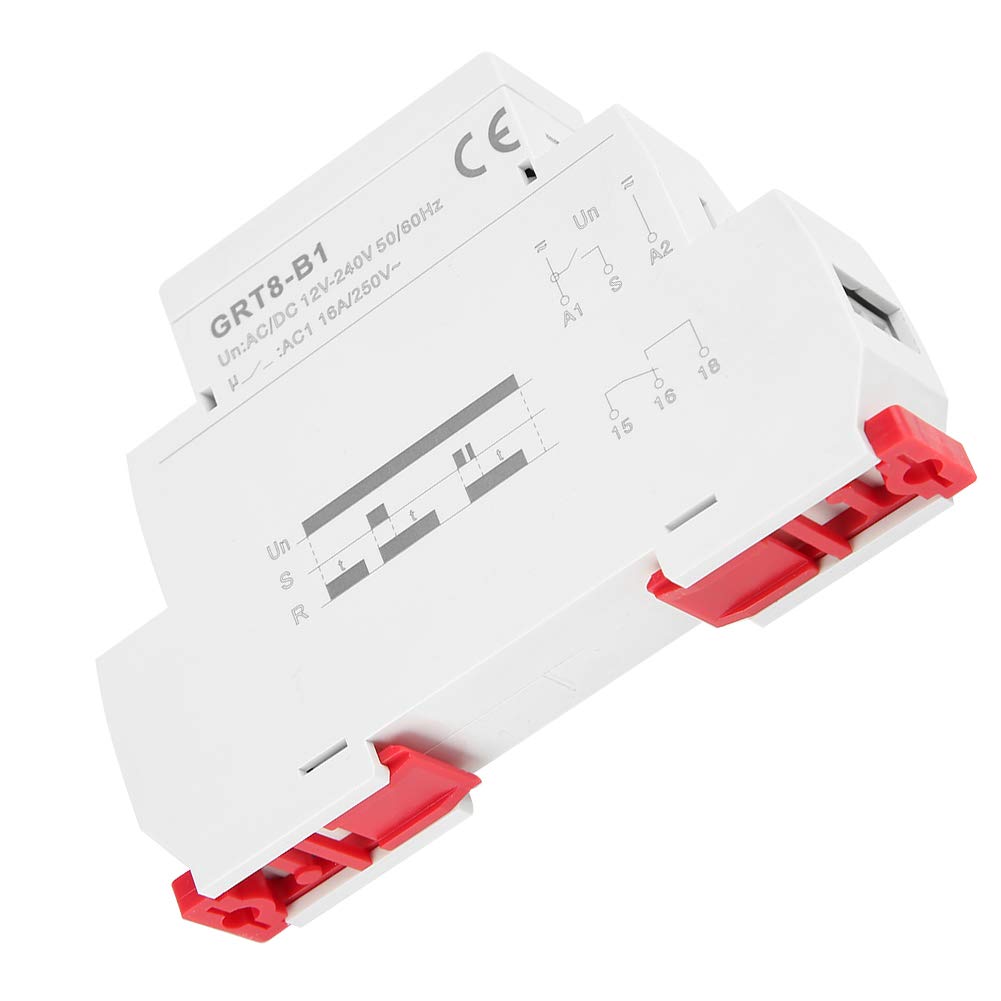

{"id":7170936733876,"title":"AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay","handle":"ac-dc-12v-240v-grt8-b1-mini-power-off-delay-time-relay-35mm-din-rail-single-function-time-off-delay-relay-set-by-panel-knob-for-power-off-delay","description":"\u003ch3\u003eAC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures:1. This is a single function power-off delay relay and time delay can\nbe set by panel knob.2. Super wide time delay range of 0.1s - 10days.3. With\nAC\/DC 12V-240V working voltage.4. Relay working status is indicated by LED\nindicators.5. With super small volume, this relay can be mounted on 35mm DIN\nrail. Specification:Function: Delay OFFRated power supply voltage: AC\/DC\n12-240V (50-60Hz)Power terminal: A1-A2Power consumption: AC 0.09-3VA\/DC\n0.05-1.7WSetting method: knobPower indicator: Green LEDDelay range: 0.1s-10\ndays, normally open, normally closedSetting accuracy: 10%Output contact: 1 x\nSPDT, 16A\/AC1, 250VAC\/24VDCMinimum switching power: 500mWOutput relay\nindication: red LEDMechanical life: 1x107Reset time: Max 200msWorking\ntemperature: -20℃~55℃Mounting method: 35mm DIN railMounting altitude:\n≤2000mWeight: Approx. 74g\/2.6oz Package list:1 Off Delay Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Description: Our AC\/DC 12V~240V GRT8-B1 mini power off delay time relay is a single function power-off delay relay and time delay can be set by panel knob\u003c\/li\u003e\n \u003cli\u003eMini Volume: This single function power off delay relay with super small volume can be mounted on 35mm DIN rail\u003c\/li\u003e\n \u003cli\u003eWide Delay Range: This 35mm DIN rail power off time relay has a super wide time delay range of 0.1s - 10days\u003c\/li\u003e\n \u003cli\u003eLED Indicator: The relay working status is indicated by LED indicators\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: The working voltage of our GRT8-B1 mini off timer delay relay is AC\/DC 12V-240V\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-27T20:33:07+10:00","created_at":"2022-06-27T20:33:15+10:00","vendor":"Oumefar","type":"Electromechanical Relays","tags":["industrial"],"price":17500,"price_min":17500,"price_max":17500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41611489247412,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08P53JFD1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay","public_title":null,"options":["Default Title"],"price":17500,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"9588081511116","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08P53JFD1.jpg?v=1656398945","\/\/auspowers.com\/cdn\/shop\/products\/51ReP2uSAOL.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/617J5eBu0LL.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/61GCe2-xa_L.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/51B4Uqfa3EL.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/51EASsnbTfL.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/41NjW52e6HL.jpg?v=1656325995","\/\/auspowers.com\/cdn\/shop\/products\/51Yb8H-zdpL.jpg?v=1656325995"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08P53JFD1.jpg?v=1656398945","options":["Title"],"media":[{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26320353296564,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08P53JFD1.jpg?v=1656398945"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08P53JFD1.jpg?v=1656398945","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825060532,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ReP2uSAOL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ReP2uSAOL.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825093300,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/617J5eBu0LL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/617J5eBu0LL.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825126068,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61GCe2-xa_L.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61GCe2-xa_L.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825158836,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51B4Uqfa3EL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51B4Uqfa3EL.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825191604,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51EASsnbTfL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51EASsnbTfL.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825224372,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41NjW52e6HL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41NjW52e6HL.jpg?v=1656325995","width":1001},{"alt":"[Australia - AusPower] - AC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay ","id":26306825257140,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51Yb8H-zdpL.jpg?v=1656325995"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51Yb8H-zdpL.jpg?v=1656325995","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAC\/DC 12V~240V GRT8-B1 Mini Power Off Delay Time Relay 35mm DIN Rail Single Function Time Off Delay Relay Set by Panel Knob for Power-Off Delay\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures:1. This is a single function power-off delay relay and time delay can\nbe set by panel knob.2. Super wide time delay range of 0.1s - 10days.3. With\nAC\/DC 12V-240V working voltage.4. Relay working status is indicated by LED\nindicators.5. With super small volume, this relay can be mounted on 35mm DIN\nrail. Specification:Function: Delay OFFRated power supply voltage: AC\/DC\n12-240V (50-60Hz)Power terminal: A1-A2Power consumption: AC 0.09-3VA\/DC\n0.05-1.7WSetting method: knobPower indicator: Green LEDDelay range: 0.1s-10\ndays, normally open, normally closedSetting accuracy: 10%Output contact: 1 x\nSPDT, 16A\/AC1, 250VAC\/24VDCMinimum switching power: 500mWOutput relay\nindication: red LEDMechanical life: 1x107Reset time: Max 200msWorking\ntemperature: -20℃~55℃Mounting method: 35mm DIN railMounting altitude:\n≤2000mWeight: Approx. 74g\/2.6oz Package list:1 Off Delay Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Description: Our AC\/DC 12V~240V GRT8-B1 mini power off delay time relay is a single function power-off delay relay and time delay can be set by panel knob\u003c\/li\u003e\n \u003cli\u003eMini Volume: This single function power off delay relay with super small volume can be mounted on 35mm DIN rail\u003c\/li\u003e\n \u003cli\u003eWide Delay Range: This 35mm DIN rail power off time relay has a super wide time delay range of 0.1s - 10days\u003c\/li\u003e\n \u003cli\u003eLED Indicator: The relay working status is indicated by LED indicators\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: The working voltage of our GRT8-B1 mini off timer delay relay is AC\/DC 12V-240V\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
