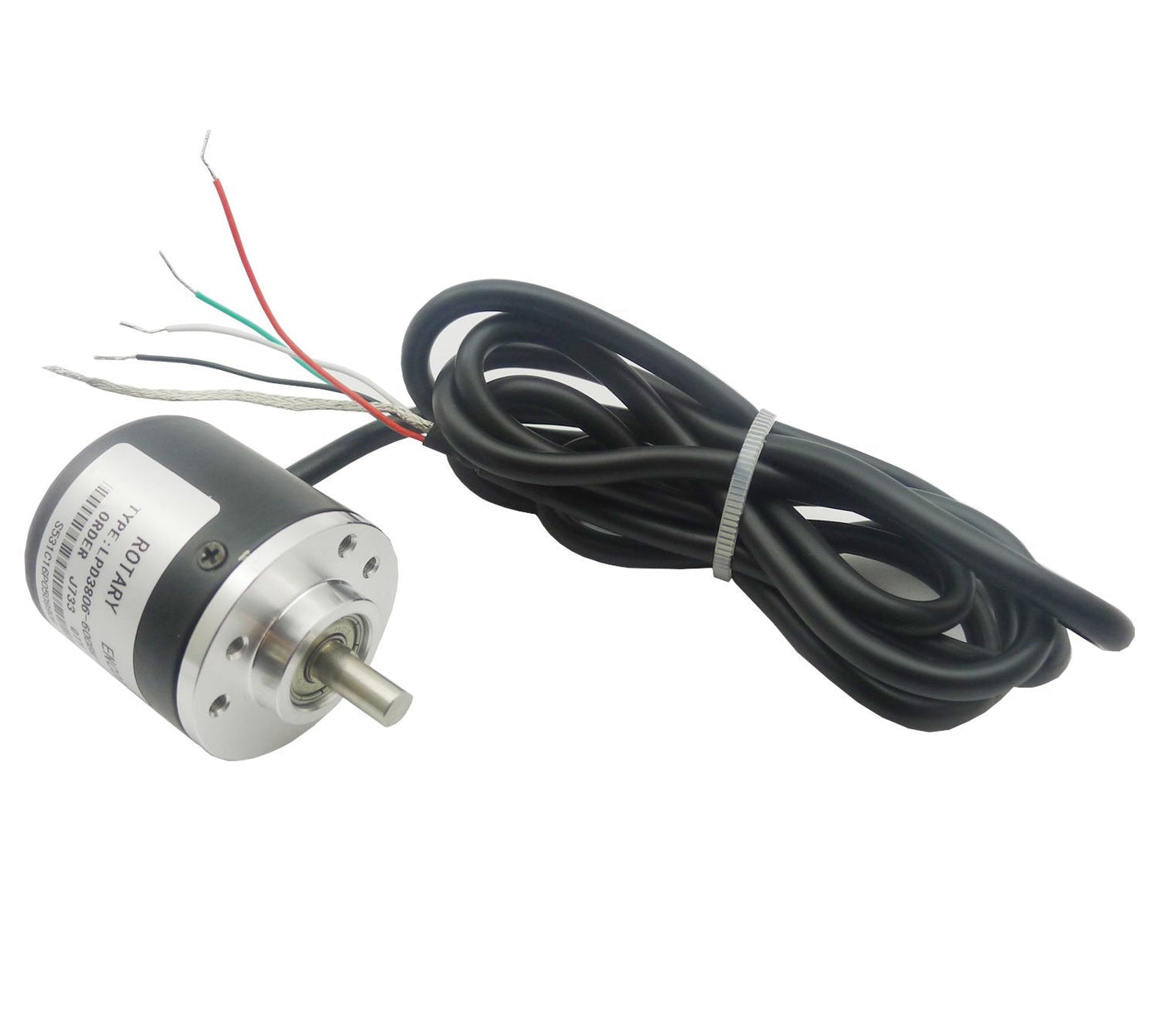

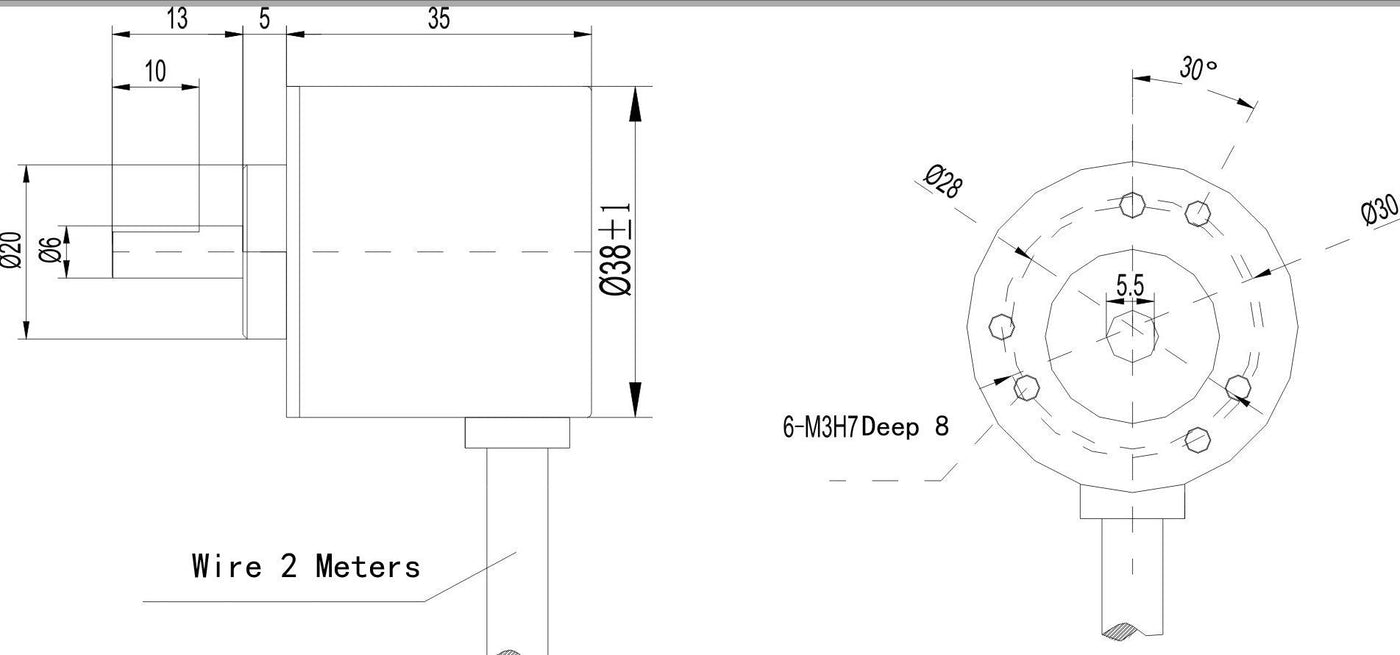

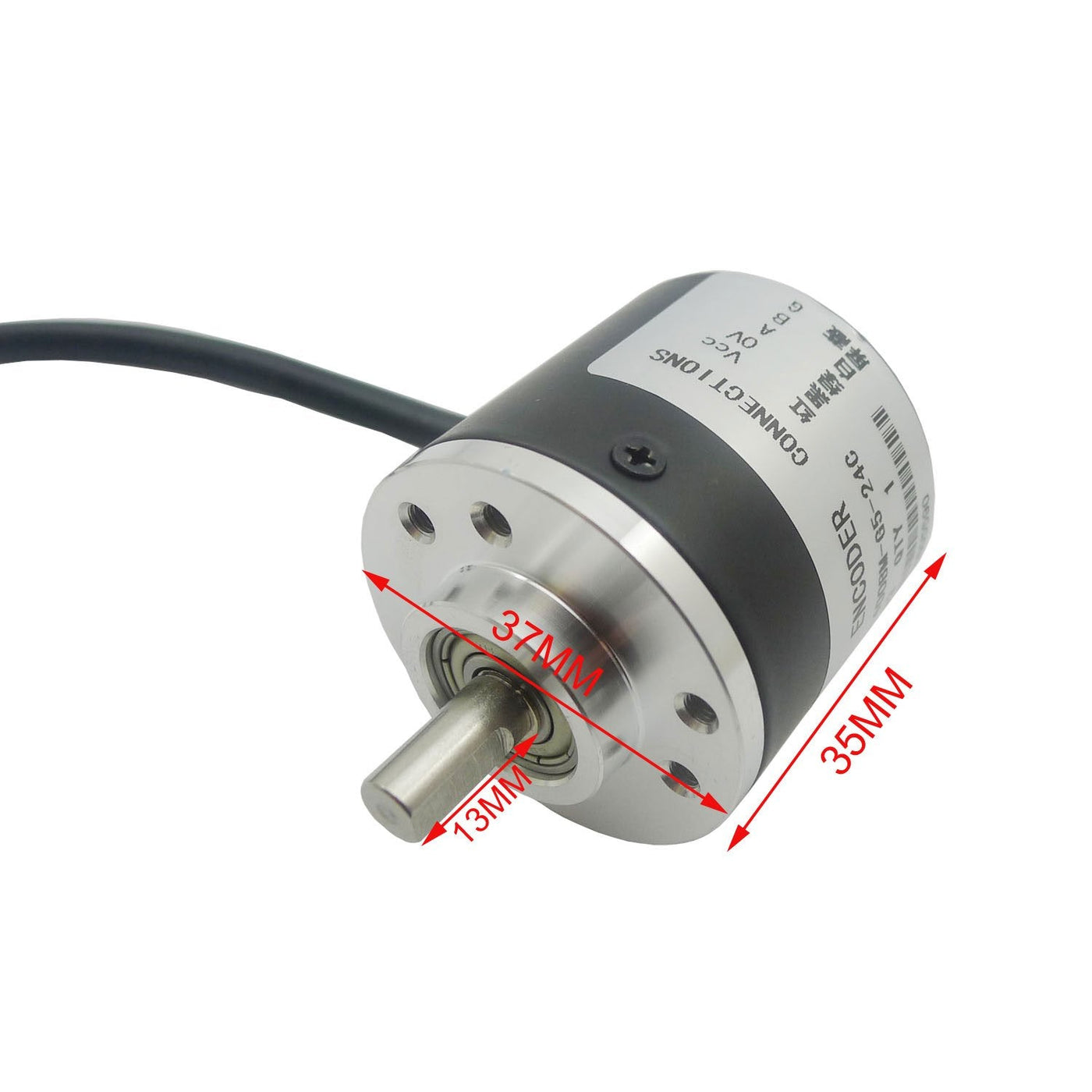

{"id":8115032031412,"title":"AB Two-Phase 5-24V 360 Pulse Incremental Photoelectric Rotary Encoder | Rotary encoder 360 Pulses","handle":"ab-two-phase-5-24v-360-pulse-incremental-photoelectric-rotary-encoder-rotary-encoder-360-pulses","description":"\u003ch3\u003eAB Two-Phase 5-24V 360 Pulse Incremental Photoelectric Rotary Encoder | Rotary encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: AB two-phase incremental optical rotary encoder 360 pulses,including\nNPN open collector output and voltage output two kinds of output. Standard\nwith 1.5 m cable Performance: 360 pulses\/rev. Operating voltage: DC5-24V.\nMaximum mechanical speed 5000 rev \/ min. The electrical response frequency 20K\n\/ sec. Integrated speed 2000 rpm. Size: encoder body size: φ38mm; shaft φ6 ×\n13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws Three\nmounting holes on the circle 30, and the other three mounting holes on the 28\ncircle ; side qualify. Wiring: Green = A phase, white = B phase, red = Vcc\npositive supply, black = V0, please wiring as described above. Another metal\nshielding layer interference. Output: AB rectangular two-phase quadrature\npulse output circuit output NPN open collector output type, this output type\ncan and with internal pull-up resistor connected directly to the\nmicrocontroller or PLC, such as 51 single or PLC (PLC's input to switch\nconnected to 0V should work), Note: If the encoder is not connected to the\ndevice can not be directly oscilloscope oscilloscope (open collector output\nwhen there is no pull-up resistor, there is no voltage output) to oscilloscope\nplease plus two pull-up resistor AB two-phase output; Uses: for measuring the\nrotational speed of the object, angle, acceleration, and length measurements.\nScope of use: suitable for intelligent control of various displacement\nmeasurement, automatic fixed-length leather automatic guillotine machine,\nsteel fixed length cutting controller, civil measured height human scale,\ncollege game with robots. Note: A phase and B-phase output lines must not be\ndirectly connected to VCC, otherwise, it will burn the output three pipe.\nPackage includes: 1 x 360 pulses AB two-phase 5-24V incremental optical rotary\nencoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAB two-phase incremental optical rotary encoder 360 pulses,including NPN open collector output and voltage output two kinds of output.\u003c\/li\u003e\n \u003cli\u003esmall size, light weight, easy installation, high cost significant advantage.\u003c\/li\u003e\n \u003cli\u003eStandard with 1.5 m cable\u003c\/li\u003e\n \u003cli\u003ePerformance: 360 pulses \/ rev.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: DC5-24V\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:41:10+10:00","created_at":"2026-09-01T21:40:01+10:00","vendor":"Aihasd","type":"Switch Encoders","tags":["industrial_DE_Aug2026"],"price":16600,"price_min":16600,"price_max":16600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374737125556,"title":"360 Pulses","option1":"360 Pulses","option2":null,"option3":null,"sku":"de-B075GN6VTM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AB Two-Phase 5-24V 360 Pulse Incremental Photoelectric Rotary Encoder | Rotary encoder 360 Pulses - 360 Pulses","public_title":"360 Pulses","options":["360 Pulses"],"price":16600,"weight":120,"compare_at_price":null,"inventory_management":"shopify","barcode":"6","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B075GN6VTM.jpg?v=1788262804","\/\/auspowers.com\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1788262804","\/\/auspowers.com\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1788262803","\/\/auspowers.com\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1788262803","\/\/auspowers.com\/cdn\/shop\/files\/61SxmMKvccL.jpg?v=1788262804","\/\/auspowers.com\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1788262803"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B075GN6VTM.jpg?v=1788262804","options":["Colour Name"],"media":[{"alt":null,"id":33271695540404,"position":1,"preview_image":{"aspect_ratio":1.119,"height":1341,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B075GN6VTM.jpg?v=1788262804"},"aspect_ratio":1.119,"height":1341,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B075GN6VTM.jpg?v=1788262804","width":1500},{"alt":null,"id":33271695573172,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1788262804"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61rHCr7z8oL.jpg?v=1788262804","width":1500},{"alt":null,"id":33271695605940,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1788262803"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61P9kitrl9L.jpg?v=1788262803","width":1500},{"alt":null,"id":33271695638708,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1788262803"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61IUcfnWwcL.jpg?v=1788262803","width":1500},{"alt":null,"id":33271695671476,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61SxmMKvccL.jpg?v=1788262804"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61SxmMKvccL.jpg?v=1788262804","width":1500},{"alt":null,"id":33271695704244,"position":6,"preview_image":{"aspect_ratio":2.136,"height":891,"width":1903,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1788262803"},"aspect_ratio":2.136,"height":891,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zXqdL1LGL.jpg?v=1788262803","width":1903}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAB Two-Phase 5-24V 360 Pulse Incremental Photoelectric Rotary Encoder | Rotary encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: AB two-phase incremental optical rotary encoder 360 pulses,including\nNPN open collector output and voltage output two kinds of output. Standard\nwith 1.5 m cable Performance: 360 pulses\/rev. Operating voltage: DC5-24V.\nMaximum mechanical speed 5000 rev \/ min. The electrical response frequency 20K\n\/ sec. Integrated speed 2000 rpm. Size: encoder body size: φ38mm; shaft φ6 ×\n13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws Three\nmounting holes on the circle 30, and the other three mounting holes on the 28\ncircle ; side qualify. Wiring: Green = A phase, white = B phase, red = Vcc\npositive supply, black = V0, please wiring as described above. Another metal\nshielding layer interference. Output: AB rectangular two-phase quadrature\npulse output circuit output NPN open collector output type, this output type\ncan and with internal pull-up resistor connected directly to the\nmicrocontroller or PLC, such as 51 single or PLC (PLC's input to switch\nconnected to 0V should work), Note: If the encoder is not connected to the\ndevice can not be directly oscilloscope oscilloscope (open collector output\nwhen there is no pull-up resistor, there is no voltage output) to oscilloscope\nplease plus two pull-up resistor AB two-phase output; Uses: for measuring the\nrotational speed of the object, angle, acceleration, and length measurements.\nScope of use: suitable for intelligent control of various displacement\nmeasurement, automatic fixed-length leather automatic guillotine machine,\nsteel fixed length cutting controller, civil measured height human scale,\ncollege game with robots. Note: A phase and B-phase output lines must not be\ndirectly connected to VCC, otherwise, it will burn the output three pipe.\nPackage includes: 1 x 360 pulses AB two-phase 5-24V incremental optical rotary\nencoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAB two-phase incremental optical rotary encoder 360 pulses,including NPN open collector output and voltage output two kinds of output.\u003c\/li\u003e\n \u003cli\u003esmall size, light weight, easy installation, high cost significant advantage.\u003c\/li\u003e\n \u003cli\u003eStandard with 1.5 m cable\u003c\/li\u003e\n \u003cli\u003ePerformance: 360 pulses \/ rev.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: DC5-24V\u003c\/li\u003e\n \u003c\/ul\u003e"}
