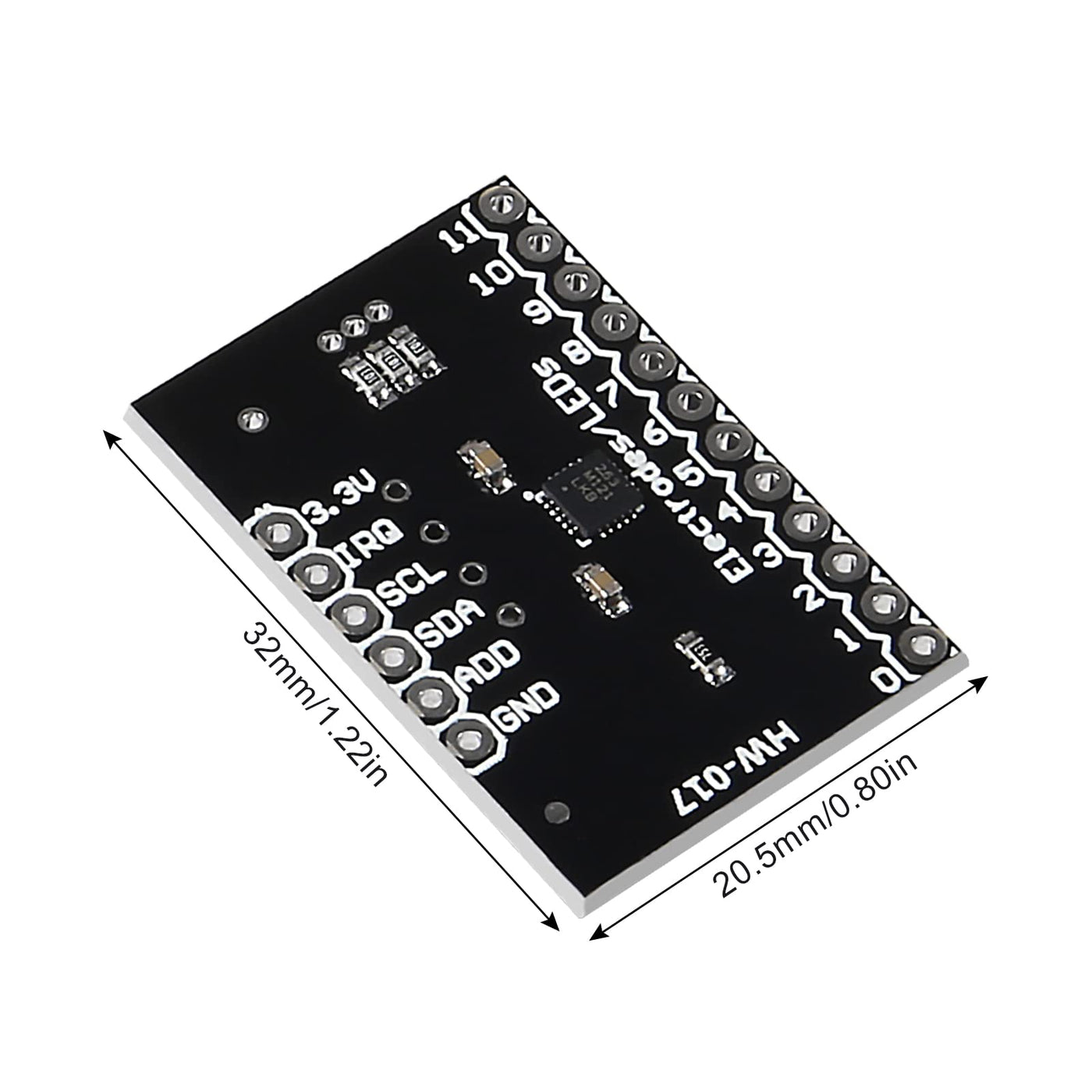

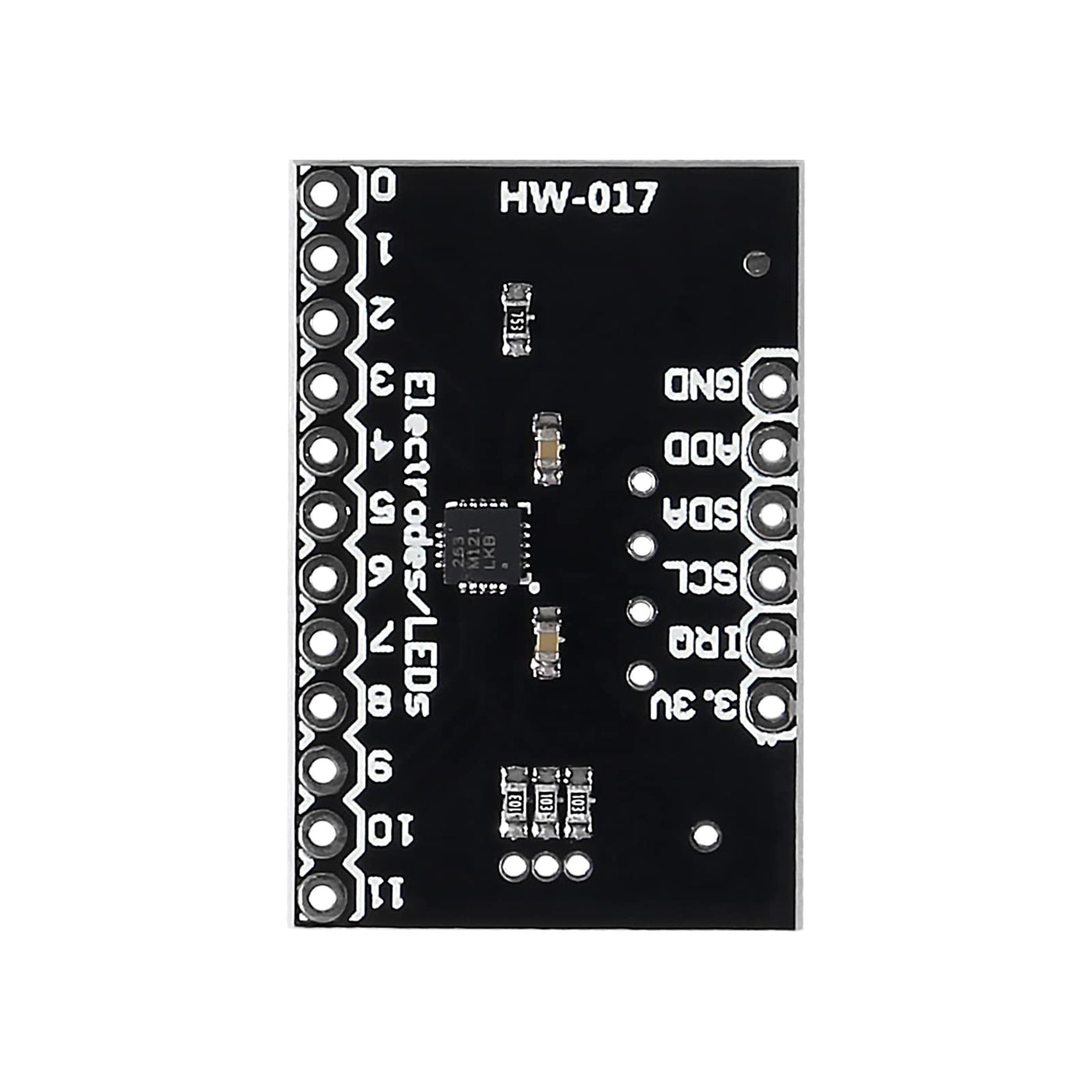

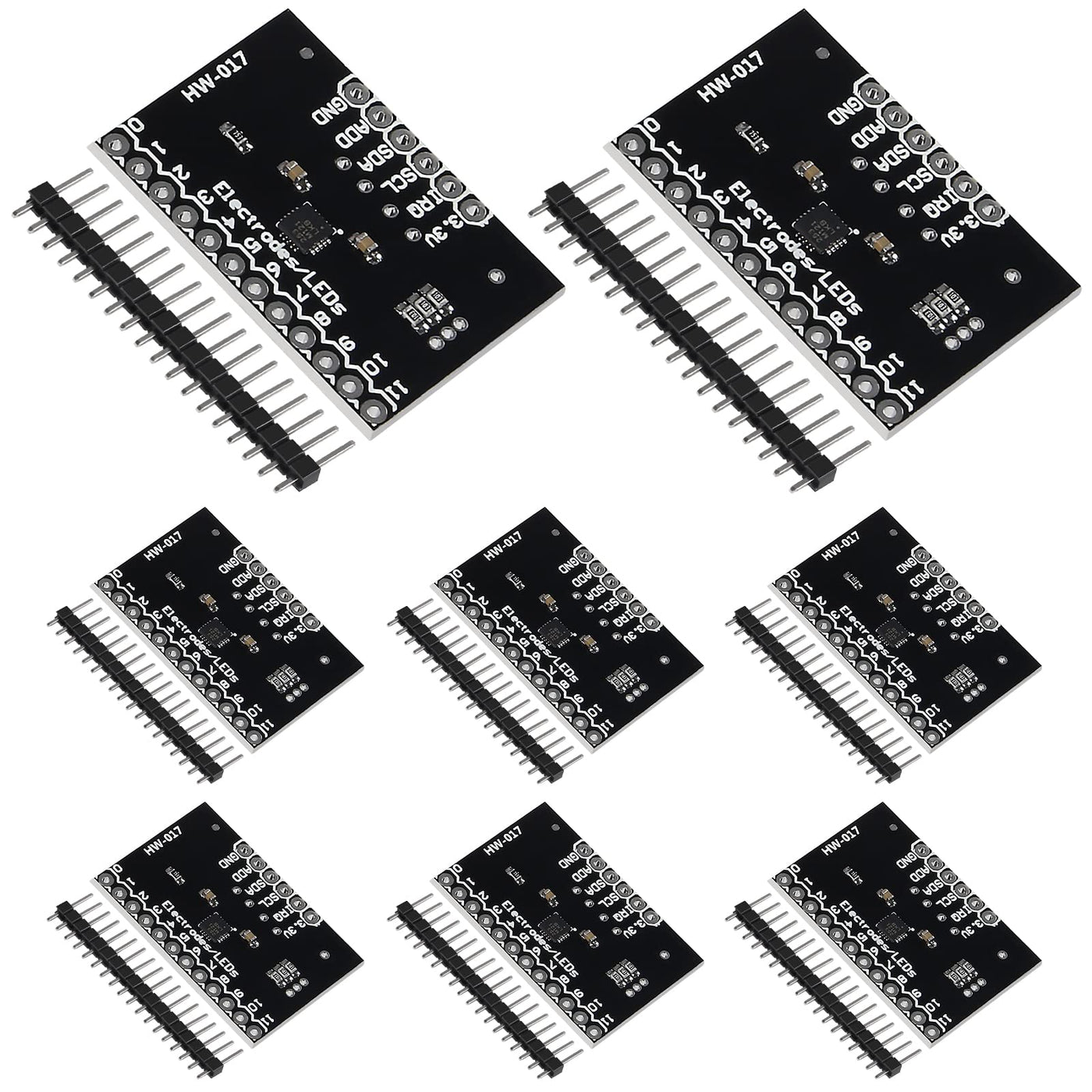

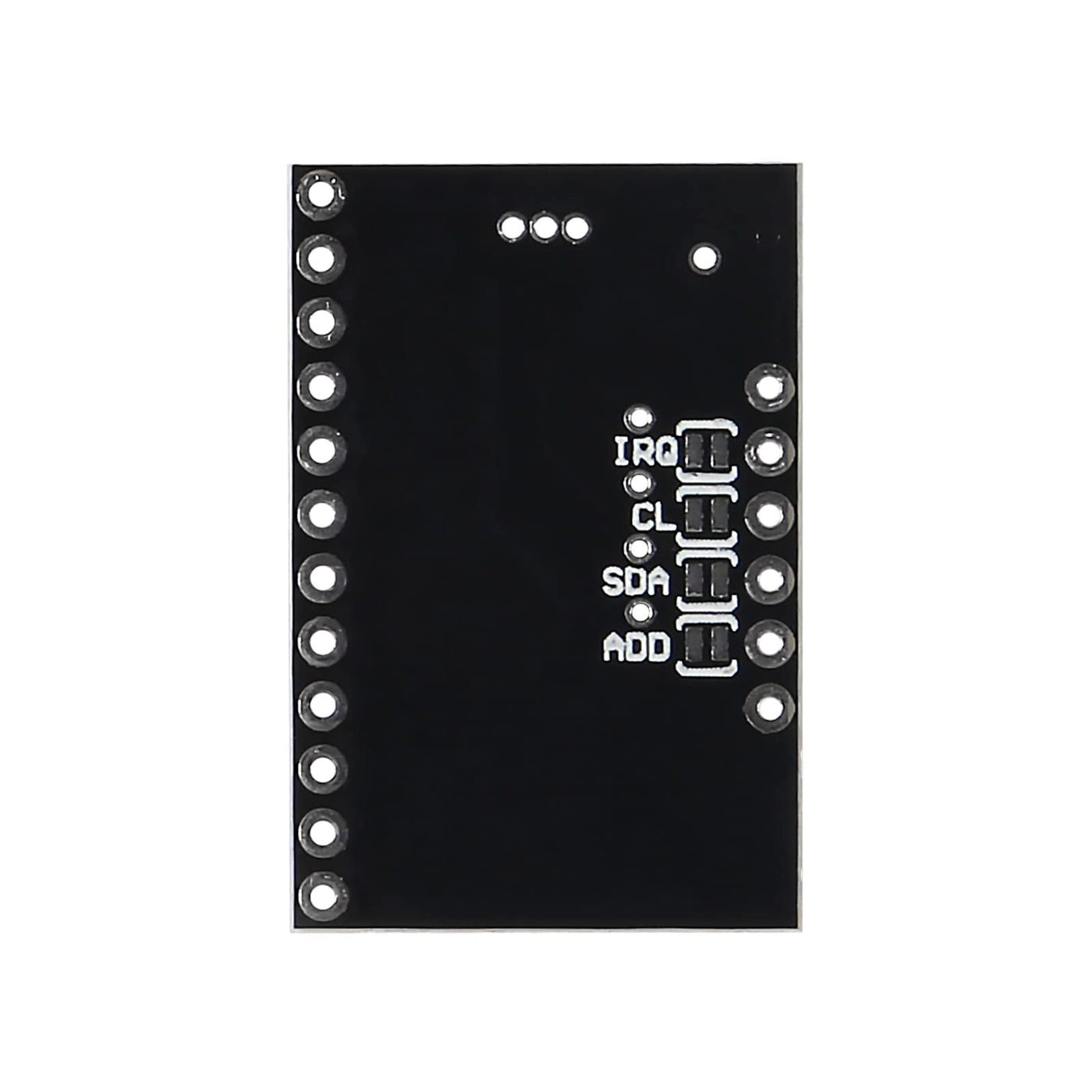

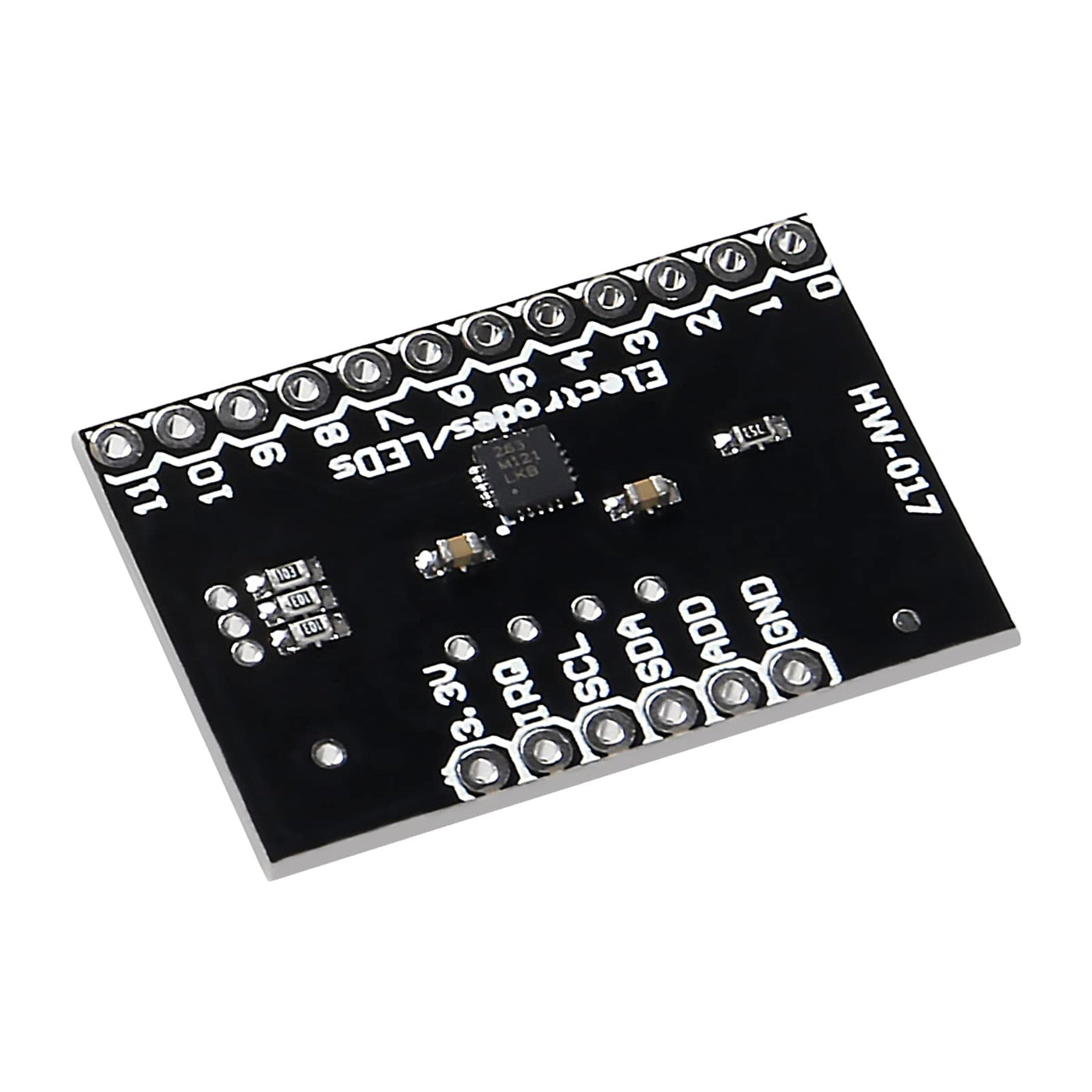

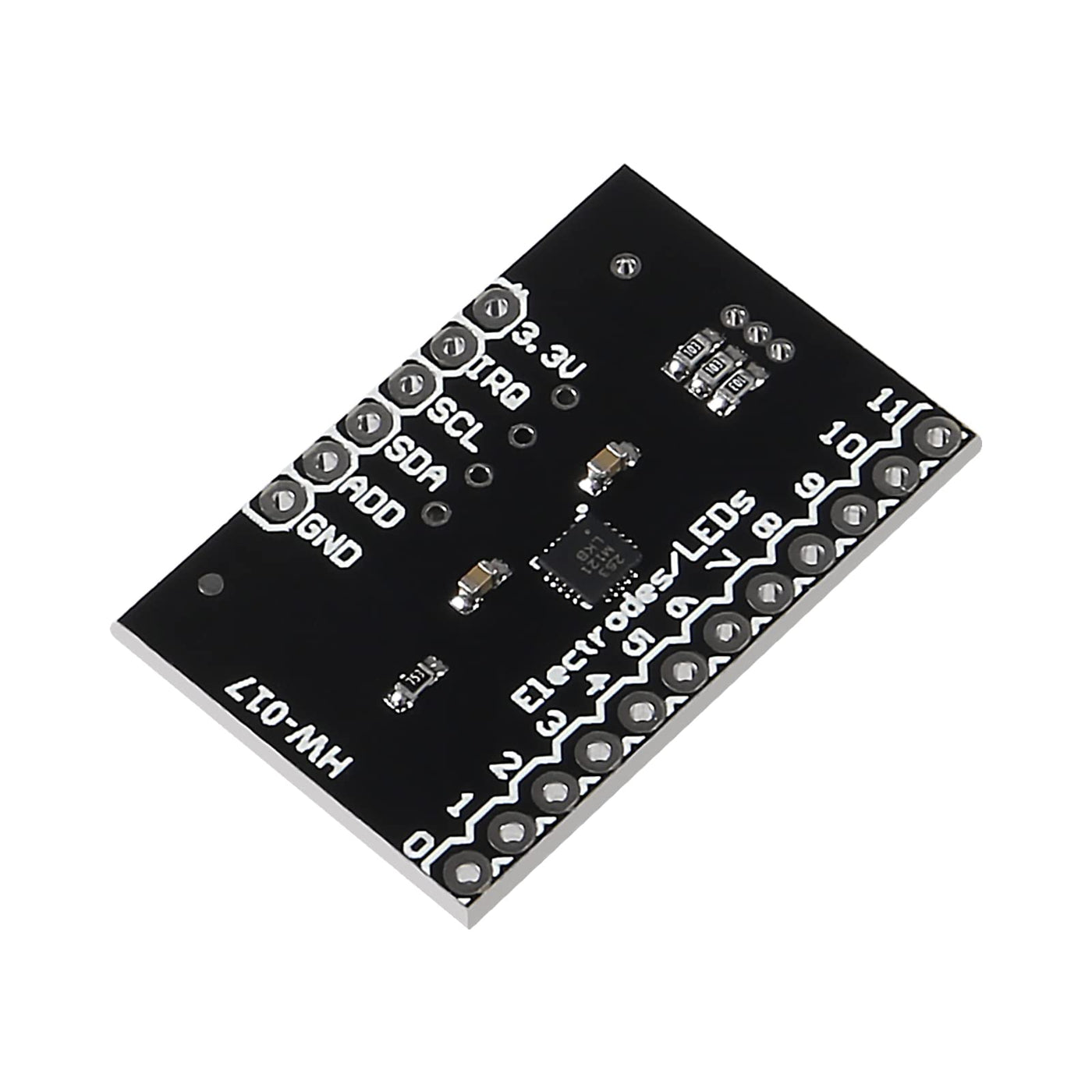

{"id":7809610186932,"title":"8PCS MPR121 Breakout V12 Capacitive Touch Sensor I2C Keyboard Development Board Controller Module","handle":"8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module","description":"\u003ch3\u003e8PCS MPR121 Breakout V12 Capacitive Touch Sensor I2C Keyboard Development Board Controller Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode.\u003c\/li\u003e\n \u003cli\u003eThe MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.\u003c\/li\u003e\n \u003cli\u003eLow power operation, 1.71 V to 3.6 V supply operation.\u003c\/li\u003e\n \u003cli\u003eThere a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A.\u003c\/li\u003e\n \u003cli\u003e29A supply current at 16 ms sampling interval period.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-04T03:07:37+10:00","created_at":"2024-08-04T03:07:37+10:00","vendor":"QCCAN","type":"Capacitive","tags":["industrial_Aug2024_update"],"price":13300,"price_min":13300,"price_max":13300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43453752246452,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BGLM26Z1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8PCS MPR121 Breakout V12 Capacitive Touch Sensor I2C Keyboard Development Board Controller Module","public_title":null,"options":["Default Title"],"price":13300,"weight":32,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715530713","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0BGLM26Z1.jpg?v=1722757427","\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768271028.jpg?v=1788434459","\/\/auspowers.com\/cdn\/shop\/files\/61z-8ILEQ_L.jpg?v=1722704868","\/\/auspowers.com\/cdn\/shop\/files\/51dW_ThZWxL.jpg?v=1722704868","\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768369332.jpg?v=1788434454","\/\/auspowers.com\/cdn\/shop\/files\/61iE49OSk6L.jpg?v=1722704868"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGLM26Z1.jpg?v=1722757427","options":["Title"],"media":[{"alt":"QCCAN 8-piece MPR121 capacitive touch sensor breakout board for I2C keyboard development, showing multiple touch pads and controller module.","id":30565744279732,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGLM26Z1.jpg?v=1722757427"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGLM26Z1.jpg?v=1722757427","width":1600},{"alt":"Eight QCCAN MPR121 capacitive touch sensors on a development board with I2C connection for keyboard projects.","id":30563768271028,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768271028.jpg?v=1788434459"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768271028.jpg?v=1788434459","width":1600},{"alt":"QCCAN 8-piece MPR121 capacitive touch sensor breakout board with I2C interface and development controller module.","id":30563768303796,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61z-8ILEQ_L.jpg?v=1722704868"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61z-8ILEQ_L.jpg?v=1722704868","width":1600},{"alt":"QCCAN 8-piece MPR121 capacitive touch sensor breakout board with I2C interface, used for keyboard development and control projects.","id":30563768336564,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51dW_ThZWxL.jpg?v=1722704868"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51dW_ThZWxL.jpg?v=1722704868","width":1600},{"alt":"QCCAN 8PCS MPR121 Capacitive Touch Sensor I2C Keyboard Development Board with controller modules, shown with multiple touch sensors.","id":30563768369332,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768369332.jpg?v=1788434454"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/qccan-capacitive-default-title-8pcs-mpr121-breakout-v12-capacitive-touch-sensor-i2c-keyboard-development-board-controller-module-30563768369332.jpg?v=1788434454","width":1600},{"alt":"QCCAN 8-piece MPR121 Capacitive Touch Sensor I2C Keyboard Development Board Controller modules arranged on a white background.","id":30563768402100,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61iE49OSk6L.jpg?v=1722704868"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61iE49OSk6L.jpg?v=1722704868","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e8PCS MPR121 Breakout V12 Capacitive Touch Sensor I2C Keyboard Development Board Controller Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode.\u003c\/li\u003e\n \u003cli\u003eThe MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.\u003c\/li\u003e\n \u003cli\u003eLow power operation, 1.71 V to 3.6 V supply operation.\u003c\/li\u003e\n \u003cli\u003eThere a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A.\u003c\/li\u003e\n \u003cli\u003e29A supply current at 16 ms sampling interval period.\u003c\/li\u003e\n \u003c\/ul\u003e"}
