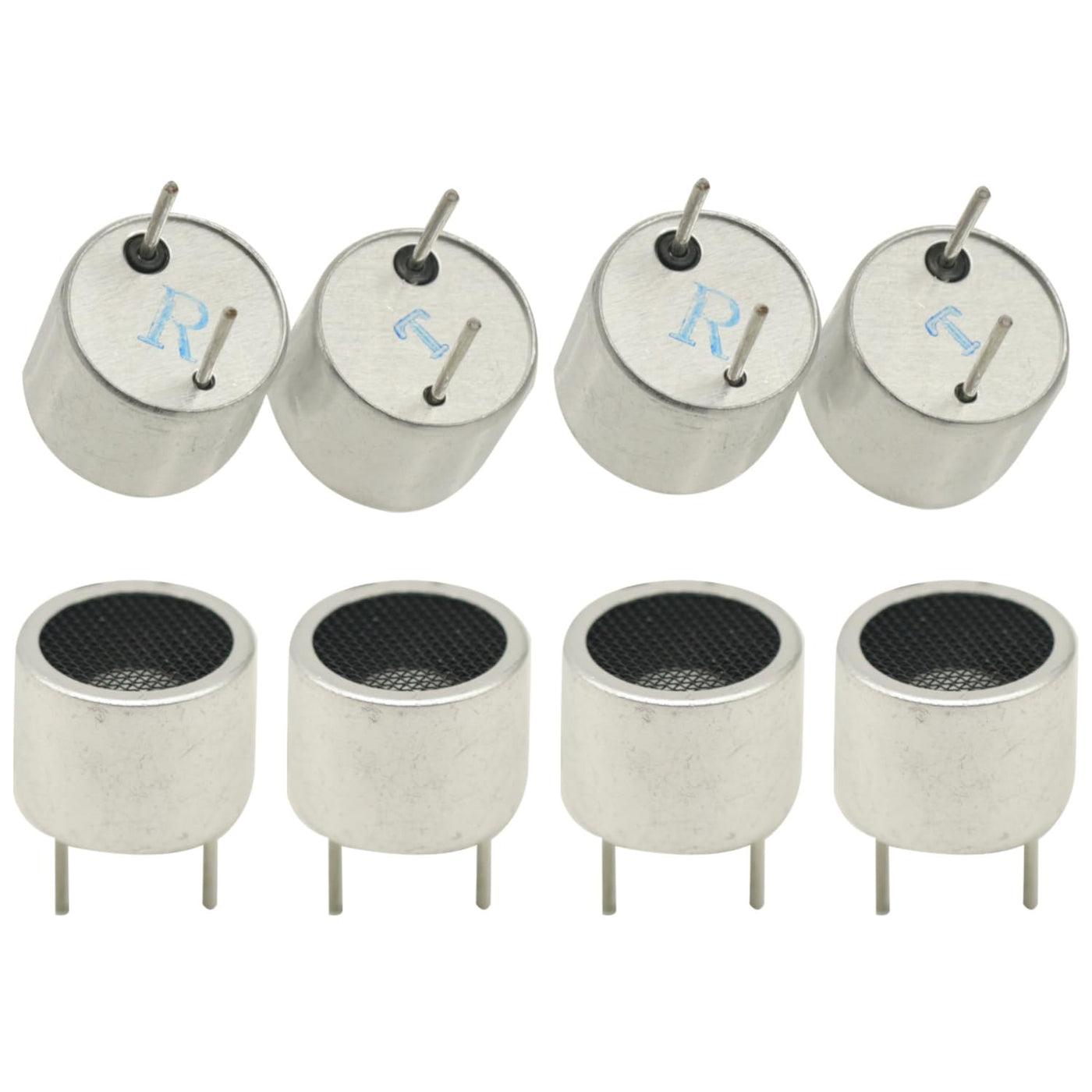

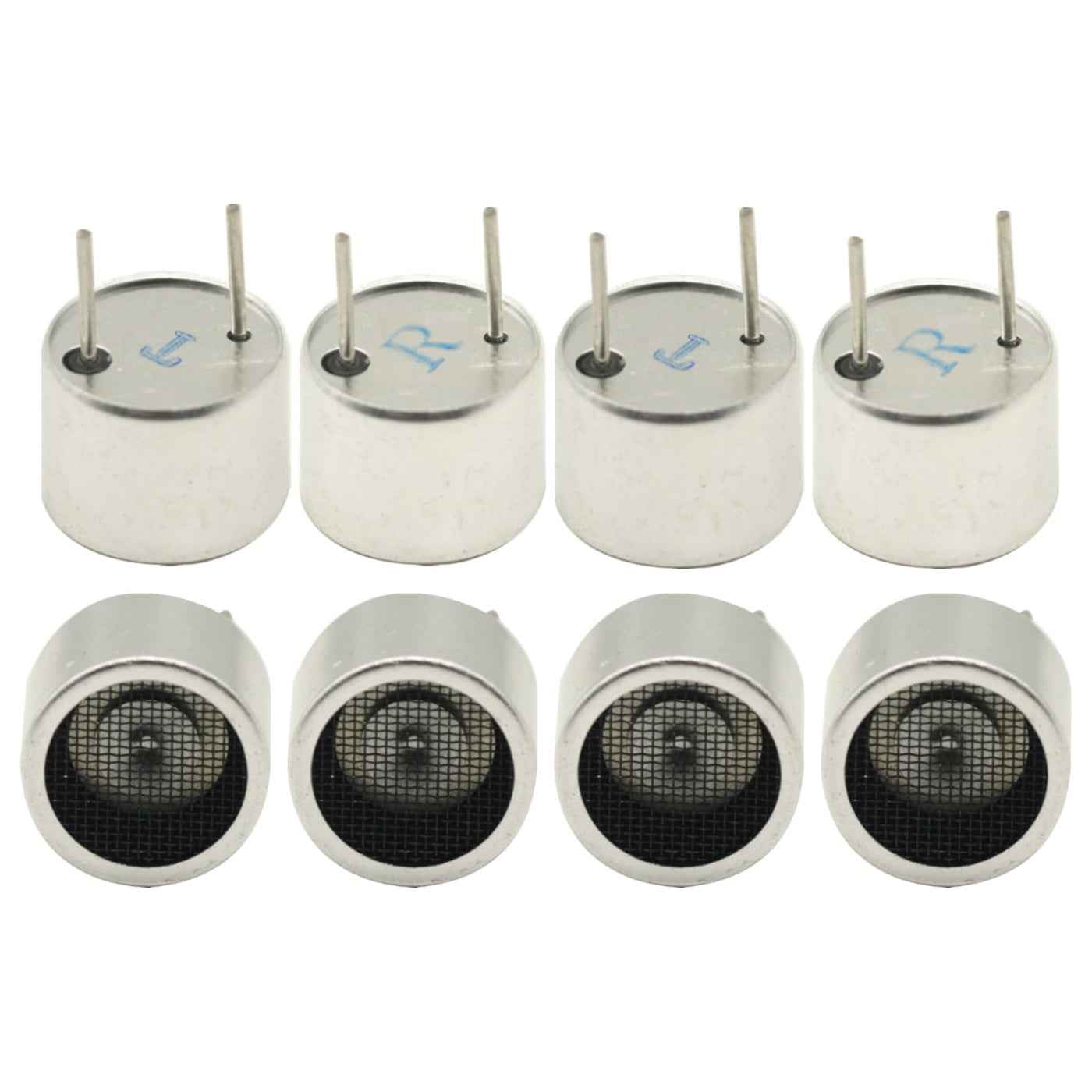

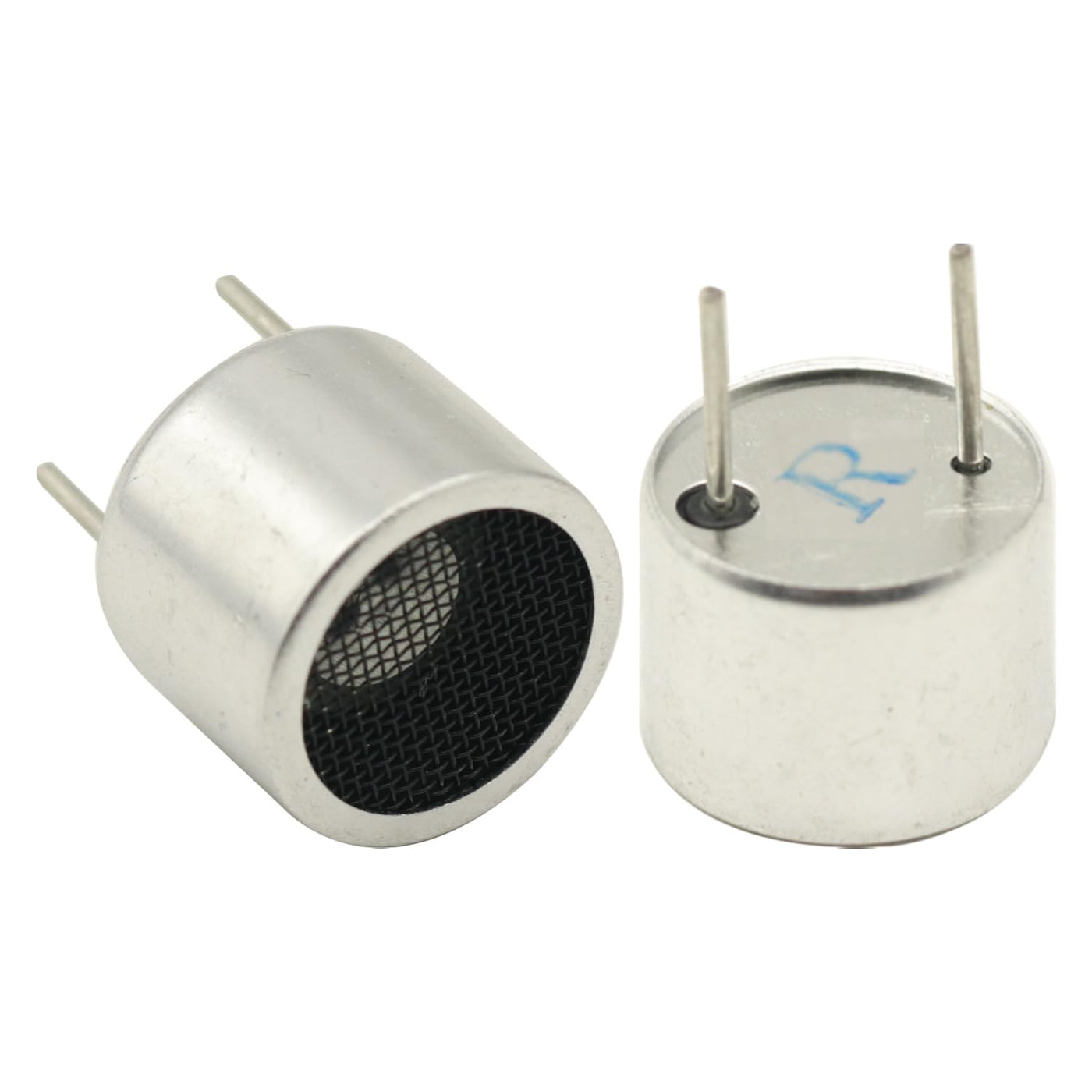

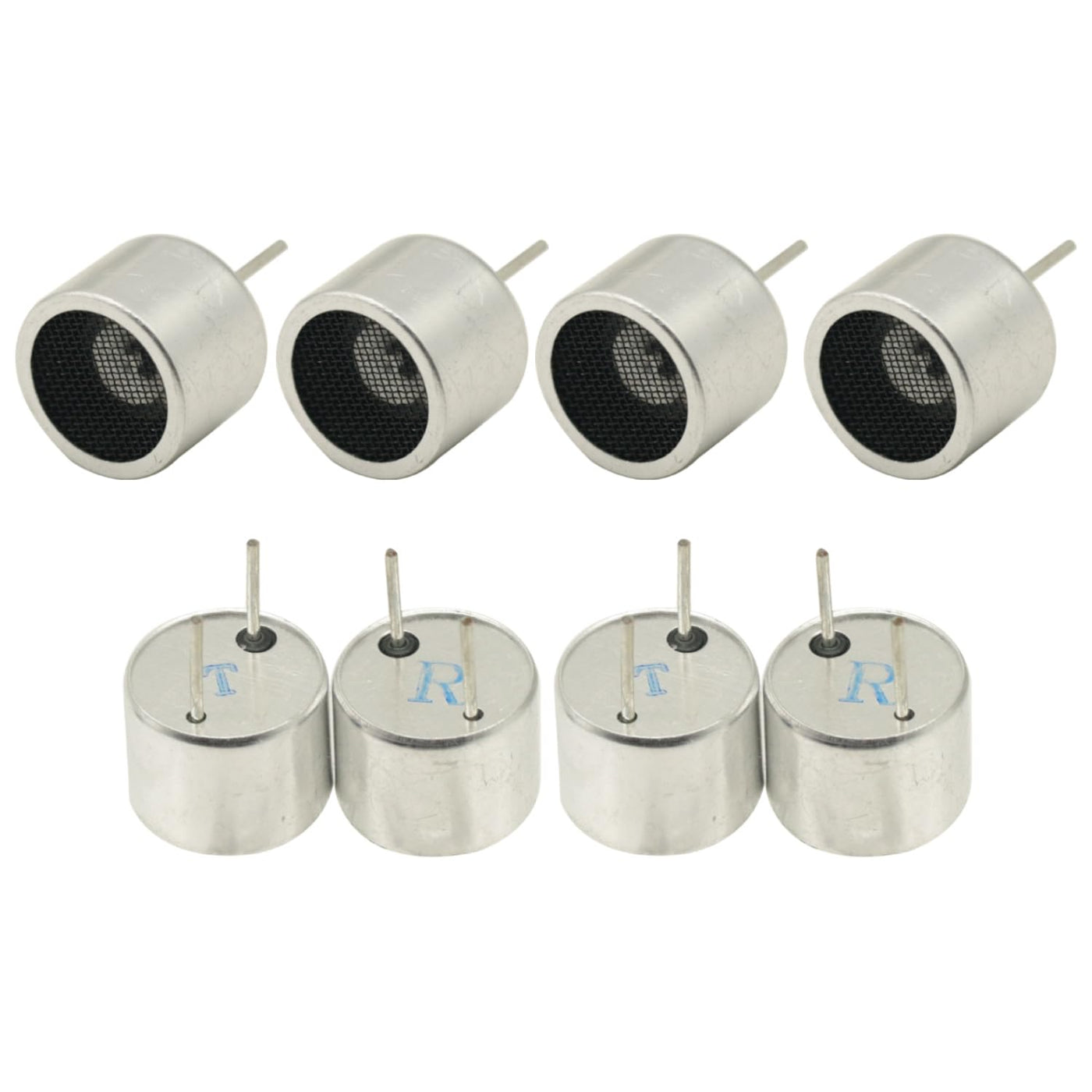

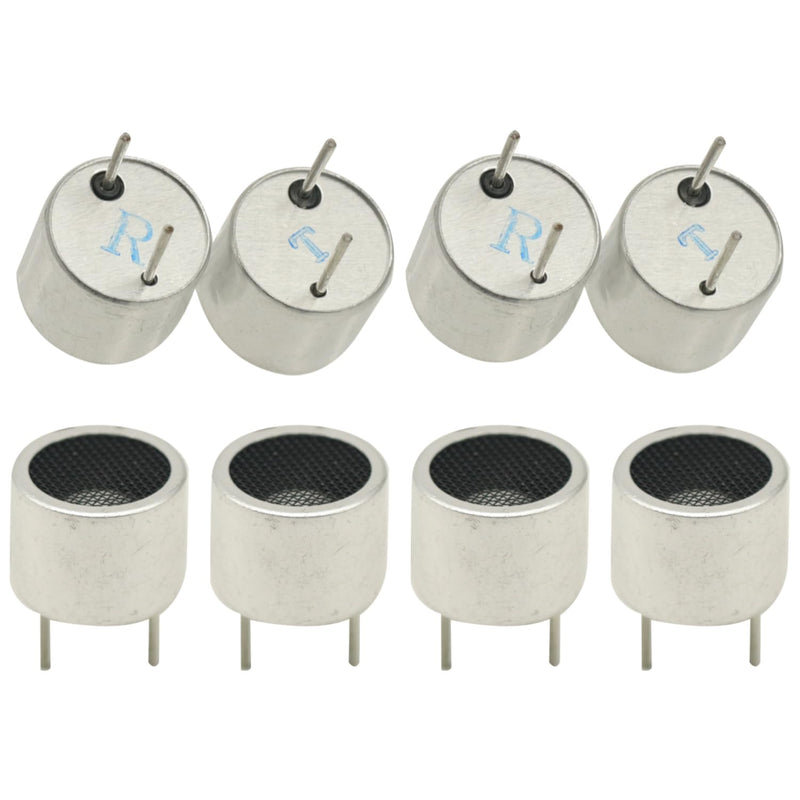

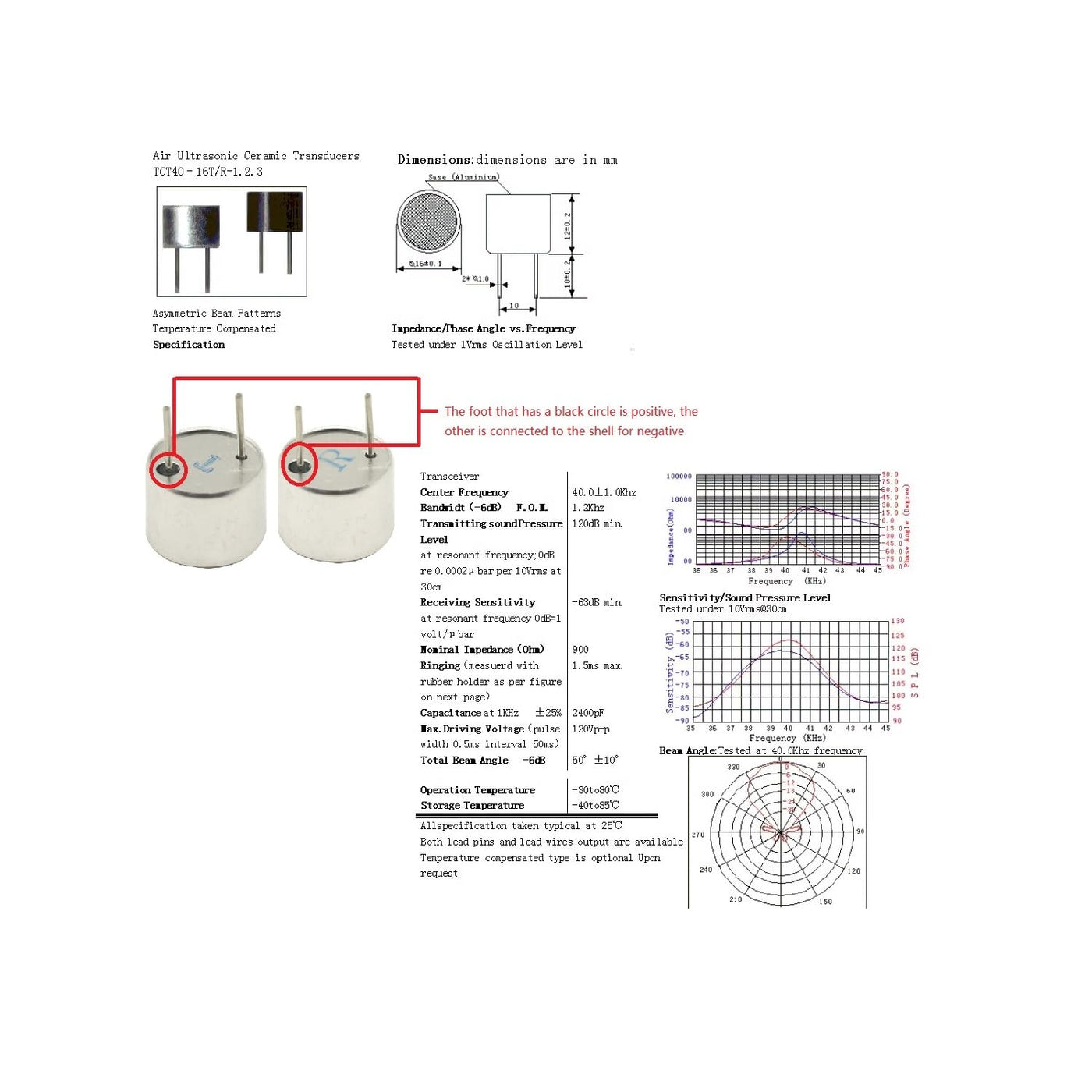

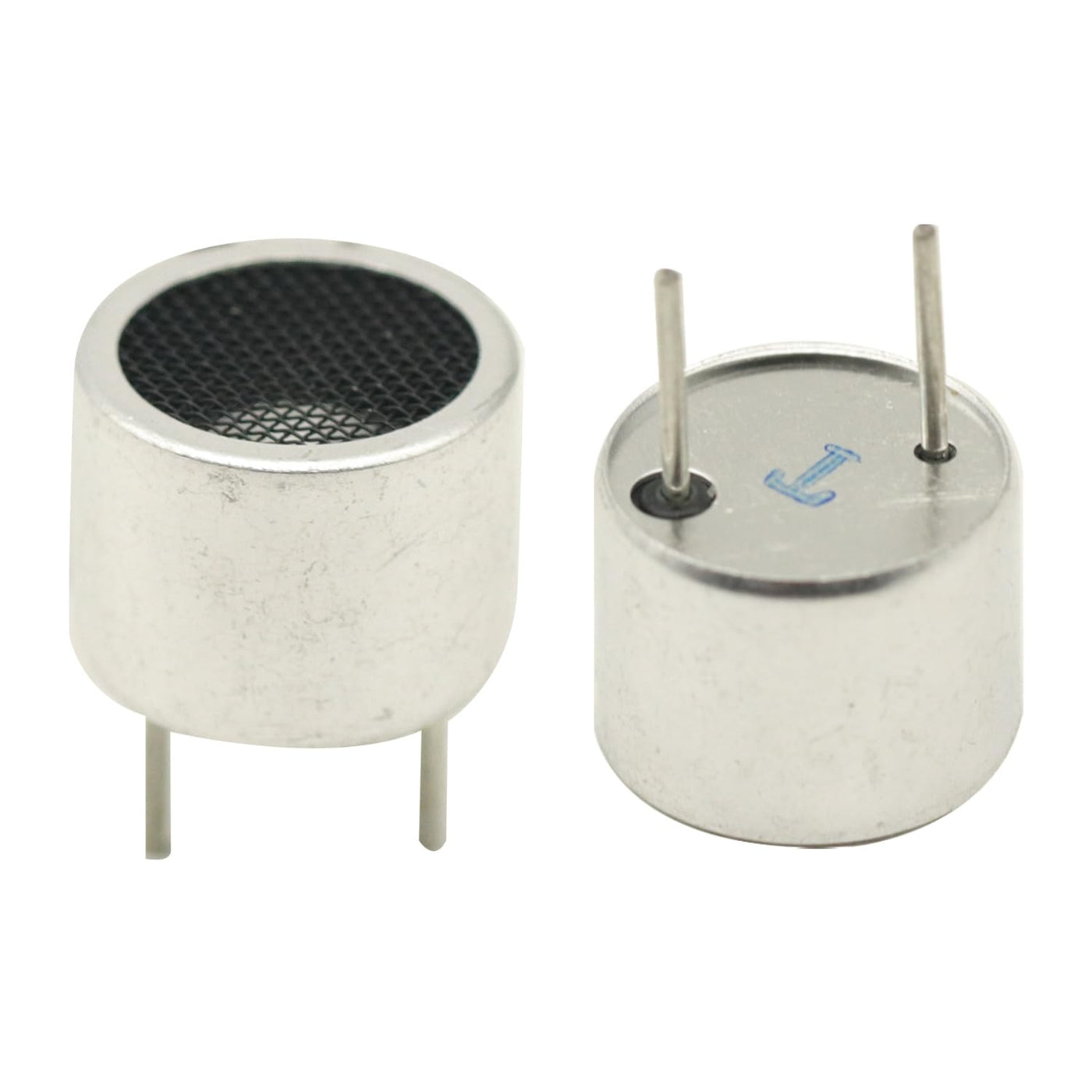

{"id":8034499494068,"title":"8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer","handle":"8pcs-40khz-rt-split-ultrasonic-transceiver-probe-receives-and-transmits-40khz-ultrasonic-sensor-16mm-ultrasonic-transducer","description":"\u003ch3\u003e8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1. Nominal frequency (KHz): 40KHz2. Transmit sound pressure at10V\r\n(0dB=0.02mPa): ≥117dB3. Receiving sensitivity at40KHz (0dB=V\/ubar): ≥-65dB4.\r\nElectrostatic capacitance at1KHz,\u0026lt;1V (PF): 2000±30One for receiving, one for\r\ntransmitting, transceiver split, T for transmitting, R for receiving.Marked\r\nwith the word T is the transmitting head, marked with the word R is the\r\nreceiving head.Using Method TransmitterConstruction Open structure typeCenter\r\nfrequency 40.0±1.0KHzPressure level 112dB min.SensitivityCapacitance\r\n2400Pf±20%.Maximum input voltage 60Vp-p60°±15° (-6dB)Operating temperature\r\n-20°C~+70°CStorage Temperature -40°C~+85°CWeight 2.2g Package Included:4PCS\r\nUltrasonic Transmitters Probes4PCS Ultrasonic Receivers Probes\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives And Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer\u003c\/li\u003e\r\n \u003cli\u003e4Pcs x Transmitters + 4Pcs x Receivers T+R Ultrasonic Sensor\u003c\/li\u003e\r\n \u003cli\u003eCenter frequency:40.01.0KHz\u003c\/li\u003e\r\n \u003cli\u003eSound pressure level:112dB min\u003c\/li\u003e\r\n \u003cli\u003eMaximum input voltage:60Vp-p,Directivity:6015 (-6dB)\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T19:12:34+11:00","created_at":"2026-02-28T19:12:31+11:00","vendor":"GODIYMODULES","type":"Ultrasonic","tags":["industrial_selected_Nov2025"],"price":8900,"price_min":8900,"price_max":8900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154514276532,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0F59N2MXS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer","public_title":null,"options":["Default Title"],"price":8900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"Sensor-16mm probe-008","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0F59N2MXS.jpg?v=1775786226","\/\/auspowers.com\/cdn\/shop\/files\/719TwRUzKPL.jpg?v=1772266353","\/\/auspowers.com\/cdn\/shop\/files\/61pNjLmbpAL.jpg?v=1772266354","\/\/auspowers.com\/cdn\/shop\/files\/61fa_Dda5WL.jpg?v=1772266353","\/\/auspowers.com\/cdn\/shop\/files\/51XRsPekJUL.jpg?v=1772266353","\/\/auspowers.com\/cdn\/shop\/files\/518BWJI9_xL.jpg?v=1772266354"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0F59N2MXS.jpg?v=1775786226","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894141108,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0F59N2MXS.jpg?v=1775786226"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0F59N2MXS.jpg?v=1775786226","width":1500},{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894173876,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/719TwRUzKPL.jpg?v=1772266353"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/719TwRUzKPL.jpg?v=1772266353","width":1500},{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894206644,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61pNjLmbpAL.jpg?v=1772266354"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61pNjLmbpAL.jpg?v=1772266354","width":1500},{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894239412,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61fa_Dda5WL.jpg?v=1772266353"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61fa_Dda5WL.jpg?v=1772266353","width":1500},{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894272180,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51XRsPekJUL.jpg?v=1772266353"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51XRsPekJUL.jpg?v=1772266353","width":1500},{"alt":"[Australia - AusPower] - 8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer ","id":32723894304948,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/518BWJI9_xL.jpg?v=1772266354"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/518BWJI9_xL.jpg?v=1772266354","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives and Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e1. Nominal frequency (KHz): 40KHz2. Transmit sound pressure at10V\r\n(0dB=0.02mPa): ≥117dB3. Receiving sensitivity at40KHz (0dB=V\/ubar): ≥-65dB4.\r\nElectrostatic capacitance at1KHz,\u0026lt;1V (PF): 2000±30One for receiving, one for\r\ntransmitting, transceiver split, T for transmitting, R for receiving.Marked\r\nwith the word T is the transmitting head, marked with the word R is the\r\nreceiving head.Using Method TransmitterConstruction Open structure typeCenter\r\nfrequency 40.0±1.0KHzPressure level 112dB min.SensitivityCapacitance\r\n2400Pf±20%.Maximum input voltage 60Vp-p60°±15° (-6dB)Operating temperature\r\n-20°C~+70°CStorage Temperature -40°C~+85°CWeight 2.2g Package Included:4PCS\r\nUltrasonic Transmitters Probes4PCS Ultrasonic Receivers Probes\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e8Pcs 40KHZ RT Split Ultrasonic Transceiver Probe Receives And Transmits 40Khz Ultrasonic Sensor 16MM Ultrasonic Transducer\u003c\/li\u003e\r\n \u003cli\u003e4Pcs x Transmitters + 4Pcs x Receivers T+R Ultrasonic Sensor\u003c\/li\u003e\r\n \u003cli\u003eCenter frequency:40.01.0KHz\u003c\/li\u003e\r\n \u003cli\u003eSound pressure level:112dB min\u003c\/li\u003e\r\n \u003cli\u003eMaximum input voltage:60Vp-p,Directivity:6015 (-6dB)\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
