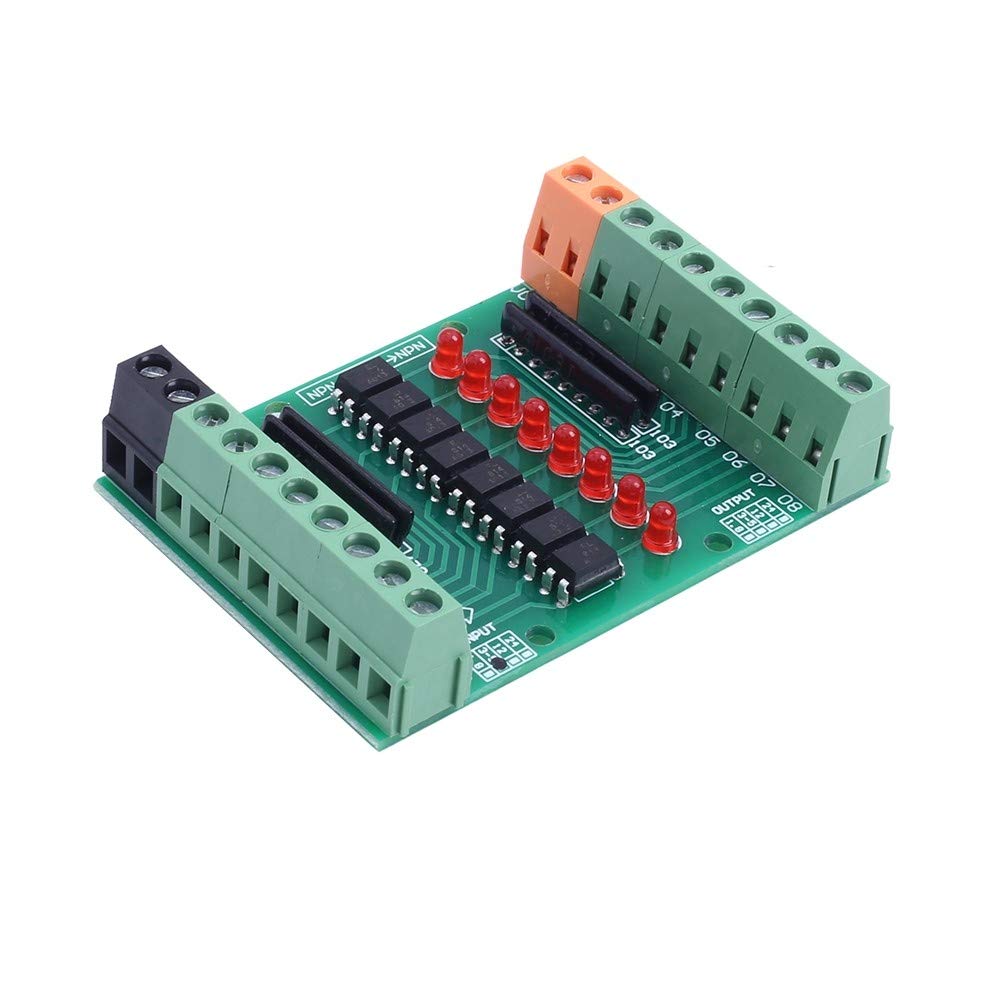

8-Channel Optocoupler Isolation Board, DC 3.3V 5V Driver Photoelectric Isolated Module PNP NPN Signal Converter Low High Level Output
8-Channel Optocoupler Isolation Board, DC 3.3V 5V Driver Photoelectric Isolated Module PNP NPN Signal Converter Low High Level Output
Description: It is a DC 3.3V 5V 8-Channel Optocoupler Isolation Module. It can detect 8-Channel DC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment. It can detect whether there is input power. The output status will change when the input power is detected. Features: 1. Optocoupler isolation control. 2. 8-Channel input and output. 3. NPN / PNP (Low/High level) signal output. 4. Support DC 3.3V~5V Input. 5. DC 1.8V-24V load voltage Specification: Product name: DC 3.3V 5V 8-Channel Optocoupler Isolation Module Input Voltage: DC 3.3V~5V Load Input Voltage: DC 1.8V~24V Output type: NPN / PNP (Low/High level) signal output Output current: 50mA Work Temperature: -20℃~85℃ Work Humidity: 10%~85%RH Size: 725027mm Application: 1. DC power detection. 2. PLC control system. 3. Device alarm. Package list : 1pcs DC 3.3V 5V 8-Channel Optocoupler Isolation Module
Product Features
- Optocoupler isolation control.
- 8-Channel input and output.
- Support DC 3.3V~5V Input.
- DC 1.8V-24V load voltage.
