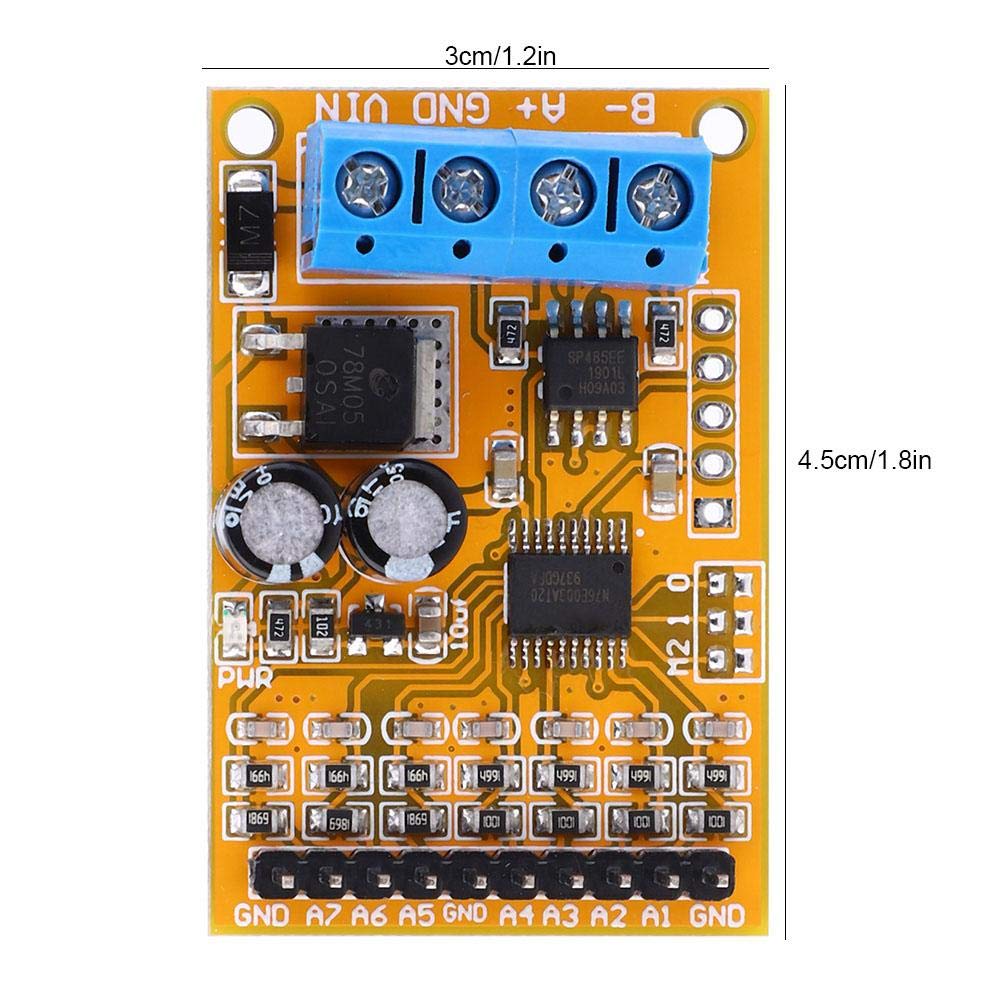

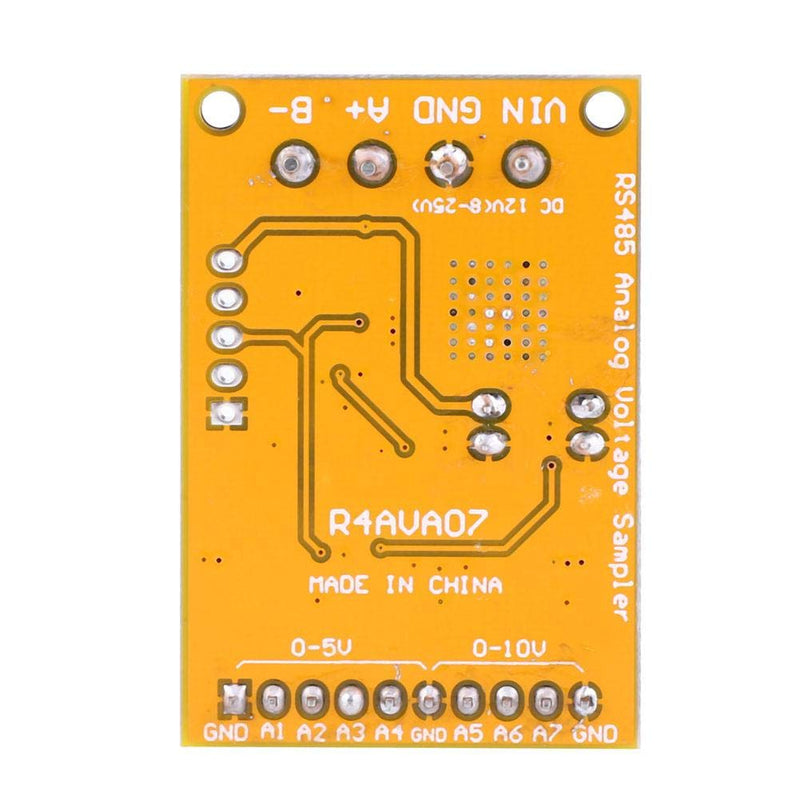

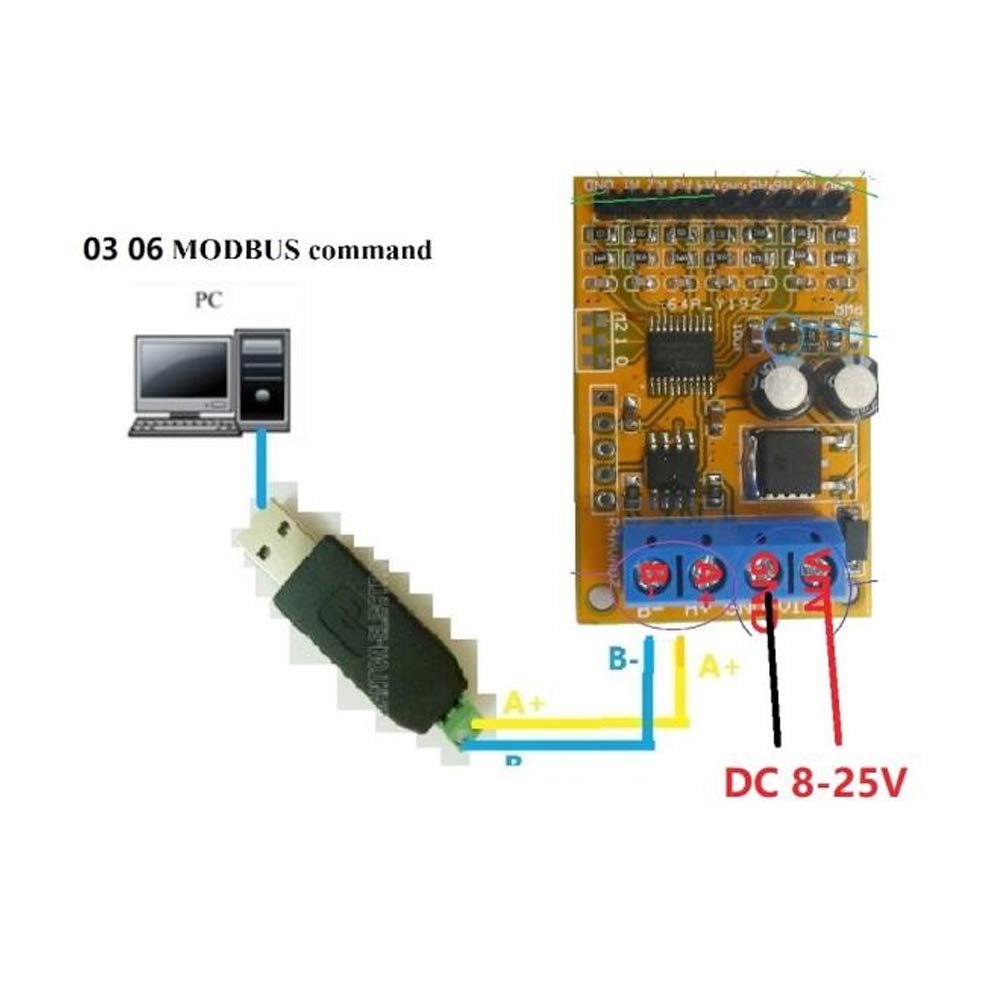

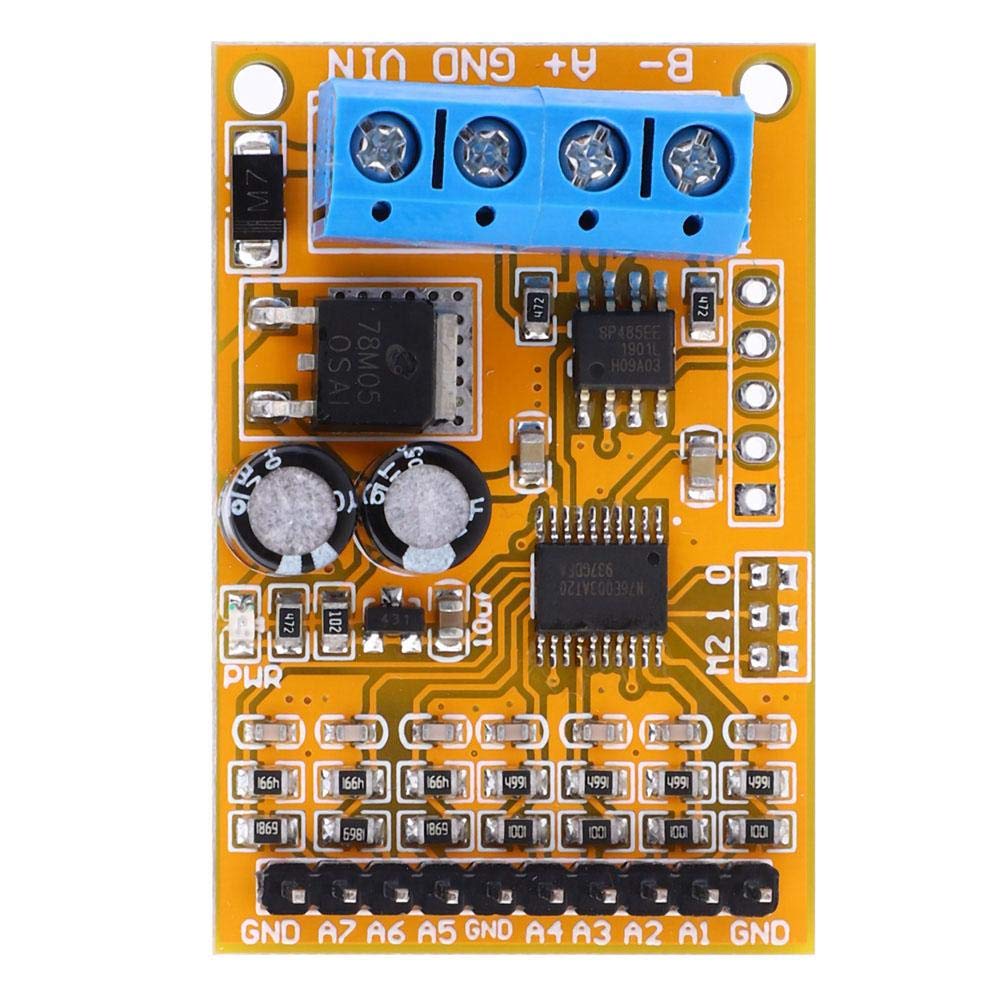

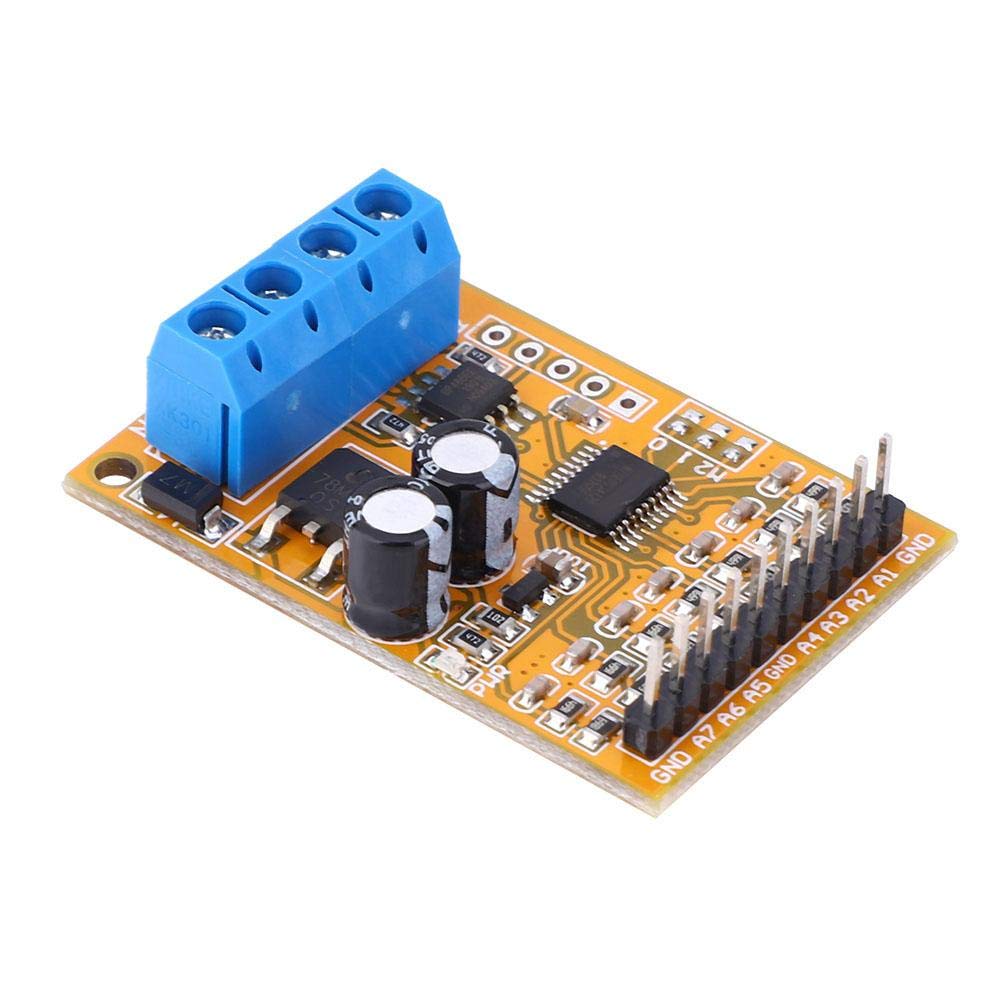

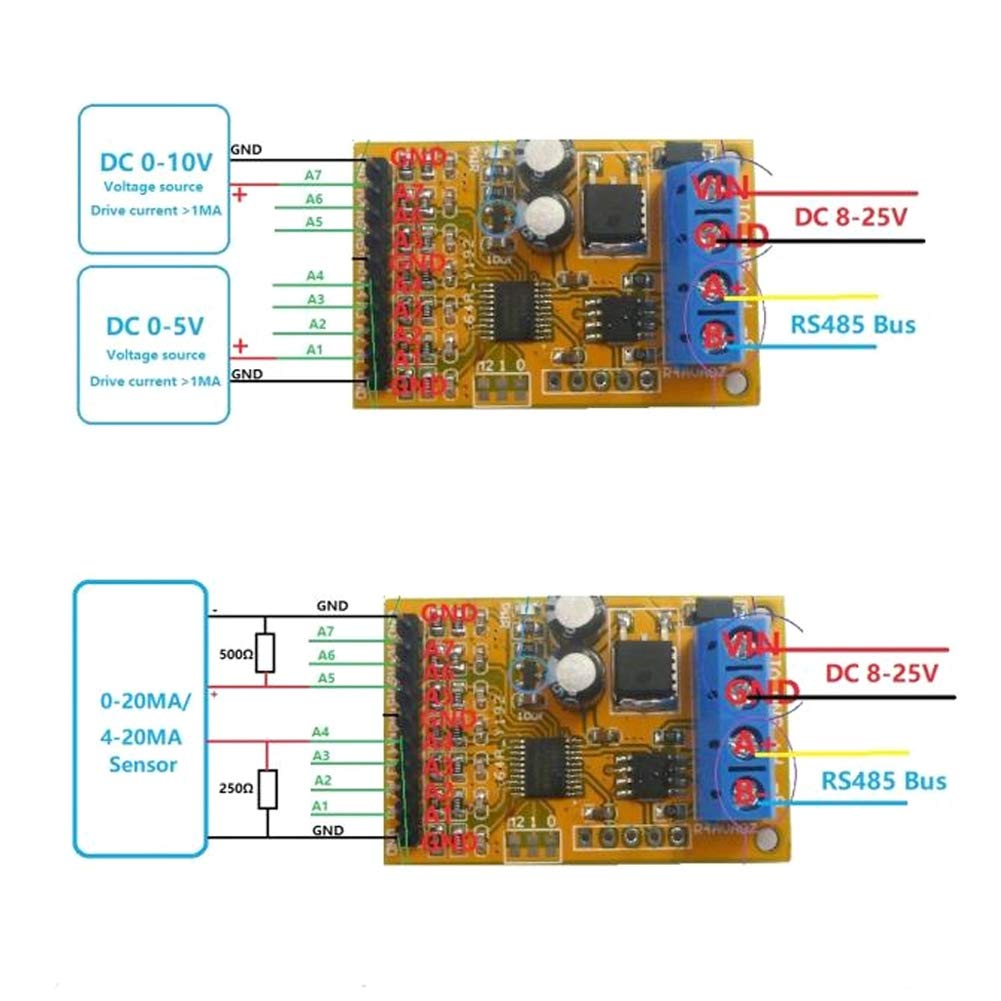

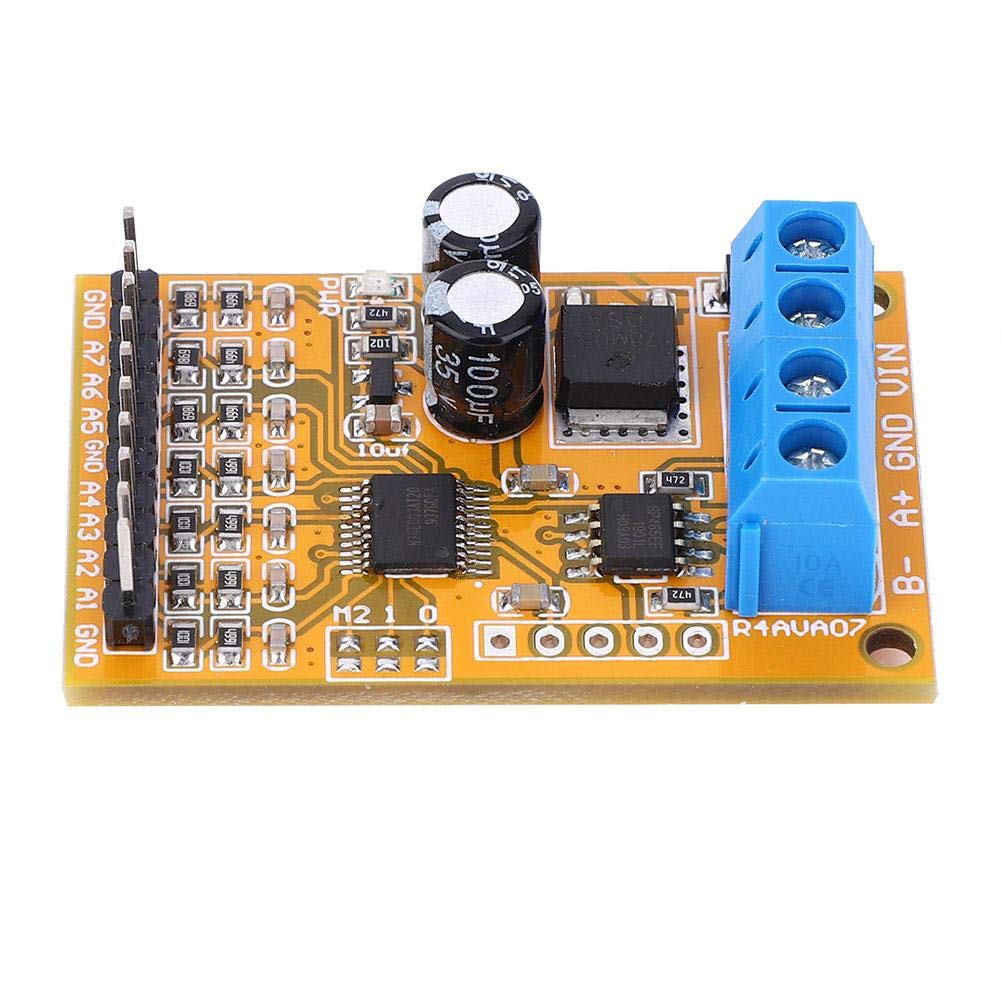

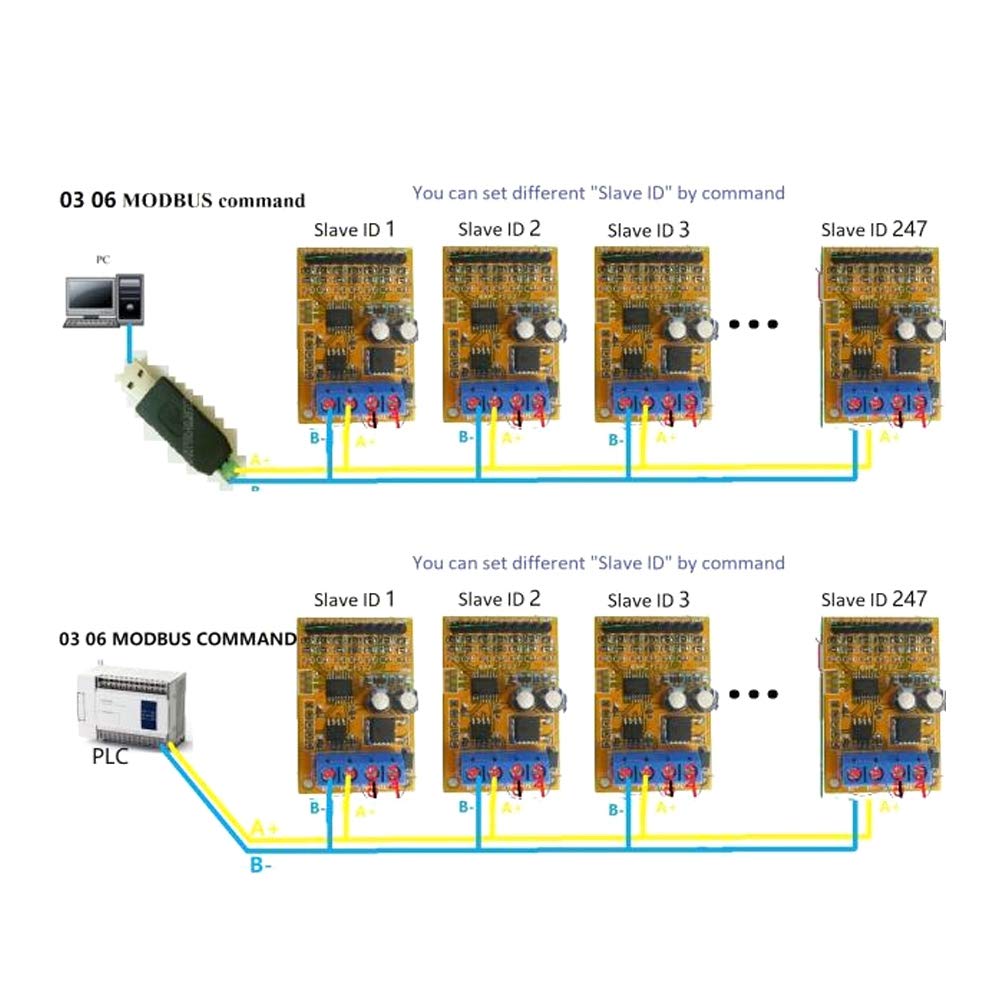

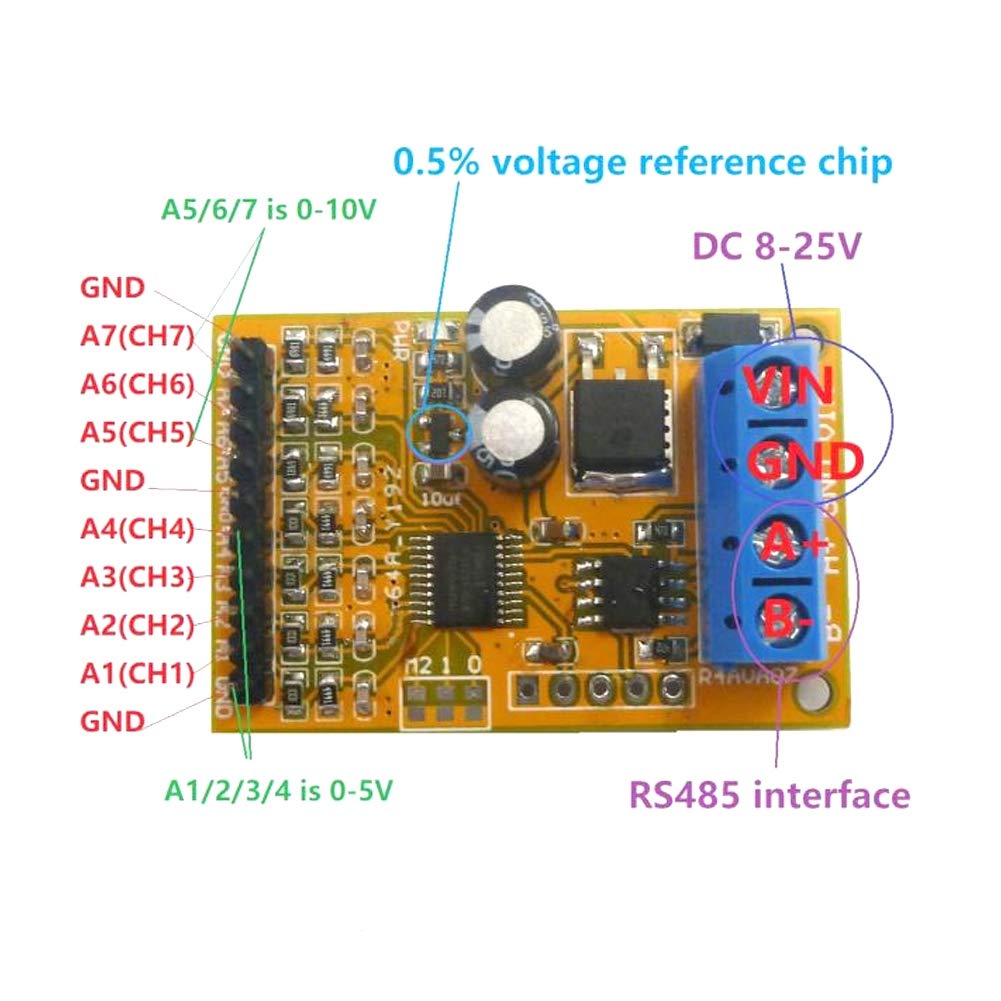

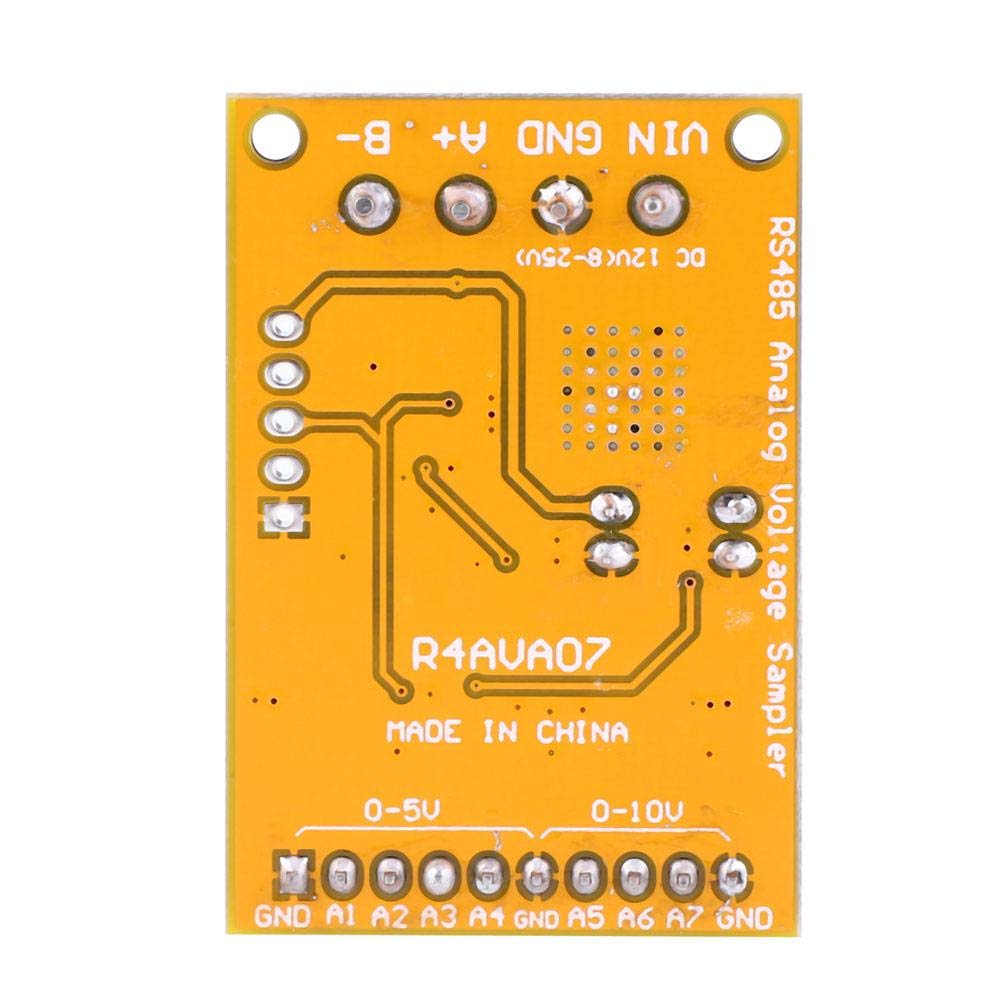

{"id":8034524332212,"title":"7 Channel Voltage Analog Collector with RS485 Modbus RTU Support","handle":"7-channel-voltage-analog-collector-with-rs485-modbus-rtu-support","description":"\u003ch3\u003e7 Channel Voltage Analog Collector with RS485 Modbus RTU Support\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Voltage Analog Collector Working Voltage: 8-24V\r\nWorking Current: 10-15MA Size: Approx. 45 x 30 x 15mm \/ 1.8 x 1.2 x 0.6in\r\nPackage List: 1 x Voltage Analog Collector Feature: 1. The \/ 2\/3\/4 channel\r\nvoltage measurement range is 0-5V, while the A5 \/ 6\/7 channel voltage\r\nmeasurement range is 0-10V. 2. The drive capability of the voltage source\r\nunder test must be greater than 1MA, otherwise the measurement will be\r\ninaccurate (the MCU IO voltage cannot be measured). 3. The voltage measurement\r\naccuracy is 1%, and if the error is greater than 1%, calibration can be\r\nperformed. 4. In addition to the computer serial super port input, the MODBUS\r\nRTU command can also be input via the PLC. 5. In the MODBUS RTU command mode,\r\nup to 247 devices can be used in parallel. 6. The MODBUS RTU instruction\r\nsupports the 03 06 function code.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eChannels: Voltage collector has 7 channels with 0-5V and 0-10V ranges\u003c\/li\u003e\r\n \u003cli\u003eDrive: Voltage collector requires drive capability greater than 1MA for accuracy\u003c\/li\u003e\r\n \u003cli\u003eAccuracy: Voltage collector provides 1% measurement accuracy with calibration\u003c\/li\u003e\r\n \u003cli\u003eOperation: Voltage collector works with computer serial port or PLC input\u003c\/li\u003e\r\n \u003cli\u003eFunction: Voltage collector supports MODBUS RTU with 03 06 function codes\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T19:57:03+11:00","created_at":"2026-02-28T19:57:00+11:00","vendor":"Walfront","type":"Function Generators","tags":["industrial_selected_Nov2025"],"price":10500,"price_min":10500,"price_max":10500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154564739252,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08537R3CX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7 Channel Voltage Analog Collector with RS485 Modbus RTU Support","public_title":null,"options":["Default Title"],"price":10500,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"0","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08537R3CX.jpg?v=1775787473","\/\/auspowers.com\/cdn\/shop\/files\/61gtAVgx9BL.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/61SnCxpzBrL.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/61lyH3mc18L.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/615iwocAtdL.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/51KCra4VQgL.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/61mY4IiGtML.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/61TfTXT5oQL.jpg?v=1772269023","\/\/auspowers.com\/cdn\/shop\/files\/61PSbjo8tCL.jpg?v=1772269023"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08537R3CX.jpg?v=1775787473","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358037684,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08537R3CX.jpg?v=1775787473"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08537R3CX.jpg?v=1775787473","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358070452,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61gtAVgx9BL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61gtAVgx9BL.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358103220,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61SnCxpzBrL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61SnCxpzBrL.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358135988,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61lyH3mc18L.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61lyH3mc18L.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358168756,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/615iwocAtdL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/615iwocAtdL.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358201524,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51KCra4VQgL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51KCra4VQgL.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358234292,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61mY4IiGtML.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61mY4IiGtML.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358267060,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TfTXT5oQL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TfTXT5oQL.jpg?v=1772269023","width":1001},{"alt":"[Australia - AusPower] - 7 Channel Voltage Analog Collector with RS485 Modbus RTU Support ","id":32724358299828,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61PSbjo8tCL.jpg?v=1772269023"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61PSbjo8tCL.jpg?v=1772269023","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e7 Channel Voltage Analog Collector with RS485 Modbus RTU Support\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Voltage Analog Collector Working Voltage: 8-24V\r\nWorking Current: 10-15MA Size: Approx. 45 x 30 x 15mm \/ 1.8 x 1.2 x 0.6in\r\nPackage List: 1 x Voltage Analog Collector Feature: 1. The \/ 2\/3\/4 channel\r\nvoltage measurement range is 0-5V, while the A5 \/ 6\/7 channel voltage\r\nmeasurement range is 0-10V. 2. The drive capability of the voltage source\r\nunder test must be greater than 1MA, otherwise the measurement will be\r\ninaccurate (the MCU IO voltage cannot be measured). 3. The voltage measurement\r\naccuracy is 1%, and if the error is greater than 1%, calibration can be\r\nperformed. 4. In addition to the computer serial super port input, the MODBUS\r\nRTU command can also be input via the PLC. 5. In the MODBUS RTU command mode,\r\nup to 247 devices can be used in parallel. 6. The MODBUS RTU instruction\r\nsupports the 03 06 function code.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eChannels: Voltage collector has 7 channels with 0-5V and 0-10V ranges\u003c\/li\u003e\r\n \u003cli\u003eDrive: Voltage collector requires drive capability greater than 1MA for accuracy\u003c\/li\u003e\r\n \u003cli\u003eAccuracy: Voltage collector provides 1% measurement accuracy with calibration\u003c\/li\u003e\r\n \u003cli\u003eOperation: Voltage collector works with computer serial port or PLC input\u003c\/li\u003e\r\n \u003cli\u003eFunction: Voltage collector supports MODBUS RTU with 03 06 function codes\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
