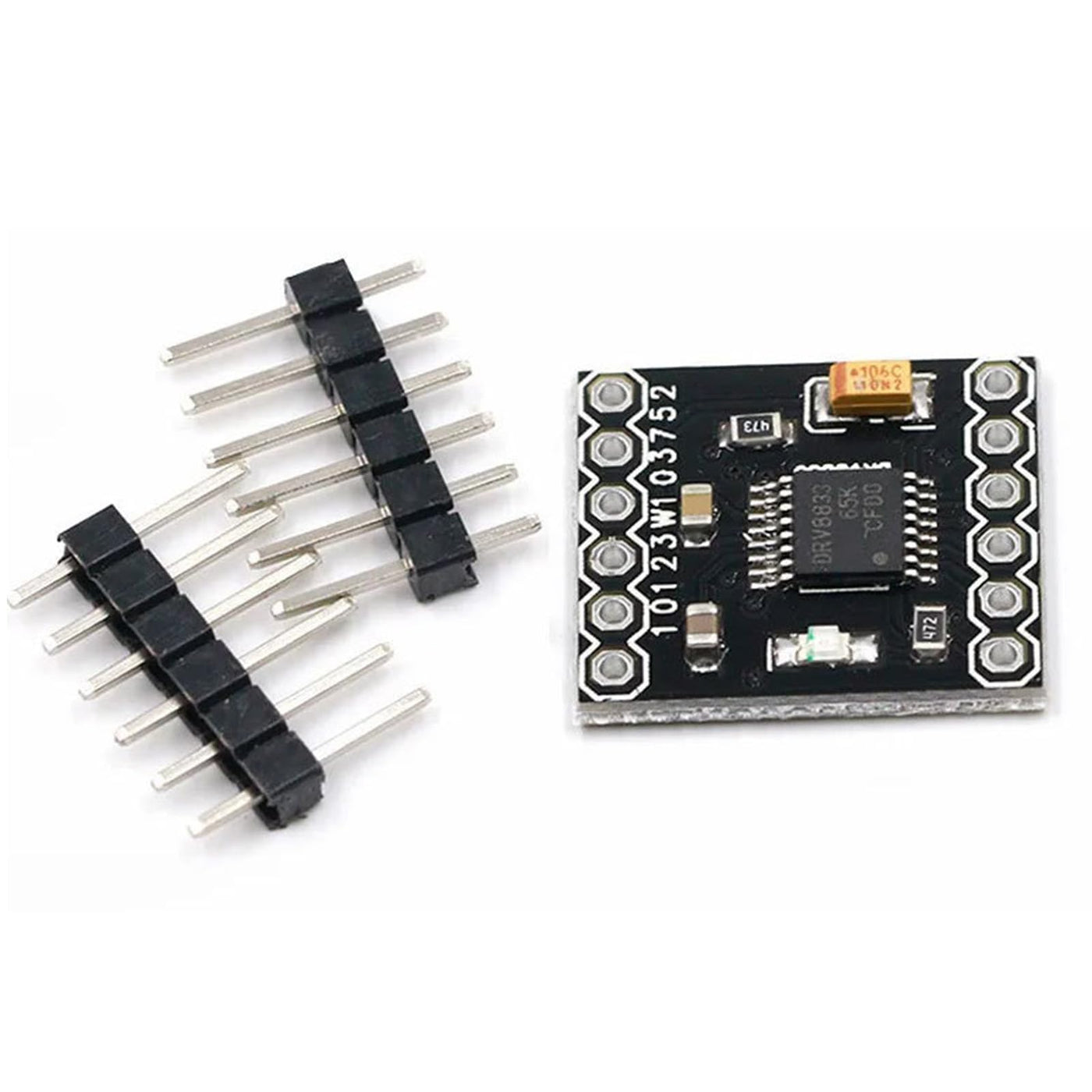

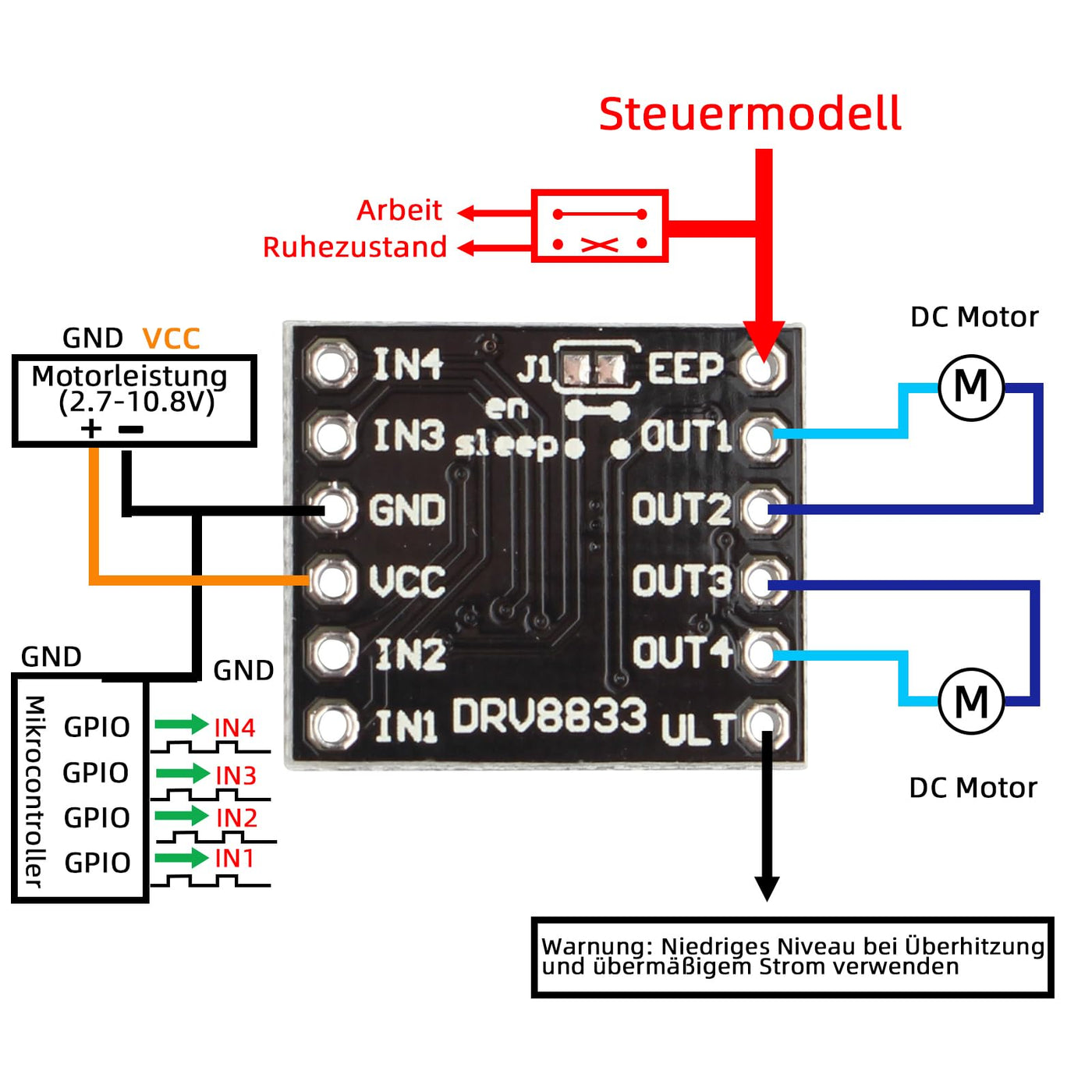

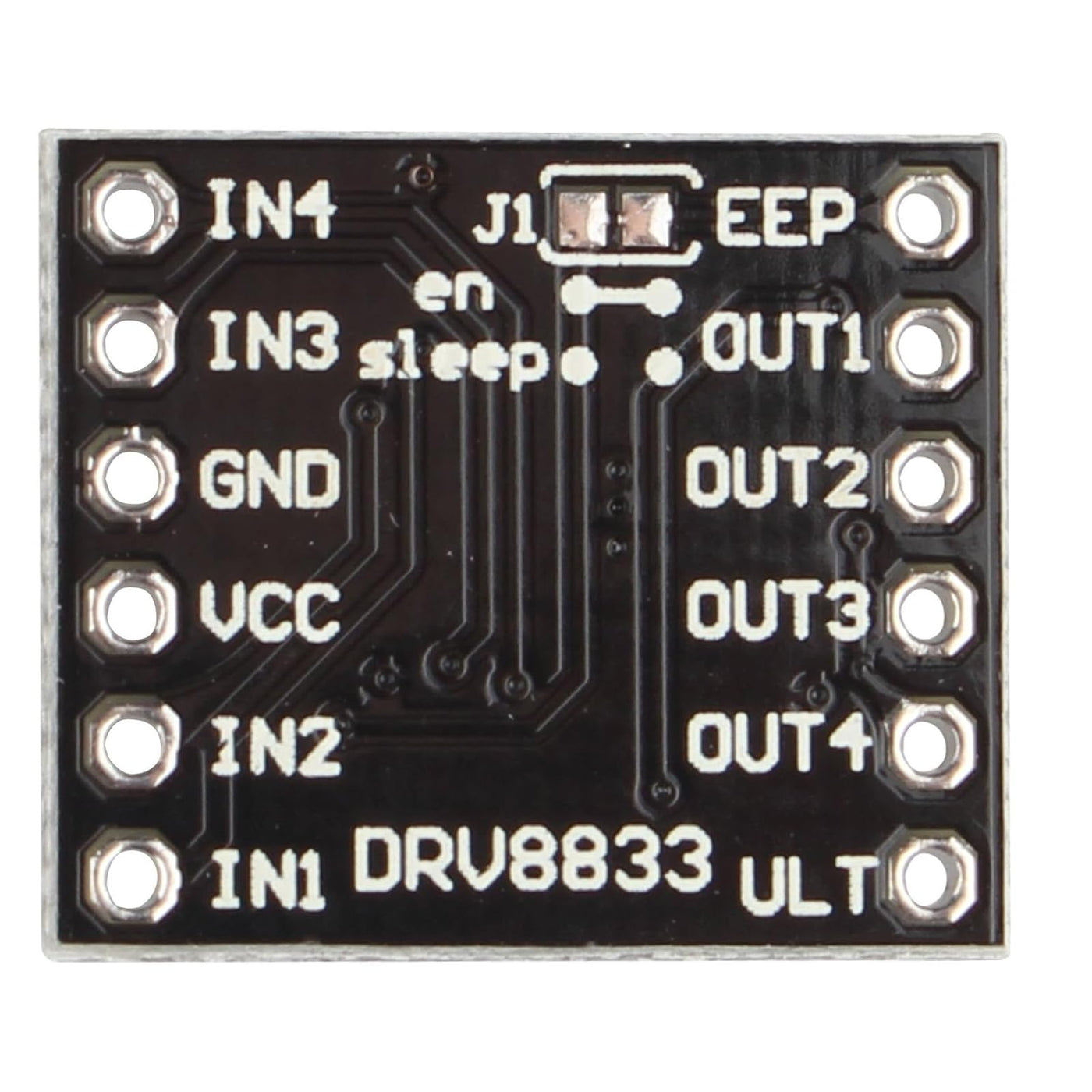

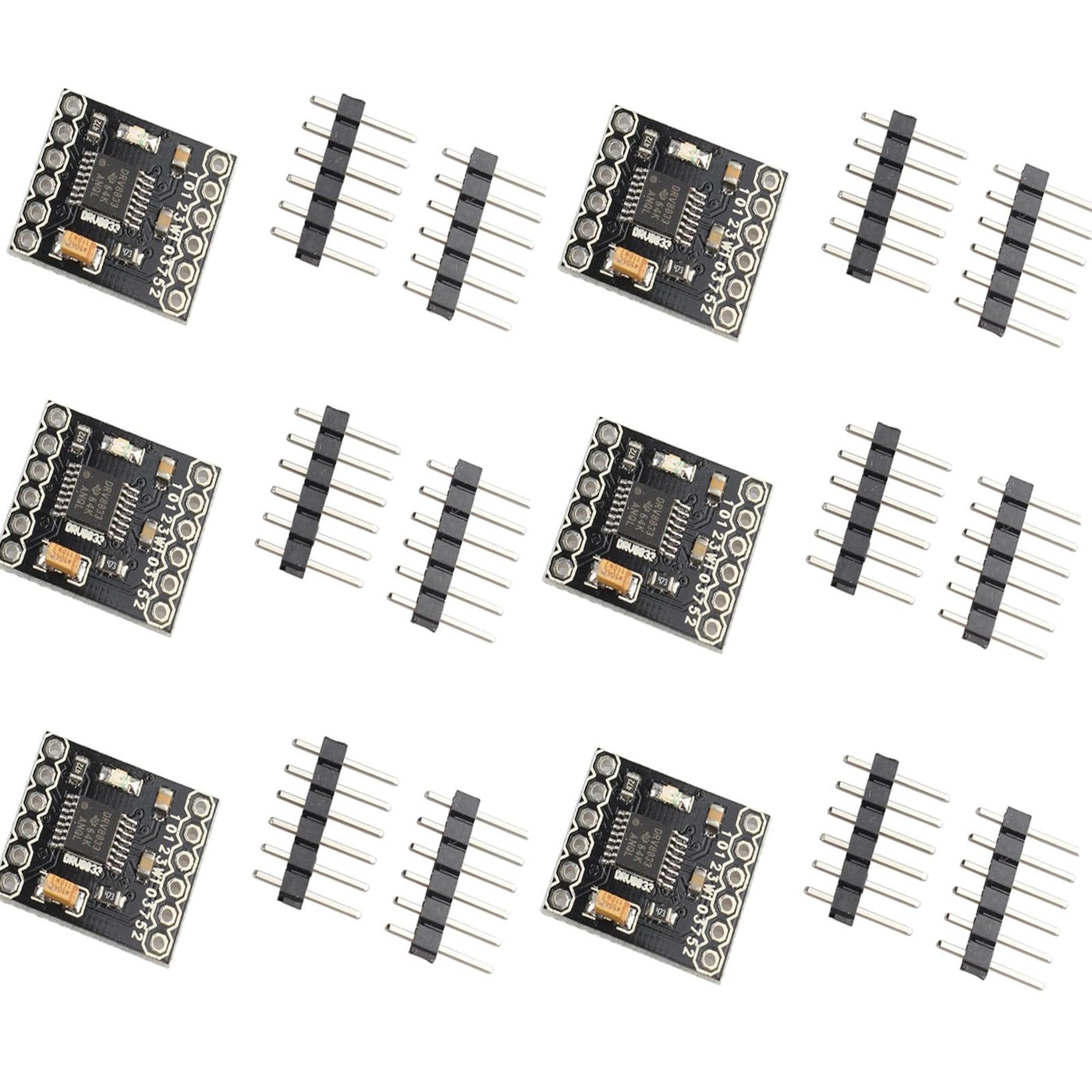

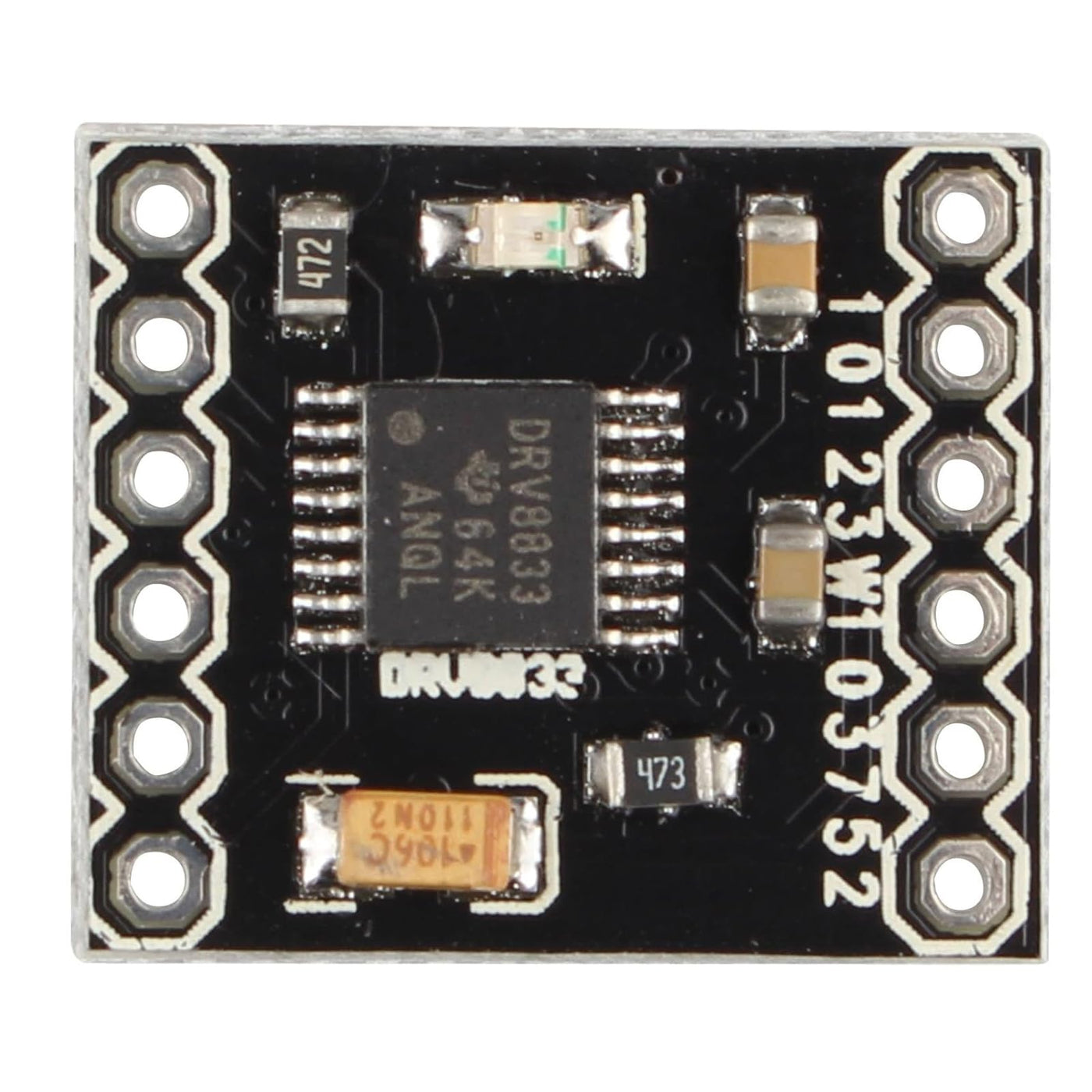

{"id":8115176571060,"title":"6pcs DRV8833 1.5A 2-channel | H Bridge DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V","handle":"6pcs-drv8833-1-5a-2-channel-h-bridge-dc-motor-drive-board-ultra-small-volume-motor-drive-module-input-voltage-3-10v","description":"\u003ch3\u003e6pcs DRV8833 1.5A 2-channel | H Bridge DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters: Size: 18.516mm Input voltage: 3 - 10V Single H bridge\noutput current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent\nprotection, short circuit protection, undervoltage lockout and overtemperature\nprotection. With low power sleep mode. Uses:It can drive DC motors up to 1.5A\nand 4-wire stepper motors. Instructions for use: ULT low level is sleep mode\n(need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is\na 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the\nsecond H-bridge, and the corresponding control is IN3, IN4. EEP is the\nprotection output and is not used by default. VCC is a voltage input of 3 to\n10V. GND is grounded.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe motor driver can control up to two DC motors at a constant current of 1.0A (4A peak).\u003c\/li\u003e\n \u003cli\u003eTwo input signals (IN1 and IN2) can be used to control the motor in one of four function modes - clockwise (CW), counterclockwise (CCW), short pause and stop.\u003c\/li\u003e\n \u003cli\u003eBuilt-in over-current protection, short circuit protection, undervoltage shutdown and over temperature protection. In power saving mode.\u003c\/li\u003e\n \u003cli\u003eThe two motor outputs (A and B) can be controlled separately, the speed of each motor is controlled via a PWM input signal with a frequency up to 100 kHz.\u003c\/li\u003e\n \u003cli\u003eMains Current: VM = 2.7-10.8V Output Current: Iout = 1.0A (Average) \/ 4A (Peak)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:54:37+10:00","created_at":"2026-09-01T22:59:36+10:00","vendor":"GERUI","type":"Motor Drivers","tags":["industrial_DE_Aug2026"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374893559988,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DHRFRG6X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6pcs DRV8833 1.5A 2-channel | H Bridge DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V","public_title":null,"options":["Default Title"],"price":9900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"744243396819","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DHRFRG6X.jpg?v=1788267578","\/\/auspowers.com\/cdn\/shop\/files\/61p6Thgr9oL.jpg?v=1788267578","\/\/auspowers.com\/cdn\/shop\/files\/71WLc66O-9L.jpg?v=1788267578","\/\/auspowers.com\/cdn\/shop\/files\/71-N9BnNwIL.jpg?v=1788267578","\/\/auspowers.com\/cdn\/shop\/files\/714cRVp1--L.jpg?v=1788267578"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DHRFRG6X.jpg?v=1788267578","options":["Title"],"media":[{"alt":null,"id":33272557994164,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DHRFRG6X.jpg?v=1788267578"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DHRFRG6X.jpg?v=1788267578","width":1600},{"alt":null,"id":33272558026932,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61p6Thgr9oL.jpg?v=1788267578"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61p6Thgr9oL.jpg?v=1788267578","width":1600},{"alt":null,"id":33272558059700,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71WLc66O-9L.jpg?v=1788267578"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71WLc66O-9L.jpg?v=1788267578","width":1600},{"alt":null,"id":33272558092468,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71-N9BnNwIL.jpg?v=1788267578"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71-N9BnNwIL.jpg?v=1788267578","width":1600},{"alt":null,"id":33272558125236,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/714cRVp1--L.jpg?v=1788267578"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/714cRVp1--L.jpg?v=1788267578","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e6pcs DRV8833 1.5A 2-channel | H Bridge DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3-10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters: Size: 18.516mm Input voltage: 3 - 10V Single H bridge\noutput current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent\nprotection, short circuit protection, undervoltage lockout and overtemperature\nprotection. With low power sleep mode. Uses:It can drive DC motors up to 1.5A\nand 4-wire stepper motors. Instructions for use: ULT low level is sleep mode\n(need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is\na 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the\nsecond H-bridge, and the corresponding control is IN3, IN4. EEP is the\nprotection output and is not used by default. VCC is a voltage input of 3 to\n10V. GND is grounded.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe motor driver can control up to two DC motors at a constant current of 1.0A (4A peak).\u003c\/li\u003e\n \u003cli\u003eTwo input signals (IN1 and IN2) can be used to control the motor in one of four function modes - clockwise (CW), counterclockwise (CCW), short pause and stop.\u003c\/li\u003e\n \u003cli\u003eBuilt-in over-current protection, short circuit protection, undervoltage shutdown and over temperature protection. In power saving mode.\u003c\/li\u003e\n \u003cli\u003eThe two motor outputs (A and B) can be controlled separately, the speed of each motor is controlled via a PWM input signal with a frequency up to 100 kHz.\u003c\/li\u003e\n \u003cli\u003eMains Current: VM = 2.7-10.8V Output Current: Iout = 1.0A (Average) \/ 4A (Peak)\u003c\/li\u003e\n \u003c\/ul\u003e"}
