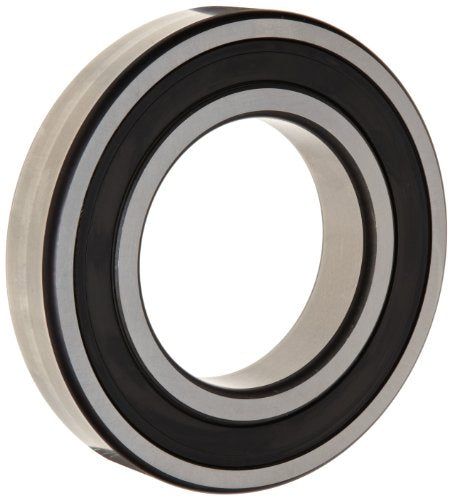

{"id":8115577094324,"title":"6204-2RSR Radial Bearing, Single Row, ABEC 1 Precision, Double Sealed, Steel Cage, Normal Clearance, Metric, 20mm ID, 47mm OD, 14mm Width, 10000rpm Maximum Rotational Speed, 1500lbf Static Load Capacity, 2900lbf Dynamic Load Capacity","handle":"6204-2rsr-radial-bearing-single-row-abec-1-precision-double-sealed-steel-cage-normal-clearance-metric-20mm-id-47mm-od-14mm-width-10000rpm-maximum-rotational-speed-1500lbf-static-load-capacity-2900lbf-dynamic-load-capacity","description":"\u003ch3\u003e6204-2RSR Radial Bearing, Single Row, ABEC 1 Precision, Double Sealed, Steel Cage, Normal Clearance, Metric, 20mm ID, 47mm OD, 14mm Width, 10000rpm Maximum Rotational Speed, 1500lbf Static Load Capacity, 2900lbf Dynamic Load Capacity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe single-row double-sealed radial bearing has symmetric races to support\nradial loads while maintaining high speeds and rotational accuracy. It\nconforms to the precision standard Annular Bearing Engineers Committee (ABEC)\n1 for performance within a narrow range of variation, and it has a CN (normal)\nradial internal clearance for applications that do not involve thermal\nexpansion. Its steel cage evenly spaces the rollers for even load distribution\nand prevents contact to reduce friction, vibrations, and noise. It has rubber\nseals on both sides of the bearing to keep lubricant in and contaminants out.\nThis radial ball bearing is suitable for use in general purpose applications\nthat primarily involve radial loads and minimal axial loads at relatively high\nrotational speeds. These include transmissions, motors, and pumps, among\nothers.SpecificationsMain bearing dimensionsDIN 715Basic dynamic load\nratingsDIN ISO 281Dimensional and geometric tolerancesDIN 620-3 (ISO 199),\ntolerance class PNThrough-hardening steel for inner and outer rings and\nrollersISO 683-17Steel strip for cageEN 10139, SAE J403Load carrying capacity\nand lifeDIN ISO 281 Appendix 1System for creating part numbers for rolling\nbearingsDIN 623-1 Rolling bearings use rolling elements to maintain the\nseparation between moving parts to reduce rotational friction and support\nradial and axial loads. These elements can be one of the following types:\nball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling\nbearings are open, shielded, or sealed. Sealed bearings are lubricated with\noil or grease in the bearing factory, while open and shielded bearings are\nmeant to be lubricated in place, with periodic reapplication of lubrication,\nbased on use. The shield protects the working parts of the bearing from\nenvironmental debris that may be introduced and could reduce the ball bearing\nspeed and lifespan. Rolling bearings are used in a range of applications from\nagricultural machinery to conveying equipment, robotics, dental equipment,\nelevators, rolling mills, ship rudder shafts, and aggregate crushers, among\nothers. manufactures a variety of bearings that meet International\nOrganization for Standardization (ISO) and Deutsches Institut für Normung\n(DIN) standards for quality assurance. The company, founded in 1883, is based\nin Schweinfurt, Germany.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAxially symmetric races to support radial loads while maintaining high speeds and rotational accuracy\u003c\/li\u003e\n \u003cli\u003eConforms to ABEC 1 precision standard for performance within a narrow range of variation\u003c\/li\u003e\n \u003cli\u003eCN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision\u003c\/li\u003e\n \u003cli\u003eSteel cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise\u003c\/li\u003e\n \u003cli\u003eRubber seals on both sides of the bearing to keep lubricant in and contaminants out\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:43:50+10:00","created_at":"2026-09-02T20:09:55+10:00","vendor":"FAG","type":"Deep-Groove Ball Bearings","tags":["industrial_UK_Aug2026"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375666294964,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0010YLILU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6204-2RSR Radial Bearing, Single Row, ABEC 1 Precision, Double Sealed, Steel Cage, Normal Clearance, Metric, 20mm ID, 47mm OD, 14mm Width, 10000rpm Maximum Rotational Speed, 1500lbf Static Load Capacity, 2900lbf Dynamic Load Capacity","public_title":null,"options":["Default Title"],"price":11900,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"6204.2RSR","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0010YLILU.jpg?v=1788343797"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0010YLILU.jpg?v=1788343797","options":["Title"],"media":[{"alt":null,"id":33276424847540,"position":1,"preview_image":{"aspect_ratio":0.904,"height":500,"width":452,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0010YLILU.jpg?v=1788343797"},"aspect_ratio":0.904,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0010YLILU.jpg?v=1788343797","width":452}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e6204-2RSR Radial Bearing, Single Row, ABEC 1 Precision, Double Sealed, Steel Cage, Normal Clearance, Metric, 20mm ID, 47mm OD, 14mm Width, 10000rpm Maximum Rotational Speed, 1500lbf Static Load Capacity, 2900lbf Dynamic Load Capacity\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe single-row double-sealed radial bearing has symmetric races to support\nradial loads while maintaining high speeds and rotational accuracy. It\nconforms to the precision standard Annular Bearing Engineers Committee (ABEC)\n1 for performance within a narrow range of variation, and it has a CN (normal)\nradial internal clearance for applications that do not involve thermal\nexpansion. Its steel cage evenly spaces the rollers for even load distribution\nand prevents contact to reduce friction, vibrations, and noise. It has rubber\nseals on both sides of the bearing to keep lubricant in and contaminants out.\nThis radial ball bearing is suitable for use in general purpose applications\nthat primarily involve radial loads and minimal axial loads at relatively high\nrotational speeds. These include transmissions, motors, and pumps, among\nothers.SpecificationsMain bearing dimensionsDIN 715Basic dynamic load\nratingsDIN ISO 281Dimensional and geometric tolerancesDIN 620-3 (ISO 199),\ntolerance class PNThrough-hardening steel for inner and outer rings and\nrollersISO 683-17Steel strip for cageEN 10139, SAE J403Load carrying capacity\nand lifeDIN ISO 281 Appendix 1System for creating part numbers for rolling\nbearingsDIN 623-1 Rolling bearings use rolling elements to maintain the\nseparation between moving parts to reduce rotational friction and support\nradial and axial loads. These elements can be one of the following types:\nball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling\nbearings are open, shielded, or sealed. Sealed bearings are lubricated with\noil or grease in the bearing factory, while open and shielded bearings are\nmeant to be lubricated in place, with periodic reapplication of lubrication,\nbased on use. The shield protects the working parts of the bearing from\nenvironmental debris that may be introduced and could reduce the ball bearing\nspeed and lifespan. Rolling bearings are used in a range of applications from\nagricultural machinery to conveying equipment, robotics, dental equipment,\nelevators, rolling mills, ship rudder shafts, and aggregate crushers, among\nothers. manufactures a variety of bearings that meet International\nOrganization for Standardization (ISO) and Deutsches Institut für Normung\n(DIN) standards for quality assurance. The company, founded in 1883, is based\nin Schweinfurt, Germany.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAxially symmetric races to support radial loads while maintaining high speeds and rotational accuracy\u003c\/li\u003e\n \u003cli\u003eConforms to ABEC 1 precision standard for performance within a narrow range of variation\u003c\/li\u003e\n \u003cli\u003eCN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision\u003c\/li\u003e\n \u003cli\u003eSteel cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise\u003c\/li\u003e\n \u003cli\u003eRubber seals on both sides of the bearing to keep lubricant in and contaminants out\u003c\/li\u003e\n \u003c\/ul\u003e"}
