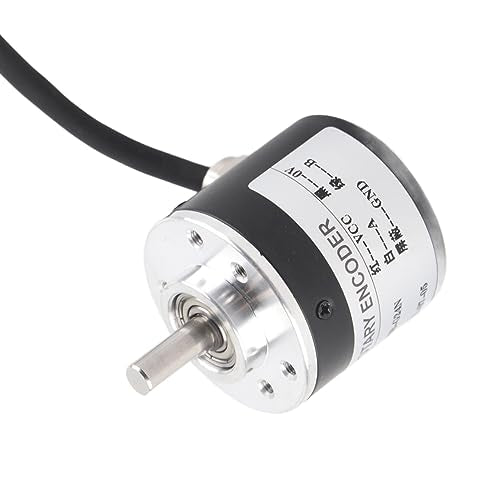

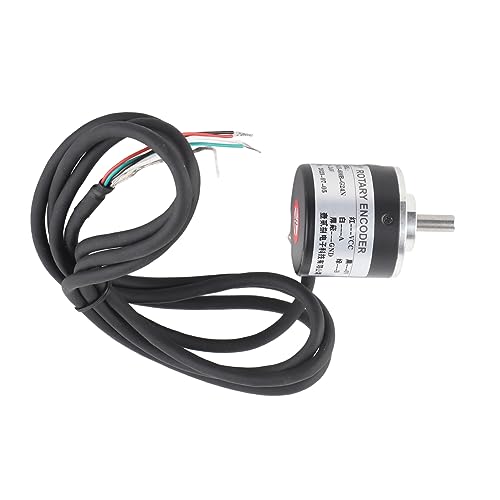

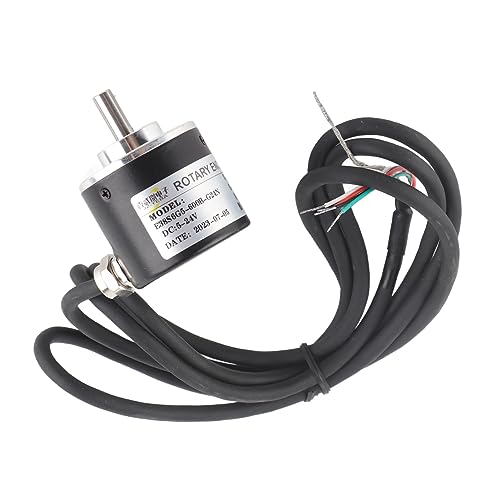

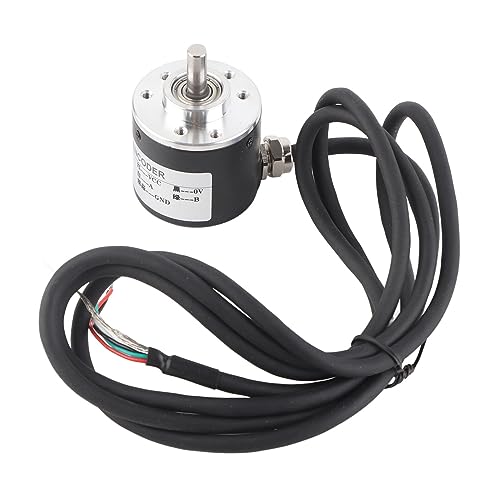

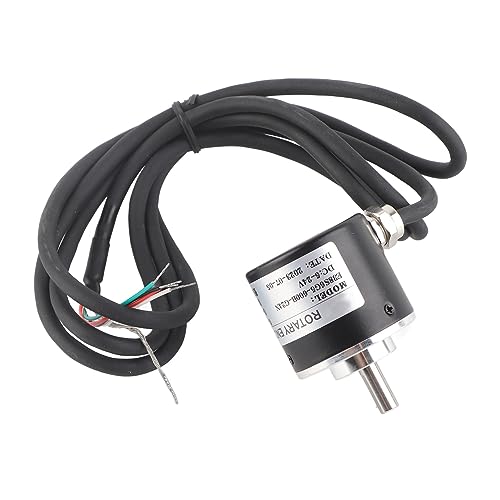

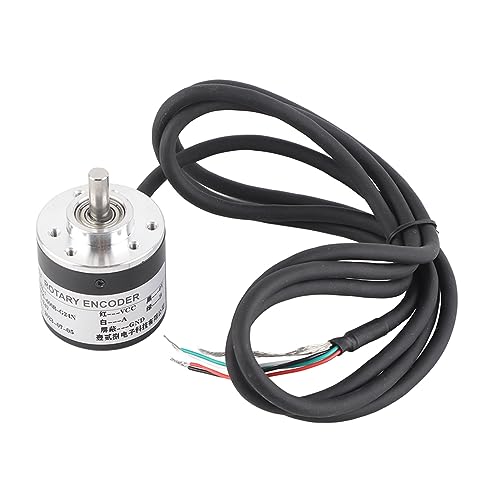

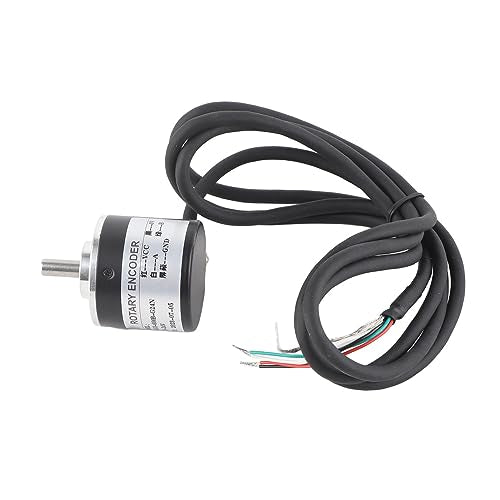

{"id":8115626016948,"title":"600P\/R Rotary Encoder, Incremental Rotary Encoder Module, DC 5-24v 2 Phase, for Intelligent Control of Various Displacement Measurement","handle":"600p-r-rotary-encoder-incremental-rotary-encoder-module-dc-5-24v-2-phase-for-intelligent-control-of-various-displacement-measurement","description":"\u003ch3\u003e600P\/R Rotary Encoder, Incremental Rotary Encoder Module, DC 5-24v 2 Phase, for Intelligent Control of Various Displacement Measurement\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBudget: 100% new pulse: 600 p\/r (single phase 600 sweaters\/R, double phase 4\nwith 2400 pulses). Power source: DC 5-24V Axle: 6 x 13mm Dimensions: 38 x 35.5\nmm. Output: AB orthogonal pulse circuit in 2 phases, output for NPN open\nmanifold output type maximum mechanical speed: 5000 rpm. Frequency response:\n0-20KHz Cable length: 1.5 m. Note: The 2phase AB output should not be\nconnected directly with VCC, otherwise burn the output triode, as different\nbatches may not have the terminal (green = phase A, white = phase B, red =\npower VDC +, black = V0). Package Includes:1 x 600P\/R Encoder Incremental\nRotary Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecial rotary coder operation parameters This product has 600 p\/r (single phase 600 pulse\/R, two-phase 4 times the frequency at 2400 pulse).\u003c\/li\u003e\n \u003cli\u003eCoder has good performance. The power supply is DC5-24V, with stable working performance and good working conditions.\u003c\/li\u003e\n \u003cli\u003eCoder working principle: rectangular quadrature pulse circuit, the output is NPN open manifold type.\u003c\/li\u003e\n \u003cli\u003eThe product has a wide range of functions Can be used to measure the rotation speed, angle and acceleration of an object, as well as measuring the length.\u003c\/li\u003e\n \u003cli\u003eIntelligent rotary encoder It is suitable for intelligent control of various movement measurements, automatic fixed length leather guillotine, steel cutting length control, height and weight scale, student racing robot\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:29:42+10:00","created_at":"2026-09-02T20:26:56+10:00","vendor":"Acogedor","type":"Switch Encoders","tags":["industrial_UK_Aug2026"],"price":18100,"price_min":18100,"price_max":18100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375717937332,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B07R8VSMQH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"600P\/R Rotary Encoder, Incremental Rotary Encoder Module, DC 5-24v 2 Phase, for Intelligent Control of Various Displacement Measurement","public_title":null,"options":["Default Title"],"price":18100,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"753874417992","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R8VSMQH.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/41FUf6CaJEL.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/418OjiFKCvL.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/4153TGItgVL.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/4148p0de2DL.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/41yOHWfyhzL.jpg?v=1788344818","\/\/auspowers.com\/cdn\/shop\/files\/414W1YSw7_L_20cbb25e-f946-4168-a2c2-2fe886015e36.jpg?v=1788344818"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R8VSMQH.jpg?v=1788344818","options":["Title"],"media":[{"alt":null,"id":33276730966196,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R8VSMQH.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07R8VSMQH.jpg?v=1788344818","width":500},{"alt":null,"id":33276730998964,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41FUf6CaJEL.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41FUf6CaJEL.jpg?v=1788344818","width":500},{"alt":null,"id":33276731031732,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/418OjiFKCvL.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/418OjiFKCvL.jpg?v=1788344818","width":500},{"alt":null,"id":33276731064500,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/4153TGItgVL.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/4153TGItgVL.jpg?v=1788344818","width":500},{"alt":null,"id":33276731097268,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/4148p0de2DL.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/4148p0de2DL.jpg?v=1788344818","width":500},{"alt":null,"id":33276731130036,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41yOHWfyhzL.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41yOHWfyhzL.jpg?v=1788344818","width":500},{"alt":null,"id":33276731162804,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/414W1YSw7_L_20cbb25e-f946-4168-a2c2-2fe886015e36.jpg?v=1788344818"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/414W1YSw7_L_20cbb25e-f946-4168-a2c2-2fe886015e36.jpg?v=1788344818","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e600P\/R Rotary Encoder, Incremental Rotary Encoder Module, DC 5-24v 2 Phase, for Intelligent Control of Various Displacement Measurement\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBudget: 100% new pulse: 600 p\/r (single phase 600 sweaters\/R, double phase 4\nwith 2400 pulses). Power source: DC 5-24V Axle: 6 x 13mm Dimensions: 38 x 35.5\nmm. Output: AB orthogonal pulse circuit in 2 phases, output for NPN open\nmanifold output type maximum mechanical speed: 5000 rpm. Frequency response:\n0-20KHz Cable length: 1.5 m. Note: The 2phase AB output should not be\nconnected directly with VCC, otherwise burn the output triode, as different\nbatches may not have the terminal (green = phase A, white = phase B, red =\npower VDC +, black = V0). Package Includes:1 x 600P\/R Encoder Incremental\nRotary Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecial rotary coder operation parameters This product has 600 p\/r (single phase 600 pulse\/R, two-phase 4 times the frequency at 2400 pulse).\u003c\/li\u003e\n \u003cli\u003eCoder has good performance. The power supply is DC5-24V, with stable working performance and good working conditions.\u003c\/li\u003e\n \u003cli\u003eCoder working principle: rectangular quadrature pulse circuit, the output is NPN open manifold type.\u003c\/li\u003e\n \u003cli\u003eThe product has a wide range of functions Can be used to measure the rotation speed, angle and acceleration of an object, as well as measuring the length.\u003c\/li\u003e\n \u003cli\u003eIntelligent rotary encoder It is suitable for intelligent control of various movement measurements, automatic fixed length leather guillotine, steel cutting length control, height and weight scale, student racing robot\u003c\/li\u003e\n \u003c\/ul\u003e"}
