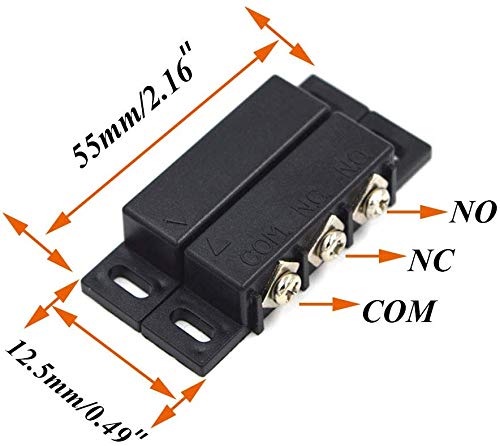

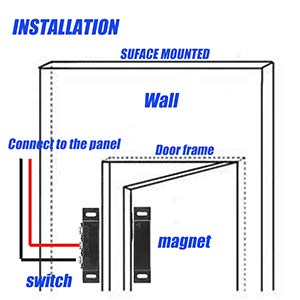

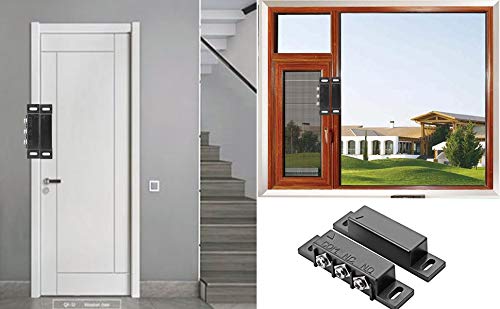

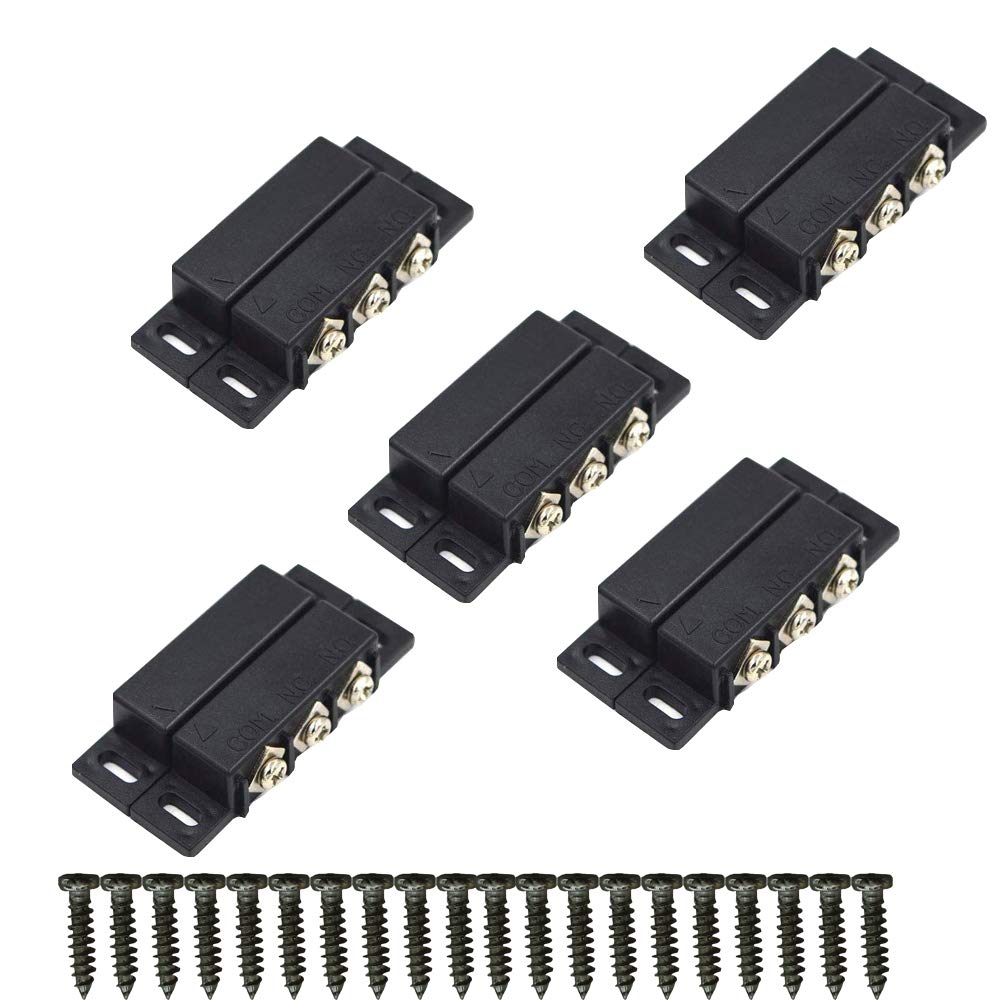

{"id":7170054095028,"title":"5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black","handle":"5sets-magnetic-reed-switch-magnetic-door-switch-magnetic-contact-switch-normally-open-closed-nc-no-door-alarm-window-security-for-dc-5v-12v-24v-light-black","description":"\u003ch3\u003e5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMAGNETIC REED SWITCH INSTALLATION INSTRUCTIONS 1:The door\nand window magnet should be installed at the closed position of the\ndoor\/window 2:The magnet part is installed on the movable door and window. The\nswitch part is installed on the fixed door and window frame. The switch part\nand the magnet part should be aligned as much as possible. 3:The door magnet\nshould be away from the strong magnetic field interference source such as a\ntransformer. Otherwise, the working characteristics of the door magnet will be\nchanged and possible wrong actions. 4:Magnetic Contact sensors can be added to\nan existing wired Alarm Systems. 5:They are ideal for protecting doors,\nwindows and patio doors and any opening device such as a drawer or cupboard\nfor example.In the event of no contact the alarm will be activated\nimmediately.Magnetic Contacts are perfect for use in situations where it is\nnot suitable to fit PIR sensors, for example where there are pets or animals.\n6：Recommendations in application: wooden door, window, metal doors, gates and\nany other compatible application. N.C. \/ N.O. DEFINITION N.C. means Normally\nClosed: When the magnet together, the circuit is conductive( light on ); When\nthe magnet separates, the circuit is not conductive ( light off ); N.O. means\nNormally Open: When the magnet separates, the circuit is conductive( light on\n); When the magnet together, the circuit is not conductive ( light off ).\nPlease check the right need carefully before purchasing it! Read more\nPRECAUTIONS 1:It can only provide a switch signal to the device, which cannot\ndirectly load the power, nor directly connect the lamp! 2:The door magnet\nshould be away from the strong magnetic field interference source such as a\ntransformer. Otherwise, the working characteristics of the door magnet will be\nRead more TECHNICAL SPECIFICATIONS Product Name Magnetic DoorContactReed\nSwitch Model 31B Color black Connecting mode N.C.\/N.O conbined Rated current\n500(mA) Rated voltage (VDC)100 Operating distance more than 15mm, less than\n25mm Rated power 10W Dimension 5512.511.5mm Mounting Hole Size 7 x 2.5mm\/\n0.28\" x 0.1\"(LW) package 5 Sensors, 5 Magnets, 20 screws\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name: Magnetic Door Swith; Color: black; Material: ABS;Net Weight: 120g\u003c\/li\u003e\n \u003cli\u003eMaximum Switch Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current);Rated Power: 10W(Maximum Switch Power)\u003c\/li\u003e\n \u003cli\u003eGreat for alarm,LED,Relay,GPS low voltage devices...etc.,Trigger Range: 10-20mm; Contact Type: NC\/NO\/COM\u003c\/li\u003e\n \u003cli\u003eMagnetic Contact sensors can be added to an existing wired Alarm Systems. They are ideal for protecting doors,\u003c\/li\u003e\n \u003cli\u003ePackage Content: 5 Sets x Magnetic Door Swith; Size: 55*12.5*11.5mm \/ 2.17\" x 0.45\" x 0.45\"(L*W*H) a package of screws for mounting on wood only\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-26T20:22:56+10:00","created_at":"2022-06-26T20:23:01+10:00","vendor":"TAKHRWOD","type":"Reed Switches","tags":["industrial"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41609633759412,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07YVG637M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black","public_title":null,"options":["Default Title"],"price":14500,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"0779172986527","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07YVG637M.jpg?v=1656314000","\/\/auspowers.com\/cdn\/shop\/products\/41Ay6FZiN_L.jpg?v=1656238981","\/\/auspowers.com\/cdn\/shop\/products\/61NlK6sqM7L.jpg?v=1656238981","\/\/auspowers.com\/cdn\/shop\/products\/31MyvDBKHGL.jpg?v=1656238981","\/\/auspowers.com\/cdn\/shop\/products\/41PpGUhN8fL.jpg?v=1656238981","\/\/auspowers.com\/cdn\/shop\/products\/51QHVhcZQ1L.jpg?v=1656238981"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07YVG637M.jpg?v=1656314000","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26305140064436,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07YVG637M.jpg?v=1656314000"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07YVG637M.jpg?v=1656314000","width":1000},{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26295747903668,"position":2,"preview_image":{"aspect_ratio":1.618,"height":309,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41Ay6FZiN_L.jpg?v=1656238981"},"aspect_ratio":1.618,"height":309,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41Ay6FZiN_L.jpg?v=1656238981","width":500},{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26295747936436,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61NlK6sqM7L.jpg?v=1656238981"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61NlK6sqM7L.jpg?v=1656238981","width":1000},{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26295747969204,"position":4,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/auspowers.com\/cdn\/shop\/products\/31MyvDBKHGL.jpg?v=1656238981"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/31MyvDBKHGL.jpg?v=1656238981","width":300},{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26295748001972,"position":5,"preview_image":{"aspect_ratio":1.121,"height":446,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41PpGUhN8fL.jpg?v=1656238981"},"aspect_ratio":1.121,"height":446,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41PpGUhN8fL.jpg?v=1656238981","width":500},{"alt":"[Australia - AusPower] - 5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light Black ","id":26295748034740,"position":6,"preview_image":{"aspect_ratio":1.429,"height":700,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51QHVhcZQ1L.jpg?v=1656238981"},"aspect_ratio":1.429,"height":700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51QHVhcZQ1L.jpg?v=1656238981","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e5Sets Magnetic Reed Switch, Magnetic Door Switch\/Magnetic Contact Switch\/Normally Open Closed NC NO Door Alarm Window Security, for DC 5V 12V 24V Light\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMAGNETIC REED SWITCH INSTALLATION INSTRUCTIONS 1:The door\nand window magnet should be installed at the closed position of the\ndoor\/window 2:The magnet part is installed on the movable door and window. The\nswitch part is installed on the fixed door and window frame. The switch part\nand the magnet part should be aligned as much as possible. 3:The door magnet\nshould be away from the strong magnetic field interference source such as a\ntransformer. Otherwise, the working characteristics of the door magnet will be\nchanged and possible wrong actions. 4:Magnetic Contact sensors can be added to\nan existing wired Alarm Systems. 5:They are ideal for protecting doors,\nwindows and patio doors and any opening device such as a drawer or cupboard\nfor example.In the event of no contact the alarm will be activated\nimmediately.Magnetic Contacts are perfect for use in situations where it is\nnot suitable to fit PIR sensors, for example where there are pets or animals.\n6：Recommendations in application: wooden door, window, metal doors, gates and\nany other compatible application. N.C. \/ N.O. DEFINITION N.C. means Normally\nClosed: When the magnet together, the circuit is conductive( light on ); When\nthe magnet separates, the circuit is not conductive ( light off ); N.O. means\nNormally Open: When the magnet separates, the circuit is conductive( light on\n); When the magnet together, the circuit is not conductive ( light off ).\nPlease check the right need carefully before purchasing it! Read more\nPRECAUTIONS 1:It can only provide a switch signal to the device, which cannot\ndirectly load the power, nor directly connect the lamp! 2:The door magnet\nshould be away from the strong magnetic field interference source such as a\ntransformer. Otherwise, the working characteristics of the door magnet will be\nRead more TECHNICAL SPECIFICATIONS Product Name Magnetic DoorContactReed\nSwitch Model 31B Color black Connecting mode N.C.\/N.O conbined Rated current\n500(mA) Rated voltage (VDC)100 Operating distance more than 15mm, less than\n25mm Rated power 10W Dimension 5512.511.5mm Mounting Hole Size 7 x 2.5mm\/\n0.28\" x 0.1\"(LW) package 5 Sensors, 5 Magnets, 20 screws\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name: Magnetic Door Swith; Color: black; Material: ABS;Net Weight: 120g\u003c\/li\u003e\n \u003cli\u003eMaximum Switch Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current);Rated Power: 10W(Maximum Switch Power)\u003c\/li\u003e\n \u003cli\u003eGreat for alarm,LED,Relay,GPS low voltage devices...etc.,Trigger Range: 10-20mm; Contact Type: NC\/NO\/COM\u003c\/li\u003e\n \u003cli\u003eMagnetic Contact sensors can be added to an existing wired Alarm Systems. They are ideal for protecting doors,\u003c\/li\u003e\n \u003cli\u003ePackage Content: 5 Sets x Magnetic Door Swith; Size: 55*12.5*11.5mm \/ 2.17\" x 0.45\" x 0.45\"(L*W*H) a package of screws for mounting on wood only\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
