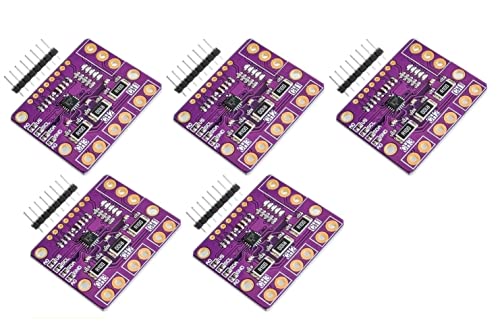

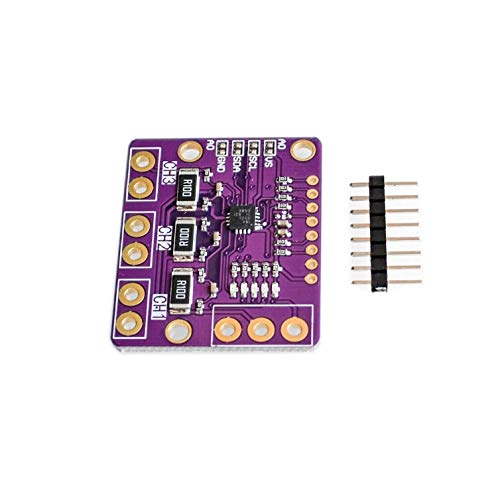

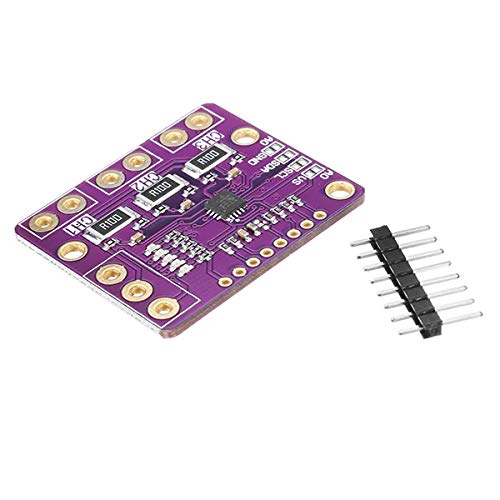

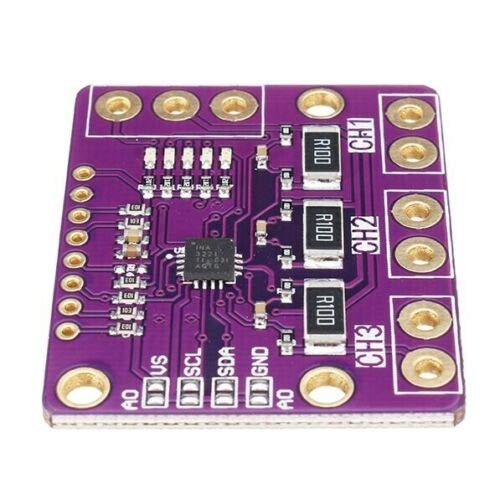

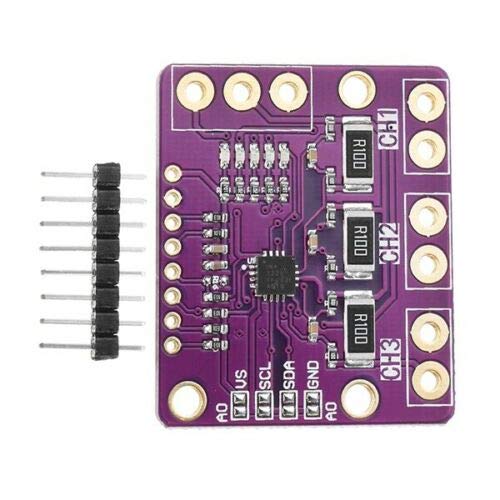

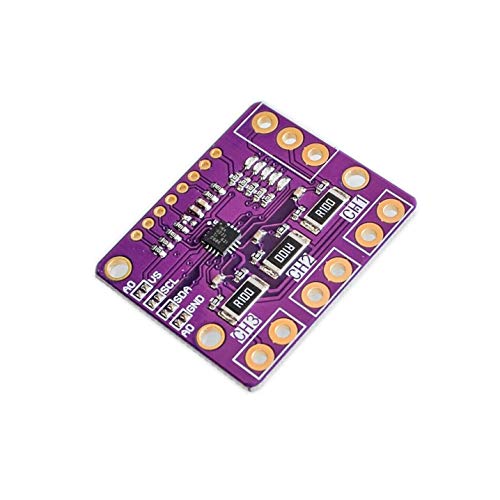

{"id":8115627655348,"title":"5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor","handle":"5pcs-ina3221-ina219-triple-channel-current-voltage-power-sensor-monitor","description":"\u003ch3\u003e5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ex5pcs INA3221 I2C Triple-Channel Current Bus Voltage Power Supply Sensor\nMonitor Module INA219The INA3221 is a three-channel, high-side current and bus\nvoltage monitor with an I2C- and SMBUS-compatible interface. The INA3221\nmonitors both shunt voltage drops and bus supply voltages, in addition to\nhaving programmable conversion times and averaging modes for these signals.\nThe INA3221 offers both critical and warning alerts to detect multiple\nprogrammable out-of-range conditions for each channel.The INA3221 senses\ncurrent on buses that can vary from 0 V to 26 V. The device is powered from a\nsingle 2.7-V to 5.5-V supply, and draws 350 µA (typ) of supply current. The\nINA3221 is specified over the operating temperature range of -40°C to +125°C.\nThe I2C- and SMBUS-compatible interface features four programmable addresses.\nSpecifications:Senses Bus Voltages From 0 V to 26 V Reports Shunt and Bus\nVoltage High Accuracy: Offset Voltage: ±80 µV (max) Gain Error: 0.25% (max)\nConfigurable Averaging Options Four Programmable Addresses Programmable Alert\nand Warning Outputs Power-Supply Operation: 2.7 V to 5.5 V Packet\nContains:5pcs x INA3221 I2C Triple-Channel Current Bus Voltage Power Supply\nSensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eINA3221The INA3221 is a three-channel high side bus voltage and current monitor with an I2C and SMBUS compatible interface. The INA3221 controls both the approxYoshunt voltage dasORn as the bus supply voltages, plusTOs to have conversion timesORn programmable modes and average for these ifNobeers.\u003c\/li\u003e\n \u003cli\u003eprojectNoor compactThe INA3221 offers critical alarmsYotic and warning to detect mORMultiple programmable out-of-range conditions for each channel.\u003c\/li\u003e\n \u003cli\u003eCompatible The INA3221 detects current on the buses which can vary from 0V to 26V. The device is powered by a single 2.7V to 5.5V supply and draws 350TO)Yo peak) supply current. The INA3221 is specified in the operating temperature range of -40 C to +125C. I2C and SMBUS compatible interface has four programmable addresses.\u003c\/li\u003e\n \u003cli\u003eHigh PerformanceHigh Accuracy: Offset Voltage: 80V (max); Gain error: 0.25% (max); configurable media options; four programmable addresses; programmable alert and warning outputs; Power operation: 2.7V to 5.5V; Detect bus voltages from 0V to 26V; Reports shunt and bus voltage.\u003c\/li\u003e\n \u003cli\u003ePackage Contain5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:29:08+10:00","created_at":"2026-09-02T20:27:30+10:00","vendor":"TECNOULAB","type":"Current Sensors","tags":["industrial_UK_Aug2026"],"price":17000,"price_min":17000,"price_max":17000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375719575732,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0C6QZP691","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor","public_title":null,"options":["Default Title"],"price":17000,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"B521-INA3221-356-5PCS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0C6QZP691.jpg?v=1788344852","\/\/auspowers.com\/cdn\/shop\/files\/416LrweOtVL.jpg?v=1788344852","\/\/auspowers.com\/cdn\/shop\/files\/51pb15bF3vL.jpg?v=1788344852","\/\/auspowers.com\/cdn\/shop\/files\/51Jz62XtgzL.jpg?v=1788344852","\/\/auspowers.com\/cdn\/shop\/files\/41b-8HvjAtL.jpg?v=1788344852","\/\/auspowers.com\/cdn\/shop\/files\/41pFSDtDphL.jpg?v=1788344852"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0C6QZP691.jpg?v=1788344852","options":["Title"],"media":[{"alt":null,"id":33276740599988,"position":1,"preview_image":{"aspect_ratio":1.52,"height":329,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0C6QZP691.jpg?v=1788344852"},"aspect_ratio":1.52,"height":329,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0C6QZP691.jpg?v=1788344852","width":500},{"alt":null,"id":33276740632756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416LrweOtVL.jpg?v=1788344852"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416LrweOtVL.jpg?v=1788344852","width":500},{"alt":null,"id":33276740665524,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51pb15bF3vL.jpg?v=1788344852"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51pb15bF3vL.jpg?v=1788344852","width":500},{"alt":null,"id":33276740698292,"position":4,"preview_image":{"aspect_ratio":1.012,"height":494,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Jz62XtgzL.jpg?v=1788344852"},"aspect_ratio":1.012,"height":494,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Jz62XtgzL.jpg?v=1788344852","width":500},{"alt":null,"id":33276740731060,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41b-8HvjAtL.jpg?v=1788344852"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41b-8HvjAtL.jpg?v=1788344852","width":500},{"alt":null,"id":33276740763828,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41pFSDtDphL.jpg?v=1788344852"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41pFSDtDphL.jpg?v=1788344852","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ex5pcs INA3221 I2C Triple-Channel Current Bus Voltage Power Supply Sensor\nMonitor Module INA219The INA3221 is a three-channel, high-side current and bus\nvoltage monitor with an I2C- and SMBUS-compatible interface. The INA3221\nmonitors both shunt voltage drops and bus supply voltages, in addition to\nhaving programmable conversion times and averaging modes for these signals.\nThe INA3221 offers both critical and warning alerts to detect multiple\nprogrammable out-of-range conditions for each channel.The INA3221 senses\ncurrent on buses that can vary from 0 V to 26 V. The device is powered from a\nsingle 2.7-V to 5.5-V supply, and draws 350 µA (typ) of supply current. The\nINA3221 is specified over the operating temperature range of -40°C to +125°C.\nThe I2C- and SMBUS-compatible interface features four programmable addresses.\nSpecifications:Senses Bus Voltages From 0 V to 26 V Reports Shunt and Bus\nVoltage High Accuracy: Offset Voltage: ±80 µV (max) Gain Error: 0.25% (max)\nConfigurable Averaging Options Four Programmable Addresses Programmable Alert\nand Warning Outputs Power-Supply Operation: 2.7 V to 5.5 V Packet\nContains:5pcs x INA3221 I2C Triple-Channel Current Bus Voltage Power Supply\nSensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eINA3221The INA3221 is a three-channel high side bus voltage and current monitor with an I2C and SMBUS compatible interface. The INA3221 controls both the approxYoshunt voltage dasORn as the bus supply voltages, plusTOs to have conversion timesORn programmable modes and average for these ifNobeers.\u003c\/li\u003e\n \u003cli\u003eprojectNoor compactThe INA3221 offers critical alarmsYotic and warning to detect mORMultiple programmable out-of-range conditions for each channel.\u003c\/li\u003e\n \u003cli\u003eCompatible The INA3221 detects current on the buses which can vary from 0V to 26V. The device is powered by a single 2.7V to 5.5V supply and draws 350TO)Yo peak) supply current. The INA3221 is specified in the operating temperature range of -40 C to +125C. I2C and SMBUS compatible interface has four programmable addresses.\u003c\/li\u003e\n \u003cli\u003eHigh PerformanceHigh Accuracy: Offset Voltage: 80V (max); Gain error: 0.25% (max); configurable media options; four programmable addresses; programmable alert and warning outputs; Power operation: 2.7V to 5.5V; Detect bus voltages from 0V to 26V; Reports shunt and bus voltage.\u003c\/li\u003e\n \u003cli\u003ePackage Contain5PCS INA3221 INA219 Triple Channel Current Voltage Power Sensor Monitor\u003c\/li\u003e\n \u003c\/ul\u003e"}
