58mm Thermal Printer Embedded TTL Serial Ticket Printer Micro Print Module 12V
58mm Thermal Printer Embedded TTL Serial Ticket Printer Micro Print Module 12V
Add a mini printer to any microcontroller project with this very cute thermal printer. Thermal printers are also known as receipt printers, they're what you get when you go to the ATM or grocery store. Now you can embed a little printer of your own into an enclosure. This printer is ideal for interfacing with a microcontroller, you simply need a 12V TTL serial output from your microcontroller to print text, barcodes, even a QR code!The printer uses very common 2.25" wide thermal paper , available in any office or stationery supply store.Our thermal printer works well with a 12V3A power supply. Since the printer is mainly embedded in the device, it is equipped with a 3PIN power terminal cable. If an external power supply is required,You also need a 12V DC regulated power supply and a 2.1MM jack terminal block adapter for easier connection to the power adapter.We really like this printer because its easy to make Bold, underline , inverted text , variable line spacing, left/center/right justification, barcodes with adjustable height, and even custom QR code.We have a full tutorial and matching Arduino development materials, Provide ESC/POS print instruction set; We edited a more common instruction set print example based on the instruction set, and you can change what you need to print based on our example. Super convenient! Examples show the following: Printing with small, medium and large text Bold and underline text Inverted text spacing Left, center and right justification Bar code printing QR code printing This product is developed and produced by our company. The company has professional technicians and provides after-sales technical support.Please rest assured to buy; Thank you for your support and trust.
Product Features
- 58mm Thermal printer module With excellent connectivity, It is widely used in shopping malls and supermarkets, fire-fighting instruments, testing equipment, weighing and other equipment that needs to print thermal receipts. It supports secondary development and will perfectly cooperate with your equipment and be easily embedded in any type of instruments and meters.
- Low noise thermal printing,Support text, bar code, QR code etc printing,Provide ESC/POS print instruction set And development materials.

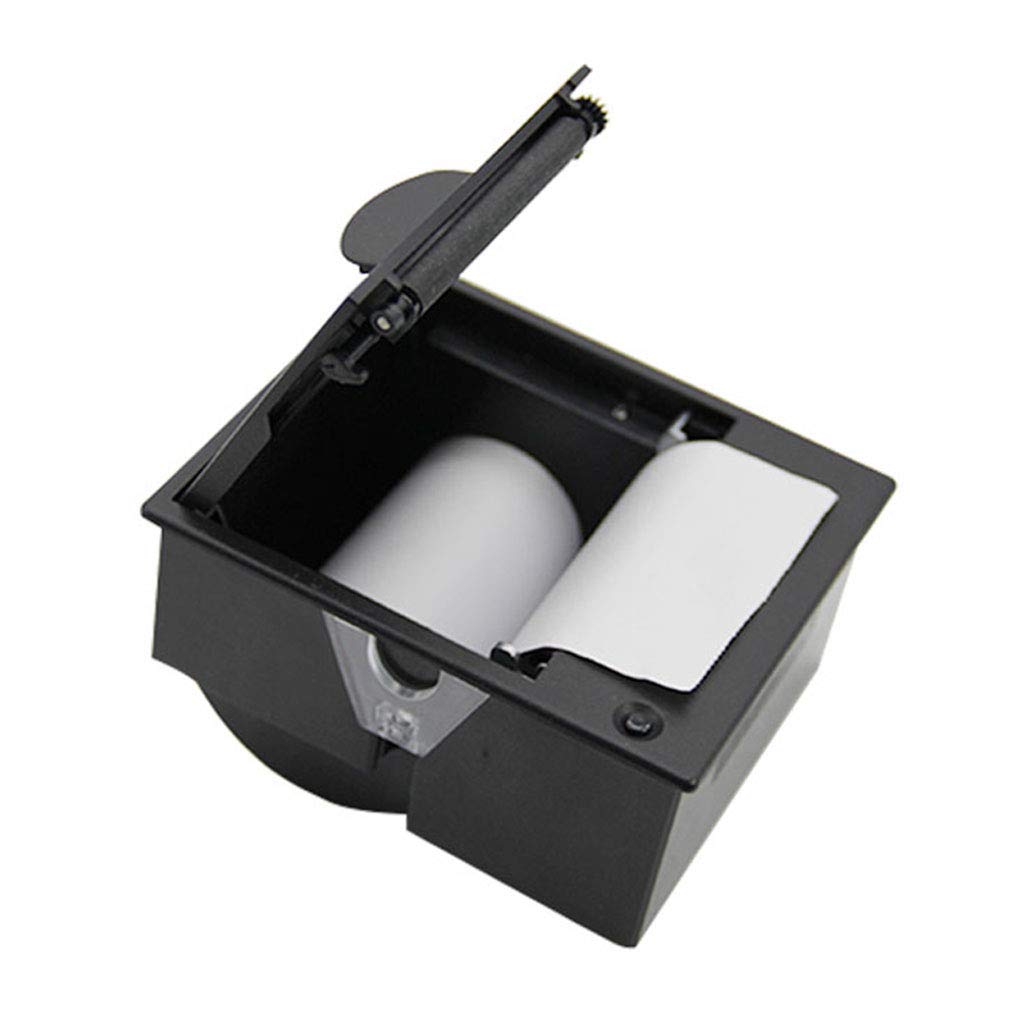

- Front panel make paper replacement easily;Paper bin can hold 50MM diameter thermal paper roll,Different interfaces optional(TTL+USB/RS232+USB);
- This link defaults to TTL+USB interface, the power supply is 12V3A, If you need RS232 interface, please send us an email and we will send the product link of the corresponding interface according to your requirements.The price is the same.
- Item size: 97 * 82 * 57.5MM / 38.19 * 32.29 * 22.64 inches; packing list: 1 * printer; 1 * USB cable; 1 * wiring harness; compatible systems: Windows, IOS, Linux, Android etc platforms;
