5 pcs MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module Keyboard Touch Sensor Keyboard Development Board with pin header DuPont cable
5 pcs MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module Keyboard Touch Sensor Keyboard Development Board with pin header DuPont cable

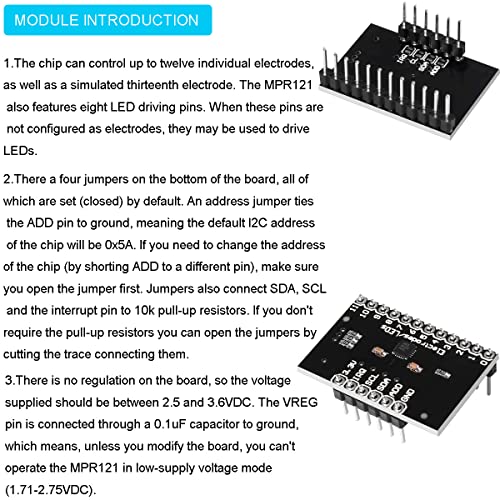

Product description The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode. The MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs. There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by cutting the trace connecting them. There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low- supply voltage mode (1.71-2.75VDC). Features: Low power operation. 1.71 V to 3.6 V supply operation. 29 μA supply current at 16 ms sampling interval period. 3 μA Stop mode current. 12 capacitance sensing inputs. 8 inputs are multifunctional for LED driver and GPIO. Complete touch detection. Auto- configuration for each sensing input. Auto-calibration for each sensing input. Touch/release threshold and debounce for touch detection. I2C interface, with Interrupt output. MPR121: 3 mm x 3 mm x 0.65 mm . -40°C to +85°C operating temperature range. Package includes: 5 x MPR121 Sensor Module 1 x 20-pin male and female Dupont cable
Product Features
- Product introduction: The MPR121 is a capacitive touch sensor controller driven by an I2C interface.
- Control quantity: The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode.
- Pins: MPR121 also has eight LED drive pins. When these pins are not configured as electrodes, they can be used to drive LEDs
- Low power operation: 1.71 V to 3.6 V supply operation, 29A supply current at 16 ms sampling interval period, 3A Stop mode current.
- Item Condition: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence
