40Pcs 4 Shapes 1/4" Air Push Quick Fittings, Quick Connect Push in to Connect Water Tube Fitting
40Pcs 4 Shapes 1/4" Air Push Quick Fittings, Quick Connect Push in to Connect Water Tube Fitting

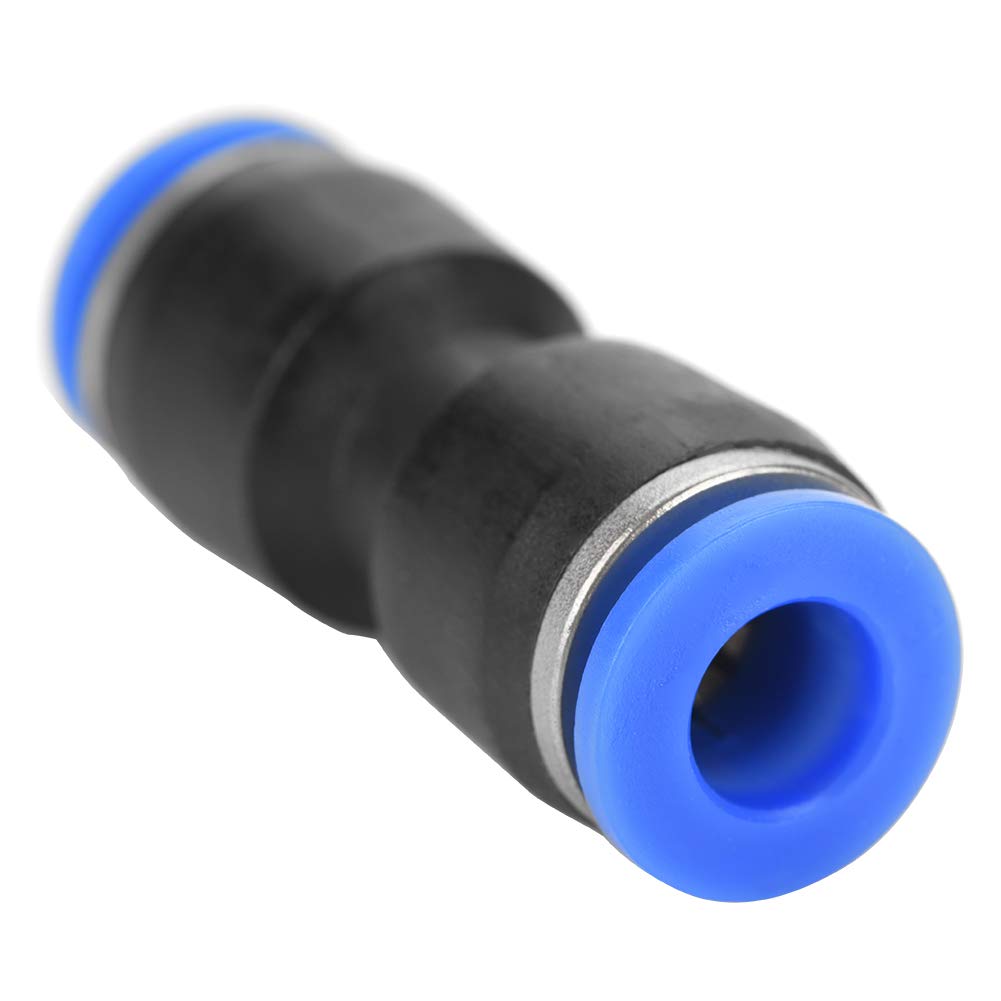

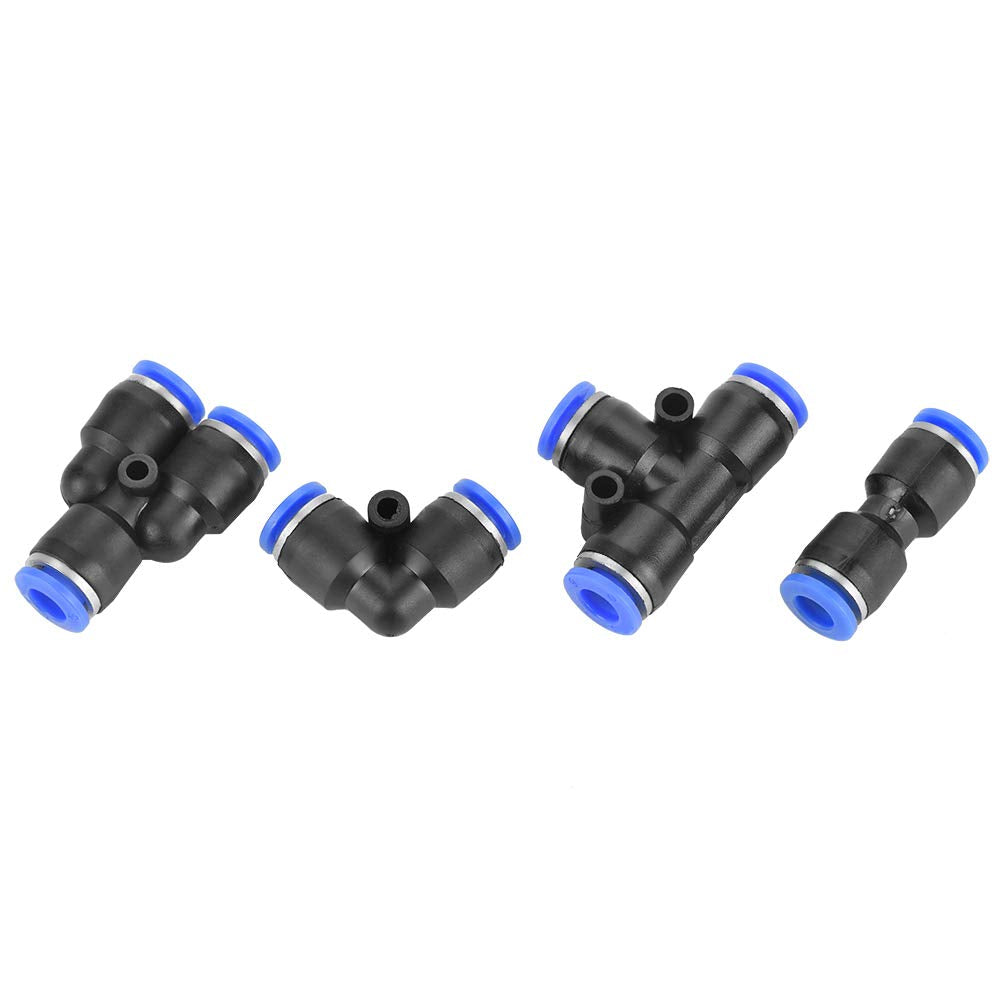

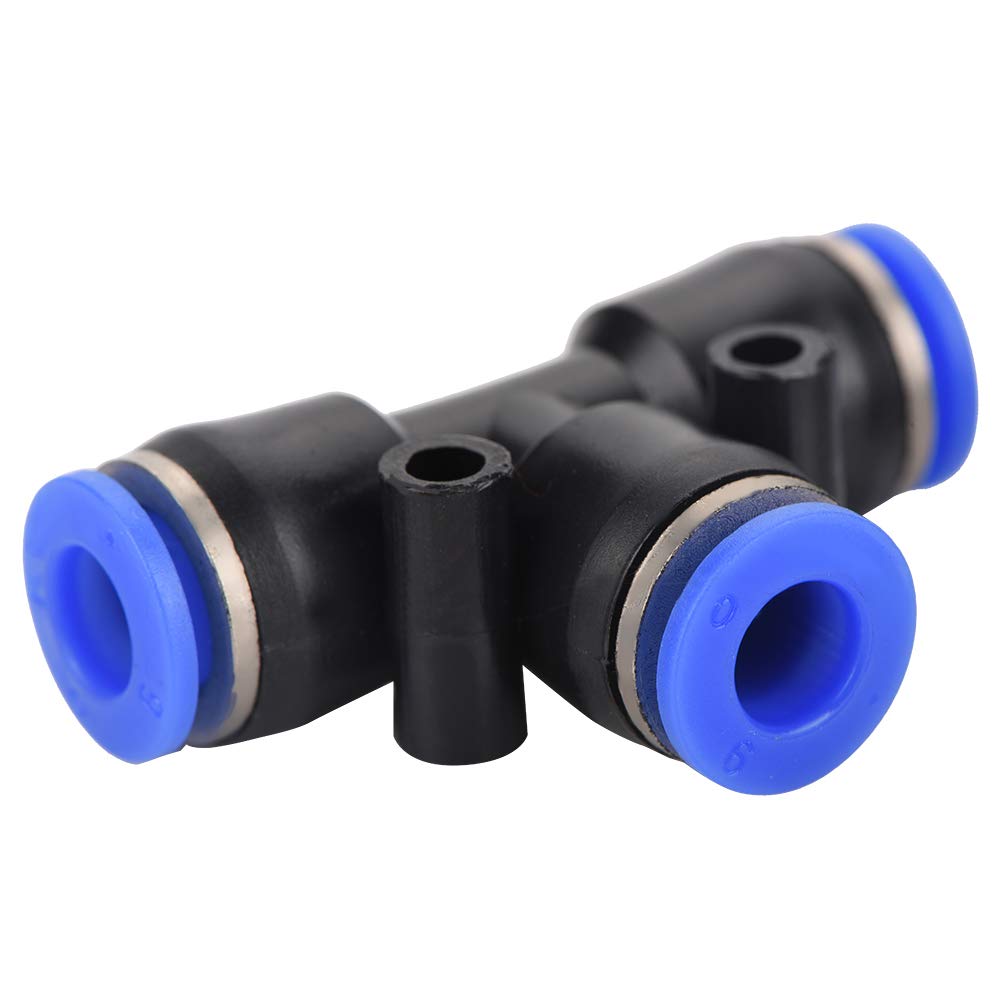

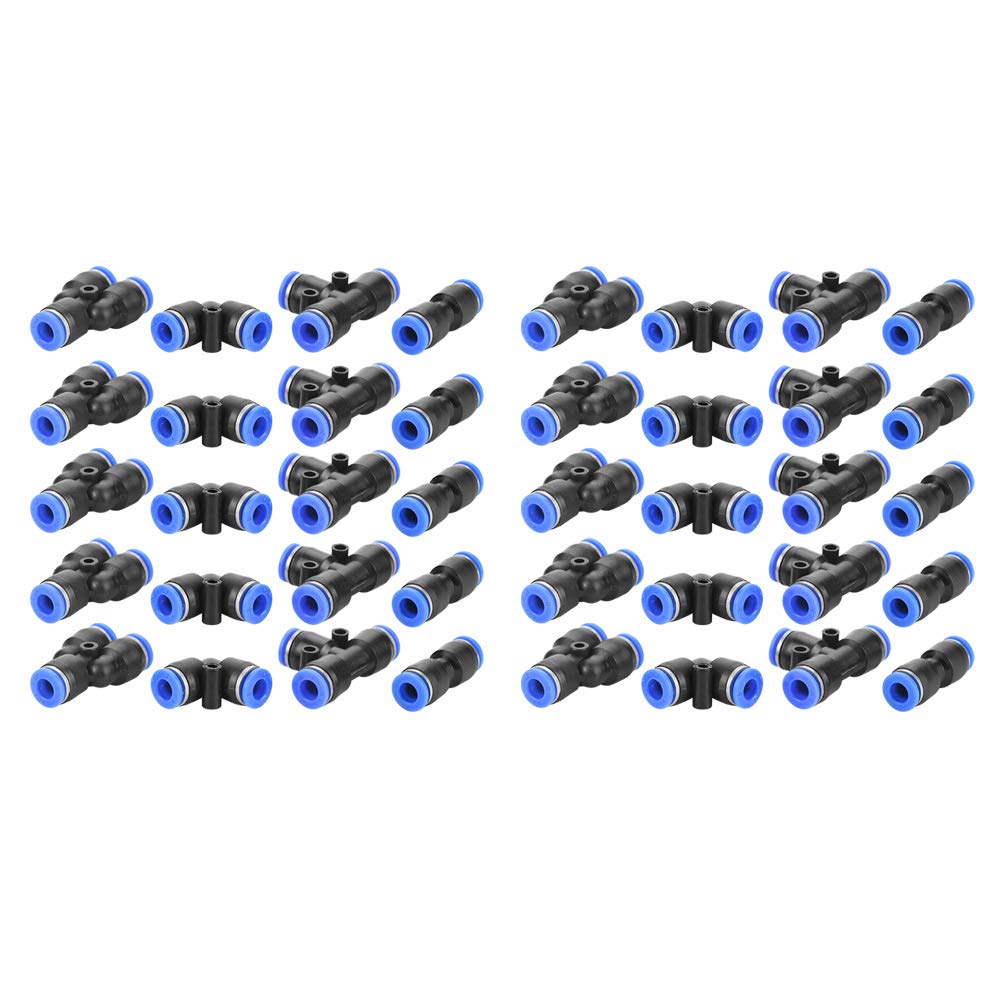

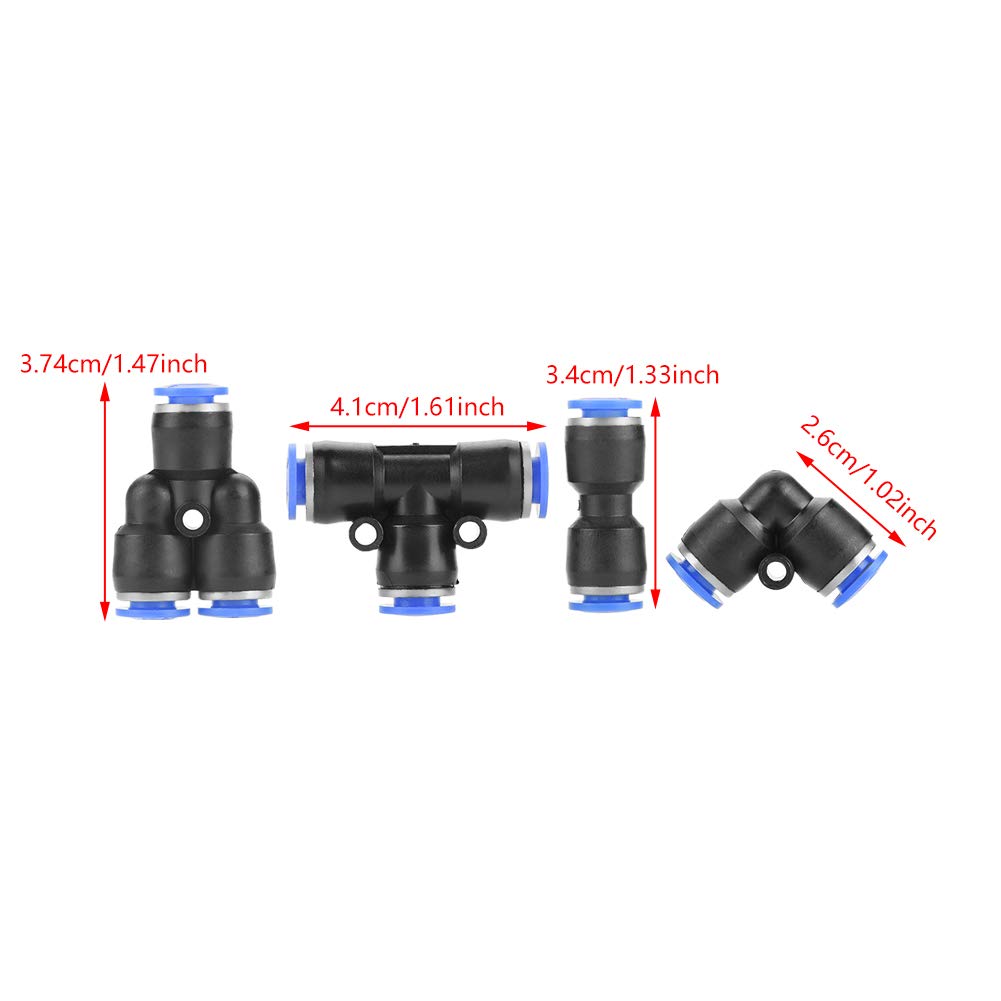

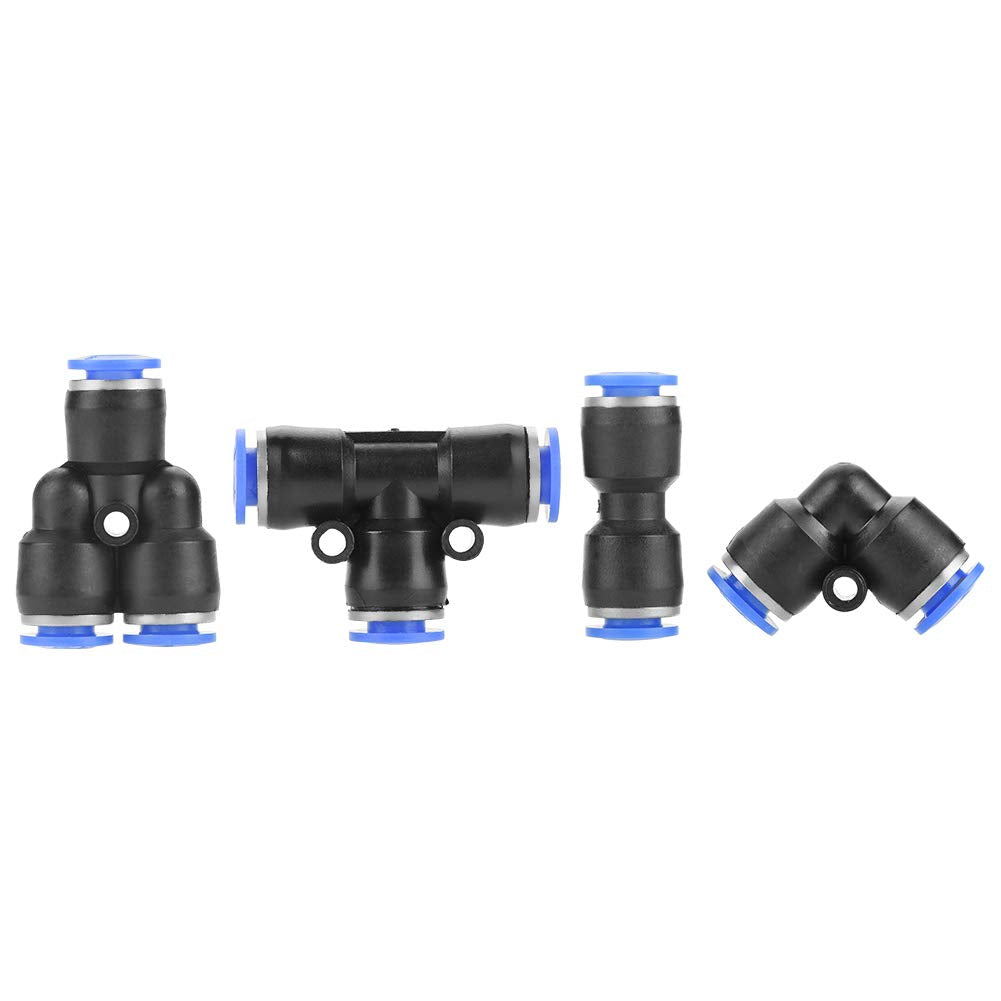

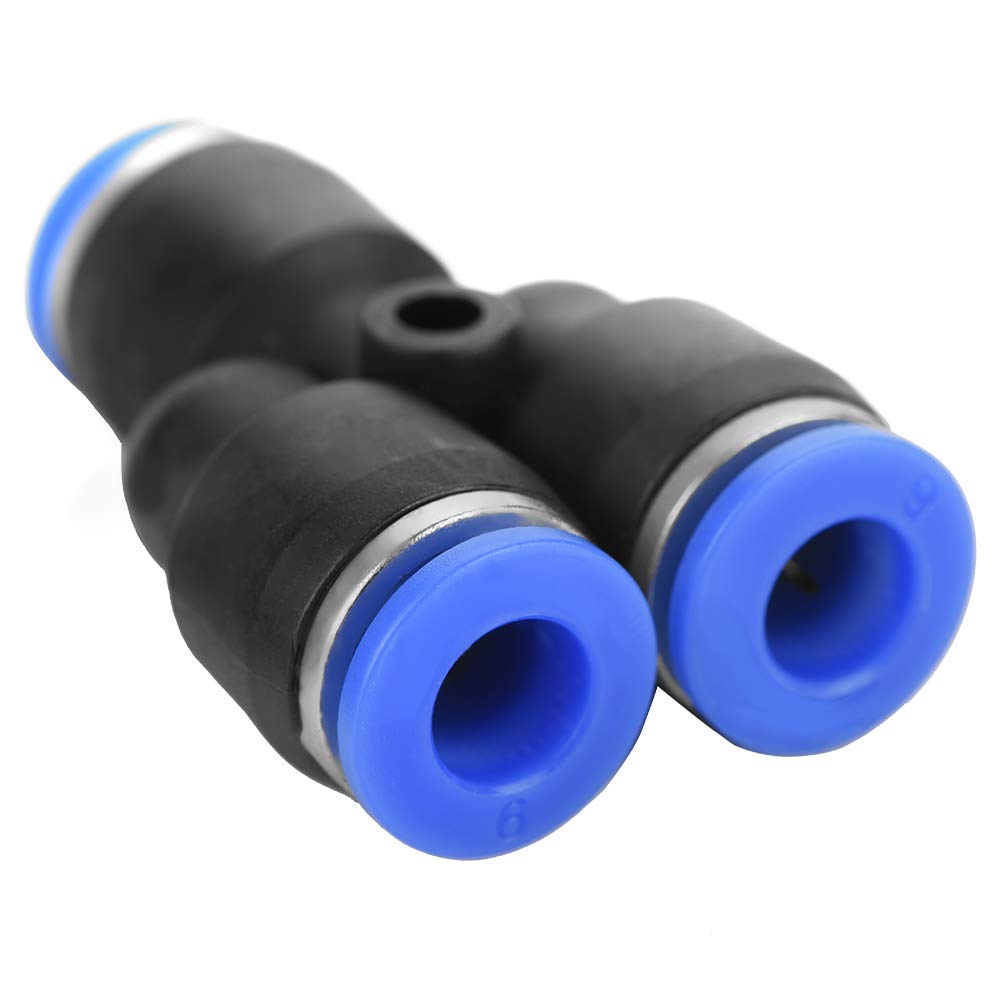

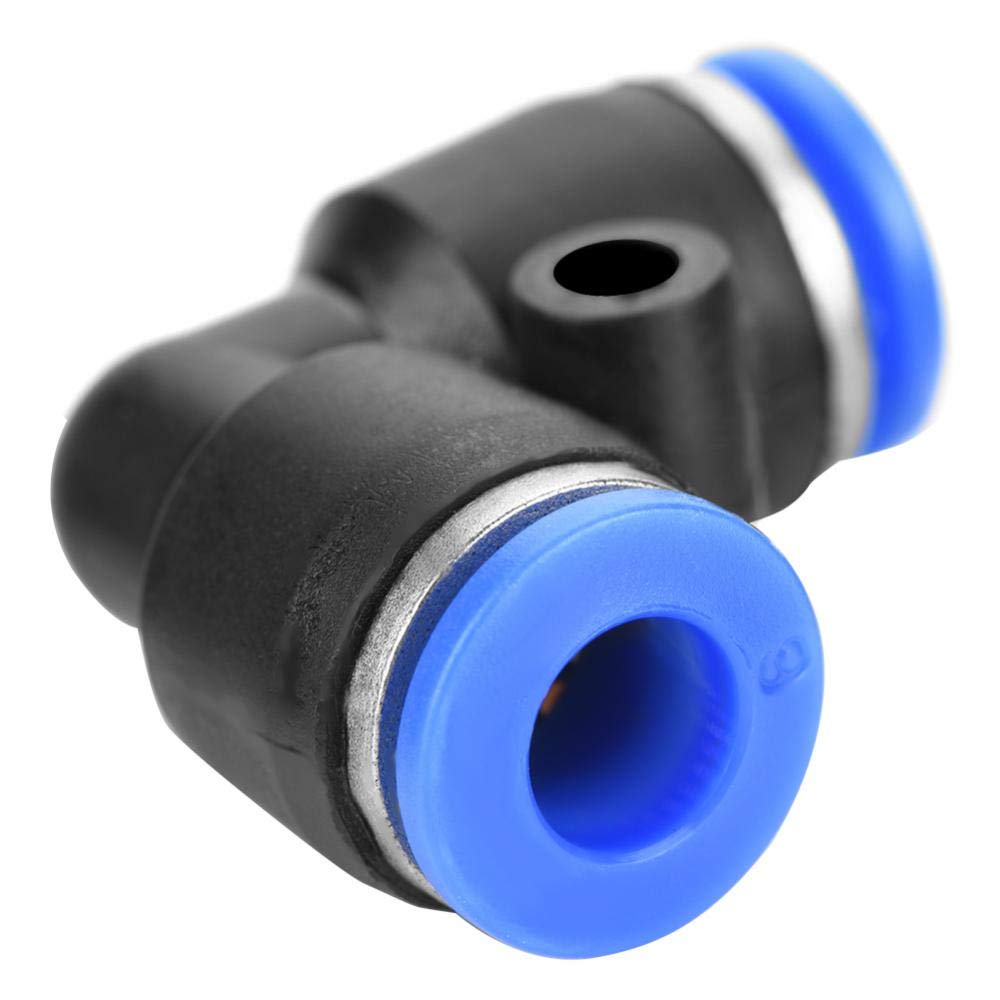

Features: Pneumatic quick connector is mainly used for quick connection of air piping, pneumatic tools, which can achieve pipe connecting or disconnecting without a tool requiring. Specification: Material: Plastic Normal Pressure Range: 0-0.9MPa Maximum Pressure: 1.32MPa Low Pressure Range: -99.9-0Kpa Operating Temperature: 0-60¡æ Size: Fit Hose Outer Diameter: 1/4"(6mm) Straight Connector Length: 34mm/1.3in Elbow Union Connector Length: 26mm/1.02in Y Union Connector Length: 37.4mm/1.5in Tee Union Connector Length: 41mm/1.6in Weight: Approx. 197g / 6.9oz Package List: 10 x Straight Connectors 10 x Elbow Union Connecto 10 x Y Union Connector 10 x Tee Union Connector Note: Please allow slight error due to manual measurement. Thanks for your understanding
Product Features
- FLEXIBLE:Pipe body can rotate 360 degree even if installed, which is simple and flexible.
- DISASSEMBLE:Release ring with oval design is more convenient to disassemble.
- EASY TO INSTALL:Simple installation by air push without extra sealing requiring.
- GOOD SEALING:High precision threads ensure its good sealing performance.
- SAFE AND RELIABLE:It doesn't fall off under high pressure, safe and reliable.
