4 Pcs Vertical Hand Tool 101-A Quick-Release Toggle Clamp 110 lbs Holding Capacity Antislip
4 Pcs Vertical Hand Tool 101-A Quick-Release Toggle Clamp 110 lbs Holding Capacity Antislip

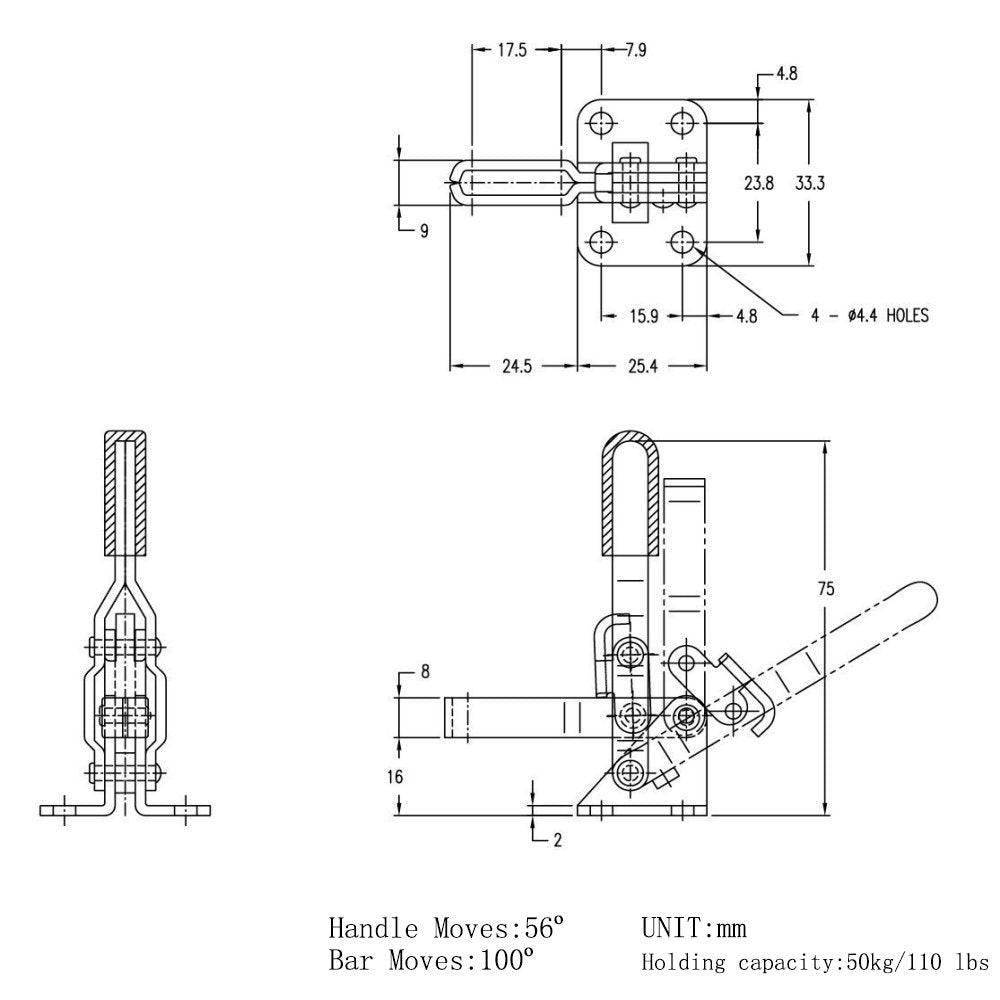

Features a push or pull design and mechanism, to allow for maximum clearance. Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance. A rock-solid grip to install on jigs, tool fixtures, or movable bases. Retracted clamp will allow to hold workpiece in a vertical position. This versatile and handy clamp makes woodworking perfection a breeze. Specifications: Type:GH-101A Vertical quick release holding clamp Measurement: 2 1.31 3 inches?LWH? Handle Opens Angle:56° Bar Opens Angle:100° Holding Capacity:50KG / 110 LBS Clamp base: 2.54 x 3.33 m / 1" x 1.31" inches Mounting holes:1.6 x 2.3 cm / 0.63" x 0.91" inches spaced apart Spindle supplied model and size: M5, 45mm
Product Features

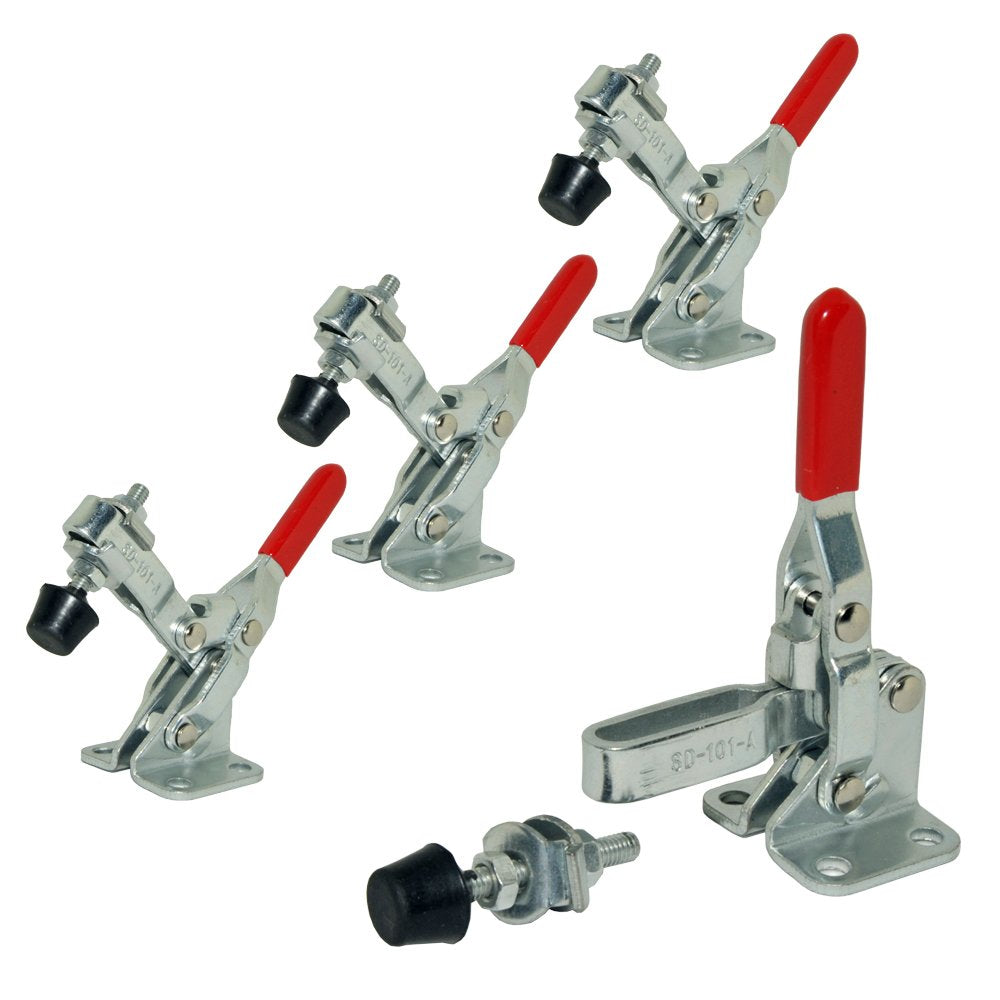

- Package Included: 4 pcs GH-101A Vertical quick release toggle clamp
- Holding Capacity: 50Kg/ 110Lbs, solid grip; Complete with adjustable rubber pressure tips
- Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance. A rock-solid grip to install on jigs, tool fixtures, or movable bases.
- Size:2" x 1.31" x 3" inches (L*W*H);Type: Vertical; Handle Moves: 56; Bar Moves: 100; Hole Dia: 0.45cm/ 0.18"
- A minimum 90-degree angle for easy loading and unloading.
