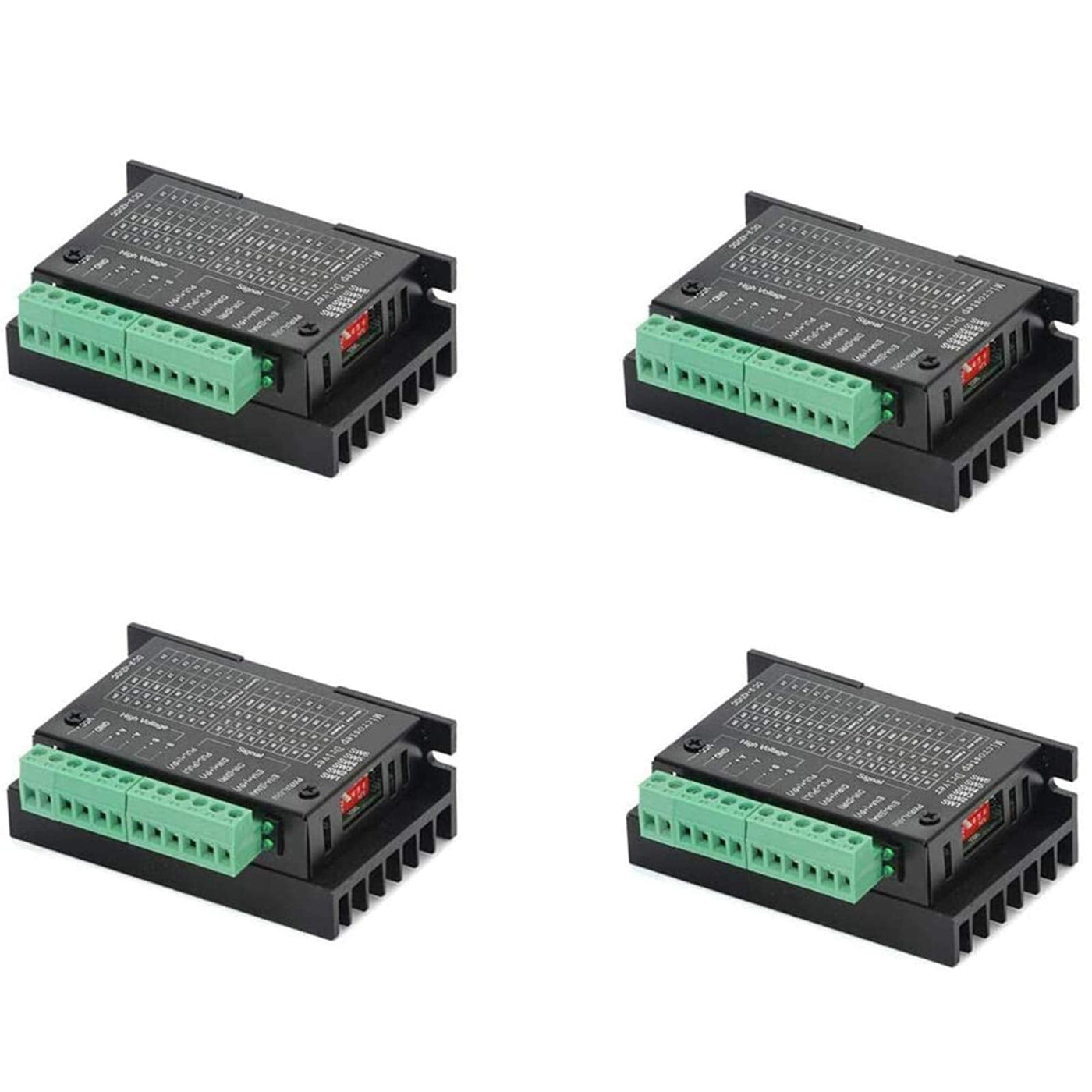

{"id":7164301967540,"title":"4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC","handle":"4-pack-tb6600-4a-9-42v-stepper-motor-driver-cnc-controller-stepper-motor-driver-nema-tb6600-single-axes-two-phase-hybrid-stepper-motor-for-cnc","description":"\u003ch3\u003e4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Product Advantages: The TB1H is a high\nperformance microstepping driver based on the latest original for high-\nefficiency TB6600HG for IC. The TB6600HG adopts single-chip PWM bipolar\nsinusoidal chopper to ensure the low vibration and high efficiency. IC\nparameter: 5 subdivision mode options (1\/1, 1\/2, 1\/4, 1\/8, 1\/16,1\/32).output\ncurrent: IOUT = 4.0A (peak, in 100ms).rated output: IOUT = 3.5 A.package:\nHZIP25 - 1.00F.input port internal pull-down resistor: 100 K.alarm output pin\ncurrent:Ialert = 1mA.monitoring output pin (MO): Imo= 1mA.with reset and\nenable pin.with standby function. Feature: H bridge bipolar constant phase\nflow drive.the maximum 4.0A of the eight kinds of output current.the largest\n32 subdivision of the 6 models are optional.input signal high speed\nphotoelectric isolation.common-anodestandard single pulse interface.semi\nclosed enclosure can be adapted to a more stringent environment.to provide\nenergy-saving semi-automatic current lock function. built-in temperature\nprotection and over current protection. Read more Read more Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e9V-42V DC power supply, H bridge bipolar constant phase flow drive.\u003c\/li\u003e\n \u003cli\u003eThe maximum 4.0A of the eight kinds of output current. The largest 32 subdivision of the 6 models are optional.\u003c\/li\u003e\n \u003cli\u003eEnergy-saving semi-automatic current lock function, built-in temperature protection and over current protection.\u003c\/li\u003e\n \u003cli\u003eCan control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.\u003c\/li\u003e\n \u003cli\u003eOnly the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-22T04:16:53+10:00","created_at":"2022-06-22T04:16:59+10:00","vendor":"SZCY LLC","type":"Controls","tags":["industrial"],"price":22900,"price_min":22900,"price_max":22900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41597637492916,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07RRB6BGQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC","public_title":null,"options":["Default Title"],"price":22900,"weight":700,"compare_at_price":null,"inventory_management":null,"barcode":"0725756323042","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07RRB6BGQ.jpg?v=1655879131","\/\/auspowers.com\/cdn\/shop\/products\/71VtclP9ebL.jpg?v=1655835419","\/\/auspowers.com\/cdn\/shop\/products\/61Xp05dz9tL.jpg?v=1655835419","\/\/auspowers.com\/cdn\/shop\/products\/51irt20Cs0L.jpg?v=1655835419","\/\/auspowers.com\/cdn\/shop\/products\/61B4AakwcZL.jpg?v=1655835419"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07RRB6BGQ.jpg?v=1655879131","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC ","id":26241426784436,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07RRB6BGQ.jpg?v=1655879131"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07RRB6BGQ.jpg?v=1655879131","width":1600},{"alt":"[Australia - AusPower] - 4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC ","id":26233427886260,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71VtclP9ebL.jpg?v=1655835419"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71VtclP9ebL.jpg?v=1655835419","width":1000},{"alt":"[Australia - AusPower] - 4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC ","id":26233427919028,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Xp05dz9tL.jpg?v=1655835419"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Xp05dz9tL.jpg?v=1655835419","width":1000},{"alt":"[Australia - AusPower] - 4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC ","id":26233427951796,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51irt20Cs0L.jpg?v=1655835419"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51irt20Cs0L.jpg?v=1655835419","width":500},{"alt":"[Australia - AusPower] - 4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC ","id":26233427984564,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61B4AakwcZL.jpg?v=1655835419"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61B4AakwcZL.jpg?v=1655835419","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e4 Pack TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Product Advantages: The TB1H is a high\nperformance microstepping driver based on the latest original for high-\nefficiency TB6600HG for IC. The TB6600HG adopts single-chip PWM bipolar\nsinusoidal chopper to ensure the low vibration and high efficiency. IC\nparameter: 5 subdivision mode options (1\/1, 1\/2, 1\/4, 1\/8, 1\/16,1\/32).output\ncurrent: IOUT = 4.0A (peak, in 100ms).rated output: IOUT = 3.5 A.package:\nHZIP25 - 1.00F.input port internal pull-down resistor: 100 K.alarm output pin\ncurrent:Ialert = 1mA.monitoring output pin (MO): Imo= 1mA.with reset and\nenable pin.with standby function. Feature: H bridge bipolar constant phase\nflow drive.the maximum 4.0A of the eight kinds of output current.the largest\n32 subdivision of the 6 models are optional.input signal high speed\nphotoelectric isolation.common-anodestandard single pulse interface.semi\nclosed enclosure can be adapted to a more stringent environment.to provide\nenergy-saving semi-automatic current lock function. built-in temperature\nprotection and over current protection. Read more Read more Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e9V-42V DC power supply, H bridge bipolar constant phase flow drive.\u003c\/li\u003e\n \u003cli\u003eThe maximum 4.0A of the eight kinds of output current. The largest 32 subdivision of the 6 models are optional.\u003c\/li\u003e\n \u003cli\u003eEnergy-saving semi-automatic current lock function, built-in temperature protection and over current protection.\u003c\/li\u003e\n \u003cli\u003eCan control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.\u003c\/li\u003e\n \u003cli\u003eOnly the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
