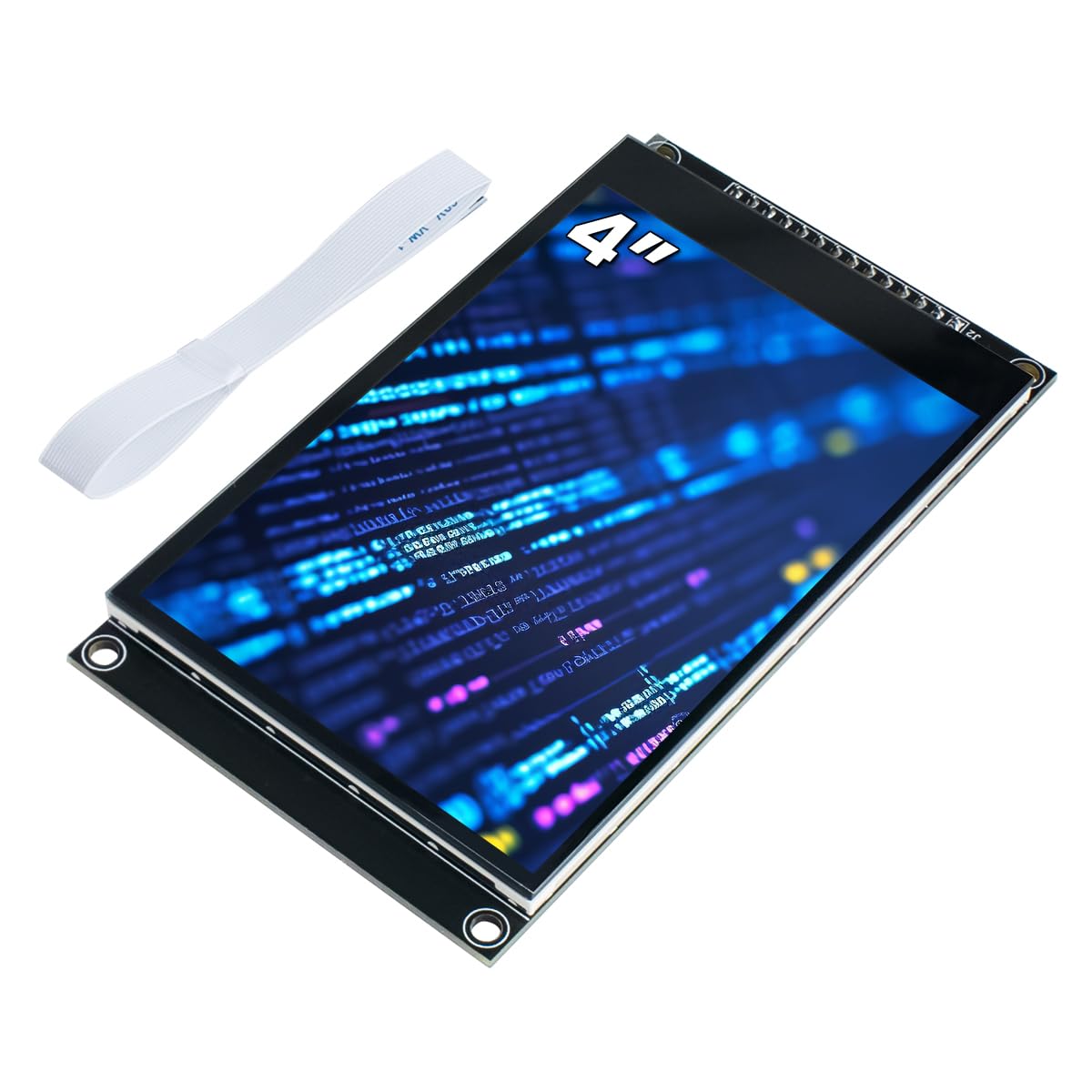

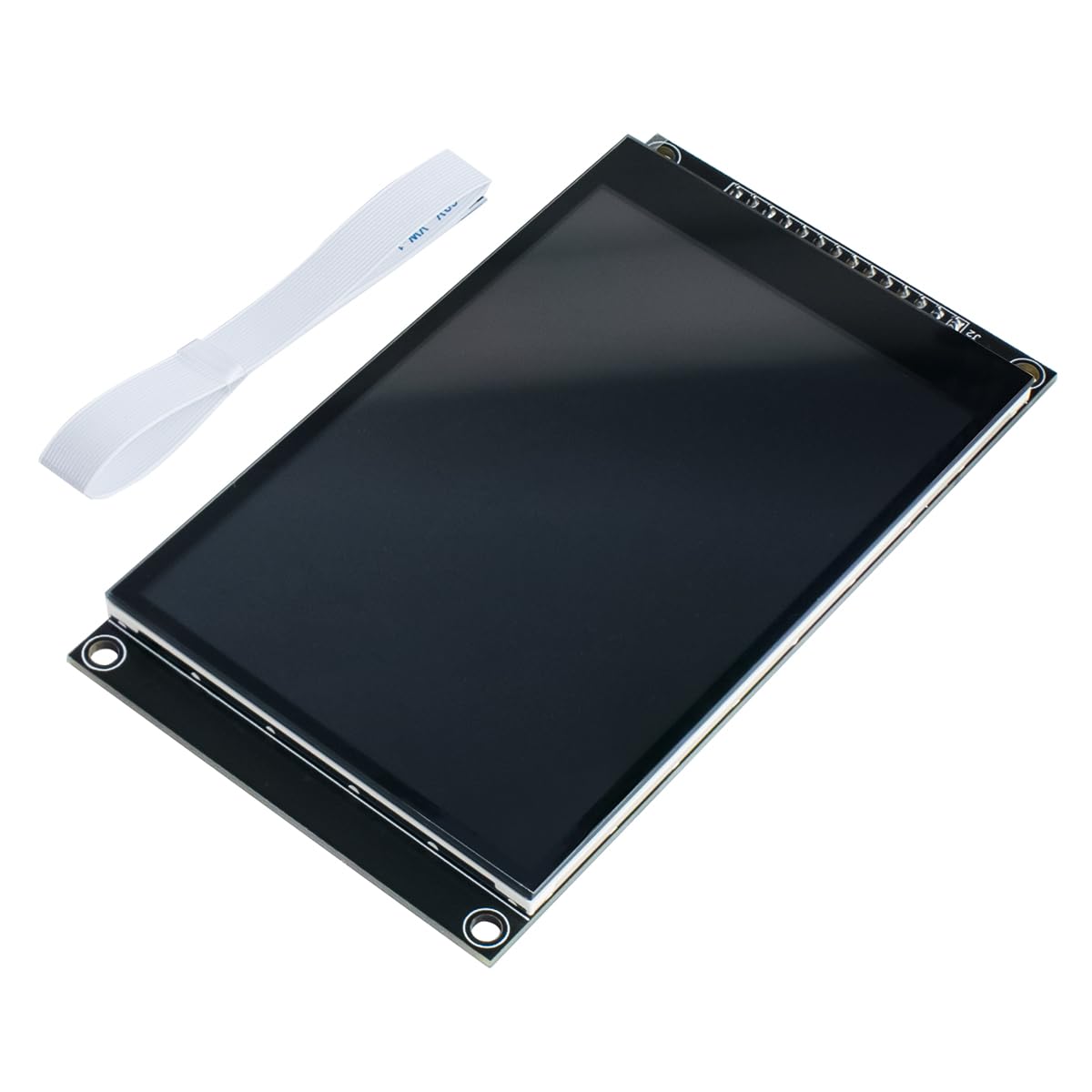

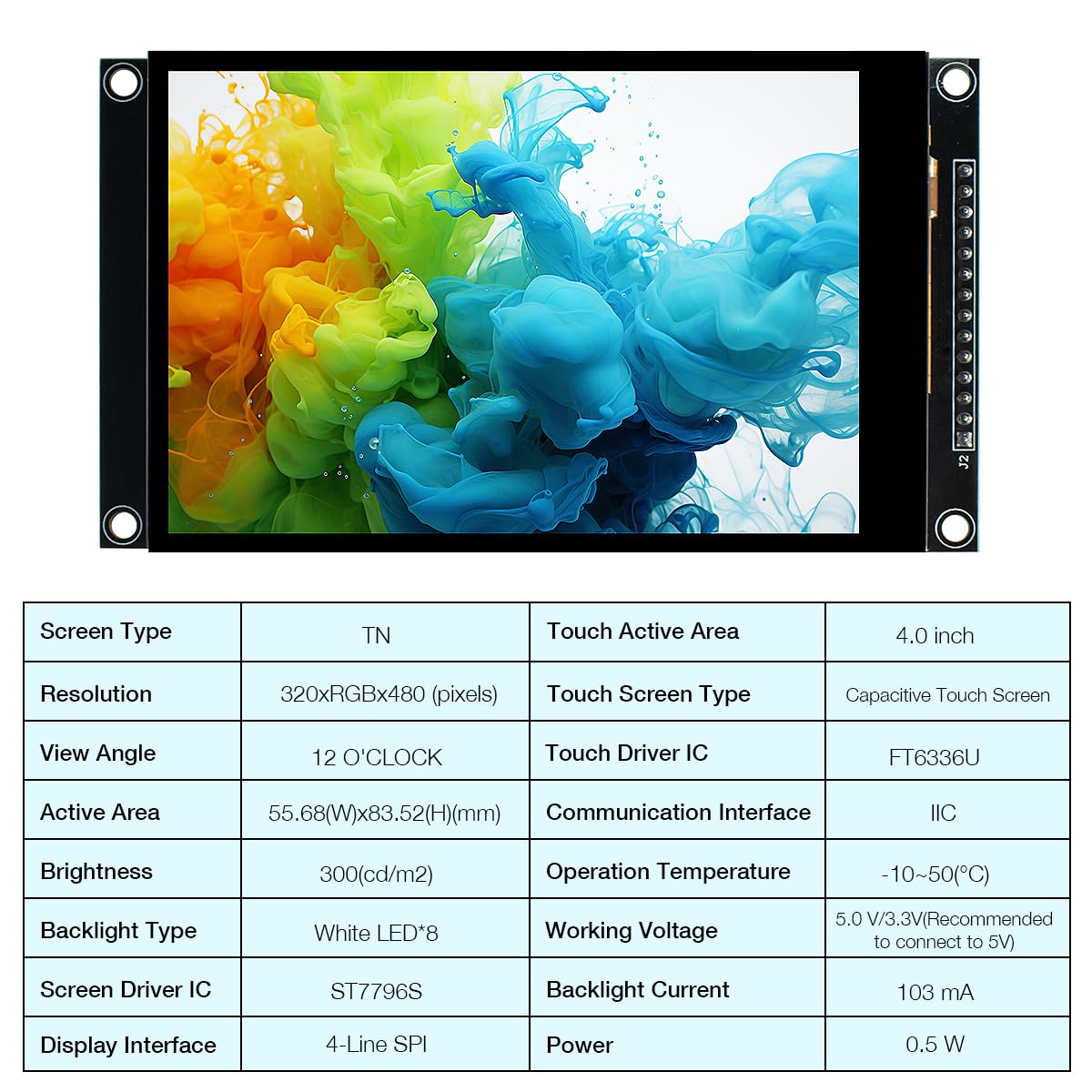

{"id":7975320518836,"title":"4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\"","handle":"4-0-inch-320x480-tn-capacitive-touch-screen-lcd-display-module-spi-serial-st7796s-driver-for-arduino-r3-mega2560-4-0","description":"\u003ch3\u003e4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eLCD Parameters: Screen Size:4.0 inch Screen Type:TN Resolution:320xRGBx480\n(pixels) Active Area (AA area):55.68(W)x83.52(H)(mm) Number of\nColors(Max):16.7M Driver IC:ST7796S Display Interface:4-Line SPI Pixel\nSize:0.174(H)x0.174(mm) View Angle:12 O'CLOCK Brightness(TYP): 300(cd\/m2)\nBacklight Type:White LED8 Operation Temperature:-10~50(℃) Storage\nTemperature:-20~60(℃) Electrical Parameters： Working Voltage：5.0\nV\/3.3V(Recommended to connect to 5V) Backlight Current：103 mA Power：0.5 W\nTouch Screen Parameters: Touch Active Area:4.0 inch Touch Screen\nType:Capacitive Touch Screen Touch Screen Resolution:320x480(pixels) Driver\nIC:FT6336U Touch Screen Visual Area:55.98(W)x83.82(H)(mm) Communication\nInterface： IIC Operation Temperature: -20~70(℃) Storage Temperature: -30~80(℃)\nSize Parameters: TFT Outline\nSize:60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive\nbacking) Touch Screen Outline Size:60.88±0.1(W)x94.57±0.1(H)x1.35\n(D)(mm)(Excluding cables and adhesive backing) Module Outline Size:Have Touch\nScreen:60.88(W)x108.0(H)x14.80(D)(mm)(including Pin Header) Other Parameters：\nInterface：14P 2.54mm spacing Header and 0.5mm spacing FPC seat Package\ninclude： 1 x 4.0” touch screen 1 x FPC cables 1 x Plastic protective box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4.0 inches TN capacitive touch screen with 320x480 resolution of 65K colors and rich display colors. Brightness 300(cd\/m2).\u003c\/li\u003e\n \u003cli\u003eNewly upgraded to a capacitive touch panel. Compared with resistive screens, it is more convenient to use and more accurate to touch\u003c\/li\u003e\n \u003cli\u003eST7796S Driver. On board level conversion circuit, compatible with 5V and 3.3V MCU Adopting a 4-wire SPI serial bus to save I\/O pins.\u003c\/li\u003e\n \u003cli\u003eModule input supports 2.54 pin interface and FPC extension interface. Equipped with micro TF card slot for easy storage expansion\u003c\/li\u003e\n \u003cli\u003eProvide rich example learning programs (ESP32\/STM32\/Arduino R3\u0026amp;Mage2560\/C51\/CH32). Provide low-level driver technical support, and update information online\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-26T02:47:36+10:00","created_at":"2025-07-26T02:47:33+10:00","vendor":"Hosyond","type":"LCD Graphic Displays","tags":["industrial_best_sellers_Jun2025"],"price":13800,"price_min":13800,"price_max":13800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43992936186036,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CRGQN58D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\"","public_title":null,"options":["Default Title"],"price":13800,"weight":118,"compare_at_price":null,"inventory_management":"shopify","barcode":"741421390539","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CRGQN58D.jpg?v=1775762751","\/\/auspowers.com\/cdn\/shop\/files\/7194j4oHARL.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/71q1kGZebiL.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/61t9pt-8XnL.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/61ufcgjJLzL.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/61wKEJpg47L.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/71trh8GxqrL.jpg?v=1753462056","\/\/auspowers.com\/cdn\/shop\/files\/51zKgPCReoL.jpg?v=1753462056"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CRGQN58D.jpg?v=1775762751","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611028660,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CRGQN58D.jpg?v=1775762751"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CRGQN58D.jpg?v=1775762751","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611061428,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/7194j4oHARL.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/7194j4oHARL.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611094196,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71q1kGZebiL.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71q1kGZebiL.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611126964,"position":4,"preview_image":{"aspect_ratio":1.001,"height":1199,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61t9pt-8XnL.jpg?v=1753462056"},"aspect_ratio":1.001,"height":1199,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61t9pt-8XnL.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611159732,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ufcgjJLzL.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ufcgjJLzL.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611192500,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61wKEJpg47L.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61wKEJpg47L.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611225268,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71trh8GxqrL.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71trh8GxqrL.jpg?v=1753462056","width":1200},{"alt":"[Australia - AusPower] - 4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560 4.0\" ","id":31877611258036,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51zKgPCReoL.jpg?v=1753462056"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51zKgPCReoL.jpg?v=1753462056","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e4.0 Inch 320x480 TN Capacitive Touch Screen LCD Display Module SPI Serial ST7796S Driver for Arduino R3\/Mega2560\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eLCD Parameters: Screen Size:4.0 inch Screen Type:TN Resolution:320xRGBx480\n(pixels) Active Area (AA area):55.68(W)x83.52(H)(mm) Number of\nColors(Max):16.7M Driver IC:ST7796S Display Interface:4-Line SPI Pixel\nSize:0.174(H)x0.174(mm) View Angle:12 O'CLOCK Brightness(TYP): 300(cd\/m2)\nBacklight Type:White LED8 Operation Temperature:-10~50(℃) Storage\nTemperature:-20~60(℃) Electrical Parameters： Working Voltage：5.0\nV\/3.3V(Recommended to connect to 5V) Backlight Current：103 mA Power：0.5 W\nTouch Screen Parameters: Touch Active Area:4.0 inch Touch Screen\nType:Capacitive Touch Screen Touch Screen Resolution:320x480(pixels) Driver\nIC:FT6336U Touch Screen Visual Area:55.98(W)x83.82(H)(mm) Communication\nInterface： IIC Operation Temperature: -20~70(℃) Storage Temperature: -30~80(℃)\nSize Parameters: TFT Outline\nSize:60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive\nbacking) Touch Screen Outline Size:60.88±0.1(W)x94.57±0.1(H)x1.35\n(D)(mm)(Excluding cables and adhesive backing) Module Outline Size:Have Touch\nScreen:60.88(W)x108.0(H)x14.80(D)(mm)(including Pin Header) Other Parameters：\nInterface：14P 2.54mm spacing Header and 0.5mm spacing FPC seat Package\ninclude： 1 x 4.0” touch screen 1 x FPC cables 1 x Plastic protective box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4.0 inches TN capacitive touch screen with 320x480 resolution of 65K colors and rich display colors. Brightness 300(cd\/m2).\u003c\/li\u003e\n \u003cli\u003eNewly upgraded to a capacitive touch panel. Compared with resistive screens, it is more convenient to use and more accurate to touch\u003c\/li\u003e\n \u003cli\u003eST7796S Driver. On board level conversion circuit, compatible with 5V and 3.3V MCU Adopting a 4-wire SPI serial bus to save I\/O pins.\u003c\/li\u003e\n \u003cli\u003eModule input supports 2.54 pin interface and FPC extension interface. Equipped with micro TF card slot for easy storage expansion\u003c\/li\u003e\n \u003cli\u003eProvide rich example learning programs (ESP32\/STM32\/Arduino R3\u0026amp;Mage2560\/C51\/CH32). Provide low-level driver technical support, and update information online\u003c\/li\u003e\n \u003c\/ul\u003e"}
