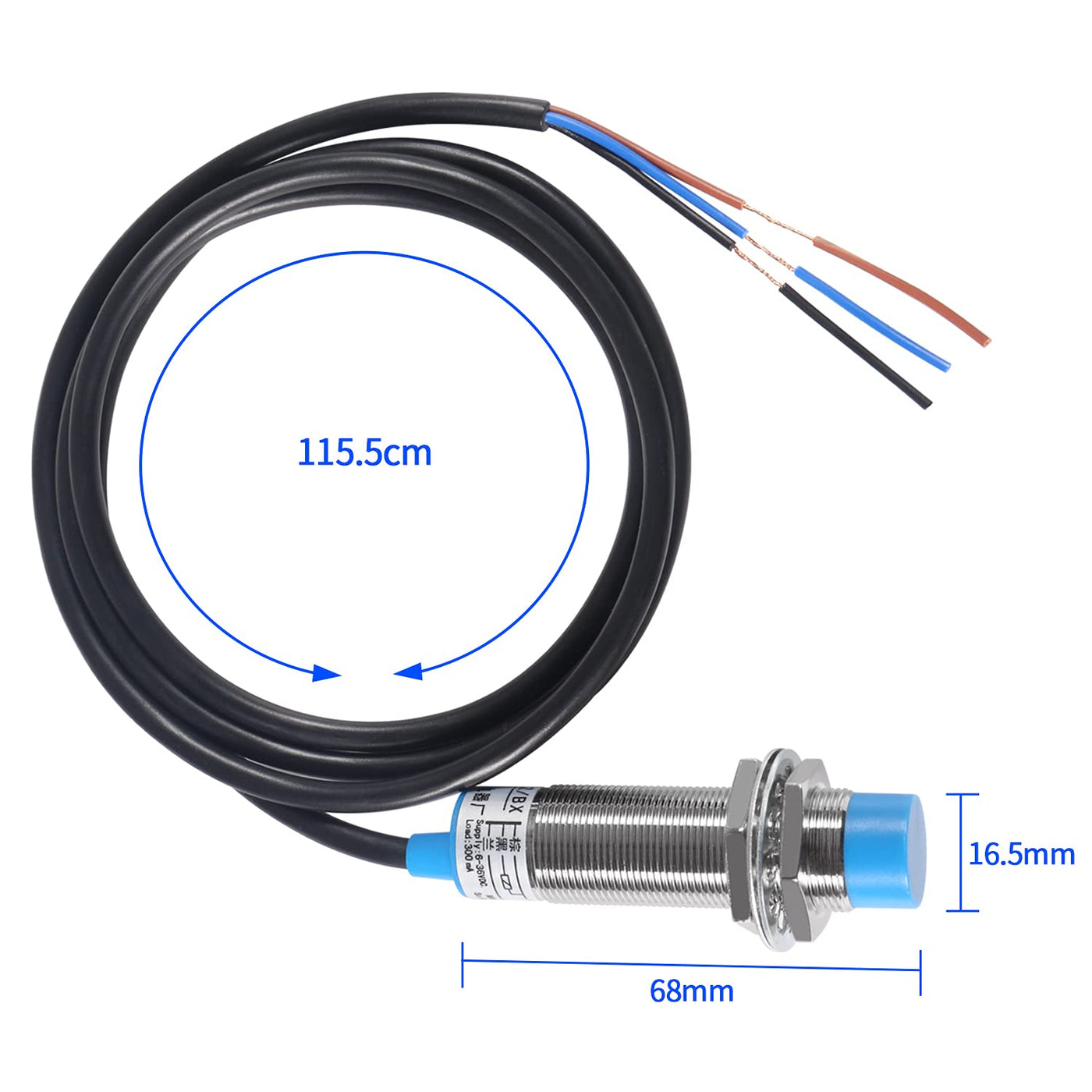

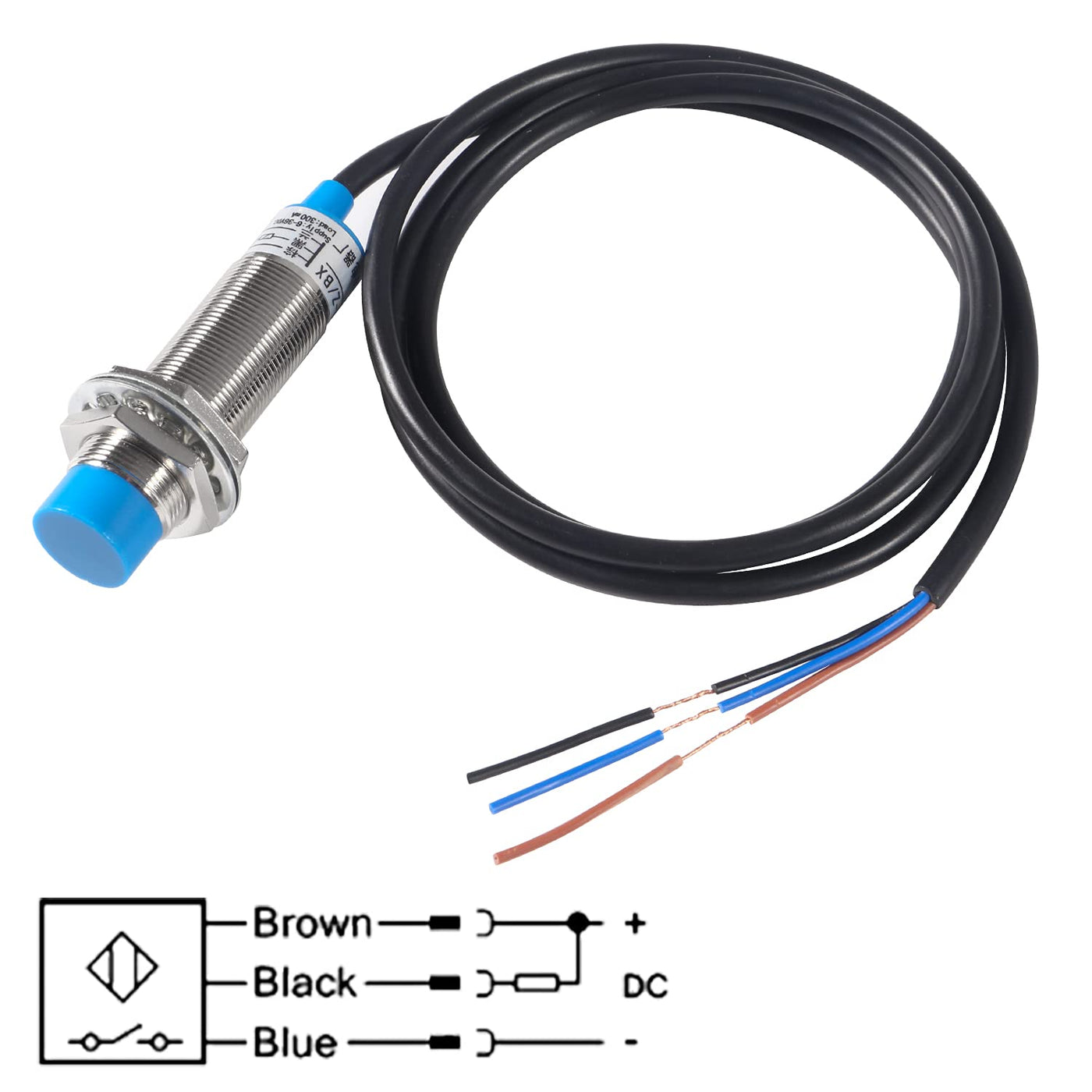

{"id":8012745801908,"title":"3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX)","handle":"3pcs-lj18a3-8-z-bx-npn-no-inductive-proximity-sensor-switch-detector-8mm-detecting-distance-dc-6-36v-m18-approach-switch-300ma-3-wire-lj18a3-8-z-bx-for-3d-printer-probe-bed-leveling-mcu-board-lj18a3-8-z-bx","description":"\u003ch3\u003e3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eLJ18A3-8-Z\/BX Appearance Type : Thread cylindrical Voltage : DC 6-36V Current\r\nOutput : 300mA Output Polarity: NPN NO(normal open) Detect Object : Magnetic\r\nmetal Diameter of Sensor Column : 18 mm Length of Sensor Column : 6.8 mm\r\nDetecting Distance : 8 mm Total Length: 115 cm\/45 Inch Protection level: IP65\r\nExternal Material : Alloy(Nickel plated brass),Detection surface is ABS Wire\r\nType : DC 3 Wires-Brown(positive electrode) Black(output signal),\r\nBlue(negative electrode) The proximity switch is mainly a switch-type sensor,\r\nwhich has the characteristics of good sensing performance, fast frequency\r\nresponse, long application life and strong anti-interference ability. It is\r\nwidely used in machinery, detection, counting and control ect. Package\r\ninclude: 3 x LJ18A3-8-Z\/BX 5V inductive proximity switch\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLJ18A3-8-Z\/BX 5V inductive proximity switch; wire type : DC 3 wire type; switch appearance type : cylinder type\u003c\/li\u003e\r\n \u003cli\u003eInductive proximity switch lj18a3-8-z\/bx theory: Inductive sensor; output type: NPN NO(Normal Open); diameter of head : 18mm; detecting distance : 8mm 10%; Set distance: 0-7mm\u003c\/li\u003e\r\n \u003cli\u003e8mm sensor inductive proximity supply voltage : DC 6-36V; current output : 300mA; detect object : Iron; thread size: 18mm\u003c\/li\u003e\r\n \u003cli\u003eSensitive detection: ABS material detection surface, the built-in intelligent sensing chip of the proximity switch can sensitively detect objects, when proximity switch is close to single target object, it will send control signal\u003c\/li\u003e\r\n \u003cli\u003eLJ18A3-8-Z\/BX application: It is a component widely used in automatic control industry for detecting, controlling, and contactless switching. It is widely used in mechanical automation, 3D printer probe bed leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-05T16:37:22+11:00","created_at":"2025-12-05T16:37:19+11:00","vendor":"DORHEA","type":"Inductive","tags":["industrial_selected_Nov2025"],"price":13400,"price_min":13400,"price_max":13400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44101674664116,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09J4L6DGL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX)","public_title":null,"options":["Default Title"],"price":13400,"weight":240,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715489264","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09J4L6DGL.jpg?v=1775777714","\/\/auspowers.com\/cdn\/shop\/files\/61vLkzFvylL.jpg?v=1764913041","\/\/auspowers.com\/cdn\/shop\/files\/6148qeGISNL.jpg?v=1764913041","\/\/auspowers.com\/cdn\/shop\/files\/71DiKHiDkbL.jpg?v=1764913041","\/\/auspowers.com\/cdn\/shop\/files\/61b70gB1D9L.jpg?v=1764913041"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09J4L6DGL.jpg?v=1775777714","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX) ","id":32445516480692,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09J4L6DGL.jpg?v=1775777714"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09J4L6DGL.jpg?v=1775777714","width":1600},{"alt":"[Australia - AusPower] - 3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX) ","id":32445516513460,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61vLkzFvylL.jpg?v=1764913041"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61vLkzFvylL.jpg?v=1764913041","width":1500},{"alt":"[Australia - AusPower] - 3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX) ","id":32445516546228,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6148qeGISNL.jpg?v=1764913041"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6148qeGISNL.jpg?v=1764913041","width":1500},{"alt":"[Australia - AusPower] - 3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX) ","id":32445516578996,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71DiKHiDkbL.jpg?v=1764913041"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71DiKHiDkbL.jpg?v=1764913041","width":1500},{"alt":"[Australia - AusPower] - 3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board LJ18A3-8-Z\/BX) ","id":32445516611764,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61b70gB1D9L.jpg?v=1764913041"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61b70gB1D9L.jpg?v=1764913041","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e3Pcs LJ18A3-8-Z\/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z\/BX for 3D Printer Probe Bed Leveling, MCU Board\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eLJ18A3-8-Z\/BX Appearance Type : Thread cylindrical Voltage : DC 6-36V Current\r\nOutput : 300mA Output Polarity: NPN NO(normal open) Detect Object : Magnetic\r\nmetal Diameter of Sensor Column : 18 mm Length of Sensor Column : 6.8 mm\r\nDetecting Distance : 8 mm Total Length: 115 cm\/45 Inch Protection level: IP65\r\nExternal Material : Alloy(Nickel plated brass),Detection surface is ABS Wire\r\nType : DC 3 Wires-Brown(positive electrode) Black(output signal),\r\nBlue(negative electrode) The proximity switch is mainly a switch-type sensor,\r\nwhich has the characteristics of good sensing performance, fast frequency\r\nresponse, long application life and strong anti-interference ability. It is\r\nwidely used in machinery, detection, counting and control ect. Package\r\ninclude: 3 x LJ18A3-8-Z\/BX 5V inductive proximity switch\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLJ18A3-8-Z\/BX 5V inductive proximity switch; wire type : DC 3 wire type; switch appearance type : cylinder type\u003c\/li\u003e\r\n \u003cli\u003eInductive proximity switch lj18a3-8-z\/bx theory: Inductive sensor; output type: NPN NO(Normal Open); diameter of head : 18mm; detecting distance : 8mm 10%; Set distance: 0-7mm\u003c\/li\u003e\r\n \u003cli\u003e8mm sensor inductive proximity supply voltage : DC 6-36V; current output : 300mA; detect object : Iron; thread size: 18mm\u003c\/li\u003e\r\n \u003cli\u003eSensitive detection: ABS material detection surface, the built-in intelligent sensing chip of the proximity switch can sensitively detect objects, when proximity switch is close to single target object, it will send control signal\u003c\/li\u003e\r\n \u003cli\u003eLJ18A3-8-Z\/BX application: It is a component widely used in automatic control industry for detecting, controlling, and contactless switching. It is widely used in mechanical automation, 3D printer probe bed leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
