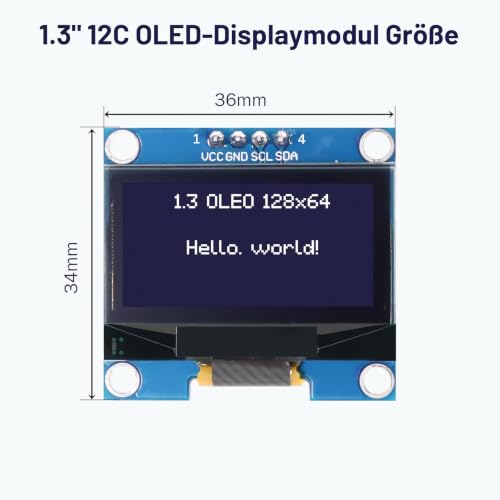

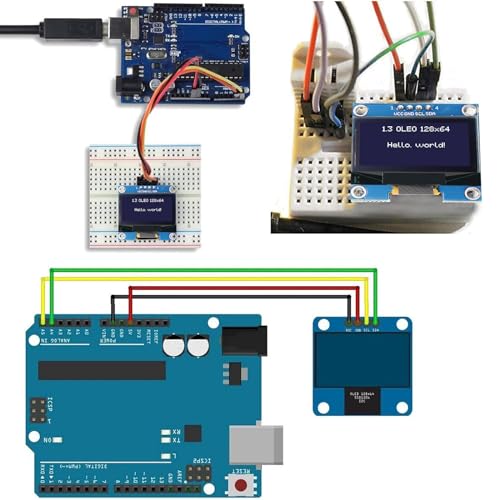

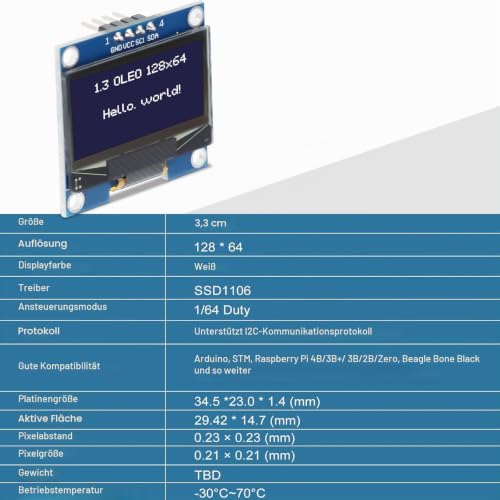

{"id":8115232538804,"title":"3 x 1.3 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, OLED Display Module for Arduino (White Sign) White","handle":"3-x-1-3-inch-oled-display-i2c-128-x-64-pixel-i2c-screen-display-module-oled-display-module-for-arduino-white-sign-white","description":"\u003ch3\u003e3 x 1.3 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, OLED Display Module for Arduino (White Sign)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: 1. Driver IC: SSH1106 2. Viewing angle: \u0026gt; 160. 3. Voltage: DC\n3V-5V. 4. Interface: IIC I2C 5. Font colour: white. 6. Dimensions: 36 x 34 x 3\nmm. 7. Dot matrix: 128 x 64. 8. Pixel size: 0.21 mm x 0.21 mm. 9. Pixel\nspacing: 0.23 mm x 0.23 mm. 10. Display mode: passive matrix. 11.\nCommunication interface: I2C. Low power consumption: \u0026lt;11 mA. 13. Supply\nvoltage: 3.3 V to 5 V. 14. Operating temperature: -20 to 70 °C. 15. Backlight:\nOLED self-luminous, no backlight. IIC Pin Definition: GND: Power Ground VCC:\nPower + (DC 3.3~5V) SCL: Clock Line SDA: Data Line How do I connect? GND: DC\nNegative VCC: DC positive SCL: Serial clock input SDA: Serial data input Box\ncontents: 3 x 1.3 inch OLED display IIC I2C serial\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-contrast OLED display module: the i2c display with large 1.3 inch display and innovative OLED technology offers a clear display of elements with high resolution of 128 times 64 pixels.\u003c\/li\u003e\n \u003cli\u003eEasy to install: this I2C display allows easy connection of the display with Raspberry Pi etc. through IIC interface via only four pins\u003c\/li\u003e\n \u003cli\u003eApplication: This OLED display module can be compatible with Raspberry Pi of the Arduino 51 series, the 430 series, the STM32 \/ 2 CSR IC etc.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: this OLED display is compatible with operating voltages of 3.3 V for Raspberry Pi and with 5 V.\u003c\/li\u003e\n \u003cli\u003eDriver IC: SSH1106: Thanks to standard controllers, libraries for Raspberry Pi etc. which makes programming a piece of cake!\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:33:40+10:00","created_at":"2026-09-01T23:28:48+10:00","vendor":"APKLVSR","type":"OLED Displays","tags":["industrial_DE_Aug2026"],"price":12600,"price_min":12600,"price_max":12600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374952280244,"title":"White","option1":"White","option2":null,"option3":null,"sku":"de-B0CWGP53JW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3 x 1.3 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, OLED Display Module for Arduino (White Sign) White - White","public_title":"White","options":["White"],"price":12600,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0CWGP53JW.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/418Ma1xWN6L.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/41Kv6ShyIJL.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/51N9wEyb8kL.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/41tswH0XHLL.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/4158rgfoOsL.jpg?v=1788269331","\/\/auspowers.com\/cdn\/shop\/files\/41MJHX06aoL.jpg?v=1788269331"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CWGP53JW.jpg?v=1788269331","options":["Colour Name"],"media":[{"alt":null,"id":33272901566644,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CWGP53JW.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CWGP53JW.jpg?v=1788269331","width":500},{"alt":null,"id":33272901599412,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/418Ma1xWN6L.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/418Ma1xWN6L.jpg?v=1788269331","width":500},{"alt":null,"id":33272901632180,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Kv6ShyIJL.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Kv6ShyIJL.jpg?v=1788269331","width":500},{"alt":null,"id":33272901664948,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51N9wEyb8kL.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51N9wEyb8kL.jpg?v=1788269331","width":500},{"alt":null,"id":33272901697716,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41tswH0XHLL.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41tswH0XHLL.jpg?v=1788269331","width":500},{"alt":null,"id":33272901730484,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/4158rgfoOsL.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/4158rgfoOsL.jpg?v=1788269331","width":500},{"alt":null,"id":33272901763252,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41MJHX06aoL.jpg?v=1788269331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41MJHX06aoL.jpg?v=1788269331","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e3 x 1.3 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, OLED Display Module for Arduino (White Sign)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: 1. Driver IC: SSH1106 2. Viewing angle: \u0026gt; 160. 3. Voltage: DC\n3V-5V. 4. Interface: IIC I2C 5. Font colour: white. 6. Dimensions: 36 x 34 x 3\nmm. 7. Dot matrix: 128 x 64. 8. Pixel size: 0.21 mm x 0.21 mm. 9. Pixel\nspacing: 0.23 mm x 0.23 mm. 10. Display mode: passive matrix. 11.\nCommunication interface: I2C. Low power consumption: \u0026lt;11 mA. 13. Supply\nvoltage: 3.3 V to 5 V. 14. Operating temperature: -20 to 70 °C. 15. Backlight:\nOLED self-luminous, no backlight. IIC Pin Definition: GND: Power Ground VCC:\nPower + (DC 3.3~5V) SCL: Clock Line SDA: Data Line How do I connect? GND: DC\nNegative VCC: DC positive SCL: Serial clock input SDA: Serial data input Box\ncontents: 3 x 1.3 inch OLED display IIC I2C serial\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-contrast OLED display module: the i2c display with large 1.3 inch display and innovative OLED technology offers a clear display of elements with high resolution of 128 times 64 pixels.\u003c\/li\u003e\n \u003cli\u003eEasy to install: this I2C display allows easy connection of the display with Raspberry Pi etc. through IIC interface via only four pins\u003c\/li\u003e\n \u003cli\u003eApplication: This OLED display module can be compatible with Raspberry Pi of the Arduino 51 series, the 430 series, the STM32 \/ 2 CSR IC etc.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: this OLED display is compatible with operating voltages of 3.3 V for Raspberry Pi and with 5 V.\u003c\/li\u003e\n \u003cli\u003eDriver IC: SSH1106: Thanks to standard controllers, libraries for Raspberry Pi etc. which makes programming a piece of cake!\u003c\/li\u003e\n \u003c\/ul\u003e"}
