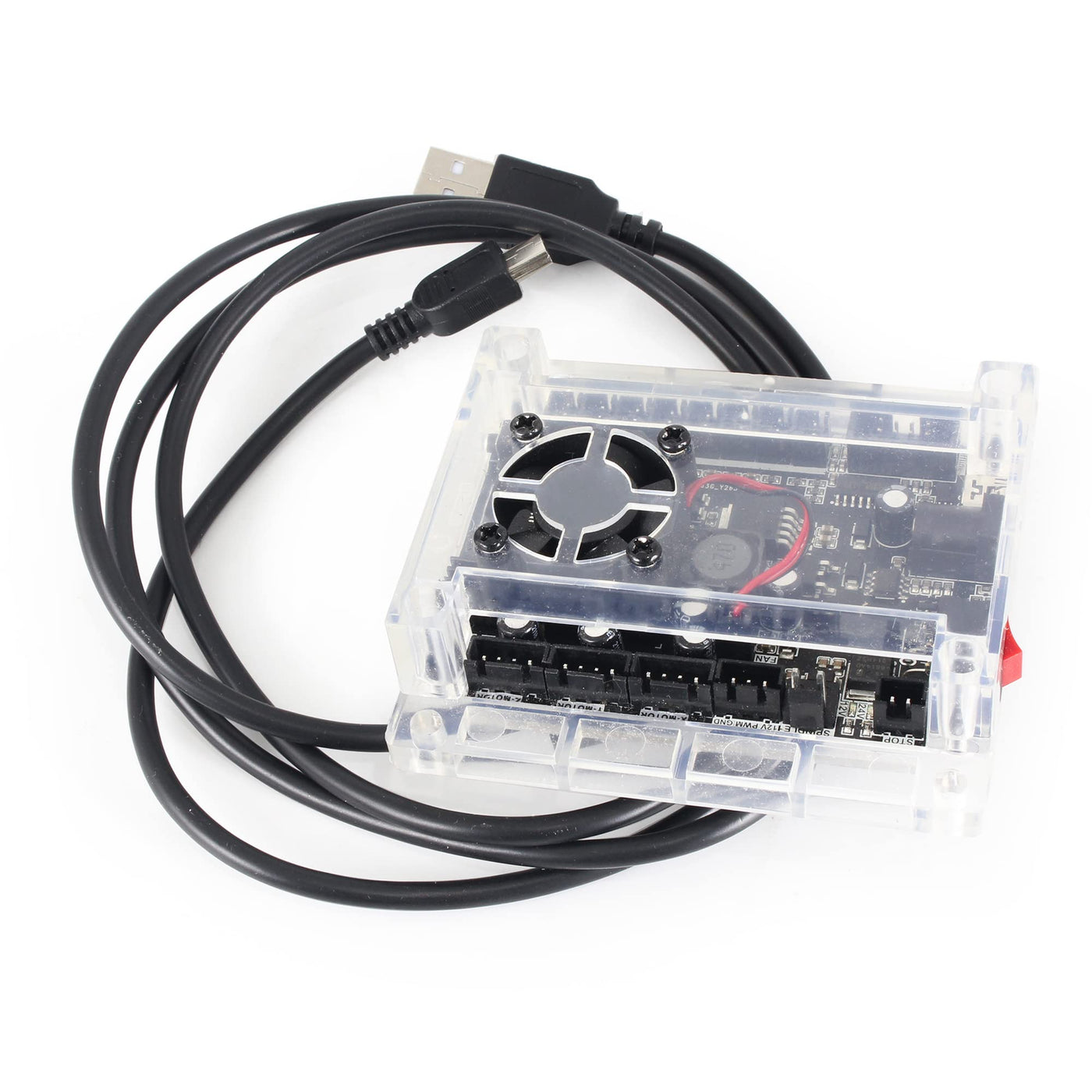

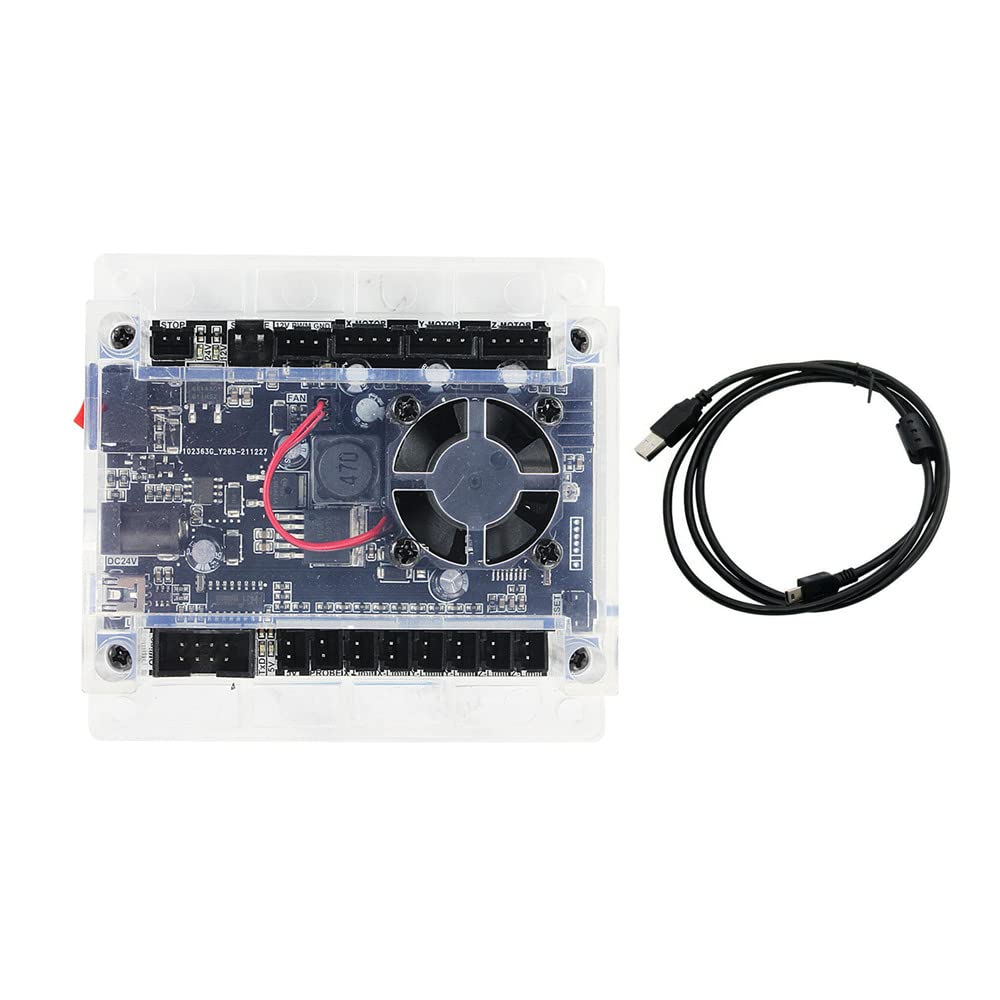

3 Axis GRBL 1.1f USB Port CNC Engraving Machine Control Board CNC Router Engraver Milling Machine Controller board
3 Axis GRBL 1.1f USB Port CNC Engraving Machine Control Board CNC Router Engraver Milling Machine Controller board
Product Features
- ModelUpgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board; Input voltage: 12-24VDC (recommend 24VDC)
- Support softwareGRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System: Windows XP/7/8/10

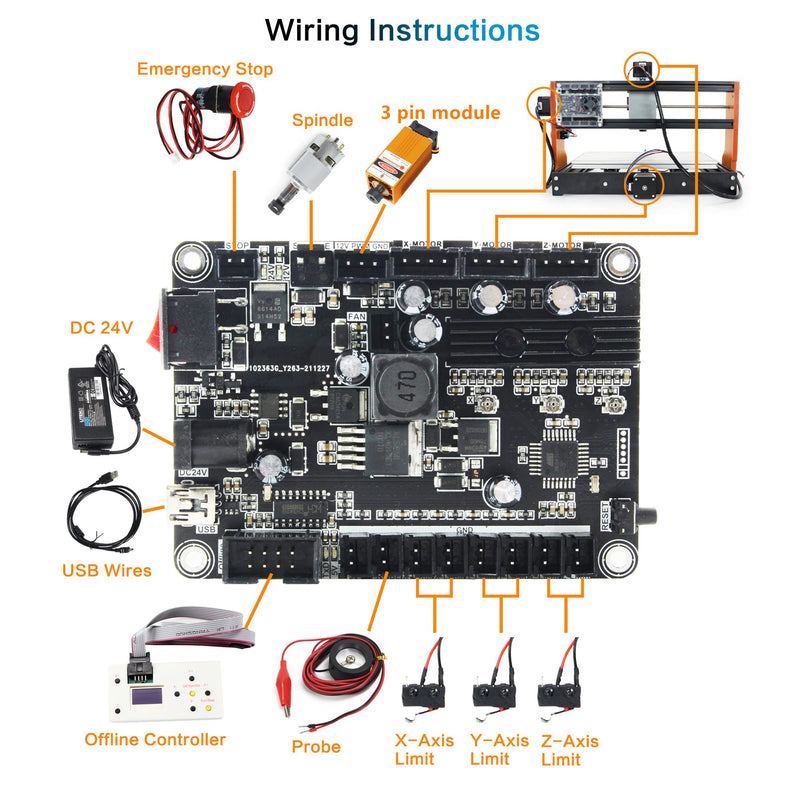

- Support MotorSupport XYZ three-axis control, spindle.Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle:24V 2A Support Spindle PWM speed (0%-100%),also support 3-pin module

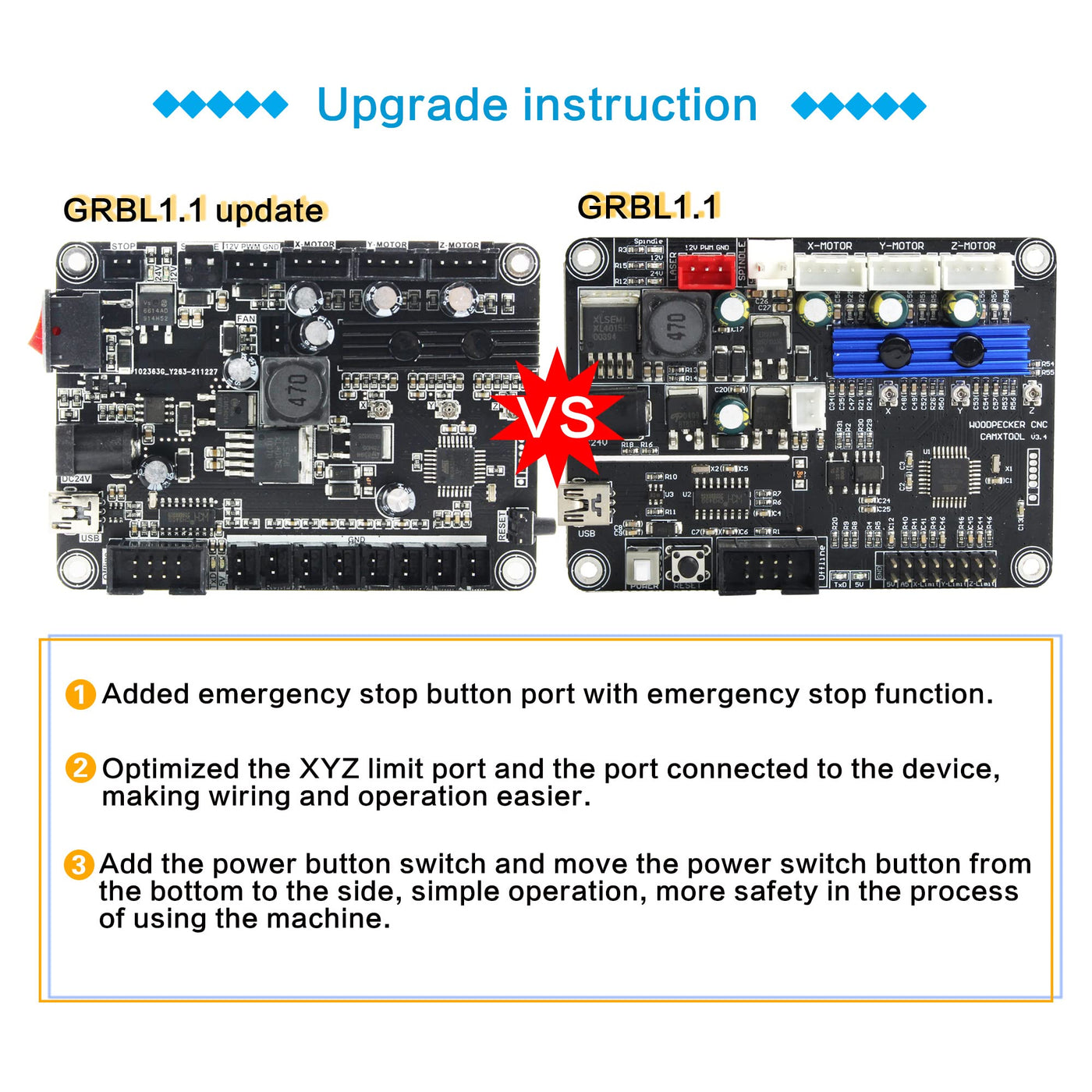

- New functionsAdd emergency stop button port,probe port,XYZ limit port and add the power button switch.
- Applications The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.
