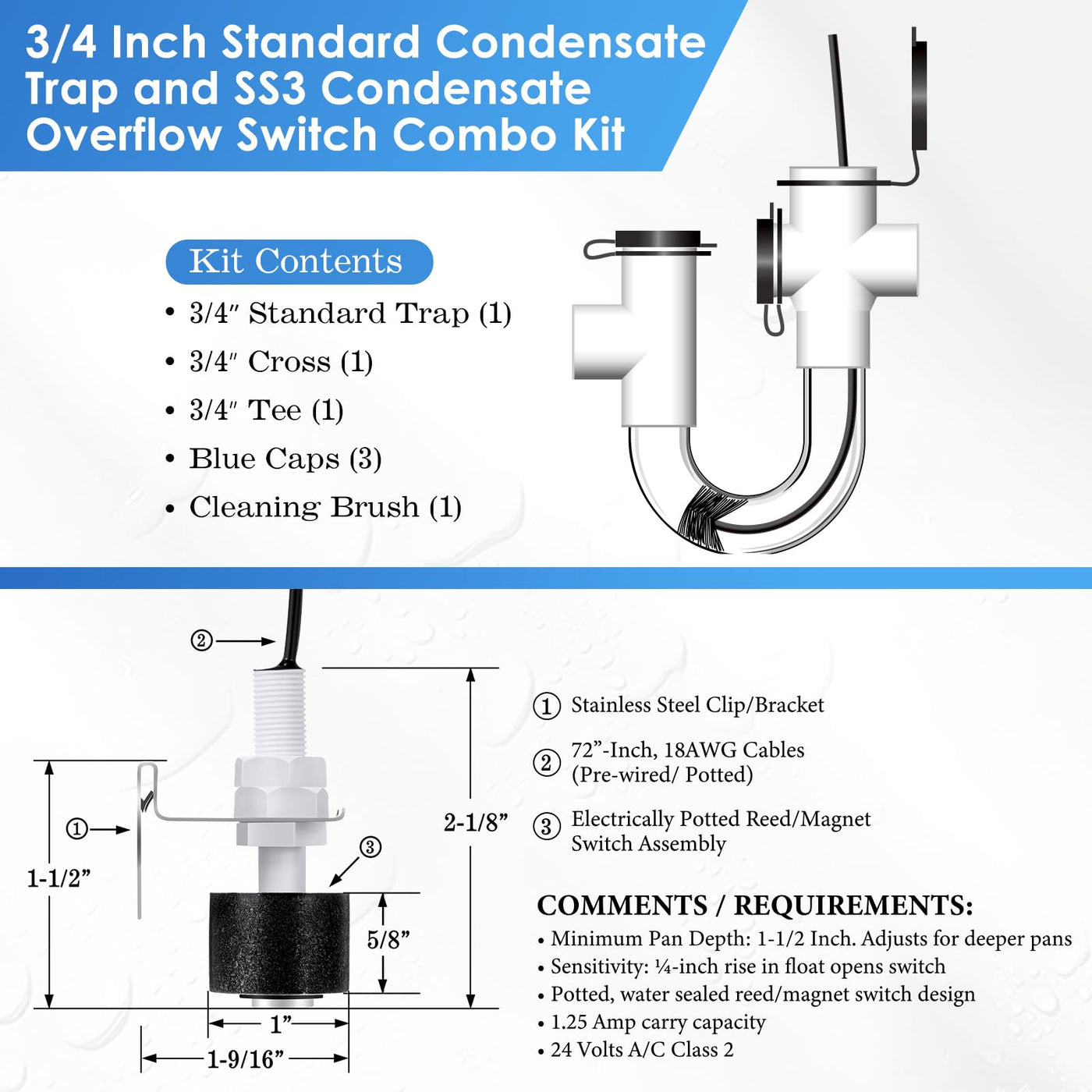

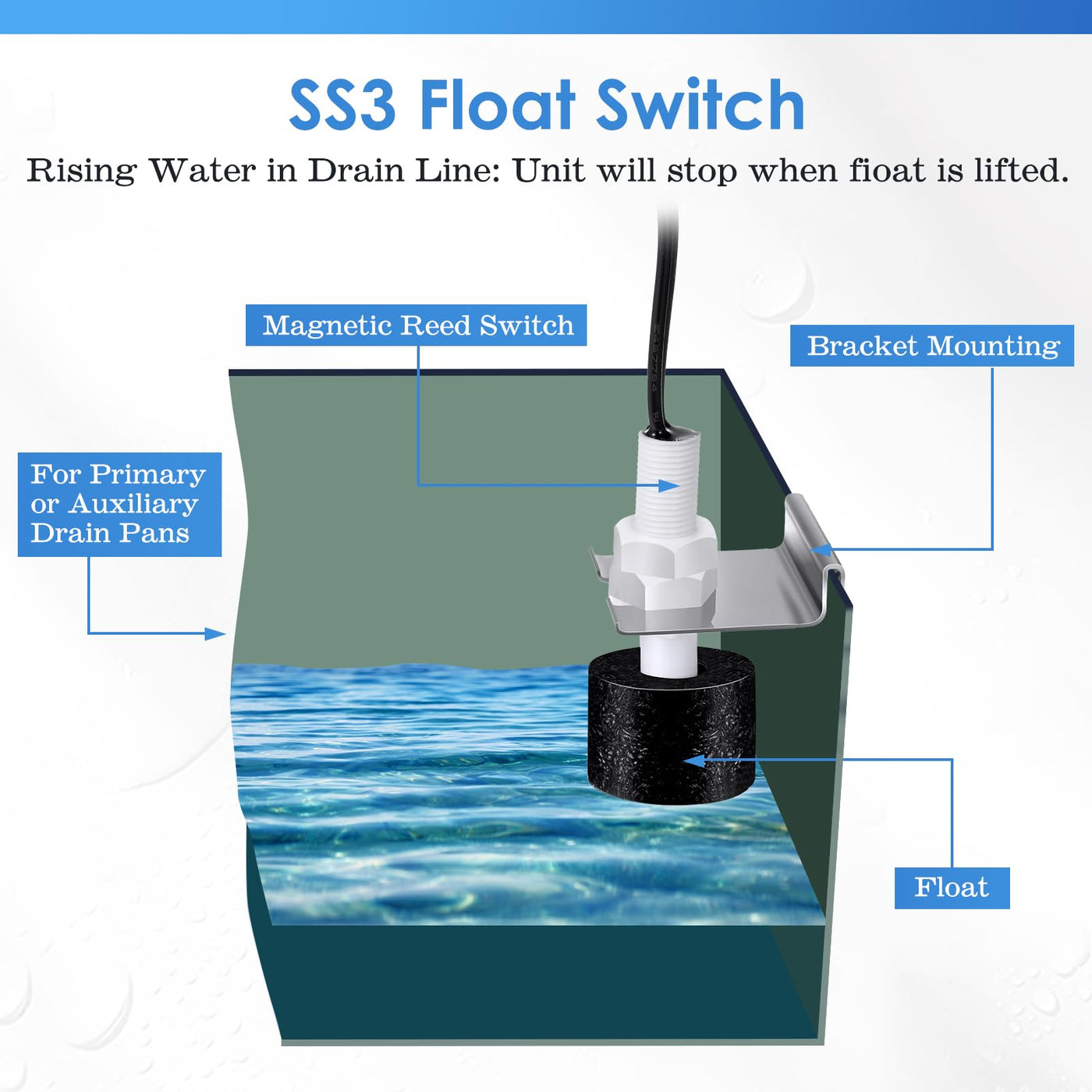

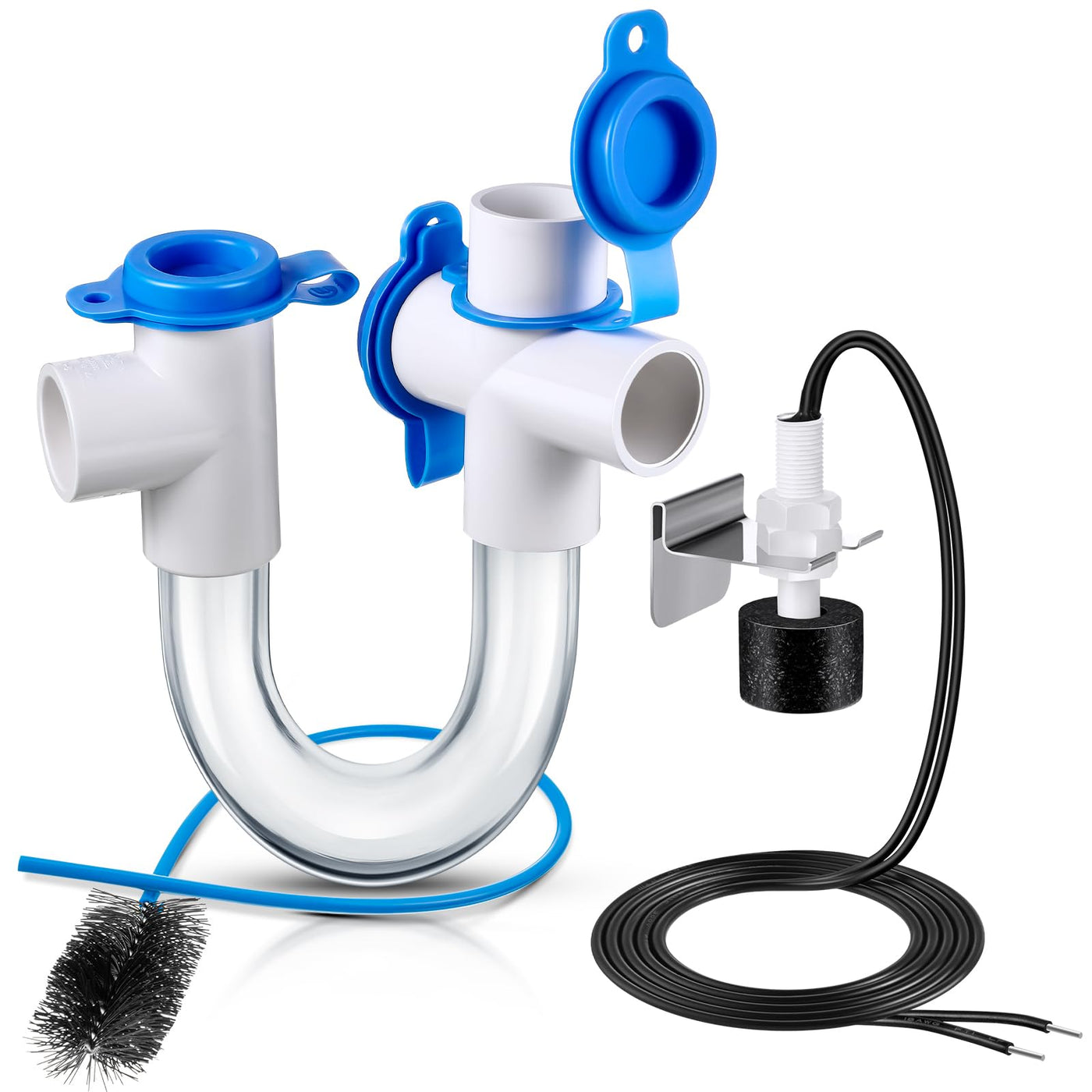

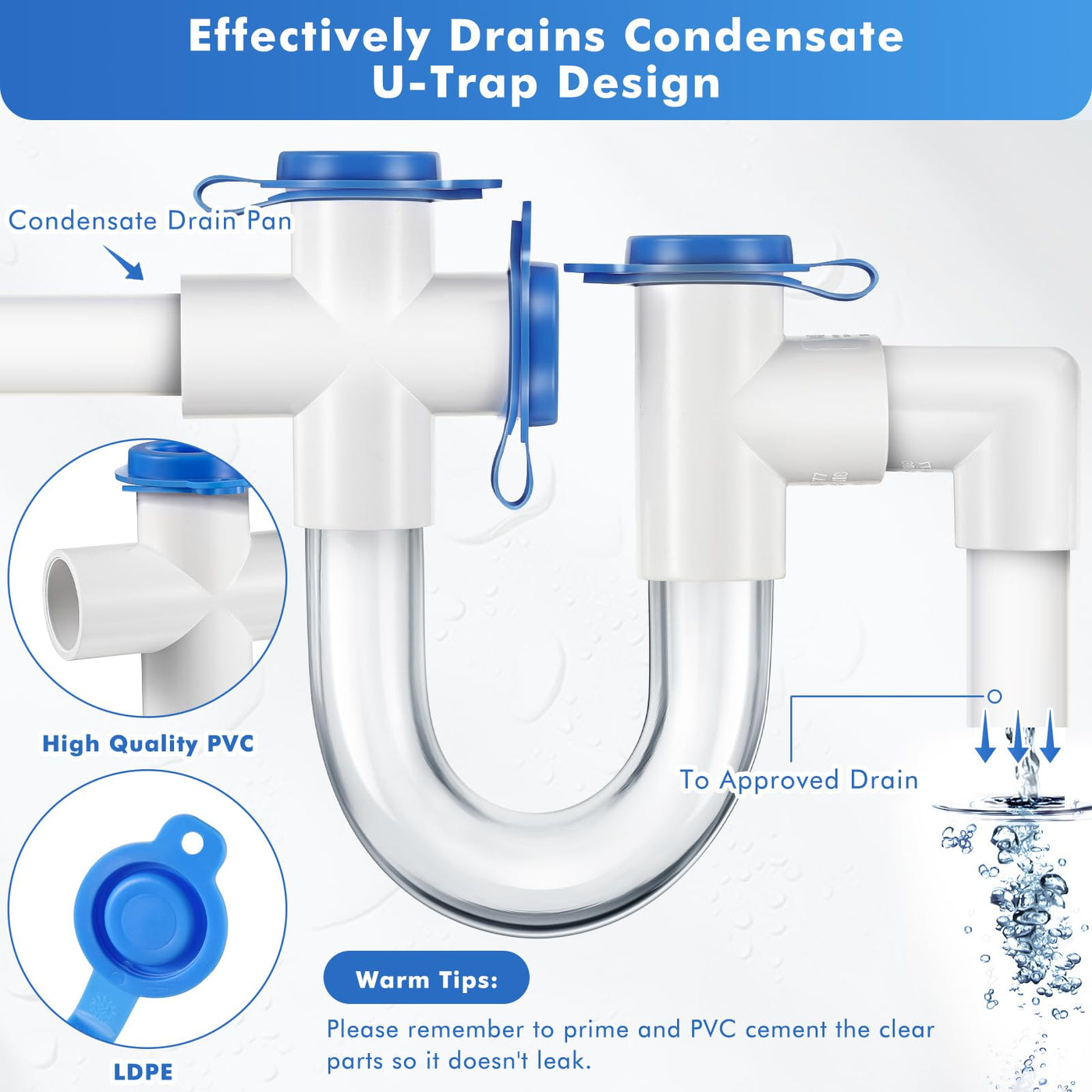

{"id":7838491672756,"title":"3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner","handle":"3-4-inch-standard-condensate-trap-with-cleaning-brush-and-ss3-condensate-overflow-float-switch-combo-kit-for-hvac-systems-air-conditioner","description":"\u003ch3\u003e3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIf you're concerned about your furniture, floors, walls, and ceilings getting\nsoaked from condensation leaks while using your HVAC, installing a 3\/4 Inch\nStandard Condensate Trap and SS3 Condensate Overflow Float Switch Combo Kit is\nhighly recommended. Specifications: Standard Condensate Trap: Material: PVC\nSS3 Condensate Overflow Switch Model: SS3 Wire length 6 feet (1.8M)\nApplication: For Installation on Primary and Auxiliary Drain Pans\nREQUIREMENTS: Minimum Pan Depth: 1-1\/2 Inch. Adjusts for deeper pans\nSensitivity: 4-inch rise in float opens switch Potted, water sealed reed\/\nmagnet switch design 1.25 Amp carry capacity 24 Volts A\/C Class 2 Package\nIncluded: 1 X 3\/4'' Standard Condensate Trap 1 x Cleaning Brush 1 x SS3\nCondensate Overflow Switch 1 x Instruction Notice: 1. We come with\ninstructions, please read and comply with all warnings, cautions, and\ninstructions prior to starting installation, to make sure the installation\ngoes smoothly. 2. Insulation is required when the trap is installed in an\nunconditioned space where sweating can occur.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMust Have Combo Kit: this 3\/4 inch standard condensate trap and SS3 float switch kit is a must have for HVAC systems and refrigeration needs, to cover the entire condensate drain system, achieving overall excellent protection\u003c\/li\u003e\n \u003cli\u003eEffectively Drains Condensate: the standard condensate trap adopts a gradient design to effectively drains condensate in a variety of HVAC systems; The U shape pipe filled with water is enough to stop the suction from pulling water back into the air conditioner, stopping the backflow of condensed water, stopping the dirty air inflow, polluting the indoor air\u003c\/li\u003e\n \u003cli\u003eEffectively Detect Condensate Overflow: the SS3 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged air conditioning condensate drains and shuts off the system to prevent water damage to floors, walls and ceilings\u003c\/li\u003e\n \u003cli\u003ePrecision Design: the condensate p trap with a clear PVC U shaped pipe and openable blue caps makes you easily inspect if sediment builds to block the trap and easily open it for cleaning and a 16 inch flexible brush, you can push a brush into the trap for deep cleaning; SS3 ac pan float switch with specially designed steel mounting bracket clips firmly over the edge of most drain pans; The slim profile allows it to be installed off center and perform correctly\u003c\/li\u003e\n \u003cli\u003eEasy to Install: the HVAC condensate trap and HVAC float switch are made of quality PVC; It is easy to install; Condensate trap can work well on your 3\/4 inch PVC drain line for your central air conditioning, furnace condensate, and HVAC systems; The slim profiled SS3 HVAC drain pan float switch can be installed on primary or auxiliary drain pans\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T14:48:10+10:00","created_at":"2024-09-03T16:59:47+10:00","vendor":"Gulfmew","type":"Drains","tags":["industrial_Aug2024_update"],"price":18800,"price_min":18800,"price_max":18800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43554799157428,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D2W4F72N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner","public_title":null,"options":["Default Title"],"price":18800,"weight":416,"compare_at_price":null,"inventory_management":"shopify","barcode":"Gulfmew-Float Switch-06","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/71O3cIJWAWL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/71aSpQZeckL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/712OzWOgFRL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/71vXQZmFjEL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/71QVc86qwcL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/71xDSO4ZxDL.jpg?v=1725346790","\/\/auspowers.com\/cdn\/shop\/files\/71bRZH2uRvL.jpg?v=1725346790"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/71O3cIJWAWL.jpg?v=1725346790","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713907937460,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71O3cIJWAWL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71O3cIJWAWL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713907970228,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71aSpQZeckL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71aSpQZeckL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713908002996,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/712OzWOgFRL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/712OzWOgFRL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713908035764,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71vXQZmFjEL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71vXQZmFjEL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713908068532,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71QVc86qwcL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71QVc86qwcL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713908101300,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71xDSO4ZxDL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71xDSO4ZxDL.jpg?v=1725346790","width":1600},{"alt":"[Australia - AusPower] - 3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner ","id":30713908134068,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71bRZH2uRvL.jpg?v=1725346790"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71bRZH2uRvL.jpg?v=1725346790","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e3\/4 Inch Standard Condensate Trap with Cleaning Brush and SS3 Condensate Overflow Float Switch Combo Kit for HVAC Systems, Air Conditioner\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIf you're concerned about your furniture, floors, walls, and ceilings getting\nsoaked from condensation leaks while using your HVAC, installing a 3\/4 Inch\nStandard Condensate Trap and SS3 Condensate Overflow Float Switch Combo Kit is\nhighly recommended. Specifications: Standard Condensate Trap: Material: PVC\nSS3 Condensate Overflow Switch Model: SS3 Wire length 6 feet (1.8M)\nApplication: For Installation on Primary and Auxiliary Drain Pans\nREQUIREMENTS: Minimum Pan Depth: 1-1\/2 Inch. Adjusts for deeper pans\nSensitivity: 4-inch rise in float opens switch Potted, water sealed reed\/\nmagnet switch design 1.25 Amp carry capacity 24 Volts A\/C Class 2 Package\nIncluded: 1 X 3\/4'' Standard Condensate Trap 1 x Cleaning Brush 1 x SS3\nCondensate Overflow Switch 1 x Instruction Notice: 1. We come with\ninstructions, please read and comply with all warnings, cautions, and\ninstructions prior to starting installation, to make sure the installation\ngoes smoothly. 2. Insulation is required when the trap is installed in an\nunconditioned space where sweating can occur.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMust Have Combo Kit: this 3\/4 inch standard condensate trap and SS3 float switch kit is a must have for HVAC systems and refrigeration needs, to cover the entire condensate drain system, achieving overall excellent protection\u003c\/li\u003e\n \u003cli\u003eEffectively Drains Condensate: the standard condensate trap adopts a gradient design to effectively drains condensate in a variety of HVAC systems; The U shape pipe filled with water is enough to stop the suction from pulling water back into the air conditioner, stopping the backflow of condensed water, stopping the dirty air inflow, polluting the indoor air\u003c\/li\u003e\n \u003cli\u003eEffectively Detect Condensate Overflow: the SS3 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged air conditioning condensate drains and shuts off the system to prevent water damage to floors, walls and ceilings\u003c\/li\u003e\n \u003cli\u003ePrecision Design: the condensate p trap with a clear PVC U shaped pipe and openable blue caps makes you easily inspect if sediment builds to block the trap and easily open it for cleaning and a 16 inch flexible brush, you can push a brush into the trap for deep cleaning; SS3 ac pan float switch with specially designed steel mounting bracket clips firmly over the edge of most drain pans; The slim profile allows it to be installed off center and perform correctly\u003c\/li\u003e\n \u003cli\u003eEasy to Install: the HVAC condensate trap and HVAC float switch are made of quality PVC; It is easy to install; Condensate trap can work well on your 3\/4 inch PVC drain line for your central air conditioning, furnace condensate, and HVAC systems; The slim profiled SS3 HVAC drain pan float switch can be installed on primary or auxiliary drain pans\u003c\/li\u003e\n \u003c\/ul\u003e"}
