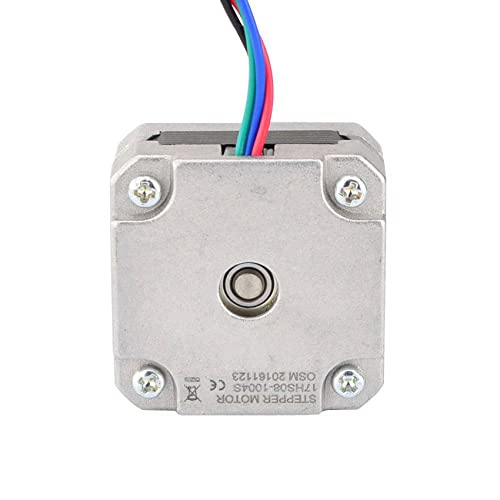

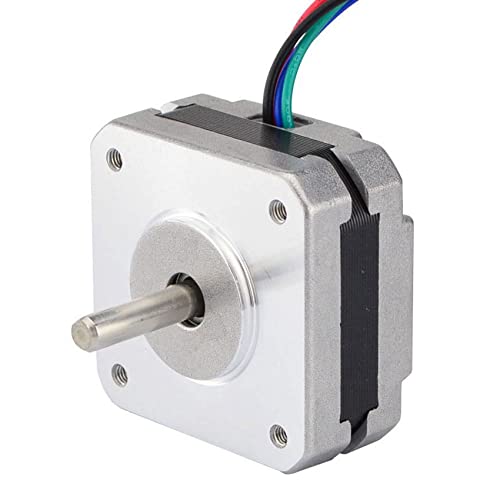

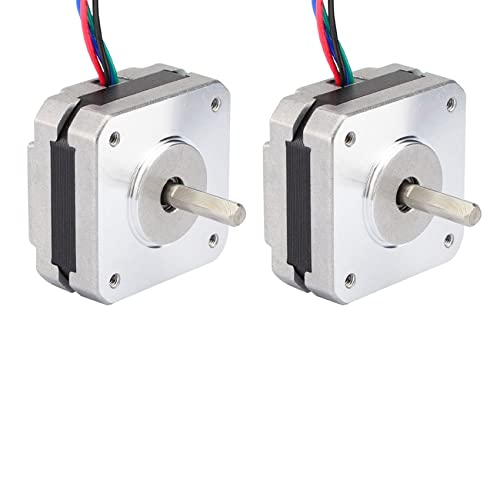

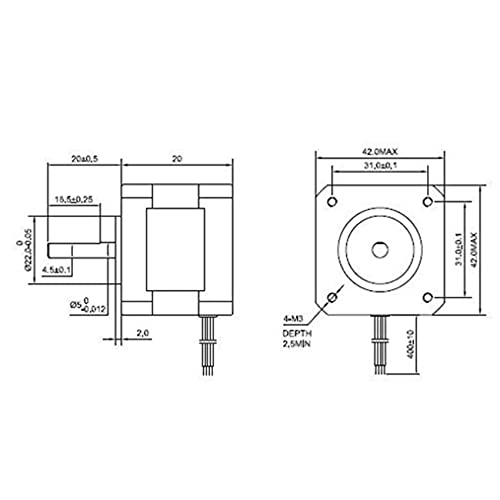

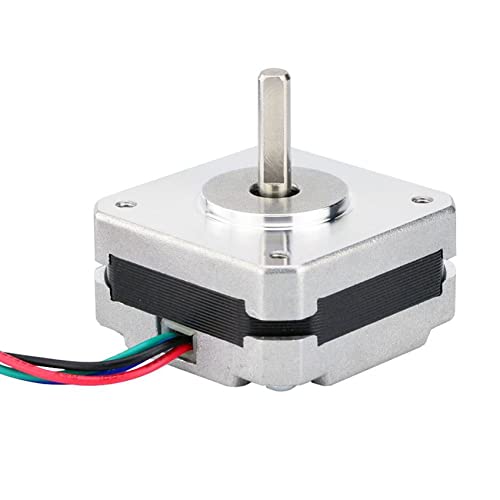

{"id":8115568443572,"title":"2X 4-Lead Nema 17 Stepper Motor 20Mm 1A 13Ncm(18.4Oz.in) 42 Motor Nema17 Stepper for DIY 3D Printer CNC","handle":"2x-4-lead-nema-17-stepper-motor-20mm-1a-13ncm18-4oz-in-42-motor-nema17-stepper-for-diy-3d-printer-cnc","description":"\u003ch3\u003e2X 4-Lead Nema 17 Stepper Motor 20Mm 1A 13Ncm(18.4Oz.in) 42 Motor Nema17 Stepper for DIY 3D Printer CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eGokoti This is Short Height FOR Bipolar Nema 17 stepper motor with 1.8 . step\nangle (200 steps\/revolution). Each phase draws current 1A, allowing for a\nholding torque of 13Ncm(18.4oz.in). Color: silver material: metal Electrical\nSpecification: Manufacturer Part Number: 17HS08-1004S Motor Type: Bipolar\nStepper Step Angle: 1.8 . Holding Torque: 13Ncm(18.4oz.in) Rated\nCurrent\/phase: 1.0A Phase Resistance: 3.5ohms Inductance: 4.5mH+\/-20%(1KHz)\nPhysical Specification: Frame Size: 42 x 42mm Body Length: 20mm Shaft\nDiameter: 5mm Shaft Length: 20mm D-cut Length: 16.5mm Number of Leads: 4 Lead\nLength: 400mm Weight: 140g\/pcs Connection: Black(A+), Green(A-), Red(B+),\nBlue(B-) Warning: Make sure the motor connect to a constant current or chopper\ndrive controller before you test motor. Connecting the motor directly to a\npower supply the motor. Package Contents: 2 stepper motor Only the above\npackage content, other products are not included. Note: Light and different\ndisplays may cause the color of the item in the picture a little different\nfrom the real thing. The measurement allowed error is +\/- 1-3cm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e13Ncm(18.4oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eFOR NEMA 17 bipolar 1.65 inchx1.65 inchx0.79 inch 4-wire\u003c\/li\u003e\n \u003cli\u003eShort Height\u003c\/li\u003e\n \u003cli\u003e1.8 . step angle(200 steps\/)\u003c\/li\u003e\n \u003cli\u003eRated current 1.0A \u0026amp; resistance 3.5ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:46:19+10:00","created_at":"2026-09-02T20:06:31+10:00","vendor":"Gokoti","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":17100,"price_min":17100,"price_max":17100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375657545908,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0D7PBB17L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2X 4-Lead Nema 17 Stepper Motor 20Mm 1A 13Ncm(18.4Oz.in) 42 Motor Nema17 Stepper for DIY 3D Printer CNC","public_title":null,"options":["Default Title"],"price":17100,"weight":290,"compare_at_price":null,"inventory_management":"shopify","barcode":"750003473","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0D7PBB17L.jpg?v=1788343593","\/\/auspowers.com\/cdn\/shop\/files\/31JBPUMt8gL.jpg?v=1788343593","\/\/auspowers.com\/cdn\/shop\/files\/31eHsNThgeL.jpg?v=1788343593","\/\/auspowers.com\/cdn\/shop\/files\/41BEdtU2m_L.jpg?v=1788343593","\/\/auspowers.com\/cdn\/shop\/files\/31lmK0Wz6bL.jpg?v=1788343593","\/\/auspowers.com\/cdn\/shop\/files\/31CSIQkH9JL.jpg?v=1788343593"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0D7PBB17L.jpg?v=1788343593","options":["Title"],"media":[{"alt":null,"id":33276368289972,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0D7PBB17L.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0D7PBB17L.jpg?v=1788343593","width":500},{"alt":null,"id":33276368322740,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31JBPUMt8gL.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31JBPUMt8gL.jpg?v=1788343593","width":500},{"alt":null,"id":33276368355508,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31eHsNThgeL.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31eHsNThgeL.jpg?v=1788343593","width":500},{"alt":null,"id":33276368388276,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41BEdtU2m_L.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41BEdtU2m_L.jpg?v=1788343593","width":500},{"alt":null,"id":33276368421044,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31lmK0Wz6bL.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31lmK0Wz6bL.jpg?v=1788343593","width":500},{"alt":null,"id":33276368453812,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31CSIQkH9JL.jpg?v=1788343593"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31CSIQkH9JL.jpg?v=1788343593","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2X 4-Lead Nema 17 Stepper Motor 20Mm 1A 13Ncm(18.4Oz.in) 42 Motor Nema17 Stepper for DIY 3D Printer CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eGokoti This is Short Height FOR Bipolar Nema 17 stepper motor with 1.8 . step\nangle (200 steps\/revolution). Each phase draws current 1A, allowing for a\nholding torque of 13Ncm(18.4oz.in). Color: silver material: metal Electrical\nSpecification: Manufacturer Part Number: 17HS08-1004S Motor Type: Bipolar\nStepper Step Angle: 1.8 . Holding Torque: 13Ncm(18.4oz.in) Rated\nCurrent\/phase: 1.0A Phase Resistance: 3.5ohms Inductance: 4.5mH+\/-20%(1KHz)\nPhysical Specification: Frame Size: 42 x 42mm Body Length: 20mm Shaft\nDiameter: 5mm Shaft Length: 20mm D-cut Length: 16.5mm Number of Leads: 4 Lead\nLength: 400mm Weight: 140g\/pcs Connection: Black(A+), Green(A-), Red(B+),\nBlue(B-) Warning: Make sure the motor connect to a constant current or chopper\ndrive controller before you test motor. Connecting the motor directly to a\npower supply the motor. Package Contents: 2 stepper motor Only the above\npackage content, other products are not included. Note: Light and different\ndisplays may cause the color of the item in the picture a little different\nfrom the real thing. The measurement allowed error is +\/- 1-3cm.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e13Ncm(18.4oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eFOR NEMA 17 bipolar 1.65 inchx1.65 inchx0.79 inch 4-wire\u003c\/li\u003e\n \u003cli\u003eShort Height\u003c\/li\u003e\n \u003cli\u003e1.8 . step angle(200 steps\/)\u003c\/li\u003e\n \u003cli\u003eRated current 1.0A \u0026amp; resistance 3.5ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
