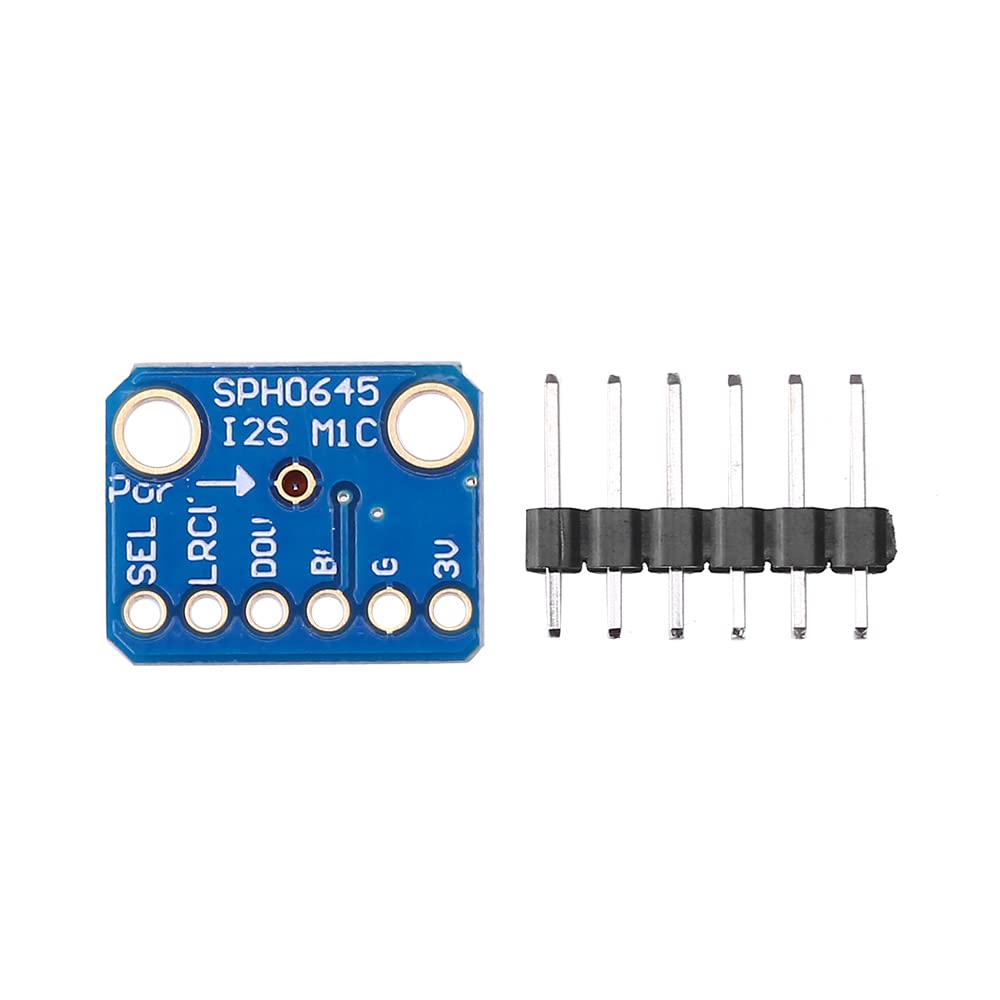

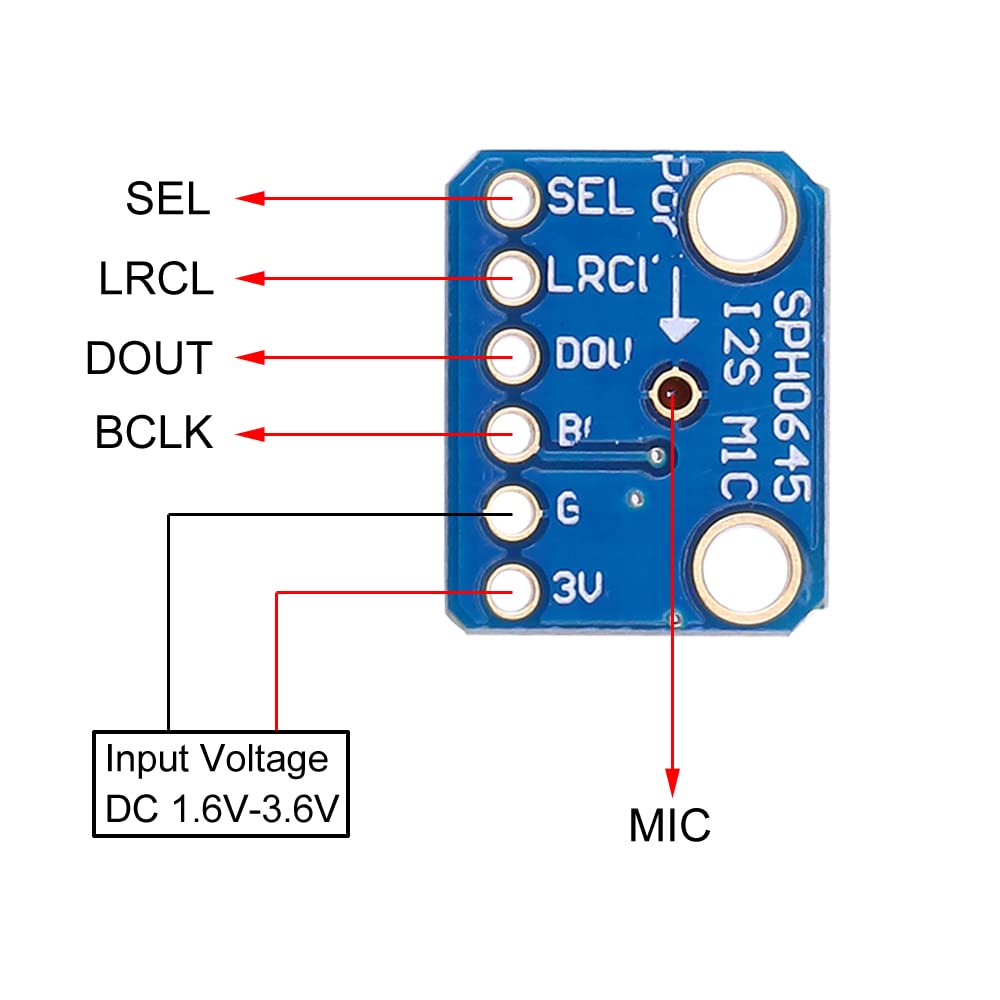

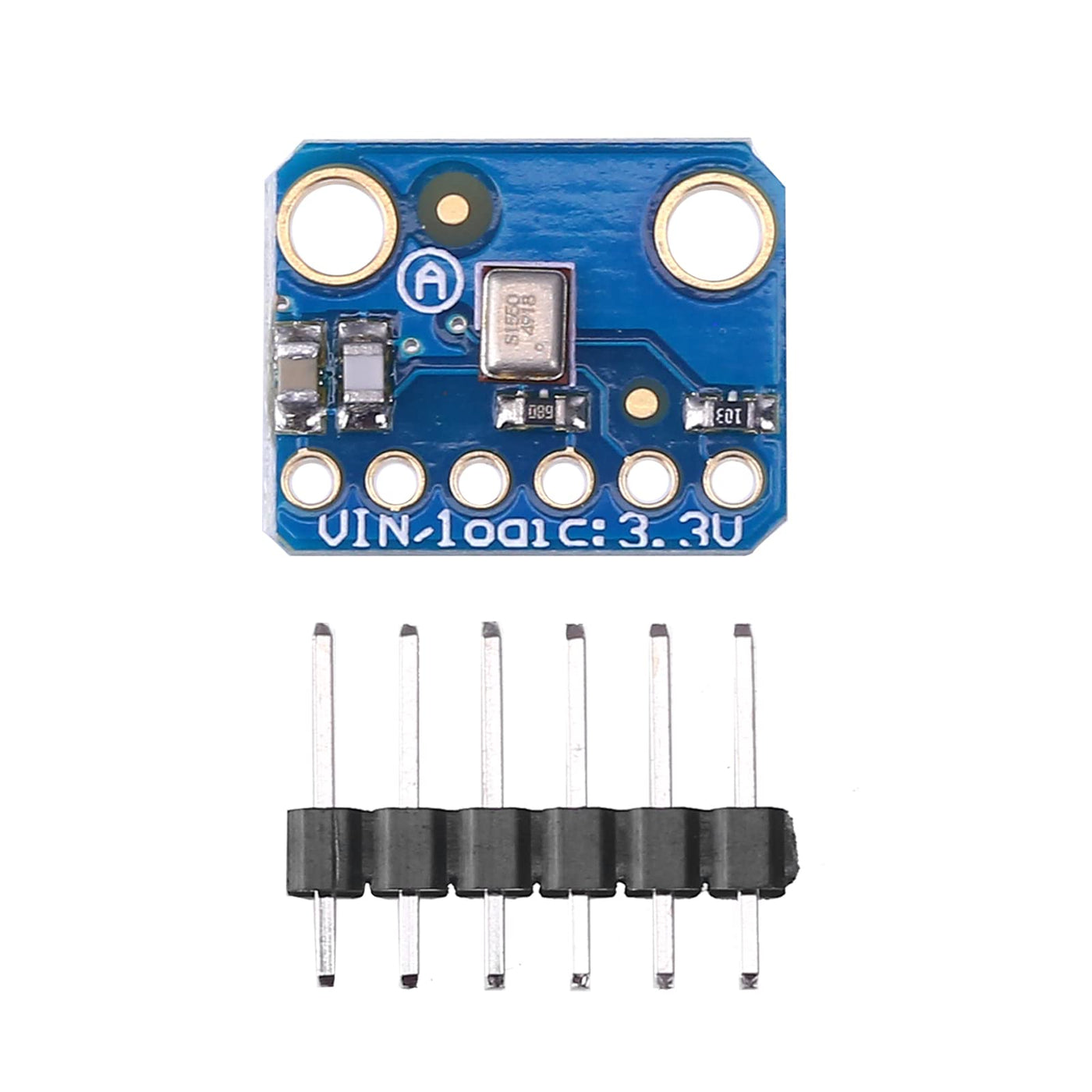

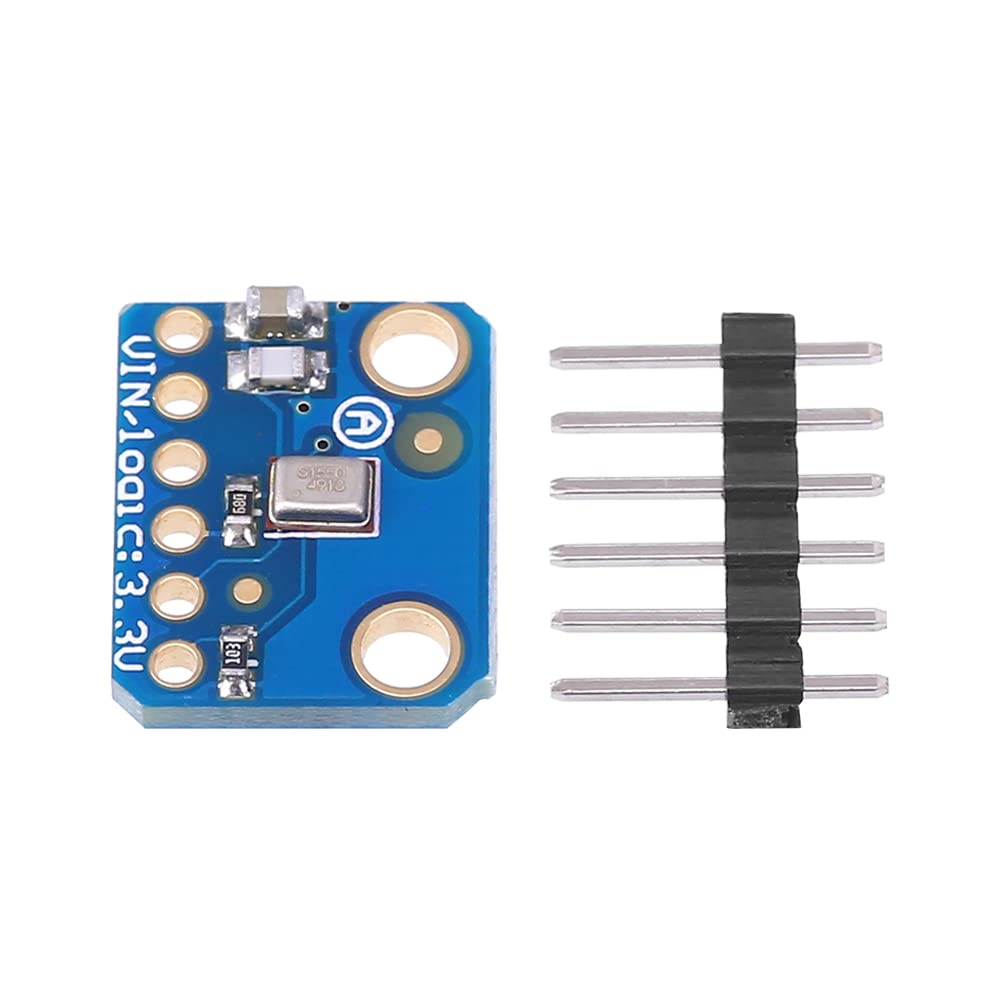

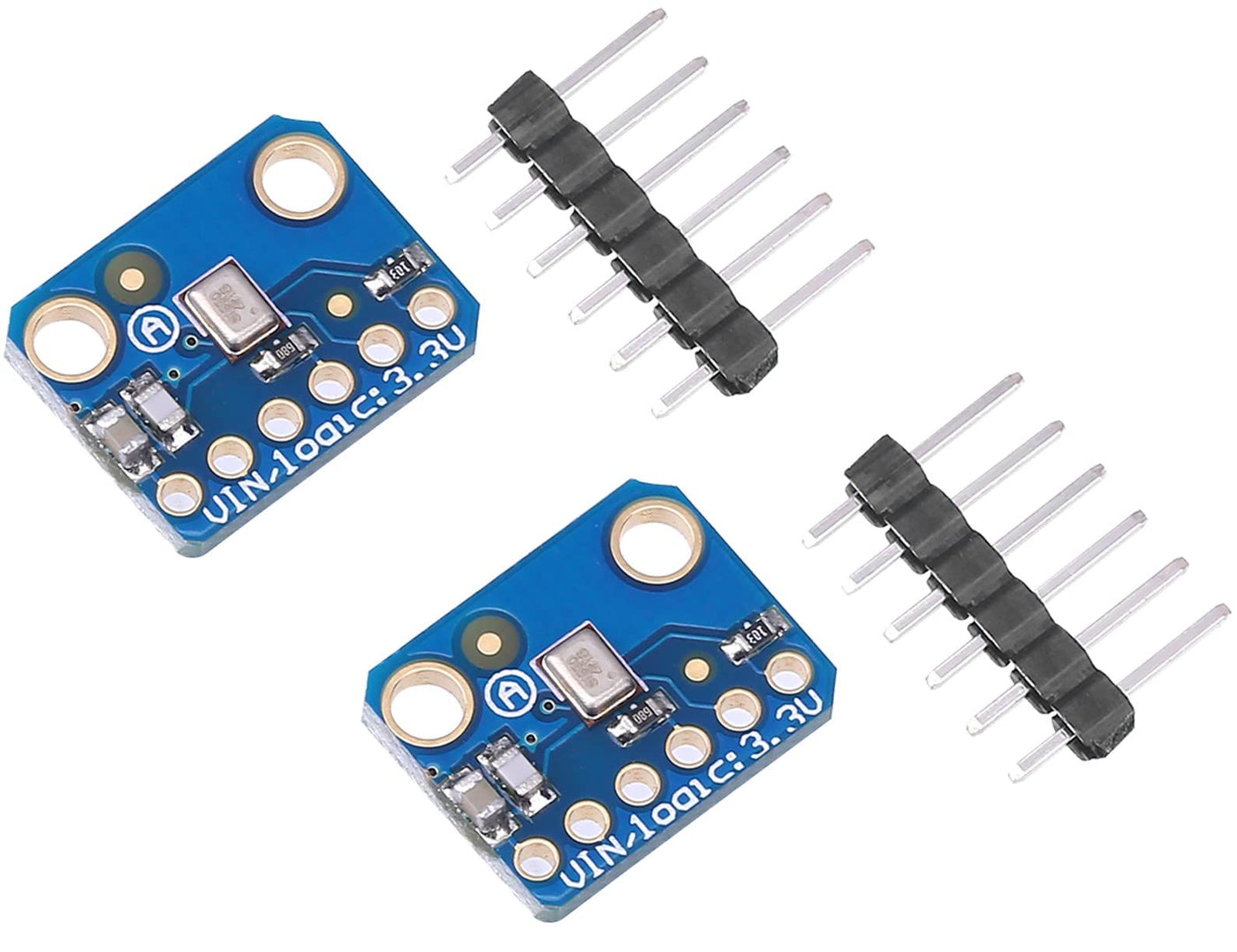

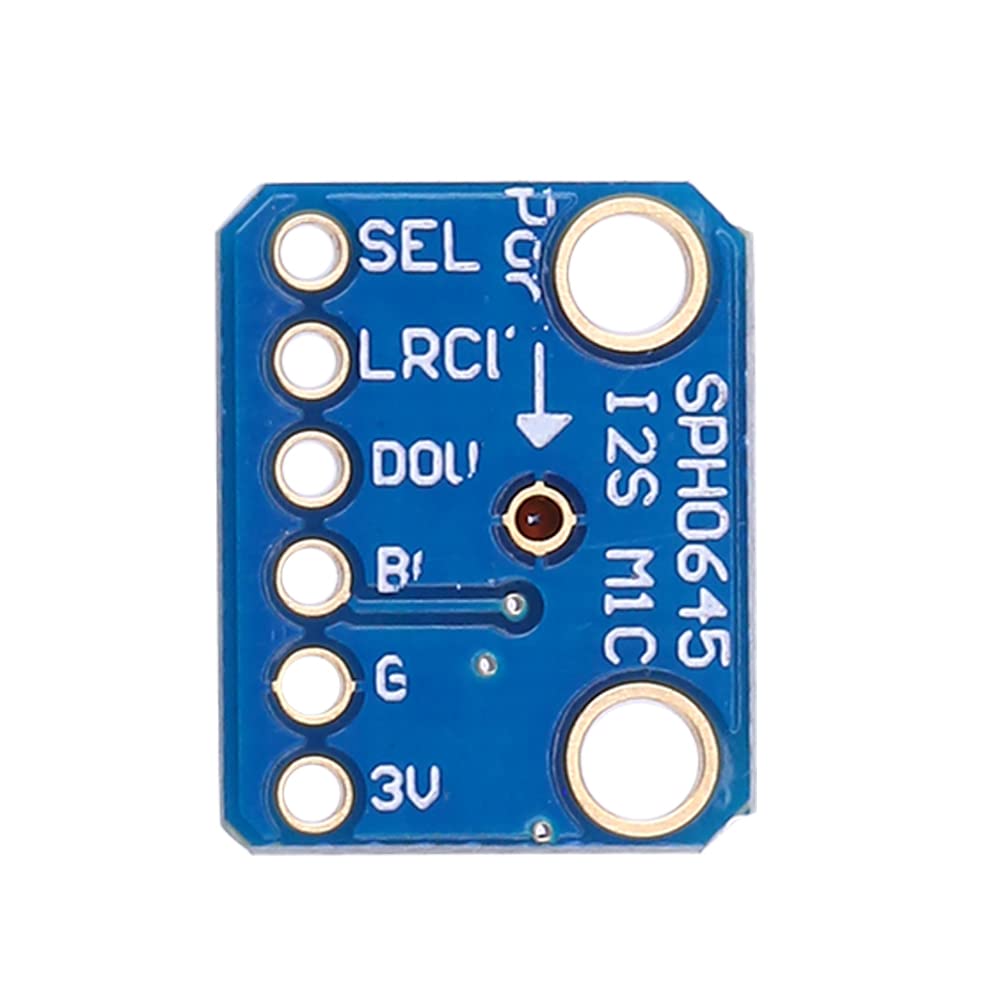

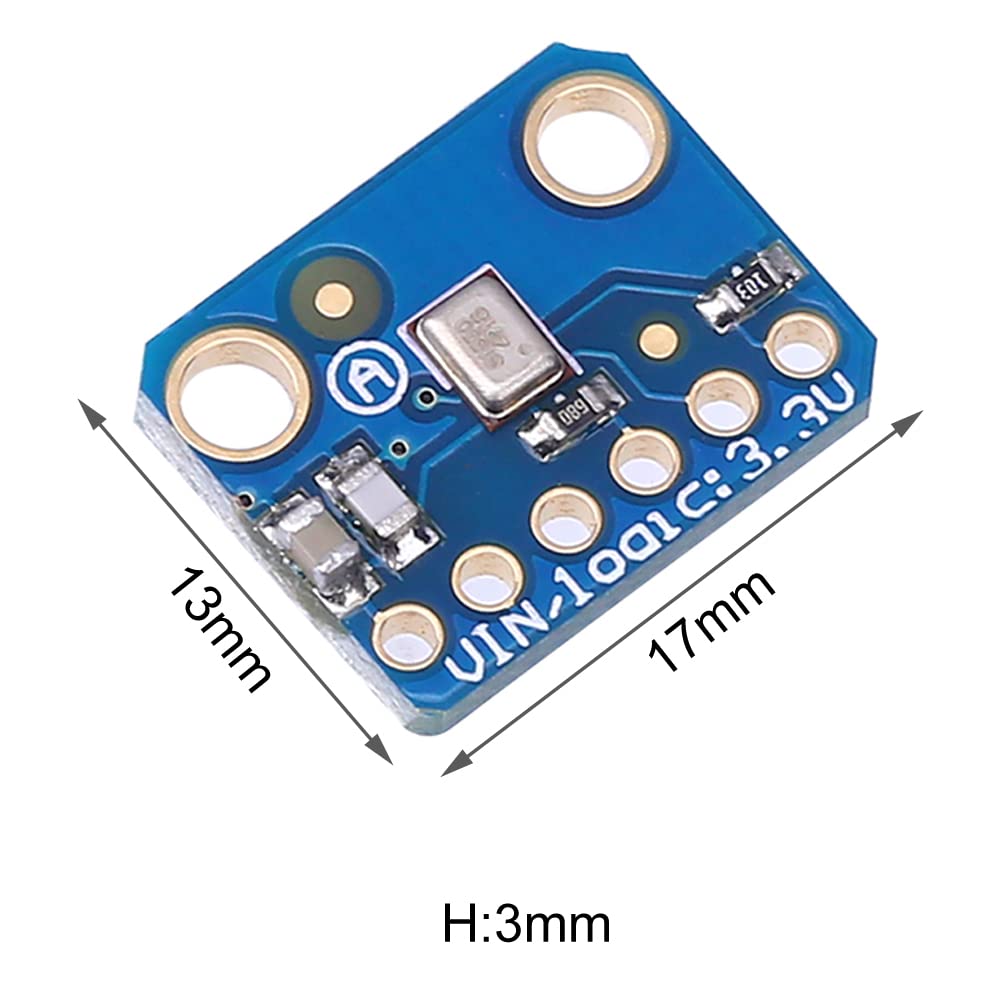

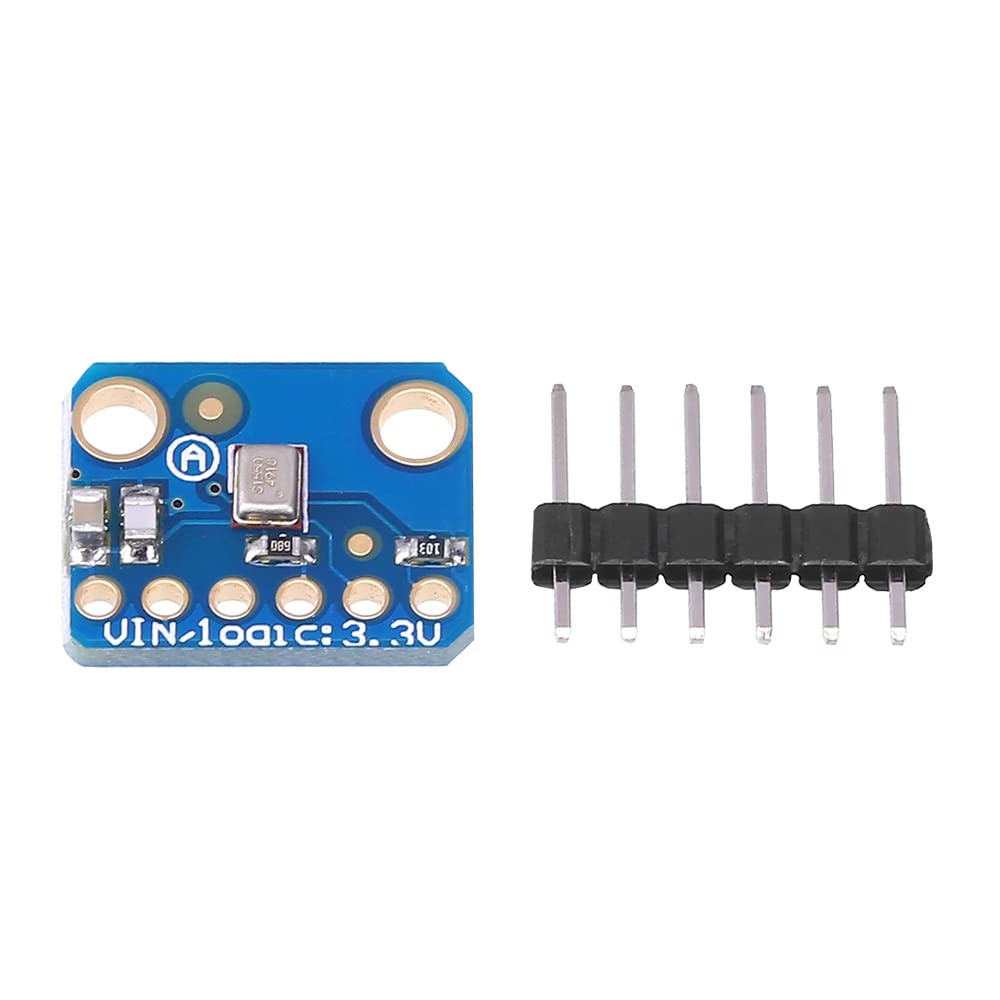

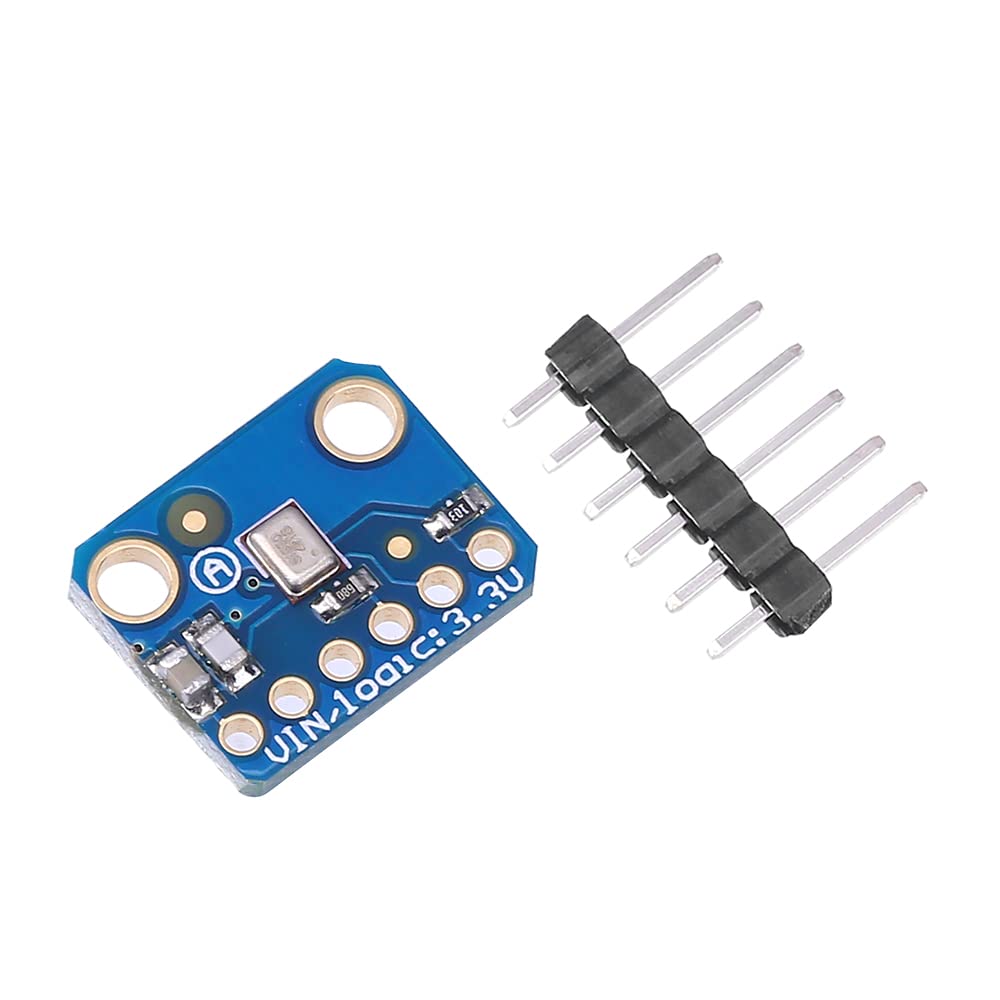

{"id":8115273072820,"title":"2PCS SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H DC 1.6-3.6V","handle":"2pcs-sph0645-i2s-mems-microphone-breakout-sensor-board-module-sph0645lm4h-dc-1-6-3-6v","description":"\u003ch3\u003e2PCS SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H DC 1.6-3.6V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e2pcs SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H The\nmicrophone is a single mono element. You can select whether you want it to be\non the Left or Right channel by connecting the Select pin to power or ground.\nIf you need stereo, pick up two microphones! You can set them up to be stereo\nby sharing the Clock, WS and Data lines but having one with Select to ground,\nand one with Select to high voltage. This I2S MEMS microphone is bottom\nported, so make sure you have the hole in the bottom facing out towards the\nsounds you want to read. It's a 1.6-3.6V max device only, so not for use with\n5V logic (its really unlikely you'd have a 5V-logic device with I2S anyways).\nMany beginner microcontroller boards don't have I2S, so make sure its a\nsupported interface before you try to wire it up! This microphone is best used\nwith Cortex M-series chips like the for Arduino Zero, for Feather M0, or\nsingle-board computers like the for Raspberry Pi. Specifications : Input\nvoltage: DC 1.6V-3.6V. Connection interface: I2S interface. Work temperature:\n-25°C ~ 85°C. Work humidity: 5%~95%RH. Size: 17 x 13 x 3 mm. Features: 1).It\ncomes with a MEMS microphone,which is more convenient to use. 2).Its working\nvoltage is small,and it can be used when it meets the input voltage\nrequirements. 3).You can set them up as stereo by sharing the clock,WS and\ndata lines,but one chooses ground and the other chooses ground. 4).This\nmicrophone can be used with Cortex M series chips. Note: 1)The bottom of this\nI2S MEMS microphone is the port,so make sure the hole on the bottom is facing\nthe sound you want to read. 2).It's only a 1.6-3.6V capable device,so it won't\nwork with 5V logic. Package contains: 2pcs x SPH0645 I2S MEMS Microphone\nBreakout Sensor Board Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPH0645: The microphone is a single mono element. You can choose whether you want it on the left or right channel by connecting the selector pin to power or ground. If you need stereo, please choose two microphones. You can configure them to split the clock, WS and data lines into stereo, but have one with Select on ground and one with Select on high voltage.\u003c\/li\u003e\n \u003cli\u003eCompact DesignThis I2S MEMS microphone has a connector at the bottom, so make sure the hole on the bottom is facing the sounds you want to read. It is only a 1.6-3.6V MAX device, so it cannot be used with 5V logic (it is very unlikely that you have a 5V logic device with I2S anyway).\u003c\/li\u003e\n \u003cli\u003eEasy to use: Many beginner microcontroller boards do not have an I2S, so make sure it is a compatible interface before trying to connect them! This microphone is best used with Cortex M series chips such as the Arduino Zero, Feather M0 or single-board computers such as the Raspberry Pi. This microphone can be used with Cortex M series chips.\u003c\/li\u003e\n \u003cli\u003eSpecificationsInput Voltage: DC 1.6V-3.6V Connection Interface: I2S Interface Working Temperature: -25C~85CWorking Humidity: 5%~95%RH Size:17*13*3mm 1)It comes with a MEMS micro The more convenient to customcustomcustom2). Its working voltage is small and can be used when it meets the input voltage requirements.\u003c\/li\u003e\n \u003cli\u003eNote: 1). The bottom of this I2S MEMS microphone is the connector. So make sure the hole on the bottom faces the sound you want to read. 2). It is only a 1.6-3.6V compatible device, so it will not work with 5V logic.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:18:02+10:00","created_at":"2026-09-01T23:43:27+10:00","vendor":"TECNOIOT","type":"Microphone Elements","tags":["industrial_DE_Aug2026"],"price":17300,"price_min":17300,"price_max":17300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374993338548,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B61WYL2F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H DC 1.6-3.6V","public_title":null,"options":["Default Title"],"price":17300,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"A681-SPH0645-68-2PCS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0B61WYL2F.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51sabtU5XIL.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51jgaNoR_RL.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51xdVDOKYRL.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51XiZ1tVf1L.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51qQ91UilZL.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/61sELCMWwxL.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51-lGiloFML.jpg?v=1788270210","\/\/auspowers.com\/cdn\/shop\/files\/51Y2fm5EC8L.jpg?v=1788270210"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B61WYL2F.jpg?v=1788270210","options":["Title"],"media":[{"alt":null,"id":33273156370612,"position":1,"preview_image":{"aspect_ratio":1.298,"height":1224,"width":1589,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B61WYL2F.jpg?v=1788270210"},"aspect_ratio":1.298,"height":1224,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B61WYL2F.jpg?v=1788270210","width":1589},{"alt":null,"id":33273156403380,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51sabtU5XIL.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51sabtU5XIL.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156436148,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51jgaNoR_RL.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51jgaNoR_RL.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156468916,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51xdVDOKYRL.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51xdVDOKYRL.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156501684,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51XiZ1tVf1L.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51XiZ1tVf1L.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156534452,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51qQ91UilZL.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51qQ91UilZL.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156567220,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61sELCMWwxL.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61sELCMWwxL.jpg?v=1788270210","width":1600},{"alt":null,"id":33273156599988,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51-lGiloFML.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51-lGiloFML.jpg?v=1788270210","width":1000},{"alt":null,"id":33273156632756,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Y2fm5EC8L.jpg?v=1788270210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Y2fm5EC8L.jpg?v=1788270210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H DC 1.6-3.6V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e2pcs SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H The\nmicrophone is a single mono element. You can select whether you want it to be\non the Left or Right channel by connecting the Select pin to power or ground.\nIf you need stereo, pick up two microphones! You can set them up to be stereo\nby sharing the Clock, WS and Data lines but having one with Select to ground,\nand one with Select to high voltage. This I2S MEMS microphone is bottom\nported, so make sure you have the hole in the bottom facing out towards the\nsounds you want to read. It's a 1.6-3.6V max device only, so not for use with\n5V logic (its really unlikely you'd have a 5V-logic device with I2S anyways).\nMany beginner microcontroller boards don't have I2S, so make sure its a\nsupported interface before you try to wire it up! This microphone is best used\nwith Cortex M-series chips like the for Arduino Zero, for Feather M0, or\nsingle-board computers like the for Raspberry Pi. Specifications : Input\nvoltage: DC 1.6V-3.6V. Connection interface: I2S interface. Work temperature:\n-25°C ~ 85°C. Work humidity: 5%~95%RH. Size: 17 x 13 x 3 mm. Features: 1).It\ncomes with a MEMS microphone,which is more convenient to use. 2).Its working\nvoltage is small,and it can be used when it meets the input voltage\nrequirements. 3).You can set them up as stereo by sharing the clock,WS and\ndata lines,but one chooses ground and the other chooses ground. 4).This\nmicrophone can be used with Cortex M series chips. Note: 1)The bottom of this\nI2S MEMS microphone is the port,so make sure the hole on the bottom is facing\nthe sound you want to read. 2).It's only a 1.6-3.6V capable device,so it won't\nwork with 5V logic. Package contains: 2pcs x SPH0645 I2S MEMS Microphone\nBreakout Sensor Board Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPH0645: The microphone is a single mono element. You can choose whether you want it on the left or right channel by connecting the selector pin to power or ground. If you need stereo, please choose two microphones. You can configure them to split the clock, WS and data lines into stereo, but have one with Select on ground and one with Select on high voltage.\u003c\/li\u003e\n \u003cli\u003eCompact DesignThis I2S MEMS microphone has a connector at the bottom, so make sure the hole on the bottom is facing the sounds you want to read. It is only a 1.6-3.6V MAX device, so it cannot be used with 5V logic (it is very unlikely that you have a 5V logic device with I2S anyway).\u003c\/li\u003e\n \u003cli\u003eEasy to use: Many beginner microcontroller boards do not have an I2S, so make sure it is a compatible interface before trying to connect them! This microphone is best used with Cortex M series chips such as the Arduino Zero, Feather M0 or single-board computers such as the Raspberry Pi. This microphone can be used with Cortex M series chips.\u003c\/li\u003e\n \u003cli\u003eSpecificationsInput Voltage: DC 1.6V-3.6V Connection Interface: I2S Interface Working Temperature: -25C~85CWorking Humidity: 5%~95%RH Size:17*13*3mm 1)It comes with a MEMS micro The more convenient to customcustomcustom2). Its working voltage is small and can be used when it meets the input voltage requirements.\u003c\/li\u003e\n \u003cli\u003eNote: 1). The bottom of this I2S MEMS microphone is the connector. So make sure the hole on the bottom faces the sound you want to read. 2). It is only a 1.6-3.6V compatible device, so it will not work with 5V logic.\u003c\/li\u003e\n \u003c\/ul\u003e"}
