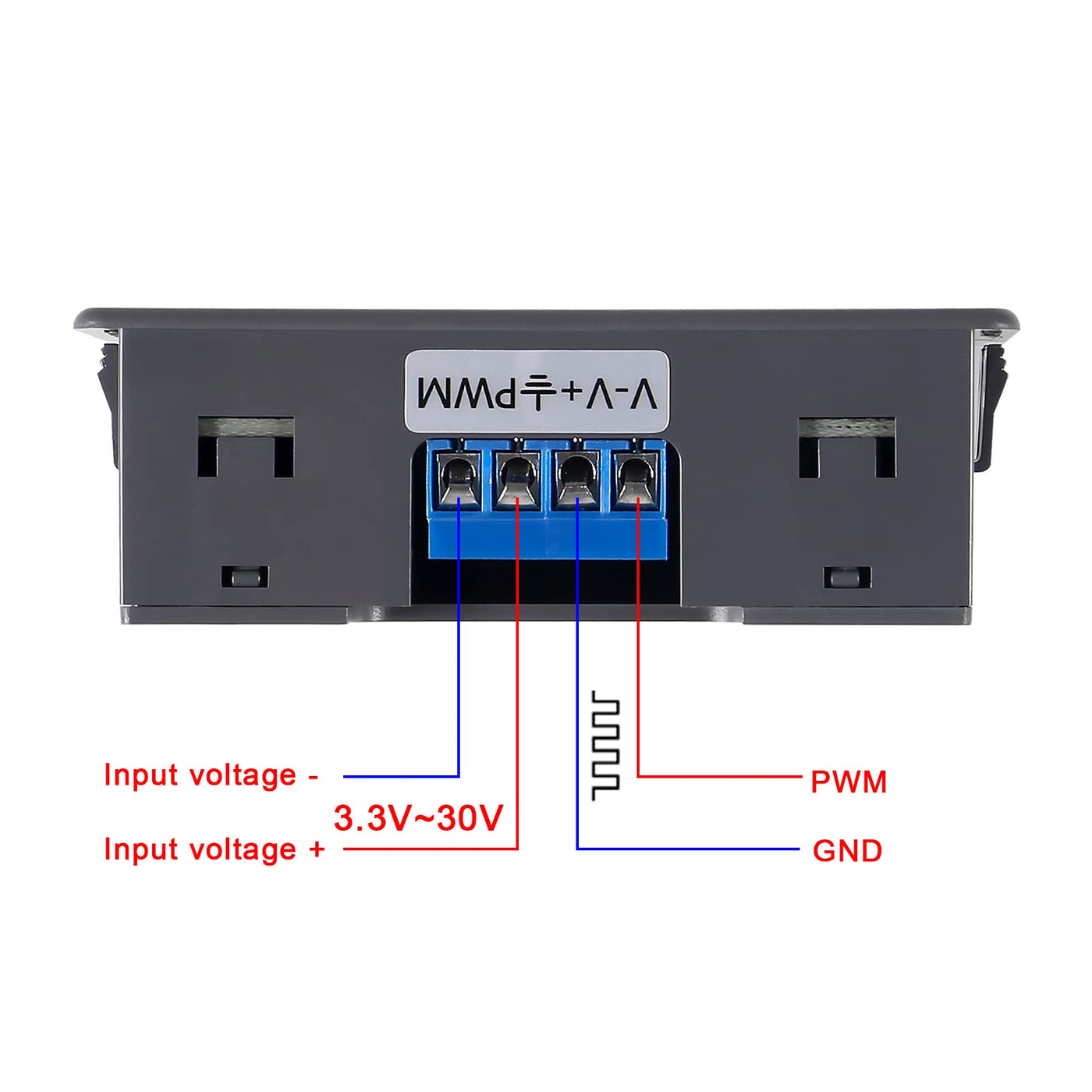

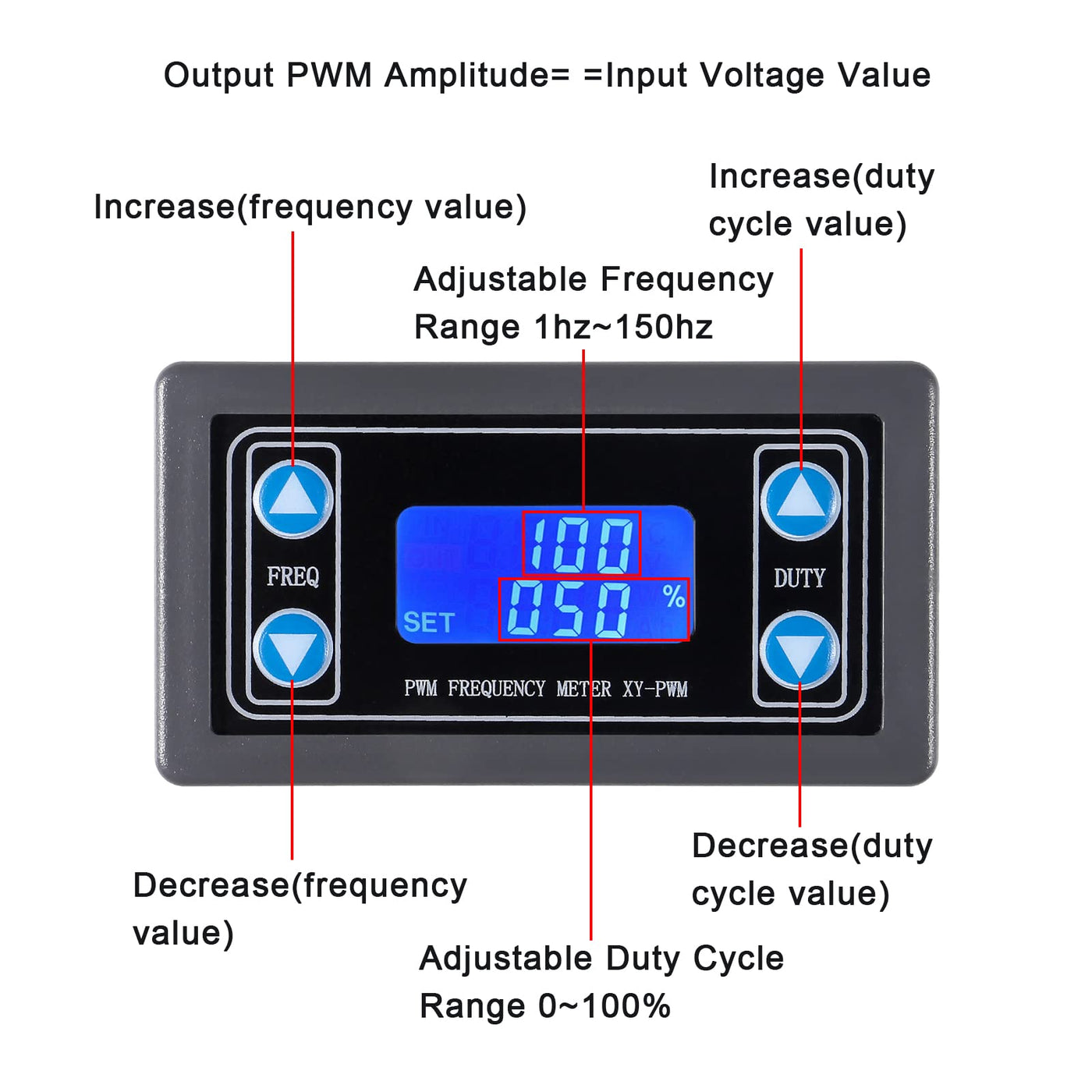

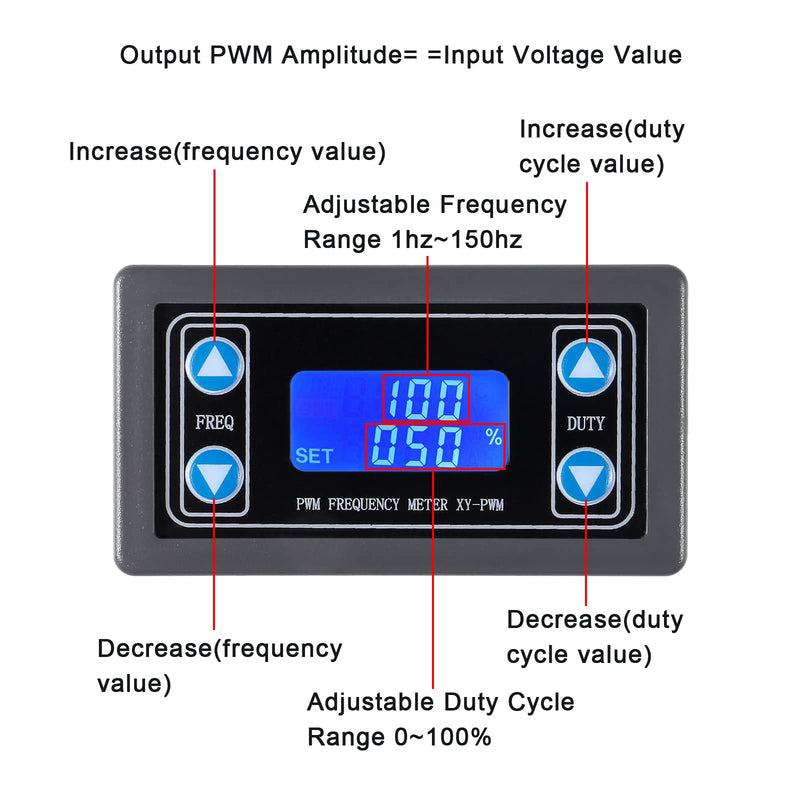

{"id":8051007455412,"title":"2pcs Signal Generator XY-PWM DC 3.3-30V Function Generator 5-30mA LCD Display Module PWM Pulse Frequency Generator Duty Cycle Rectangular Wave Square Wave Signal Generator","handle":"2pcs-signal-generator-xy-pwm-dc-3-3-30v-function-generator-5-30ma-lcd-display-module-pwm-pulse-frequency-generator-duty-cycle-rectangular-wave-square-wave-signal-generator","description":"\u003ch3\u003e2pcs Signal Generator XY-PWM DC 3.3-30V Function Generator 5-30mA LCD Display Module PWM Pulse Frequency Generator Duty Cycle Rectangular Wave Square Wave Signal Generator\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSignal Generator Parameter: Working voltage: DC 3.3v~30v Frequency range:\r\n1Hz~150kHz (divided into 4 ranges) Frequency precision: 2% of each range\r\nSignal load capacity: output current is about 5-30mA Output Amplitude: PWM\r\namplitude equal to the input voltage value Environment Temperature Range:\r\n-20~+70℃ Duty cycle range: 0-100Percent Setting Parameters: 1. There are 4\r\nindependent buttons on the module for setting the frequency value and the duty\r\ncycle value. 2. Supports short press (increase or decrease one unit by one\r\nunit) and long press (fast increase or decrease). 3. All setting parameters\r\nwill be saved when powered off to achieve data guaranteed. Application: 1. As\r\nsquare wave signal generator for experimental development; 2. As square wave\r\nsignal generator for motor driver; 3. As adjustable pulse generator for MCU;\r\n4. As pulse generator, control related circuits (PWM dimming, speed\r\nregulating). Frequency Display Instruction: The frequency is divided into 4\r\nranges and switched automatically. 1. XXX (without decimal point): minimum\r\nunit is 1Hz, value range is 1Hz~999Hz. 2. X.XX (the decimal point is in the\r\nhundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz. 3.\r\nXX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value\r\nrange is 10.0kHz~99.9kHz. 4. X.X.X (full decimal point): the minimum unit is\r\n1kHz; the value range is 1kHz~150kHz e.g. Frequency displays 100 represents\r\n100Hz; displays 1.01 represents 1.01kHz; displays 54.1 represents 54.1kHz;\r\ndisplays 1.2.4 represents 124kHz Package Included: 2 Signal Generator, PWM\r\nPulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator DC\r\n3.3-35V 5-30mA LCD Display Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePWM Pulse Frequency Generator Work voltage range: DC 3.3V-30V; frequency range: 1Hz-150kHz; output current: 5-30mA; duty cycle range 0-100Percent.\u003c\/li\u003e\r\n \u003cli\u003eXY-PWM Signal GeneratorSupport serial communication, TTL level. High frequency range, high precision, duty cycle adjustable.\u003c\/li\u003e\r\n \u003cli\u003eData Auto-savedAll parameters will be saved automatically after setting and therefore won't lose when power off.\u003c\/li\u003e\r\n \u003cli\u003eSquare Wave Signal GeneratorGenerating square wave signal for experimental development, as square wave signal generator for motor driver; as adjustable pulse generator for mcu; as pulse generator, control related circuits (PWM dimming, speed regulating).\u003c\/li\u003e\r\n \u003cli\u003eFunction Generator Module PWM signal generator with shell protection and clear LCD display, PWM output, can set frequency and duty cycle separately by buttons.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-05T18:03:49+10:00","created_at":"2026-05-05T18:03:46+10:00","vendor":"Coliao","type":"Function Generators","tags":["industrial_April2026"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44215406395572,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B5RK5FZR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2pcs Signal Generator XY-PWM DC 3.3-30V Function Generator 5-30mA LCD Display Module PWM Pulse Frequency Generator Duty Cycle Rectangular Wave Square Wave Signal Generator","public_title":null,"options":["Default Title"],"price":12900,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715518322","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B5RK5FZR.jpg?v=1777994967","\/\/auspowers.com\/cdn\/shop\/files\/61eEdcBQ-qL.jpg?v=1777968228","\/\/auspowers.com\/cdn\/shop\/files\/71ebews9XhL.jpg?v=1777968228","\/\/auspowers.com\/cdn\/shop\/files\/61j2I4J7gxL.jpg?v=1777968228","\/\/auspowers.com\/cdn\/shop\/files\/71NfwNyTxpL.jpg?v=1777968228","\/\/auspowers.com\/cdn\/shop\/files\/614e5Ic0HQL.jpg?v=1777968229","\/\/auspowers.com\/cdn\/shop\/files\/61OqylpOrFL.jpg?v=1777968228","\/\/auspowers.com\/cdn\/shop\/files\/61VJSKgGggL.jpg?v=1777968228"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5RK5FZR.jpg?v=1777994967","options":["Title"],"media":[{"alt":null,"id":32914305515700,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5RK5FZR.jpg?v=1777994967"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5RK5FZR.jpg?v=1777994967","width":1600},{"alt":null,"id":32914305548468,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61eEdcBQ-qL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61eEdcBQ-qL.jpg?v=1777968228","width":1600},{"alt":null,"id":32914305581236,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ebews9XhL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ebews9XhL.jpg?v=1777968228","width":1600},{"alt":null,"id":32914305614004,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61j2I4J7gxL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61j2I4J7gxL.jpg?v=1777968228","width":1600},{"alt":null,"id":32914305646772,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71NfwNyTxpL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71NfwNyTxpL.jpg?v=1777968228","width":1600},{"alt":null,"id":32914305679540,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/614e5Ic0HQL.jpg?v=1777968229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/614e5Ic0HQL.jpg?v=1777968229","width":1600},{"alt":null,"id":32914305712308,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61OqylpOrFL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61OqylpOrFL.jpg?v=1777968228","width":1600},{"alt":null,"id":32914305745076,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61VJSKgGggL.jpg?v=1777968228"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61VJSKgGggL.jpg?v=1777968228","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2pcs Signal Generator XY-PWM DC 3.3-30V Function Generator 5-30mA LCD Display Module PWM Pulse Frequency Generator Duty Cycle Rectangular Wave Square Wave Signal Generator\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSignal Generator Parameter: Working voltage: DC 3.3v~30v Frequency range:\r\n1Hz~150kHz (divided into 4 ranges) Frequency precision: 2% of each range\r\nSignal load capacity: output current is about 5-30mA Output Amplitude: PWM\r\namplitude equal to the input voltage value Environment Temperature Range:\r\n-20~+70℃ Duty cycle range: 0-100Percent Setting Parameters: 1. There are 4\r\nindependent buttons on the module for setting the frequency value and the duty\r\ncycle value. 2. Supports short press (increase or decrease one unit by one\r\nunit) and long press (fast increase or decrease). 3. All setting parameters\r\nwill be saved when powered off to achieve data guaranteed. Application: 1. As\r\nsquare wave signal generator for experimental development; 2. As square wave\r\nsignal generator for motor driver; 3. As adjustable pulse generator for MCU;\r\n4. As pulse generator, control related circuits (PWM dimming, speed\r\nregulating). Frequency Display Instruction: The frequency is divided into 4\r\nranges and switched automatically. 1. XXX (without decimal point): minimum\r\nunit is 1Hz, value range is 1Hz~999Hz. 2. X.XX (the decimal point is in the\r\nhundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz. 3.\r\nXX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value\r\nrange is 10.0kHz~99.9kHz. 4. X.X.X (full decimal point): the minimum unit is\r\n1kHz; the value range is 1kHz~150kHz e.g. Frequency displays 100 represents\r\n100Hz; displays 1.01 represents 1.01kHz; displays 54.1 represents 54.1kHz;\r\ndisplays 1.2.4 represents 124kHz Package Included: 2 Signal Generator, PWM\r\nPulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator DC\r\n3.3-35V 5-30mA LCD Display Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePWM Pulse Frequency Generator Work voltage range: DC 3.3V-30V; frequency range: 1Hz-150kHz; output current: 5-30mA; duty cycle range 0-100Percent.\u003c\/li\u003e\r\n \u003cli\u003eXY-PWM Signal GeneratorSupport serial communication, TTL level. High frequency range, high precision, duty cycle adjustable.\u003c\/li\u003e\r\n \u003cli\u003eData Auto-savedAll parameters will be saved automatically after setting and therefore won't lose when power off.\u003c\/li\u003e\r\n \u003cli\u003eSquare Wave Signal GeneratorGenerating square wave signal for experimental development, as square wave signal generator for motor driver; as adjustable pulse generator for mcu; as pulse generator, control related circuits (PWM dimming, speed regulating).\u003c\/li\u003e\r\n \u003cli\u003eFunction Generator Module PWM signal generator with shell protection and clear LCD display, PWM output, can set frequency and duty cycle separately by buttons.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
