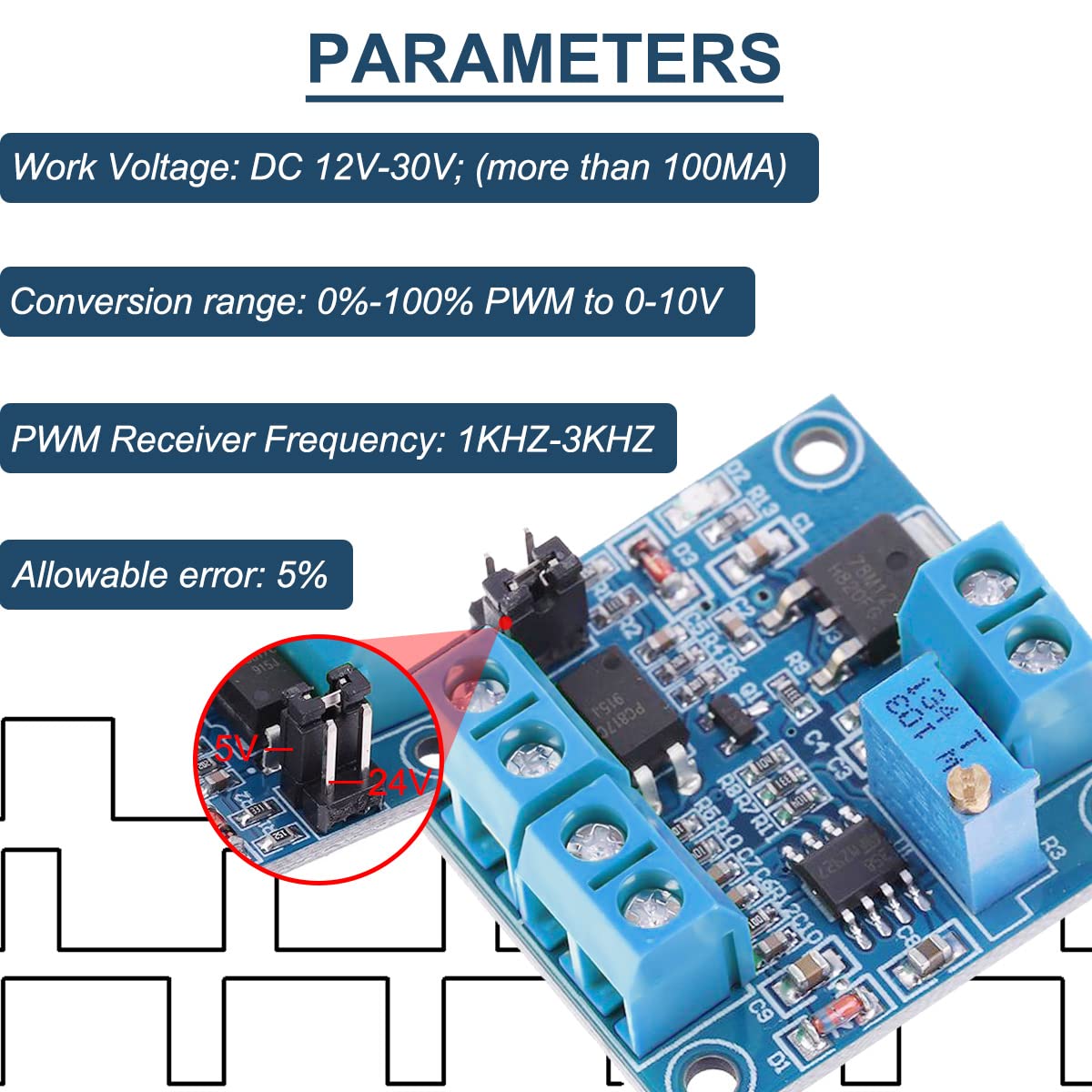

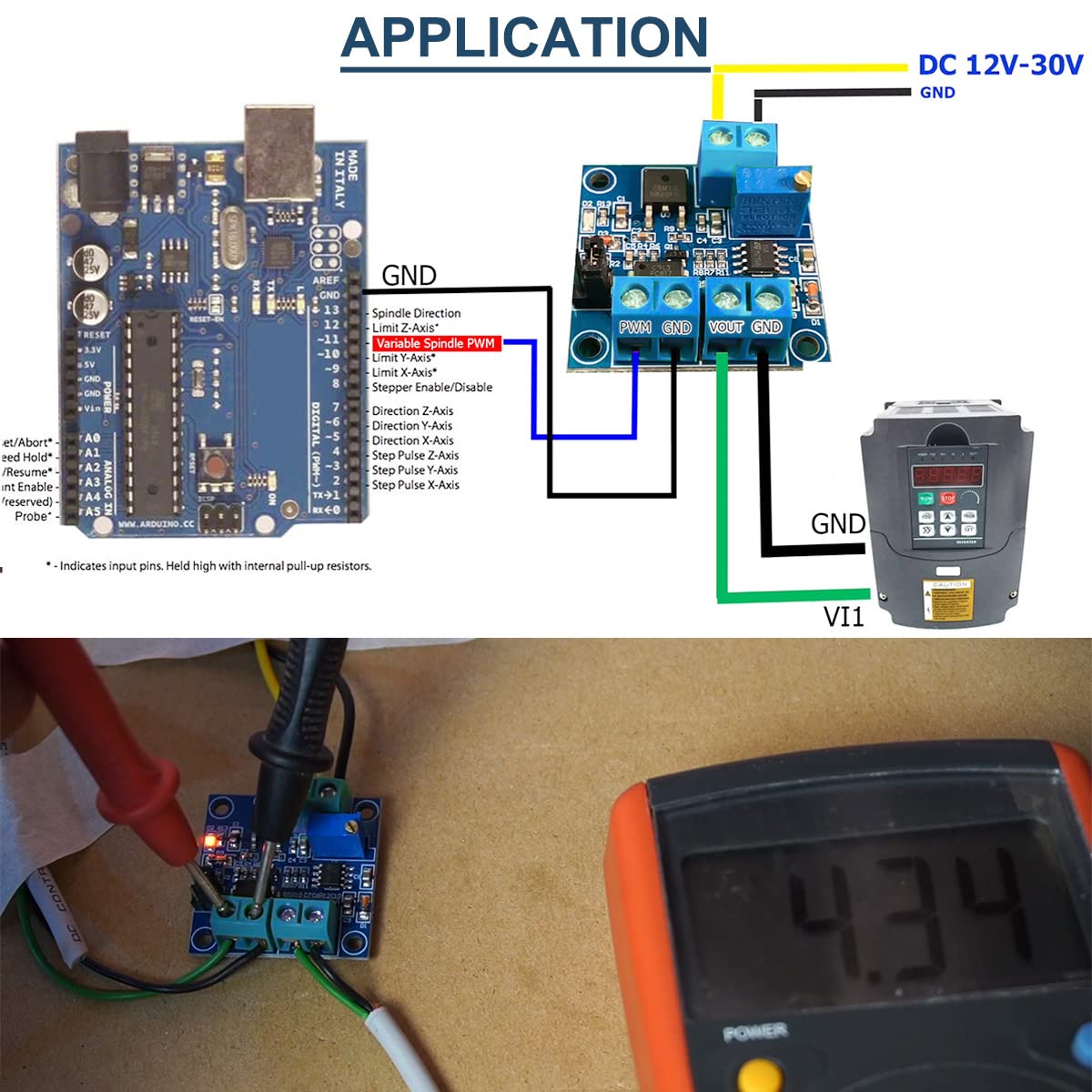

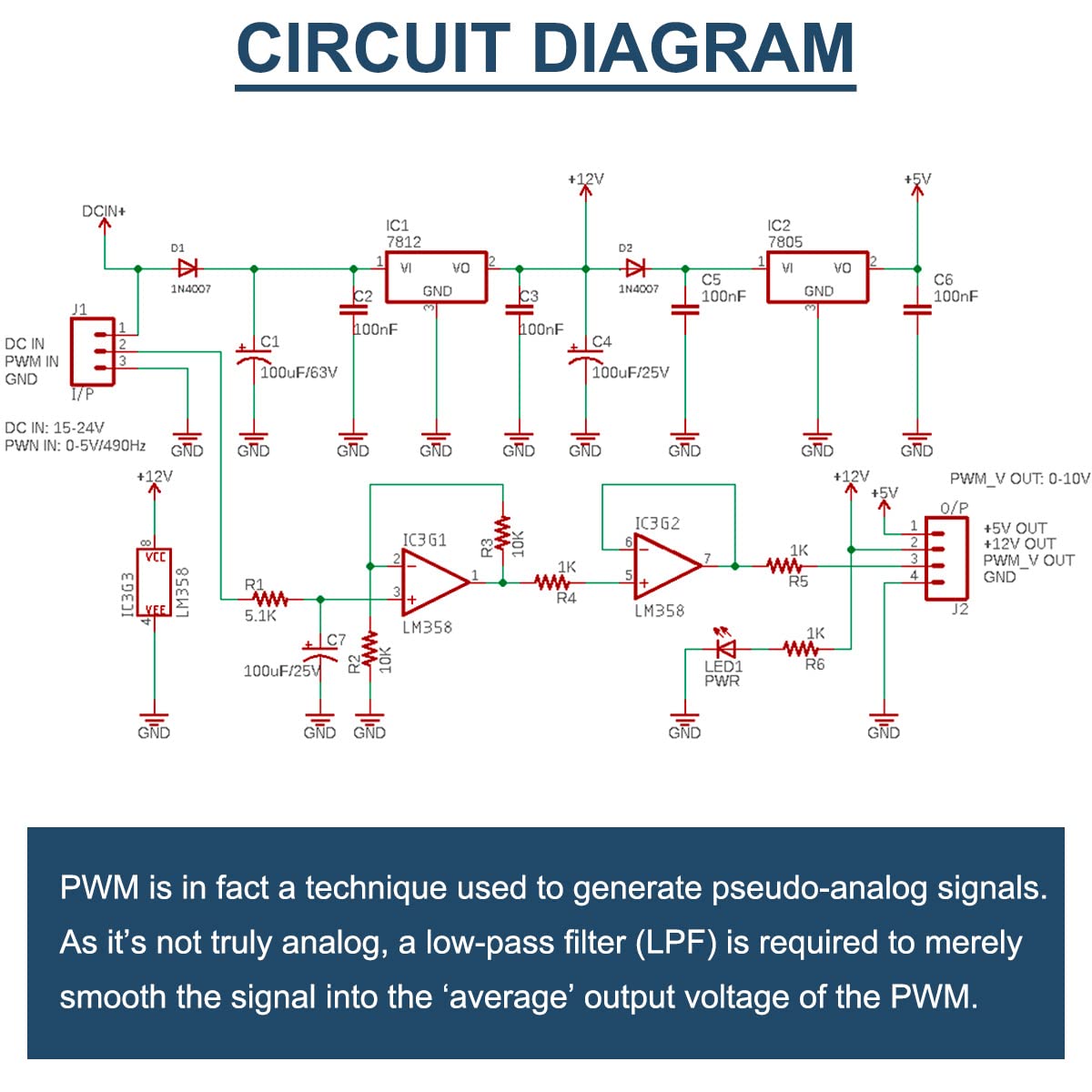

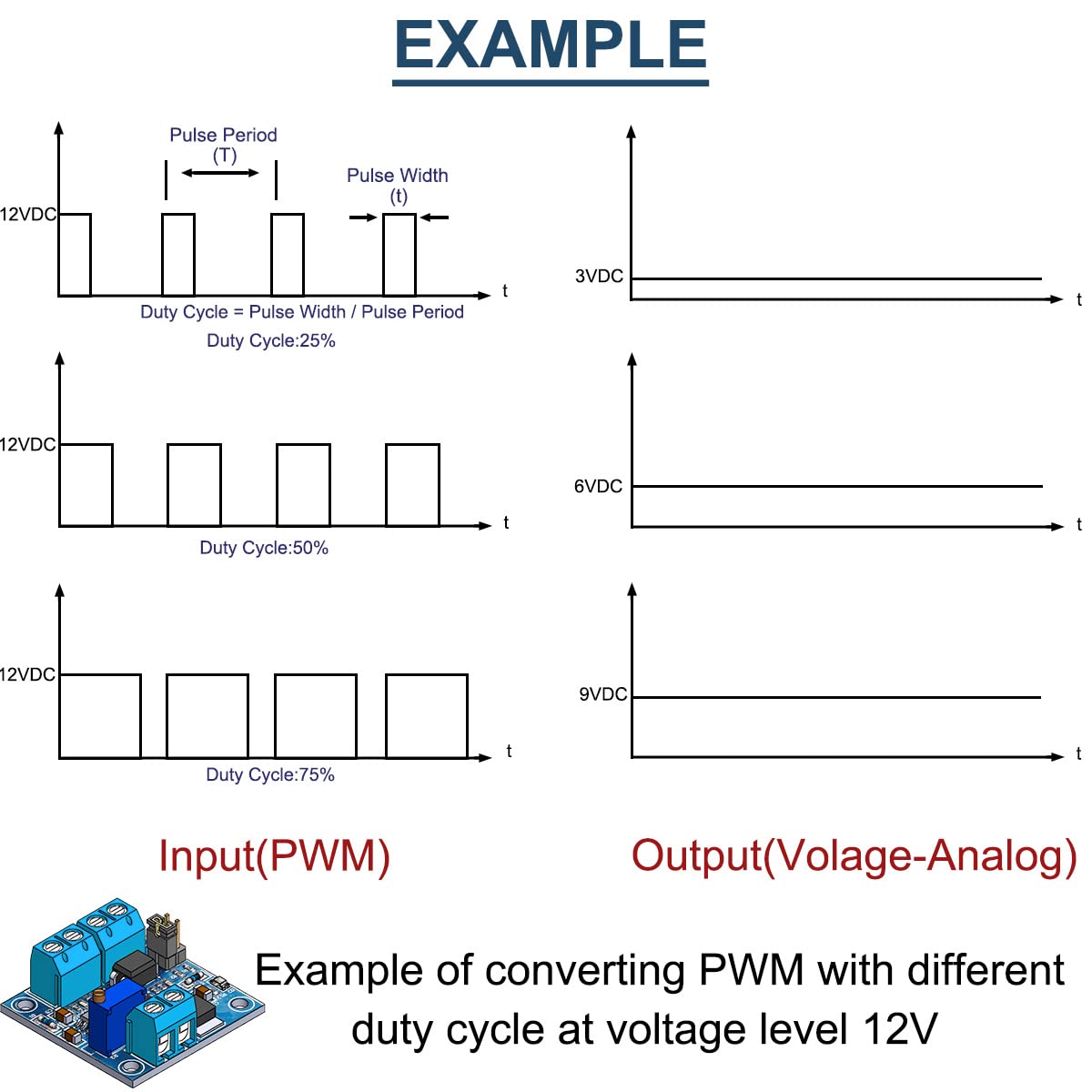

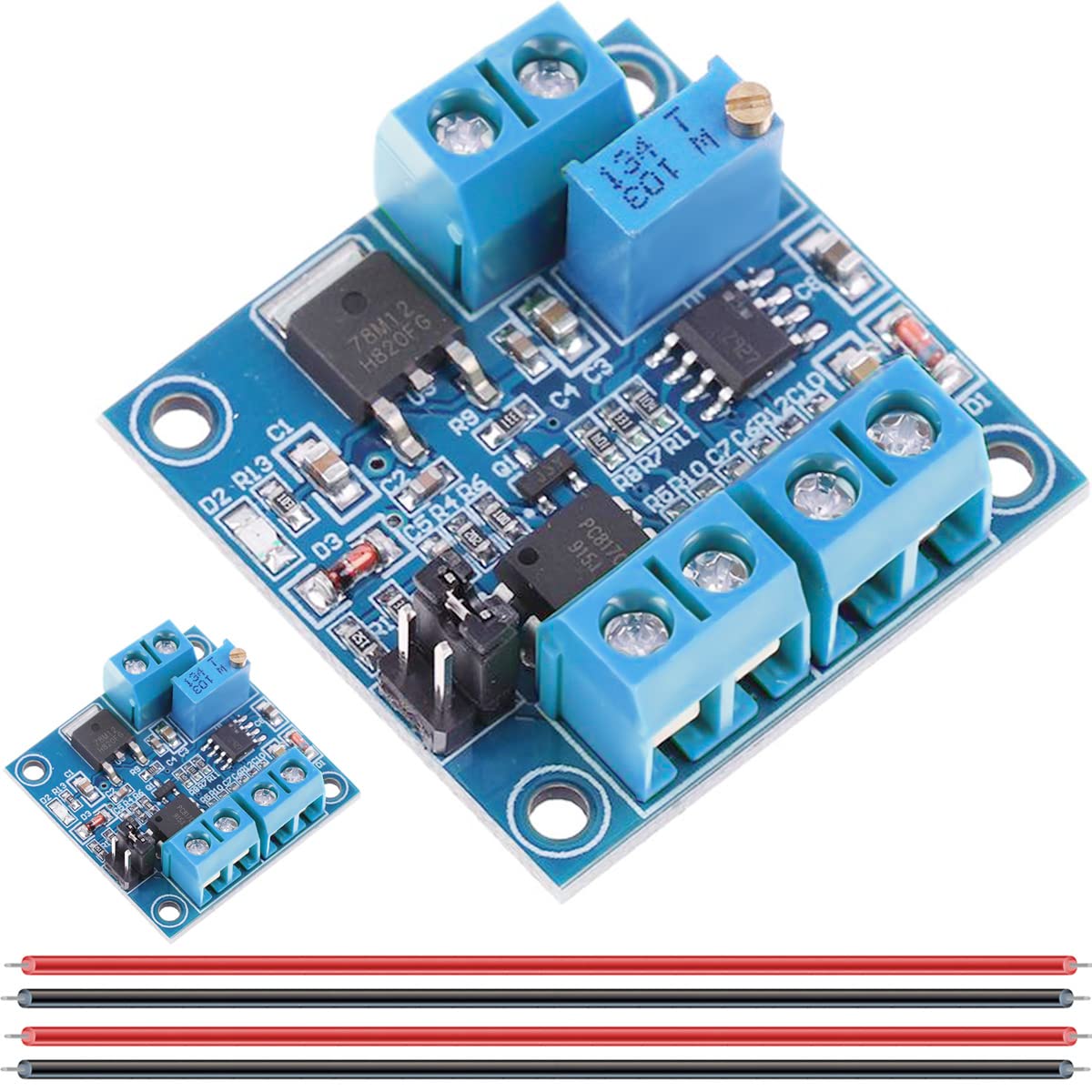

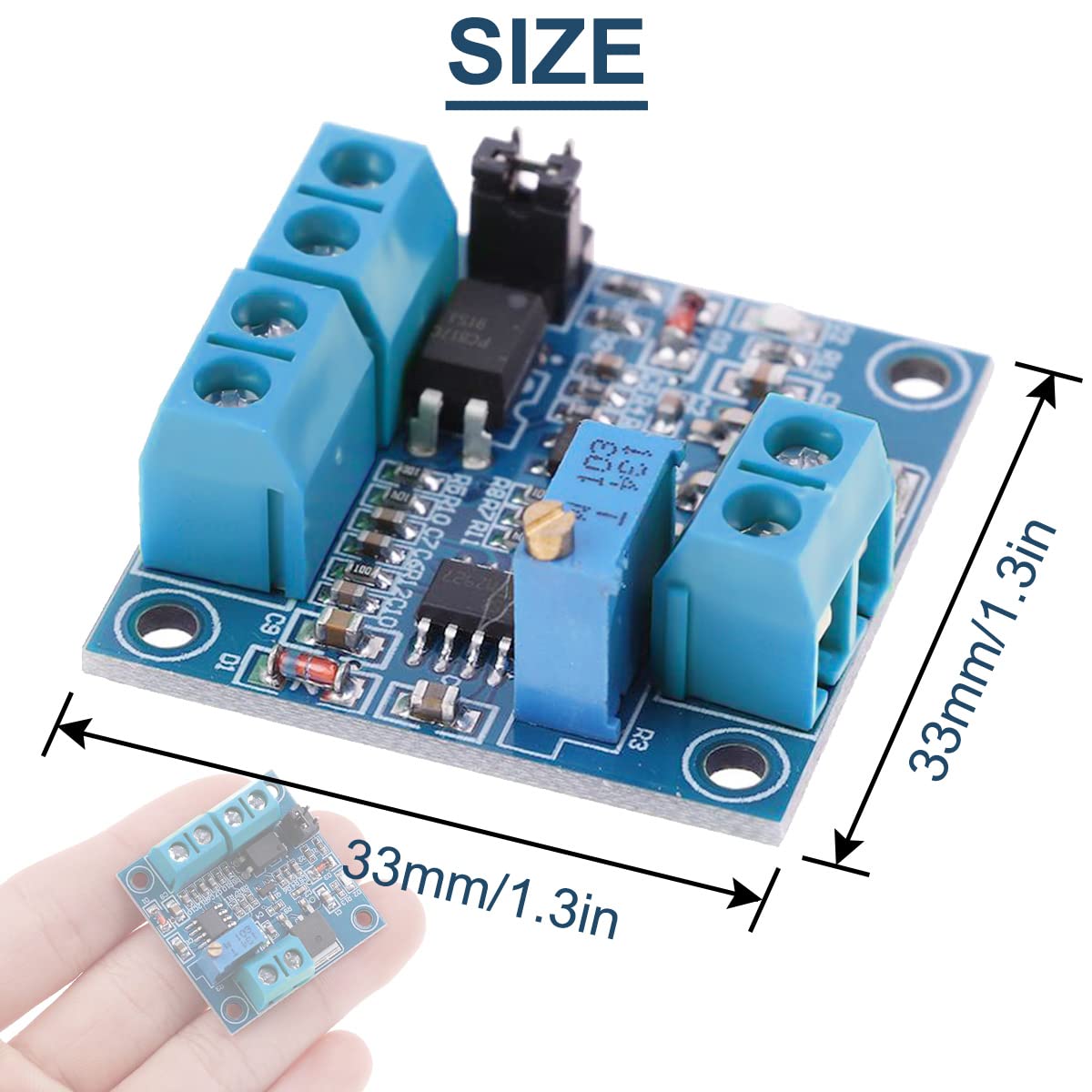

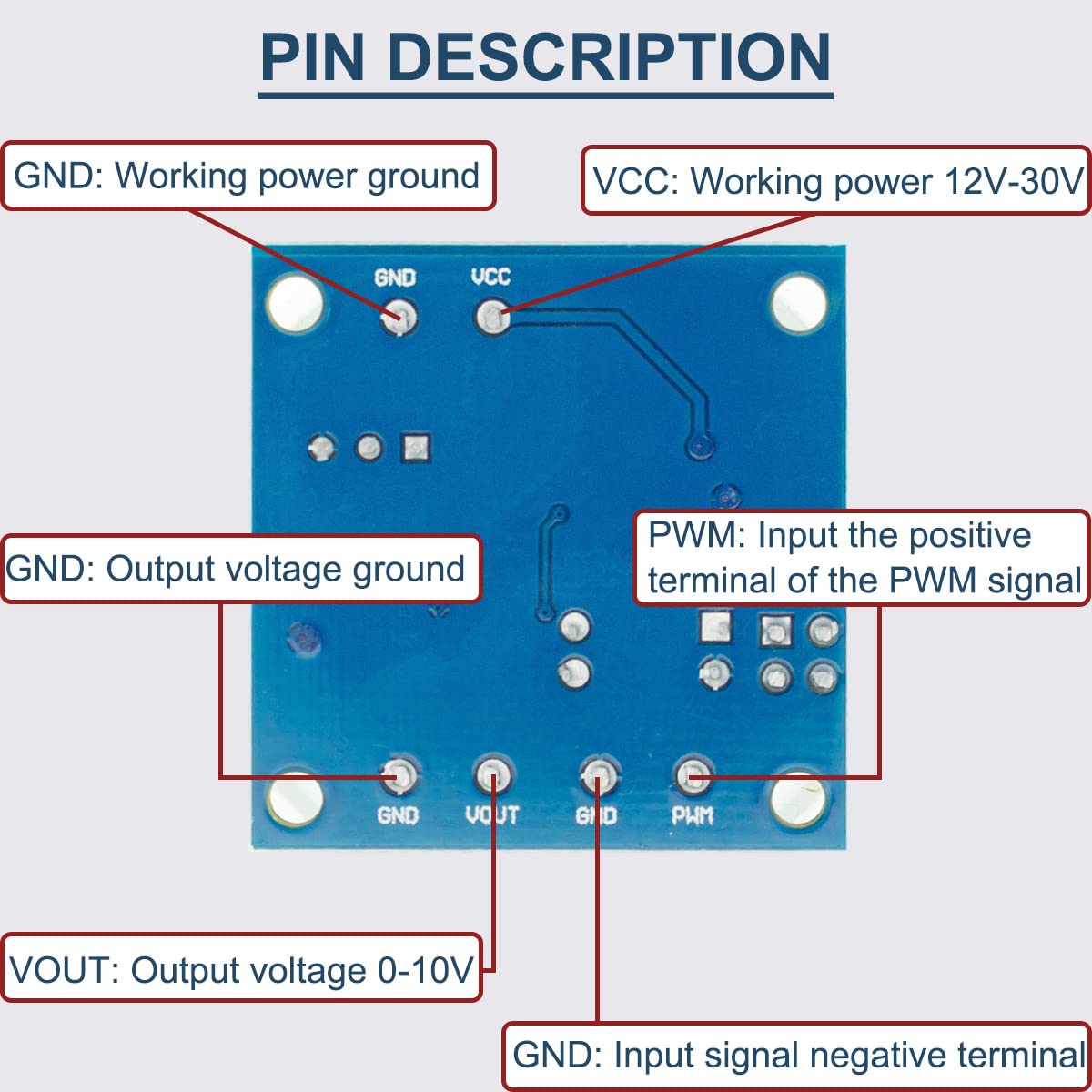

{"id":7860538278068,"title":"2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable","handle":"2pcs-pwm-to-voltage-module-0-100-pwm-to-0-10v-pwm-to-voltage-converter-power-module-for-digital-to-analog-signal-interface-switching-for-plc-with-24awg-cable","description":"\u003ch3\u003e2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters? Module working voltage: DC12V-30V (power requirements:\ngreater than 100MA) PWM signal receiving frequency range: 1KHZ-3KHZ; PWM\nsignal input level range: The peak value is 4.5V to 10V level, and the jumper\nis inserted at 5V. This type of level signal is mainly aimed at the interface\nof conventional industrial control card (such as MACH3 board) and 5V CPU; The\npeak value is 12 to 24V level, and the jumper is inserted at 24V. This type of\nlevel signal is mainly aimed at conventional PLC interfaces. Conversion range:\n0%-100% PWM converted to 0-10V voltage Allowable error: 5% Instructions for\nuse? 1. After power-on, when there is no input signal, the output is 0V, and\nthere is input before output. When powering on for the first time, it is best\nto do a calibration and debugging: find a signal with a 50% duty cycle and\nconnect it to PWM, GND, and the amplitude corresponds to the corresponding\njumper. The frequency is 1KHZ-3KH, and the two ports of VOUT and GND are\nmeasured with a multimeter. At this time, the meter shows about 5V, adjust the\npotentiometer on the board, so that the multimeter shows 5.00V, so that the\ncorresponding relationship between your pulse signal and this module is\ncalibrated. When the frequency changes, the correspondence may shift and\nrequire recalibration. 2. The output voltage can be adjusted by adjusting the\nduty cycle. 3. The accuracy can be controlled by adjusting the potentiometer.\nPackage includes? 2 x PWM to Voltage Module 0%-100% PWM to 0-10V 4 x\n50cm\/19.6inch 24AWG Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[Parameters]Module Working voltage: DC12V ~ 30V (Power Requirements: greater than 100mA), PWM signal receiving frequency range: 1KHz ~ 3KHz.\u003c\/li\u003e\n \u003cli\u003e[Function]PWM-to-voltage module able to convert the digital PWM signal into an analog signal 0 ~ 10V.The voltage-to-frequency pulse signal can generate different frequency modules according to the input voltage level.\u003c\/li\u003e\n \u003cli\u003e[The output voltage can be fine-tuned] The relationship between frequency and voltage can be calibrated by a potentiometer.The signal input terminal uses optical coupling isolation to ensure anti-interference ability.\u003c\/li\u003e\n \u003cli\u003e[Application]PLC can be used for industrial control panel or other signal interface switching, by adjusting the PWM duty cycle to regulate the output voltage.\u003c\/li\u003e\n \u003cli\u003e[Package includes]You will get 2 x PWM to Voltage Module 0%-100% PWM to 0-10V, 4 x 50cm 24AWG Cable\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-10-11T10:43:51+11:00","created_at":"2024-10-11T05:10:04+11:00","vendor":"DAOKAI","type":"IO Modules","tags":["industrial_Aug2024_update"],"price":10200,"price_min":10200,"price_max":10200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43644009971892,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B5D7979T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable","public_title":null,"options":["Default Title"],"price":10200,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"WE-DA-095","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B5D7979T.jpg?v=1728628704","\/\/auspowers.com\/cdn\/shop\/files\/71qqQjEne8L.jpg?v=1728583808","\/\/auspowers.com\/cdn\/shop\/files\/61b3UY4s4xL.jpg?v=1728583808","\/\/auspowers.com\/cdn\/shop\/files\/61hn9aSjvZL.jpg?v=1728583807","\/\/auspowers.com\/cdn\/shop\/files\/61HZ3dEu1RL.jpg?v=1728583808","\/\/auspowers.com\/cdn\/shop\/files\/61wyr0aExuL.jpg?v=1728583808","\/\/auspowers.com\/cdn\/shop\/files\/71XDA3d2HPL.jpg?v=1728583808","\/\/auspowers.com\/cdn\/shop\/files\/81MdA4g6oML.jpg?v=1728583808"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5D7979T.jpg?v=1728628704","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30846540578996,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5D7979T.jpg?v=1728628704"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B5D7979T.jpg?v=1728628704","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220309684,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71qqQjEne8L.jpg?v=1728583808"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71qqQjEne8L.jpg?v=1728583808","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220342452,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61b3UY4s4xL.jpg?v=1728583808"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61b3UY4s4xL.jpg?v=1728583808","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220375220,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61hn9aSjvZL.jpg?v=1728583807"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61hn9aSjvZL.jpg?v=1728583807","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220407988,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HZ3dEu1RL.jpg?v=1728583808"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HZ3dEu1RL.jpg?v=1728583808","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220473524,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61wyr0aExuL.jpg?v=1728583808"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61wyr0aExuL.jpg?v=1728583808","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220506292,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71XDA3d2HPL.jpg?v=1728583808"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71XDA3d2HPL.jpg?v=1728583808","width":1200},{"alt":"[Australia - AusPower] - 2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable ","id":30844220539060,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81MdA4g6oML.jpg?v=1728583808"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81MdA4g6oML.jpg?v=1728583808","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2Pcs PWM to Voltage Module 0%-100% PWM to 0-10V PWM to Voltage Converter Power Module for Digital-to-Analog Signal Interface Switching for PLC with 24AWG Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameters? Module working voltage: DC12V-30V (power requirements:\ngreater than 100MA) PWM signal receiving frequency range: 1KHZ-3KHZ; PWM\nsignal input level range: The peak value is 4.5V to 10V level, and the jumper\nis inserted at 5V. This type of level signal is mainly aimed at the interface\nof conventional industrial control card (such as MACH3 board) and 5V CPU; The\npeak value is 12 to 24V level, and the jumper is inserted at 24V. This type of\nlevel signal is mainly aimed at conventional PLC interfaces. Conversion range:\n0%-100% PWM converted to 0-10V voltage Allowable error: 5% Instructions for\nuse? 1. After power-on, when there is no input signal, the output is 0V, and\nthere is input before output. When powering on for the first time, it is best\nto do a calibration and debugging: find a signal with a 50% duty cycle and\nconnect it to PWM, GND, and the amplitude corresponds to the corresponding\njumper. The frequency is 1KHZ-3KH, and the two ports of VOUT and GND are\nmeasured with a multimeter. At this time, the meter shows about 5V, adjust the\npotentiometer on the board, so that the multimeter shows 5.00V, so that the\ncorresponding relationship between your pulse signal and this module is\ncalibrated. When the frequency changes, the correspondence may shift and\nrequire recalibration. 2. The output voltage can be adjusted by adjusting the\nduty cycle. 3. The accuracy can be controlled by adjusting the potentiometer.\nPackage includes? 2 x PWM to Voltage Module 0%-100% PWM to 0-10V 4 x\n50cm\/19.6inch 24AWG Cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[Parameters]Module Working voltage: DC12V ~ 30V (Power Requirements: greater than 100mA), PWM signal receiving frequency range: 1KHz ~ 3KHz.\u003c\/li\u003e\n \u003cli\u003e[Function]PWM-to-voltage module able to convert the digital PWM signal into an analog signal 0 ~ 10V.The voltage-to-frequency pulse signal can generate different frequency modules according to the input voltage level.\u003c\/li\u003e\n \u003cli\u003e[The output voltage can be fine-tuned] The relationship between frequency and voltage can be calibrated by a potentiometer.The signal input terminal uses optical coupling isolation to ensure anti-interference ability.\u003c\/li\u003e\n \u003cli\u003e[Application]PLC can be used for industrial control panel or other signal interface switching, by adjusting the PWM duty cycle to regulate the output voltage.\u003c\/li\u003e\n \u003cli\u003e[Package includes]You will get 2 x PWM to Voltage Module 0%-100% PWM to 0-10V, 4 x 50cm 24AWG Cable\u003c\/li\u003e\n \u003c\/ul\u003e"}
