2pcs PC817 4 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Insulated Board for Control Relay with 24AWG Wire 4 channels

In Stock. Leaves warehouse within 2 - 3 business days

$102.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

2pcs PC817 4 Channel Optocoupler Isolation Module 3.6-30V Voltage Converter Driver Photoelectric Insulated Board for Control Relay with 24AWG Wire

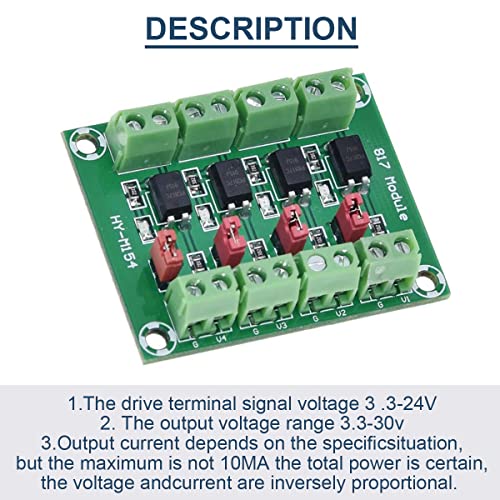

Specification: 1. Driving terminal port signal voltage: 3.3-24 V. 2. Output port voltage port: 3.3-30 V. 3. Output current depends on the specificsituation, but the maximum is not 10mA the total power is certain, the voltage andcurrent are inversely proportional 4. Through the jumper cap can achieve whether the output is high potential outputor low output 5. Onboard 4-Channel 817 are Independent, which can achieve different voltage control at the same time Note: If it is pulse signal, please note that the limit of 817 is below 3Khz. If the control signal is greater than 3Khz, please do not use this module, it will not work properly Application: The output level of the single chip microcomputer is low, and the driving voltage of the driven module is high, for level matching, for example, some PLC inputshould have 24V voltage and can be converted by this module. Package includes: 2 x PC817 4 channel optocoupler insulation board. 1 x 24AWG wire

Product Features

  • SpecificationDriving Port Signal Voltage: 3.3-24V; Output Port Voltage Port: 3.3-30V; Output Current: 10mA (Max)

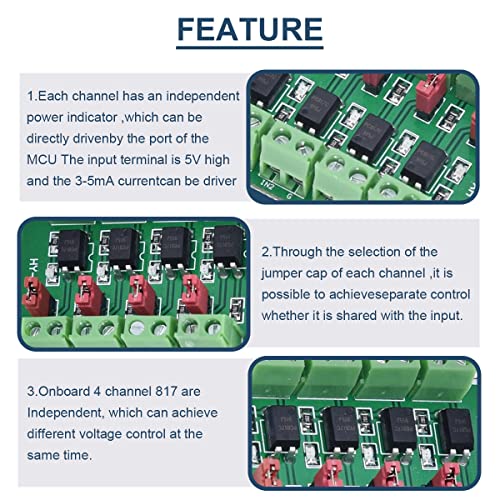

  • Features: thanks to the jumper cap, you can achieve whether the output is a high-potential output or a low output.
  • Note: If this is a pulse signal, please note that the limit of 817 is below 3 kHz. If the control signal is greater than 3KHz, please do not use this module, it will not work properly
  • Application: The output level of the single-chip microcomputer is low and the drive voltage of the controlled module is high. For example, some PLC inputs should have a voltage of 24 V and can be converted from this module.

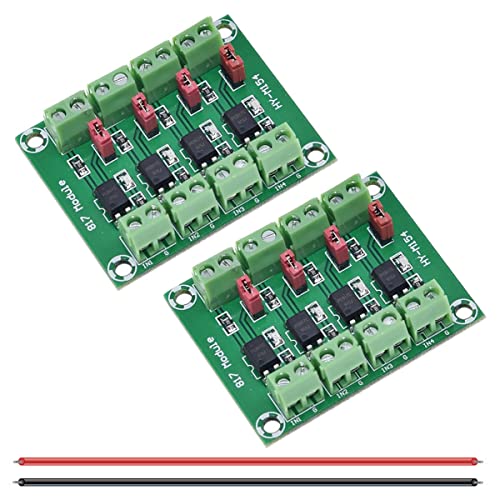

  • Package contentsThe package contains 2 x PC817 4-channel optocoupler insulation board, 1 x 24AWG wire
