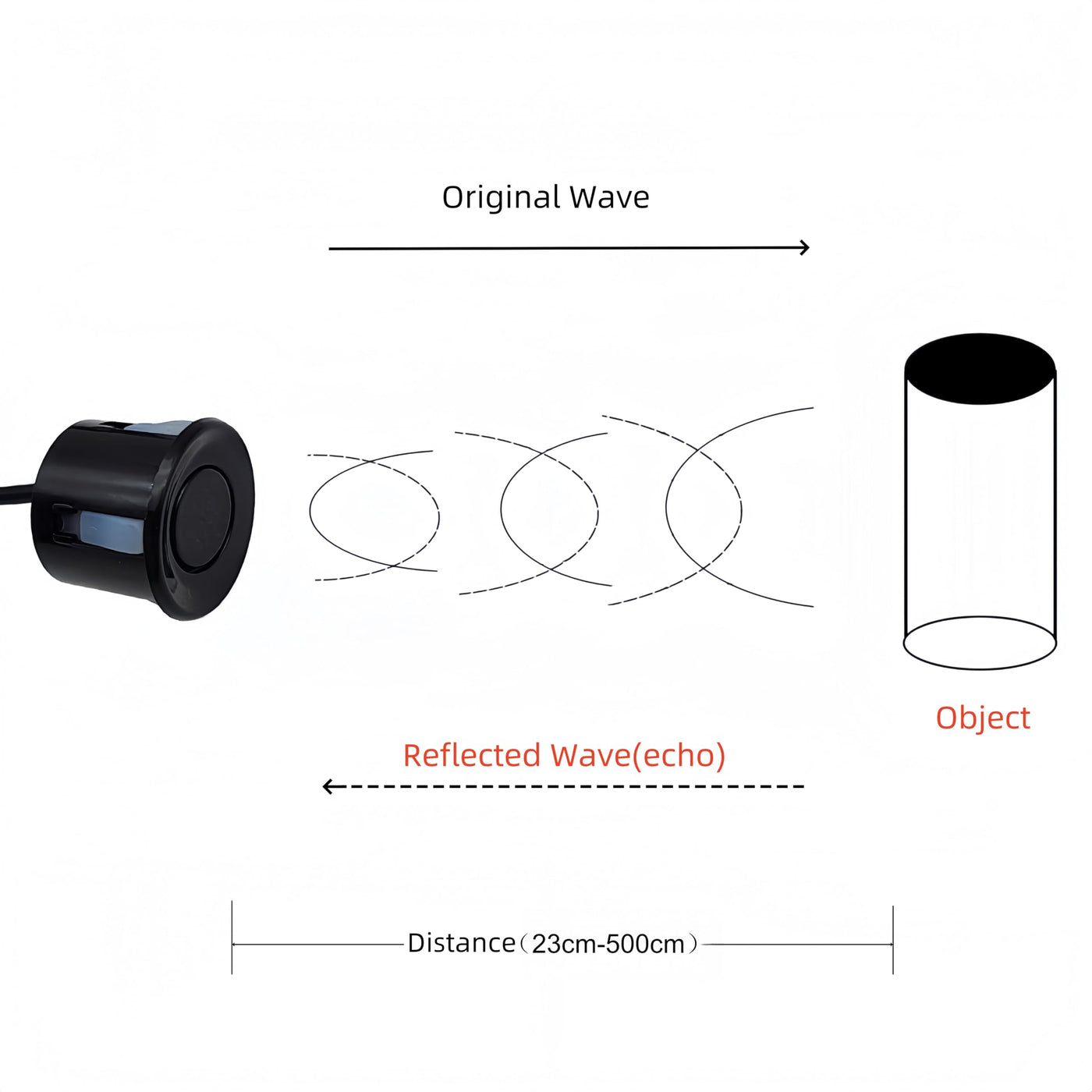

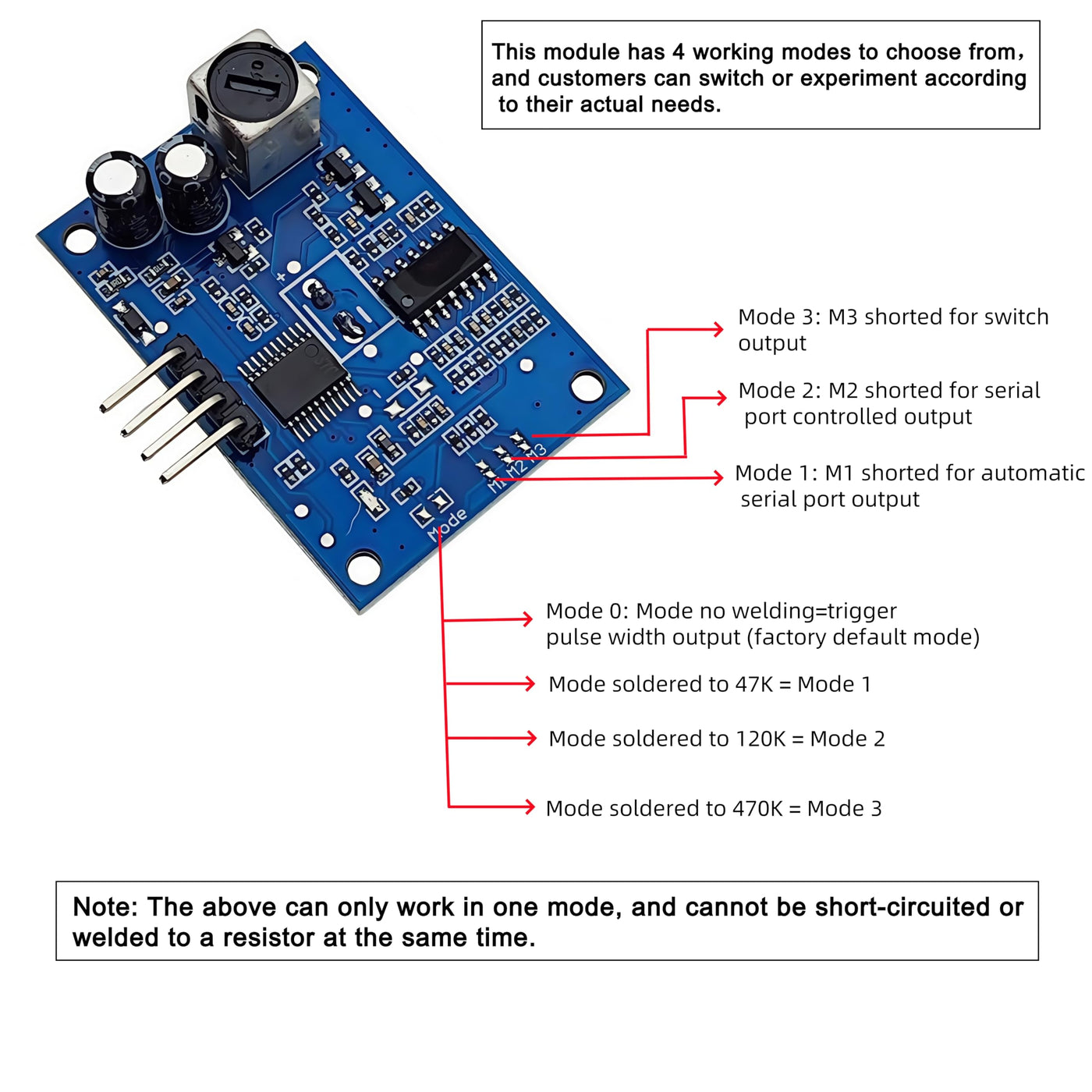

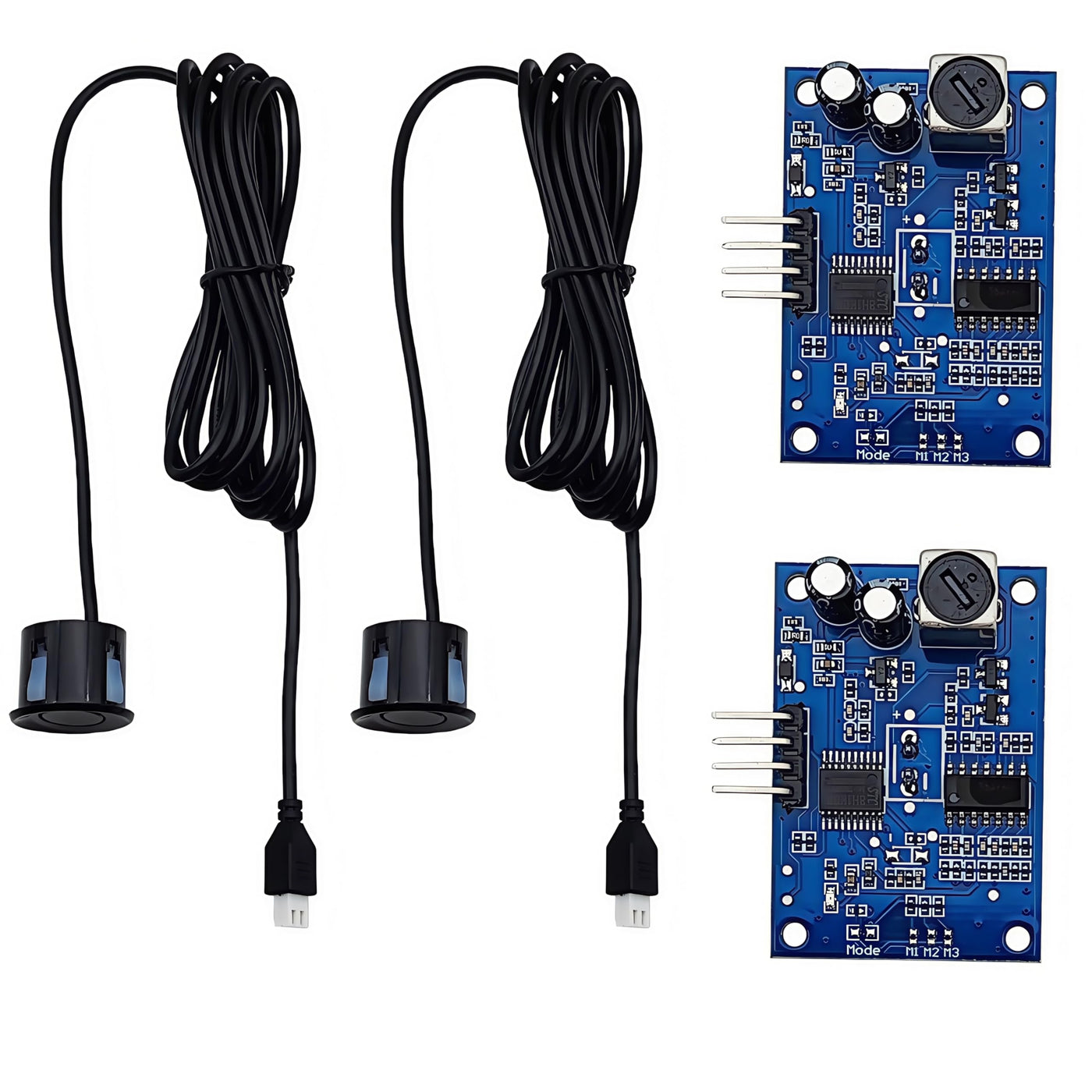

{"id":8013202358452,"title":"2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU","handle":"2pcs-jsn-sr04t-23-500cm-integrated-ultrasonic-distance-measuring-sensor-transducer-module-high-precision-waterproof-compatible-with-arduino-mcu","description":"\u003ch3\u003e2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe JSN-SR04T-V3.3 ultrasonic distance measuring module provides non-contact\r\ndistance sensing capabilities ranging from 23cm to 500cm, with a measurement\r\naccuracy of up to 3mm, Blind area is 20cm. The module consists of an\r\nintegrated ultrasonic sensor and control circuit. The default is pulse width\r\noutput, It has a good performance and almost the same usage of HC-SR04 module.\r\nPlease note that the device is waterproof, but it couldn't work underwater.\r\nThis module has 4 working modes to choose from, and customers can switch or\r\nexperiment according to their actual needs. Mode 0: Mode no welding=trigger\r\npulse width output (factory default mode) Mode 1: M1 shorted for automatic\r\nserial port output Mode 2: M2 shorted for serial port controlled output Mode\r\n3: M3 shorted for switch output (Mode soldered to 47K = Mode 1, Mode soldered\r\nto 120K = Mode 2, Mode soldered to 470K = Mode 3) Note: The above can only\r\nwork in one mode, and cannot be short-circuited or welded to a resistor at the\r\nsame time. Specification: Working voltage: DC 3-5.5V Working current: less\r\nthan 8mA Probe frequency: 40KHz Maximum range: 500cm Minimum range: 23cm Long-\r\nrange accuracy: ±1cm Resolution: 1mm Measurement angle: 75 degrees Input\r\ntrigger signal: 1. TTL pulse longer than 10uS 2. Send command 0X55 via serial\r\nport Output echo signal: Output pulse width level signal, or TTL Size:\r\nL42W29H12mm Operating temperature: -20°C to +70°C Product color: PCB board\r\nis blue Wiring method: 3-5.5V (power supply positive) Trig (control terminal)\r\nRX Echo (output terminal) TX GND (power supply negative) Product Features: 1.\r\nSmall size and easy to use; 2. Low voltage and low power consumption; 3. High\r\nmeasurement accuracy; 4. strong anti-jamming; 5. Integrated sealed waterproof\r\nprobe with cable, suitable for humid and harsh measurement environments.\r\nProduct Applications: 1. Horizontal distance measurement; 2. Obstacle\r\navoidance and automatic control; 3. Object proximity and presence detection;\r\n4. Traffic control; 5. Security and industrial control; 6. Artificial\r\nintelligence and education and research.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe JSN-SR04T-V3.3 ultrasonic distance measuring module provides non-contact distance sensing capabilities ranging from 23cm to 500cm, with a measurement accuracy of up to 3mm, blind area is 20cm. The module consists of an integrated ultrasonic sensor and control circuit.\u003c\/li\u003e\r\n \u003cli\u003eWide voltage is DC 3-5.5V, the default is pulse width output. It has a good performance and almost the same usage of HC-SR04 module.\u003c\/li\u003e\r\n \u003cli\u003eThis module has 4 working modes to choose from, and customers can switch or experiment according to their actual needs.\u003c\/li\u003e\r\n \u003cli\u003eSmall size and easy to use, low voltage and low power consumption, high measurement accuracy, strong anti-jamming. Integrated sealed waterproof probe with cable, suitable for humid and harsh measurement environments.\u003c\/li\u003e\r\n \u003cli\u003eThis module is mainly applied in the fields of horizontal distance measurement, object distance measurement, car reversing sensors, automatic control, obstacle avoidance, safety alarm, safety and industrial control, intelligent traffic control, and artificial intelligence teaching and research.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T19:25:37+11:00","created_at":"2025-12-07T19:25:33+11:00","vendor":"Yuuhseel","type":"Sensors","tags":["industrial_selected_Nov2025"],"price":12400,"price_min":12400,"price_max":12400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102845530292,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FH24GJJQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU","public_title":null,"options":["Default Title"],"price":12400,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"JSN-SR04T","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FH24GJJQ.jpg?v=1775781549","\/\/auspowers.com\/cdn\/shop\/files\/712VNQWZ7dL.jpg?v=1765095937","\/\/auspowers.com\/cdn\/shop\/files\/81Q1mQ879EL.jpg?v=1765095936","\/\/auspowers.com\/cdn\/shop\/files\/81ZDg3ochFL.jpg?v=1765095936","\/\/auspowers.com\/cdn\/shop\/files\/61o1KWRm7BL.jpg?v=1765095936","\/\/auspowers.com\/cdn\/shop\/files\/71bqfyOCvcL.jpg?v=1765095936"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FH24GJJQ.jpg?v=1775781549","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782063796,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FH24GJJQ.jpg?v=1775781549"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FH24GJJQ.jpg?v=1775781549","width":2560},{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782096564,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/712VNQWZ7dL.jpg?v=1765095937"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/712VNQWZ7dL.jpg?v=1765095937","width":2560},{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782129332,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81Q1mQ879EL.jpg?v=1765095936"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81Q1mQ879EL.jpg?v=1765095936","width":2560},{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782162100,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81ZDg3ochFL.jpg?v=1765095936"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81ZDg3ochFL.jpg?v=1765095936","width":2560},{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782194868,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61o1KWRm7BL.jpg?v=1765095936"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61o1KWRm7BL.jpg?v=1765095936","width":2560},{"alt":"[Australia - AusPower] - 2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU ","id":32452782227636,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71bqfyOCvcL.jpg?v=1765095936"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71bqfyOCvcL.jpg?v=1765095936","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS JSN-SR04T 23-500cm Integrated Ultrasonic Distance Measuring Sensor Transducer Module High Precision Waterproof Compatible with Arduino, MCU\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe JSN-SR04T-V3.3 ultrasonic distance measuring module provides non-contact\r\ndistance sensing capabilities ranging from 23cm to 500cm, with a measurement\r\naccuracy of up to 3mm, Blind area is 20cm. The module consists of an\r\nintegrated ultrasonic sensor and control circuit. The default is pulse width\r\noutput, It has a good performance and almost the same usage of HC-SR04 module.\r\nPlease note that the device is waterproof, but it couldn't work underwater.\r\nThis module has 4 working modes to choose from, and customers can switch or\r\nexperiment according to their actual needs. Mode 0: Mode no welding=trigger\r\npulse width output (factory default mode) Mode 1: M1 shorted for automatic\r\nserial port output Mode 2: M2 shorted for serial port controlled output Mode\r\n3: M3 shorted for switch output (Mode soldered to 47K = Mode 1, Mode soldered\r\nto 120K = Mode 2, Mode soldered to 470K = Mode 3) Note: The above can only\r\nwork in one mode, and cannot be short-circuited or welded to a resistor at the\r\nsame time. Specification: Working voltage: DC 3-5.5V Working current: less\r\nthan 8mA Probe frequency: 40KHz Maximum range: 500cm Minimum range: 23cm Long-\r\nrange accuracy: ±1cm Resolution: 1mm Measurement angle: 75 degrees Input\r\ntrigger signal: 1. TTL pulse longer than 10uS 2. Send command 0X55 via serial\r\nport Output echo signal: Output pulse width level signal, or TTL Size:\r\nL42W29H12mm Operating temperature: -20°C to +70°C Product color: PCB board\r\nis blue Wiring method: 3-5.5V (power supply positive) Trig (control terminal)\r\nRX Echo (output terminal) TX GND (power supply negative) Product Features: 1.\r\nSmall size and easy to use; 2. Low voltage and low power consumption; 3. High\r\nmeasurement accuracy; 4. strong anti-jamming; 5. Integrated sealed waterproof\r\nprobe with cable, suitable for humid and harsh measurement environments.\r\nProduct Applications: 1. Horizontal distance measurement; 2. Obstacle\r\navoidance and automatic control; 3. Object proximity and presence detection;\r\n4. Traffic control; 5. Security and industrial control; 6. Artificial\r\nintelligence and education and research.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe JSN-SR04T-V3.3 ultrasonic distance measuring module provides non-contact distance sensing capabilities ranging from 23cm to 500cm, with a measurement accuracy of up to 3mm, blind area is 20cm. The module consists of an integrated ultrasonic sensor and control circuit.\u003c\/li\u003e\r\n \u003cli\u003eWide voltage is DC 3-5.5V, the default is pulse width output. It has a good performance and almost the same usage of HC-SR04 module.\u003c\/li\u003e\r\n \u003cli\u003eThis module has 4 working modes to choose from, and customers can switch or experiment according to their actual needs.\u003c\/li\u003e\r\n \u003cli\u003eSmall size and easy to use, low voltage and low power consumption, high measurement accuracy, strong anti-jamming. Integrated sealed waterproof probe with cable, suitable for humid and harsh measurement environments.\u003c\/li\u003e\r\n \u003cli\u003eThis module is mainly applied in the fields of horizontal distance measurement, object distance measurement, car reversing sensors, automatic control, obstacle avoidance, safety alarm, safety and industrial control, intelligent traffic control, and artificial intelligence teaching and research.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
