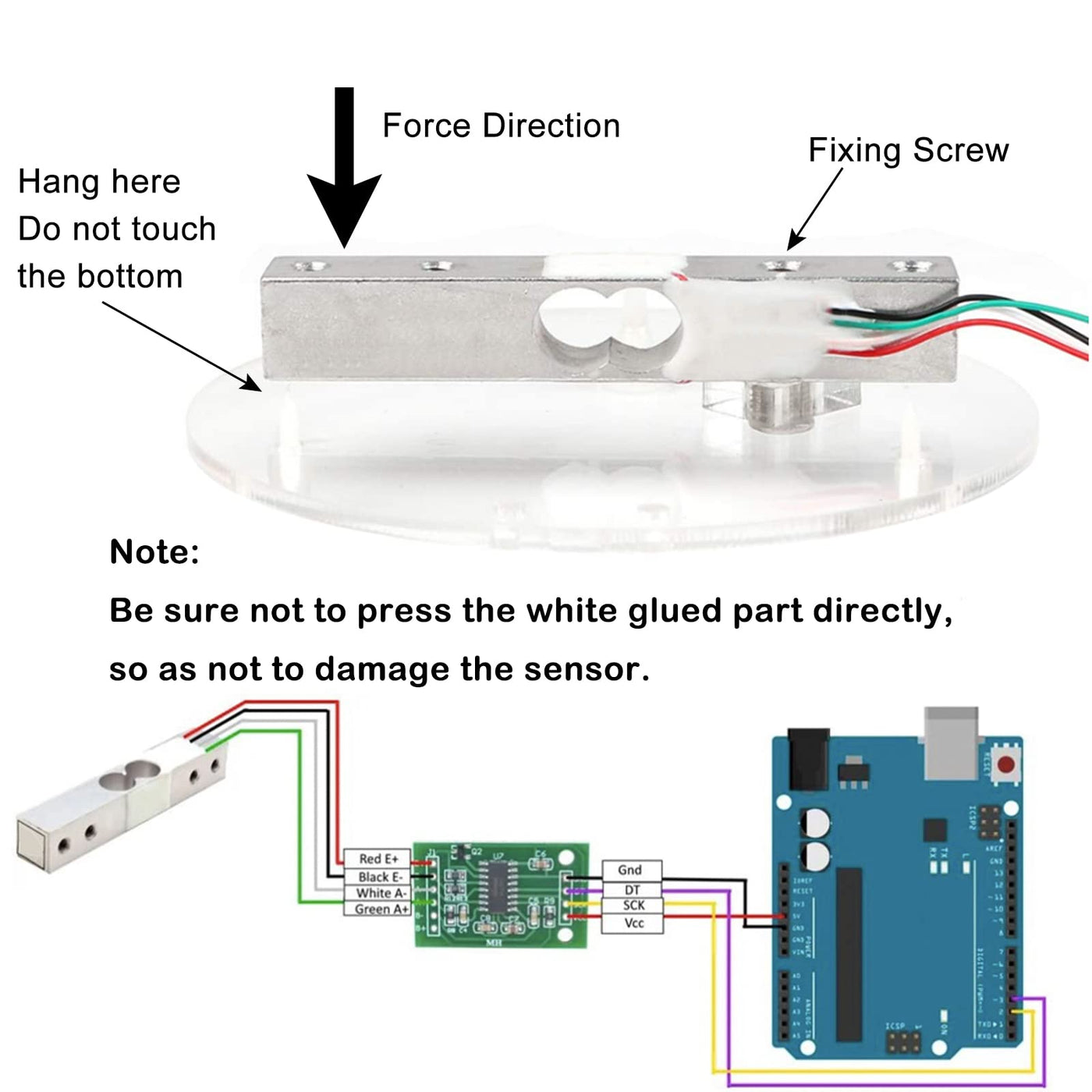

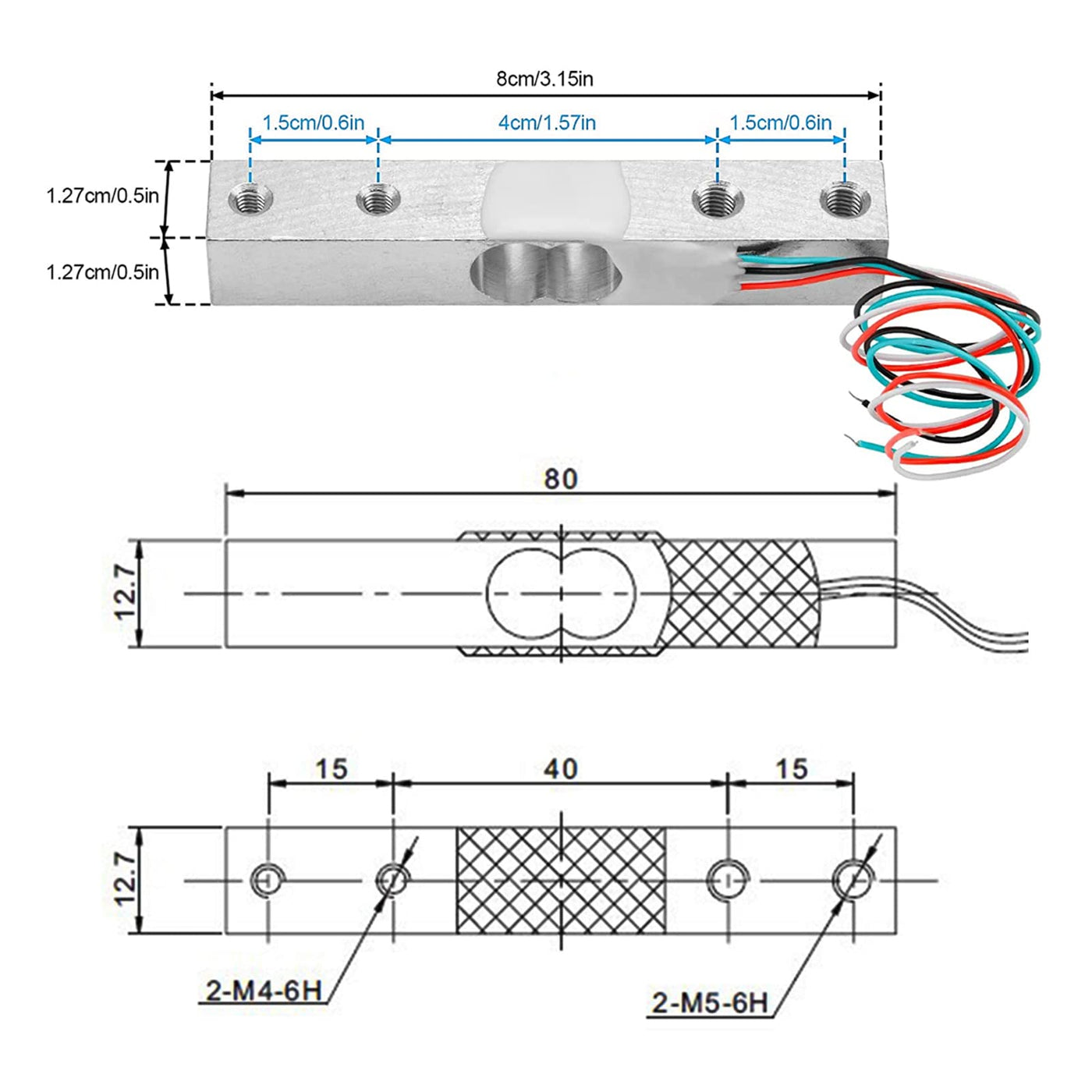

{"id":7976043413684,"title":"2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg","handle":"2pcs-digital-load-cell-weight-sensor-1kg-5kg-10kg-20kg-high-precision-miniature-load-cells-for-arduino-diy-electronic-portable-kitchen-scale-sensors-2pcs-1kg","description":"\u003ch3\u003e2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133\nCapacity: 1、5、10、20 Rated Output: 1.0±0.15mV\/V Nolinearity: 0.0005\nRepeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect\nOn Sensitivity: 0.003%RO\/°C Temperature Effect On Zero: 0.02%RO\/°C Zero\nBalance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω\nInsulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V\nCompensated Temperature Voltage: -10~+50°C Operating Temperature Range:\n-20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material:\nAluminium Connecting Cable: ?0.8X180mm Connection: Red to E+ Black to E- Green\nto A+ White to A- Package included 2 X Weight Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWeight options: 1kg 5kg 10kg 20kg\u003c\/li\u003e\n \u003cli\u003eConnection:Red to E+ \/ Black to E- \/ Green to A+ \/ White to A-\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal\u003c\/li\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment\u003c\/li\u003e\n \u003cli\u003eYou will get 2pcs load cell weight sensor. Please feel free to ask any questions you may have and will respond within 24 hours\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-29T02:42:28+10:00","created_at":"2025-07-29T02:42:24+10:00","vendor":"Wishiot","type":"Scale \u0026 Balance Parts","tags":["industrial_best_sellers_Jun2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43995581218996,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C3QHT4TT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg","public_title":null,"options":["Default Title"],"price":10000,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"FZ1878X2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C3QHT4TT.jpg?v=1775766338","\/\/auspowers.com\/cdn\/shop\/files\/61z94p-sZML_1f62074e-4f6b-44e1-b8db-afa041d8aef8.jpg?v=1753720947","\/\/auspowers.com\/cdn\/shop\/files\/61OpUHlcUfL_a1ab8ab3-5a70-4c89-a964-b339eeec4cc6.jpg?v=1753720947","\/\/auspowers.com\/cdn\/shop\/files\/61ThPmK-ffL_4aa0291a-c0f0-4448-89a5-9a26905a3cab.jpg?v=1753720947","\/\/auspowers.com\/cdn\/shop\/files\/71xsQMqdrIL_fed5067d-5b6a-479e-8752-3dd7352f432c.jpg?v=1753720947","\/\/auspowers.com\/cdn\/shop\/files\/51VvI24CP4L_4e1ad86d-4c3a-41b6-9e73-fc624f6a8aa8.jpg?v=1753720947"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3QHT4TT.jpg?v=1775766338","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251808948,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3QHT4TT.jpg?v=1775766338"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3QHT4TT.jpg?v=1775766338","width":1600},{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251841716,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61z94p-sZML_1f62074e-4f6b-44e1-b8db-afa041d8aef8.jpg?v=1753720947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61z94p-sZML_1f62074e-4f6b-44e1-b8db-afa041d8aef8.jpg?v=1753720947","width":1600},{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251874484,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61OpUHlcUfL_a1ab8ab3-5a70-4c89-a964-b339eeec4cc6.jpg?v=1753720947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61OpUHlcUfL_a1ab8ab3-5a70-4c89-a964-b339eeec4cc6.jpg?v=1753720947","width":1600},{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251907252,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ThPmK-ffL_4aa0291a-c0f0-4448-89a5-9a26905a3cab.jpg?v=1753720947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ThPmK-ffL_4aa0291a-c0f0-4448-89a5-9a26905a3cab.jpg?v=1753720947","width":1600},{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251940020,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71xsQMqdrIL_fed5067d-5b6a-479e-8752-3dd7352f432c.jpg?v=1753720947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71xsQMqdrIL_fed5067d-5b6a-479e-8752-3dd7352f432c.jpg?v=1753720947","width":1600},{"alt":"[Australia - AusPower] - 2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors 2pcs 1kg ","id":31890251972788,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51VvI24CP4L_4e1ad86d-4c3a-41b6-9e73-fc624f6a8aa8.jpg?v=1753720947"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51VvI24CP4L_4e1ad86d-4c3a-41b6-9e73-fc624f6a8aa8.jpg?v=1753720947","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS Digital Load Cell Weight Sensor 1kg 5kg 10kg 20kg High Precision Miniature Load Cells for Arduino DIY Electronic Portable Kitchen Scale Sensors\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133\nCapacity: 1、5、10、20 Rated Output: 1.0±0.15mV\/V Nolinearity: 0.0005\nRepeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect\nOn Sensitivity: 0.003%RO\/°C Temperature Effect On Zero: 0.02%RO\/°C Zero\nBalance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω\nInsulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V\nCompensated Temperature Voltage: -10~+50°C Operating Temperature Range:\n-20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material:\nAluminium Connecting Cable: ?0.8X180mm Connection: Red to E+ Black to E- Green\nto A+ White to A- Package included 2 X Weight Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWeight options: 1kg 5kg 10kg 20kg\u003c\/li\u003e\n \u003cli\u003eConnection:Red to E+ \/ Black to E- \/ Green to A+ \/ White to A-\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal\u003c\/li\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment\u003c\/li\u003e\n \u003cli\u003eYou will get 2pcs load cell weight sensor. Please feel free to ask any questions you may have and will respond within 24 hours\u003c\/li\u003e\n \u003c\/ul\u003e"}
