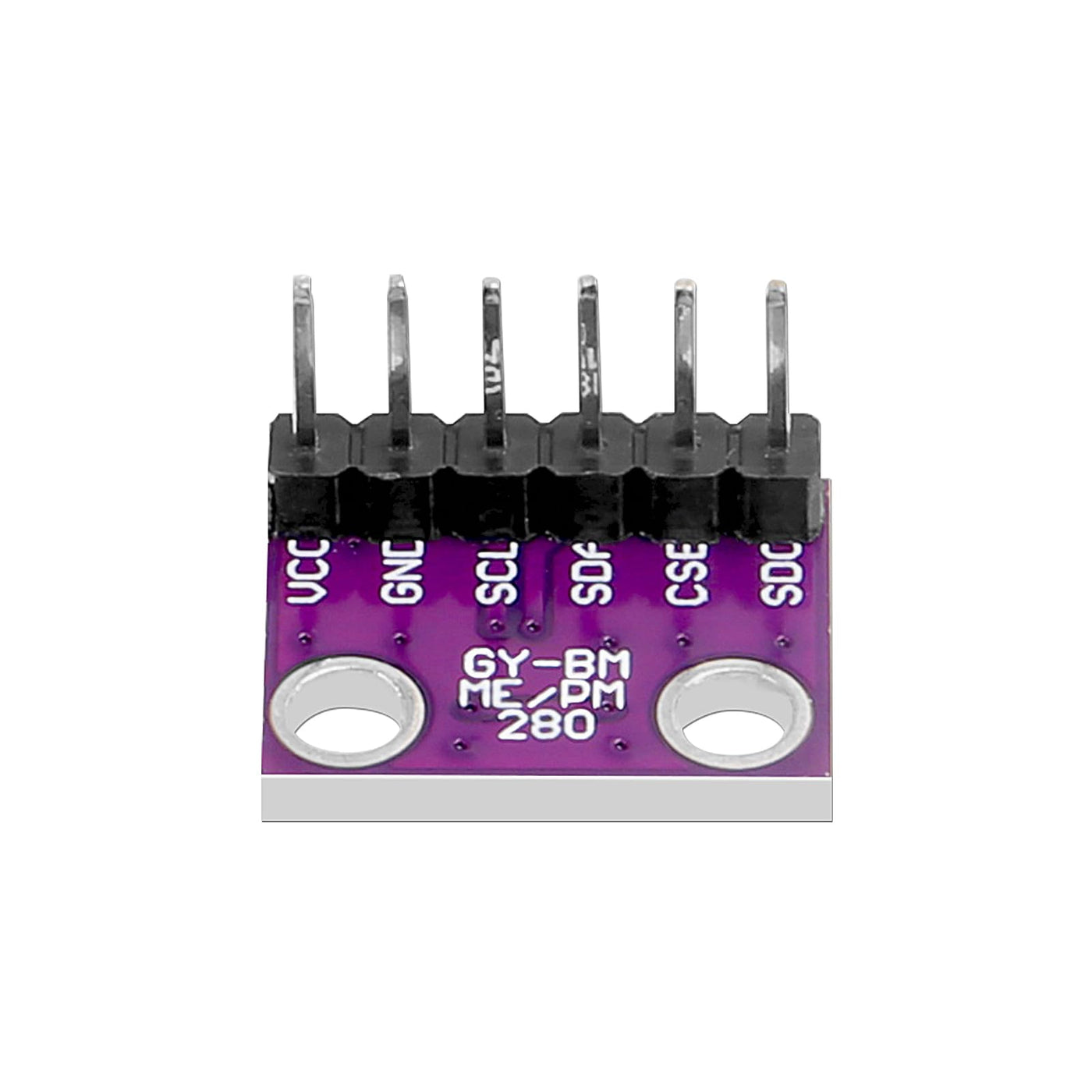

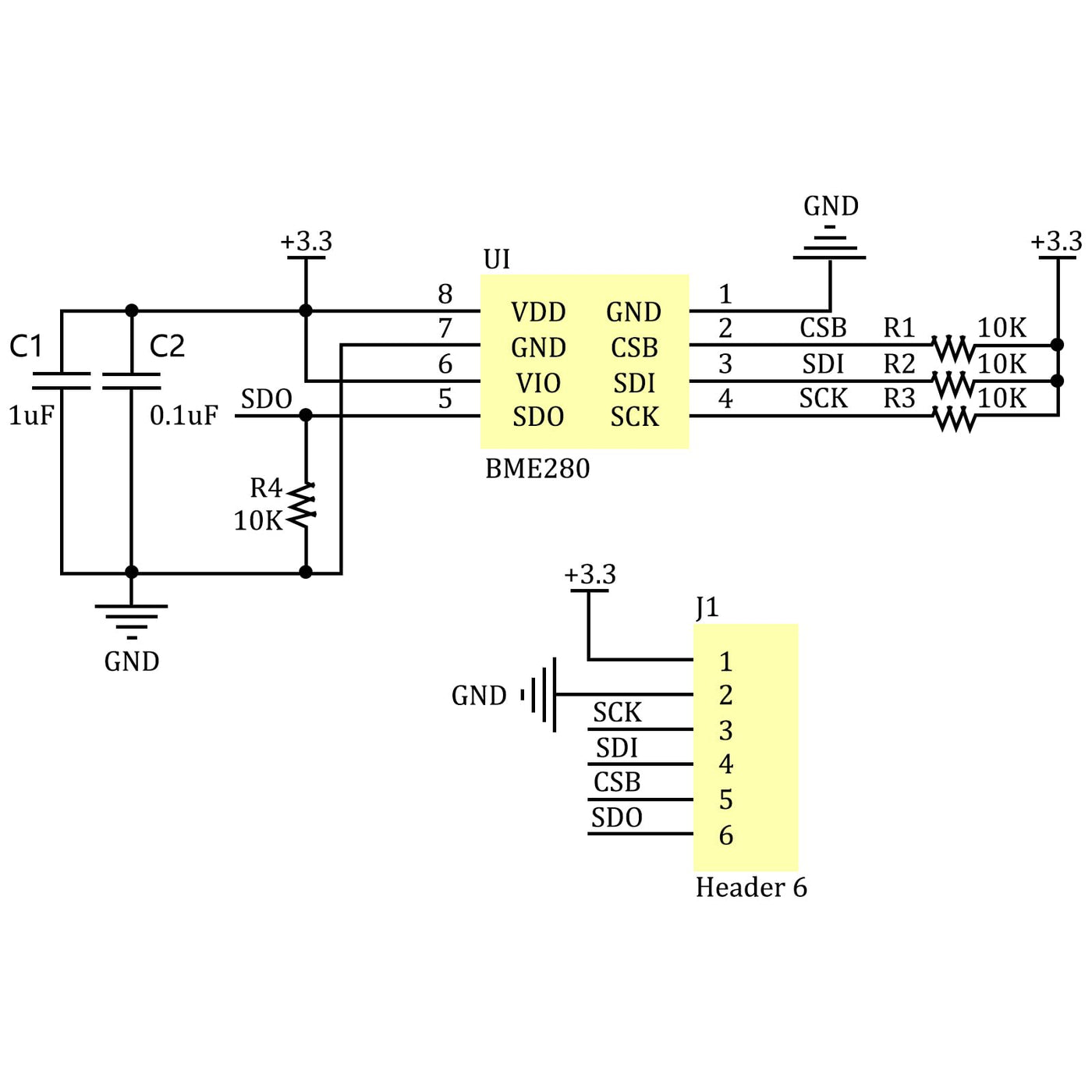

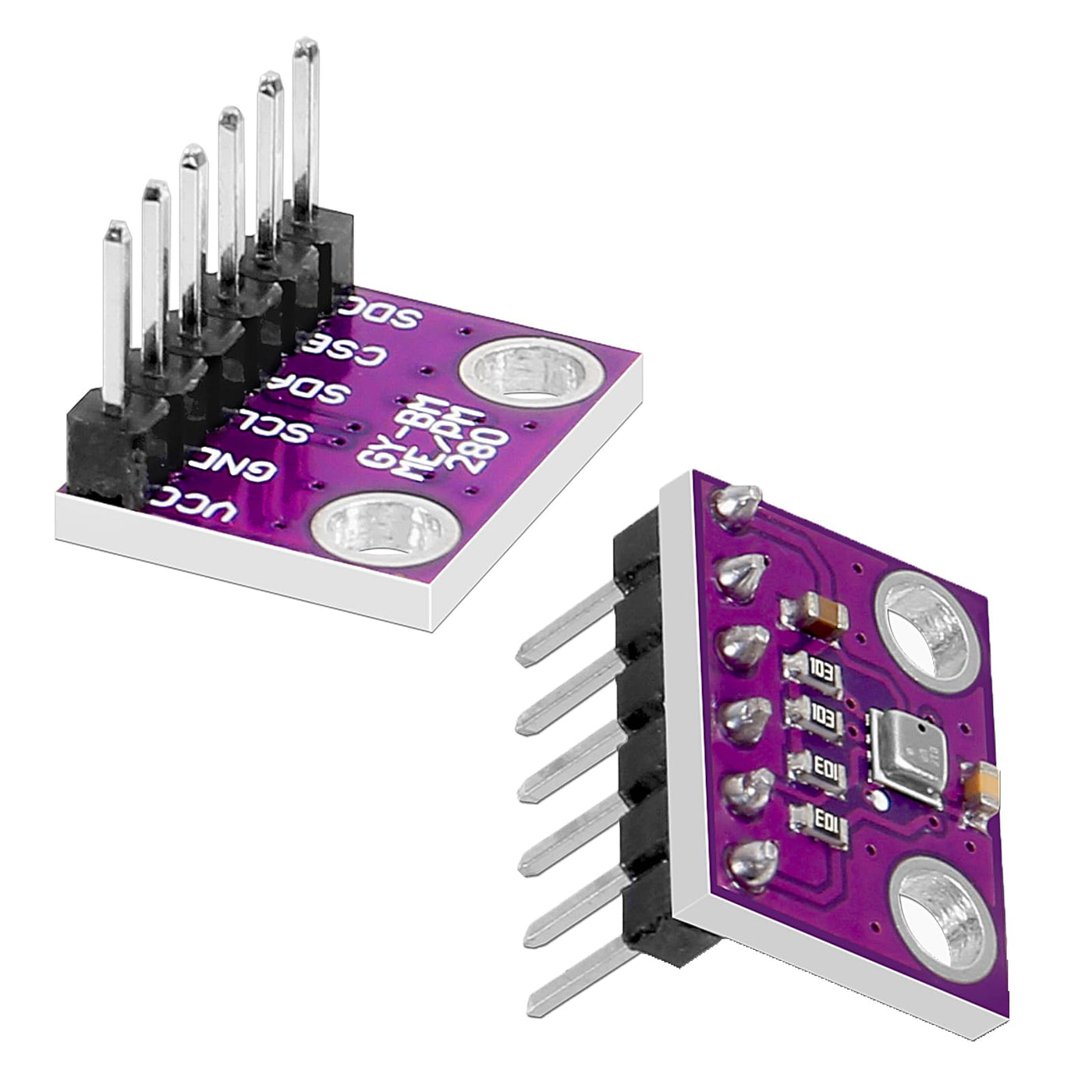

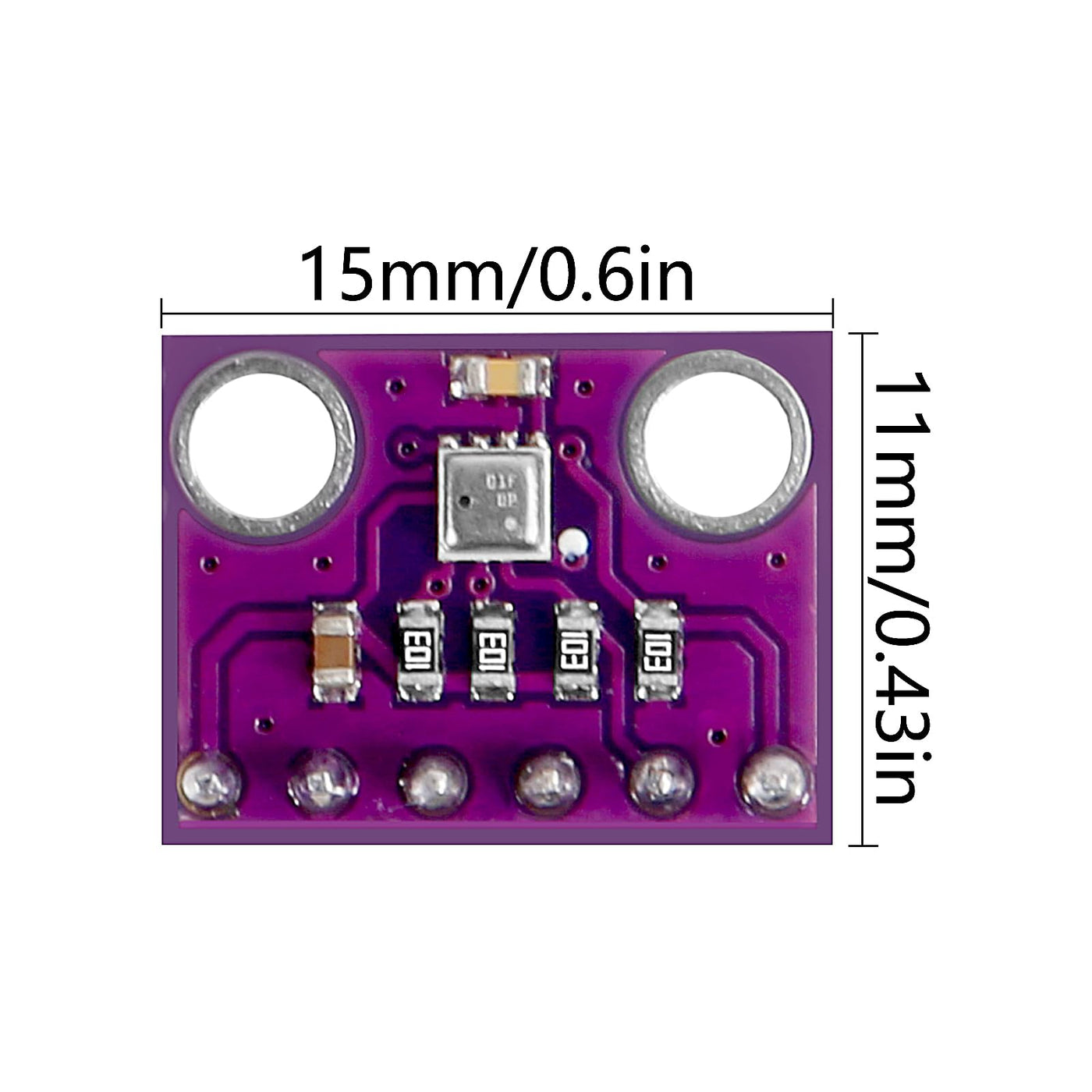

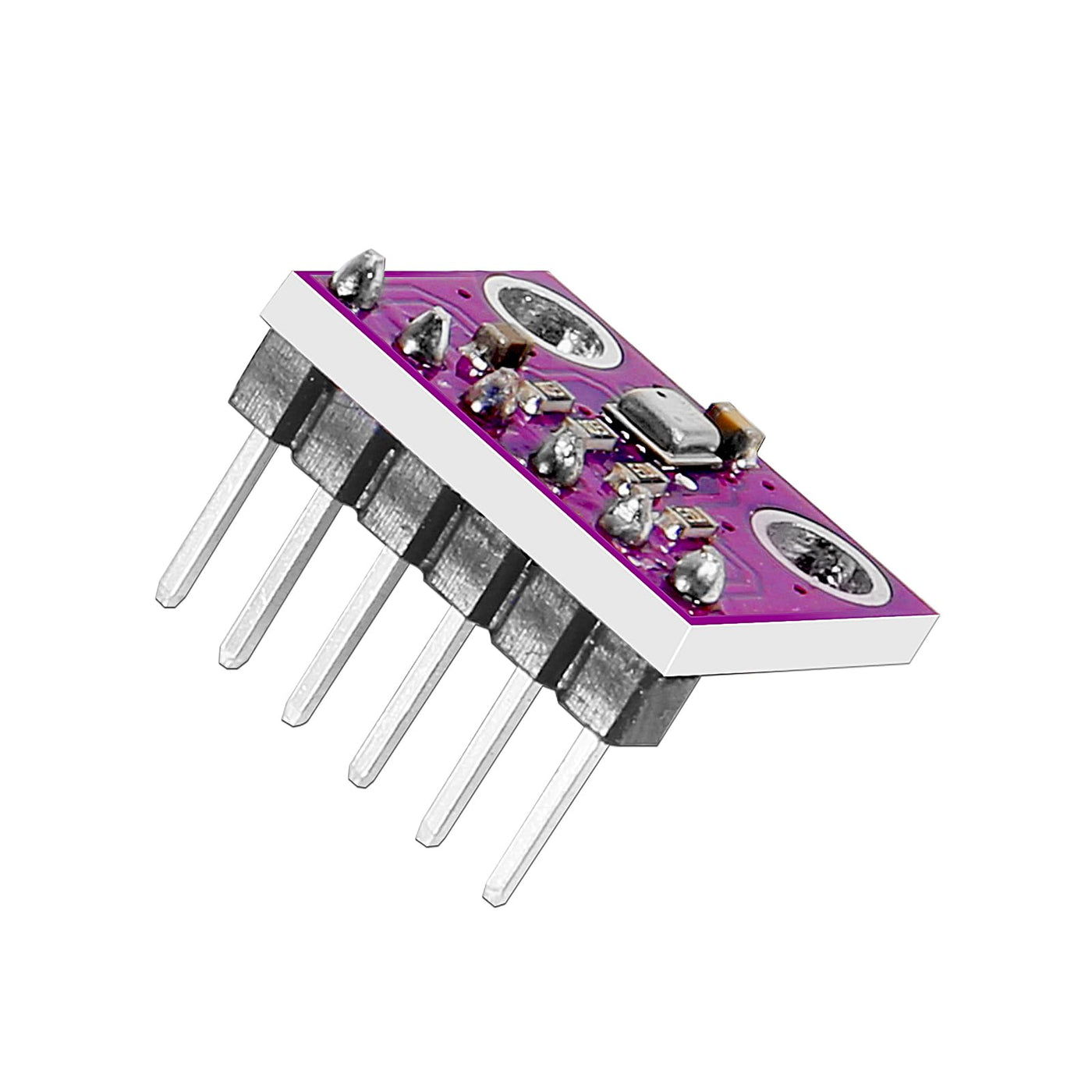

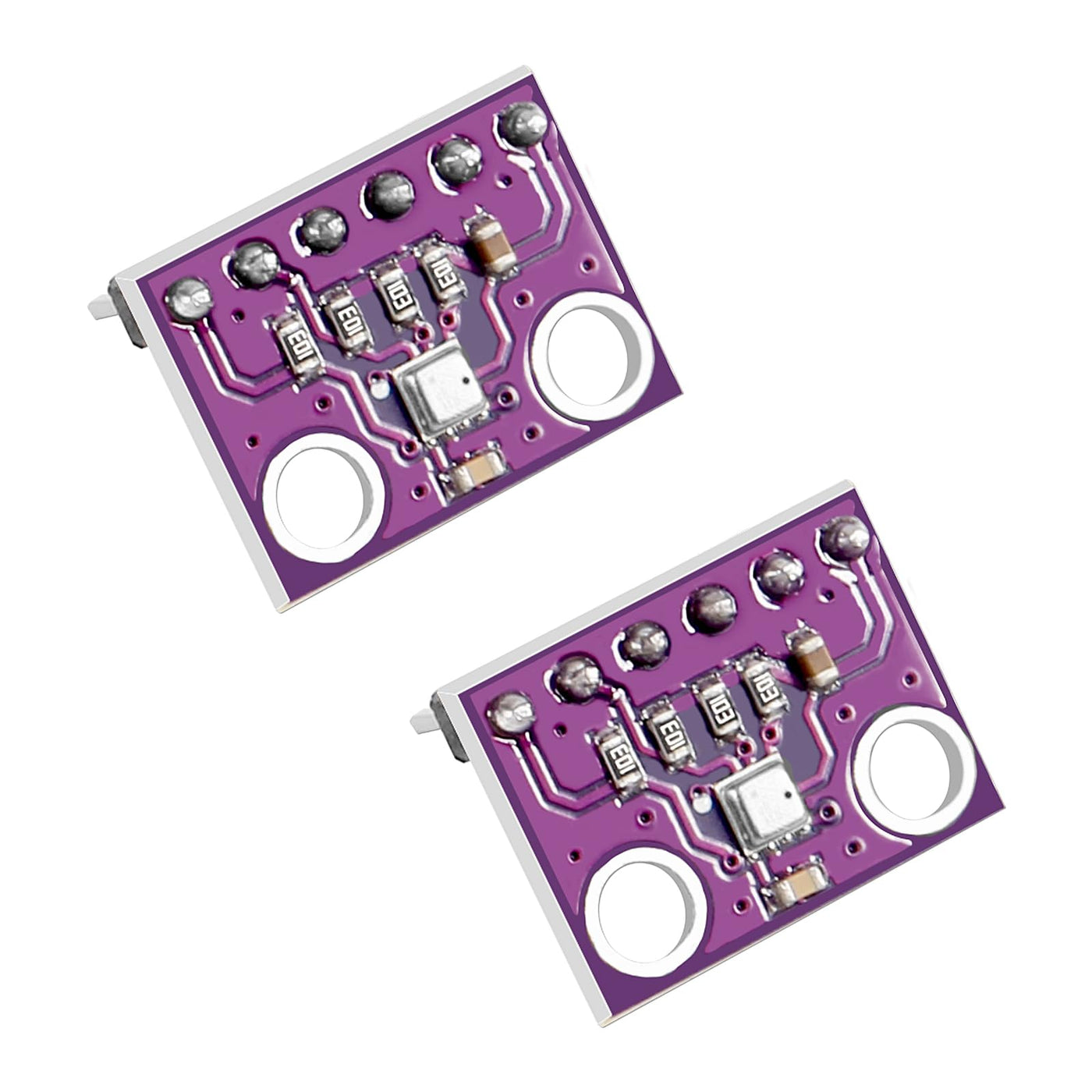

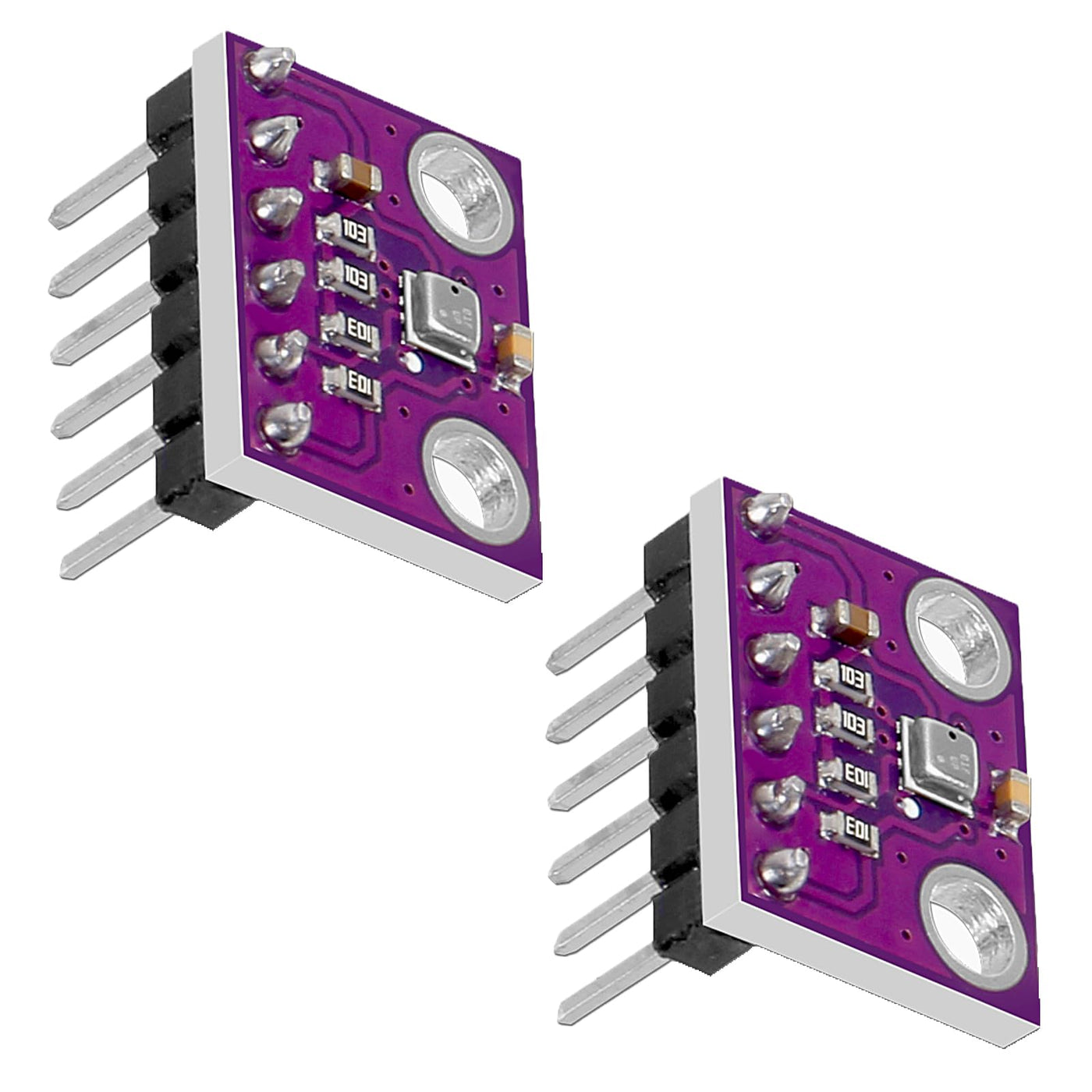

{"id":8034364522676,"title":"2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers","handle":"2pcs-bme280-3-3v-sensor-module-pre-soldered-high-precision-atmospheric-pressure-sensor-gy-bme280-3-3-temperature-humidity-sensor-module-for-raspberry-pi-and-other-microcontrollers","description":"\u003ch3\u003e2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription:BME280 is a Temperature, Humidity \u0026amp; Pressure Sensor breakout\r\nboard.The board has selectable I2C address jumper (solder link GS2), I2C pull-\r\nup resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.Default\r\nsetting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups\r\nresistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling\r\ncapacitors 0.1uF on both power supply pins Vdd \u0026amp; Vdd_IO.If you connect board\r\nto both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail\r\njumper GS1!Even better, this product is ready to be plugged in since it\r\nalready has soldered pins. Saving time and avoiding danger.\r\nSpecifications:Interface: I2C and SPISupply Voltage: 3.3VMeasurements:\r\nTemperature, Pressure, Humidity. Pressure can be converted to\r\naltitude.Compatibility: All Raspberry Pi and any microcontroller with I2C or\r\nSPI capabilities.Soldering: Comes Pre-Soldered.Temperature Range: -40 - 85\r\n°CPressure Range: 300 - 1100 hPaHumidity Range: 0 - 100 %Humidity Response\r\nTime: 1 sCurrent Consumption:~3.6 μAPins:VCC: This pin is used for Supply\r\nVoltage.GND: This pin is used for ground.SCL: This pin is used for the clock\r\npulse for I2C communication.SDA: This pin is used for transferring data\r\nthrough I2C communication.CSB: This pin can be used to allow multiple devices\r\nto share the same I2C bus.SDO: This pin can be used to select the device's I2C\r\naddress when multiple BME280 sensors are connected to the same I2C bus.Package\r\nIncluded: 2pcs BME280 3.3V Atmospheric Pressure Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe BME280 is the next-generation of sensors, and is the upgrade to the BMP085\/BMP180\/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI.\u003c\/li\u003e\r\n \u003cli\u003ePre-soldered BME280 Sensor Module: Solderless! Pins already attached. Ready to plug in and go.\u003c\/li\u003e\r\n \u003cli\u003eBME280, the precision sensor from , is soldered onto PCB. Not only the pressure and the temperature, this sensor can measure humidity. It uses both I2C and SPI (supports 3-, 4-wire SPI) interface\u003c\/li\u003e\r\n \u003cli\u003eSupply voltage VDD main supply voltage range: 1.71 V to 3.6 V; Pressure: 300-1100 hPa; Temperature: -40 to +85C ; Humidity: 0-100%; Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)\u003c\/li\u003e\r\n \u003cli\u003eBME280 3.3V Sensor Module: High resolution and low noise, with quick response times, can be used for altitude measurements, weather monitoring, or even gaming!\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T17:29:35+11:00","created_at":"2026-02-27T17:29:32+11:00","vendor":"AITIAO","type":"Temperature Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":11000,"price_min":11000,"price_max":11000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154122764468,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CLCRF1QS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers","public_title":null,"options":["Default Title"],"price":11000,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117713377","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CLCRF1QS.jpg?v=1775786039","\/\/auspowers.com\/cdn\/shop\/files\/61Zk3ObgWrL.jpg?v=1772173774","\/\/auspowers.com\/cdn\/shop\/files\/61JlalpOHyL.jpg?v=1772173774","\/\/auspowers.com\/cdn\/shop\/files\/61nVQzO54lL.jpg?v=1772173774","\/\/auspowers.com\/cdn\/shop\/files\/6112P5cuNpL.jpg?v=1772173774","\/\/auspowers.com\/cdn\/shop\/files\/61bmB_ZAygL.jpg?v=1772173774","\/\/auspowers.com\/cdn\/shop\/files\/616nOX7q3YL.jpg?v=1772173774"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CLCRF1QS.jpg?v=1775786039","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506749108,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CLCRF1QS.jpg?v=1775786039"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CLCRF1QS.jpg?v=1775786039","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506781876,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Zk3ObgWrL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Zk3ObgWrL.jpg?v=1772173774","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506814644,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61JlalpOHyL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61JlalpOHyL.jpg?v=1772173774","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506847412,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61nVQzO54lL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61nVQzO54lL.jpg?v=1772173774","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506880180,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6112P5cuNpL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6112P5cuNpL.jpg?v=1772173774","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506912948,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61bmB_ZAygL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61bmB_ZAygL.jpg?v=1772173774","width":1600},{"alt":"[Australia - AusPower] - 2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers ","id":32720506945716,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616nOX7q3YL.jpg?v=1772173774"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616nOX7q3YL.jpg?v=1772173774","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription:BME280 is a Temperature, Humidity \u0026amp; Pressure Sensor breakout\r\nboard.The board has selectable I2C address jumper (solder link GS2), I2C pull-\r\nup resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.Default\r\nsetting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups\r\nresistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling\r\ncapacitors 0.1uF on both power supply pins Vdd \u0026amp; Vdd_IO.If you connect board\r\nto both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail\r\njumper GS1!Even better, this product is ready to be plugged in since it\r\nalready has soldered pins. Saving time and avoiding danger.\r\nSpecifications:Interface: I2C and SPISupply Voltage: 3.3VMeasurements:\r\nTemperature, Pressure, Humidity. Pressure can be converted to\r\naltitude.Compatibility: All Raspberry Pi and any microcontroller with I2C or\r\nSPI capabilities.Soldering: Comes Pre-Soldered.Temperature Range: -40 - 85\r\n°CPressure Range: 300 - 1100 hPaHumidity Range: 0 - 100 %Humidity Response\r\nTime: 1 sCurrent Consumption:~3.6 μAPins:VCC: This pin is used for Supply\r\nVoltage.GND: This pin is used for ground.SCL: This pin is used for the clock\r\npulse for I2C communication.SDA: This pin is used for transferring data\r\nthrough I2C communication.CSB: This pin can be used to allow multiple devices\r\nto share the same I2C bus.SDO: This pin can be used to select the device's I2C\r\naddress when multiple BME280 sensors are connected to the same I2C bus.Package\r\nIncluded: 2pcs BME280 3.3V Atmospheric Pressure Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe BME280 is the next-generation of sensors, and is the upgrade to the BMP085\/BMP180\/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI.\u003c\/li\u003e\r\n \u003cli\u003ePre-soldered BME280 Sensor Module: Solderless! Pins already attached. Ready to plug in and go.\u003c\/li\u003e\r\n \u003cli\u003eBME280, the precision sensor from , is soldered onto PCB. Not only the pressure and the temperature, this sensor can measure humidity. It uses both I2C and SPI (supports 3-, 4-wire SPI) interface\u003c\/li\u003e\r\n \u003cli\u003eSupply voltage VDD main supply voltage range: 1.71 V to 3.6 V; Pressure: 300-1100 hPa; Temperature: -40 to +85C ; Humidity: 0-100%; Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)\u003c\/li\u003e\r\n \u003cli\u003eBME280 3.3V Sensor Module: High resolution and low noise, with quick response times, can be used for altitude measurements, weather monitoring, or even gaming!\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
