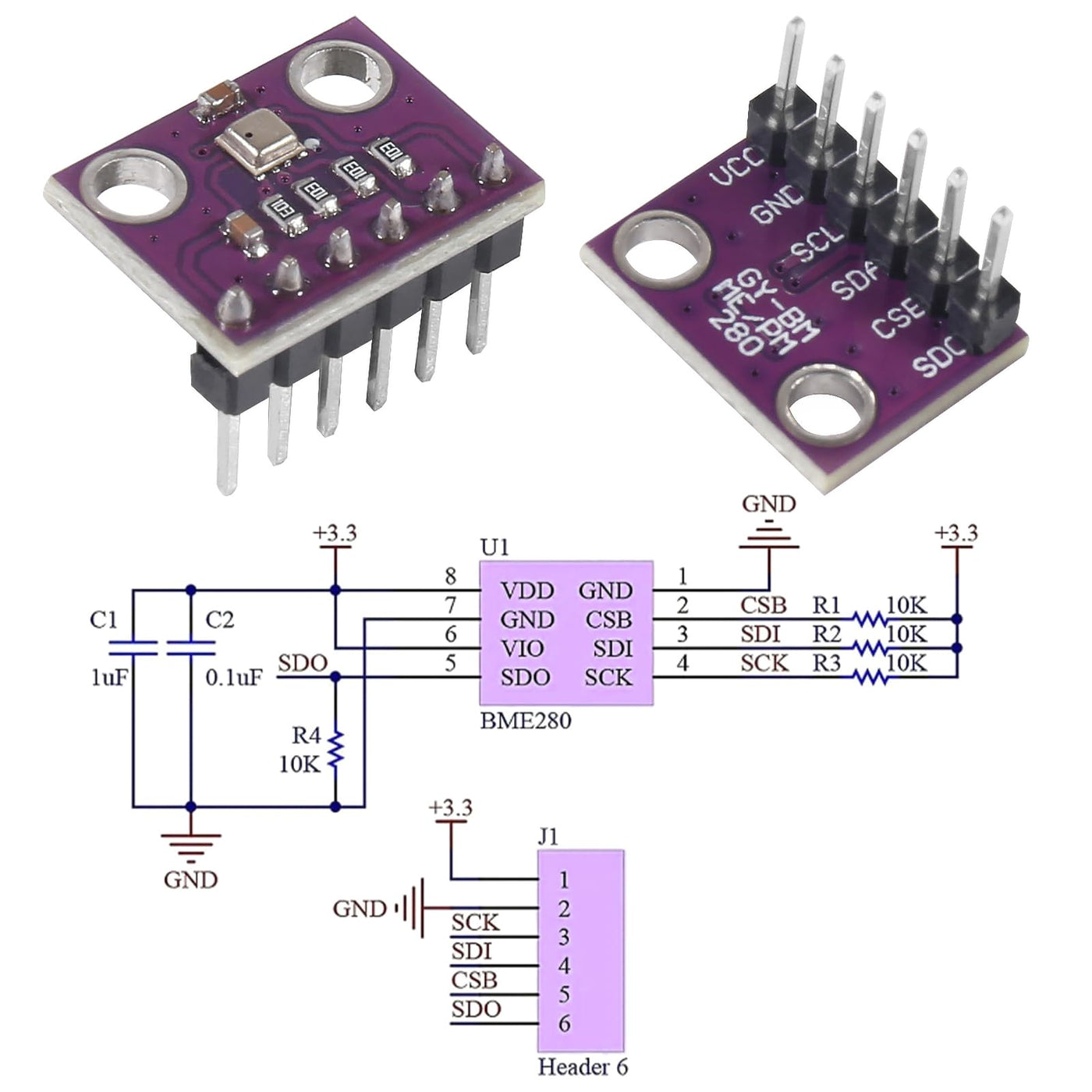

{"id":8034530853044,"title":"2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi","handle":"2pcs-bme280-3-3v-sensor-module-pre-soldered-atmospheric-pressure-temperature-humidity-sensors-gy-bme280-3-3-for-raspberry-pi","description":"\u003ch3\u003e2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eBME280 is a Temperature Humidity Pressure Sensor Module. The board has\r\nselectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin\r\nheader 2.54mm, and two mounting holes 3.5mm. Default setting of the board;\r\nsingle power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3)\r\n10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both\r\npower supply pins Vdd \u0026amp; Vdd_IO. If you connect board to both power rails\r\nVDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1! Even\r\nbetter, this product is ready to be plugged in since it already has soldered\r\npins. Saving time and avoiding danger. Specifications: Interface: I2C and SPI\r\nSupply Voltage: 3.3V Measurements: Temperature, Pressure, Humidity. Pressure\r\ncan be converted to altitude. Compatibility: All Raspberry Pi and any\r\nmicrocontroller with I2C or SPI capabilities. Soldering: Comes Pre-Soldered.\r\nTemperature Range: -40 - 85 °C Pressure Range: 300 - 1100 hPa Humidity Range:\r\n0 - 100 % Humidity Response Time: 1 s Current Consumption:~3.6 μA Pins: VCC:\r\nThis pin is used for Supply Voltage. GND: This pin is used for ground. SCL:\r\nThis pin is used for the clock pulse for I2C communication. SDA: This pin is\r\nused for transferring data through I2C communication. CSB: This pin can be\r\nused to allow multiple devices to share the same I2C bus. SDO: This pin can be\r\nused to select the device's I2C address when multiple BME280 sensors are\r\nconnected to the same I2C bus. Package Included: 2pcs BME280 3.3V Atmospheric\r\nPressure Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eBME280 3.3V sensor module is the next-generation of sensors, and is the upgrade to the BMP085\/BMP180\/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI.\u003c\/li\u003e\r\n \u003cli\u003eBME280 Pressure, Temperature, and Humidity Sensor: High precision and resolution, our temperature probe sensor offers highly accurate temperature, pressure, and humidity measurements with I2C and SPI Interfacing.\u003c\/li\u003e\r\n \u003cli\u003eBME280 Sensor: Supply Voltage: 1.71 V to 3.6 V; Interface: I2C (up to 3.4MHz),SPI (up to 10 MHz); Pressure: 300-1100 hPa;Temperature: -40 to +85C ; Humidity: 0-100%; Humidity Response Time: 1s; Current Consumption:~3.6 A.\u003c\/li\u003e\r\n \u003cli\u003ePre-soldered BME280 3.3V: Solderless! Pins already attached. Ready to plug in and go.\u003c\/li\u003e\r\n \u003cli\u003eBME280 3.3v sensor module compatible with Raspberry Pi, and other Microcontrollers. It is used for weather monitoring, indoor climate control, and industrial process control.The package included 4pcs temperature humidity sensor module.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:09:16+11:00","created_at":"2026-02-28T20:09:13+11:00","vendor":"Coliao","type":"Temperature Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154577617076,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DXKY5GHS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi","public_title":null,"options":["Default Title"],"price":10700,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117764911","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DXKY5GHS.jpg?v=1775787794","\/\/auspowers.com\/cdn\/shop\/files\/71lSJoyMCeL.jpg?v=1772269755","\/\/auspowers.com\/cdn\/shop\/files\/61INOgFs4NL.jpg?v=1772269755","\/\/auspowers.com\/cdn\/shop\/files\/61T2xf4yAAL.jpg?v=1772269755","\/\/auspowers.com\/cdn\/shop\/files\/61vULzIaJzL.jpg?v=1772269755","\/\/auspowers.com\/cdn\/shop\/files\/61T3GHPCeQL.jpg?v=1772269756","\/\/auspowers.com\/cdn\/shop\/files\/714A21gFFaL.jpg?v=1772269755"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXKY5GHS.jpg?v=1775787794","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724399980724,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXKY5GHS.jpg?v=1775787794"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXKY5GHS.jpg?v=1775787794","width":1601},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400013492,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71lSJoyMCeL.jpg?v=1772269755"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71lSJoyMCeL.jpg?v=1772269755","width":1600},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400046260,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61INOgFs4NL.jpg?v=1772269755"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61INOgFs4NL.jpg?v=1772269755","width":1600},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400079028,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61T2xf4yAAL.jpg?v=1772269755"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61T2xf4yAAL.jpg?v=1772269755","width":1601},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400111796,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61vULzIaJzL.jpg?v=1772269755"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61vULzIaJzL.jpg?v=1772269755","width":1601},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400144564,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61T3GHPCeQL.jpg?v=1772269756"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61T3GHPCeQL.jpg?v=1772269756","width":1601},{"alt":"[Australia - AusPower] - 2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi ","id":32724400177332,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/714A21gFFaL.jpg?v=1772269755"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/714A21gFFaL.jpg?v=1772269755","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2pcs BME280 3.3V Sensor Module Pre-Soldered Atmospheric Pressure Temperature Humidity Sensors GY-BME280-3.3 for Raspberry Pi\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eBME280 is a Temperature Humidity Pressure Sensor Module. The board has\r\nselectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin\r\nheader 2.54mm, and two mounting holes 3.5mm. Default setting of the board;\r\nsingle power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3)\r\n10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both\r\npower supply pins Vdd \u0026amp; Vdd_IO. If you connect board to both power rails\r\nVDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1! Even\r\nbetter, this product is ready to be plugged in since it already has soldered\r\npins. Saving time and avoiding danger. Specifications: Interface: I2C and SPI\r\nSupply Voltage: 3.3V Measurements: Temperature, Pressure, Humidity. Pressure\r\ncan be converted to altitude. Compatibility: All Raspberry Pi and any\r\nmicrocontroller with I2C or SPI capabilities. Soldering: Comes Pre-Soldered.\r\nTemperature Range: -40 - 85 °C Pressure Range: 300 - 1100 hPa Humidity Range:\r\n0 - 100 % Humidity Response Time: 1 s Current Consumption:~3.6 μA Pins: VCC:\r\nThis pin is used for Supply Voltage. GND: This pin is used for ground. SCL:\r\nThis pin is used for the clock pulse for I2C communication. SDA: This pin is\r\nused for transferring data through I2C communication. CSB: This pin can be\r\nused to allow multiple devices to share the same I2C bus. SDO: This pin can be\r\nused to select the device's I2C address when multiple BME280 sensors are\r\nconnected to the same I2C bus. Package Included: 2pcs BME280 3.3V Atmospheric\r\nPressure Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eBME280 3.3V sensor module is the next-generation of sensors, and is the upgrade to the BMP085\/BMP180\/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI.\u003c\/li\u003e\r\n \u003cli\u003eBME280 Pressure, Temperature, and Humidity Sensor: High precision and resolution, our temperature probe sensor offers highly accurate temperature, pressure, and humidity measurements with I2C and SPI Interfacing.\u003c\/li\u003e\r\n \u003cli\u003eBME280 Sensor: Supply Voltage: 1.71 V to 3.6 V; Interface: I2C (up to 3.4MHz),SPI (up to 10 MHz); Pressure: 300-1100 hPa;Temperature: -40 to +85C ; Humidity: 0-100%; Humidity Response Time: 1s; Current Consumption:~3.6 A.\u003c\/li\u003e\r\n \u003cli\u003ePre-soldered BME280 3.3V: Solderless! Pins already attached. Ready to plug in and go.\u003c\/li\u003e\r\n \u003cli\u003eBME280 3.3v sensor module compatible with Raspberry Pi, and other Microcontrollers. It is used for weather monitoring, indoor climate control, and industrial process control.The package included 4pcs temperature humidity sensor module.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
