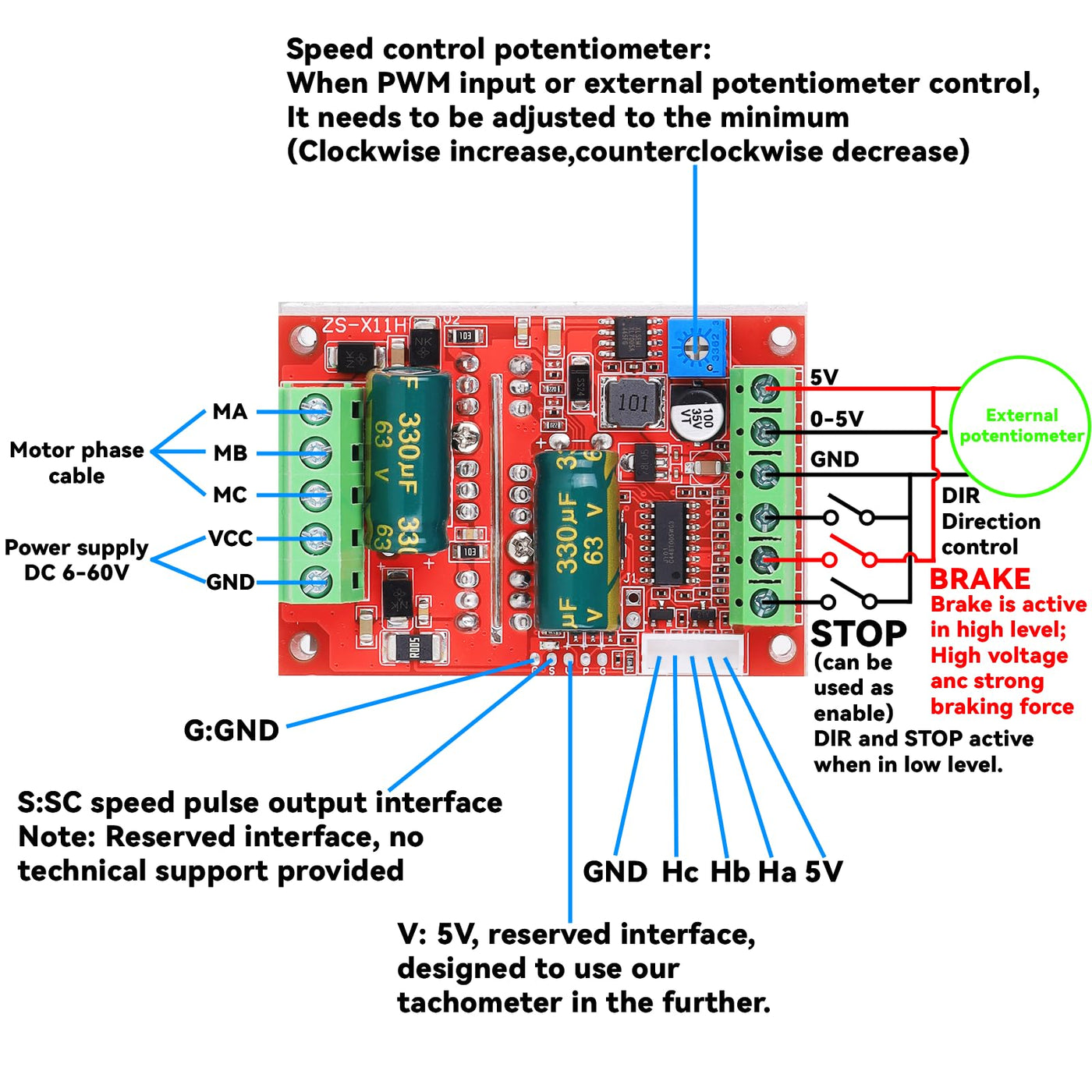

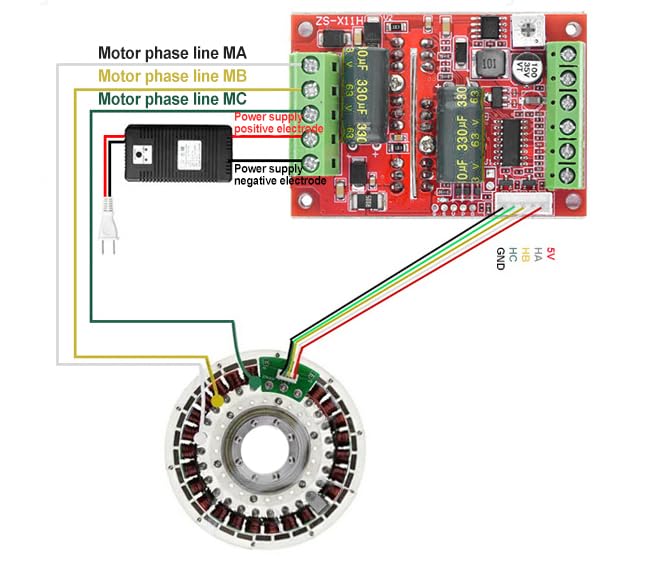

{"id":7970659664052,"title":"2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function","handle":"2pcs-6-60v-400w-dc-three-phase-brushless-motor-speed-controller-with-hall-pwm-motor-control-driver-board-12v-24v-48v-with-forward-reverse-stop-brake-function","description":"\u003ch3\u003e2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHow to set the tachometer: 1. Select \"1\" for mode 2. Set the frequency\ndivision value to the motor \"pole pair number\" 3. If the pole pair number is\n2, set the frequency division value to 6 (23=6) Special instructions for\nexternal signal input: 1. When external PWM signal input is connected from the\nPG2 ports of the mainboard (the built-in potentiometer on the board is\nadjusted to the minimum, and the short interface on the board is short-\ncircuited for wiring as shown in the figure above), the amplitude is 2.5-5V,\nand the frequency is 50HZ-20KHZ 2. When external analog 0-5V input is\nconnected, input from the 2 wiring terminals of the mainboard (the built-in\npotentiometer on the board is adjusted to the minimum, and the wiring is shown\nin the dotted line in the figure above) 3. When the external potentiometer is\nused for speed adjustment, connect the corresponding 3 wiring terminals of the\nmainboard (the potentiometer on the board is adjusted to the minimum, and the\nwiring is shown in the potentiometer diagram in the figure above) 4. Forward,\nreverse and stop are connected to ground (0 potential) through a switch, and\nlow level is effective, and the external MCU can also give a low level signal.\nThe brake is connected through a switch connected to 5V high level valid. The\nfront row of wiring terminals are all weak current signals directly input to\nthe MCU main control. They must not touch or come into contact with high\nvoltage and strong current. 1. MAMBMC phase line output connects to the motor;\n2. 5VGND The motherboard comes with a 5V power supply (the external power\nsupply current does not exceed 50MA) 3. VCCGND main power supply (external DC\npower supply) 4. SC speed pulse signal output (only the interface is reserved,\nno technical support) 5. DIR direction control forward and reverse control\ninterface (low level is valid and can be connected to an external switch on\nthe ground) 6. STOP stop control interface (low level is valid and can be\nconnected to an external switch on the ground) 7. BRAKE brake control brake\ncontrol interface (high level is valid and can be connected to an external 5V\nswitch) 8. Speed ​​control speed control signal input (the integrated\npotentiometer on the board can also be connected to an external 0-5V analog\nPWM dual signal input for speed control) 9. HaHbHc+5VGND Hall signal power\nsupply input interface. Generally, motors with Hall have corresponding 5 wires\n; Note: 1. Since the forward and reverse rotation is a hard commutation\nwithout delay and the brake will have a great impact, these two functions\ncannot be operated when running at high voltage and full speed. Forced\noperation may damage the power tube and chip. The speed control throttle must\nbe reduced to below 50%. 2. The maximum voltage (60V) and maximum power (350W)\nmarked on this module are limit parameters under specific conditions. In\nactual application, a margin should be left for use Note: This driver is a DC\nthree-phase brushless control board. The motor needs Hall to work properly.\nOnly applicable to electrical angles of 120 degrees. If you are not clear\nabout the definition of the motor phase line and the Hall line, and it cannot\nwork properly after being connected, you can blindly connect according to the\nfollowing method and then slowly change the Hall line sequence. First, connect\nthe three phase lines of the motor to the phase line interface of the driver\nboard at will. There are five Hall lines on the motor. Three Hall signal lines\nare connected to the three Hall signal ports on the driver board at will. The\nother two Hall power supply lines must be connected correctly (the motherboard\nwill provide 5V power supply. One of the Hall lead wires we send is red 5V and\nthe other is black ground wire. You must find a way to connect it to the motor\nHall power supply line. Remember!!!) After checking that everything is\nconnected correctly, power on for low voltage (7-12V) and low current (1-3A)\npower-on debugging (if conditions permit, use constant DC power supply or low\npower power supply plus current limiting resistor, etc.), turn on the\npotentiometer on the board to adjust the speed throttle to about 20%. If the\nmotor does not rotate or there are other abnormal phenomena, immediately turn\noff the power, and then change the order of the three phase lines of the motor\n(because the phase line interface on our driver board is a terminal, it is\nmore convenient to connect and remove the wires, so I use the motor phase line\nto change the line sequence. If the motor phase line is fixed, the principle\nof changing the three Hall signal line sequence is the same. It depends on\npersonal preference). Until it can rotate smoothly after power is turned on,\nit means that the wiring is correct. There are 6 different combinations of\nline sequence change. I will list them below: If the order of the currently\nconnected phase lines is defined as ABC, it can be changed to ACB BAC BCA CAB\nCBA. Each time these combinations are changed, the machine is tested once.\nOnly 1 of these 6 combinations is correct. When the wiring is incorrect and\nthe operation is abnormal, do not test the machine with high current and high\nvoltage, otherwise there is a risk of damaging the driver board. After the\nthree motor phase lines are swapped, if the line sequence is correct, the\nmotor will run as smooth as silk after power on, start smoothly at low speed,\nand have high torque; if the three motor phase lines are not connected in the\nright order, generally there are 1. After power on, the motor cannot start\nnormally and has no response, or it only shakes when starting and cannot\nrotate normally. 2. There is a slight shake, it is difficult to start, it\ncannot turn, and it makes a slight sound. Sometimes it needs to be manually\nturned to turn. 3. The motor can turn in one direction, but not in the other\ndirection, and there is some slight sound. 4. The motor starts with a large\nshake and is weak, there is a sound, and the current is obviously too large.\nThe power tube is obviously heated and serious Product Name: 400W Brushless\nHall DC Motor Driver Model: ZS-X11HV2 Working voltage: 6-60V (limit 60V\nallowance) Working current: rated 16A peak 20A Power: Rated 200-400W peak 400W\n(enhanced heat dissipation when using high power with margin) Overcurrent\nprotection: Yes Product size: length 63MM width 45MM height 31MM Weight:\nabout 70.60g 1. There is no fuse in the power supply circuit on the main\nboard, and it is recommended to add it by itself. The positive and negative\nelectrodes of the power supply will be connected to the reverse part of the\nboard The chip is permanently damaged (even a few seconds at high current) 2.\nDuring normal operation, the output end of the motor has sampling overcurrent\nprotection. Since the power current of the module is very large, please do not\nArtificial short circuit when the module is not working properly Each, once\nthe short circuit has the possibility of burning the line and bursting, the\nfirst wiring test Please test the machine with small current and low voltage.\nAfter ok, turn on large current and high voltage. Because it is a bare board\nmodule for sale Pay attention to the insulation of the wiring head, and it is\nstrictly forbidden for strong voltage to touch the parts on the board. 3. Do\nnot connect motors that obviously do not match the voltage, current and power\nof the drive module or are far apart, avoid Inexplicable \"nonsensical\" damage\n4. After receiving the goods, if you are unclear about the wiring and use,\nplease contact us as soon as possible, even if If there is a problem with the\nuse of the product, it can also be properly handled through friendly\nnegotiation.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMotor controller parametersthree-phase DC brushless motor control board power 400W, wide voltage 6-60V, DC three-phase brushless Hall controller supports PLC, 0-5V touch volume control, supports PWM control, amplitude 2.5-5 V, this driver is only suitable for DC brushless Hall motor 120 degrees angle\u003c\/li\u003e\n \u003cli\u003eDC motor governorMA MB MC phase line output motor. 5V GND main board comes with 5V power supply. VCC GND main power supply. SC speed pulse signal output. DIR direction control forward\/backward control interface. STOP stop control interface. BRAKE brake control indication brake control port. Speed control input speed control signal.\u003c\/li\u003e\n \u003cli\u003eMotor governorBrushless motors generally also have five Hall wires or interfaces. Two of them are Hall power cables and three are Hall signal wires to distinguish the Hall power cord in particular. The three Hall signal wires are generally marked with a b c, and the driver board also has three ports of ha Hb Hc and other similar characters, which are connected accordingly, and have overcurrent, forward\/reverse\/stop\/brake functions\u003c\/li\u003e\n \u003cli\u003eNoteSince there is no fuse in the power supply circuit of the main board, it needs to be added by yourself. Otherwise, human error will cause product damage. The wiring tester will conduct a low current and low voltage test first, and then a high current and high voltage test after success. For bare board modules, pay attention to the insulation of the wires when wiring, and do not let strong voltages contact the board.\u003c\/li\u003e\n \u003cli\u003eWide application and serviceThe application scenarios of brushless motors are very wide, such as electric vehicles, drones, fans, blowers, smoke machines, etc. If you encounter any problems, please contact us, we are online 24 hours a day, we will give you a perfect solution!\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-10T02:38:10+10:00","created_at":"2025-07-10T02:38:06+10:00","vendor":"Ransanx","type":"Motor Speed Controllers","tags":["industrial_best_sellers_Jun2025"],"price":18300,"price_min":18300,"price_max":18300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43977441018036,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0F1YGJ48F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function","public_title":null,"options":["Default Title"],"price":18300,"weight":181,"compare_at_price":null,"inventory_management":"shopify","barcode":"motor speed controller","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0F1YGJ48F.jpg?v=1775760801","\/\/auspowers.com\/cdn\/shop\/files\/71ep_k0AooL.jpg?v=1752079088","\/\/auspowers.com\/cdn\/shop\/files\/81e1E3WLefL.jpg?v=1752079089","\/\/auspowers.com\/cdn\/shop\/files\/51BZ0Zx0jgL.jpg?v=1752079088","\/\/auspowers.com\/cdn\/shop\/files\/71UPctZpvhL.jpg?v=1752079088","\/\/auspowers.com\/cdn\/shop\/files\/71oJVZlfszL.jpg?v=1752079088","\/\/auspowers.com\/cdn\/shop\/files\/71uEcnRZhdL.jpg?v=1752079088","\/\/auspowers.com\/cdn\/shop\/files\/71t9khWUk_L.jpg?v=1752079089"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0F1YGJ48F.jpg?v=1775760801","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058213556,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0F1YGJ48F.jpg?v=1775760801"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0F1YGJ48F.jpg?v=1775760801","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058246324,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ep_k0AooL.jpg?v=1752079088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ep_k0AooL.jpg?v=1752079088","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058279092,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81e1E3WLefL.jpg?v=1752079089"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81e1E3WLefL.jpg?v=1752079089","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058311860,"position":4,"preview_image":{"aspect_ratio":1.144,"height":570,"width":652,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51BZ0Zx0jgL.jpg?v=1752079088"},"aspect_ratio":1.144,"height":570,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51BZ0Zx0jgL.jpg?v=1752079088","width":652},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058344628,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71UPctZpvhL.jpg?v=1752079088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71UPctZpvhL.jpg?v=1752079088","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058377396,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71oJVZlfszL.jpg?v=1752079088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71oJVZlfszL.jpg?v=1752079088","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058410164,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71uEcnRZhdL.jpg?v=1752079088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71uEcnRZhdL.jpg?v=1752079088","width":1600},{"alt":"[Australia - AusPower] - 2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function ","id":31814058442932,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71t9khWUk_L.jpg?v=1752079089"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71t9khWUk_L.jpg?v=1752079089","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2PCS 6-60V 400W DC Three-Phase Brushless Motor Speed Controller with Hall ，PWM Motor Control Driver Board 12V 24V 48V with Forward\/Reverse\/Stop\/Brake Function\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHow to set the tachometer: 1. Select \"1\" for mode 2. Set the frequency\ndivision value to the motor \"pole pair number\" 3. If the pole pair number is\n2, set the frequency division value to 6 (23=6) Special instructions for\nexternal signal input: 1. When external PWM signal input is connected from the\nPG2 ports of the mainboard (the built-in potentiometer on the board is\nadjusted to the minimum, and the short interface on the board is short-\ncircuited for wiring as shown in the figure above), the amplitude is 2.5-5V,\nand the frequency is 50HZ-20KHZ 2. When external analog 0-5V input is\nconnected, input from the 2 wiring terminals of the mainboard (the built-in\npotentiometer on the board is adjusted to the minimum, and the wiring is shown\nin the dotted line in the figure above) 3. When the external potentiometer is\nused for speed adjustment, connect the corresponding 3 wiring terminals of the\nmainboard (the potentiometer on the board is adjusted to the minimum, and the\nwiring is shown in the potentiometer diagram in the figure above) 4. Forward,\nreverse and stop are connected to ground (0 potential) through a switch, and\nlow level is effective, and the external MCU can also give a low level signal.\nThe brake is connected through a switch connected to 5V high level valid. The\nfront row of wiring terminals are all weak current signals directly input to\nthe MCU main control. They must not touch or come into contact with high\nvoltage and strong current. 1. MAMBMC phase line output connects to the motor;\n2. 5VGND The motherboard comes with a 5V power supply (the external power\nsupply current does not exceed 50MA) 3. VCCGND main power supply (external DC\npower supply) 4. SC speed pulse signal output (only the interface is reserved,\nno technical support) 5. DIR direction control forward and reverse control\ninterface (low level is valid and can be connected to an external switch on\nthe ground) 6. STOP stop control interface (low level is valid and can be\nconnected to an external switch on the ground) 7. BRAKE brake control brake\ncontrol interface (high level is valid and can be connected to an external 5V\nswitch) 8. Speed ​​control speed control signal input (the integrated\npotentiometer on the board can also be connected to an external 0-5V analog\nPWM dual signal input for speed control) 9. HaHbHc+5VGND Hall signal power\nsupply input interface. Generally, motors with Hall have corresponding 5 wires\n; Note: 1. Since the forward and reverse rotation is a hard commutation\nwithout delay and the brake will have a great impact, these two functions\ncannot be operated when running at high voltage and full speed. Forced\noperation may damage the power tube and chip. The speed control throttle must\nbe reduced to below 50%. 2. The maximum voltage (60V) and maximum power (350W)\nmarked on this module are limit parameters under specific conditions. In\nactual application, a margin should be left for use Note: This driver is a DC\nthree-phase brushless control board. The motor needs Hall to work properly.\nOnly applicable to electrical angles of 120 degrees. If you are not clear\nabout the definition of the motor phase line and the Hall line, and it cannot\nwork properly after being connected, you can blindly connect according to the\nfollowing method and then slowly change the Hall line sequence. First, connect\nthe three phase lines of the motor to the phase line interface of the driver\nboard at will. There are five Hall lines on the motor. Three Hall signal lines\nare connected to the three Hall signal ports on the driver board at will. The\nother two Hall power supply lines must be connected correctly (the motherboard\nwill provide 5V power supply. One of the Hall lead wires we send is red 5V and\nthe other is black ground wire. You must find a way to connect it to the motor\nHall power supply line. Remember!!!) After checking that everything is\nconnected correctly, power on for low voltage (7-12V) and low current (1-3A)\npower-on debugging (if conditions permit, use constant DC power supply or low\npower power supply plus current limiting resistor, etc.), turn on the\npotentiometer on the board to adjust the speed throttle to about 20%. If the\nmotor does not rotate or there are other abnormal phenomena, immediately turn\noff the power, and then change the order of the three phase lines of the motor\n(because the phase line interface on our driver board is a terminal, it is\nmore convenient to connect and remove the wires, so I use the motor phase line\nto change the line sequence. If the motor phase line is fixed, the principle\nof changing the three Hall signal line sequence is the same. It depends on\npersonal preference). Until it can rotate smoothly after power is turned on,\nit means that the wiring is correct. There are 6 different combinations of\nline sequence change. I will list them below: If the order of the currently\nconnected phase lines is defined as ABC, it can be changed to ACB BAC BCA CAB\nCBA. Each time these combinations are changed, the machine is tested once.\nOnly 1 of these 6 combinations is correct. When the wiring is incorrect and\nthe operation is abnormal, do not test the machine with high current and high\nvoltage, otherwise there is a risk of damaging the driver board. After the\nthree motor phase lines are swapped, if the line sequence is correct, the\nmotor will run as smooth as silk after power on, start smoothly at low speed,\nand have high torque; if the three motor phase lines are not connected in the\nright order, generally there are 1. After power on, the motor cannot start\nnormally and has no response, or it only shakes when starting and cannot\nrotate normally. 2. There is a slight shake, it is difficult to start, it\ncannot turn, and it makes a slight sound. Sometimes it needs to be manually\nturned to turn. 3. The motor can turn in one direction, but not in the other\ndirection, and there is some slight sound. 4. The motor starts with a large\nshake and is weak, there is a sound, and the current is obviously too large.\nThe power tube is obviously heated and serious Product Name: 400W Brushless\nHall DC Motor Driver Model: ZS-X11HV2 Working voltage: 6-60V (limit 60V\nallowance) Working current: rated 16A peak 20A Power: Rated 200-400W peak 400W\n(enhanced heat dissipation when using high power with margin) Overcurrent\nprotection: Yes Product size: length 63MM width 45MM height 31MM Weight:\nabout 70.60g 1. There is no fuse in the power supply circuit on the main\nboard, and it is recommended to add it by itself. The positive and negative\nelectrodes of the power supply will be connected to the reverse part of the\nboard The chip is permanently damaged (even a few seconds at high current) 2.\nDuring normal operation, the output end of the motor has sampling overcurrent\nprotection. Since the power current of the module is very large, please do not\nArtificial short circuit when the module is not working properly Each, once\nthe short circuit has the possibility of burning the line and bursting, the\nfirst wiring test Please test the machine with small current and low voltage.\nAfter ok, turn on large current and high voltage. Because it is a bare board\nmodule for sale Pay attention to the insulation of the wiring head, and it is\nstrictly forbidden for strong voltage to touch the parts on the board. 3. Do\nnot connect motors that obviously do not match the voltage, current and power\nof the drive module or are far apart, avoid Inexplicable \"nonsensical\" damage\n4. After receiving the goods, if you are unclear about the wiring and use,\nplease contact us as soon as possible, even if If there is a problem with the\nuse of the product, it can also be properly handled through friendly\nnegotiation.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMotor controller parametersthree-phase DC brushless motor control board power 400W, wide voltage 6-60V, DC three-phase brushless Hall controller supports PLC, 0-5V touch volume control, supports PWM control, amplitude 2.5-5 V, this driver is only suitable for DC brushless Hall motor 120 degrees angle\u003c\/li\u003e\n \u003cli\u003eDC motor governorMA MB MC phase line output motor. 5V GND main board comes with 5V power supply. VCC GND main power supply. SC speed pulse signal output. DIR direction control forward\/backward control interface. STOP stop control interface. BRAKE brake control indication brake control port. Speed control input speed control signal.\u003c\/li\u003e\n \u003cli\u003eMotor governorBrushless motors generally also have five Hall wires or interfaces. Two of them are Hall power cables and three are Hall signal wires to distinguish the Hall power cord in particular. The three Hall signal wires are generally marked with a b c, and the driver board also has three ports of ha Hb Hc and other similar characters, which are connected accordingly, and have overcurrent, forward\/reverse\/stop\/brake functions\u003c\/li\u003e\n \u003cli\u003eNoteSince there is no fuse in the power supply circuit of the main board, it needs to be added by yourself. Otherwise, human error will cause product damage. The wiring tester will conduct a low current and low voltage test first, and then a high current and high voltage test after success. For bare board modules, pay attention to the insulation of the wires when wiring, and do not let strong voltages contact the board.\u003c\/li\u003e\n \u003cli\u003eWide application and serviceThe application scenarios of brushless motors are very wide, such as electric vehicles, drones, fans, blowers, smoke machines, etc. If you encounter any problems, please contact us, we are online 24 hours a day, we will give you a perfect solution!\u003c\/li\u003e\n \u003c\/ul\u003e"}
