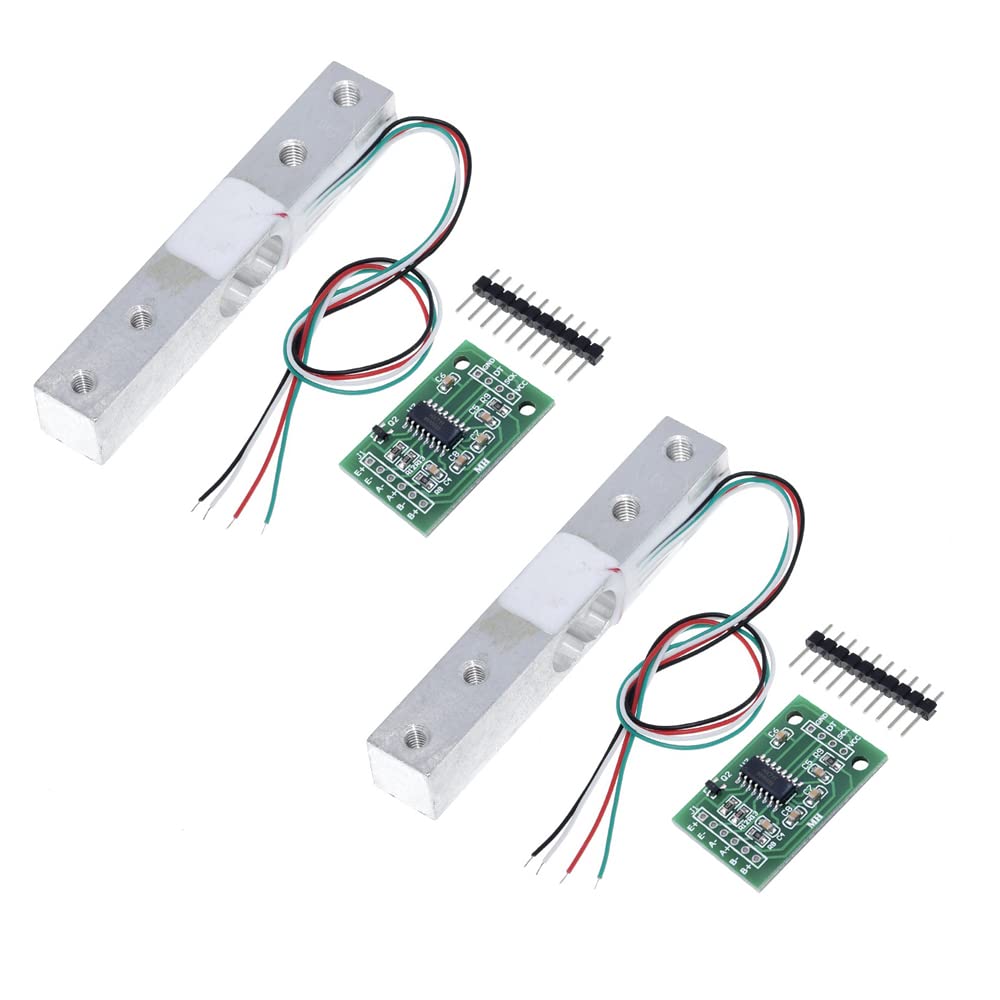

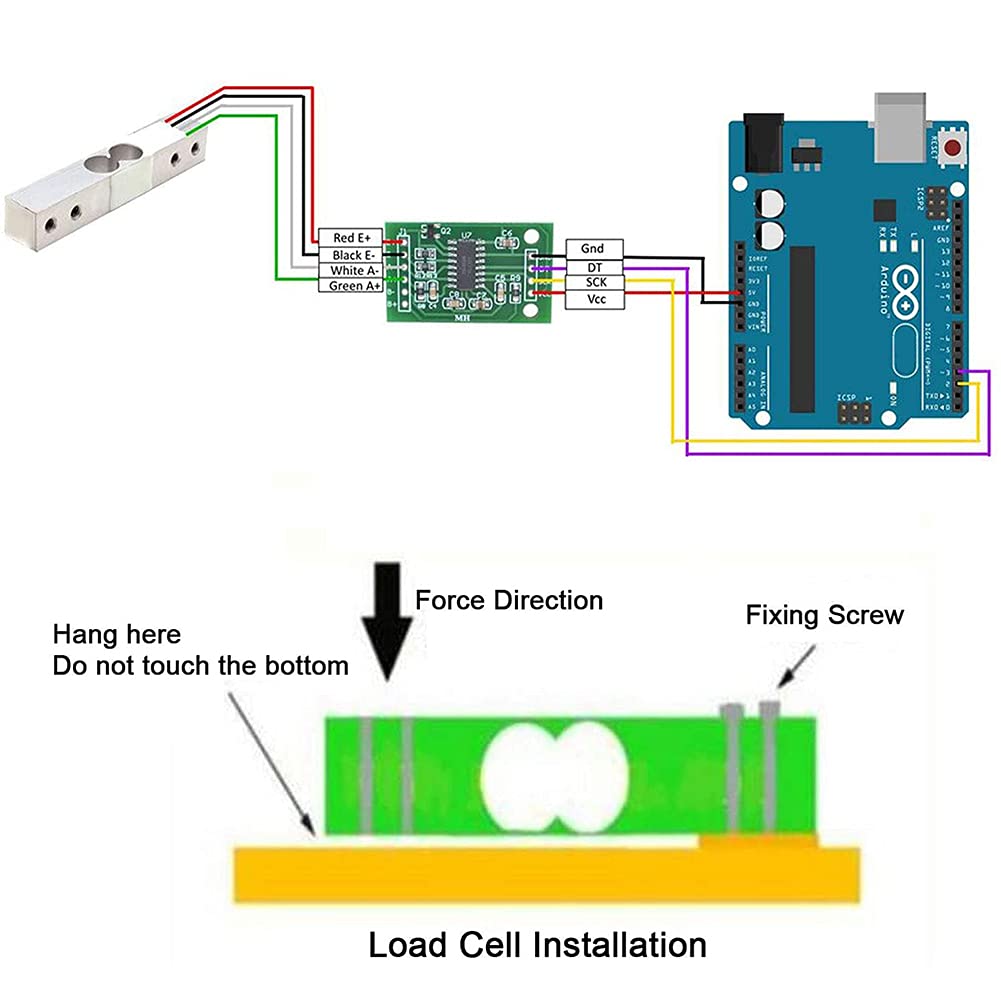

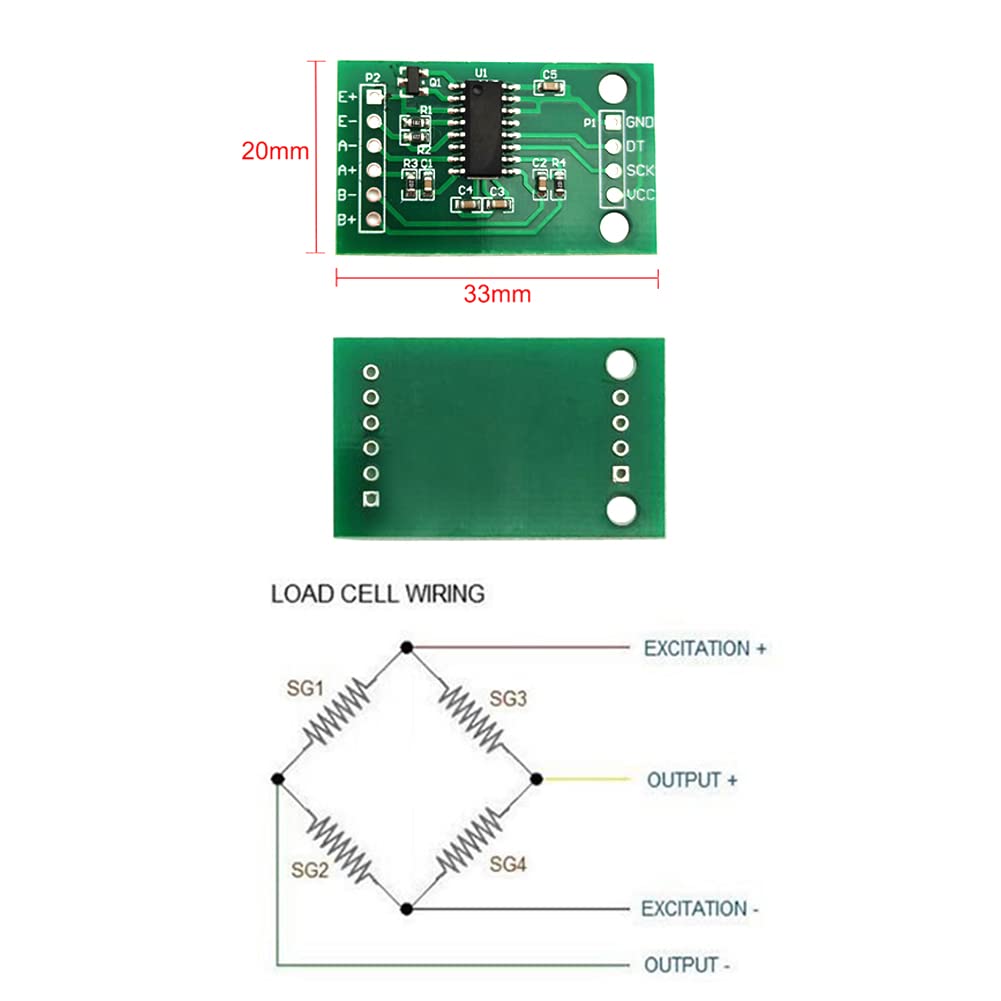

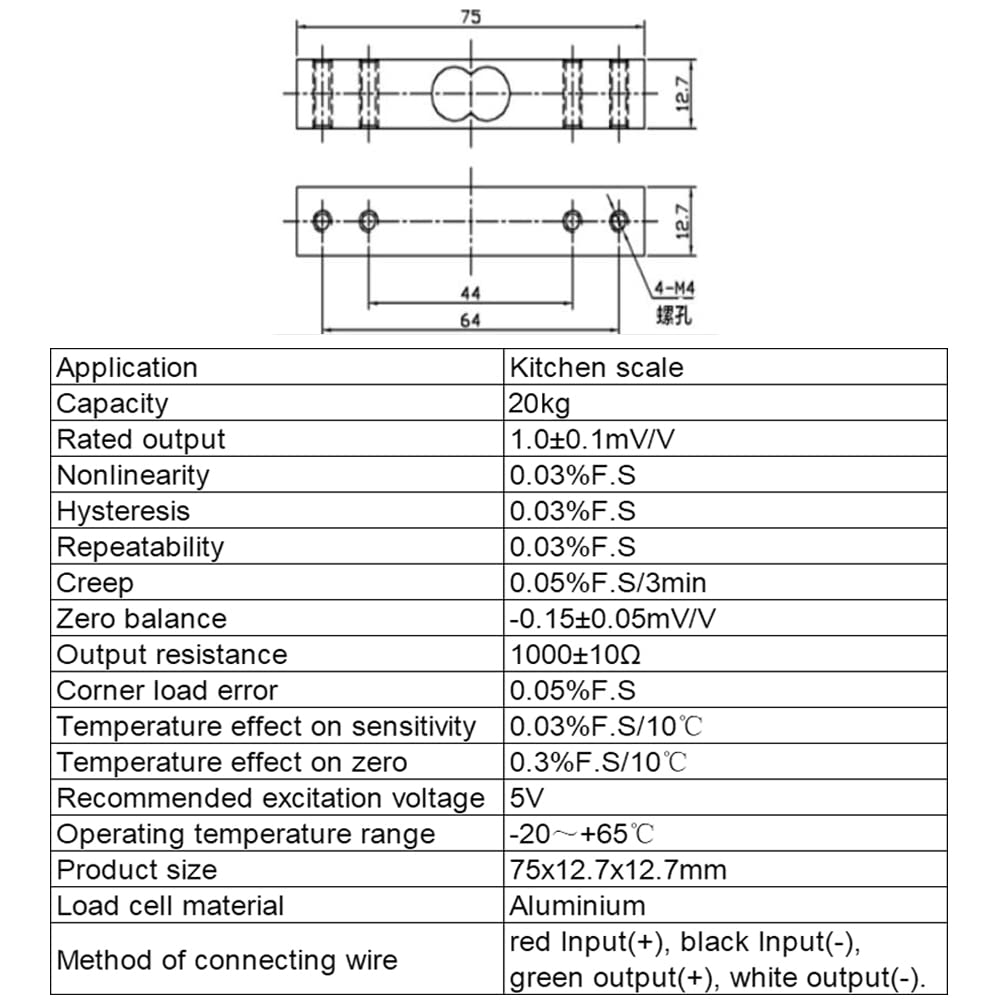

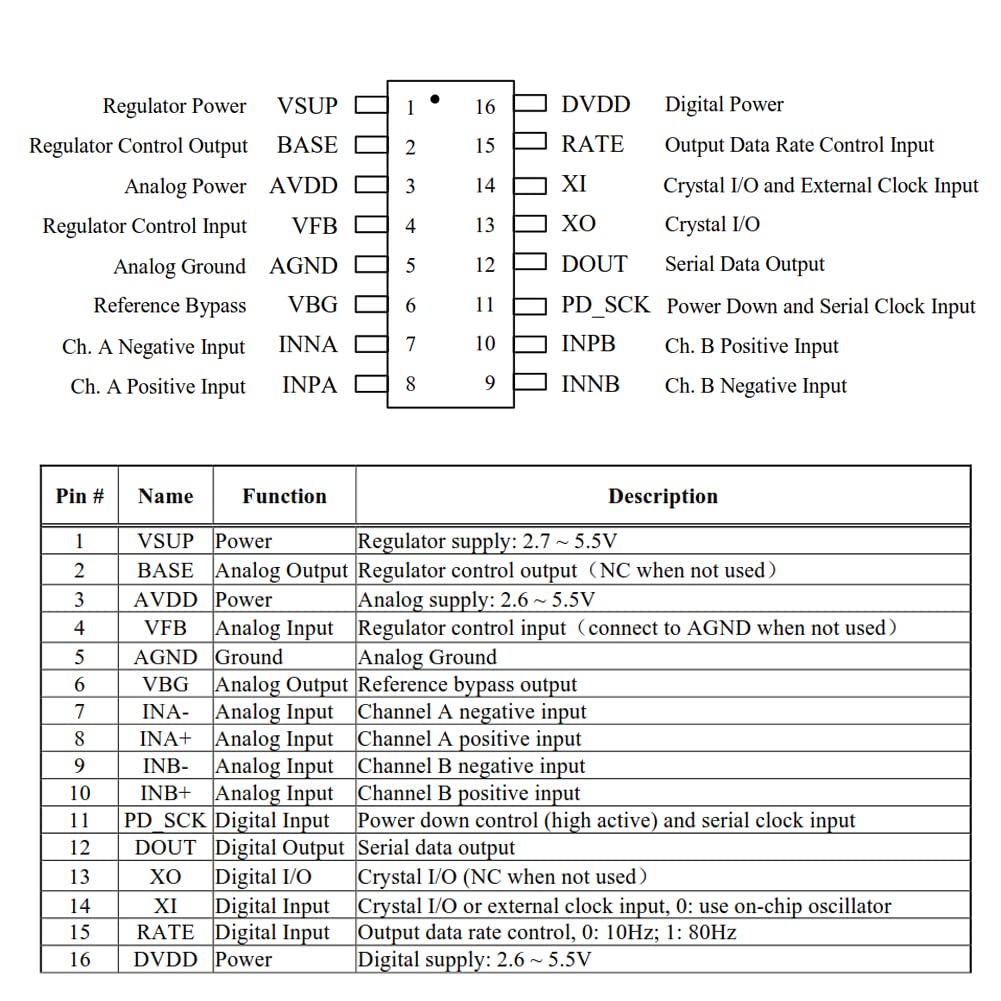

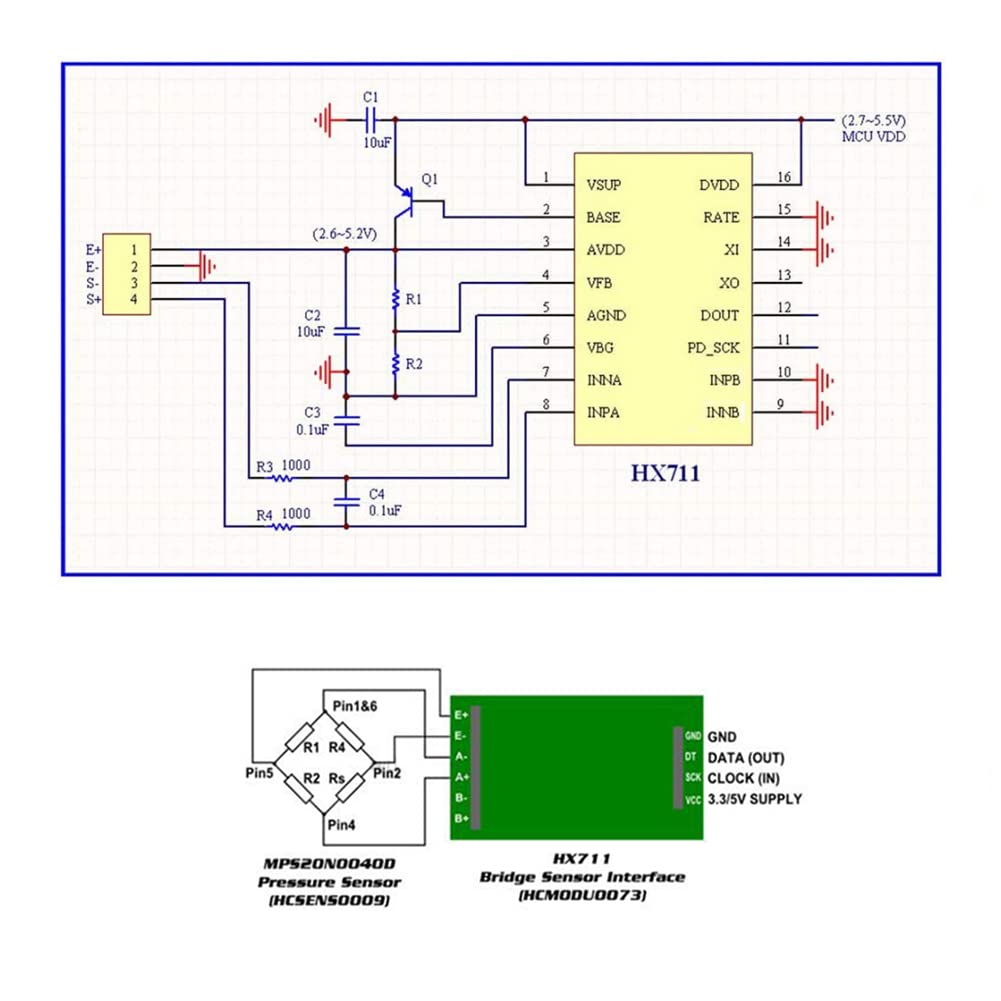

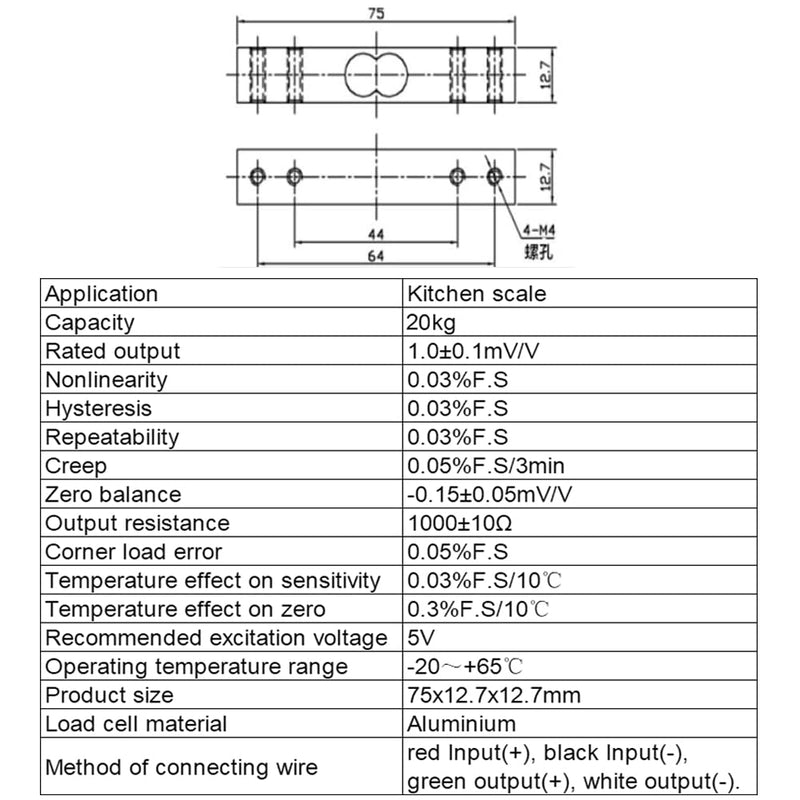

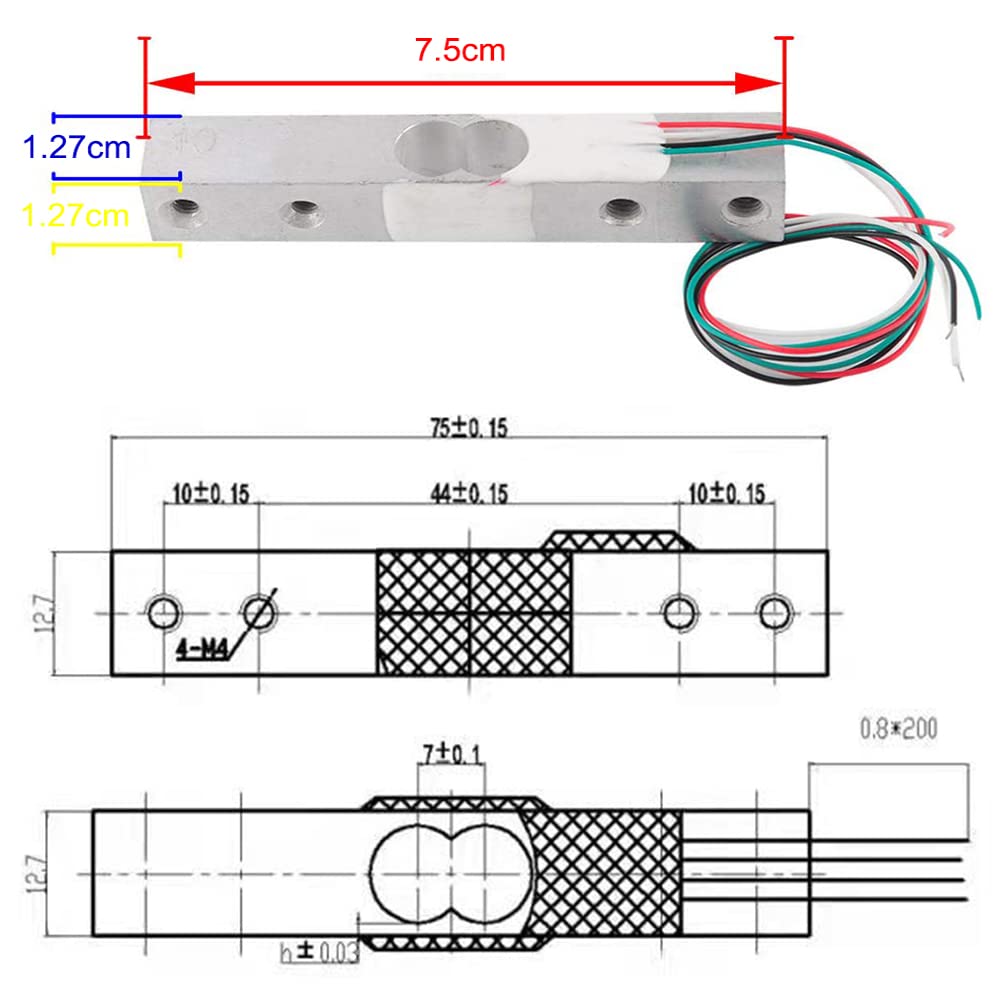

{"id":8034665431220,"title":"20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor","handle":"20kg-load-cell-weighing-sensor-portable-electronic-kitchen-scale-hx711-ad-weighit-amplifier-module-pressure-sensor","description":"\u003ch3\u003e20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e20kg Load Cell: 1. 4 leads, easy to use, plus 5-10V drive voltage, direct\r\noutput as a voltage signal due to force changes. Works for arduino and\r\nraspberry pi. 2. One end of the sensor is fixed by the screw hole, the other\r\nend is kept in a floating state, and the gravity is applied in the direction\r\nindicated by the label. 3. Special attention must be paid not to directly\r\npress the white rubber part to avoid damage to the sensor. Connection: Red to\r\nE+ Black to E- Green to A+ White to A- HX711 AD Weight Module 1. The module\r\nuses 24 high-precision A\/D converter chip hx711, is designed for high-\r\nprecision electronic scale and design, with two analog input channels, the\r\ninternal programmable gain amplifier integrated multiplier 128. 2. The input\r\ncircuit can be configured to provide a bridge voltage electrical bridge (such\r\nas pressure, weight) sensor model is an ideal high-precision, low-cost\r\nsampling front-end module. 3. Operation supply voltage range: 2.6 - 5.5V,\r\nOperating Temperature Range:-20 degree to +85 degree. 4. Simple digital\r\ncontrol and serial interface: pin-driven controlsno programming needed. 5.\r\nSelectable 10SPS or 80SPS output data rate, Simultaneous 50 and 60Hz supply\r\nrejection. Package Included: 1 X 20kg Load Cell Weight Sensor 1 X HX711 AD\r\nModule\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe Load Cell maximum measures force: 20kg (44lb)\u003c\/li\u003e\r\n \u003cli\u003eYou need to connect load cell with HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-\u003c\/li\u003e\r\n \u003cli\u003eLoad Cell: 4 leads, easy to use, plus 5-10V drive voltage, direct output as a voltage signal due to force changes. Works for arduino and raspberry pi\u003c\/li\u003e\r\n \u003cli\u003eThis HX711 module uses 24 high precision A\/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier\u003c\/li\u003e\r\n \u003cli\u003eThe HX711 On-chip active low noise PGA with selectable gain of 3264 and 128\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-03-01T20:44:49+11:00","created_at":"2026-03-01T20:44:46+11:00","vendor":"ShangHJ","type":"Pressure Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":17300,"price_min":17300,"price_max":17300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154946355380,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B096FKK8KS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor","public_title":null,"options":["Default Title"],"price":17300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"736140514731","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B096FKK8KS.jpg?v=1775789419","\/\/auspowers.com\/cdn\/shop\/files\/61O5pps7OrL.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/61TbtNerQhL_a57dbe41-47f5-4cbf-8af3-d4b0d8b805be.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_9c4e4c39-db1f-49b6-96f1-8d8d0fd51e2f.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_0775cd95-f4b1-47e2-bce8-2f80aac864a7.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/51gmAfQleyL_d07e8b80-c90b-4c01-a6fe-041905c3810d.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/618GflD-qaL_0a246a74-1a19-4ab7-9eba-b75cca885987.jpg?v=1772358288","\/\/auspowers.com\/cdn\/shop\/files\/716dWlr5nvL_458d4f09-69f1-48e7-993b-41ef883b7136.jpg?v=1772358288"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B096FKK8KS.jpg?v=1775789419","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726805938356,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B096FKK8KS.jpg?v=1775789419"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B096FKK8KS.jpg?v=1775789419","width":1000},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726805971124,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61O5pps7OrL.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61O5pps7OrL.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806003892,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TbtNerQhL_a57dbe41-47f5-4cbf-8af3-d4b0d8b805be.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TbtNerQhL_a57dbe41-47f5-4cbf-8af3-d4b0d8b805be.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806036660,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_9c4e4c39-db1f-49b6-96f1-8d8d0fd51e2f.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_9c4e4c39-db1f-49b6-96f1-8d8d0fd51e2f.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806069428,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_0775cd95-f4b1-47e2-bce8-2f80aac864a7.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_0775cd95-f4b1-47e2-bce8-2f80aac864a7.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806102196,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51gmAfQleyL_d07e8b80-c90b-4c01-a6fe-041905c3810d.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51gmAfQleyL_d07e8b80-c90b-4c01-a6fe-041905c3810d.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806134964,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/618GflD-qaL_0a246a74-1a19-4ab7-9eba-b75cca885987.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/618GflD-qaL_0a246a74-1a19-4ab7-9eba-b75cca885987.jpg?v=1772358288","width":1001},{"alt":"[Australia - AusPower] - 20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor ","id":32726806167732,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/716dWlr5nvL_458d4f09-69f1-48e7-993b-41ef883b7136.jpg?v=1772358288"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/716dWlr5nvL_458d4f09-69f1-48e7-993b-41ef883b7136.jpg?v=1772358288","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e20kg Load Cell Weighing Sensor Portable Electronic Kitchen Scale + HX711 AD Weighit Amplifier Module Pressure Sensor\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e20kg Load Cell: 1. 4 leads, easy to use, plus 5-10V drive voltage, direct\r\noutput as a voltage signal due to force changes. Works for arduino and\r\nraspberry pi. 2. One end of the sensor is fixed by the screw hole, the other\r\nend is kept in a floating state, and the gravity is applied in the direction\r\nindicated by the label. 3. Special attention must be paid not to directly\r\npress the white rubber part to avoid damage to the sensor. Connection: Red to\r\nE+ Black to E- Green to A+ White to A- HX711 AD Weight Module 1. The module\r\nuses 24 high-precision A\/D converter chip hx711, is designed for high-\r\nprecision electronic scale and design, with two analog input channels, the\r\ninternal programmable gain amplifier integrated multiplier 128. 2. The input\r\ncircuit can be configured to provide a bridge voltage electrical bridge (such\r\nas pressure, weight) sensor model is an ideal high-precision, low-cost\r\nsampling front-end module. 3. Operation supply voltage range: 2.6 - 5.5V,\r\nOperating Temperature Range:-20 degree to +85 degree. 4. Simple digital\r\ncontrol and serial interface: pin-driven controlsno programming needed. 5.\r\nSelectable 10SPS or 80SPS output data rate, Simultaneous 50 and 60Hz supply\r\nrejection. Package Included: 1 X 20kg Load Cell Weight Sensor 1 X HX711 AD\r\nModule\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe Load Cell maximum measures force: 20kg (44lb)\u003c\/li\u003e\r\n \u003cli\u003eYou need to connect load cell with HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-\u003c\/li\u003e\r\n \u003cli\u003eLoad Cell: 4 leads, easy to use, plus 5-10V drive voltage, direct output as a voltage signal due to force changes. Works for arduino and raspberry pi\u003c\/li\u003e\r\n \u003cli\u003eThis HX711 module uses 24 high precision A\/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier\u003c\/li\u003e\r\n \u003cli\u003eThe HX711 On-chip active low noise PGA with selectable gain of 3264 and 128\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
