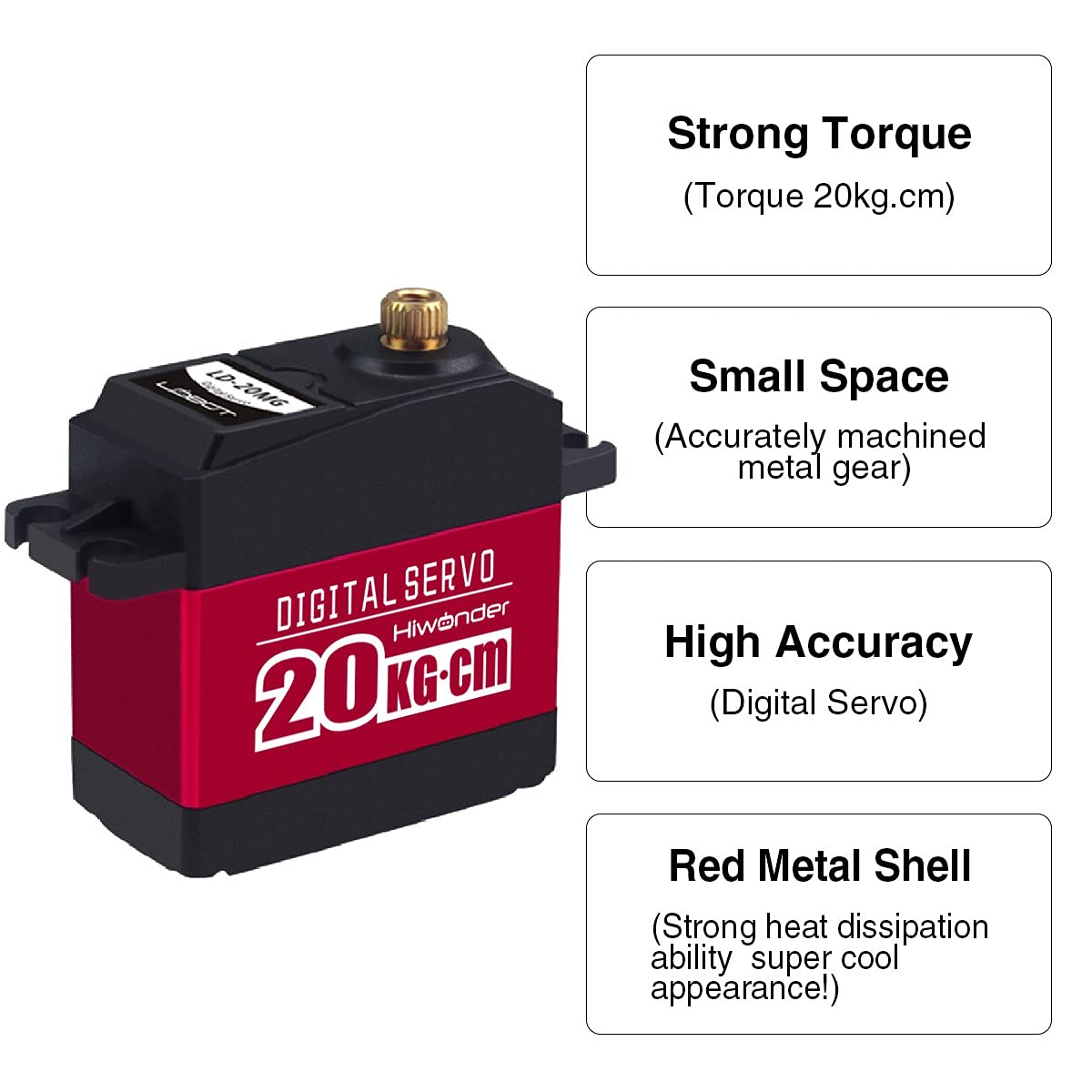

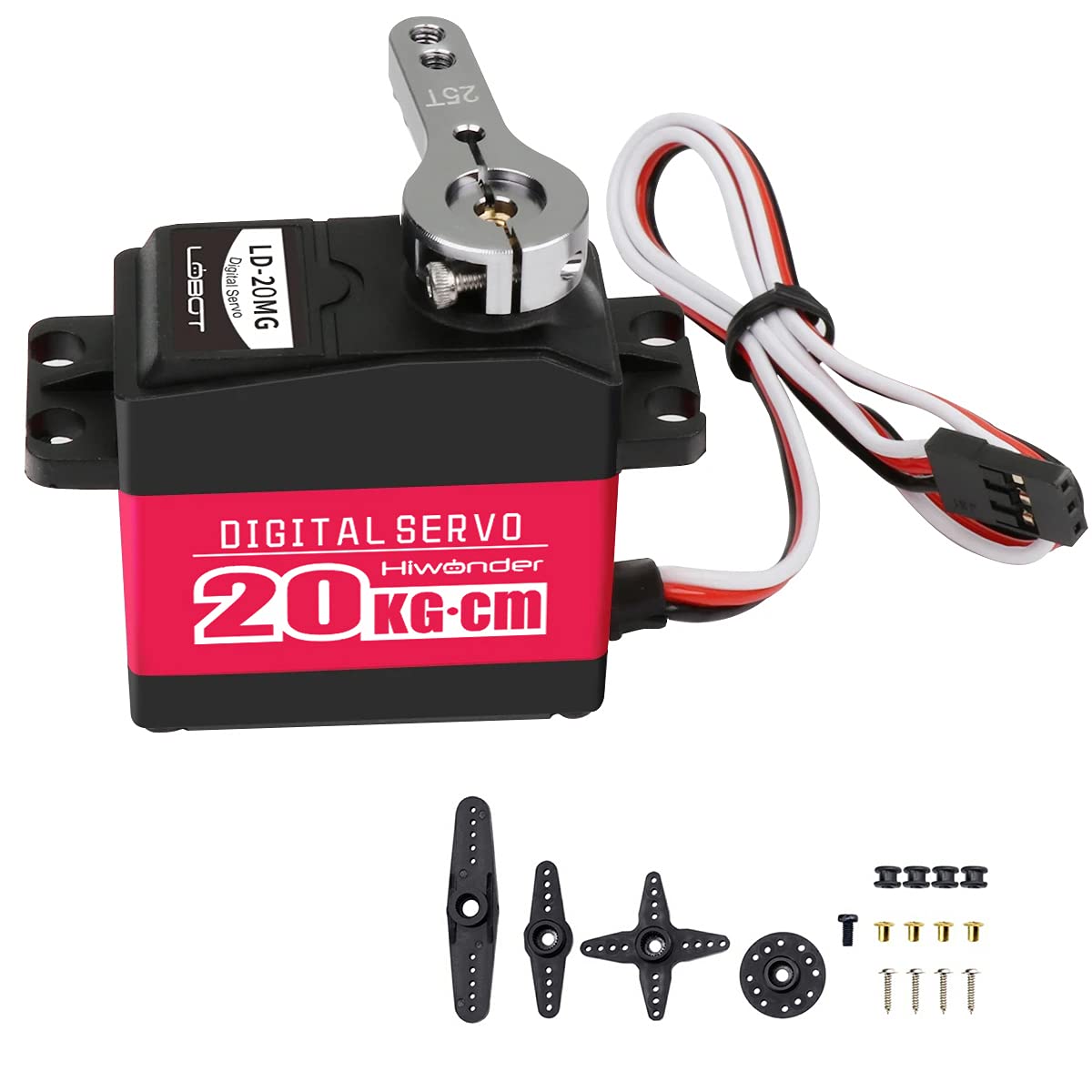

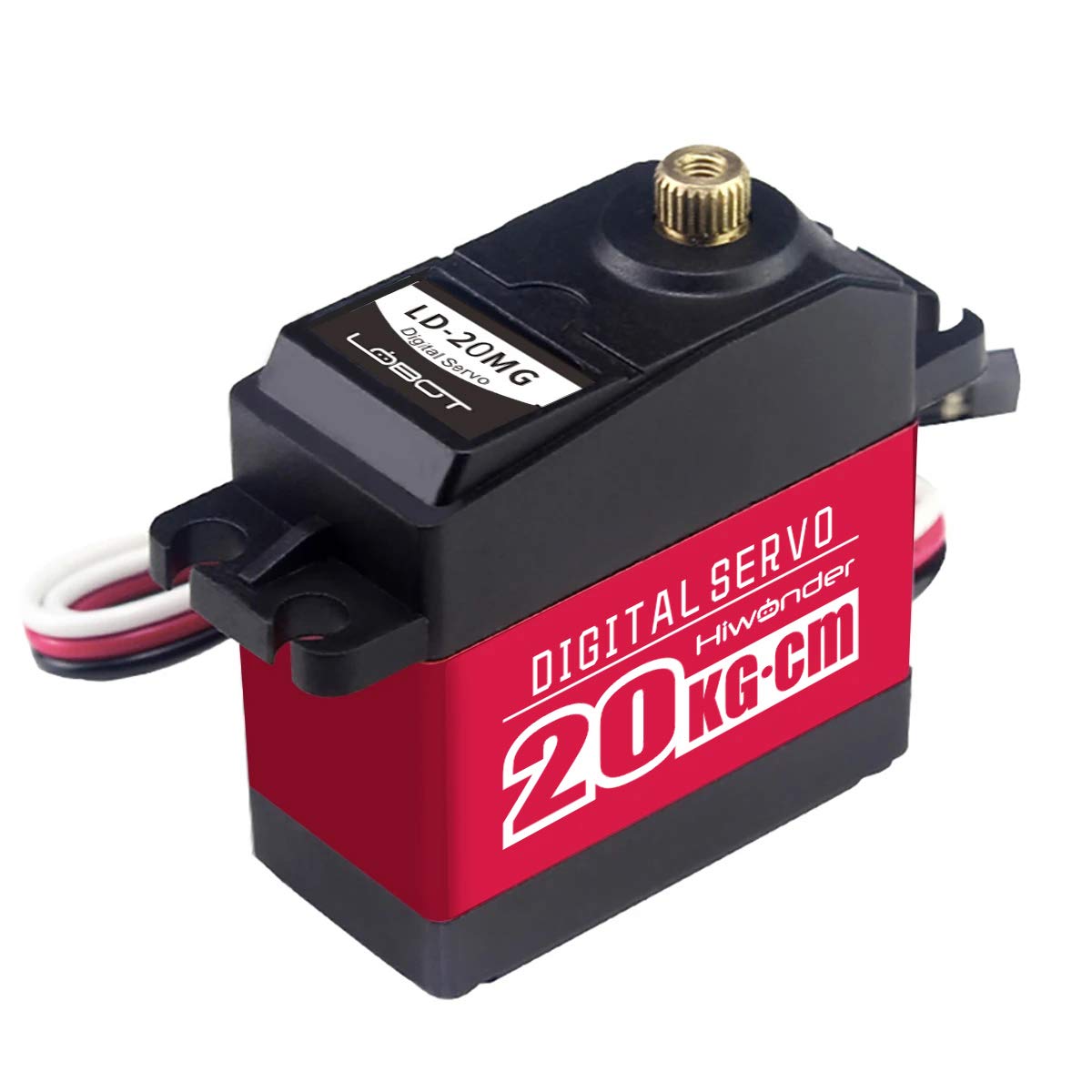

{"id":7312936304820,"title":"20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180)","handle":"20kg-digital-servo-full-metal-gear-high-torque-aluminium-case-waterproof-for-robot-diy-control-angle-180","description":"\u003ch3\u003e20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eStrong Torque 20kg.cm strong torque, the aluminium case\nenhances the heat dissipation and ensures the servo motor can work properly.\nHigh accuracy metal gear Full metal gear significantly improves servo’s\naccuracy and extend its service time. 180° Rotation Controllable angle range\nis 180 degrees, excellent linearity, accurate control. It can rotate 360\ndegrees after being powered off. Read more Product Parameter Model LD-20MG\nDigital Servo Weight 66g(2.32OZ) Dimension\n54.5mm20mm47.5mm(2.14inch0.78inch1.87 inch) Speed 0.20sec\/60°(7.4V) Torque\n20 kg·cm (277.6 oz·in) @7.4V Working Voltage 6-7.4V Min Working Current 1A No-\nload Current 100mA Spline 25T(6mm in diameter) Servo Wire 30cm(11.8inch) in\nlength Control Method PWM Pulse Width 500~2500us, to (0~180deg) Duty Ratio\n0.5ms~2.5ms Pulse Period 20ms Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e20kg large torque. 20 kgcm (277.6 ozin) @ 6.6V. Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)\u003c\/li\u003e\n \u003cli\u003eFully sealed waterproof rubber seal ring, can effectively resist moisture.\u003c\/li\u003e\n \u003cli\u003eUsing high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.\u003c\/li\u003e\n \u003cli\u003e180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off have been greatly improved! Accurate movement can satisfy the needs of making robots.\u003c\/li\u003e\n \u003cli\u003eAge: 14 years and up\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-11-11T05:21:29+11:00","created_at":"2022-11-11T05:21:35+11:00","vendor":"LewanSoul","type":"Servos","tags":["industrial"],"price":14100,"price_min":14100,"price_max":14100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42026224681140,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B073F92G2S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180)","public_title":null,"options":["Default Title"],"price":14100,"weight":98,"compare_at_price":null,"inventory_management":null,"barcode":"651519699249","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B073F92G2S.jpg?v=1668148578","\/\/auspowers.com\/cdn\/shop\/products\/61Xe5_E5ChL.jpg?v=1668104495","\/\/auspowers.com\/cdn\/shop\/products\/615xiazxFdL.jpg?v=1668104495","\/\/auspowers.com\/cdn\/shop\/products\/61L8a0LjaWL.jpg?v=1668104495","\/\/auspowers.com\/cdn\/shop\/products\/51UuJuCZTeL.jpg?v=1668104495"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B073F92G2S.jpg?v=1668148578","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180) ","id":27785075130548,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B073F92G2S.jpg?v=1668148578"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B073F92G2S.jpg?v=1668148578","width":1200},{"alt":"[Australia - AusPower] - 20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180) ","id":27781753209012,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Xe5_E5ChL.jpg?v=1668104495"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Xe5_E5ChL.jpg?v=1668104495","width":1200},{"alt":"[Australia - AusPower] - 20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180) ","id":27781753241780,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/615xiazxFdL.jpg?v=1668104495"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/615xiazxFdL.jpg?v=1668104495","width":1200},{"alt":"[Australia - AusPower] - 20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180) ","id":27781753274548,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61L8a0LjaWL.jpg?v=1668104495"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61L8a0LjaWL.jpg?v=1668104495","width":1200},{"alt":"[Australia - AusPower] - 20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180) ","id":27781753307316,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51UuJuCZTeL.jpg?v=1668104495"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51UuJuCZTeL.jpg?v=1668104495","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e20KG Digital Servo Full Metal Gear High Torque, Aluminium Case Waterproof for Robot DIY (Control Angle 180)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eStrong Torque 20kg.cm strong torque, the aluminium case\nenhances the heat dissipation and ensures the servo motor can work properly.\nHigh accuracy metal gear Full metal gear significantly improves servo’s\naccuracy and extend its service time. 180° Rotation Controllable angle range\nis 180 degrees, excellent linearity, accurate control. It can rotate 360\ndegrees after being powered off. Read more Product Parameter Model LD-20MG\nDigital Servo Weight 66g(2.32OZ) Dimension\n54.5mm20mm47.5mm(2.14inch0.78inch1.87 inch) Speed 0.20sec\/60°(7.4V) Torque\n20 kg·cm (277.6 oz·in) @7.4V Working Voltage 6-7.4V Min Working Current 1A No-\nload Current 100mA Spline 25T(6mm in diameter) Servo Wire 30cm(11.8inch) in\nlength Control Method PWM Pulse Width 500~2500us, to (0~180deg) Duty Ratio\n0.5ms~2.5ms Pulse Period 20ms Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e20kg large torque. 20 kgcm (277.6 ozin) @ 6.6V. Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)\u003c\/li\u003e\n \u003cli\u003eFully sealed waterproof rubber seal ring, can effectively resist moisture.\u003c\/li\u003e\n \u003cli\u003eUsing high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.\u003c\/li\u003e\n \u003cli\u003e180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off have been greatly improved! Accurate movement can satisfy the needs of making robots.\u003c\/li\u003e\n \u003cli\u003eAge: 14 years and up\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
