2 x VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm VL53L0X V2 Laser Distance Module I2C IIC (Black) black
2 x VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm VL53L0X V2 Laser Distance Module I2C IIC (Black)

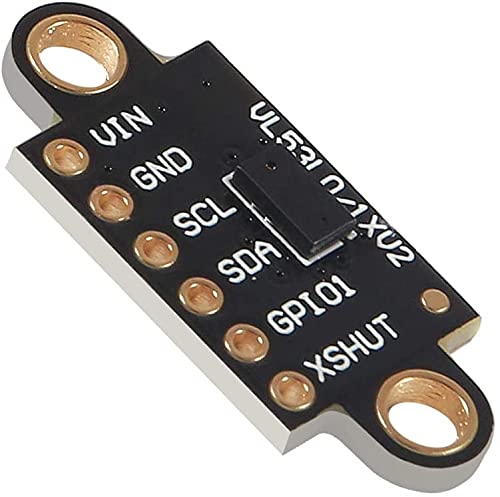

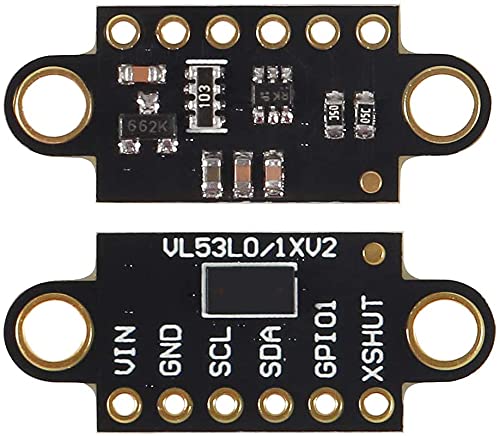

The accuracy of the sensor is in the range of ± 3% in the best case to over ± 10% in less optimal conditions. Range measurements are available via the I2C (TWI) interface of the sensor, which also configures sensor settings. The sensor has two additional pins: a shut-off input and an interrupt output. It also works with a recommended voltage of 2.8V, which can make connecting 3.3V or 5V microcontrollers more difficult. Our breakout card fixes these issues and makes it easier to get into the sensor while keeping the overall size small. as possible. Pin description: VDD regulated 2.8V output. Almost 150 milliamps are available for powering external components. (If you want to bypass the internal regulator, you can use this pin as a 2.8V input with separate VIN instead.) VIN This is the main connector for power supply from 2.6V to 5.5V. The SCL and SDA level sliders pull up the I2C lines to this level. GND The ground connection (0 V) for your power supply. Your I2C control source must also have a common ground with this board. SDA level shifted I2C data line: high is VIN, low is 0 V. SCL level shifted I2C clock line: high is VIN, low is 0 V. XSHUT This pin is an active low shutdown input; the board pulls it to VDD to activate the sensor by default. If you set this pin to low, the sensor will enter hardware standby mode. This input is not level shifted. Package includes: 2 x GY-VL53L0XV2V L53L0X Flight Time Distance Sensor
Product Features
- The VL53L0X is a time-of-flight ranking system integrated into a compact module.
- The VL53L0 can be considered a small, closed lidar system
- This time-of-flight (TOF) allows you to accurately determine the absolute distance to a target without the reflectivity of the object greatly affecting the measurement.
- The sensor can report distances of up to 2 m with a resolution of 1 mm.
- Range measurements are available via the I2C (TWI) interface of the sensor, which also configures sensor settings.
