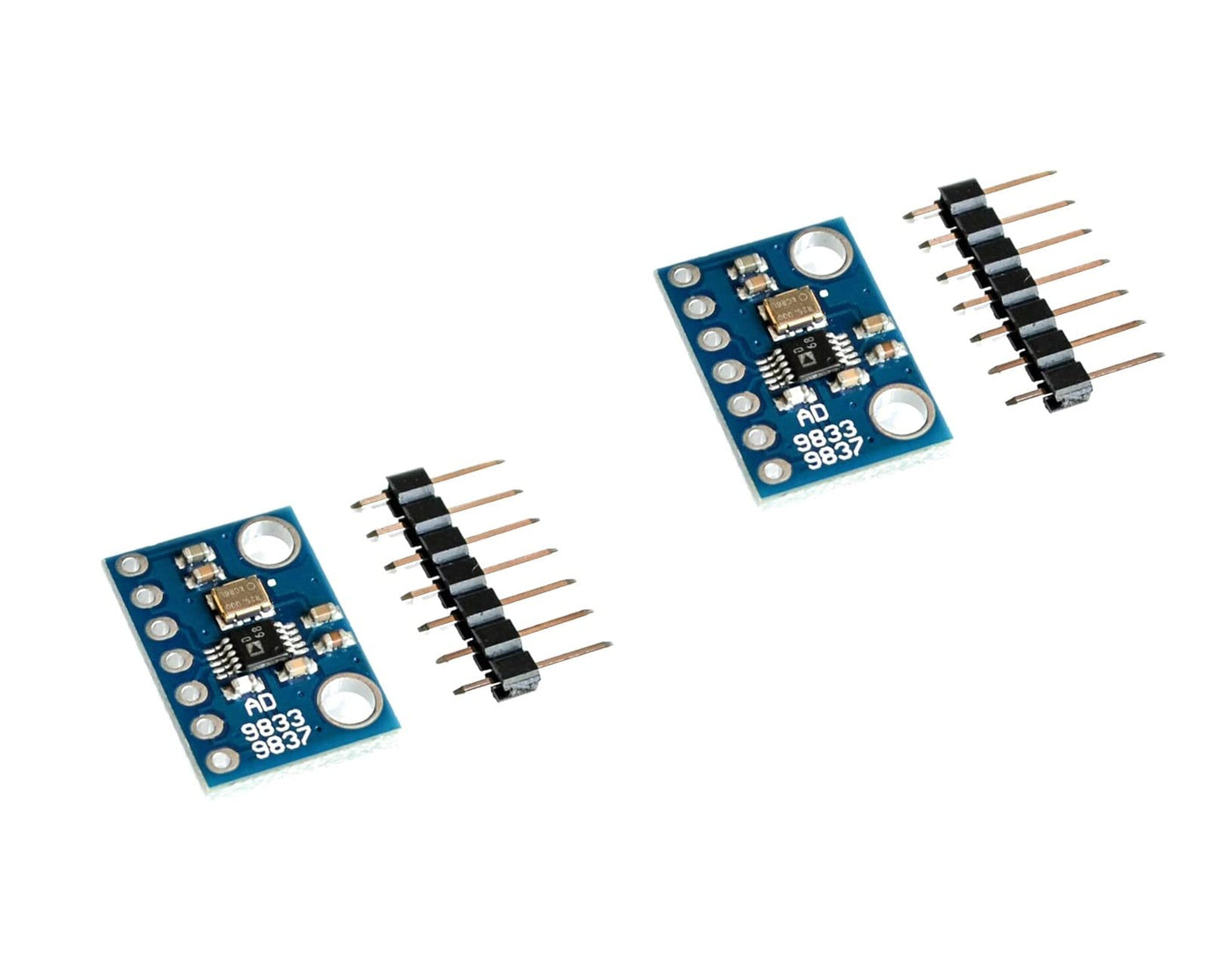

{"id":8115421708468,"title":"2 x AD9833 Programmable Microprocessors Serial Interface Sine Square Wave DDS","handle":"2-x-ad9833-programmable-microprocessors-serial-interface-sine-square-wave-dds","description":"\u003ch3\u003e2 x AD9833 Programmable Microprocessors Serial Interface Sine Square Wave DDS\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eX2pcs AD9833 Programmable Microprocessor, Serial Interface Sine Square Wave\nDDS Signal Generator The AD9833 is a low power, programmable waveform\ngenerator capable of producing sine, triangular, and square wave outputs.\nWaveform generation is required in various types of sensing, actuation, and\ntime domain reflective (TDR) applications. The output frequency and phase are\nprogrammable software, allowing easy tuning. No external components are\nneeded. The frequency registers are 28 bit wide: with a 25 MHz clock rate,\nresolution of 0.1 Hz can be nachieved; with a 1 MHz clock rate, the AD9833 can\nbe tuned to 0.004 Hz resolution. The AD9833 has a standard serial interface,\nwhich allows the part to interface directly with several microprocessors. The\ndevice use a external serial clock to write the data or control information\ninto the device. Features: Digitally programmable frequency and phase 12.65 mW\npower consumption at 3 V. 0 MHz to 12.5 MHz output frequency. 28-bit\nresolution: 0.1 Hz at 25 MHz reference clock. Sine, triangular, and square\nwave outputs 2.3 V to 5.5 V power supply No external components required\n3-wire SPI interface Extended temperature range: 40 to +105 degrees Power-down\noption Update rate: 25 (max). VOUT maximum: 0.65 V. VOUT minimum: 38 mV. VOUT\ntemperature coefficient: 200 degrees. Input voltage: 1.7-2.8V Input voltage:\n0.5-0.7V Input current: 10µA. Input power: 3pF. Operating temperature range is\n40 to +105 degrees; typical specifications at 25 degrees Size: 17mm x 12mm\nPackage includes: 2 x AD9833 Sine Square Wave DDS Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAD9833: The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, acation, and time domain reflectometry (TDR) applications.\u003c\/li\u003e\n \u003cli\u003eCompact design: the output frequency and phase are programmable software, allowing easy tuning. No external components are needed. The frequency registers are 28 bit wide: with a 25 MHz clockrate, resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution.\u003c\/li\u003e\n \u003cli\u003eHigh performance: The AD9833 has a standard serial interface that allows the part to directly with several microprocessors. The device use a external serial clock to write the data or control information into the device.\u003c\/li\u003e\n \u003cli\u003eApplications: The AD9833WBRMZ-REEL model is available with controlled manufacturing to support the quality and reliability of automotive applications. Please note that this automotive model is specially designed for the commercial models; therefore, designers should review the specifications section of this data sheet carefully.\u003c\/li\u003e\n \u003cli\u003eFast delivery Fast and high quality delivery of Spain buying in TECNOIOT\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:32:18+10:00","created_at":"2026-09-02T03:22:41+10:00","vendor":"TECNOIOT","type":"Microprocessors","tags":["industrial_DE_Aug2026"],"price":19500,"price_min":19500,"price_max":19500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375198335156,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0C5TWCW4N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 x AD9833 Programmable Microprocessors Serial Interface Sine Square Wave DDS","public_title":null,"options":["Default Title"],"price":19500,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"A790-AD9833-335-2PCS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0C5TWCW4N.jpg?v=1788283364"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C5TWCW4N.jpg?v=1788283364","options":["Title"],"media":[{"alt":null,"id":33274139115700,"position":1,"preview_image":{"aspect_ratio":1.271,"height":1283,"width":1631,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C5TWCW4N.jpg?v=1788283364"},"aspect_ratio":1.271,"height":1283,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C5TWCW4N.jpg?v=1788283364","width":1631}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2 x AD9833 Programmable Microprocessors Serial Interface Sine Square Wave DDS\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eX2pcs AD9833 Programmable Microprocessor, Serial Interface Sine Square Wave\nDDS Signal Generator The AD9833 is a low power, programmable waveform\ngenerator capable of producing sine, triangular, and square wave outputs.\nWaveform generation is required in various types of sensing, actuation, and\ntime domain reflective (TDR) applications. The output frequency and phase are\nprogrammable software, allowing easy tuning. No external components are\nneeded. The frequency registers are 28 bit wide: with a 25 MHz clock rate,\nresolution of 0.1 Hz can be nachieved; with a 1 MHz clock rate, the AD9833 can\nbe tuned to 0.004 Hz resolution. The AD9833 has a standard serial interface,\nwhich allows the part to interface directly with several microprocessors. The\ndevice use a external serial clock to write the data or control information\ninto the device. Features: Digitally programmable frequency and phase 12.65 mW\npower consumption at 3 V. 0 MHz to 12.5 MHz output frequency. 28-bit\nresolution: 0.1 Hz at 25 MHz reference clock. Sine, triangular, and square\nwave outputs 2.3 V to 5.5 V power supply No external components required\n3-wire SPI interface Extended temperature range: 40 to +105 degrees Power-down\noption Update rate: 25 (max). VOUT maximum: 0.65 V. VOUT minimum: 38 mV. VOUT\ntemperature coefficient: 200 degrees. Input voltage: 1.7-2.8V Input voltage:\n0.5-0.7V Input current: 10µA. Input power: 3pF. Operating temperature range is\n40 to +105 degrees; typical specifications at 25 degrees Size: 17mm x 12mm\nPackage includes: 2 x AD9833 Sine Square Wave DDS Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAD9833: The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, acation, and time domain reflectometry (TDR) applications.\u003c\/li\u003e\n \u003cli\u003eCompact design: the output frequency and phase are programmable software, allowing easy tuning. No external components are needed. The frequency registers are 28 bit wide: with a 25 MHz clockrate, resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution.\u003c\/li\u003e\n \u003cli\u003eHigh performance: The AD9833 has a standard serial interface that allows the part to directly with several microprocessors. The device use a external serial clock to write the data or control information into the device.\u003c\/li\u003e\n \u003cli\u003eApplications: The AD9833WBRMZ-REEL model is available with controlled manufacturing to support the quality and reliability of automotive applications. Please note that this automotive model is specially designed for the commercial models; therefore, designers should review the specifications section of this data sheet carefully.\u003c\/li\u003e\n \u003cli\u003eFast delivery Fast and high quality delivery of Spain buying in TECNOIOT\u003c\/li\u003e\n \u003c\/ul\u003e"}
