2 Sets Load Cell 50kg Weight Sensor Body Weight Half Bridge Human Body Scale Strain Gauge + HX711 24Bit Amplifier AD Weighing Module Microphone Sensor Module (Blue)
2 Sets Load Cell 50kg Weight Sensor Body Weight Half Bridge Human Body Scale Strain Gauge + HX711 24Bit Amplifier AD Weighing Module

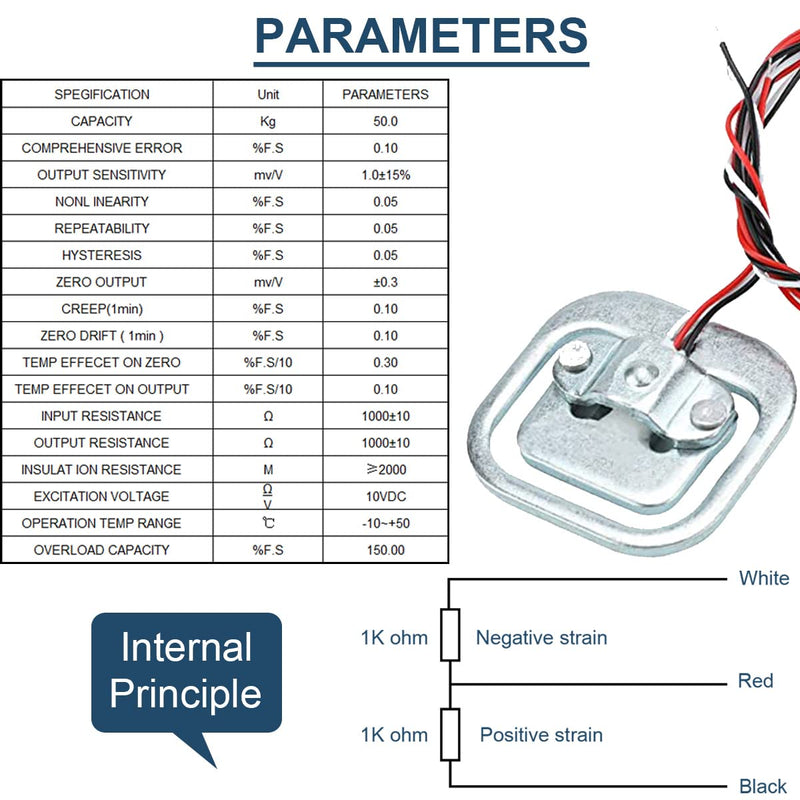

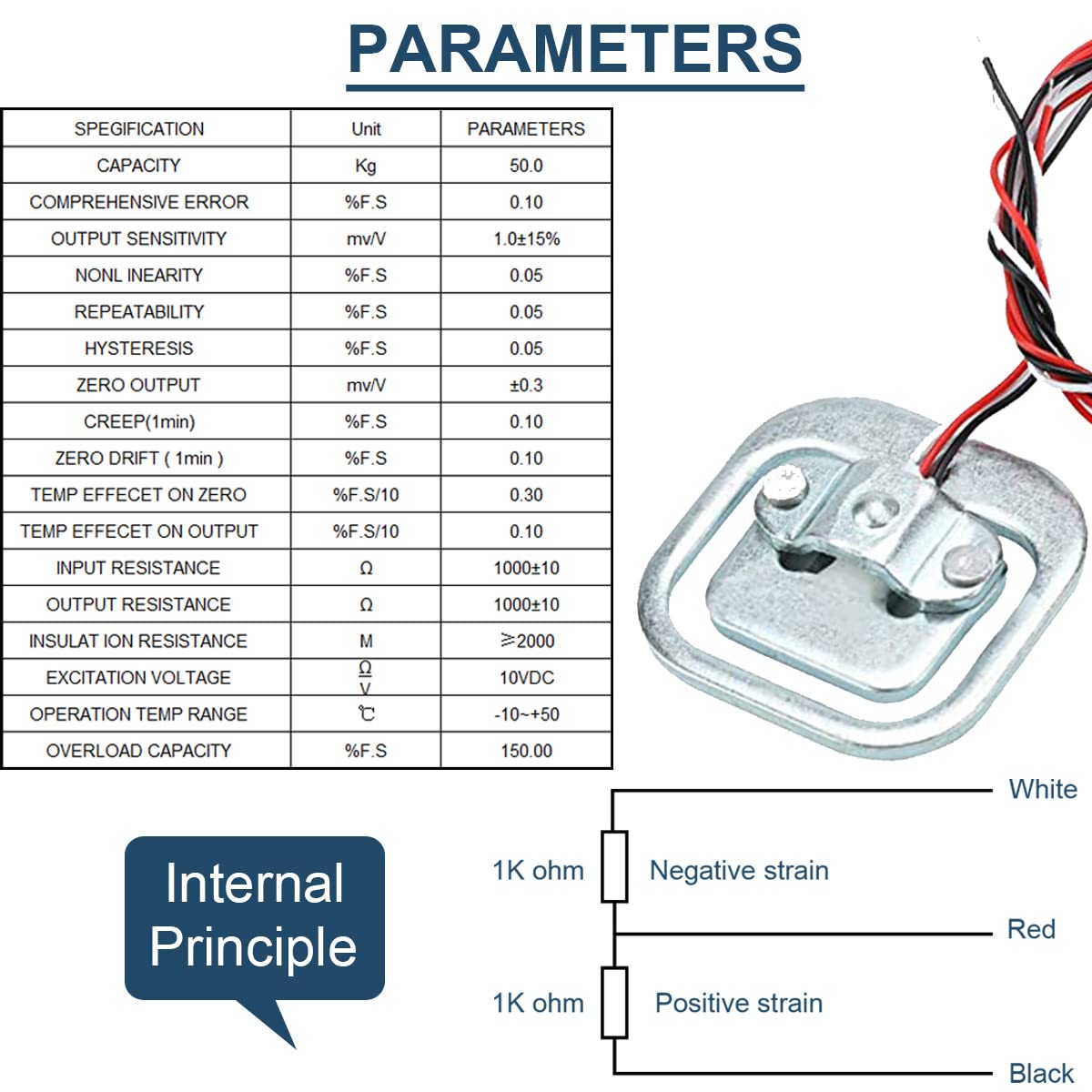

Inside the sensor is a set of half-bridge strain gauges, which can be used in the following three ways: 1. Use a sensor and an external resistor to form a full-bridge measurement. The range is the range of a sensor: 50 kg. Higher requirements for external resistance 2. Use two sensors to form a full bridge measurement, the range is the sum of the ranges of the two sensors: 50 kg x 2 = 100 kg. 3. Use four sensors to form a full bridge measurement, the range is the sum of the ranges of the four sensors: 50 kg x 4 = 200 kg. Product: The interior is a 1000 ohm half-bridge strain gauge, the range is 50 kg load cell, and the half-bridge structure. When measuring, the outer side is correctly applied with external force, and the strain beam part of the E-shaped sensor (that is, the beam arm with white glue covered with the strain gauge in the middle) and the outer side should form a shear force in the opposite direction, that is, the middle strain. The beam must be able to undergo bending changes under stress, and there must be no obstructions on the other side of the stress surface of the beam. Package includes: 8 x 50 kg load cell. 2 x HX711 24BIT Precision AD Modules 1 x 10Pin Female to Male Cable
Product Features

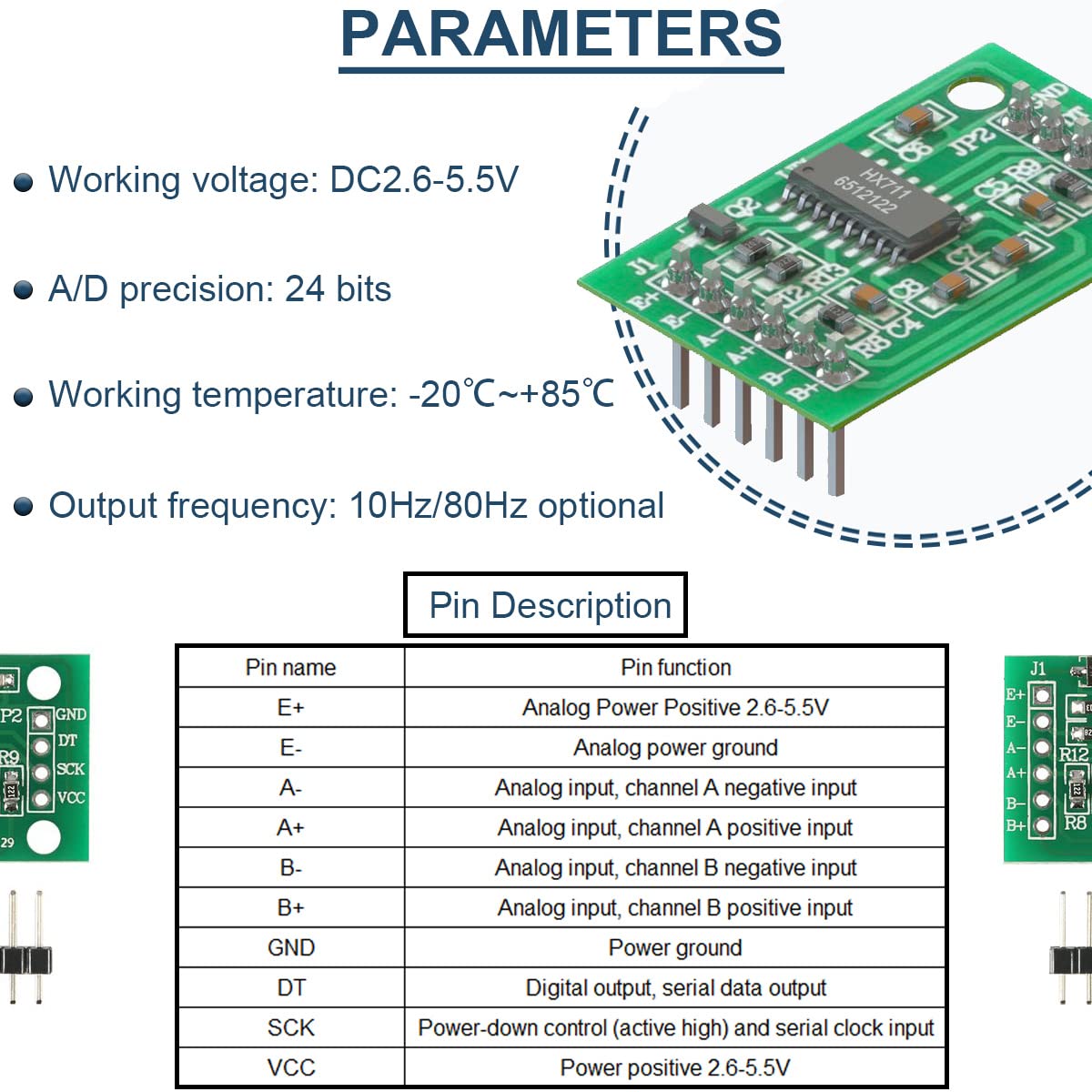

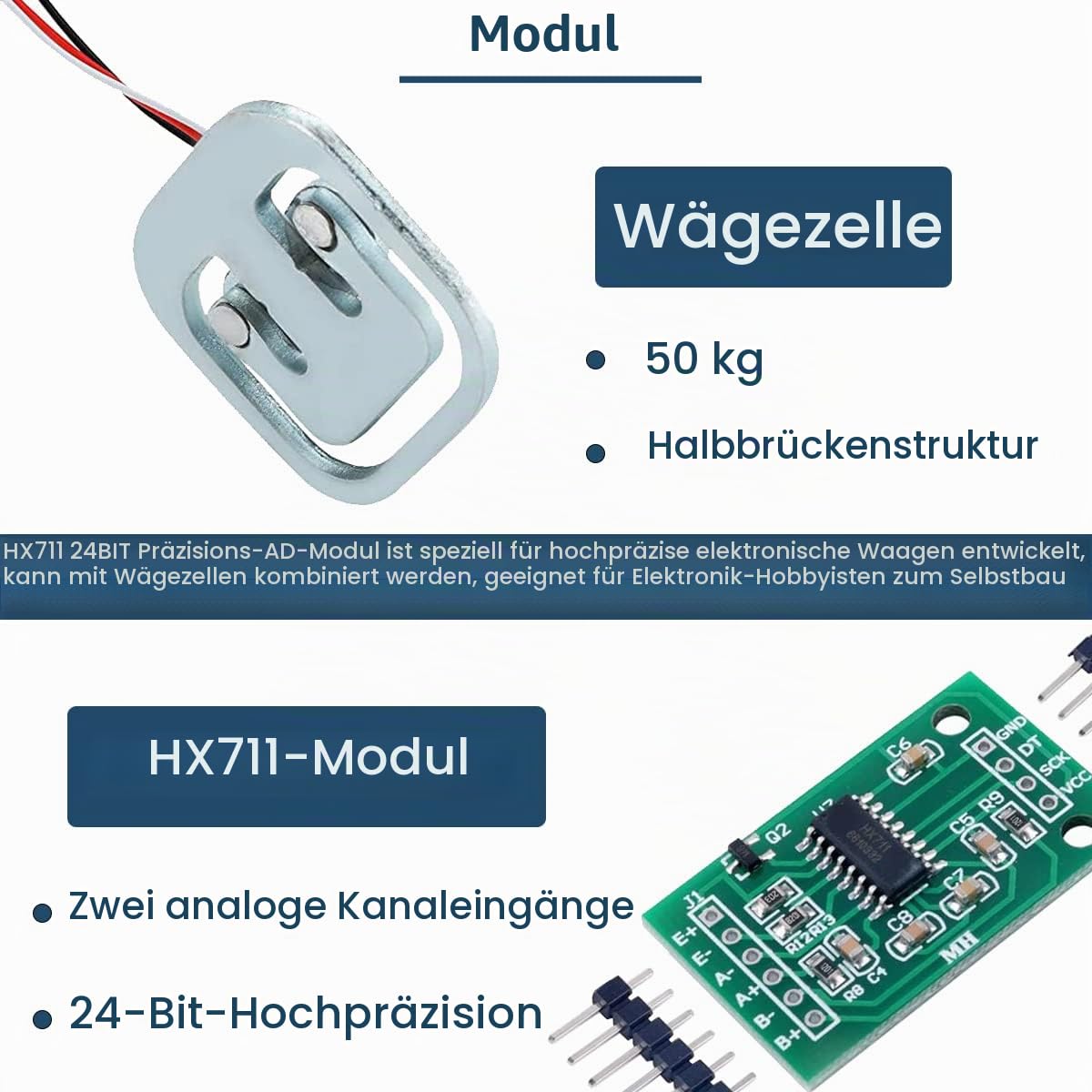

- Product Name: 50kg Load Cell This is a set of half bridge strain gauges. Name: HX711 24bit Precision AD Module This module uses 24 high-precision A/D converter chips hx711, specially designed for high-precision electronic scales.

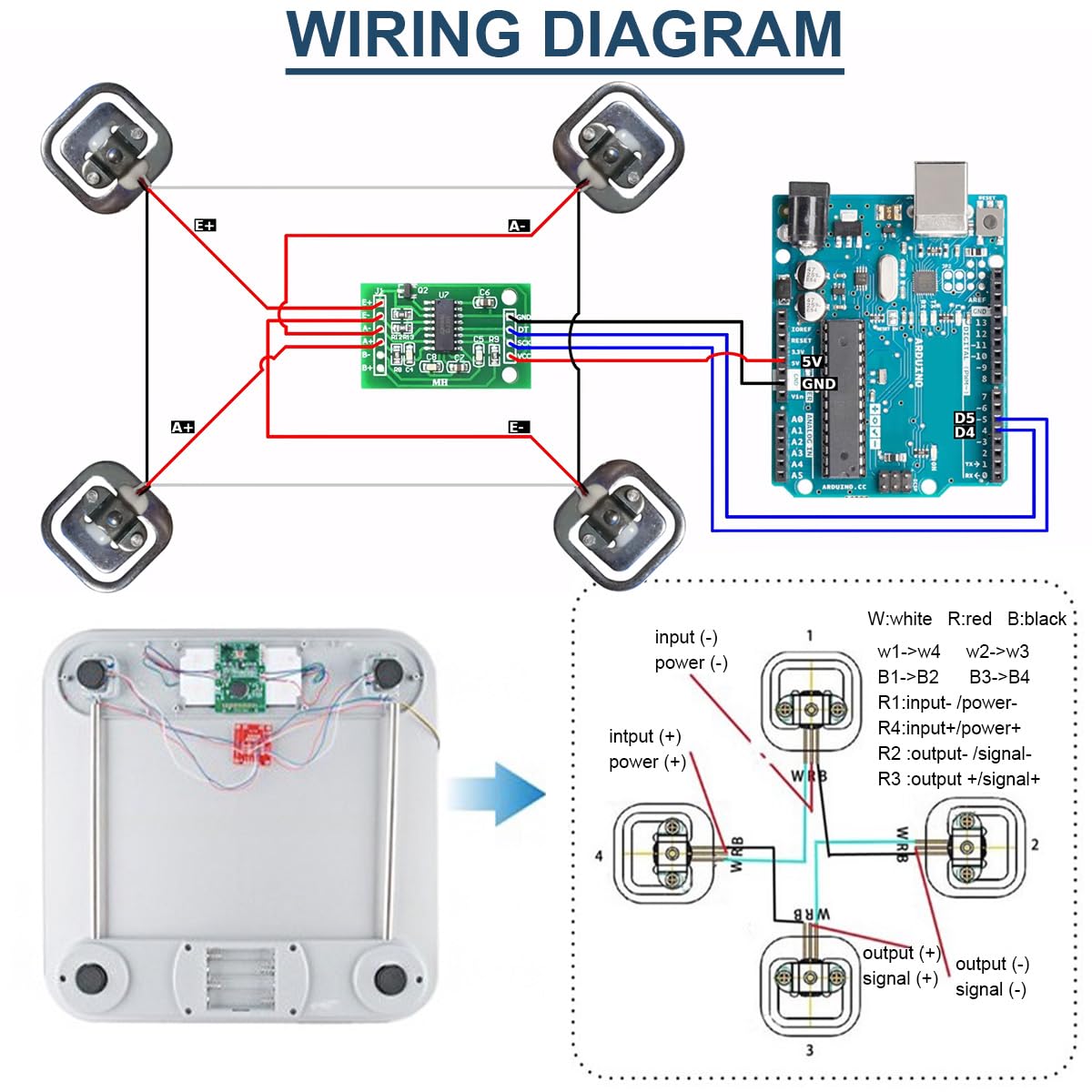

- Use 1Use a sensor and an external resistor to form a full bridge measurement. The range is the range of a sensor: 50 kg. Higher external resistance requirements.
- Use 2 Use two sensors to form a full bridge measurement, the range is the sum of the ranges of the two sensors: 50 kg x 2 = 100 kg.
- Use 3 Use four sensors to form a full bridge measurement, the range is the sum of the ranges of the four sensors: 50 kg x 4 = 200 kg.

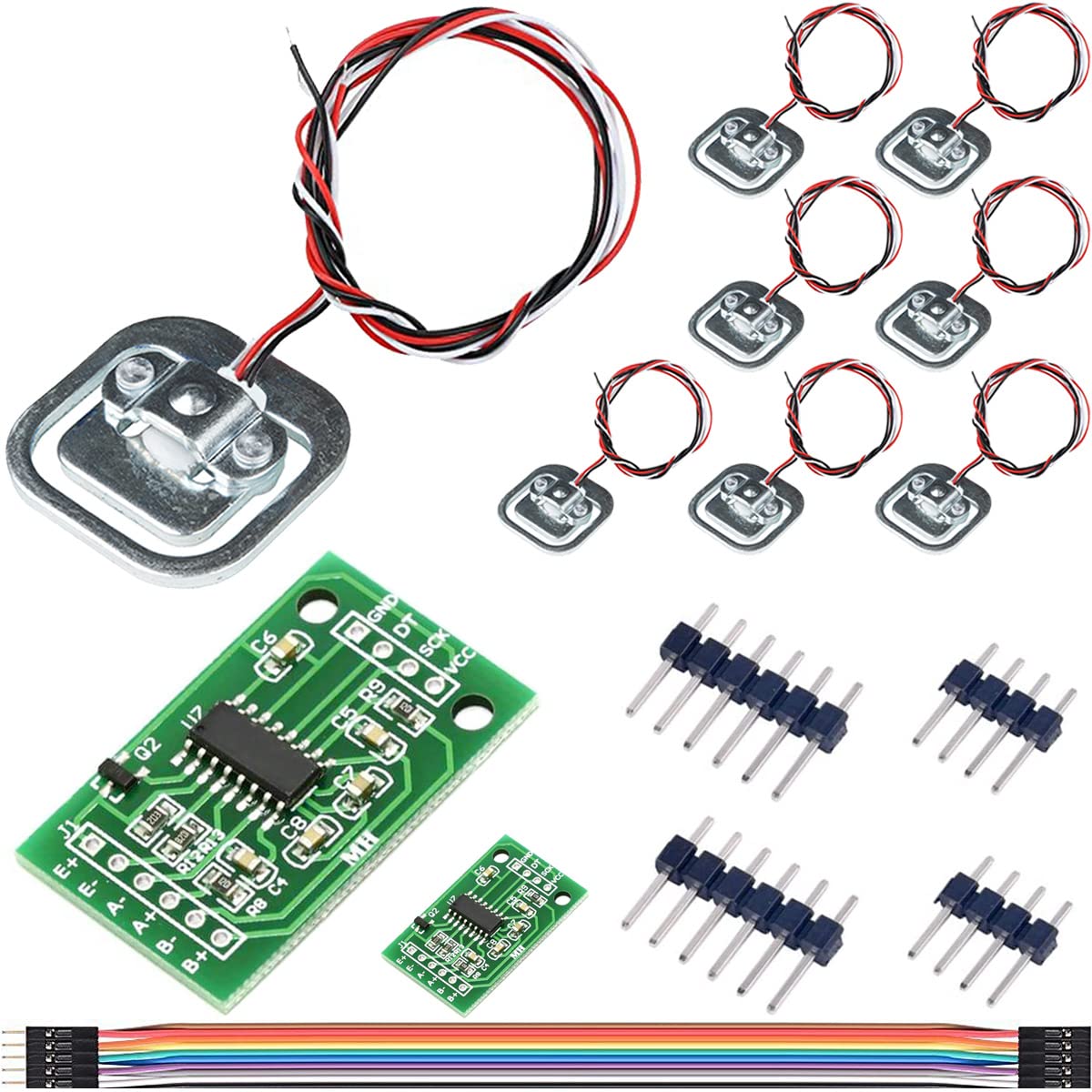

- Package includes you will receive 8 x 50kg load cells, 2 x HX711 24BIT precision AD module, 1 x 10 pin female to male cable. Enough to replace your old or broken one.
