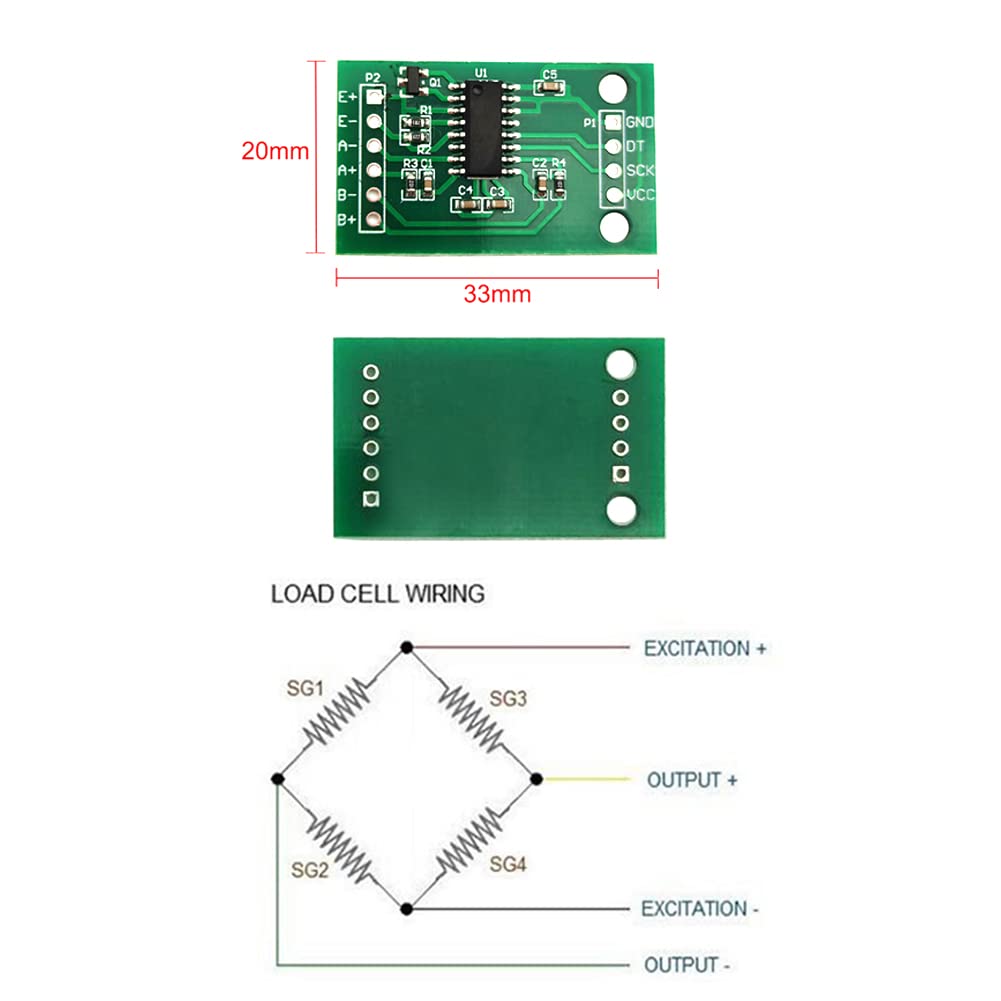

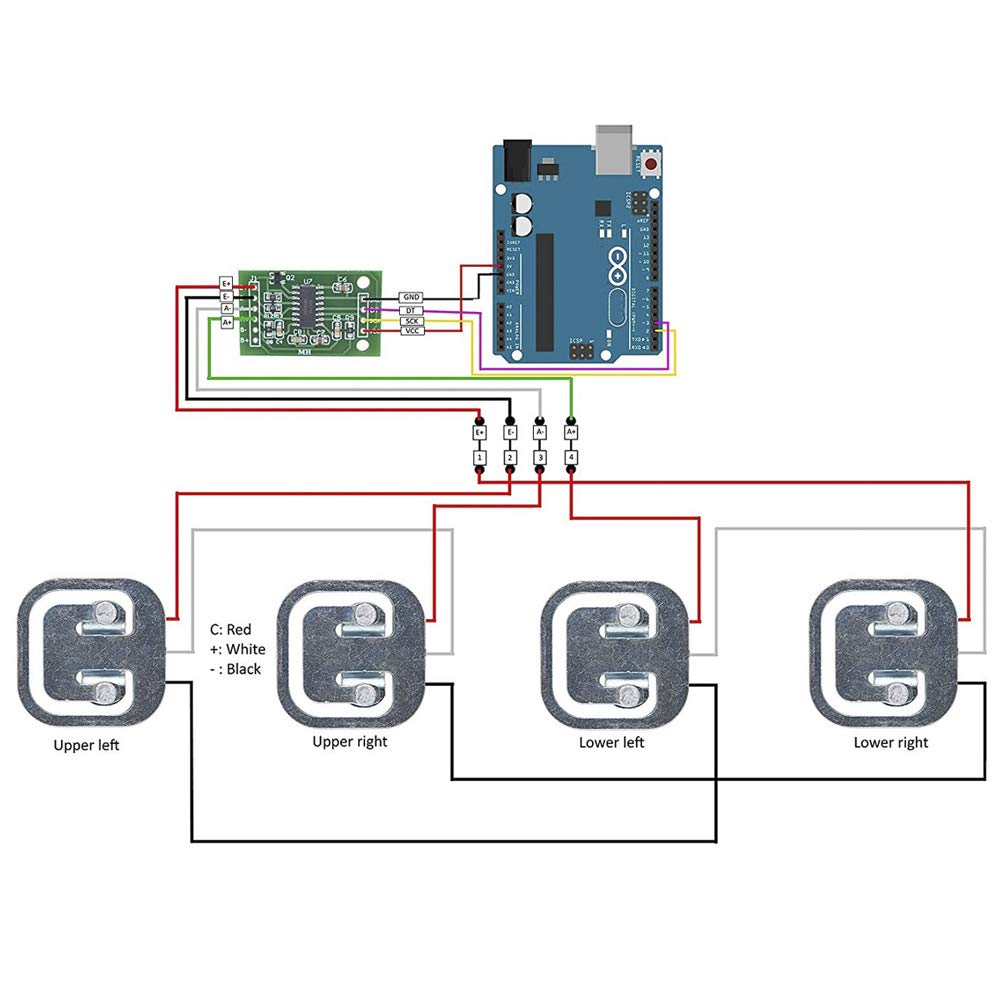

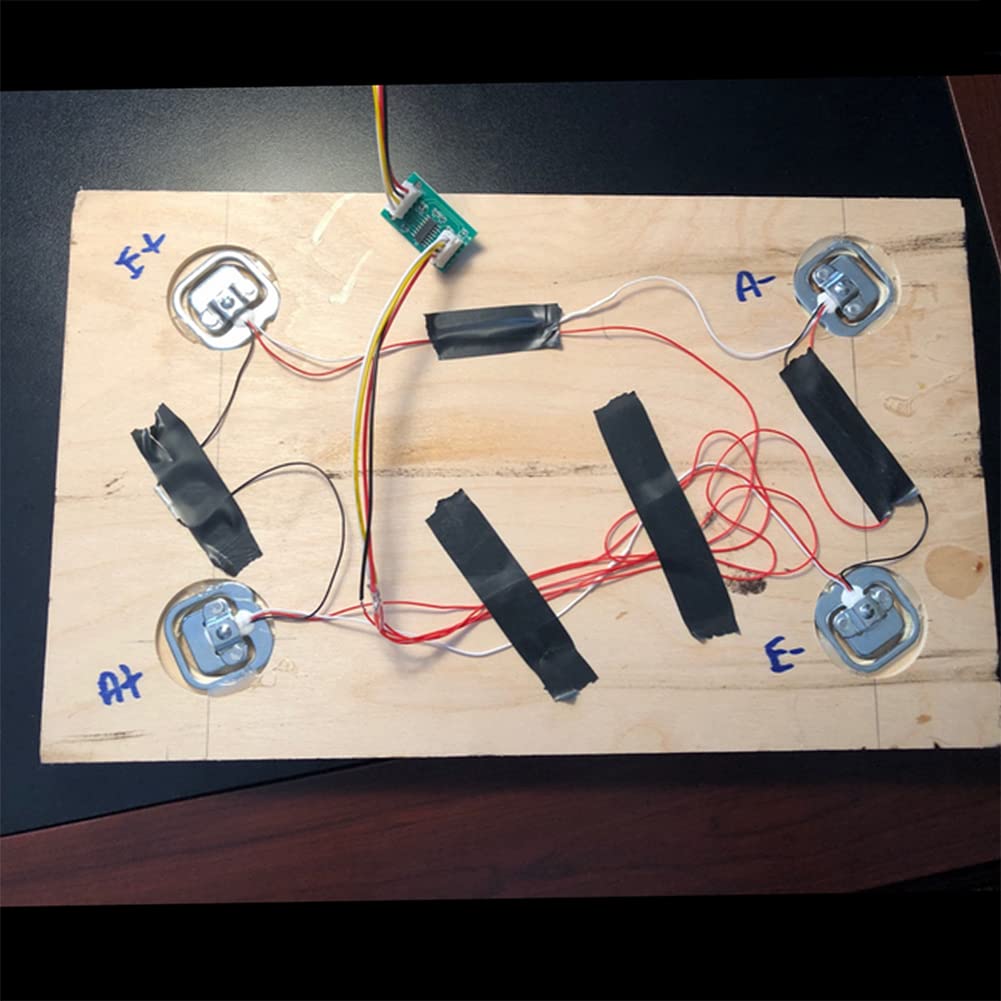

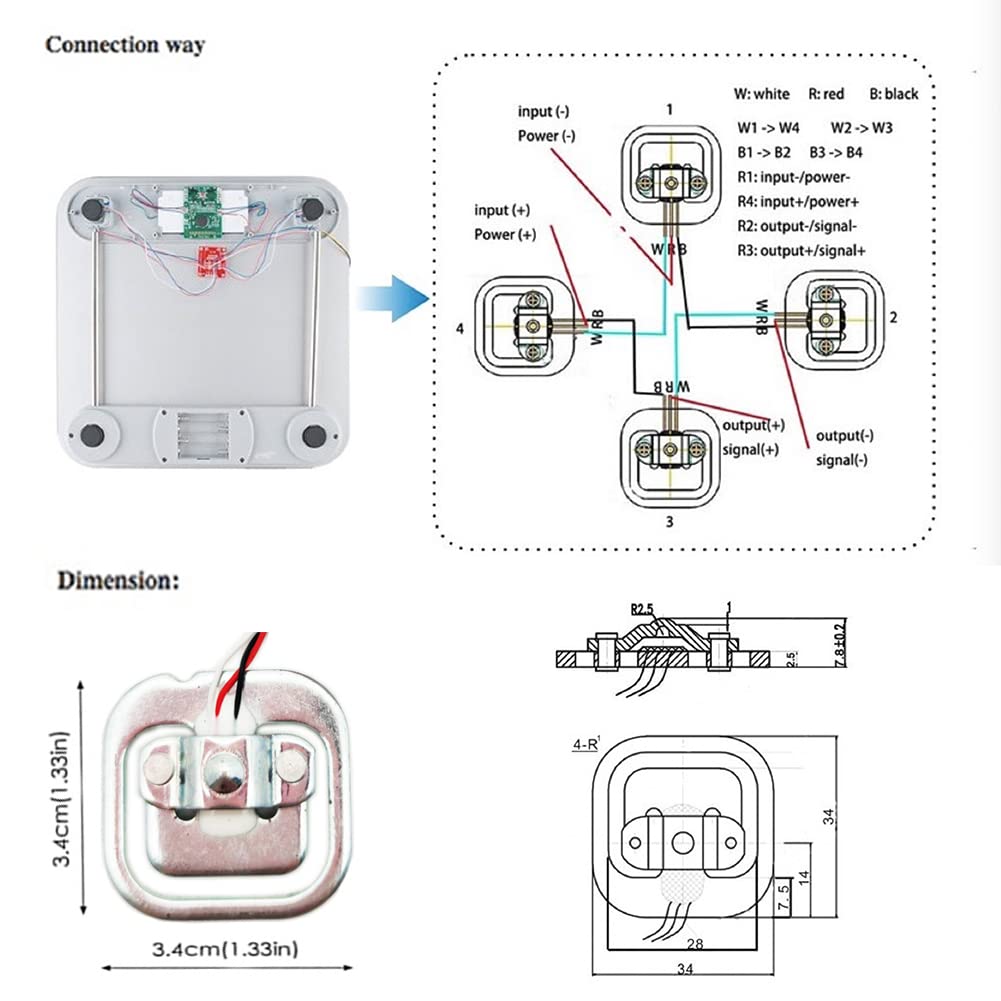

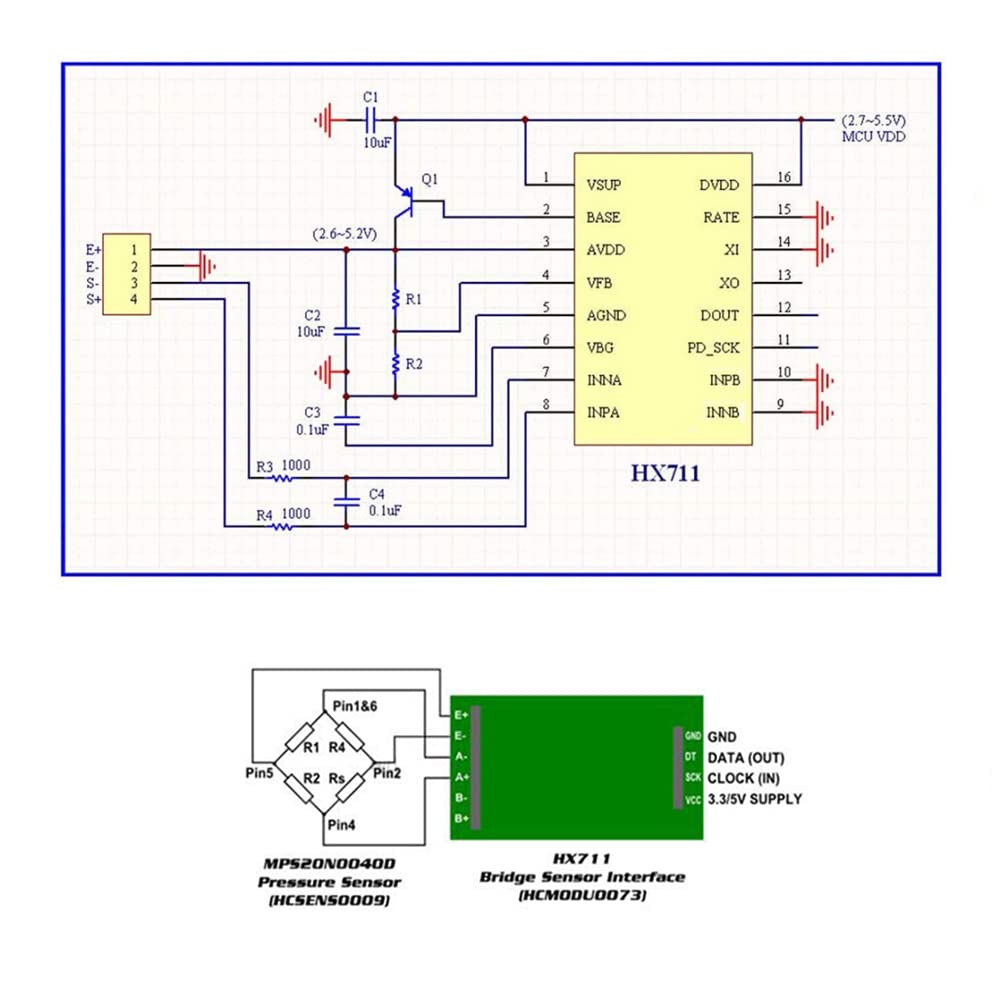

{"id":7890385371316,"title":"2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino","handle":"2-sets-50kg-human-scale-load-cell-weighing-sensor-resistance-strain-half-bridge-sensor-hx711-a-d-amplifier-weight-module-diy-kit-compatible-arduino","description":"\u003ch3\u003e2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. Using a Single Load Cell 1x50kg by Adding 2 Resistors -Connect outer\nwire(white and black) of load cell to E+ and E- outputs of hx711 module.\n-Connect middle cable(red) of load cell to A+ input of hx711 module. -Connect\ntwo 1k resistors to A- input of hx711 module. Then the other end of resistor\nto white and black wires. -Connect GND of hx711 module to board GND, and VCC\nto board 5V pin. -Connect DT and SCK of hx711 module to any digital IO pins of\nboard. 2. Using Two Load Cells in a Singel Circuit 2x50kg (100kg) -Connect\nopposite sides of outer wires(white and black) of two load cells. -Connect\nouter wire pairs to E+ and E- output of hx711 module. -Connect middle\nwire(red) of load cell to A+ and A- inputs of hx711 module. -Connect GND of\nhx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. 3. Using 4 Load Cells in a\nSingle circuit 4x50kg (200kg) -Form a loop by linking same color outer\nwires(white and black) of the four load cells. -Connect middle cable(red) of\none of the diagonals to the E+ and E- outputs of the HX711 module. -Connect\nthe other diagonal to the A+ and A- inputs of the HX711 module. -Connect GND\nand hx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. Package Included: 8 x 50kg Half-\nbridge Load Cell 2 x HX711 AD Weight Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711, specially designed for the high precision electronic scale\u003c\/li\u003e\n \u003cli\u003eThe load sensor is a group of half-bridge strain gauge, there are 3 ways to use it.\u003c\/li\u003e\n \u003cli\u003eUse one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e\n \u003cli\u003eUse two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e\n \u003cli\u003eUse four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-11-22T10:19:56+11:00","created_at":"2024-11-21T02:27:59+11:00","vendor":"NC","type":"Scale \u0026 Balance Parts","tags":["industrial_Aug2024_update"],"price":13500,"price_min":13500,"price_max":13500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43730105630900,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B097T3SX6W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino","public_title":null,"options":["Default Title"],"price":13500,"weight":159,"compare_at_price":null,"inventory_management":"shopify","barcode":"736140514779","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B097T3SX6W.jpg?v=1732172614","\/\/auspowers.com\/cdn\/shop\/files\/61w5AaeaqVL.jpg?v=1732116481","\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_f3438fdc-f337-4dcf-ae11-8145b8a416c3.jpg?v=1732116481","\/\/auspowers.com\/cdn\/shop\/files\/61mavqXA3cL_d82f04de-b176-4691-8890-e0b64dd6704f.jpg?v=1732116481","\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_f1915653-911d-4925-bc5e-47f51906fbea.jpg?v=1732116481","\/\/auspowers.com\/cdn\/shop\/files\/61TJlYleMrL.jpg?v=1732116481"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B097T3SX6W.jpg?v=1732172614","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30986966663348,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B097T3SX6W.jpg?v=1732172614"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B097T3SX6W.jpg?v=1732172614","width":1001},{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30984541536436,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61w5AaeaqVL.jpg?v=1732116481"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61w5AaeaqVL.jpg?v=1732116481","width":1001},{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30984541569204,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_f3438fdc-f337-4dcf-ae11-8145b8a416c3.jpg?v=1732116481"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51QkkZ08pvL_f3438fdc-f337-4dcf-ae11-8145b8a416c3.jpg?v=1732116481","width":1001},{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30984541601972,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61mavqXA3cL_d82f04de-b176-4691-8890-e0b64dd6704f.jpg?v=1732116481"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61mavqXA3cL_d82f04de-b176-4691-8890-e0b64dd6704f.jpg?v=1732116481","width":1001},{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30984541634740,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_f1915653-911d-4925-bc5e-47f51906fbea.jpg?v=1732116481"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51iM35KR1pL_f1915653-911d-4925-bc5e-47f51906fbea.jpg?v=1732116481","width":1001},{"alt":"[Australia - AusPower] - 2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino ","id":30984541667508,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TJlYleMrL.jpg?v=1732116481"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TJlYleMrL.jpg?v=1732116481","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A\/D Amplifier Weight Module DIY Kit Compatible Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. Using a Single Load Cell 1x50kg by Adding 2 Resistors -Connect outer\nwire(white and black) of load cell to E+ and E- outputs of hx711 module.\n-Connect middle cable(red) of load cell to A+ input of hx711 module. -Connect\ntwo 1k resistors to A- input of hx711 module. Then the other end of resistor\nto white and black wires. -Connect GND of hx711 module to board GND, and VCC\nto board 5V pin. -Connect DT and SCK of hx711 module to any digital IO pins of\nboard. 2. Using Two Load Cells in a Singel Circuit 2x50kg (100kg) -Connect\nopposite sides of outer wires(white and black) of two load cells. -Connect\nouter wire pairs to E+ and E- output of hx711 module. -Connect middle\nwire(red) of load cell to A+ and A- inputs of hx711 module. -Connect GND of\nhx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. 3. Using 4 Load Cells in a\nSingle circuit 4x50kg (200kg) -Form a loop by linking same color outer\nwires(white and black) of the four load cells. -Connect middle cable(red) of\none of the diagonals to the E+ and E- outputs of the HX711 module. -Connect\nthe other diagonal to the A+ and A- inputs of the HX711 module. -Connect GND\nand hx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. Package Included: 8 x 50kg Half-\nbridge Load Cell 2 x HX711 AD Weight Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711, specially designed for the high precision electronic scale\u003c\/li\u003e\n \u003cli\u003eThe load sensor is a group of half-bridge strain gauge, there are 3 ways to use it.\u003c\/li\u003e\n \u003cli\u003eUse one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e\n \u003cli\u003eUse two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e\n \u003cli\u003eUse four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n \u003c\/ul\u003e"}
