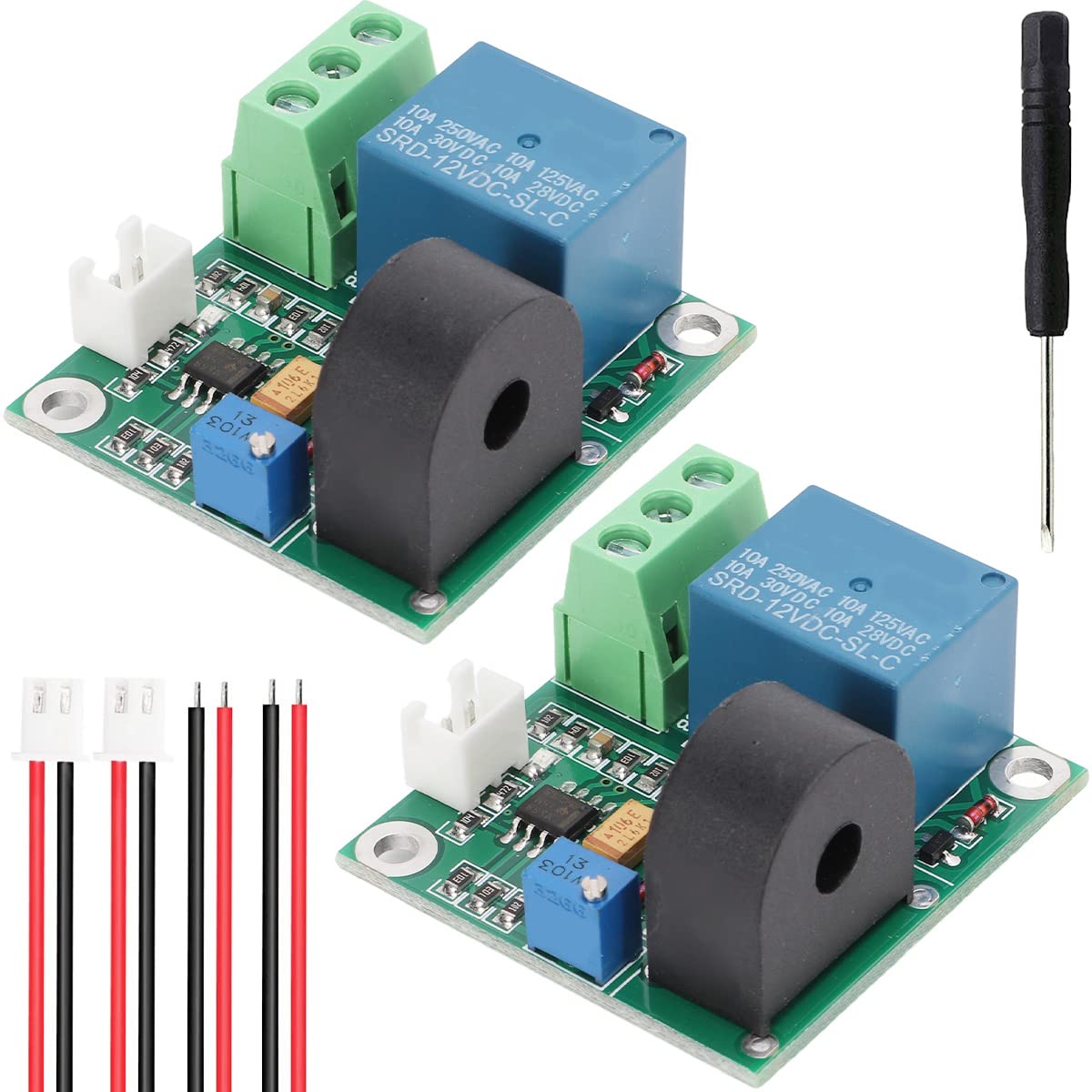

{"id":7976044363956,"title":"2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V)","handle":"2-pcs-current-detection-sensor-ac-current-sensor-module-5v-12v-24v-0-5a-adjustable-relay-protection-module-over-current-protection-switch-output-with-screwdriver-12v","description":"\u003ch3\u003e2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis current detection sensor mainly detects and prevents\nequipment from overcurrent by setting the overcurrent point, so as not to\ncause equipment damage. Specification: Type: Current Detection Sensor Current\ndetection range: AC 0.3A-5A Operating voltage: DC 5V \/ 12V \/ 24V(optional)\nWorking current: less than 10mA Relay load: AC 250V 10A Max , DC 30V 10A Max.\nThe overcurrent signal setting is adjustable and the resolution is set to\n0.3A. Induction sensitivity: Potentiometer is adjustable. Operating frequency\nrange: 20Hz-400Hz Output mode: switch signal output Maximum detection wire\ndiameter: 5.2mm Mounting hole: hole diameter is 3mm, hole pitch is 52.5mm\nOperating environment: -40℃ - 85℃ Board size: Approx.38 44mm \/ 1.5 1.7in\nBoard Description: VCC: Operating voltage positive; GND :Operating voltage\nnegative; NO: Normally open, the relay pulls before the NO and COM disconnect,\nshort-circuit after the suction; COM: common, relay common interface; NC:\nNormally closed, the relay before the NC and COM short-circuit, after pull\noff; Package includes: 2 x Current Detection Sensor(12) 1 x Screwdriver\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: The current detection sensor mainly detects and prevents the equipment from overcurrent by setting the overcurrent point, so as to protect your equipment and avoid equipment damage.\u003c\/li\u003e\n \u003cli\u003eFeatures: Current detection resolution can change the parameter of resistance;Output over-current switching signal output;Over-current signal setting critical point is adjustable.\u003c\/li\u003e\n \u003cli\u003eParameter: Operating voltage: DC 12V;Working current: less than 10mA;Current detection range: AC 0.3A-5A(Potentiometer is adjustable);Maximum detection wire diameter: 5.2mm.\u003c\/li\u003e\n \u003cli\u003eBoard Description:VCC: Operating voltage positive;GND :Operating voltage negative;NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction;COM: common, relay common interface;NC: Normally closed, the relay before the NC and COM short-circuit, after pull off.\u003c\/li\u003e\n \u003cli\u003eApplication: Intelligent trolley motor over-current detection, motor stall protection current detection, short-circuit protection detection, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-29T02:43:41+10:00","created_at":"2025-07-29T02:43:38+10:00","vendor":"DKARDU","type":"Current Sensors","tags":["industrial_best_sellers_Jun2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43995582824628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C3VG962D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V)","public_title":null,"options":["Default Title"],"price":9800,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-US-646A","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C3VG962D.jpg?v=1775766363","\/\/auspowers.com\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1753721020","\/\/auspowers.com\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1753721021","\/\/auspowers.com\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1753721021","\/\/auspowers.com\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1753721020","\/\/auspowers.com\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1753721021","\/\/auspowers.com\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1753721021"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3VG962D.jpg?v=1775766363","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257543348,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3VG962D.jpg?v=1775766363"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3VG962D.jpg?v=1775766363","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257576116,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1753721020"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1753721020","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257608884,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1753721021"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1753721021","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257641652,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1753721021"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1753721021","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257674420,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1753721020"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1753721020","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257707188,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1753721021"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1753721021","width":1200},{"alt":"[Australia - AusPower] - 2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V) ","id":31890257739956,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1753721021"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1753721021","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2 pcs Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Over-Current Protection Switch Output with Screwdriver (12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis current detection sensor mainly detects and prevents\nequipment from overcurrent by setting the overcurrent point, so as not to\ncause equipment damage. Specification: Type: Current Detection Sensor Current\ndetection range: AC 0.3A-5A Operating voltage: DC 5V \/ 12V \/ 24V(optional)\nWorking current: less than 10mA Relay load: AC 250V 10A Max , DC 30V 10A Max.\nThe overcurrent signal setting is adjustable and the resolution is set to\n0.3A. Induction sensitivity: Potentiometer is adjustable. Operating frequency\nrange: 20Hz-400Hz Output mode: switch signal output Maximum detection wire\ndiameter: 5.2mm Mounting hole: hole diameter is 3mm, hole pitch is 52.5mm\nOperating environment: -40℃ - 85℃ Board size: Approx.38 44mm \/ 1.5 1.7in\nBoard Description: VCC: Operating voltage positive; GND :Operating voltage\nnegative; NO: Normally open, the relay pulls before the NO and COM disconnect,\nshort-circuit after the suction; COM: common, relay common interface; NC:\nNormally closed, the relay before the NC and COM short-circuit, after pull\noff; Package includes: 2 x Current Detection Sensor(12) 1 x Screwdriver\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: The current detection sensor mainly detects and prevents the equipment from overcurrent by setting the overcurrent point, so as to protect your equipment and avoid equipment damage.\u003c\/li\u003e\n \u003cli\u003eFeatures: Current detection resolution can change the parameter of resistance;Output over-current switching signal output;Over-current signal setting critical point is adjustable.\u003c\/li\u003e\n \u003cli\u003eParameter: Operating voltage: DC 12V;Working current: less than 10mA;Current detection range: AC 0.3A-5A(Potentiometer is adjustable);Maximum detection wire diameter: 5.2mm.\u003c\/li\u003e\n \u003cli\u003eBoard Description:VCC: Operating voltage positive;GND :Operating voltage negative;NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction;COM: common, relay common interface;NC: Normally closed, the relay before the NC and COM short-circuit, after pull off.\u003c\/li\u003e\n \u003cli\u003eApplication: Intelligent trolley motor over-current detection, motor stall protection current detection, short-circuit protection detection, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
