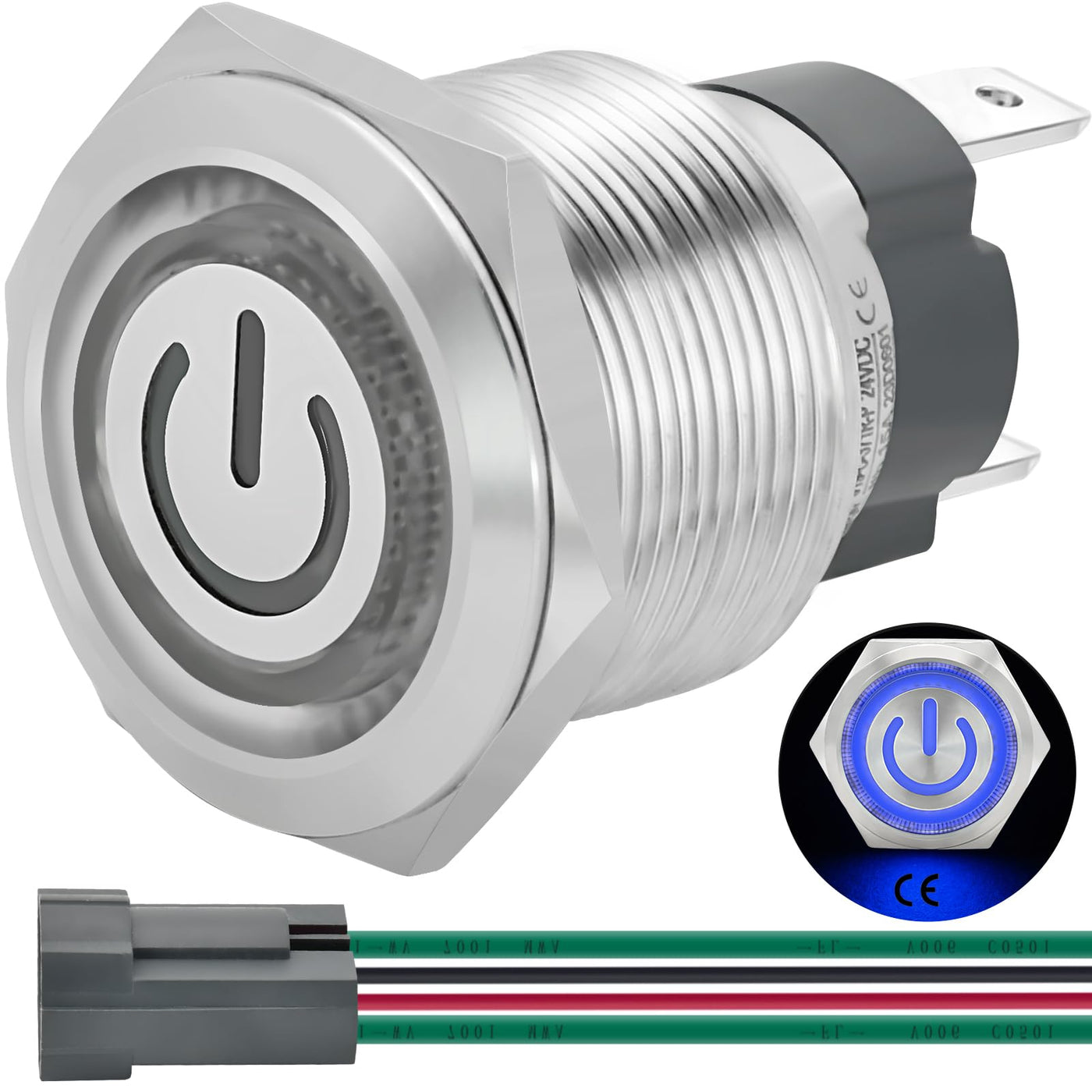

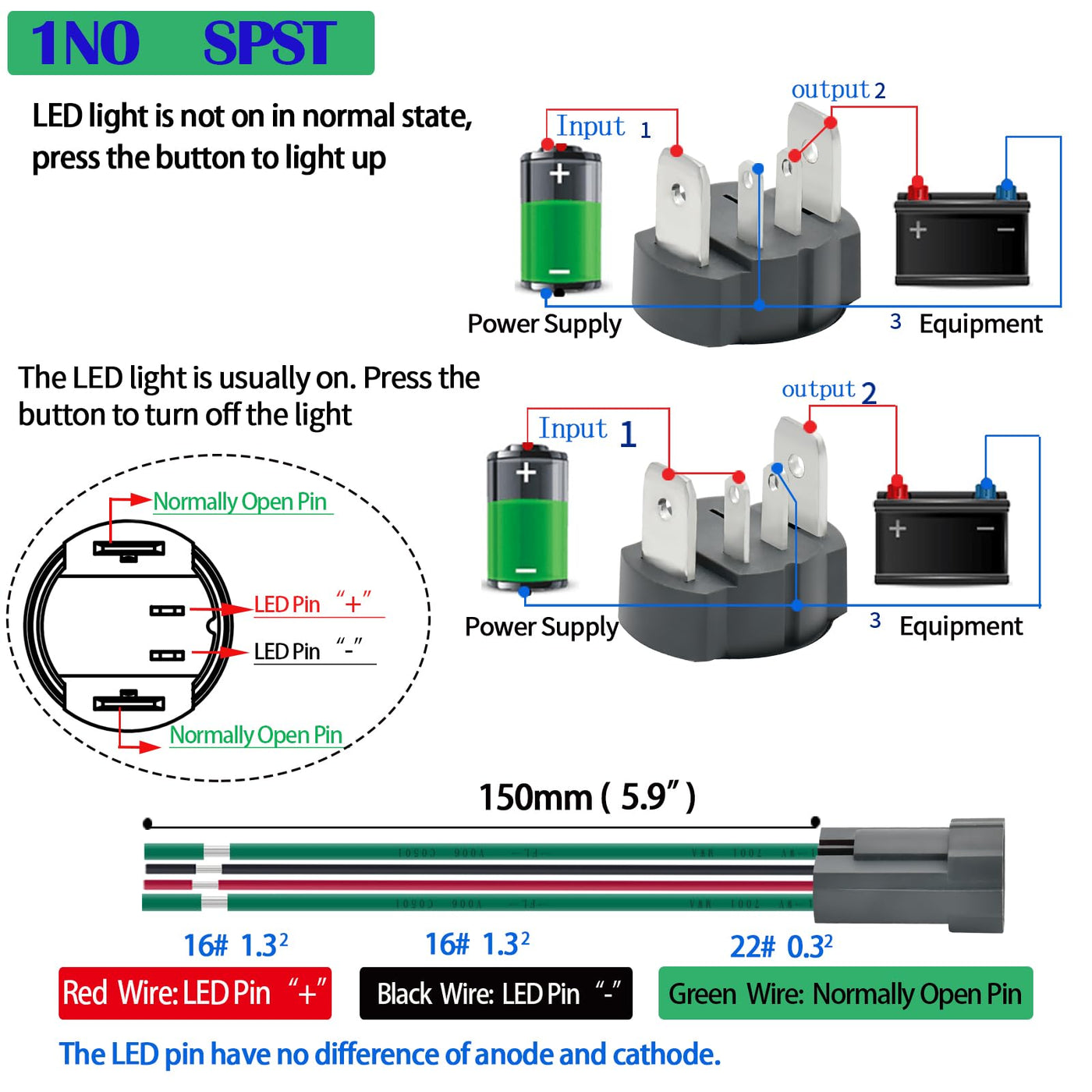

{"id":7889841520820,"title":"15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC","handle":"15amp-19mm-latching-push-button-switch-12v-dc-24v-waterproof-ip67-power-button-1no-spst-power-button-blue-led-metal-self-locking-on-off-3-4inch-with-wire-socket-15-amp-latching-12-24v-dc","description":"\u003ch3\u003e15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage include : 1 16mm 15A Latching Push Button Switch 1 Wire Connector\nSockets What's Latching Switch: Latching switch, Push it, ON; Push it again,\nOFF. What is a high current switch Heating current :15A Rated insulation\nvoltage: 250VAC Rated current (Resistive Load: 15A) (Inductive Load :4A)\nWhat's the Wire Connector: wire connector: 4 1.5mm² Green wire ?NO? 1 0.3mm²\nRed wire (LED +) 1 0.3mm² Black wire (LED -) With the wire connector, you\ndon't need to solder the terminals, make installing very easy Saves the issue\nof soldering to the switch. Because this is a thick 1.5mm² wire, it can\nwithstand 15A current. What's Switch Used for: Great for electromagnetic\nstarter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit\ncontrols What's Note: -These switches come with a rubber O-ring which makes\nthe head of the button is waterproof grad\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRated current 15 Amps; LED voltage:12V-24V DC\/AC, Hole size required:3\/4\" \/ 0.74\" \/19mm, Rated insulation voltage:250V AC. Latching Push Button Switch: Push it, LED Light on switch always on; Push it again, LED light off device off.\u003c\/li\u003e\n \u003cli\u003eContact: 1NO SPST, 4 PIN. Our Push Button Switch CE certification. Stainless Steel 304 material \u0026amp; IP67 waterproof protection can be used in wet or dusty enviroment.Switch Name: J19-C-371-P.Mechanical Life: 1,000,000 cycles.\u003c\/li\u003e\n \u003cli\u003eDepressed button turns LED light on: The black wire is connected to the power supply \"-\", one green wire is connected to the power supply \"+\" input,, and the other green and red wires are connected to the device output.\u003c\/li\u003e\n \u003cli\u003e4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use;LED can be on all the time:Two green wires connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.\u003c\/li\u003e\n \u003cli\u003eGET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. Package include : 1 * 19 GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. Package include : 1 * 19 mm Momentary Push Button Switch 15A , 1 * Wire Socket Plug 1.5mm2 .And it's super easy to mount. Just drill a 19mm(3\/4\") hole, slip it in, and screw the nut on to hold it there.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-11-20T09:42:05+11:00","created_at":"2024-11-20T02:17:18+11:00","vendor":"ZJWZJH","type":"Pushbutton Switches","tags":["industrial_Aug2024_update"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43727559622836,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CKX3KQ84","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC","public_title":null,"options":["Default Title"],"price":11100,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"J19-C-371BD-P","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CKX3KQ84.jpg?v=1732085099","\/\/auspowers.com\/cdn\/shop\/files\/71lf30hNlLL.jpg?v=1732029441","\/\/auspowers.com\/cdn\/shop\/files\/71aJaW2zCBL.jpg?v=1732029441","\/\/auspowers.com\/cdn\/shop\/files\/71gfGoxGFPL.jpg?v=1732029441","\/\/auspowers.com\/cdn\/shop\/files\/71iH9R_s9vL.jpg?v=1732029441","\/\/auspowers.com\/cdn\/shop\/files\/71k1fT_PoGL.jpg?v=1732029441","\/\/auspowers.com\/cdn\/shop\/files\/71e6UVVxjkL.jpg?v=1732029441"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CKX3KQ84.jpg?v=1732085099","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30983085555892,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CKX3KQ84.jpg?v=1732085099"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CKX3KQ84.jpg?v=1732085099","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420239540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71lf30hNlLL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71lf30hNlLL.jpg?v=1732029441","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420272308,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71aJaW2zCBL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71aJaW2zCBL.jpg?v=1732029441","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420305076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71gfGoxGFPL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71gfGoxGFPL.jpg?v=1732029441","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420337844,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71iH9R_s9vL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71iH9R_s9vL.jpg?v=1732029441","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420370612,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71k1fT_PoGL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71k1fT_PoGL.jpg?v=1732029441","width":1600},{"alt":"[Australia - AusPower] - 15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket 15 Amp Latching, 12\/24V DC ","id":30980420403380,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71e6UVVxjkL.jpg?v=1732029441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71e6UVVxjkL.jpg?v=1732029441","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e15Amp 19mm Latching Push Button Switch 12V DC 24V Waterproof IP67 Power Button 1NO SPST Power Button Blue Led Metal Self-Locking On Off 3\/4inch with Wire Socket\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage include : 1 16mm 15A Latching Push Button Switch 1 Wire Connector\nSockets What's Latching Switch: Latching switch, Push it, ON; Push it again,\nOFF. What is a high current switch Heating current :15A Rated insulation\nvoltage: 250VAC Rated current (Resistive Load: 15A) (Inductive Load :4A)\nWhat's the Wire Connector: wire connector: 4 1.5mm² Green wire ?NO? 1 0.3mm²\nRed wire (LED +) 1 0.3mm² Black wire (LED -) With the wire connector, you\ndon't need to solder the terminals, make installing very easy Saves the issue\nof soldering to the switch. Because this is a thick 1.5mm² wire, it can\nwithstand 15A current. What's Switch Used for: Great for electromagnetic\nstarter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit\ncontrols What's Note: -These switches come with a rubber O-ring which makes\nthe head of the button is waterproof grad\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRated current 15 Amps; LED voltage:12V-24V DC\/AC, Hole size required:3\/4\" \/ 0.74\" \/19mm, Rated insulation voltage:250V AC. Latching Push Button Switch: Push it, LED Light on switch always on; Push it again, LED light off device off.\u003c\/li\u003e\n \u003cli\u003eContact: 1NO SPST, 4 PIN. Our Push Button Switch CE certification. Stainless Steel 304 material \u0026amp; IP67 waterproof protection can be used in wet or dusty enviroment.Switch Name: J19-C-371-P.Mechanical Life: 1,000,000 cycles.\u003c\/li\u003e\n \u003cli\u003eDepressed button turns LED light on: The black wire is connected to the power supply \"-\", one green wire is connected to the power supply \"+\" input,, and the other green and red wires are connected to the device output.\u003c\/li\u003e\n \u003cli\u003e4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use;LED can be on all the time:Two green wires connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.\u003c\/li\u003e\n \u003cli\u003eGET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. Package include : 1 * 19 GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. Package include : 1 * 19 mm Momentary Push Button Switch 15A , 1 * Wire Socket Plug 1.5mm2 .And it's super easy to mount. Just drill a 19mm(3\/4\") hole, slip it in, and screw the nut on to hold it there.\u003c\/li\u003e\n \u003c\/ul\u003e"}
