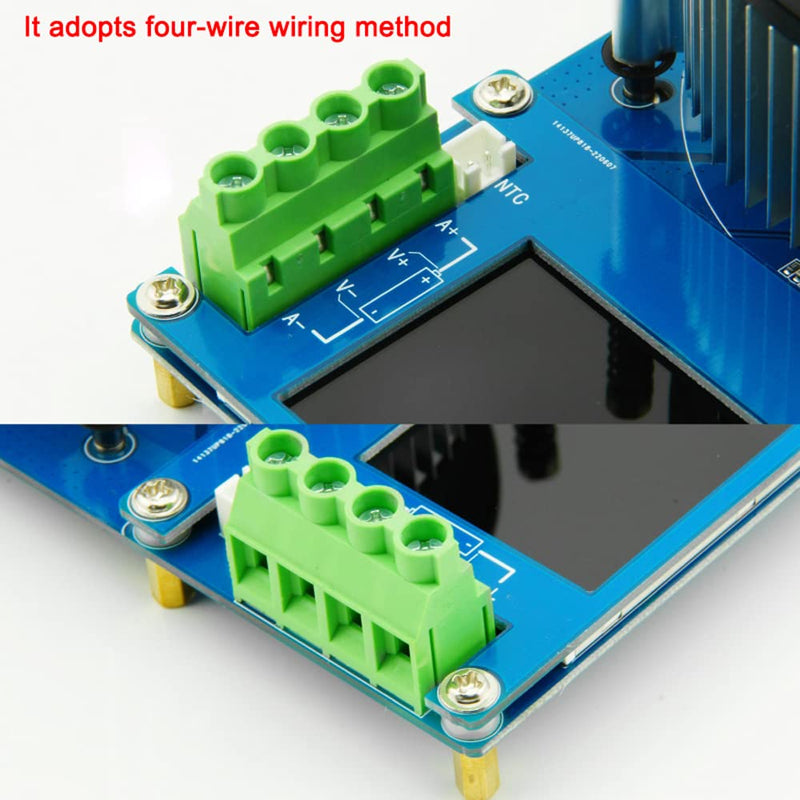

{"id":8001990983860,"title":"150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter","handle":"150w-20a-adjustable-constant-current-electronic-load-2-4inch-tft-color-display-4-working-modes-usb-lithium-battery-capacity-monitor-tester-discharge-meter","description":"\u003ch3\u003e150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecifications: Name: Electronic Load Material: printed circuit board Load\r\ntype: CNC electronic load Working voltage: 12VDC with 12 V, 1A power adapter\r\nLoad voltage: 0-150VDC Load current: 0-20A Load power: 0-150W (max. 60W above\r\n120V) Wiring method: A+ V+ V- A- four-wire system, downward compatible with\r\ntwo-wire system Maximum power measurement: 999.999Wh Maximum capacity\r\nmeasurement: 999.999Ah Cumulative timing range: ddd:hh:mm:ss\r\n(days:hours:minutes:seconds) Operating modes: four modes CC-constant current\r\nmode CV-constant voltage mode CP-constant power mode CR-constant resistance\r\nmode Overvoltage protecting: supports up to 150V overvoltage protections\r\nOvercurrent protecting: supports up to 20A overcurrent protections Over-power\r\nprotecting: supports up to 150W over-power protections Limited voltage\r\ndischarge: also called low voltage protections, support, default unlimited\r\nvoltage discharge, set according to your needs Time limit discharge: support\r\nup to 99 hours: 59 minutes time limit discharge Heat sink: Alloy integrated\r\nsilent heat sink, internal temperature ≥40°C or current ＞3A automatic\r\noperation External temperature measurement: connect NTC 3950 10K 1%\r\ntemperature sensor to measure and display temperature from 0-100°C Chinese and\r\nEnglish interface switching: supported Zeroing of total data: supported\r\nVoltage and current no-load nulling: supported Voltage open calibration:\r\nsupported Current open calibration: Support Screen brightness adjustment:\r\nSupport Screen hibernation standby setting: Support PC software online: Not\r\nsupported Restore factory settings: Support Package size: 195 105 135mm \/\r\n7.68 4.13 5.31in Package weight: 625g \/ 1.38lb Packing List: 1 \r\nElectronic Load 1 Adapter 1 NTC Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis product is a direct current CNC electronic load, with a maximum power of 150W and a maximum load current of 20A. Support test the capacity of power battery.\u003c\/li\u003e\r\n \u003cli\u003e2.4inch TFT color screen, with voltage, current, power, electricity, capacity, internal resistance, load, operating mode, OVP, OCP, OPP, stop voltage, time limit discharge display function.\u003c\/li\u003e\r\n \u003cli\u003eIt has four working modes design, constant current mode, constant voltage mode, constant power mode and constant resistance mode.\u003c\/li\u003e\r\n \u003cli\u003eVoltage, current and power overrun protections can be set; stop discharge voltage and discharge time can be set.\u003c\/li\u003e\r\n \u003cli\u003ePower supplying temperature can be monitored by an external NTC sensor.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-11-04T23:14:33+11:00","created_at":"2025-11-04T23:14:29+11:00","vendor":"KKnoon","type":"Voltage Testers","tags":["industrial_selected_Nov2025"],"price":20700,"price_min":20700,"price_max":20700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44079064187060,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BZYLSP6V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter","public_title":null,"options":["Default Title"],"price":20700,"weight":590,"compare_at_price":null,"inventory_management":"shopify","barcode":"WQD8383169328610CR","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61j-9J33CIL.jpg?v=1762258471","\/\/auspowers.com\/cdn\/shop\/files\/61PiLJVlHxL.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/51dxXGvdwUL.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/6152llBCl0L.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/618uqDyhG-L.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/614OTpUxNaL.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/51JII5gthyL.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/51ihQa2R8FL.jpg?v=1762258472","\/\/auspowers.com\/cdn\/shop\/files\/51Lj-_f9jzL.jpg?v=1762258472"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61j-9J33CIL.jpg?v=1762258471","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642548404,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61j-9J33CIL.jpg?v=1762258471"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61j-9J33CIL.jpg?v=1762258471","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642581172,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61PiLJVlHxL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61PiLJVlHxL.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642613940,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51dxXGvdwUL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51dxXGvdwUL.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642646708,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6152llBCl0L.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6152llBCl0L.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642679476,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/618uqDyhG-L.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/618uqDyhG-L.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642712244,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/614OTpUxNaL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/614OTpUxNaL.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642745012,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51JII5gthyL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51JII5gthyL.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642777780,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ihQa2R8FL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ihQa2R8FL.jpg?v=1762258472","width":1000},{"alt":"[Australia - AusPower] - 150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter ","id":32339642810548,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Lj-_f9jzL.jpg?v=1762258472"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Lj-_f9jzL.jpg?v=1762258472","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecifications: Name: Electronic Load Material: printed circuit board Load\r\ntype: CNC electronic load Working voltage: 12VDC with 12 V, 1A power adapter\r\nLoad voltage: 0-150VDC Load current: 0-20A Load power: 0-150W (max. 60W above\r\n120V) Wiring method: A+ V+ V- A- four-wire system, downward compatible with\r\ntwo-wire system Maximum power measurement: 999.999Wh Maximum capacity\r\nmeasurement: 999.999Ah Cumulative timing range: ddd:hh:mm:ss\r\n(days:hours:minutes:seconds) Operating modes: four modes CC-constant current\r\nmode CV-constant voltage mode CP-constant power mode CR-constant resistance\r\nmode Overvoltage protecting: supports up to 150V overvoltage protections\r\nOvercurrent protecting: supports up to 20A overcurrent protections Over-power\r\nprotecting: supports up to 150W over-power protections Limited voltage\r\ndischarge: also called low voltage protections, support, default unlimited\r\nvoltage discharge, set according to your needs Time limit discharge: support\r\nup to 99 hours: 59 minutes time limit discharge Heat sink: Alloy integrated\r\nsilent heat sink, internal temperature ≥40°C or current ＞3A automatic\r\noperation External temperature measurement: connect NTC 3950 10K 1%\r\ntemperature sensor to measure and display temperature from 0-100°C Chinese and\r\nEnglish interface switching: supported Zeroing of total data: supported\r\nVoltage and current no-load nulling: supported Voltage open calibration:\r\nsupported Current open calibration: Support Screen brightness adjustment:\r\nSupport Screen hibernation standby setting: Support PC software online: Not\r\nsupported Restore factory settings: Support Package size: 195 105 135mm \/\r\n7.68 4.13 5.31in Package weight: 625g \/ 1.38lb Packing List: 1 \r\nElectronic Load 1 Adapter 1 NTC Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis product is a direct current CNC electronic load, with a maximum power of 150W and a maximum load current of 20A. Support test the capacity of power battery.\u003c\/li\u003e\r\n \u003cli\u003e2.4inch TFT color screen, with voltage, current, power, electricity, capacity, internal resistance, load, operating mode, OVP, OCP, OPP, stop voltage, time limit discharge display function.\u003c\/li\u003e\r\n \u003cli\u003eIt has four working modes design, constant current mode, constant voltage mode, constant power mode and constant resistance mode.\u003c\/li\u003e\r\n \u003cli\u003eVoltage, current and power overrun protections can be set; stop discharge voltage and discharge time can be set.\u003c\/li\u003e\r\n \u003cli\u003ePower supplying temperature can be monitored by an external NTC sensor.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
