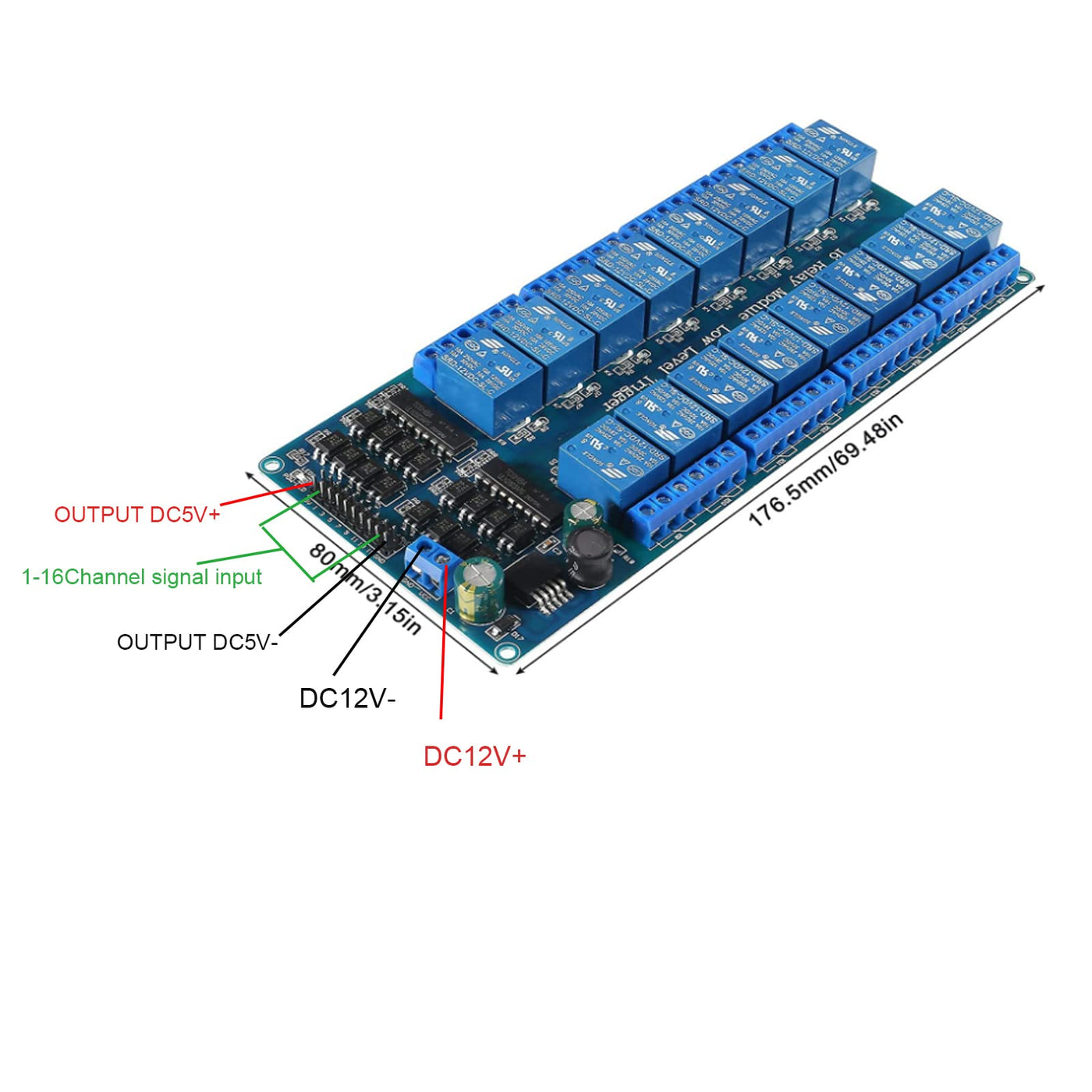

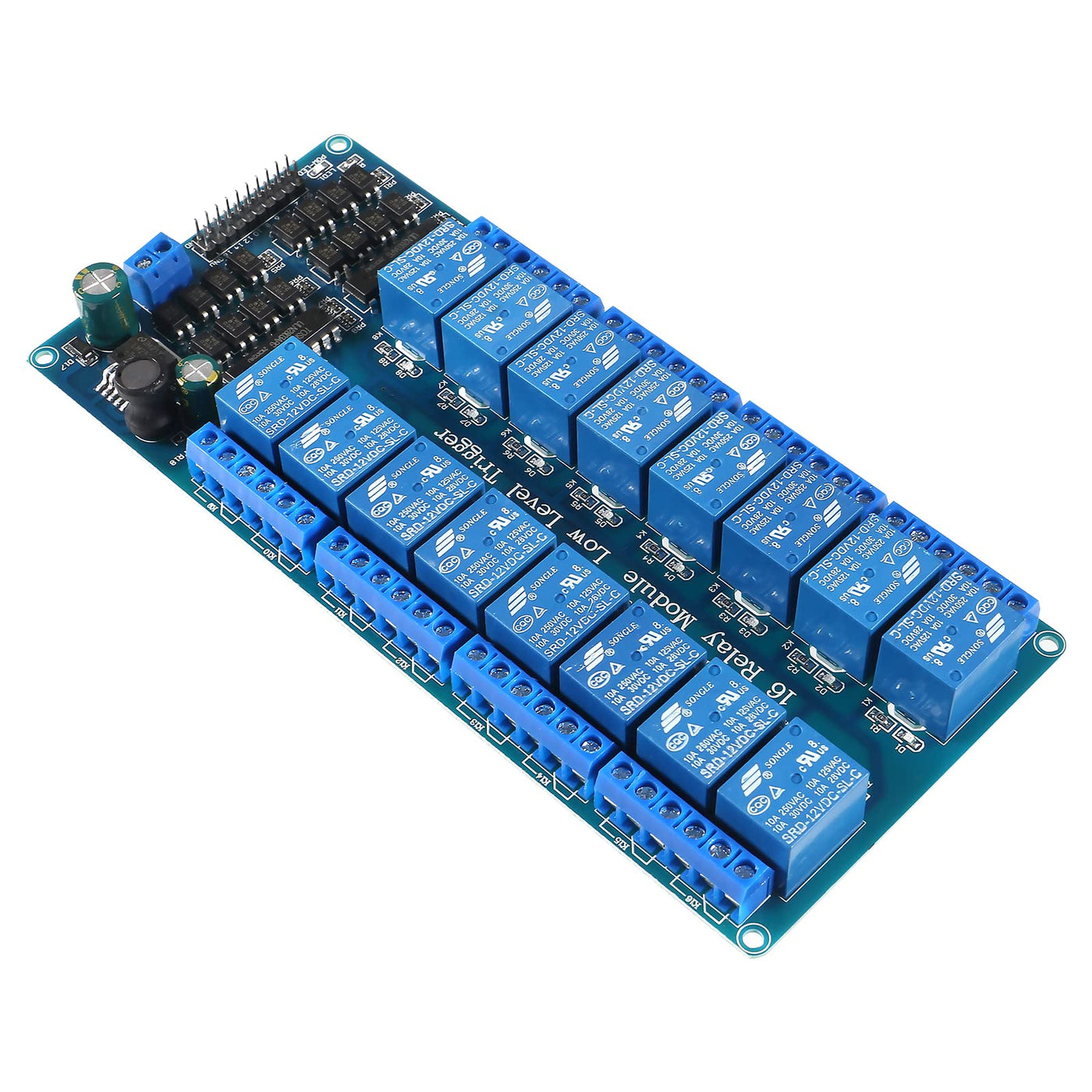

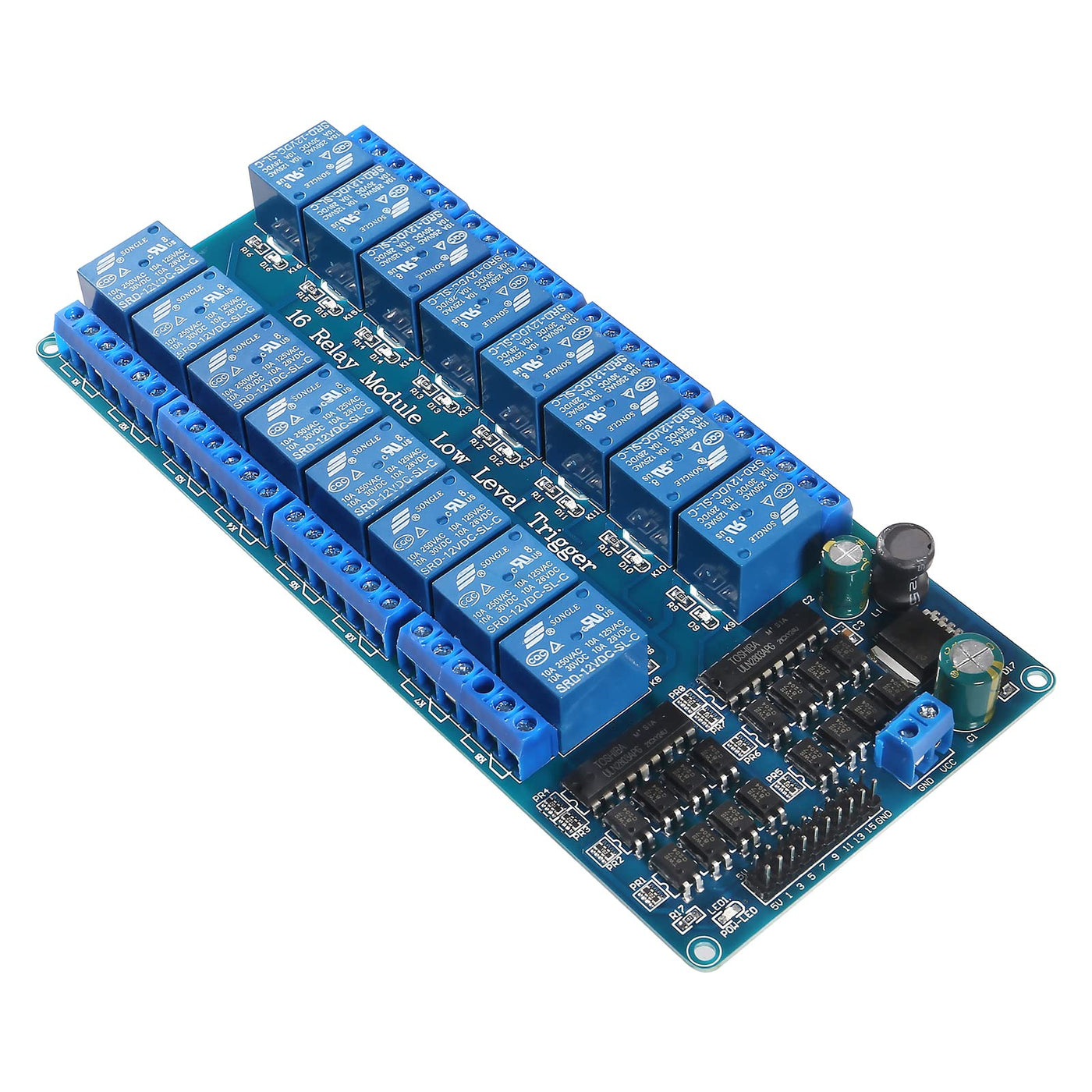

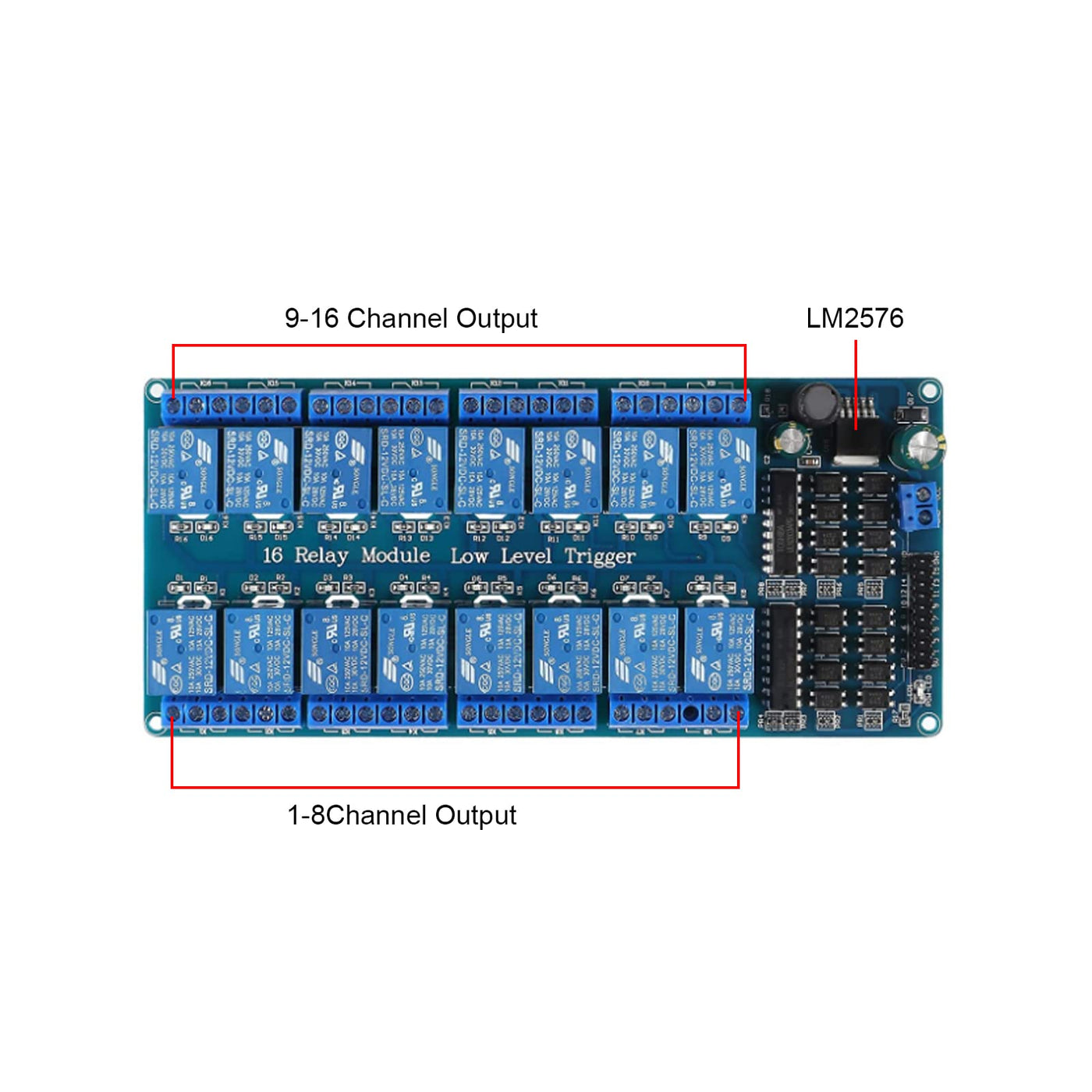

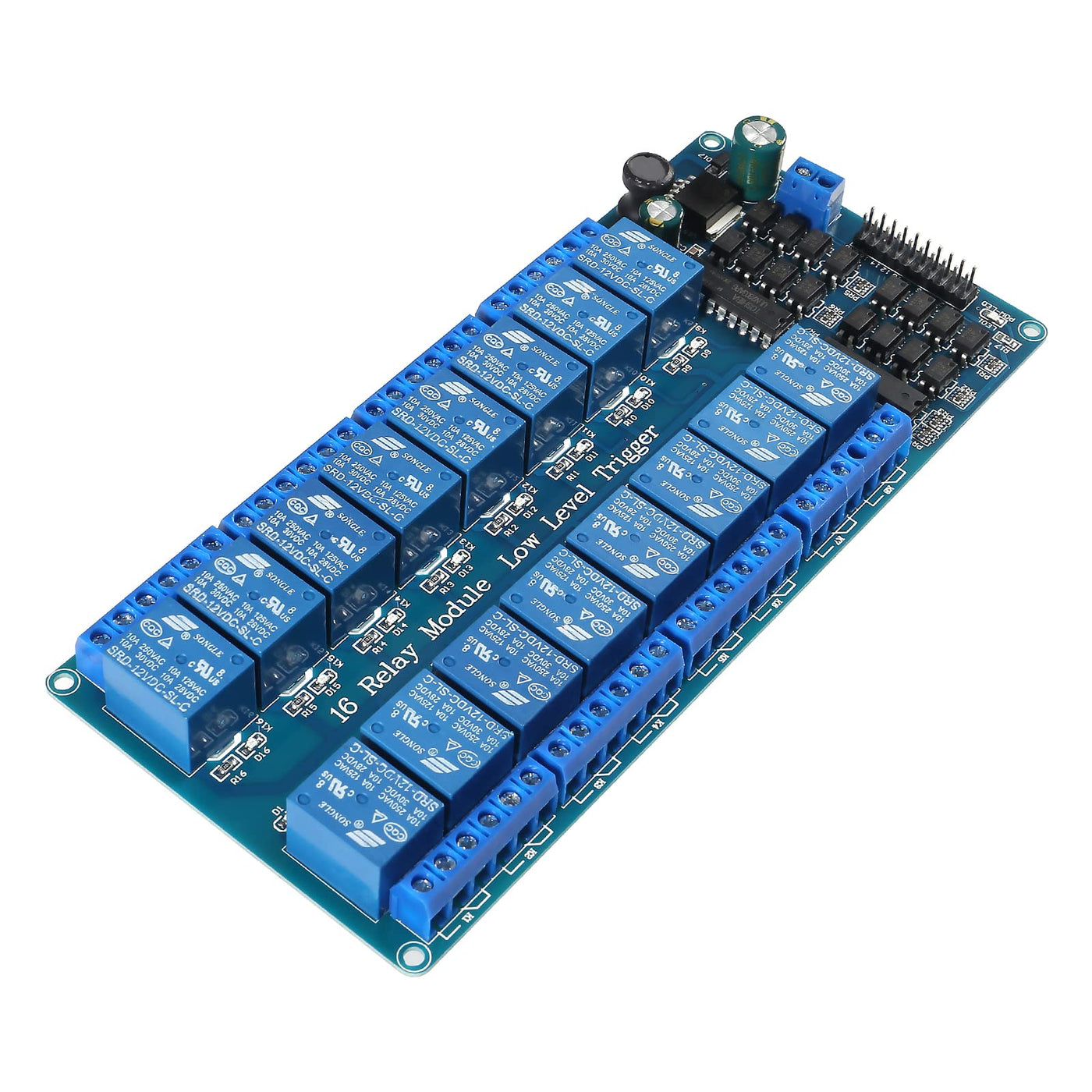

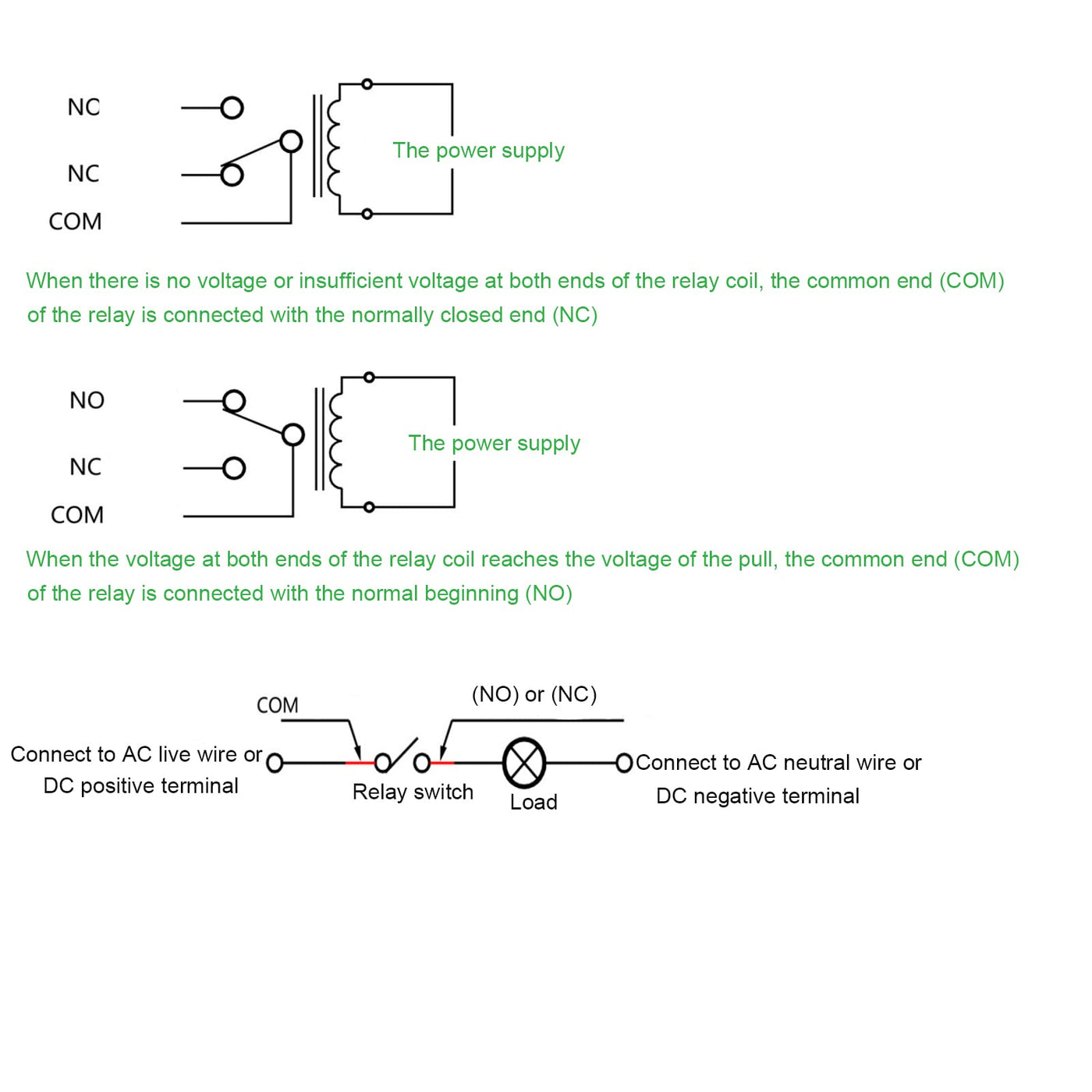

{"id":7903577505972,"title":"12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL","handle":"12v-16-channel-relay-module-board-optocoupler-led-lm2576-power-low-level-trigger-16-ch-expansion-board-12v-16-channel-12v-16-channel","description":"\u003ch3\u003e12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Channel:16 channel Working Voltage:DC 12V Normally Open\nCompatible Load:10A 250VAC; 15A 125VAC; 10A 30VDC Quiescent Current:5mA\nMaximum Current:80mA Trigger Current:2 5mA Trigger Voltage(Low):0 4V Trigger\nVoltage(High):4.5 12V Insulation resistance:100MO (500VDC) Action time:less\nthan 10ms Release time:less than 5ms Power indicator:Green Relay status\nindicator:Red Item size:179mmX90mmX18.5mm \/7.05X3.54X0.73inch(LWH) 16\nchannel 12v Input Interface: DC+:connect to power positive (according to the\nrelay voltage range) DC: connect to power negative IN: relay module trigger\npin (high or low level trigger Optional) Relay Output: Normally Opened (NO) :\nnormally open pin of relay. NO pin is not connect to COM pin when relay off.NO\npin is connect to COM pin when relay on; Common pin (COM) : Common pin of the\nrelay; Normally closed (NC) : normally close pin of relay. NC pin is connect\nto COM pin when relay off. NC pin is not connect to COM pin when relay on.\nPackage includes: 1 x 16 Channel 12V Relay Module with Optocoupler Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is 16 Channel Isolated 12V 10A Relay Module, each relay can individually switch on\/off by an opto-isolated digital input, Standard interface can be directly connected with microcontrollers and be controlled directly by a wide range of microcontrollers.\u003c\/li\u003e\n \u003cli\u003eEquipped with high-current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Trigger current of opto-isolator: 5mA.\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line breaks, the relay will not move; With optical coupling isolation, triggering more reliable, more stable.\u003c\/li\u003e\n \u003cli\u003eEquipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.\u003c\/li\u003e\n \u003cli\u003eWith indication LEDs for Relay output status. The working status indicator lights are conducive to the safe use.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-12-26T03:12:08+11:00","created_at":"2024-12-25T03:52:31+11:00","vendor":"Diitao","type":"Solid State Relays","tags":["industrial_Aug2024_update"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43777169031348,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B4NTNV29","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL","public_title":null,"options":["Default Title"],"price":14500,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715511385","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B4NTNV29.jpg?v=1735110082","\/\/auspowers.com\/cdn\/shop\/files\/81pj9PalmjL.jpg?v=1735059154","\/\/auspowers.com\/cdn\/shop\/files\/71Vj_l9yt7L.jpg?v=1735059154","\/\/auspowers.com\/cdn\/shop\/files\/81ZZ58llzOL.jpg?v=1735059154","\/\/auspowers.com\/cdn\/shop\/files\/71G6Th0V4_L.jpg?v=1735059154","\/\/auspowers.com\/cdn\/shop\/files\/61JWr7hmY6L.jpg?v=1735059154","\/\/auspowers.com\/cdn\/shop\/files\/61fHAZ6ap2L.jpg?v=1735059154"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B4NTNV29.jpg?v=1735110082","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31089781899444,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B4NTNV29.jpg?v=1735110082"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B4NTNV29.jpg?v=1735110082","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282009780,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81pj9PalmjL.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81pj9PalmjL.jpg?v=1735059154","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282042548,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Vj_l9yt7L.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Vj_l9yt7L.jpg?v=1735059154","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282075316,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81ZZ58llzOL.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81ZZ58llzOL.jpg?v=1735059154","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282108084,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71G6Th0V4_L.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71G6Th0V4_L.jpg?v=1735059154","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282140852,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61JWr7hmY6L.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61JWr7hmY6L.jpg?v=1735059154","width":1600},{"alt":"[Australia - AusPower] - 12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel) 12V 16-CHANNEL ","id":31088282173620,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61fHAZ6ap2L.jpg?v=1735059154"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61fHAZ6ap2L.jpg?v=1735059154","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e12V 16 Channel Relay Module Board Optocoupler LED LM2576 Power Low Level Trigger 16 CH Expansion Board (12V 16-Channel)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Channel:16 channel Working Voltage:DC 12V Normally Open\nCompatible Load:10A 250VAC; 15A 125VAC; 10A 30VDC Quiescent Current:5mA\nMaximum Current:80mA Trigger Current:2 5mA Trigger Voltage(Low):0 4V Trigger\nVoltage(High):4.5 12V Insulation resistance:100MO (500VDC) Action time:less\nthan 10ms Release time:less than 5ms Power indicator:Green Relay status\nindicator:Red Item size:179mmX90mmX18.5mm \/7.05X3.54X0.73inch(LWH) 16\nchannel 12v Input Interface: DC+:connect to power positive (according to the\nrelay voltage range) DC: connect to power negative IN: relay module trigger\npin (high or low level trigger Optional) Relay Output: Normally Opened (NO) :\nnormally open pin of relay. NO pin is not connect to COM pin when relay off.NO\npin is connect to COM pin when relay on; Common pin (COM) : Common pin of the\nrelay; Normally closed (NC) : normally close pin of relay. NC pin is connect\nto COM pin when relay off. NC pin is not connect to COM pin when relay on.\nPackage includes: 1 x 16 Channel 12V Relay Module with Optocoupler Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIt is 16 Channel Isolated 12V 10A Relay Module, each relay can individually switch on\/off by an opto-isolated digital input, Standard interface can be directly connected with microcontrollers and be controlled directly by a wide range of microcontrollers.\u003c\/li\u003e\n \u003cli\u003eEquipped with high-current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Trigger current of opto-isolator: 5mA.\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line breaks, the relay will not move; With optical coupling isolation, triggering more reliable, more stable.\u003c\/li\u003e\n \u003cli\u003eEquipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.\u003c\/li\u003e\n \u003cli\u003eWith indication LEDs for Relay output status. The working status indicator lights are conducive to the safe use.\u003c\/li\u003e\n \u003c\/ul\u003e"}
