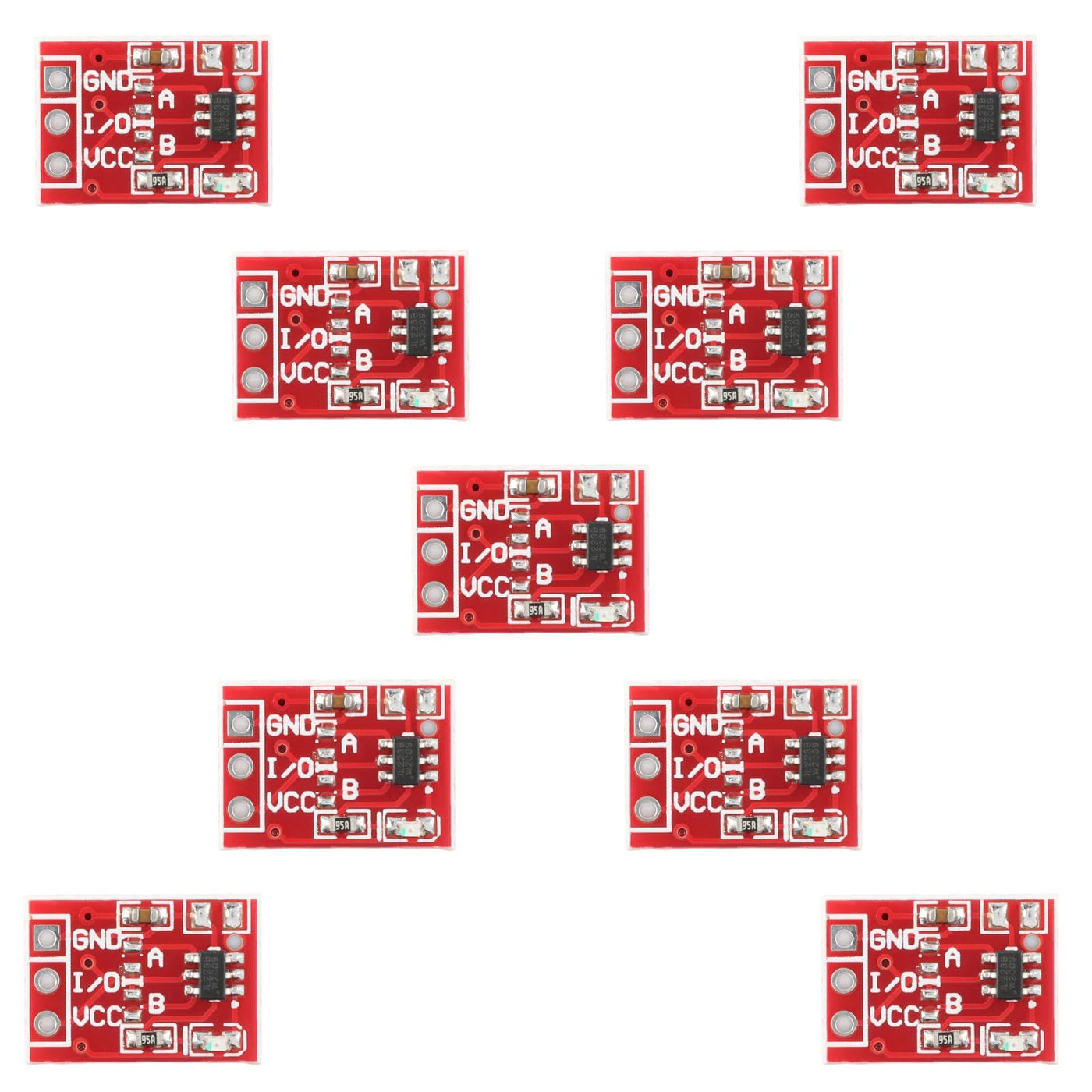

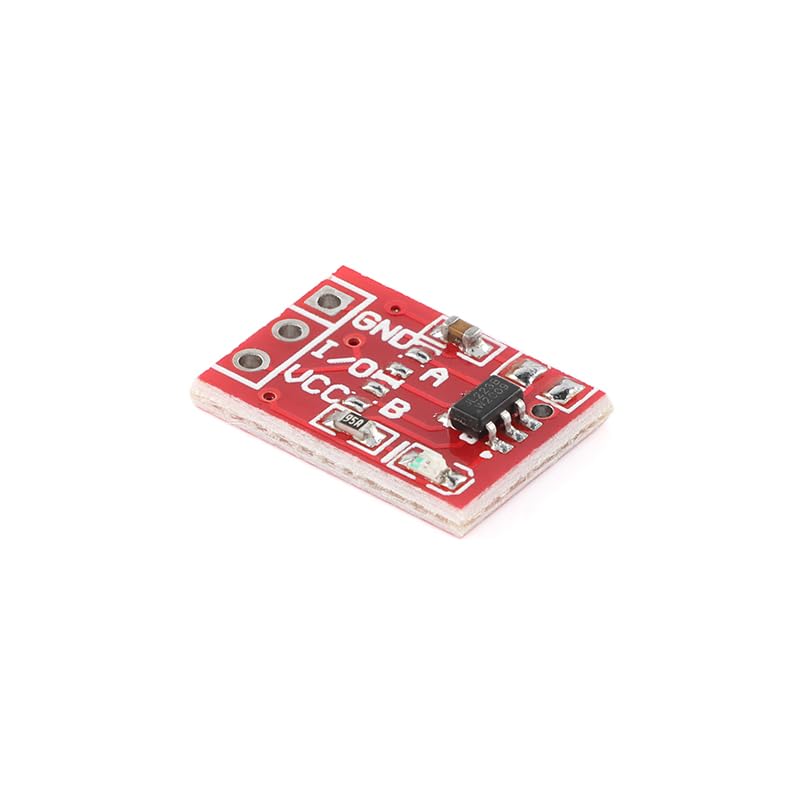

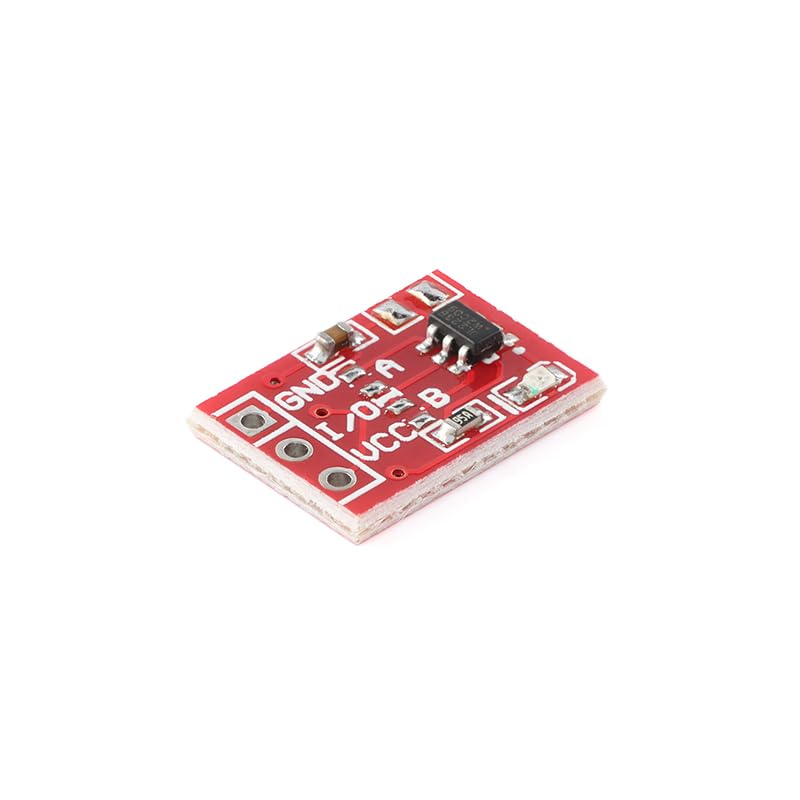

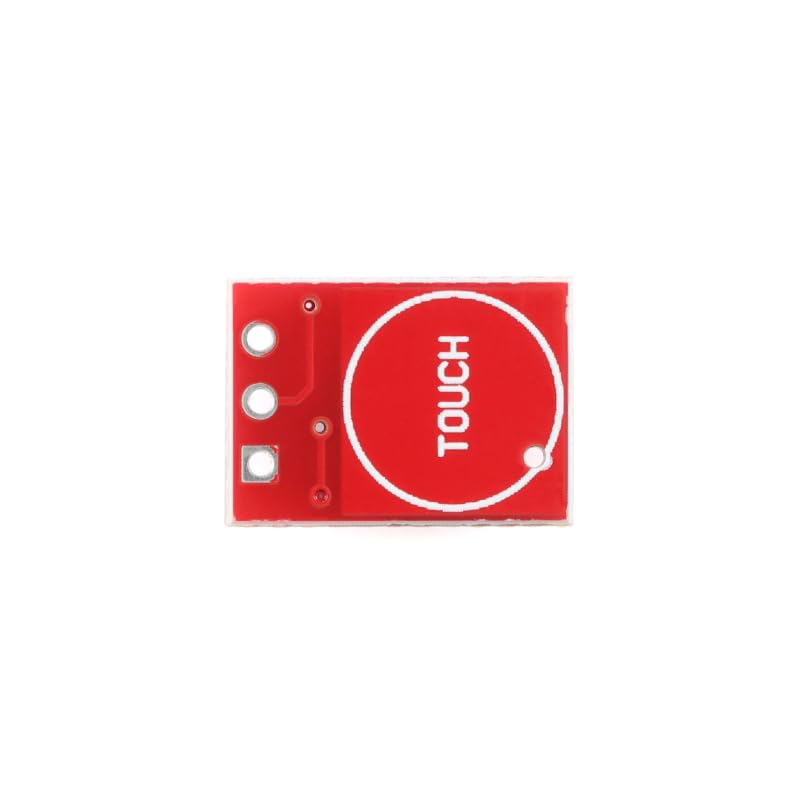

{"id":8034532556980,"title":"10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration","handle":"10pcs-ttp223-capacitive-touch-key-module-self-locking-non-locking-single-channel-touch-sensor-for-arduino-integration","description":"\u003ch3\u003e10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Parameters Operating Voltage: 2.0V–5.5V DC (Wide Range, 3.3V\/5V\r\nCompatible) Output Signal: High\/Low TTL Response Time: ≤60ms (Fast Mode),\r\n≤220ms (Low Power Mode @3V) Touch Sensing Distance: Up to 5mm Sensitivity\r\nAdjustment: External Capacitor 0–50pF Power Consumption: 1.5mA (Active), 5μA\r\n(Standby Typical) Operating Temperature: -20°C to +70°C Auto-Calibration: Re-\r\ncalibration every 4.0s Key Pin Functions VCC: Power Supply Positive (2.0V–5.5V\r\nDC), connect to regulated source with 0.1μF decoupling capacitor to GND . GND:\r\nPower \u0026amp; Signal Ground (Isolate from digital noise sources) . OUT: Digital\r\nOutput Signal: Default: Low at idle, High when touched (Direct Mode)\r\nConfigurable via solder jumpers: AB=00: Momentary High TTL (No-lock) AB=01:\r\nLatching High TTL (Self-lock) AB=10: Momentary Low TTL (No-lock) AB=11:\r\nLatching Low TTL (Self-lock) . FAQ Q1: First Power-On Unresponsive? A: Wait\r\n0.5s stabilization period (post-power-on). Avoid touching during this phase .\r\nQ2: False Triggers or Inconsistent Response? A: ① Adjust sensitivity via\r\nexternal capacitor (0–50pF); ② Ensure no metal\/EMI interference near sensor .\r\nQ3: Output Signal Stuck High\/Low? A: Verify solder jumper configuration (AB\r\npads): Desired momentary action → Set AB=00 or AB=10. Desired latching action\r\n→ Set AB=01 or AB=11 . Q4: Can It Work Behind Walls? A: Yes! Mount behind\r\nplastic\/glass ≤5mm thickness. Sensitivity tuning required for sealed\r\nenclosures\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCompact \u0026amp; Versatile DesignMeasuring just 15x11mm, this TTP223 Touch Key Module is Suitable for projects requiring a compact yet efficient input solution. Suitable for DIY electronics, home automation, and retrofit applications, its small footprint ensures seamless integration without compromising functionality.\u003c\/li\u003e\r\n \u003cli\u003eEffortless Touch ControlExperience the convenience of capacitive touch technology with this module's self-locking and non-locking modes. Whether you need a toggle switch for smart lighting or a momentary touch for interactive displays, this module adapts to your needs with precision.\u003c\/li\u003e\r\n \u003cli\u003eReliable PerformancePowered by a wide voltage range of 2.5-5.5V, the TTP223 ensures stable operation across various devices. The high TTL level output guarantees consistent signal transmission, making it a dependable component in any electronic project.\u003c\/li\u003e\r\n \u003cli\u003eUser-Friendly IntegrationDesigned for simplicity, this touch switch sensor is easy to integrate into existing systems. Whether you're a hobbyist or a seasoned engineer, enjoy hassle-free installation and configuration with clear mode settings and intuitive operation.\u003c\/li\u003e\r\n \u003cli\u003eEnhanced CompatibilitySuitable for single-channel applications, this touch key module is compatible with a range of microcontrollers and development boards. Elevate your projects with the flexibility and reliability this module offers, from Arduino to Raspberry Pi applications.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:12:18+11:00","created_at":"2026-02-28T20:12:15+11:00","vendor":"MusRock","type":"Pressure Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":8600,"price_min":8600,"price_max":8600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154580959412,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FLPRJ9DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration","public_title":null,"options":["Default Title"],"price":8600,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"TTP223","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FLPRJ9DM.jpg?v=1775787875","\/\/auspowers.com\/cdn\/shop\/files\/41dNYtjgZ-L.jpg?v=1772269937","\/\/auspowers.com\/cdn\/shop\/files\/41zKlMTWHwL.jpg?v=1772269937","\/\/auspowers.com\/cdn\/shop\/files\/312xf7KH6mL.jpg?v=1772269937"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLPRJ9DM.jpg?v=1775787875","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration ","id":32724410597556,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLPRJ9DM.jpg?v=1775787875"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLPRJ9DM.jpg?v=1775787875","width":1600},{"alt":"[Australia - AusPower] - 10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration ","id":32724410630324,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41dNYtjgZ-L.jpg?v=1772269937"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41dNYtjgZ-L.jpg?v=1772269937","width":800},{"alt":"[Australia - AusPower] - 10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration ","id":32724410663092,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41zKlMTWHwL.jpg?v=1772269937"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41zKlMTWHwL.jpg?v=1772269937","width":800},{"alt":"[Australia - AusPower] - 10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration ","id":32724410695860,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/312xf7KH6mL.jpg?v=1772269937"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/312xf7KH6mL.jpg?v=1772269937","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e10Pcs TTP223 Capacitive Touch Key Module - Self-Locking\/Non-Locking, Single Channel Touch Sensor for Arduino Integration\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Parameters Operating Voltage: 2.0V–5.5V DC (Wide Range, 3.3V\/5V\r\nCompatible) Output Signal: High\/Low TTL Response Time: ≤60ms (Fast Mode),\r\n≤220ms (Low Power Mode @3V) Touch Sensing Distance: Up to 5mm Sensitivity\r\nAdjustment: External Capacitor 0–50pF Power Consumption: 1.5mA (Active), 5μA\r\n(Standby Typical) Operating Temperature: -20°C to +70°C Auto-Calibration: Re-\r\ncalibration every 4.0s Key Pin Functions VCC: Power Supply Positive (2.0V–5.5V\r\nDC), connect to regulated source with 0.1μF decoupling capacitor to GND . GND:\r\nPower \u0026amp; Signal Ground (Isolate from digital noise sources) . OUT: Digital\r\nOutput Signal: Default: Low at idle, High when touched (Direct Mode)\r\nConfigurable via solder jumpers: AB=00: Momentary High TTL (No-lock) AB=01:\r\nLatching High TTL (Self-lock) AB=10: Momentary Low TTL (No-lock) AB=11:\r\nLatching Low TTL (Self-lock) . FAQ Q1: First Power-On Unresponsive? A: Wait\r\n0.5s stabilization period (post-power-on). Avoid touching during this phase .\r\nQ2: False Triggers or Inconsistent Response? A: ① Adjust sensitivity via\r\nexternal capacitor (0–50pF); ② Ensure no metal\/EMI interference near sensor .\r\nQ3: Output Signal Stuck High\/Low? A: Verify solder jumper configuration (AB\r\npads): Desired momentary action → Set AB=00 or AB=10. Desired latching action\r\n→ Set AB=01 or AB=11 . Q4: Can It Work Behind Walls? A: Yes! Mount behind\r\nplastic\/glass ≤5mm thickness. Sensitivity tuning required for sealed\r\nenclosures\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCompact \u0026amp; Versatile DesignMeasuring just 15x11mm, this TTP223 Touch Key Module is Suitable for projects requiring a compact yet efficient input solution. Suitable for DIY electronics, home automation, and retrofit applications, its small footprint ensures seamless integration without compromising functionality.\u003c\/li\u003e\r\n \u003cli\u003eEffortless Touch ControlExperience the convenience of capacitive touch technology with this module's self-locking and non-locking modes. Whether you need a toggle switch for smart lighting or a momentary touch for interactive displays, this module adapts to your needs with precision.\u003c\/li\u003e\r\n \u003cli\u003eReliable PerformancePowered by a wide voltage range of 2.5-5.5V, the TTP223 ensures stable operation across various devices. The high TTL level output guarantees consistent signal transmission, making it a dependable component in any electronic project.\u003c\/li\u003e\r\n \u003cli\u003eUser-Friendly IntegrationDesigned for simplicity, this touch switch sensor is easy to integrate into existing systems. Whether you're a hobbyist or a seasoned engineer, enjoy hassle-free installation and configuration with clear mode settings and intuitive operation.\u003c\/li\u003e\r\n \u003cli\u003eEnhanced CompatibilitySuitable for single-channel applications, this touch key module is compatible with a range of microcontrollers and development boards. Elevate your projects with the flexibility and reliability this module offers, from Arduino to Raspberry Pi applications.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
