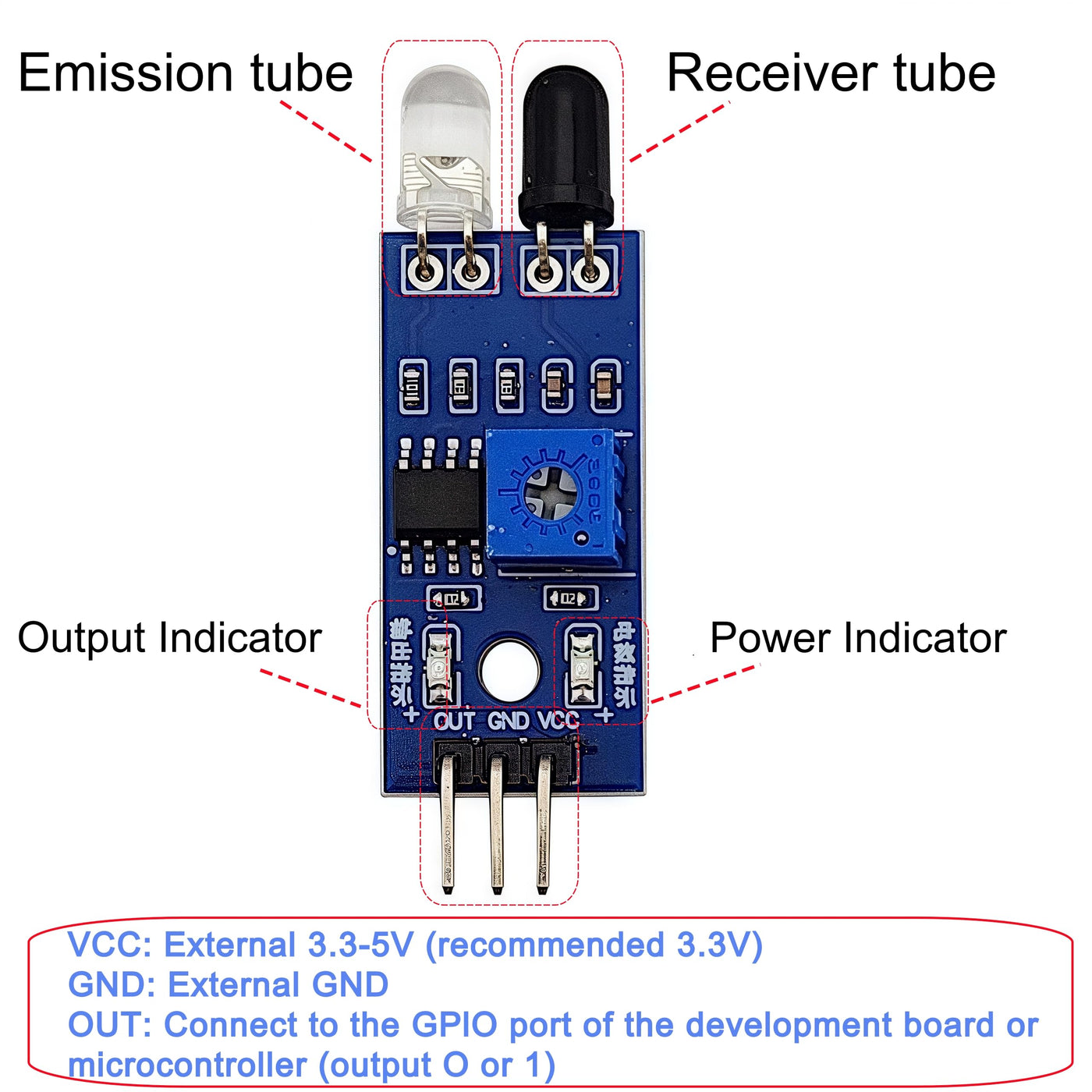

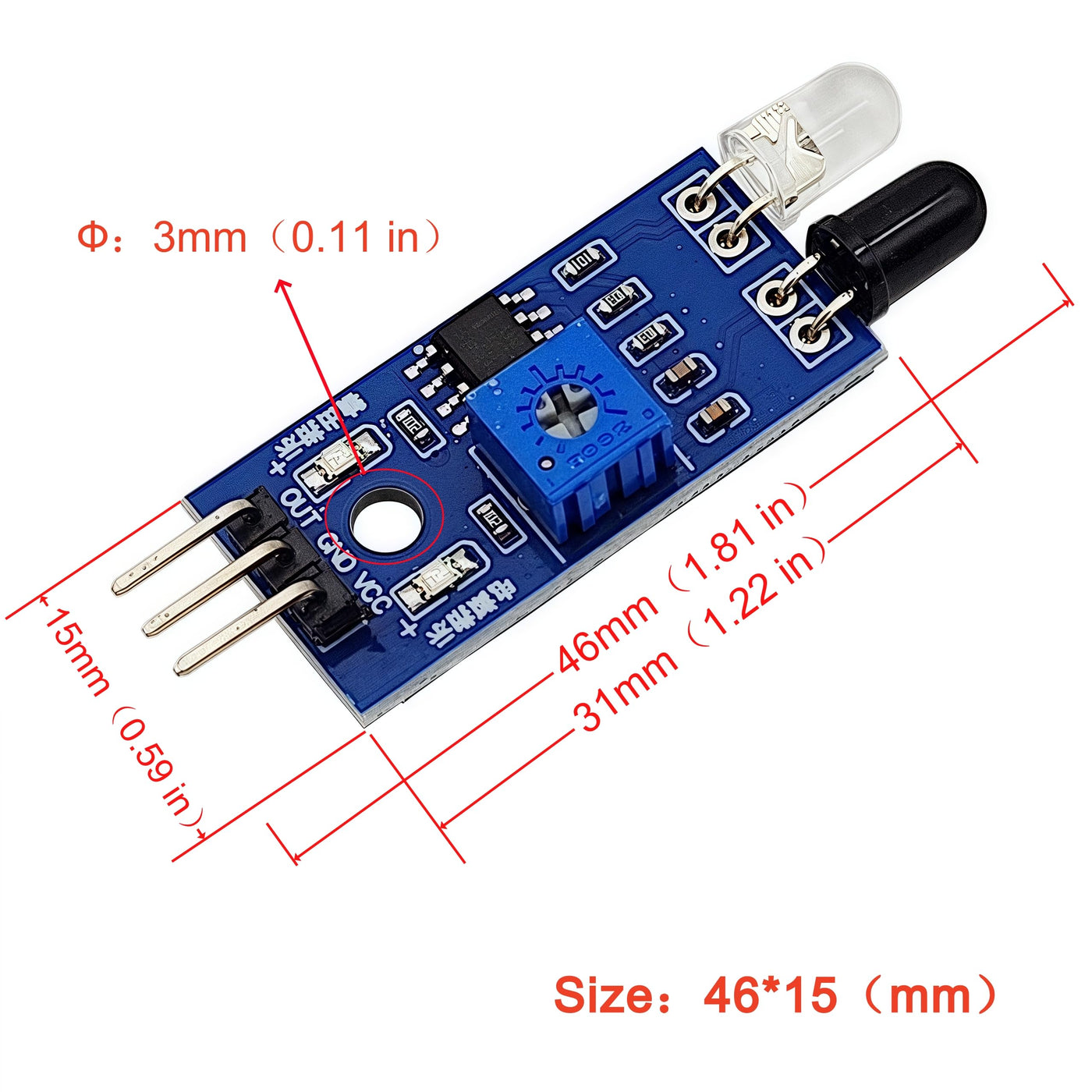

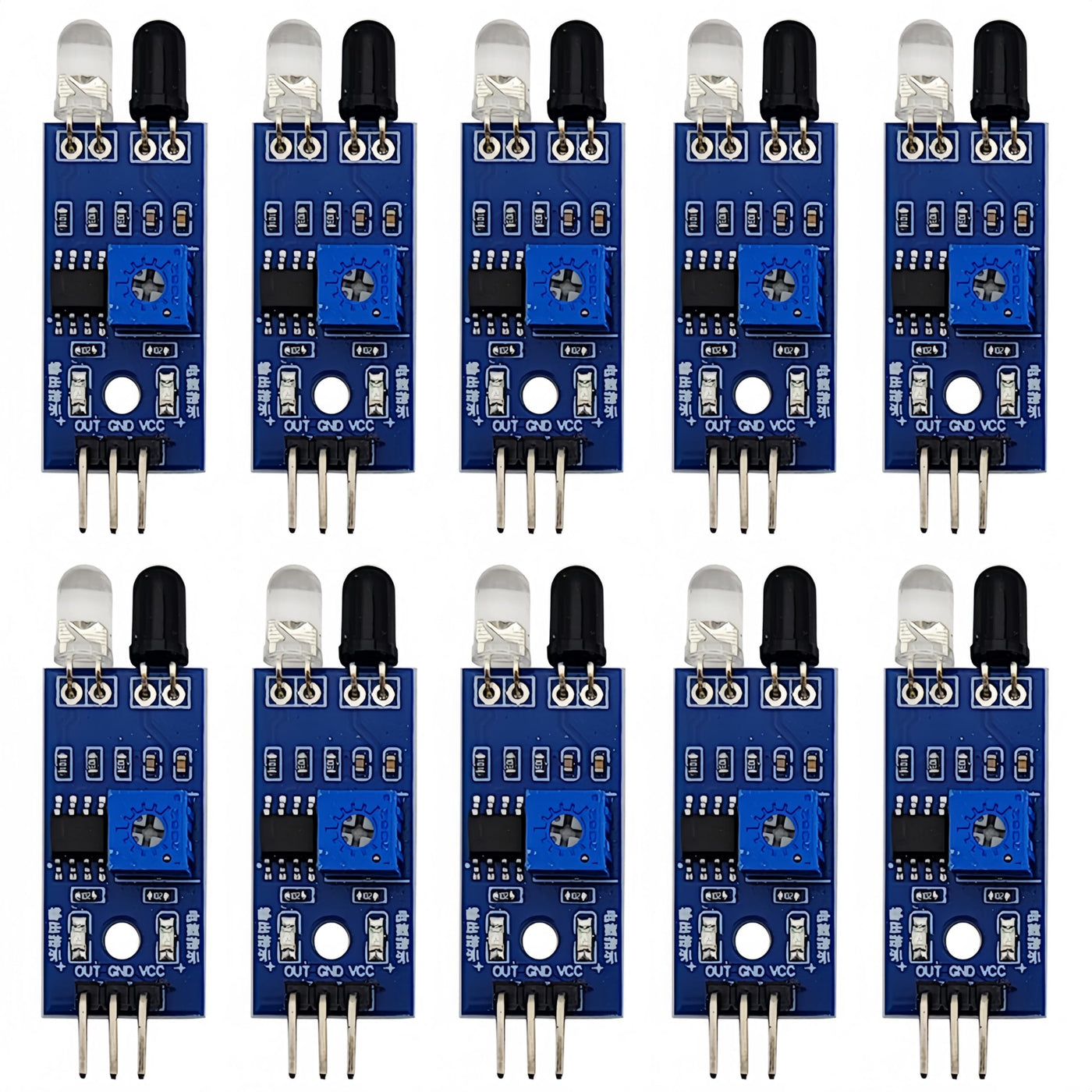

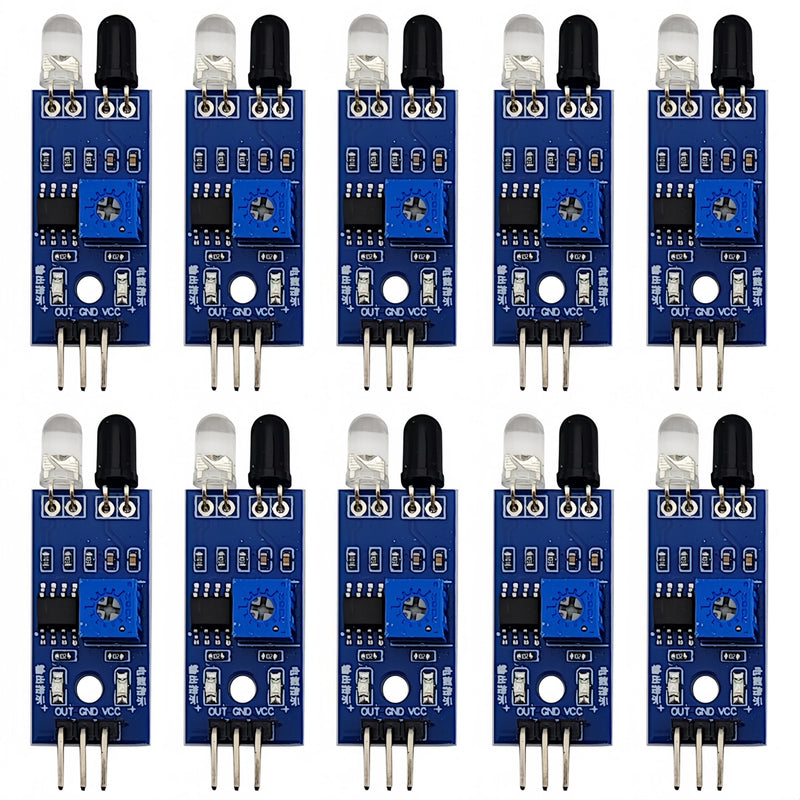

{"id":8034339160244,"title":"10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino","handle":"10pcs-ir-infrared-obstacle-avoidance-sensor-module-compatible-with-arduino","description":"\u003ch3\u003e10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe module detects obstacles within 2-30 cm range with a 35° angle, adjustable\r\nvia potentiometer The distance can detect potential is adjusted clockwise\r\nadjustment potentiometer to detect the distance increases; counterclockwise to\r\nadjust the potentiometer to reduce the detection distance The output port OUT\r\nsensor module can be directly connected to the microcontroller IO port, you\r\ncan directly drive a 5V relay Connection method: VCC - VCC, GND - GND, OUT -\r\nIO Using the comparator LM393 Can be used for 3-5V DC power supply modules.\r\nWhen the power is turned on, the red power. With the screw holes of 3mm , easy\r\nfixed installation. PCB size : 3214mm Application: Widely used in robot\r\nobstacle avoidance, obstacle avoidance vehicles, line counting, and black and\r\nwhite line tracking. Module Interface Description: VCC: 3.3V-5V voltage (can\r\nbe directly connected to 5v MCU and 3.3v MCU) GND: GND OUT: small board\r\ndigital output interfaces (0 and 1)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe module detects obstacles within 2-30 cm range with a 35 angle, adjustable via potentiometer\u003c\/li\u003e\r\n \u003cli\u003eWorks with 3-5V DC, LM393 comparator ensures stability.\u003c\/li\u003e\r\n \u003cli\u003ePCB size : 32*14mm, with the screw holes of 3mm , easy fixed installation.\u003c\/li\u003e\r\n \u003cli\u003ePINs: VCC (3.3V-5V), GND (GND), OUT (digital output interfaces (0 and 1))\u003c\/li\u003e\r\n \u003cli\u003eApplication: Widely used in robot obstacle avoidance, obstacle avoidance vehicles, line counting, and black and white line tracking.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T16:47:09+11:00","created_at":"2026-02-27T16:47:05+11:00","vendor":"Yuuhseel","type":"Sensors","tags":["industrial_selected_Nov2025"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154066927796,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FM7YVJL3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino","public_title":null,"options":["Default Title"],"price":9600,"weight":37,"compare_at_price":null,"inventory_management":"shopify","barcode":"HW*10","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FM7YVJL3.jpg?v=1775784928","\/\/auspowers.com\/cdn\/shop\/files\/81bfHeEc-aL.jpg?v=1772171228","\/\/auspowers.com\/cdn\/shop\/files\/81g8i2hWZML.jpg?v=1772171228","\/\/auspowers.com\/cdn\/shop\/files\/8186K0OzGsL.jpg?v=1772171228","\/\/auspowers.com\/cdn\/shop\/files\/81knmlgiDuL.jpg?v=1772171228"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FM7YVJL3.jpg?v=1775784928","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino ","id":32719942222004,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FM7YVJL3.jpg?v=1775784928"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FM7YVJL3.jpg?v=1775784928","width":2560},{"alt":"[Australia - AusPower] - 10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino ","id":32719942254772,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81bfHeEc-aL.jpg?v=1772171228"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81bfHeEc-aL.jpg?v=1772171228","width":2560},{"alt":"[Australia - AusPower] - 10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino ","id":32719942287540,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81g8i2hWZML.jpg?v=1772171228"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81g8i2hWZML.jpg?v=1772171228","width":2560},{"alt":"[Australia - AusPower] - 10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino ","id":32719942320308,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/8186K0OzGsL.jpg?v=1772171228"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/8186K0OzGsL.jpg?v=1772171228","width":2560},{"alt":"[Australia - AusPower] - 10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino ","id":32719942353076,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81knmlgiDuL.jpg?v=1772171228"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81knmlgiDuL.jpg?v=1772171228","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e10PCS IR Infrared Obstacle Avoidance Sensor Module Compatible with Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe module detects obstacles within 2-30 cm range with a 35° angle, adjustable\r\nvia potentiometer The distance can detect potential is adjusted clockwise\r\nadjustment potentiometer to detect the distance increases; counterclockwise to\r\nadjust the potentiometer to reduce the detection distance The output port OUT\r\nsensor module can be directly connected to the microcontroller IO port, you\r\ncan directly drive a 5V relay Connection method: VCC - VCC, GND - GND, OUT -\r\nIO Using the comparator LM393 Can be used for 3-5V DC power supply modules.\r\nWhen the power is turned on, the red power. With the screw holes of 3mm , easy\r\nfixed installation. PCB size : 3214mm Application: Widely used in robot\r\nobstacle avoidance, obstacle avoidance vehicles, line counting, and black and\r\nwhite line tracking. Module Interface Description: VCC: 3.3V-5V voltage (can\r\nbe directly connected to 5v MCU and 3.3v MCU) GND: GND OUT: small board\r\ndigital output interfaces (0 and 1)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe module detects obstacles within 2-30 cm range with a 35 angle, adjustable via potentiometer\u003c\/li\u003e\r\n \u003cli\u003eWorks with 3-5V DC, LM393 comparator ensures stability.\u003c\/li\u003e\r\n \u003cli\u003ePCB size : 32*14mm, with the screw holes of 3mm , easy fixed installation.\u003c\/li\u003e\r\n \u003cli\u003ePINs: VCC (3.3V-5V), GND (GND), OUT (digital output interfaces (0 and 1))\u003c\/li\u003e\r\n \u003cli\u003eApplication: Widely used in robot obstacle avoidance, obstacle avoidance vehicles, line counting, and black and white line tracking.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
