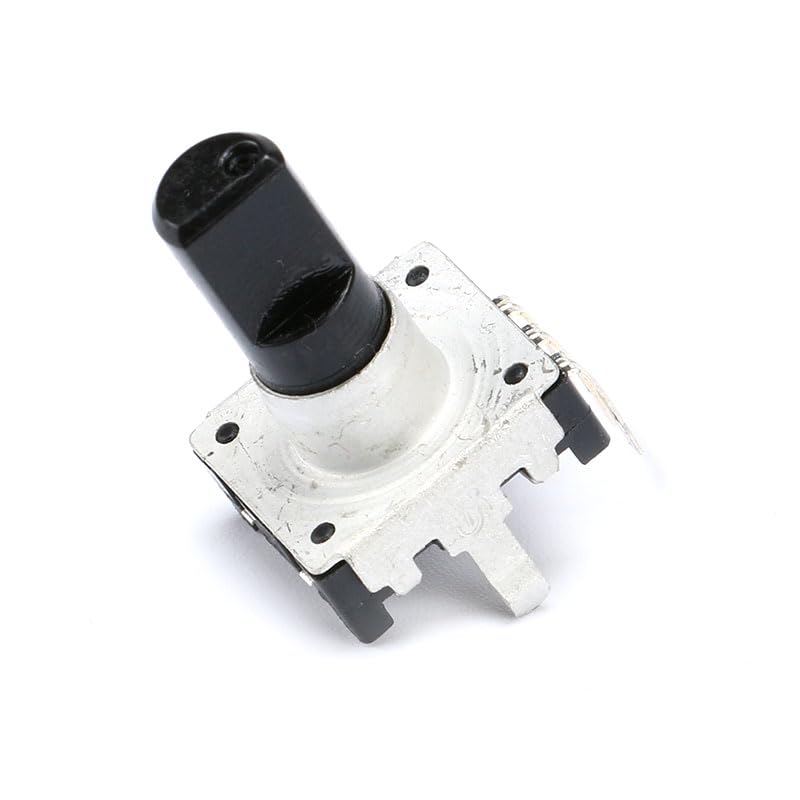

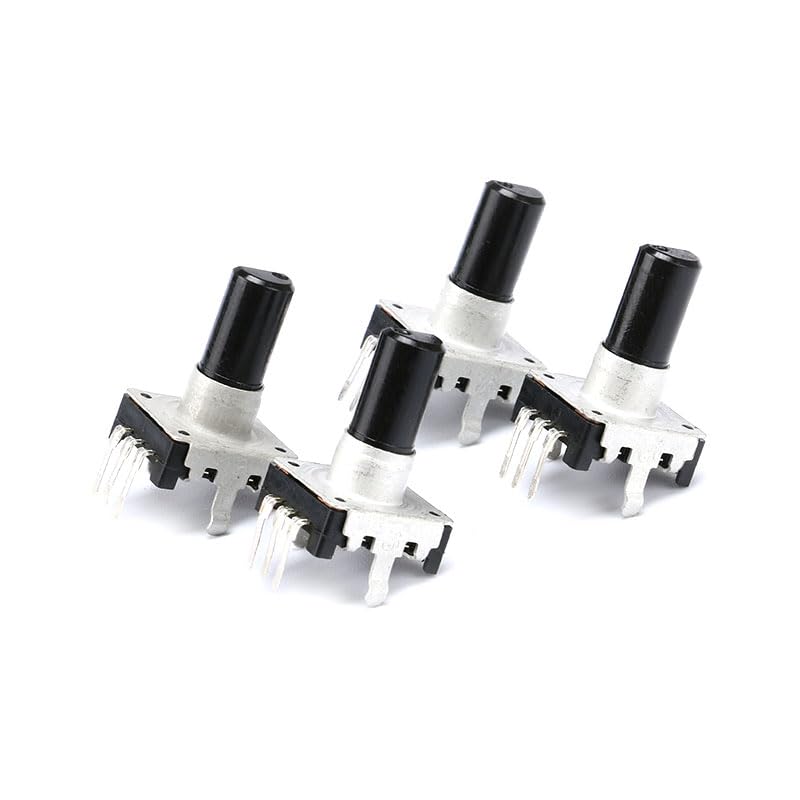

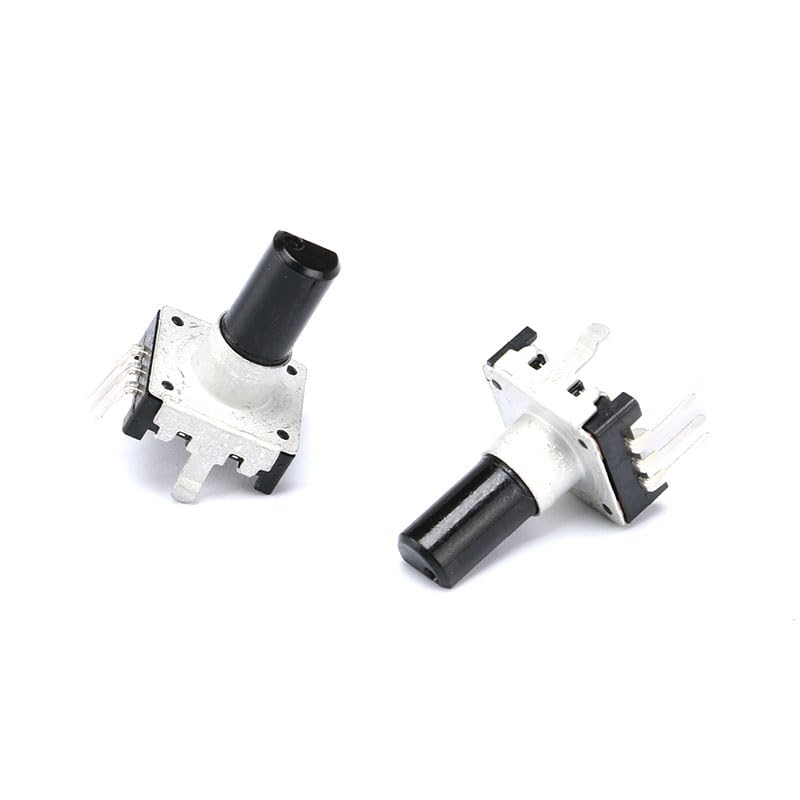

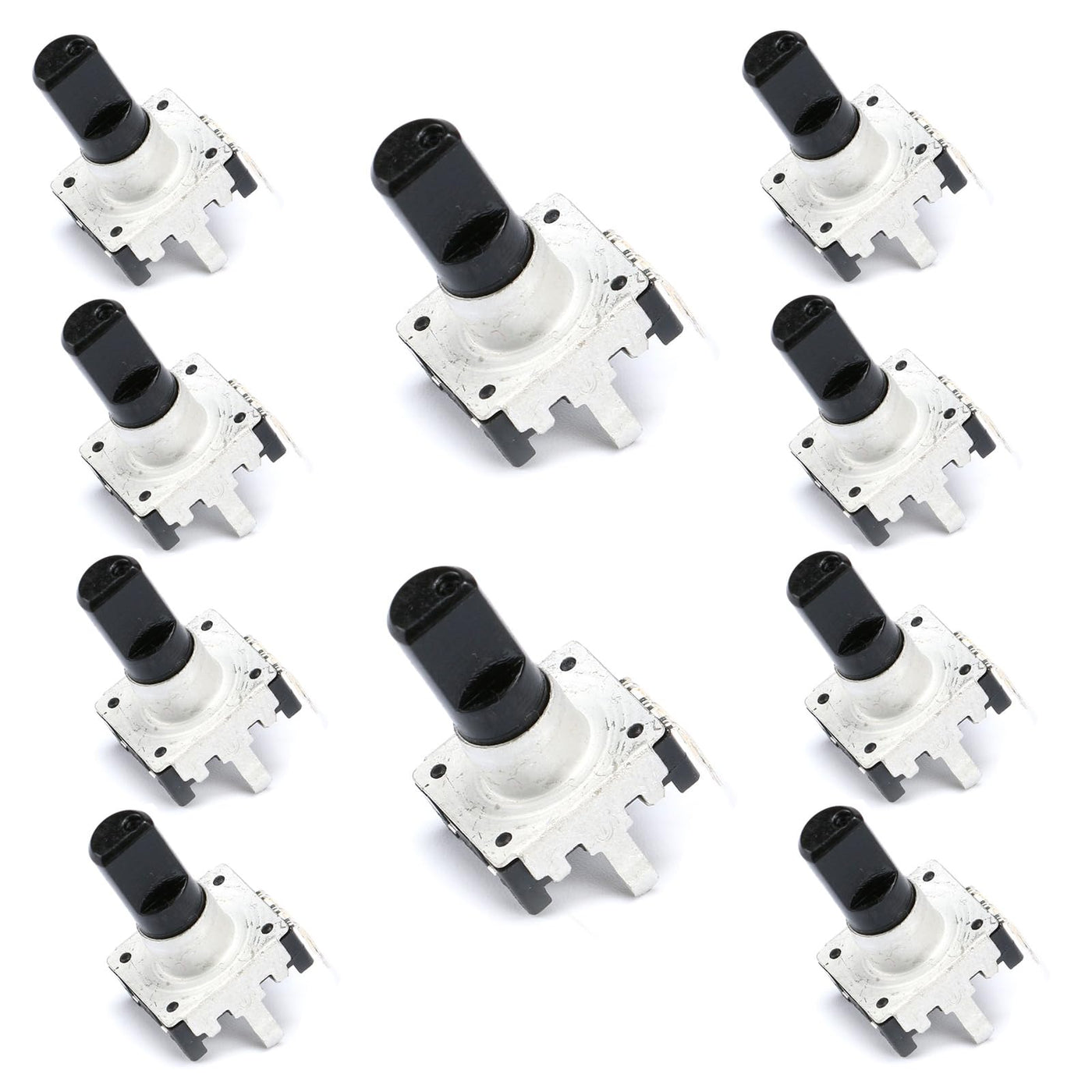

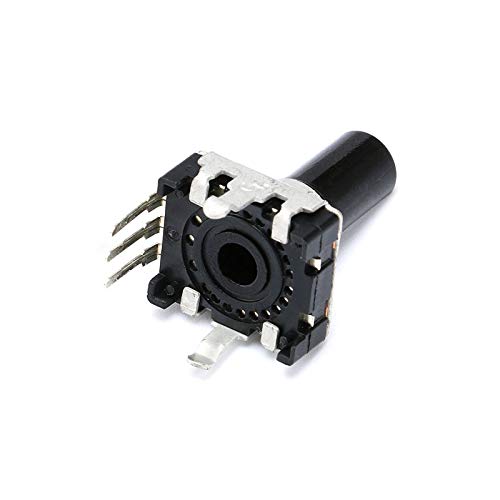

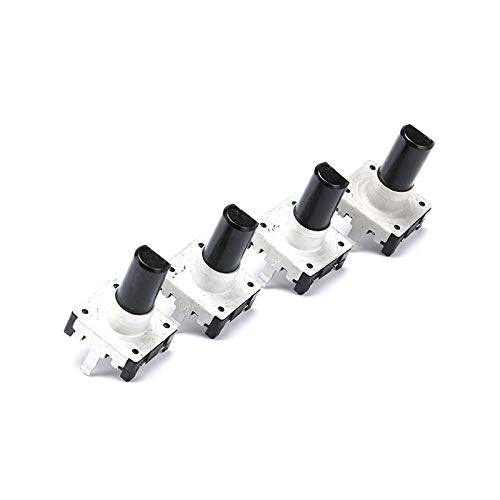

{"id":7904044646580,"title":"10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft","handle":"10pcs-ec12-360-degree-rotary-encoder-code-switch-digital-potentiometer-e12-audio-encoder-360-rotating-encoder-3pins-15mm-d-shaft","description":"\u003ch3\u003e10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification Type: EC12 Rotary Encoder with Switch Adjustment method: 360\nDegrees Number of pulses: 24 Working Signal Pin Numbers: 3 Mounting Pin\nNumber:2 Shaft Type: D Type Rated Voltage: 5 Volt Maximum operating current\n(resistive load)?10mA Max Shaft Diameter: 6mm\/0.24\" Shaft Height: 15mm\/0.59\"\nTotal Dimension: 14mm x 13.2mm x 23.5mm \/ 0.55\" x 0.52\" x 0.93\"(LWH) Contact\nresistance: ?100m?(Voltage test at DC 5V 1mA) Insulation resistance: 100M? Min\nBouncing: 10ms or less Applications: Rotary encoders are widely used in\nindustrial controls, robotics, photographic lenses, computer input devices,\netc\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eType: EC12 Rotary Encoder with Switch; Adjustment method: 360 Degree; Number of pulses: 24\u003c\/li\u003e\n \u003cli\u003eShaft Diameter: 6mm\/0.24\"; Shaft Height: 15mm\/0.59\"; Total Dimension: 14mm x 13.2mm x 23.5mm \/ 0.55\" x 0.52\" x 0.93\"(L*W*H)\u003c\/li\u003e\n \u003cli\u003eRated Voltage: 5 Volt; Maximum operating current (resistive load):10mA Max\u003c\/li\u003e\n \u003cli\u003eApplications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-11T10:52:14+11:00","created_at":"2024-12-26T04:54:35+11:00","vendor":"JESSINIE","type":"Switch Encoders","tags":["industrial_Aug2024_update"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43778866774196,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C73G7THY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft","public_title":null,"options":["Default Title"],"price":11100,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C73G7THY.jpg?v=1735200721","\/\/auspowers.com\/cdn\/shop\/files\/41hIkv9A3OL.jpg?v=1735149277","\/\/auspowers.com\/cdn\/shop\/files\/41vIVEm-sDL.jpg?v=1735149277","\/\/auspowers.com\/cdn\/shop\/files\/415E0ZfsnxL.jpg?v=1735149277","\/\/auspowers.com\/cdn\/shop\/files\/31IGM7B4mtL.jpg?v=1735149277","\/\/auspowers.com\/cdn\/shop\/files\/31TAiTdmVpL.jpg?v=1735149277"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C73G7THY.jpg?v=1735200721","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31092772733108,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C73G7THY.jpg?v=1735200721"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C73G7THY.jpg?v=1735200721","width":1600},{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31091315835060,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41hIkv9A3OL.jpg?v=1735149277"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41hIkv9A3OL.jpg?v=1735149277","width":800},{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31091315867828,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41vIVEm-sDL.jpg?v=1735149277"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41vIVEm-sDL.jpg?v=1735149277","width":800},{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31091315900596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/415E0ZfsnxL.jpg?v=1735149277"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/415E0ZfsnxL.jpg?v=1735149277","width":800},{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31091315933364,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31IGM7B4mtL.jpg?v=1735149277"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31IGM7B4mtL.jpg?v=1735149277","width":500},{"alt":"[Australia - AusPower] - 10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft ","id":31091315966132,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31TAiTdmVpL.jpg?v=1735149277"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31TAiTdmVpL.jpg?v=1735149277","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-shaft\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification Type: EC12 Rotary Encoder with Switch Adjustment method: 360\nDegrees Number of pulses: 24 Working Signal Pin Numbers: 3 Mounting Pin\nNumber:2 Shaft Type: D Type Rated Voltage: 5 Volt Maximum operating current\n(resistive load)?10mA Max Shaft Diameter: 6mm\/0.24\" Shaft Height: 15mm\/0.59\"\nTotal Dimension: 14mm x 13.2mm x 23.5mm \/ 0.55\" x 0.52\" x 0.93\"(LWH) Contact\nresistance: ?100m?(Voltage test at DC 5V 1mA) Insulation resistance: 100M? Min\nBouncing: 10ms or less Applications: Rotary encoders are widely used in\nindustrial controls, robotics, photographic lenses, computer input devices,\netc\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eType: EC12 Rotary Encoder with Switch; Adjustment method: 360 Degree; Number of pulses: 24\u003c\/li\u003e\n \u003cli\u003eShaft Diameter: 6mm\/0.24\"; Shaft Height: 15mm\/0.59\"; Total Dimension: 14mm x 13.2mm x 23.5mm \/ 0.55\" x 0.52\" x 0.93\"(L*W*H)\u003c\/li\u003e\n \u003cli\u003eRated Voltage: 5 Volt; Maximum operating current (resistive load):10mA Max\u003c\/li\u003e\n \u003cli\u003eApplications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc\u003c\/li\u003e\n \u003c\/ul\u003e"}
