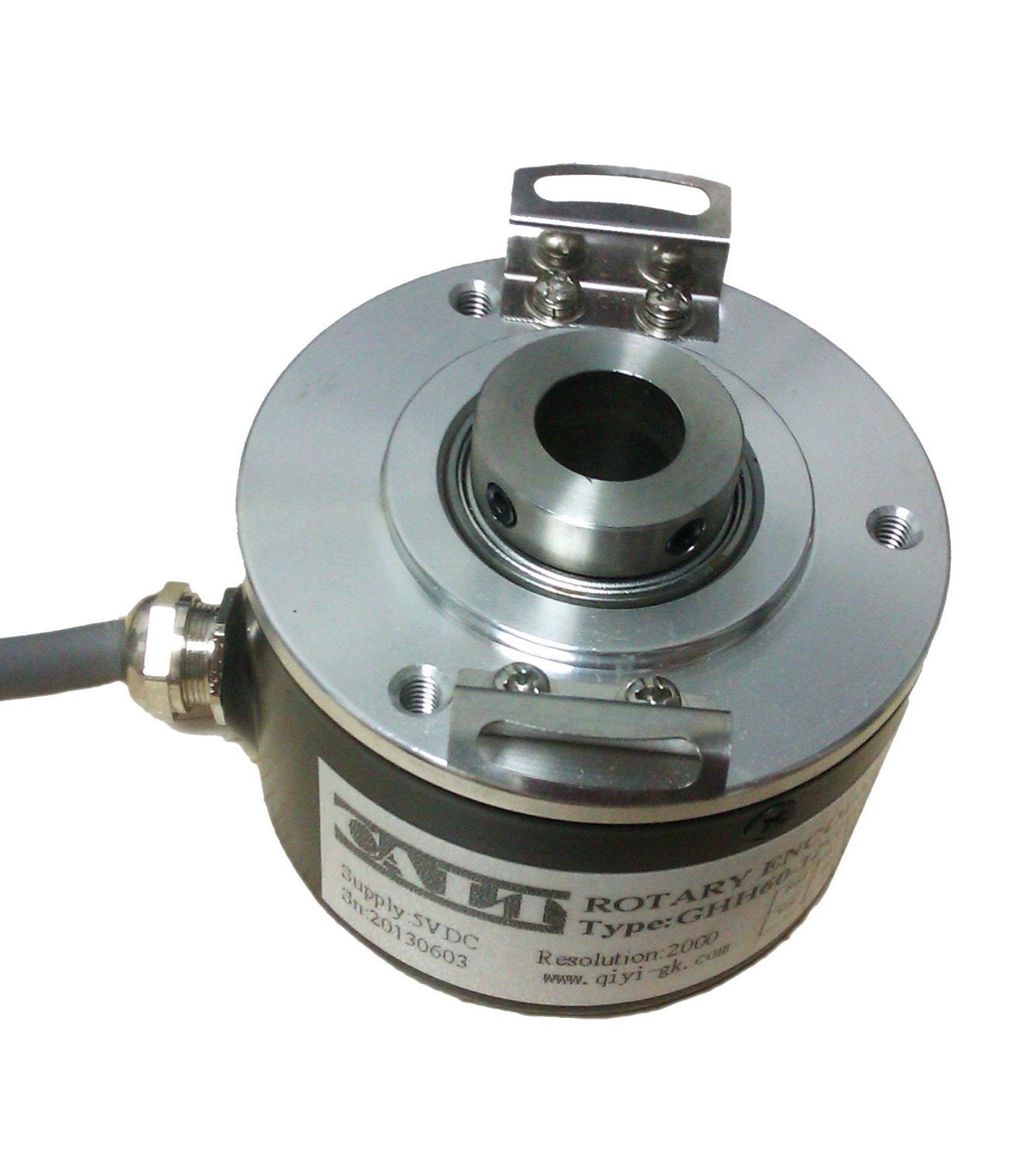

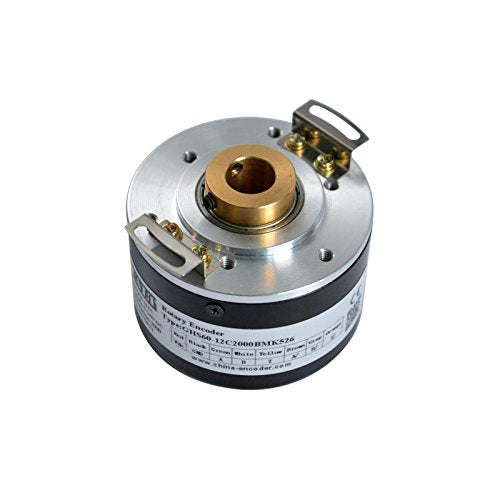

{"id":7086426554548,"title":"1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder","handle":"1024-p-r-5vdc-10mm-diameter-hollow-shaft-incremental-rotary-encoder","description":"\u003ch3\u003e1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplication \u0026amp; Features: Used in automatic control,\nmeasurement, robot X-Y working platform, printing and packaging. Internal ASIC\ndevices, high reliability, long life, strong anti-interference. more solid\nmetal housing could anti-shock. Outlet end metal interface sets of waterproof\nprotection. Read more Description: Power supply: 5V Shaft diameter:10mm Body\ndiameter: 60mm Cable length: 1 meter Pulse: 1024P\/R Output: Line driver\noutput, Provide 6 outputs, OUT A, OUT B, OUT Z OUT A\/, OUT B\/ and OUT Z\/\nOutput wave form: Square wave Maximum shaft speed: 6000 rpm Protection: IP54\nCurrent consumption: ~150 mA Maximum pulse: 100 KHz Weight: about 0.2kg\nOperating temperature: -30°C to +85°C Storage temperature: -30°C to +95°C\nOperating humidity: 30 to 85% without frost Connection: Red = VCC, Black = 0V,\nGreen = A, White = B, Yellow = Z, Brown=A\/, Grey=B\/, Orange= Z\/ Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e60mm shell and 10mm hollow shaft\u003c\/li\u003e\n \u003cli\u003e1024 P\/R Resolution\u003c\/li\u003e\n \u003cli\u003eLine driver output with A B Z A- B- Z- 6 signals\u003c\/li\u003e\n \u003cli\u003eyou can order 12mm or 15mm hollow shaft with other resolution too, just please leave message\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-03-18T23:41:43+11:00","created_at":"2022-03-18T23:41:43+11:00","vendor":"Calt","type":"Switch Encoders","tags":["auspowers_batchone"],"price":29100,"price_min":29100,"price_max":29100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41334963503284,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01ER43I8K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder","public_title":null,"options":["Default Title"],"price":29100,"weight":319,"compare_at_price":null,"inventory_management":null,"barcode":"0759972713646","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B01ER43I8K.jpg?v=1648569147","\/\/auspowers.com\/cdn\/shop\/products\/71HGzzwGYHL.jpg?v=1647607303","\/\/auspowers.com\/cdn\/shop\/products\/61mbm2WWF0L.jpg?v=1647607303","\/\/auspowers.com\/cdn\/shop\/products\/719EltGDsxL.jpg?v=1647607303","\/\/auspowers.com\/cdn\/shop\/products\/41LKjgOPizL.jpg?v=1647607303"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B01ER43I8K.jpg?v=1648569147","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder ","id":25349363171508,"position":1,"preview_image":{"aspect_ratio":0.893,"height":1500,"width":1339,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B01ER43I8K.jpg?v=1648569147"},"aspect_ratio":0.893,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B01ER43I8K.jpg?v=1648569147","width":1339},{"alt":"[Australia - AusPower] - 1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder ","id":25203795361972,"position":2,"preview_image":{"aspect_ratio":0.88,"height":1728,"width":1521,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71HGzzwGYHL.jpg?v=1647607303"},"aspect_ratio":0.88,"height":1728,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71HGzzwGYHL.jpg?v=1647607303","width":1521},{"alt":"[Australia - AusPower] - 1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder ","id":25203795394740,"position":3,"preview_image":{"aspect_ratio":1.393,"height":915,"width":1275,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61mbm2WWF0L.jpg?v=1647607303"},"aspect_ratio":1.393,"height":915,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61mbm2WWF0L.jpg?v=1647607303","width":1275},{"alt":"[Australia - AusPower] - 1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder ","id":25203795427508,"position":4,"preview_image":{"aspect_ratio":1.637,"height":742,"width":1215,"src":"\/\/auspowers.com\/cdn\/shop\/products\/719EltGDsxL.jpg?v=1647607303"},"aspect_ratio":1.637,"height":742,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/719EltGDsxL.jpg?v=1647607303","width":1215},{"alt":"[Australia - AusPower] - 1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder ","id":25203795460276,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41LKjgOPizL.jpg?v=1647607303"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41LKjgOPizL.jpg?v=1647607303","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1024 P\/R 5VDC 10mm Diameter Hollow Shaft Incremental Rotary Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eApplication \u0026amp; Features: Used in automatic control,\nmeasurement, robot X-Y working platform, printing and packaging. Internal ASIC\ndevices, high reliability, long life, strong anti-interference. more solid\nmetal housing could anti-shock. Outlet end metal interface sets of waterproof\nprotection. Read more Description: Power supply: 5V Shaft diameter:10mm Body\ndiameter: 60mm Cable length: 1 meter Pulse: 1024P\/R Output: Line driver\noutput, Provide 6 outputs, OUT A, OUT B, OUT Z OUT A\/, OUT B\/ and OUT Z\/\nOutput wave form: Square wave Maximum shaft speed: 6000 rpm Protection: IP54\nCurrent consumption: ~150 mA Maximum pulse: 100 KHz Weight: about 0.2kg\nOperating temperature: -30°C to +85°C Storage temperature: -30°C to +95°C\nOperating humidity: 30 to 85% without frost Connection: Red = VCC, Black = 0V,\nGreen = A, White = B, Yellow = Z, Brown=A\/, Grey=B\/, Orange= Z\/ Read more\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e60mm shell and 10mm hollow shaft\u003c\/li\u003e\n \u003cli\u003e1024 P\/R Resolution\u003c\/li\u003e\n \u003cli\u003eLine driver output with A B Z A- B- Z- 6 signals\u003c\/li\u003e\n \u003cli\u003eyou can order 12mm or 15mm hollow shaft with other resolution too, just please leave message\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
