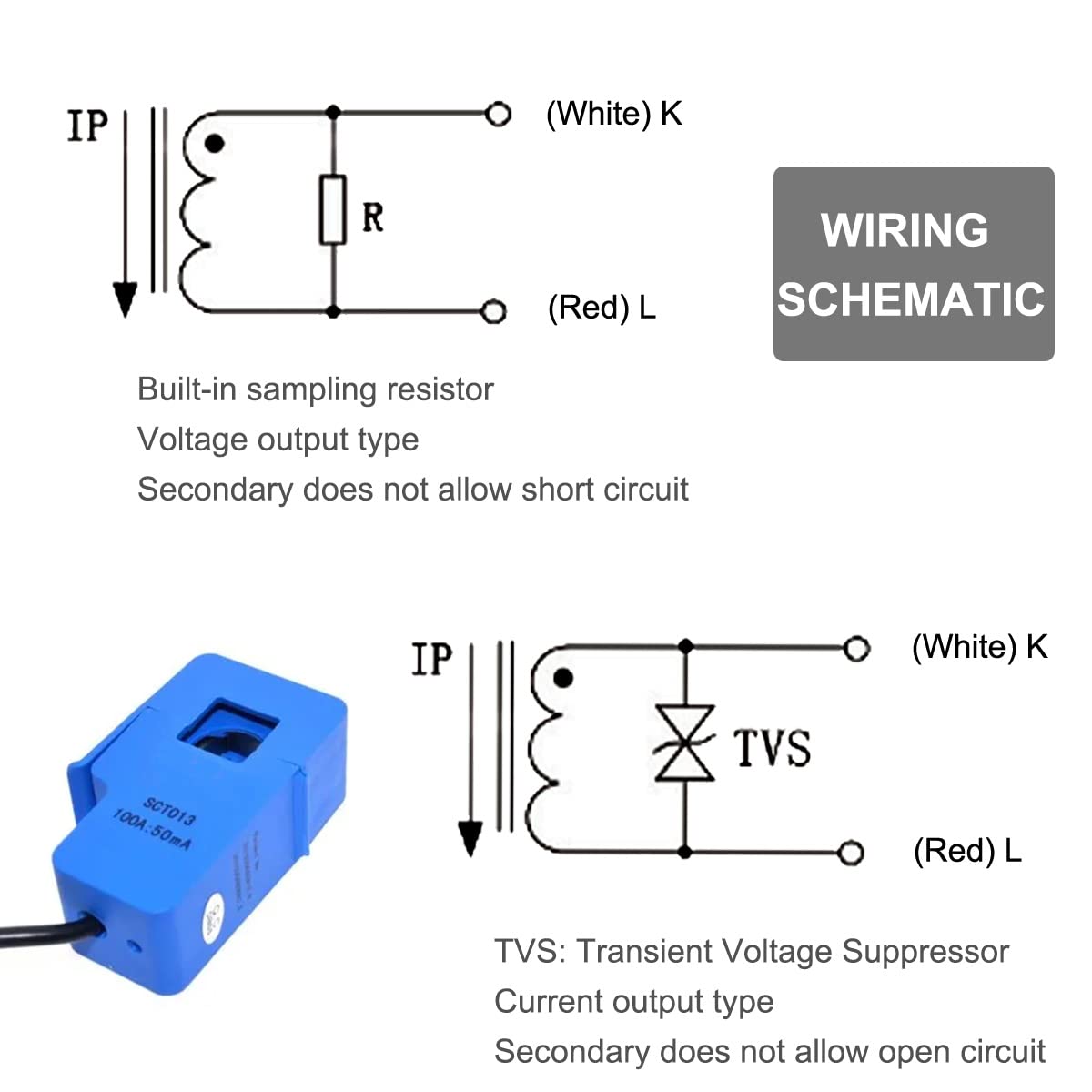

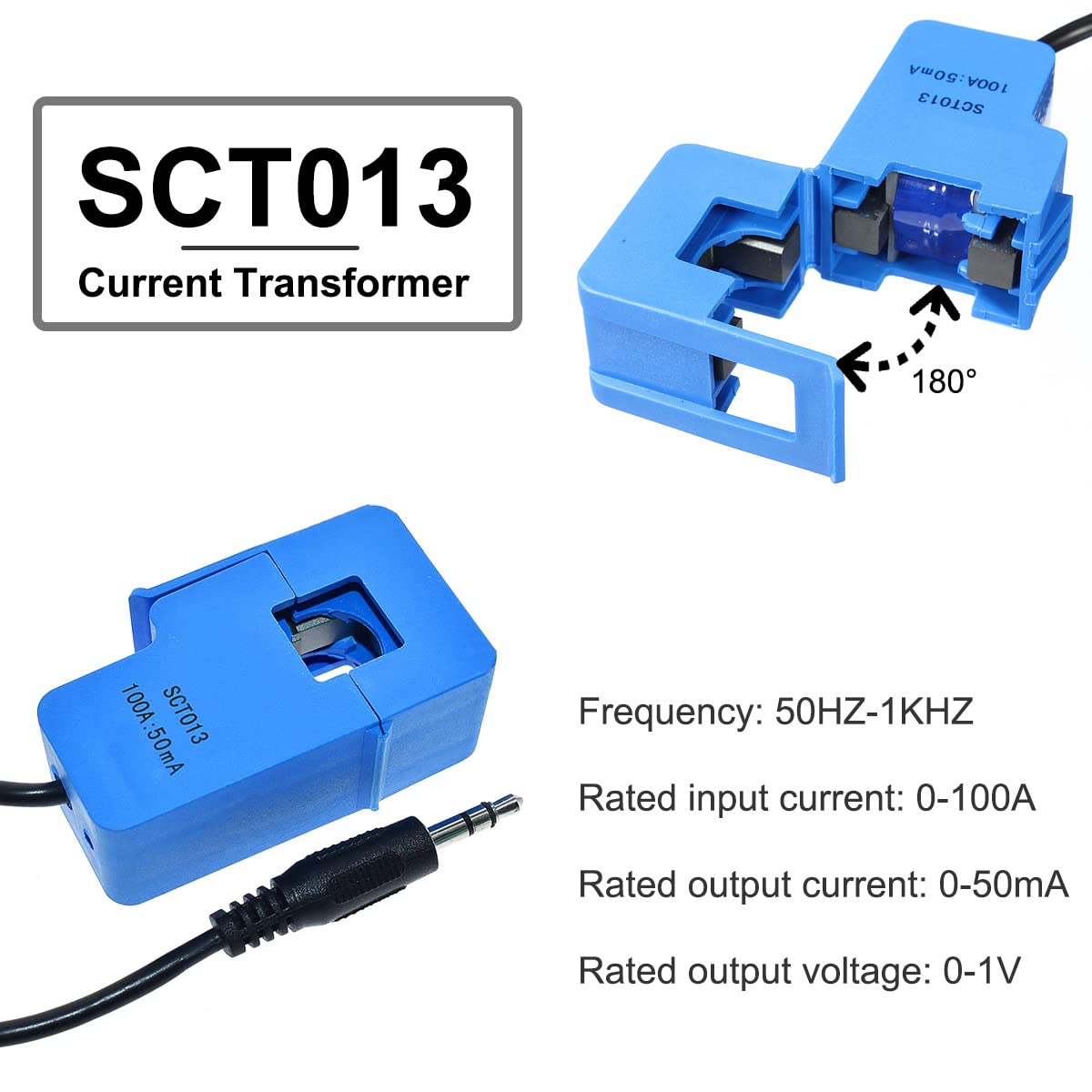

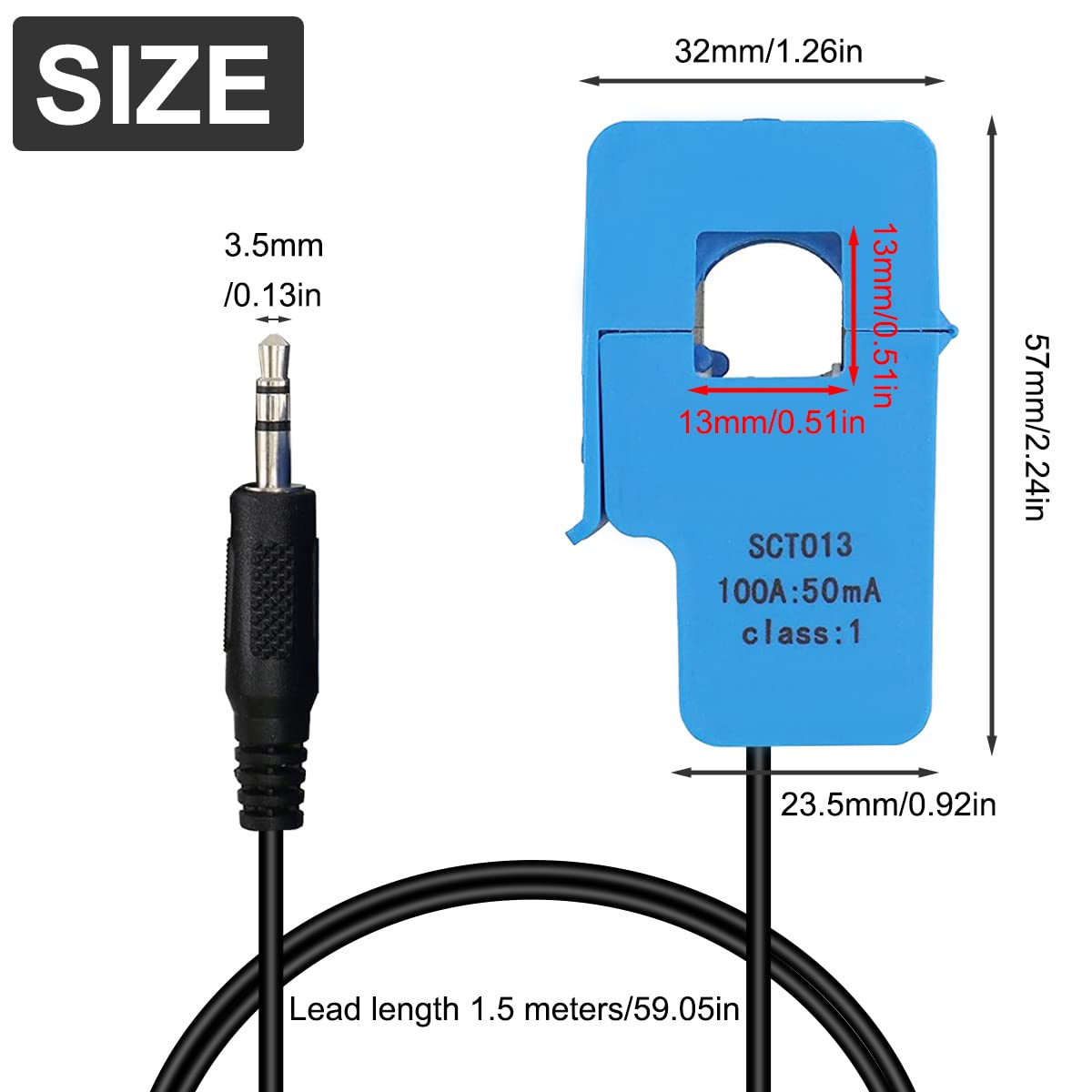

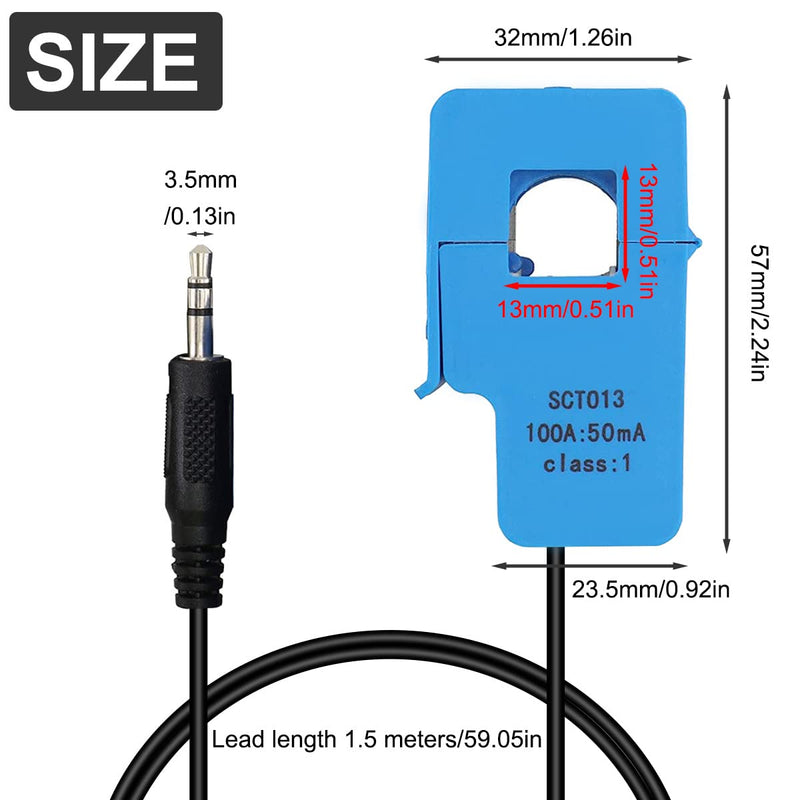

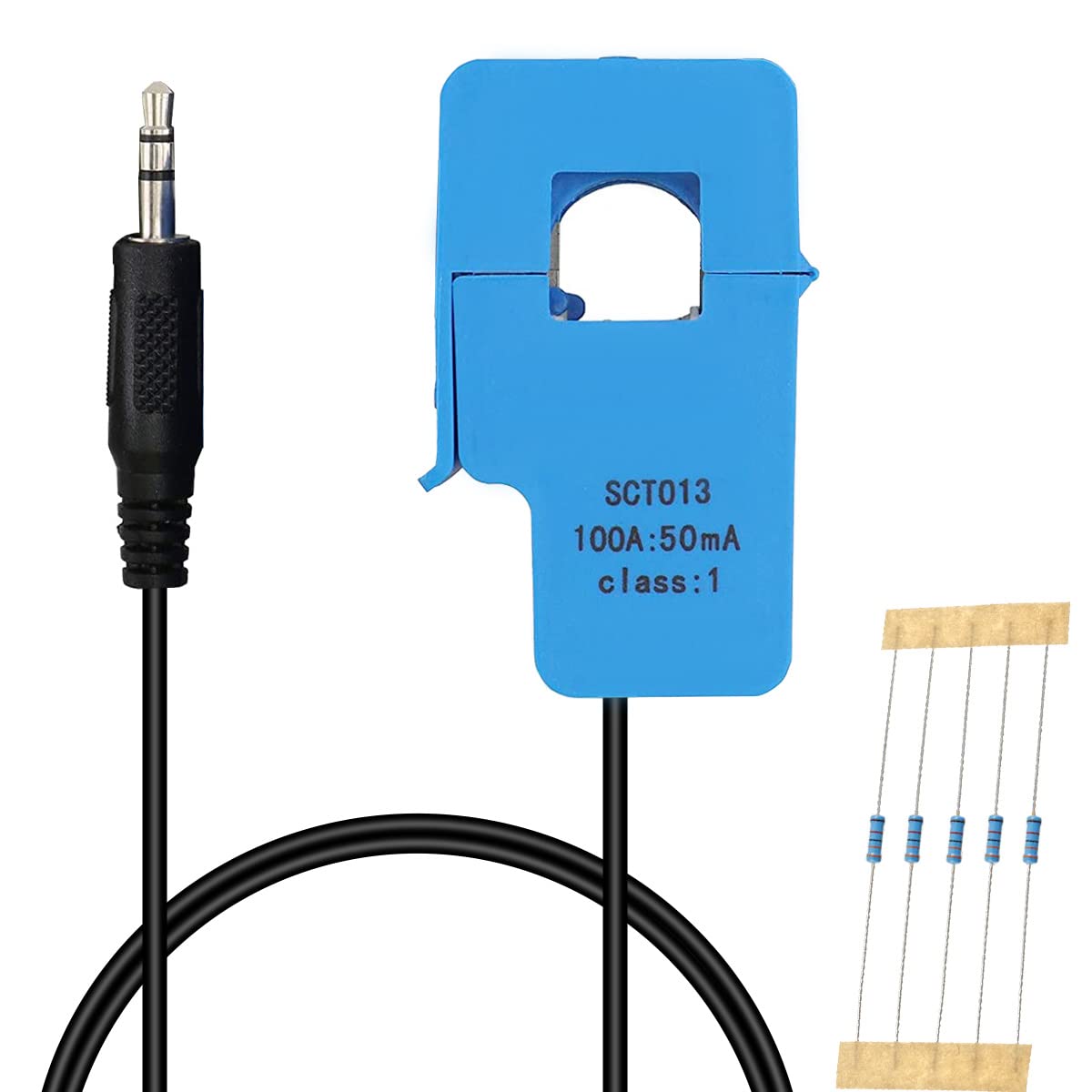

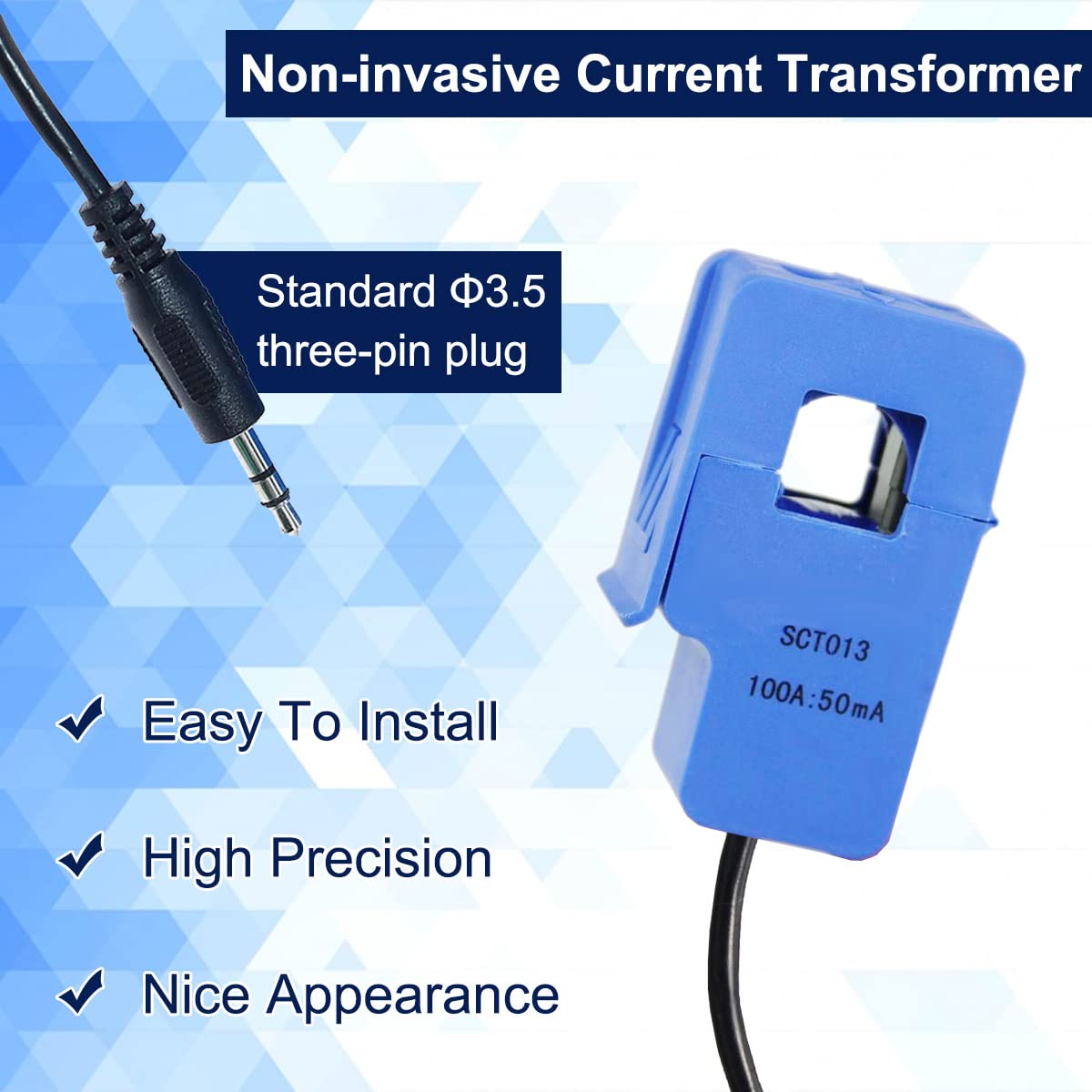

{"id":8013455655092,"title":"100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement","handle":"100a-non-invasive-sensor-sct-013-000-split-core-ac-current-transformer-two-output-formats-line-length-1-5m-with-resistor-for-current-measurement","description":"\u003ch3\u003e100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: 1. Model: SCT013 2. Frequency: 50HZ-1KHZ 3. Rated input\r\ncurrent: 0-100A 4. Rated output current: 0-50mA 5. Rated output voltage: 0-1V\r\n6. Opening size: 13×13mm\/0.51x0.51in 7. Accuracy: less than or equal to 1% 8.\r\nLead length: 1.5m\/59.05in, standard Φ3.5 three-core plug output 9. Two output\r\nforms of current and voltage (voltage output form has built-in sampling\r\nresistance). 10. Core material: ferrite 11. Mechanical strength: opening and\r\nclosing times not less than 1000 times (tested at 20°C) 12. Working\r\ntemperature: -25℃～+70℃ 13. Safety index: electric strength (between the shell\r\nand the output) 6000V AC\/1min 14. Flame retardant properties conform to\r\nUL94-V0 Application: For current measurement, monitoring and protection of AC\r\nmotors, lighting equipment, air compressors, etc. Package includes: 1 x\r\nSCT-013-000 100A Current Transformer 1 x 20Ω Resistor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct parameters: Rated input current: 0-100A, rated output current: 0-50mA, rated output voltage: 0-1V, lead length 1.5m\/59.05in, cable jack: 3.5 mm, mechanical strength: no opening and closing times Less than 1000 times (tested at 20C).\u003c\/li\u003e\r\n \u003cli\u003eMonitoring \u0026amp; Protection: Build your own circuit monitor with this 100A current sensor to reduce your power usage, or use it to build an overcurrent protection device for AC loads.\u003c\/li\u003e\r\n \u003cli\u003eSafety index: Electric strength (between housing and output) 6000V AC\/1min Flame retardant properties conform to UL94-V0, working temperature: -25C~+70C.\u003c\/li\u003e\r\n \u003cli\u003eApplication: Suitable for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc. At the same time, this split-core current transformer is especially suitable for DIY use, and works well with for Raspberry Pi.\u003c\/li\u003e\r\n \u003cli\u003ePackage includes: You will get 1 x SCT-013-000 100A Non-invasive Split Core AC Current Transformer, 1 x 20 Resistor.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-09T02:26:21+11:00","created_at":"2025-12-09T02:26:18+11:00","vendor":"DAOKAI","type":"Current Sensors","tags":["industrial_selected_Nov2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44103342260404,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BGXTMFBJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement","public_title":null,"options":["Default Title"],"price":10000,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"WE-DA-210","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0BGXTMFBJ.jpg?v=1775784071","\/\/auspowers.com\/cdn\/shop\/files\/61cDDS7ARwL.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/61J8YvxRxzL.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/51SYHGaiLYL.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/61TTbSCGxrL.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/61HPhg0zB9L.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/61Y7uP8v6UL.jpg?v=1765207580","\/\/auspowers.com\/cdn\/shop\/files\/81HvOl3G2rL.jpg?v=1765207581"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGXTMFBJ.jpg?v=1775784071","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755071668,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGXTMFBJ.jpg?v=1775784071"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BGXTMFBJ.jpg?v=1775784071","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755104436,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61cDDS7ARwL.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61cDDS7ARwL.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755137204,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61J8YvxRxzL.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61J8YvxRxzL.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755169972,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51SYHGaiLYL.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51SYHGaiLYL.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755202740,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TTbSCGxrL.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TTbSCGxrL.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755235508,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HPhg0zB9L.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HPhg0zB9L.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755268276,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Y7uP8v6UL.jpg?v=1765207580"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Y7uP8v6UL.jpg?v=1765207580","width":1200},{"alt":"[Australia - AusPower] - 100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement ","id":32455755301044,"position":8,"preview_image":{"aspect_ratio":0.75,"height":2560,"width":1920,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81HvOl3G2rL.jpg?v=1765207581"},"aspect_ratio":0.75,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81HvOl3G2rL.jpg?v=1765207581","width":1920}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e100A Non-invasive Sensor SCT-013-000 Split Core AC Current Transformer Two Output Formats Line Length 1.5m with Resistor, for Current Measurement\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: 1. Model: SCT013 2. Frequency: 50HZ-1KHZ 3. Rated input\r\ncurrent: 0-100A 4. Rated output current: 0-50mA 5. Rated output voltage: 0-1V\r\n6. Opening size: 13×13mm\/0.51x0.51in 7. Accuracy: less than or equal to 1% 8.\r\nLead length: 1.5m\/59.05in, standard Φ3.5 three-core plug output 9. Two output\r\nforms of current and voltage (voltage output form has built-in sampling\r\nresistance). 10. Core material: ferrite 11. Mechanical strength: opening and\r\nclosing times not less than 1000 times (tested at 20°C) 12. Working\r\ntemperature: -25℃～+70℃ 13. Safety index: electric strength (between the shell\r\nand the output) 6000V AC\/1min 14. Flame retardant properties conform to\r\nUL94-V0 Application: For current measurement, monitoring and protection of AC\r\nmotors, lighting equipment, air compressors, etc. Package includes: 1 x\r\nSCT-013-000 100A Current Transformer 1 x 20Ω Resistor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct parameters: Rated input current: 0-100A, rated output current: 0-50mA, rated output voltage: 0-1V, lead length 1.5m\/59.05in, cable jack: 3.5 mm, mechanical strength: no opening and closing times Less than 1000 times (tested at 20C).\u003c\/li\u003e\r\n \u003cli\u003eMonitoring \u0026amp; Protection: Build your own circuit monitor with this 100A current sensor to reduce your power usage, or use it to build an overcurrent protection device for AC loads.\u003c\/li\u003e\r\n \u003cli\u003eSafety index: Electric strength (between housing and output) 6000V AC\/1min Flame retardant properties conform to UL94-V0, working temperature: -25C~+70C.\u003c\/li\u003e\r\n \u003cli\u003eApplication: Suitable for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc. At the same time, this split-core current transformer is especially suitable for DIY use, and works well with for Raspberry Pi.\u003c\/li\u003e\r\n \u003cli\u003ePackage includes: You will get 1 x SCT-013-000 100A Non-invasive Split Core AC Current Transformer, 1 x 20 Resistor.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
