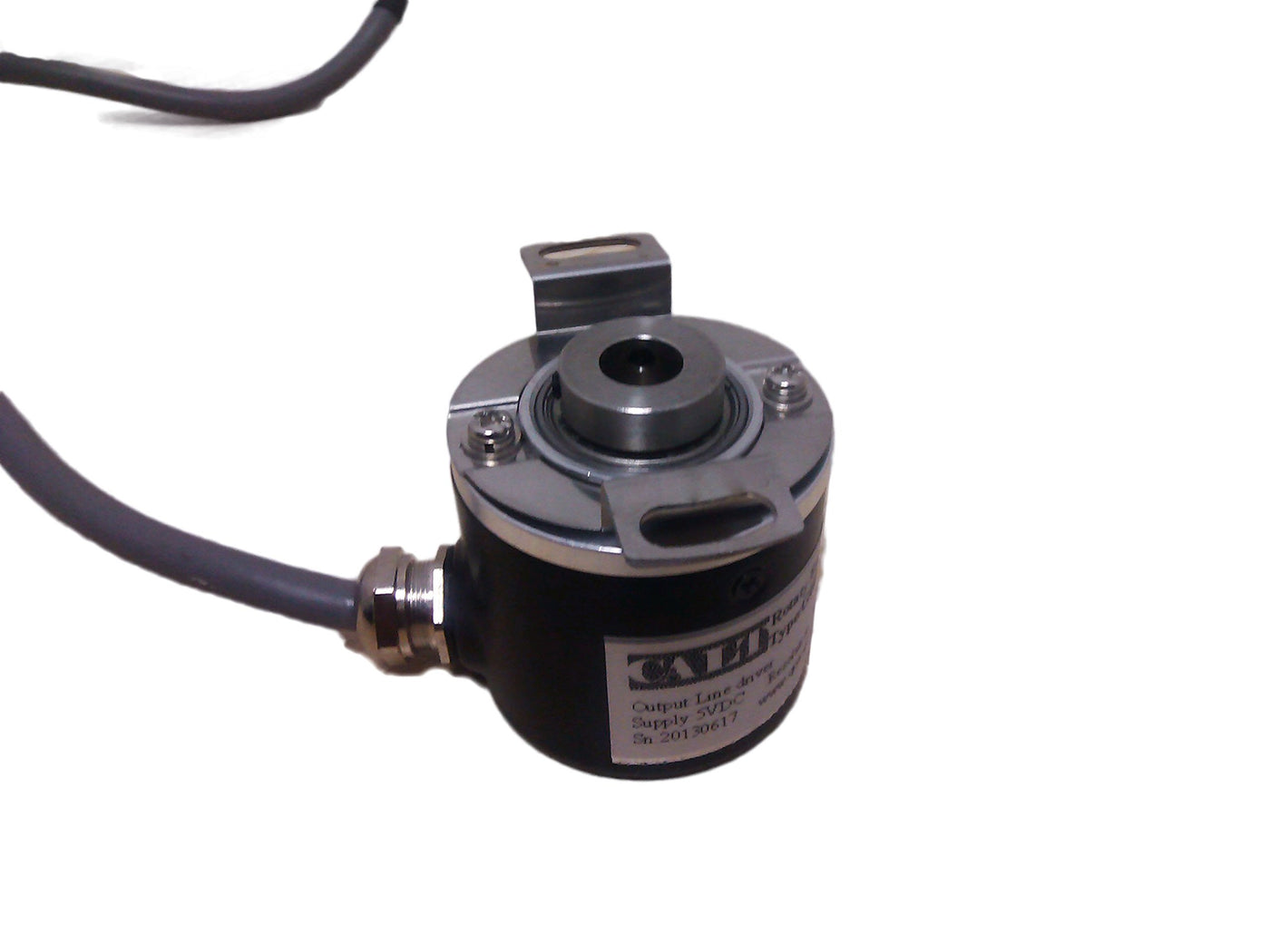

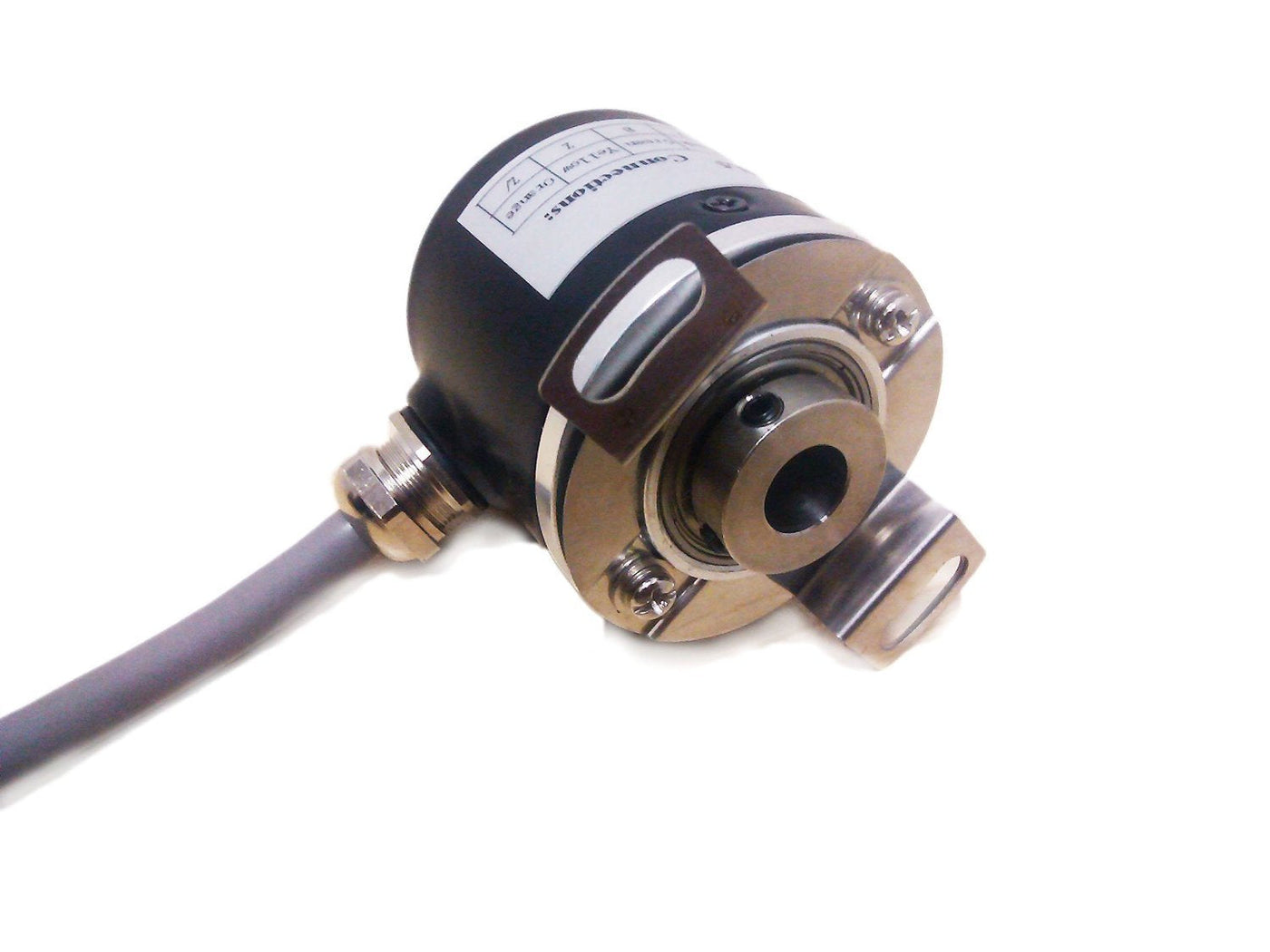

{"id":7085431259316,"title":"1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder","handle":"1000p-r-shaft-8mm-push-pull-output-5-to-26v-hollow-shaft-rotary-encoder","description":"\u003ch3\u003e1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Power supply: 5V to 26V Shaft diameter: 8mm\nBody diameter: 38mm Cable length: 1 meter Pulse: 1000P\/R Output: Pushpull\noutput, Provide 3 outputs, OUT A, OUT B and OUT Z Output wave form: Square\nwave Maximum shaft speed: 6000 rpm Protection: IP54 Read more Current\nconsumption: ~150 mA Maximum pulse: 100 KHz Weight: about 0.1kg Operating\ntemperature: -30°C to +85°C Storage temperature: -30°C to +95°C Operating\nhumidity: 30 to 85% without frost Connection: Red=VCC, Black = 0V, Green = A,\nWhite = B, Yellow = Z Read more Application \u0026amp; Features: Used in automatic\ncontrol, measurement, robot X-Y working platform, printing and\npackaging.Internal ASIC devices, high reliability, long life, strong anti-\ninterference. more solid metal housing could anti-shock. Outlet end metal\ninterface sets of waterproof protection.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003esmall size and light weight with high resolution 1000PPR\u003c\/li\u003e\n \u003cli\u003eblind shaft design easy to install\u003c\/li\u003e\n \u003cli\u003epushpull output for reliable signal output\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-03-17T23:52:25+11:00","created_at":"2022-03-17T23:52:25+11:00","vendor":"Calt","type":"Switch Encoders","tags":["auspowers_batchone"],"price":26100,"price_min":26100,"price_max":26100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41332431159476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01DK4QLYG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder","public_title":null,"options":["Default Title"],"price":26100,"weight":218,"compare_at_price":null,"inventory_management":null,"barcode":"0742790782581","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B01DK4QLYG.jpg?v=1648538987","\/\/auspowers.com\/cdn\/shop\/products\/71FnxxPvrML.jpg?v=1647521545","\/\/auspowers.com\/cdn\/shop\/products\/51gS6wY4vTL.jpg?v=1647521545","\/\/auspowers.com\/cdn\/shop\/products\/51hcIZgz6TL.jpg?v=1647521545"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B01DK4QLYG.jpg?v=1648538987","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder ","id":25343432458420,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1125,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B01DK4QLYG.jpg?v=1648538987"},"aspect_ratio":1.333,"height":1125,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B01DK4QLYG.jpg?v=1648538987","width":1500},{"alt":"[Australia - AusPower] - 1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder ","id":25189815910580,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71FnxxPvrML.jpg?v=1647521545"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71FnxxPvrML.jpg?v=1647521545","width":2560},{"alt":"[Australia - AusPower] - 1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder ","id":25189815943348,"position":3,"preview_image":{"aspect_ratio":1.629,"height":307,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51gS6wY4vTL.jpg?v=1647521545"},"aspect_ratio":1.629,"height":307,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51gS6wY4vTL.jpg?v=1647521545","width":500},{"alt":"[Australia - AusPower] - 1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder ","id":25189815976116,"position":4,"preview_image":{"aspect_ratio":1.022,"height":489,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51hcIZgz6TL.jpg?v=1647521545"},"aspect_ratio":1.022,"height":489,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51hcIZgz6TL.jpg?v=1647521545","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1000P\/R Shaft 8mm Push Pull Output 5 to 26V Hollow Shaft Rotary Encoder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Power supply: 5V to 26V Shaft diameter: 8mm\nBody diameter: 38mm Cable length: 1 meter Pulse: 1000P\/R Output: Pushpull\noutput, Provide 3 outputs, OUT A, OUT B and OUT Z Output wave form: Square\nwave Maximum shaft speed: 6000 rpm Protection: IP54 Read more Current\nconsumption: ~150 mA Maximum pulse: 100 KHz Weight: about 0.1kg Operating\ntemperature: -30°C to +85°C Storage temperature: -30°C to +95°C Operating\nhumidity: 30 to 85% without frost Connection: Red=VCC, Black = 0V, Green = A,\nWhite = B, Yellow = Z Read more Application \u0026amp; Features: Used in automatic\ncontrol, measurement, robot X-Y working platform, printing and\npackaging.Internal ASIC devices, high reliability, long life, strong anti-\ninterference. more solid metal housing could anti-shock. Outlet end metal\ninterface sets of waterproof protection.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003esmall size and light weight with high resolution 1000PPR\u003c\/li\u003e\n \u003cli\u003eblind shaft design easy to install\u003c\/li\u003e\n \u003cli\u003epushpull output for reliable signal output\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
