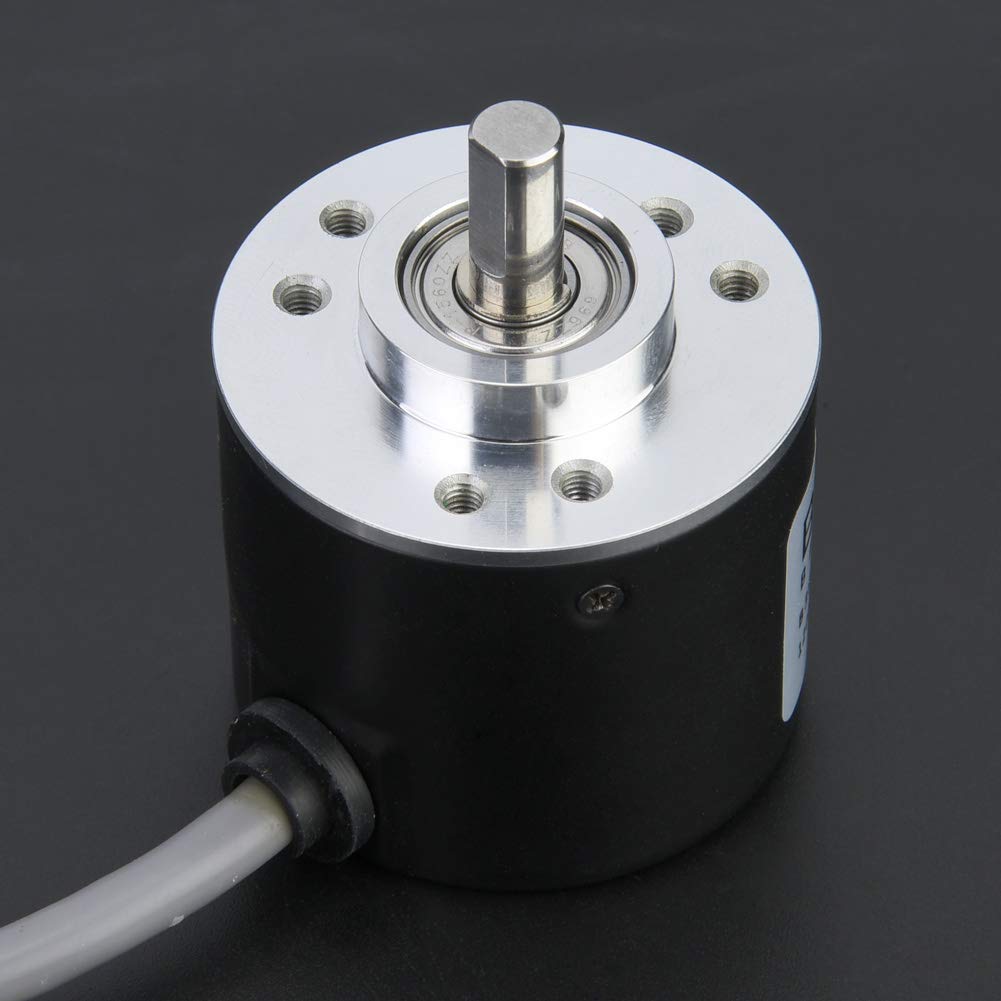

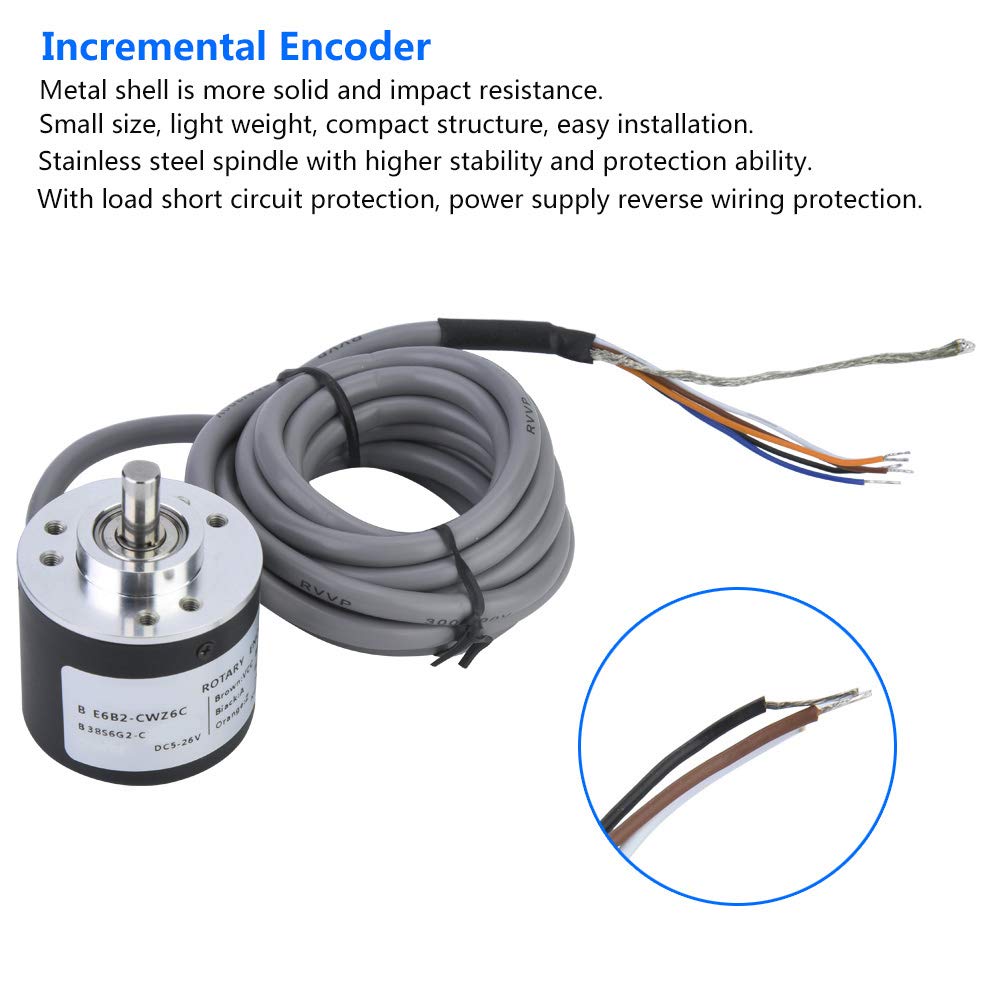

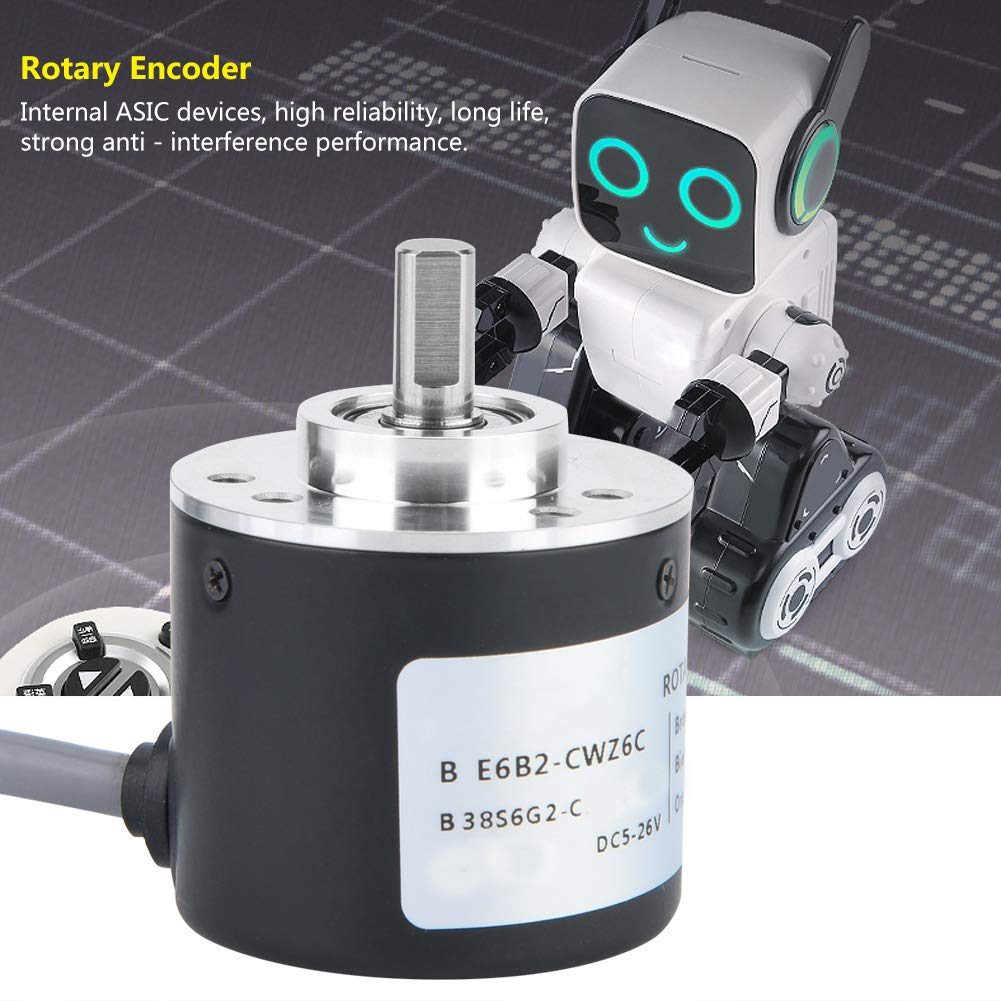

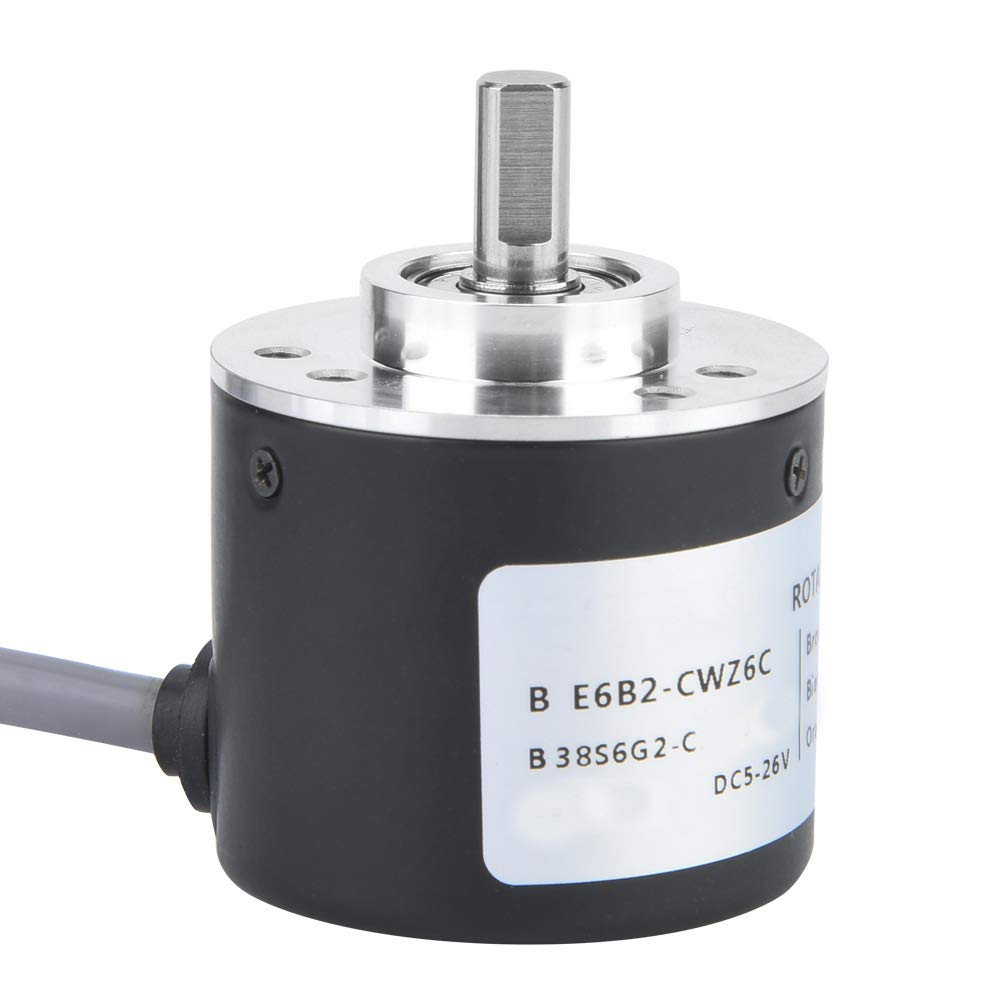

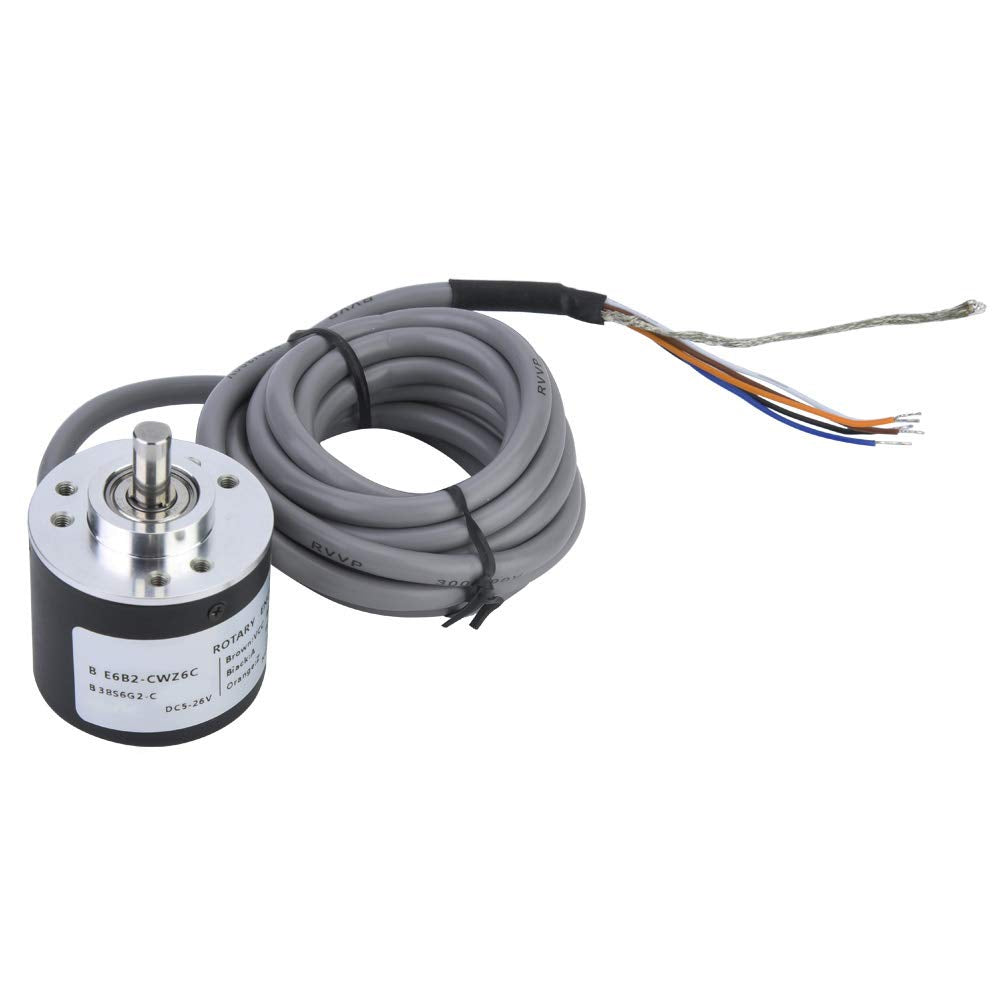

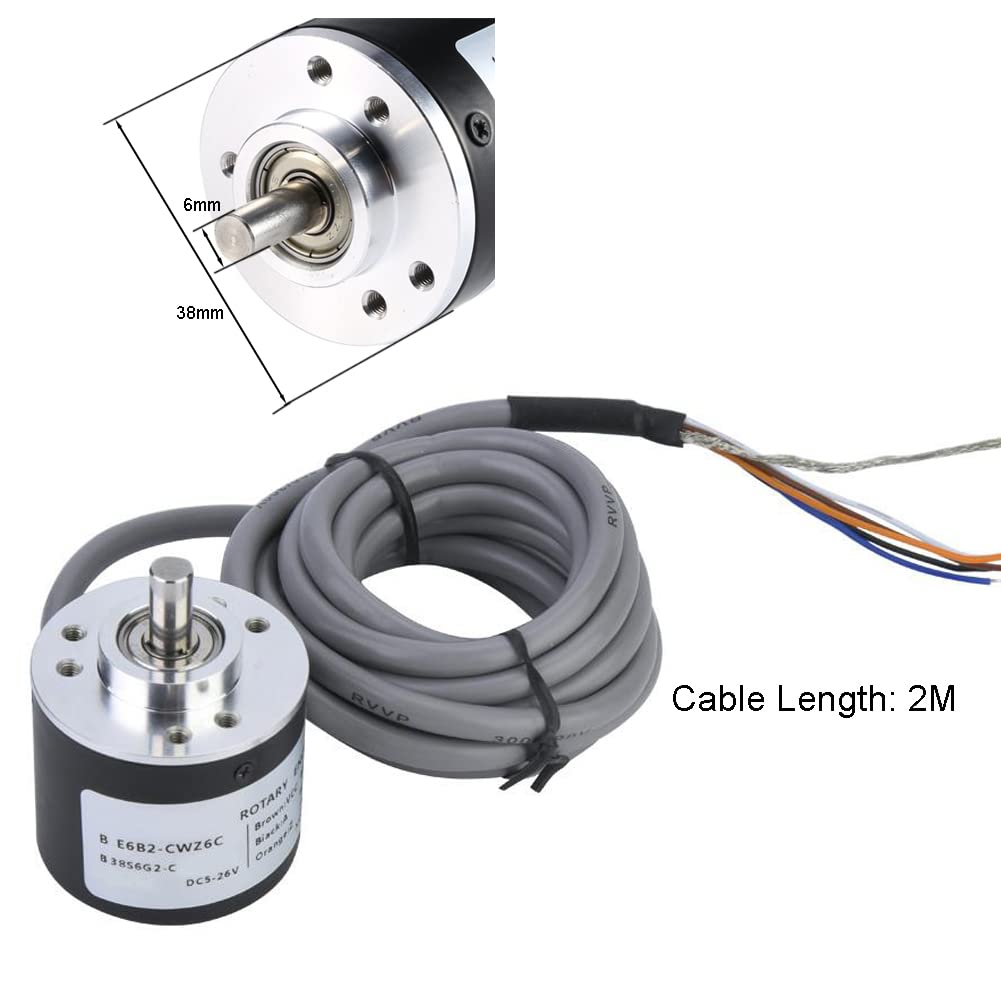

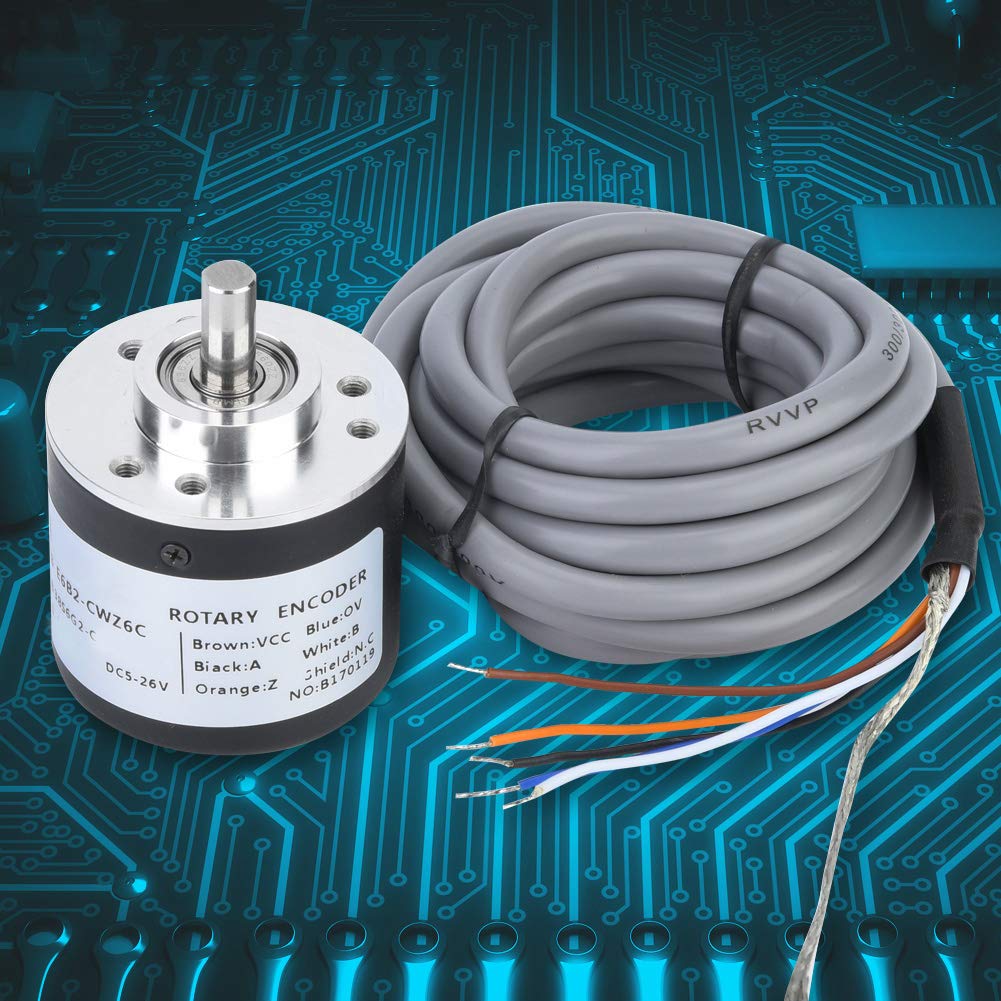

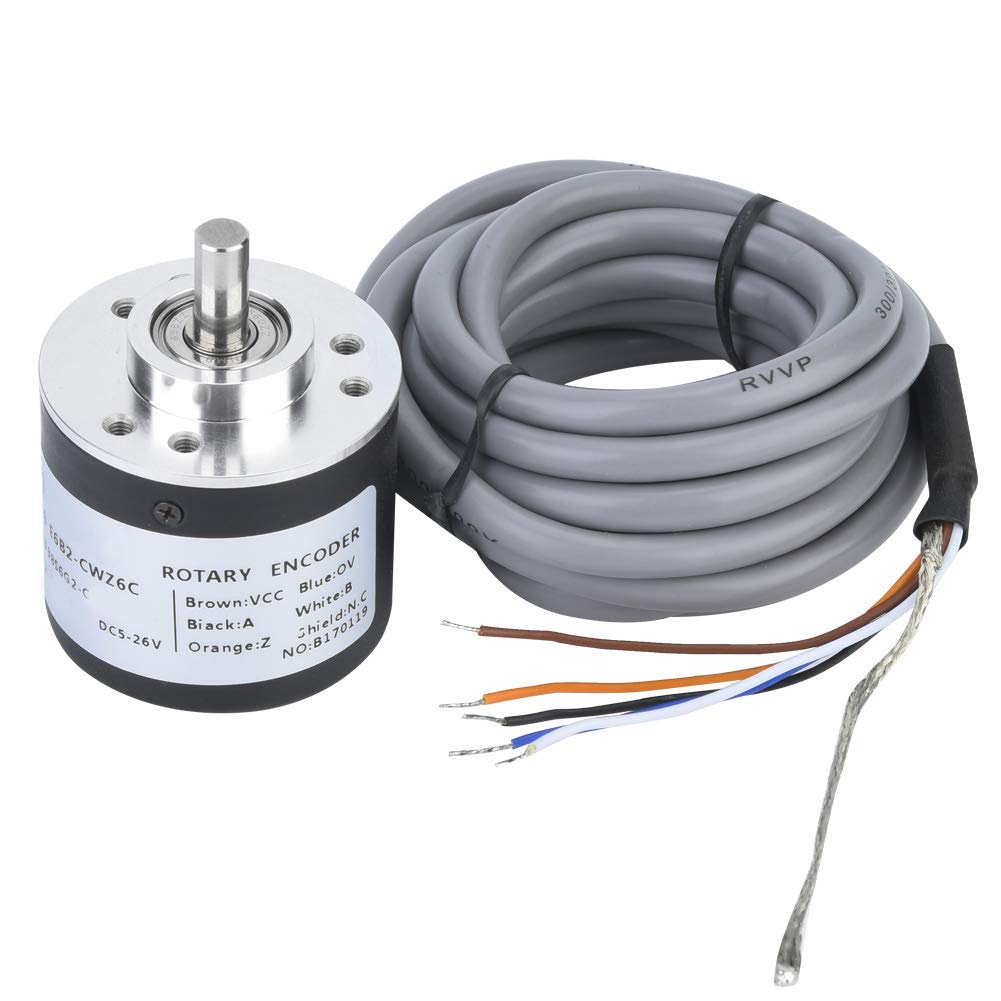

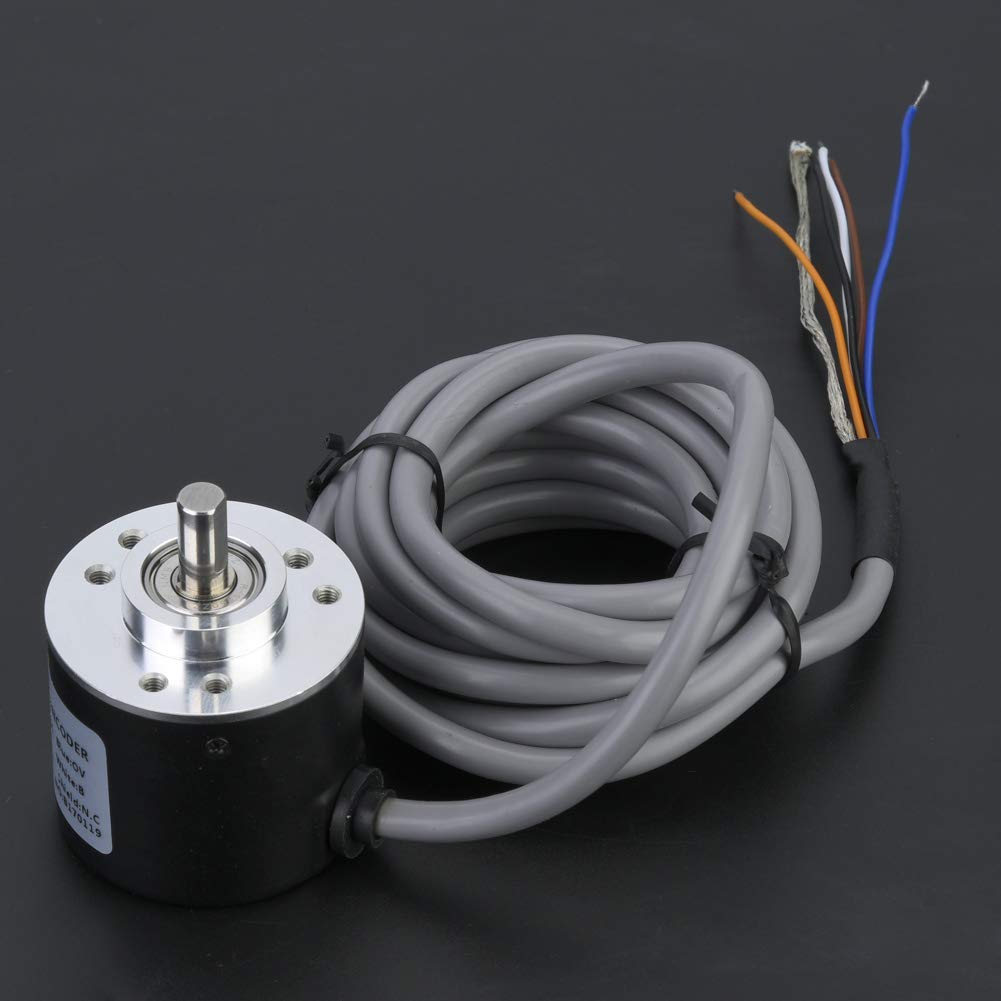

{"id":7991794761908,"title":"1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement","handle":"1000p-r-rotary-encoder-incremental-rotary-encoder-dc-5-26-v-universal-rotary-encoder-a-b-z-3-phase-output-with-2-m-cable-6-mm-d-wave-for-intelligent-control-path-measurement","description":"\u003ch3\u003e1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item name: incremental rotary encoder Model: E6B2-CWZ6C\nMaterial: lead alloy (shell), aluminium (body). Input voltage: DC5 ~ 26V (open\ncollector output type). Output mode: voltage output, collector output,\ncomplementary output, push-pull output, longline drive output, differential\noutput, fork output Output phase: A, B, Z phase. Outer diameter: 38 mm.\nDiameter of the thrust shaft: 6 mm. Standard length of wiring wire: 2 m.\nResolution (pulse\/rotation): 100, 200, 300, 360, 400, 500, 600, 1000, 1024,\n1200, 2000, 2500, 3600, 5000 (optional) Type of wiring: Brown cable: DC5-26V\n(positive pole). Blue line: 0 V (negative pole). Phase difference between\noutputs: 90°±45° between A and B (1\/4 T ± 1\/8 T) Output configuration: NPN\nopen collector output Output capacity: applied voltage: max. 30 VDC;\nsynchronous current: max. 35mA; Residual voltage: 0.4V max. (at synchronous\ncurrent of 35 mA) Maximum response frequency (3): 100 kHz Output rise and\nfall time: max. 1μs (control output voltage: 5V, load resistance: 1kΩ, cable\nlength: max. 2 m). Initial moment of force: 0.9mNm max. Moment of inertia:\n1x10-6 kg.m² max. (3 x 10-7 kg.m² max. at 600 P\/R max.) Radial shaft load:\n30N. Load on the thrust shaft: 20N. Package list: 1 x rotary encoder. 3 x\nscrews. 1 x instructions (English language\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eA, B, Z 3-phase outputOutput mode: voltage output, collector output, complementary output, push-pull output, long line output, differential output, fork output (output configuration: NPN output with open collector), 6mm D-shaped stainless steel spindle provide higher stability and protection ability, Output phase: A, B, Z phase.\u003c\/li\u003e\n \u003cli\u003e100-5000P \/ R rotary encoder to choose from: The rotary encoder can be used to measure the speed, angle and acceleration of an object as well as length measurement. Resolution (Pulse\/Rotation): 100P\/R, 200P\/R, 300P\/R, 360P\/R, 400P\/R, 500P\/R, 600P\/R, 1000P\/R, 1024P\/R, 1200P\/R, 2000P\/R, 2500P\/R, 3600P\/R, 5000P\/R (optional)\u003c\/li\u003e\n \u003cli\u003eArea of application: the photoelectric incremental encoder is suitable for intelligent control of various distance measurements, such as the automatic guillotine machine made of long leather, the control of the steel cutting length, the height and weight scale and the student racing robot.\u003c\/li\u003e\n \u003cli\u003eSafety design: built-in rotary encoder circuit protection system, load short circuit protection, reverse polarity protection of the power supply. Vibration resistance (destruction): 10 to 500 Hz, 2 mm or 150 m\/s2 double amplitude for 11 minutes 3 times in X, Y and Z direction. Shock resistance (destruction): 1000m\/s2 each 3 times in X, Y and Z direction.\u003c\/li\u003e\n \u003cli\u003eWiring and note: the right wiring method is brown line: DC5-26V (positive pole), blue line: 0V (negative pole), black line: A (phase), white line: B (phase), orange line: Z (phase).\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:24:38+10:00","created_at":"2025-09-24T01:24:35+10:00","vendor":"Fyearfly","type":"Frequency Counters \u0026 Pulse Generators","tags":["industryDE_Sep2025"],"price":27500,"price_min":27500,"price_max":27500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048599777460,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BCK2FH1F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement","public_title":null,"options":["Default Title"],"price":27500,"weight":170,"compare_at_price":null,"inventory_management":"shopify","barcode":"Boaby0bwgh4oyxp-07","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0BCK2FH1F.jpg?v=1775768986","\/\/auspowers.com\/cdn\/shop\/files\/61pcGSAU7fL_5c4d3d1c-0c91-4afc-92e2-61838bf6ddc8.jpg?v=1758641077","\/\/auspowers.com\/cdn\/shop\/files\/51PV6JwPDjL.jpg?v=1758641078","\/\/auspowers.com\/cdn\/shop\/files\/51EK2UloU2L.jpg?v=1758641077","\/\/auspowers.com\/cdn\/shop\/files\/61mCC3UJdNL_259a5b48-810e-4632-a8cd-4dbf5b92d01a.jpg?v=1758641077","\/\/auspowers.com\/cdn\/shop\/files\/71Uk00AI01L_306cd25c-dfae-486c-bfe2-facd7f6bc493.jpg?v=1758641078","\/\/auspowers.com\/cdn\/shop\/files\/51RQUdO2UmL_487957fe-319d-48f4-bcaf-591a193a6661.jpg?v=1758641077","\/\/auspowers.com\/cdn\/shop\/files\/51FLbFzEXhL_933030bb-5911-42a5-ac31-7c5158299dfe.jpg?v=1758641077","\/\/auspowers.com\/cdn\/shop\/files\/51w27o-OlVL_9d50e4e0-cd6f-4175-9f62-c6268340b730.jpg?v=1758641077"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0BCK2FH1F.jpg?v=1775768986","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261021364,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0BCK2FH1F.jpg?v=1775768986"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0BCK2FH1F.jpg?v=1775768986","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261054132,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61pcGSAU7fL_5c4d3d1c-0c91-4afc-92e2-61838bf6ddc8.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61pcGSAU7fL_5c4d3d1c-0c91-4afc-92e2-61838bf6ddc8.jpg?v=1758641077","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261086900,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51PV6JwPDjL.jpg?v=1758641078"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51PV6JwPDjL.jpg?v=1758641078","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261119668,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51EK2UloU2L.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51EK2UloU2L.jpg?v=1758641077","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261152436,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61mCC3UJdNL_259a5b48-810e-4632-a8cd-4dbf5b92d01a.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61mCC3UJdNL_259a5b48-810e-4632-a8cd-4dbf5b92d01a.jpg?v=1758641077","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261185204,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Uk00AI01L_306cd25c-dfae-486c-bfe2-facd7f6bc493.jpg?v=1758641078"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Uk00AI01L_306cd25c-dfae-486c-bfe2-facd7f6bc493.jpg?v=1758641078","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261217972,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51RQUdO2UmL_487957fe-319d-48f4-bcaf-591a193a6661.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51RQUdO2UmL_487957fe-319d-48f4-bcaf-591a193a6661.jpg?v=1758641077","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261250740,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51FLbFzEXhL_933030bb-5911-42a5-ac31-7c5158299dfe.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51FLbFzEXhL_933030bb-5911-42a5-ac31-7c5158299dfe.jpg?v=1758641077","width":1001},{"alt":"[Australia - AusPower] - 1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement ","id":32189261283508,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51w27o-OlVL_9d50e4e0-cd6f-4175-9f62-c6268340b730.jpg?v=1758641077"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51w27o-OlVL_9d50e4e0-cd6f-4175-9f62-c6268340b730.jpg?v=1758641077","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1000P\/R Rotary Encoder, Incremental Rotary Encoder, DC 5-26 V Universal Rotary Encoder, A, B, Z, 3-Phase Output, with 2 m Cable 6 mm D-Wave, for Intelligent Control Path Measurement\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item name: incremental rotary encoder Model: E6B2-CWZ6C\nMaterial: lead alloy (shell), aluminium (body). Input voltage: DC5 ~ 26V (open\ncollector output type). Output mode: voltage output, collector output,\ncomplementary output, push-pull output, longline drive output, differential\noutput, fork output Output phase: A, B, Z phase. Outer diameter: 38 mm.\nDiameter of the thrust shaft: 6 mm. Standard length of wiring wire: 2 m.\nResolution (pulse\/rotation): 100, 200, 300, 360, 400, 500, 600, 1000, 1024,\n1200, 2000, 2500, 3600, 5000 (optional) Type of wiring: Brown cable: DC5-26V\n(positive pole). Blue line: 0 V (negative pole). Phase difference between\noutputs: 90°±45° between A and B (1\/4 T ± 1\/8 T) Output configuration: NPN\nopen collector output Output capacity: applied voltage: max. 30 VDC;\nsynchronous current: max. 35mA; Residual voltage: 0.4V max. (at synchronous\ncurrent of 35 mA) Maximum response frequency (3): 100 kHz Output rise and\nfall time: max. 1μs (control output voltage: 5V, load resistance: 1kΩ, cable\nlength: max. 2 m). Initial moment of force: 0.9mNm max. Moment of inertia:\n1x10-6 kg.m² max. (3 x 10-7 kg.m² max. at 600 P\/R max.) Radial shaft load:\n30N. Load on the thrust shaft: 20N. Package list: 1 x rotary encoder. 3 x\nscrews. 1 x instructions (English language\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eA, B, Z 3-phase outputOutput mode: voltage output, collector output, complementary output, push-pull output, long line output, differential output, fork output (output configuration: NPN output with open collector), 6mm D-shaped stainless steel spindle provide higher stability and protection ability, Output phase: A, B, Z phase.\u003c\/li\u003e\n \u003cli\u003e100-5000P \/ R rotary encoder to choose from: The rotary encoder can be used to measure the speed, angle and acceleration of an object as well as length measurement. Resolution (Pulse\/Rotation): 100P\/R, 200P\/R, 300P\/R, 360P\/R, 400P\/R, 500P\/R, 600P\/R, 1000P\/R, 1024P\/R, 1200P\/R, 2000P\/R, 2500P\/R, 3600P\/R, 5000P\/R (optional)\u003c\/li\u003e\n \u003cli\u003eArea of application: the photoelectric incremental encoder is suitable for intelligent control of various distance measurements, such as the automatic guillotine machine made of long leather, the control of the steel cutting length, the height and weight scale and the student racing robot.\u003c\/li\u003e\n \u003cli\u003eSafety design: built-in rotary encoder circuit protection system, load short circuit protection, reverse polarity protection of the power supply. Vibration resistance (destruction): 10 to 500 Hz, 2 mm or 150 m\/s2 double amplitude for 11 minutes 3 times in X, Y and Z direction. Shock resistance (destruction): 1000m\/s2 each 3 times in X, Y and Z direction.\u003c\/li\u003e\n \u003cli\u003eWiring and note: the right wiring method is brown line: DC5-26V (positive pole), blue line: 0V (negative pole), black line: A (phase), white line: B (phase), orange line: Z (phase).\u003c\/li\u003e\n \u003c\/ul\u003e"}
